突出顯示geom_bar()中具有非常特定條件的框

我想通過使輪廓更粗來突出顯示 geom_bar() 圖中遵循特定條件的幾個框。

我的條件標簽是：

colors = c('a','b','c','d','e','f','g','h','i','j','k','l')
health = c('very_good', 'good', 'moderate', 'bad', 'very_bad')
smoking_status = c('Current_Smoker','Ex-Smoker','Nonsmoke')

我的情節代碼是：

smoking_health %>%
 ggplot(aes(health, colors_percentage, fill = colors))
   geom_bar(stat = 'identity', color = 'black')
   facet_grid(~ smoking_status, scale = 'free', space = 'free_x')
 scale_fill_manual(values = palette)
 theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust = 1, size = 8))

我想強調條件：

(smoking_status == 'Nonsmoke' & health == 'Moderate' & (colors %in% c('c', 'f'))) |
  (smoking_status == 'Current_Smoker' & health == 'very_bad' & colors == 'e')

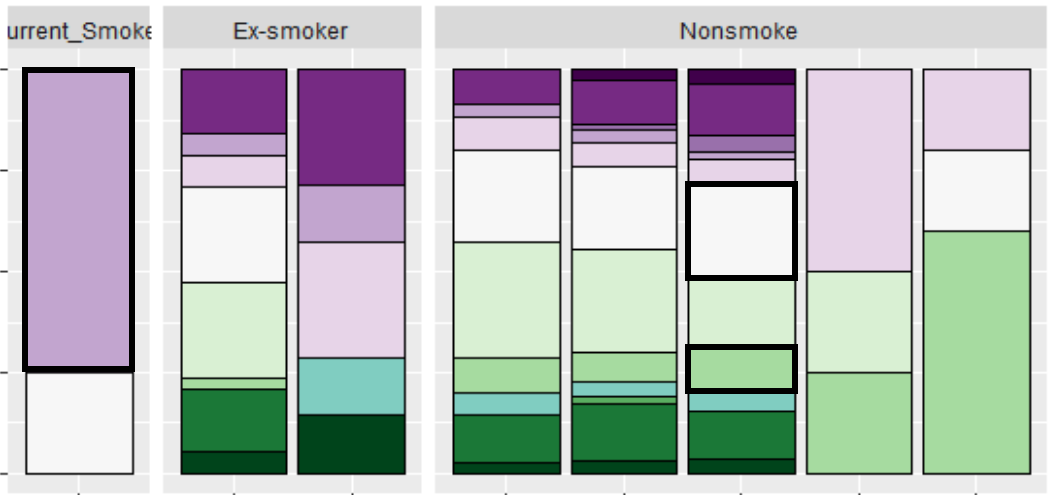

這就是我想要的最終情節：

我似乎無法找到一種方法來加粗這些特定條件的輪廓。

有人知道方法嗎？

提前致謝！

uj5u.com熱心網友回復：

我們沒有您的資料來重現您的情節，但這種方法應該適合您。它依賴于geom_bar可以賦予size美感的事實來確定其輪廓的寬度。您可以根據您希望使用突出顯示特定的箱子的邏輯規則，在資料幀的新列，該飼料的size引數中aes。請記住添加一個scale_size_manual呼叫來選擇要用于普通框和突出顯示框的線寬。

smoking_health %>%
  mutate(highlighted = (smoking_status == 'Nonsmoker' &
                        health == 'moderate' & colors %in% c("l", "a")) |
                       (smoking_status == 'Current_Smoker' & health == "very_good" &
                       colors == "j")) %>%
   ggplot(aes(health, colors_percentage, fill = colors))
   geom_bar(aes(size = highlighted),
            stat = 'identity', color = 'black', position = "fill")
   facet_grid(~ smoking_status, scale = 'free', space = 'free_x')
   scale_fill_manual(values = palette)
  scale_size_manual(values = c(0.5, 2))
   theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust = 1, size = 8))
   theme(legend.position = "none")

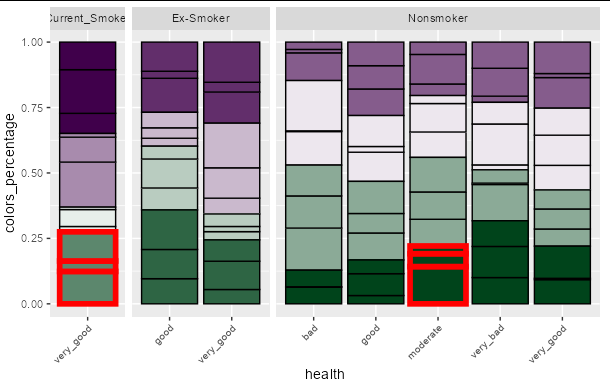

請注意，您可以使用相同的技巧輕松添加色標，使框更加突出：

smoking_health %>%
  mutate(highlighted = (smoking_status == 'Nonsmoker' &
                        health == 'moderate' & colors %in% c("l", "a")) |
                       (smoking_status == 'Current_Smoker' & health == "very_good" &
                       colors == "j")) %>%
   ggplot(aes(health, colors_percentage, fill = colors))
   geom_bar(aes(size = highlighted, color = highlighted),
            stat = 'identity', position = "fill")
   facet_grid(~ smoking_status, scale = 'free', space = 'free_x')
   scale_fill_manual(values = palette)
   scale_size_manual(values = c(0.5, 2))
   scale_color_manual(values = c("black", "red"))
   theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust = 1, size = 8))
   theme(legend.position = "none")

使用的資料

smoking_health <- structure(list(colors_percentage = c(
  0.424281163606793,  0.757145850220695,
0.272088683908805, 0.702225066488609, 0.783901083283126, 0.31812732364051,
0.25504200020805, 0.150501632830128, 0.949092260561883, 0.176580579485744,
0.597438448341563, 0.490371913416311, 0.310657090973109, 0.690649163676426,
0.815282948082313, 0.119425331009552, 0.112637027399614, 0.48738272418268,
0.628815256524831, 0.691388996317983, 0.516097098588943, 0.349926907802001,
0.894879485014826, 0.884916280163452, 0.683286903426051, 0.560128865065053,
0.87698360090144, 0.875387869309634, 0.62485910882242, 0.182680936297402,
0.827586045023054, 0.641206950880587, 0.920631993561983, 0.156408043345436,
0.696290905354545, 0.862210909835994, 0.59949598624371, 0.627007181989029,
0.671079852851108, 0.68094572937116, 0.52527018962428, 0.232511073350906,
0.671282195718959, 0.572535041952506, 0.00735216797329485, 0.217277518706396,
0.715195999480784, 0.998276757542044, 0.357245847582817, 0.645074530970305,
0.643338346853852, 0.0380584141239524, 0.0638308054767549, 0.674578275764361,
0.176417721668258, 0.0331670793239027, 0.21982069965452, 0.650513555621728,
0.303580678766593, 0.11516772210598, 0.0128057508263737, 0.114486665232107,
0.598777604289353, 0.759205947630107, 0.581150981364772, 0.649594946065918,
0.290496403817087, 0.772731678327546, 0.57460440415889, 0.474307884462178,
0.421877446817234, 0.638829972362146, 0.0785523615777493, 0.345375114353374,
0.187747624702752, 0.545154723571613, 0.309543700655922, 0.891319246962667,
0.72464850358665, 0.528383505064994, 0.0506025629583746, 0.286434431327507,
0.81406940240413, 0.920075967442244, 0.136473591905087, 0.990138751687482,
0.950963140232489, 0.32558137900196, 0.614674870390445, 0.881066406844184,
0.181831295602024, 0.8991091218777, 0.937552833463997, 0.277483612066135,
0.986416225554422, 0.626976334722713), colors = c("a", "b", "c",
"f", "i", "k", "l", "c", "d", "e", "f", "i", "l", "b", "c", "f",
"g", "h", "i", "l", "c", "e", "f", "i", "j", "k", "l", "c", "f",
"h", "i", "l", "a", "b", "c", "f", "i", "k", "l", "c", "d", "e",
"f", "i", "l", "b", "c", "f", "g", "h", "i", "l", "c", "e", "f",
"i", "j", "k", "l", "c", "f", "h", "i", "l", "a", "b", "c", "f",
"i", "k", "l", "c", "d", "e", "f", "i", "l", "b", "c", "f", "g",
"h", "i", "l", "c", "e", "f", "i", "j", "k", "l", "c", "f", "h",
"i", "l"), smoking_status = c("Current_Smoker", "Ex-Smoker",
"Nonsmoker", "Nonsmoker", "Nonsmoker", "Ex-Smoker", "Nonsmoker",
"Nonsmoker", "Current_Smoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker",
"Nonsmoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker", "Current_Smoker",
"Ex-Smoker", "Nonsmoker", "Nonsmoker", "Nonsmoker", "Ex-Smoker",
"Nonsmoker", "Nonsmoker", "Current_Smoker", "Ex-Smoker", "Nonsmoker",
"Nonsmoker", "Nonsmoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker",
"Current_Smoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker", "Nonsmoker",
"Ex-Smoker", "Nonsmoker", "Nonsmoker", "Current_Smoker", "Ex-Smoker",
"Nonsmoker", "Nonsmoker", "Nonsmoker", "Ex-Smoker", "Nonsmoker",
"Nonsmoker", "Current_Smoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker",
"Nonsmoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker", "Current_Smoker",
"Ex-Smoker", "Nonsmoker", "Nonsmoker", "Nonsmoker", "Ex-Smoker",
"Nonsmoker", "Nonsmoker", "Current_Smoker", "Ex-Smoker", "Nonsmoker",
"Nonsmoker", "Nonsmoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker",
"Current_Smoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker", "Nonsmoker",
"Ex-Smoker", "Nonsmoker", "Nonsmoker", "Current_Smoker", "Ex-Smoker",
"Nonsmoker", "Nonsmoker", "Nonsmoker", "Ex-Smoker", "Nonsmoker",
"Nonsmoker", "Current_Smoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker",
"Nonsmoker", "Ex-Smoker", "Nonsmoker", "Nonsmoker"), health = c("very_good",
"good", "moderate", "very_good", "bad", "very_good", "good",
"very_bad", "very_good", "good", "moderate", "very_good", "bad",
"very_good", "good", "very_bad", "very_good", "good", "moderate",
"very_good", "bad", "very_good", "good", "very_bad", "very_good",
"good", "moderate", "very_good", "bad", "very_good", "good",
"very_bad", "very_good", "good", "moderate", "very_good", "bad",
"very_good", "good", "very_bad", "very_good", "good", "moderate",
"very_good", "bad", "very_good", "good", "very_bad", "very_good",
"good", "moderate", "very_good", "bad", "very_good", "good",
"very_bad", "very_good", "good", "moderate", "very_good", "bad",
"very_good", "good", "very_bad", "very_good", "good", "moderate",
"very_good", "bad", "very_good", "good", "very_bad", "very_good",
"good", "moderate", "very_good", "bad", "very_good", "good",
"very_bad", "very_good", "good", "moderate", "very_good", "bad",
"very_good", "good", "very_bad", "very_good", "good", "moderate",
"very_good", "bad", "very_good", "good", "very_bad")), row.names = c(1L,
2L, 3L, 6L, 9L, 11L, 12L, 15L, 16L, 17L, 18L, 21L, 24L, 26L,
27L, 30L, 31L, 32L, 33L, 36L, 39L, 41L, 42L, 45L, 46L, 47L, 48L,
51L, 54L, 56L, 57L, 60L, 61L, 62L, 63L, 66L, 69L, 71L, 72L, 75L,
76L, 77L, 78L, 81L, 84L, 86L, 87L, 90L, 91L, 92L, 93L, 96L, 99L,
101L, 102L, 105L, 106L, 107L, 108L, 111L, 114L, 116L, 117L, 120L,
121L, 122L, 123L, 126L, 129L, 131L, 132L, 135L, 136L, 137L, 138L,
141L, 144L, 146L, 147L, 150L, 151L, 152L, 153L, 156L, 159L, 161L,
162L, 165L, 166L, 167L, 168L, 171L, 174L, 176L, 177L, 180L), class = "data.frame")

palette <- c("#40004B", "#622E6B", "#855C8C", "#A88BAD", "#CAB9CD", "#EDE7EE",
"#E7EEEA", "#B9CCC0", "#8BAA97", "#5C876D", "#2E6544", "#00441B")

標籤：r ggplot2 几何条
