使用標簽文本更新JPanel

2022-01-25 13:25:58 前端設計

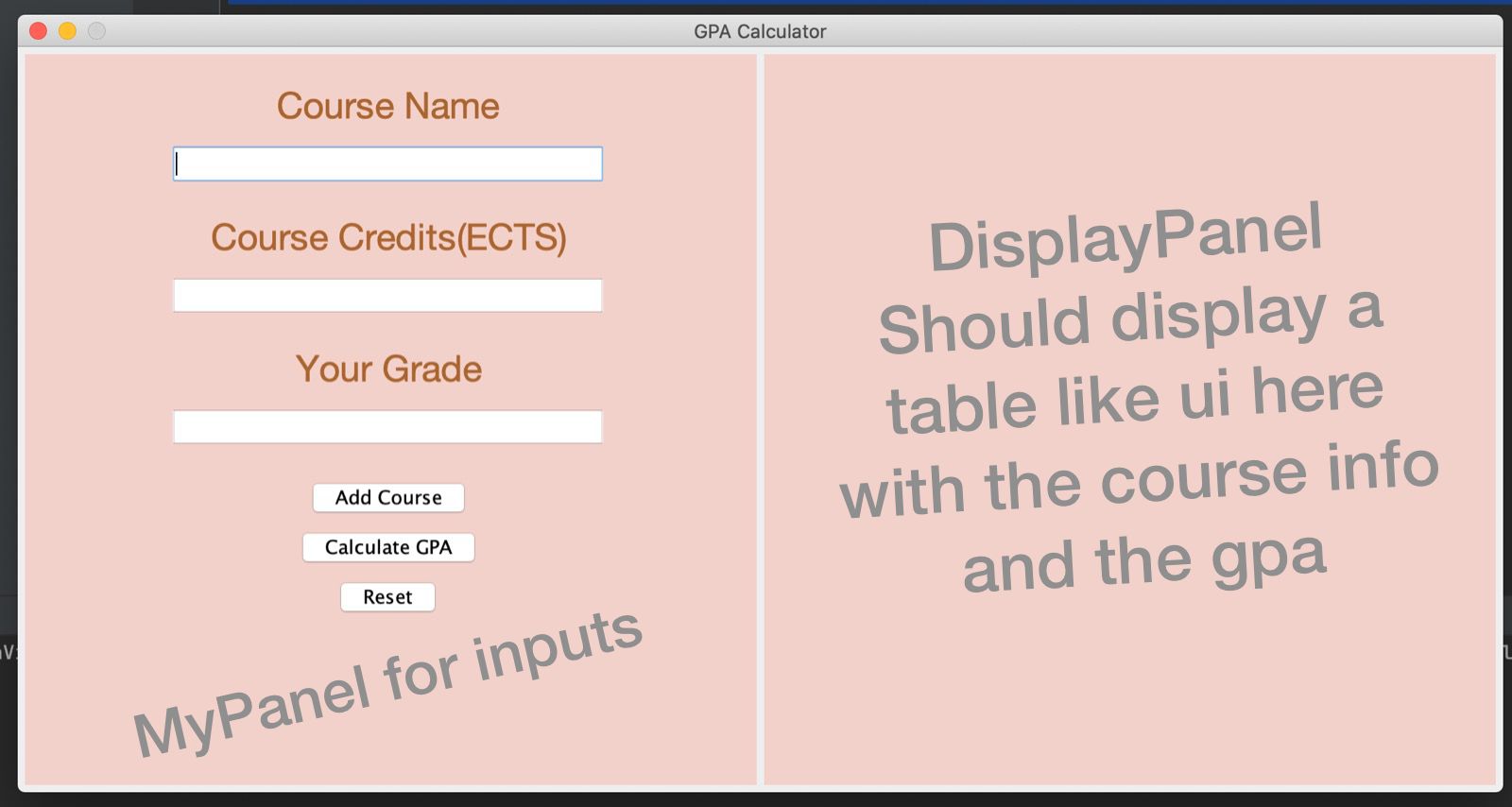

我正在開發一個應用程式,它將通過 MyPanel 類中的按鈕和文本框從用戶那里獲取資訊。我想顯示用戶在 DisplayTable 面板中輸入的課程資訊。我希望每次按下 MyPanel 類中的添加課程按鈕時它都會更新。我嘗試從 MyPanel 類中呼叫 setLabelText 方法,實際功能應該是更新面板并在單擊按鈕時顯示傳遞串列中每個元素的文本,但仍然無法更新。你能告訴我每次按下 addCourseButton 時如何更新 DisplayPanel 的 infoLabel 文本嗎?

使用標簽文本更新 JPanel

主類

public class Main {
    //TODO
    // PREVENT TYPE MISMATCH IN TEXT FIELDS
    // DISPLAY A TABLE OF COURSE NAMES - COURSE CREDITS - COURSE NAME AND THE GPA
    // CLEAN UP
    public static void main(String[] args) {
        new MyFrame();
    }
}

類 MyFrame

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

public class MyFrame extends JFrame{

    MainPanel mainPanel;

    MyFrame(){
        mainPanel = new MainPanel();

        this.add(mainPanel);
        this.setTitle("GPA Calculator");
        this.setResizable(false);
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        this.setSize(500,500);
        this.pack();
        this.setLocationRelativeTo(null);

        this.setVisible(true);
    }
}

類主面板

import javax.swing.*;

public class MainPanel extends JPanel {

    DisplayPanel displayPanel = new DisplayPanel();
    MyPanel myPanel = new MyPanel(displayPanel);

    MainPanel() {
        this.add(myPanel);
        this.add(displayPanel);
    }
}

類 MyPanel

import javax.swing.*;
import javax.swing.Timer;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.util.*;
import java.util.List;

public class MyPanel extends JPanel implements ActionListener{

    ArrayList<String> courseNames;
    ArrayList<Integer> courseCredits;
    ArrayList<Double> courseGrades;
    Thread thread;
    JLabel nameLabel;
    JLabel creditLabel;
    JLabel gradeLabel;
    JTextField nameField;
    JTextField creditField;
    JTextField gradeField;
    JButton calculateButton;
    JButton addCourseButton;
    JButton resetButton;
    JLabel message;

    DisplayPanel displayPanel;

    double result = 0;
    int tempInt = 0;
    double tempDouble = 0;

    MyPanel(DisplayPanel displayPanel) {

        this.displayPanel = new DisplayPanel();

        message = new JLabel();
        message.setHorizontalAlignment(JLabel.CENTER);
        message.setFont(new Font("Helvetica Neue", Font.PLAIN, 35));
        message.setForeground(new Color(0xA1683A));
        message.setAlignmentX(JLabel.CENTER_ALIGNMENT);

        courseNames = new ArrayList();
        courseCredits = new ArrayList();
        courseGrades = new ArrayList();

        nameLabel = new JLabel();
        nameLabel.setHorizontalAlignment(JLabel.CENTER);
        nameLabel.setText("Course Name");
        nameLabel.setFont(new Font("Helvetica Neue", Font.PLAIN, 25));
        nameLabel.setForeground(new Color(0xA1683A));
        nameLabel.setAlignmentX(JLabel.CENTER_ALIGNMENT);

        nameField = new JTextField();
        nameField.setPreferredSize(new Dimension(300,30));
        nameField.setMaximumSize(nameField.getPreferredSize());

        creditLabel = new JLabel();
        creditLabel.setHorizontalAlignment(JLabel.CENTER);
        creditLabel.setText("Course Credits(ECTS)");
        creditLabel.setFont(new Font("Helvetica Neue", Font.PLAIN, 25));
        creditLabel.setForeground(new Color(0xA1683A));
        creditLabel.setAlignmentX(JLabel.CENTER_ALIGNMENT);

        creditField = new JTextField();
        creditField.setPreferredSize(new Dimension(300,30));
        creditField.setMaximumSize(creditField.getPreferredSize());

        gradeLabel = new JLabel();
        gradeLabel.setHorizontalAlignment(JLabel.CENTER);
        gradeLabel.setText("Your Grade");
        gradeLabel.setFont(new Font("Helvetica Neue", Font.PLAIN, 25));
        gradeLabel.setForeground(new Color(0xA1683A));
        gradeLabel.setAlignmentX(JLabel.CENTER_ALIGNMENT);

        gradeField = new JTextField();
        gradeField.setPreferredSize(new Dimension(300,30));
        gradeField.setMaximumSize(gradeField.getPreferredSize());


        resetButton = new JButton("Reset");
        resetButton.setAlignmentX(JLabel.CENTER_ALIGNMENT);
        resetButton.addActionListener(this);
        addCourseButton = new JButton("Add Course");
        addCourseButton.setAlignmentX(JLabel.CENTER_ALIGNMENT);
        addCourseButton.addActionListener(this);
        calculateButton = new JButton("Calculate GPA");
        calculateButton.setAlignmentX(JLabel.CENTER_ALIGNMENT);
        calculateButton.addActionListener(this);

        //spacing and adding the elements
        this.add(Box.createRigidArea(new Dimension(0,20)));
        this.add(nameLabel);
        this.add(Box.createRigidArea(new Dimension(0,10)));
        this.add(nameField);
        this.add(Box.createRigidArea(new Dimension(0,20)));
        this.add(creditLabel);
        this.add(Box.createRigidArea(new Dimension(0,10)));
        this.add(creditField);
        this.add(Box.createRigidArea(new Dimension(0,20)));
        this.add(gradeLabel);
        this.add(Box.createRigidArea(new Dimension(0,10)));
        this.add(gradeField);
        this.add(Box.createRigidArea(new Dimension(0,20)));
        this.add(addCourseButton);
        this.add(Box.createRigidArea(new Dimension(0,5)));
        this.add(calculateButton);
        this.add(Box.createRigidArea(new Dimension(0,5)));
        this.add(resetButton);
        this.add(Box.createRigidArea(new Dimension(0,30)));
        this.add(message);

        this.setPreferredSize(new Dimension(500, 500));
        this.setBackground(new Color(0xEED2CC));
        this.setLayout(new BoxLayout(this,BoxLayout.Y_AXIS));
    }

    //calculate the GPA
    public double calculateGPA(){
        for (Integer courseCredit : courseCredits) {
            tempInt  = courseCredit;
        }
        for(int i = 0; i<courseGrades.size();i  ){
            tempDouble  = courseGrades.get(i) * courseCredits.get(i);
        }
        return tempDouble/tempInt;
    }

    @Override
    public void actionPerformed(ActionEvent e) throws NumberFormatException {

        if(e.getSource().equals(addCourseButton)){

            //add items from the textFields to lists
            String tempText = nameField.getText();
            int tempCredit = Integer.parseInt(creditField.getText());
            double tempGrade = Double.parseDouble(gradeField.getText());
            courseNames.add(tempText);
            courseCredits.add(tempCredit);
            courseGrades.add(tempGrade);

            //set textFields to empty
            nameField.setText("");
            creditField.setText("");
            gradeField.setText("");

            //display a message for 3 seconds
            thread = new Thread();
            thread.start();
            message.setText("Course Added Successfully!");
            Timer timer = new Timer(3000, a -> message.setText(null));
            timer.setRepeats(false);
            timer.start();

            //add to table panel
            displayPanel.setLabelText(courseNames,courseCredits,courseGrades);
            //displayPanel.update();
        }

        //calculate the GPA, initialize the display panel
        //to display the courses names-credits-results and the gpa
        //as a table
        if(e.getSource().equals(calculateButton)){
            result = calculateGPA();
            message.setText(result   "");
        }

        //clear the lists,text fields and the message
        //get rid of the table panel
        if(e.getSource().equals(resetButton)){
            courseNames.clear();
            courseGrades.clear();
            courseCredits.clear();
            tempDouble = 0;
            tempInt = 0;
            displayPanel.removeAll();
            displayPanel.repaint();
            nameField.setText("");
            creditField.setText("");
            gradeField.setText("");
            message.setText(null);
        }
    }
}

類 DisplayPanel

import javax.swing.*;
import java.awt.*;
import java.util.ArrayList;

public class DisplayPanel extends JPanel {

    JLabel infoLabel;

    public DisplayPanel() {

        this.setPreferredSize(new Dimension(500, 500));
        this.setBackground(new Color(0xEED2CC));
        this.setLayout(null);

        infoLabel = new JLabel();
        infoLabel.setHorizontalAlignment(JLabel.LEFT);
        infoLabel.setFont(new Font("Helvetica Neue", Font.PLAIN, 35));
        infoLabel.setForeground(new Color(0xA1683A));
        infoLabel.setAlignmentX(JLabel.CENTER_ALIGNMENT);
        infoLabel.setBackground(Color.RED);
        infoLabel.setOpaque(true);


        this.add(infoLabel);
    }

    public void setLabelText(ArrayList<String> courseNames, ArrayList<Integer> courseCredits, ArrayList<Double> courseGrades) {

        this.removeAll();
        this.add(infoLabel);
        this.repaint();
        this.revalidate();

        for (String name : courseNames) {
            infoLabel.setText(name   "\t"   courseCredits.get(courseNames.indexOf(name))   "\t"   courseGrades.get(courseNames.indexOf(name)));
        }

        infoLabel.setOpaque(true);
    }
}

uj5u.com熱心網友回復:

您正在創建兩個 DisplayPanel,將一個添加到 GUI 并嘗試更改另一個未顯示的 DisplayPanel 的狀態。

class MainPanel extends JPanel {

    DisplayPanel displayPanel = new DisplayPanel(); // *** HERE ***
    MyPanel myPanel = new MyPanel(displayPanel);

    MainPanel() {
        this.add(myPanel);
        this.add(displayPanel);
    }
}
public class MyPanel extends JPanel implements ActionListener {

    // ....

    DisplayPanel displayPanel;

    // ...

    MyPanel(DisplayPanel displayPanel) {

        this.displayPanel = new DisplayPanel();   // *** and HERE ***

        // ...
    }

    // ...
}

而事實上,在 MainPanel 中,您正在嘗試將 DisplayPanel 物件添加到兩個不同的容器中,這在 Swing 中是不合法的,只有第二個 add 方法才會計數。

建議:

  • 首先也是最重要的:創建一個類來保存您正在顯示的關鍵資訊。在下面的示例中,我將展示如何執行此操作,如何創建 CourseInfo 類來保存您最終將顯示的每一“行”資料。事實上,無論你決定如何顯示資料,我認為首先做這件事是你可以而且應該做的最重要的事情。

  • 創建一個且只有一個組件,添加它并在需要時更改其狀態。

  • 使用 JList 或更好的 JTable 來顯示資料。

  • 避免使用空布局和 setBounds,而是使用布局管理器。在此處查看布局管理器教程:此處的布局管理器教程:使用標簽文本更新 JPanel

    首先,一個類來保存存盤在 JTable 的每一行中的關鍵資訊,稱為 CourseInfo,它具有名稱 String、credits int 和 Grades 雙欄位:

    public class CourseInfo {
        private String name;
        private int credits;
        private double grades;

        public CourseInfo(String name, int credits, double grades) {
            this.name = name;
            this.credits = credits;
            this.grades = grades;
        }

        public String getName() {
            return name;
        }

        public int getCredits() {
            return credits;
        }

        public double getGrades() {
            return grades;
        }

    }


    接下來是一個 TableModel 類,它包含上述資訊的集合并允許在 JTable 中顯示它。我擴展了 DefaultTableModel,因為它預裝了內部偵聽器,這些偵聽器會在發生更改時通知外部物件(JTable 本身和添加到其中的任何偵聽器)。

    The constructor calls the super's constructor that accepts the COLUMNS String array, the one that holds the names of the columns displayed in the JTable's header. The internal (super's) model holds a collection of CourseInfo objects, and the tricky part is displaying one CourseInfo object in 3 columns. This is done by making the column count 3, and by overriding getValueAt(...) so that it returns the correct CourseInfo field depending on the column parameter

    import javax.swing.table.DefaultTableModel;

    @SuppressWarnings("serial")
    public class CourseTableModel extends DefaultTableModel {
        private static final String[] COLUMNS = { "Name", "Credits", "Grades" };

        public CourseTableModel() {
            super(COLUMNS, 0);
        }

        public void addCourseInfo(CourseInfo courseInfo) {
            super.addRow(new CourseInfo[] { courseInfo });
        }

        @Override
        public int getColumnCount() {
            return COLUMNS.length;
        }

        @Override
        public Object getValueAt(int row, int column) {
            CourseInfo courseInfo = (CourseInfo) super.getValueAt(row, 0);
            switch (column) {
            case 0:
                return courseInfo.getName();
            case 1:
                return courseInfo.getCredits();
            case 2:
                return courseInfo.getGrades();

            default:
                throw new IllegalArgumentException("Unexpected value: "   column);
            }
        }

        @Override
        public Class<?> getColumnClass(int columnIndex) {
            if (getRowCount() > 0) {
                return getValueAt(0, columnIndex).getClass();
            } else {
                return super.getColumnClass(columnIndex);
            }
        }
    }

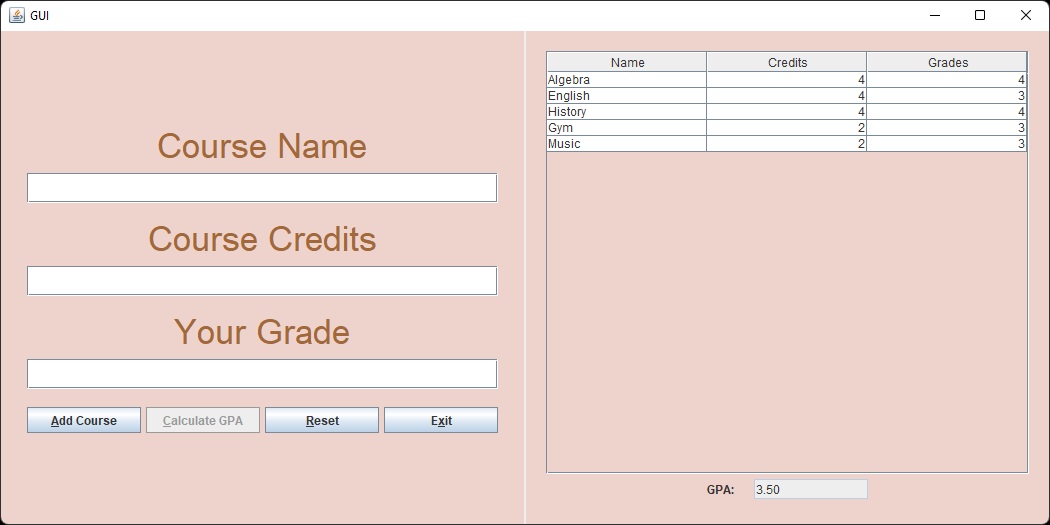

    Next, the JPanel that displays the JTable, TablePanel. It also displays the GPA in a field. Note that there is not much to this class, that most of the program's logic is extracted out of it so that it focuses on the view or GUI aspect. The TableModel is passed into this via its constructor. It allows outside classes to set what is displayed in the gpaField via the setGpa(...) method:

    import java.awt.BorderLayout;
    import javax.swing.BorderFactory;
    import javax.swing.Box;
    import javax.swing.JLabel;
    import javax.swing.JPanel;
    import javax.swing.JScrollPane;
    import javax.swing.JTable;
    import javax.swing.JTextField;

    @SuppressWarnings("serial")
    public class TablePanel extends JPanel {
        private JTable table;
        private JScrollPane scrollPane;
        private JTextField gpaField = new JTextField(10);

        public TablePanel(CourseTableModel tableModel) {
            int gap = 20;
            setBorder(BorderFactory.createEmptyBorder(gap, gap, gap, gap));
            setBackground(CoursesMainPanel.BACKGROUND);

            table = new JTable(tableModel);
            scrollPane = new JScrollPane(table);

            table.setOpaque(false);
            scrollPane.setOpaque(false);
            scrollPane.getViewport().setOpaque(false);

            JPanel gpaPanel = new JPanel();
            gpaPanel.setOpaque(false);
            gpaPanel.add(new JLabel("GPA:"));
            gpaPanel.add(Box.createHorizontalStrut(10));
            gpaPanel.add(gpaField);

            gpaField.setEditable(false);

            setLayout(new BorderLayout());
            add(scrollPane);
            add(gpaPanel, BorderLayout.PAGE_END);
        }

        public void setGpa(String gpaText) {
            gpaField.setText(gpaText);
        }
    }


    Next, the GetInfoPanel, a JPanel that gets the user's input. It has 3 JTextField's, JLabels, JButtons, and is organized via a GridBagLayout. It has a calcGpaButton, which is a relic from an earlier incarnation of this program, but which was disabled (and should be deleted probably), once I put the GPA calculation into a TableModelListener.

    It too doesn't have much program logic, and outsources that to a control class, CoursesControl, that holds the code called by the button's ActionListeners. It has public methods, such as public String getCourseName() {... that allow the control class to extract information from this object when needed.

    import java.awt.Font;
    import java.awt.GridBagConstraints;
    import java.awt.GridBagLayout;
    import java.awt.GridLayout;
    import java.awt.Insets;
    import java.awt.event.KeyEvent;
    import javax.swing.BorderFactory;
    import javax.swing.JButton;
    import javax.swing.JLabel;
    import javax.swing.JPanel;
    import javax.swing.JTextField;
    import javax.swing.SwingConstants;

    @SuppressWarnings("serial")
    public class GetInfoPanel extends JPanel {
        private static final Font LABEL_FONT = new Font("Helvetica Neue", Font.PLAIN, 35);
        private static final int TXT_FLD_COLS = 15;
        private JTextField courseNameField = new JTextField(TXT_FLD_COLS);
        private JTextField courseCreditsField = new JTextField(TXT_FLD_COLS);
        private JTextField courseGradesField = new JTextField(TXT_FLD_COLS);
        private JButton addCourseButton = new JButton("Add Course");
        private JButton calcGpaButton = new JButton("Calculate GPA"); // TODO: delete
        private JButton resetButton = new JButton("Reset");
        private JButton exitButton = new JButton("Exit");
        private int row = 0;
        private int insetGap = 2;
        private CoursesControl control;

        public GetInfoPanel() {
            int gap = 20;
            setBorder(BorderFactory.createEmptyBorder(gap, gap, gap, gap));
            setLayout(new GridBagLayout());
            setBackground(CoursesMainPanel.BACKGROUND);

            addToPanel("Course Name", courseNameField);
            addToPanel("Course Credits", courseCreditsField);
            addToPanel("Your Grade", courseGradesField);

            addCourseButton.addActionListener(e -> addCourse());
            calcGpaButton.addActionListener(e -> calcGpa());
            resetButton.addActionListener(e -> reset());
            exitButton.addActionListener(e -> exit());
            addCourseButton.setMnemonic(KeyEvent.VK_A);
            calcGpaButton.setMnemonic(KeyEvent.VK_C);
            resetButton.setMnemonic(KeyEvent.VK_R);
            exitButton.setMnemonic(KeyEvent.VK_X);

            calcGpaButton.setEnabled(false);  // Not needed

            JPanel buttonPanel = new JPanel(new GridLayout(1, 0, 5, 0));
            buttonPanel.setOpaque(false);
            buttonPanel.add(addCourseButton);
            buttonPanel.add(calcGpaButton);
            buttonPanel.add(resetButton);
            buttonPanel.add(exitButton);
            GridBagConstraints gbc = new GridBagConstraints();
            gbc.gridx = 0;
            gbc.gridy = row;
            gbc.fill = GridBagConstraints.HORIZONTAL;
            gbc.insets = new Insets(6 * insetGap, 3 * insetGap, 3 * insetGap, 3 * insetGap);
            add(buttonPanel, gbc);
        }

        public String getCourseName() {
            return courseNameField.getText();
        }

        public String getCourseCredits() {
            return courseCreditsField.getText();
        }

        public String getCourseGrades() {
            return courseGradesField.getText();
        }

        public void clear() {
            courseNameField.setText("");
            courseCreditsField.setText("");
            courseGradesField.setText("");
            courseNameField.requestFocusInWindow();
        }

        public void setControl(CoursesControl control) {
            this.control = control;
        }

        private void addCourse() {
            if (control != null) {
                control.addCourse();
            }
            clear();
        }

        // TODO: delete as it is not really needed
        private void calcGpa() {
            if (control != null) {
                control.calcGpa();
            }
        }

        private void reset() {
            if (control != null) {
                control.reset();
            }
            clear();
        }

        private void exit() {
            if (control != null) {
                control.exit();
            }
        }

        private void addToPanel(String title, JTextField textField) {
            GridBagConstraints gbc = new GridBagConstraints();
            gbc.anchor = GridBagConstraints.CENTER;
            gbc.gridx = 0;
            gbc.gridy = row;
            row  ;
            gbc.fill = GridBagConstraints.HORIZONTAL;
            gbc.insets = new Insets(3 * insetGap, 3 * insetGap, 0, 3 * insetGap);
            JLabel label = new JLabel(title);
            label.setFont(LABEL_FONT);
            label.setForeground(CoursesMainPanel.LABEL_FOREGROUND);
            label.setHorizontalAlignment(SwingConstants.CENTER);
            add(label, gbc);
            gbc.gridy = row;
            row  ;
            gbc.insets.bottom = 3 * insetGap;
            textField.setFont(textField.getFont().deriveFont(20f));
            add(textField, gbc);
        }
    }


    Next the CoursesControl class, the one that holds most of the program's logic. This holds references to the view's GUI classes and methods that are called by the view's listeners. The addCourse() method extracts the text from the GetInfoPanel, it then validates that the numeric text is indeed numeric, and shows an error if not. If the data is good, it creates a new CourseInfo object with the data, and then adds a row to the table model by calling tableModel.addCourseInfo(courseInfo);. It adds a TableModelListener to the table model and whenever the model changes, this class calculates and displays the GPA by calling tablePanel.setGpa on the TablePanel instance:

    import java.awt.Window;
    import javax.swing.JOptionPane;
    import javax.swing.SwingUtilities;
    import javax.swing.event.TableModelEvent;
    import javax.swing.event.TableModelListener;

    public class CoursesControl {
        private GetInfoPanel getInfoPanel;
        private CourseTableModel tableModel;
        private TablePanel tablePanel;

        public void setGetInfoPanel(GetInfoPanel getInfoPanel) {
            this.getInfoPanel = getInfoPanel;
        }

        public void setTableModel(CourseTableModel tableModel) {
            this.tableModel = tableModel;
            tableModel.addTableModelListener(new TableListener());
        }

        public void setTablePanel(TablePanel tablePanel) {
            this.tablePanel = tablePanel;
        }

        public void addCourse() {
            if (getInfoPanel == null || tableModel == null) {
                return;
            }

            String courseName = getInfoPanel.getCourseName();
            String courseCreditsTxt = getInfoPanel.getCourseCredits();
            String courseGradesTxt = getInfoPanel.getCourseGrades();

            int courseCredits = 0;
            try {
                courseCredits = Integer.parseInt(courseCreditsTxt);
            } catch (NumberFormatException e) {
                String message = "Course credits should be an integer";
                String title = "Invalid Input";
                int type = JOptionPane.ERROR_MESSAGE;
                JOptionPane.showMessageDialog(getInfoPanel, message, title, type);
                getInfoPanel.clear();
                return;
            }

            double courseGrades = 0.0;
            try {
                courseGrades = Double.parseDouble(courseGradesTxt);
            } catch (NumberFormatException e) {
                String message = "Course grades should be an number";
                String title = "Invalid Input";
                int type = JOptionPane.ERROR_MESSAGE;
                JOptionPane.showMessageDialog(getInfoPanel, message, title, type);
                getInfoPanel.clear();
                return;
            }

            CourseInfo courseInfo = new CourseInfo(courseName, courseCredits, courseGrades);
            tableModel.addCourseInfo(courseInfo);
        }

        private class TableListener implements TableModelListener {

            @Override
            public void tableChanged(TableModelEvent e) {
                if (tablePanel == null) {
                    return;
                }
                int rows = tableModel.getRowCount();
                if (rows == 0) {
                    tablePanel.setGpa("");
                } else {
                    double sum = 0.0;
                    int totalCredits = 0;
                    for (int row = 0; row < rows; row  ) {
                        int credits = (int) tableModel.getValueAt(row, 1);
                        double grade = (double) tableModel.getValueAt(row, 2);

                        totalCredits  = credits;
                        sum  = credits * grade;
                    }

                    double gpa = sum / totalCredits;
                    tablePanel.setGpa(String.format("%.2f", gpa));
                }
            }

        }

        public void reset() {
            if (tableModel != null) {
                tableModel.setRowCount(0);
            }
        }

        public void exit() {
            if (getInfoPanel != null) {
                Window window = SwingUtilities.getWindowAncestor(getInfoPanel);
                window.dispose();
            }
        }

        // TODO: delete as it isn't needed
        public void calcGpa() {
            // This is not really needed, since the GPA is calculated in a table model listener

        }

    }


    最后,一個主類將它們放在一起,創建一個 JFrame,并顯示它。這將創建此產品中的主要參與者,并通過將視圖物件傳遞給控制元件并將控制元件傳遞給需要它的視圖物件來將它們連接在一起:

    import java.awt.Color;
    import java.awt.GridLayout;
    import javax.swing.JFrame;
    import javax.swing.JPanel;
    import javax.swing.SwingUtilities;

    @SuppressWarnings("serial")
    public class CoursesMainPanel extends JPanel {
        public static final Color BACKGROUND = new Color(0xEED2CC);
        public static final Color LABEL_FOREGROUND = new Color(0xA1683A);

        private CoursesControl control = new CoursesControl();
        private GetInfoPanel getInfoPanel = new GetInfoPanel();
        private CourseTableModel tableModel = new CourseTableModel();
        private TablePanel tablePanel = new TablePanel(tableModel);

        public CoursesMainPanel() {
            getInfoPanel.setControl(control);
            control.setGetInfoPanel(getInfoPanel);
            control.setTableModel(tableModel);
            control.setTablePanel(tablePanel);

            int gap = 2;
            setLayout(new GridLayout(1, 2, gap, gap));
            add(getInfoPanel);
            add(tablePanel);
        }

        public static void main(String[] args) {
            SwingUtilities.invokeLater(() -> {
                JFrame frame = new JFrame("GUI");
                frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
                frame.add(new CoursesMainPanel());
                frame.pack();
                frame.setLocationRelativeTo(null);
                frame.setVisible(true);
            });
        }
    }


    uj5u.com熱心網友回復:

    我將專注于解決您當前的問題,即infoLabel在課堂上顯示文本DisplayPanel

    你有三個問題。第一個是在 class 的建構式中MyPanel

    MyPanel(DisplayPanel displayPanel) {
        this.displayPanel = new DisplayPanel();


    您忽略了建構式引數并創建DisplayPanel. 因此displayPanelclass 的成員MyPanel您在 class 中創建的物件不同MainPanel所以你呼叫一個方法,DisplayPanel這是加入MainPanel您需要將該行更改為以下內容。

    MyPanel(DisplayPanel displayPanel) {
        this.displayPanel = displayPanel;


    第二個問題是您在DisplayPanel. 當沒有布局管理器時,您需要顯式設定添加到JPanel. 您沒有這樣做,因此JLabel不會顯示您的只需從的建構式中洗掉此行DisplayPanel

    this.setLayout(null);


    最后,在setLabelTextclass的 method 中DisplayPanel,您只需要JLabel通過 method 更改文本setText無需洗掉所有組件并再次添加它們。方法應該如下。

    public void setLabelText(ArrayList<String> courseNames, ArrayList<Integer> courseCredits, ArrayList<Double> courseGrades) {
        StringBuilder sb = new StringBuilder();
        for (String name : courseNames) {
            sb.append(name   "\t"   courseCredits.get(courseNames.indexOf(name))   "\t"   courseGrades.get(courseNames.indexOf(name)));
        }
        infoLabel.setText(sb.toString());
    }


    編輯

    如果我的任務是制作這個應用程式,我會做如下的事情。

    import java.awt.BorderLayout;
    import java.awt.EventQueue;
    import java.awt.GridBagConstraints;
    import java.awt.GridBagLayout;
    import java.awt.GridLayout;
    import java.awt.event.ActionEvent;
    import java.text.ParseException;

    import javax.swing.JButton;
    import javax.swing.JFormattedTextField;
    import javax.swing.JFrame;
    import javax.swing.JLabel;
    import javax.swing.JPanel;
    import javax.swing.JScrollPane;
    import javax.swing.JTable;
    import javax.swing.JTextField;
    import javax.swing.table.DefaultTableModel;
    import javax.swing.text.MaskFormatter;

    public class GpaCalcs implements Runnable {
        private DefaultTableModel  tableModel;
        private JFormattedTextField  courseCreditsTextField;
        private JFormattedTextField  gradeTextField;
        private JFrame  frame;
        private JTable  table;
        private JTextField  courseNameTextField;

        public void run() {
            try {
                createAndDisplayGui();
            }
            catch (Exception x) {
                throw new RuntimeException(x);
            }
        }

        private void addCourse(ActionEvent event) {
            Object[] row = new Object[3];
            row[0] = courseNameTextField.getText();
            row[1] = courseCreditsTextField.getValue();
            row[2] = gradeTextField.getValue();
            tableModel.addRow(row);
        }

        private void createAndDisplayGui() throws ParseException {
            frame = new JFrame("GPA Calculator");
            frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
            frame.add(createMainPanel(), BorderLayout.CENTER);
            frame.pack();
            frame.setLocationByPlatform(true);
            frame.setVisible(true);
        }

        private void createButtonsPanel(JPanel formPanel, GridBagConstraints gbc) {
            JPanel buttonsPanel = new JPanel();
            JButton addCourseButton = new JButton("Add Course");
            addCourseButton.addActionListener(this::addCourse);
            buttonsPanel.add(addCourseButton);
            JButton calcGpaButton = new JButton("Calculate GPA");
            buttonsPanel.add(calcGpaButton);
            JButton resetButton = new JButton("Reset");
            resetButton.addActionListener(this::reset);
            buttonsPanel.add(resetButton);
            gbc.gridwidth = 3;
            formPanel.add(buttonsPanel, gbc);
        }

        private JScrollPane createDisplayPanel() {
            String[] columns = new String[]{"Course", "Credits", "Grade"};
            tableModel = new DefaultTableModel(columns, 0);
            table = new JTable(tableModel);
            JScrollPane scrollPane = new JScrollPane(table);
            return scrollPane;
        }

        private JPanel createFormPanel() throws ParseException {
            JPanel formPanel = new JPanel(new GridBagLayout());
            GridBagConstraints gbc = new GridBagConstraints();
            gbc.anchor = GridBagConstraints.LINE_START;
            gbc.gridx = 0;
            gbc.gridy = 0;
            gbc.insets.bottom = 5;
            gbc.insets.left = 5;
            gbc.insets.right = 5;
            gbc.insets.top = 5;
            JLabel courseNameLabel = new JLabel("Course Name");
            formPanel.add(courseNameLabel, gbc);
            gbc.gridx = 1;
            courseNameTextField = new JTextField(10);
            formPanel.add(courseNameTextField, gbc);
            gbc.gridx = 0;
            gbc.gridy = 1;
            JLabel courseCreditLabel = new JLabel("Course Credits (ECTS)");
            formPanel.add(courseCreditLabel, gbc);
            gbc.gridx = 1;
            MaskFormatter formatter = new MaskFormatter("####"); // throws java.text.ParseException
            courseCreditsTextField = new JFormattedTextField(formatter);
            courseCreditsTextField.setColumns(10);
            formPanel.add(courseCreditsTextField, gbc);
            gbc.gridx = 0;
            gbc.gridy = 2;
            JLabel gradeLabel = new JLabel("Your Grade");
            formPanel.add(gradeLabel, gbc);
            gbc.gridx = 1;
            formatter = new MaskFormatter("#.##");
            gradeTextField = new JFormattedTextField(formatter);
            gradeTextField.setColumns(10);
            formPanel.add(gradeTextField, gbc);
            gbc.gridx = 0;
            gbc.gridy = 3;
            createButtonsPanel(formPanel, gbc);
            return formPanel;
        }

        private JPanel createMainPanel() throws ParseException {
            JPanel mainPanel = new JPanel(new GridLayout(0, 2));
            mainPanel.add(createFormPanel());
            mainPanel.add(createDisplayPanel());
            return mainPanel;
        }

        private void reset(ActionEvent event) {
            courseNameTextField.setText("");
            courseCreditsTextField.setText("");
            gradeTextField.setText("");
        }

        public static void main(String[] args) {
            EventQueue.invokeLater(new GpaCalcs());
        }
    }


    轉載請註明出處,本文鏈接:https://www.uj5u.com/qianduan/420485.html

    標籤:

    上一篇:我用一個按鈕打開一個視窗。在那個視窗里面是另一個按鈕,它關閉剛剛打開的視窗并啟用第一個按鈕

    下一篇:返回列表

標籤雲
其他(135984) Python(24228) JavaScript(15073) Java(14739) C(11147) 區塊鏈(8215) AI(6936) 基礎類(6313) MySQL(5230) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4207) Linux(4118) PHP(3814) C#(3716) 爪哇(3561) html(3374) C語言(3288) C++語言(3117) sql(3024) R(2776) 熊猫(2774) Java相關(2746) 数组(2739) 疑難問題(2699) 反应(2482) 單片機工控(2479) css(2105) 数据框(1968) Web開發(1951) 节点.js(1938) VBA(1919) 網絡通信(1793) 蟒蛇-3.x(1774) 數據庫相關(1767) VB基礎類(1755) .NETCore(1671) ASP.NET(1650) 開發(1646) 系統維護與使用區(1617) C++(1582) 列表(1581) 基礎和管理(1579) json(1568) JavaEE(1566) 安卓(1523) HtmlCss(1519) 專題技術討論區(1515) Windows客戶端使用(1484) 扑(1469) iOS(1432) 查询(1408) .NET技术(1404) 打字稿(1376) Unity3D(1366) VCL組件開發及應用(1353) sql-server(1287) Qt(1283) 细绳(1226) HTML(CSS)(1220)

熱門瀏覽
  • vue移動端上拉加載

    可能做得過于簡單或者比較low,請各位大佬留情,一起探討技術 ......

    uj5u.com 2020-09-10 04:38:07 more
  • 優美網站首頁,頂部多層導航

    一個個人用的瀏覽器首頁,可以把一下常用的網站放在這里,平常打開會比較方便。 第一步,HTML代碼 <script src=https://www.cnblogs.com/szharf/p/"js/jquery-3.4.1.min.js"></script> <div id="navigate"> <ul> <li class="labels labels_1"> ......

    uj5u.com 2020-09-10 04:38:47 more
  • 頁面為要加<!DOCTYPE html>

    最近因為寫一個js函式,需要用到$(window).height(); 由于手寫demo的時候,過于自信,其實對前端方面的認識也不夠體系,用文本檔案直接敲出來的html代碼,第一行沒有加上<!DOCTYPE html> 導致了$(window).height();的結果直接是整個document的高 ......

    uj5u.com 2020-09-10 04:38:52 more
  • WordPress網站程式手動升級要做好資料備份

    WordPress博客網站程式在進行升級前,必須要做好網站資料的備份,這個問題良家佐言是遇見過的;在剛開始接觸WordPress博客程式的時候,因為升級問題和博客網站的修改的一些嘗試,良家佐言是吃盡了苦頭。因為購買的是西部數碼的空間和域名,每當佐言把自己的WordPress博客網站搞到一塌糊涂的時候 ......

    uj5u.com 2020-09-10 04:39:30 more
  • WordPress程式不能升級為5.4.2版本的原因

    WordPress是一款個人博客系統,受到英文博客愛好者和中文博客愛好者的追捧,并逐步演化成一款內容管理系統軟體;它是使用PHP語言和MySQL資料庫開發的,用戶可以在支持PHP和MySQL資料庫的服務器上使用自己的博客。每一次WordPress程式的更新,就會牽動無數WordPress愛好者的心, ......

    uj5u.com 2020-09-10 04:39:49 more
  • 使用CSS3的偽元素進行首字母下沉和首行改變樣式

    網頁中常見的一種效果,首字改變樣式或者首行改變樣式,效果如下圖。 代碼: <!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, ......

    uj5u.com 2020-09-10 04:40:09 more
  • 關于a標簽的講解

    什么是a標簽? <a> 標簽定義超鏈接,用于從一個頁面鏈接到另一個頁面。 <a> 元素最重要的屬性是 href 屬性,它指定鏈接的目標。 a標簽的語法格式:<a href=https://www.cnblogs.com/summerxbc/p/"指定要跳轉的目標界面的鏈接">需要展示給用戶看見的內容</a> a標簽 在所有瀏覽器中,鏈接的默認外觀如下: 未被訪問的鏈接帶 ......

    uj5u.com 2020-09-10 04:40:11 more
  • 前端輪播圖

    在需要輪播的頁面是引入swiper.min.js和swiper.min.css swiper.min.js地址: 鏈接:https://pan.baidu.com/s/15Uh516YHa4CV3X-RyjEIWw 提取碼:4aks swiper.min.css地址 鏈接:https://pan.b ......

    uj5u.com 2020-09-10 04:40:13 more
  • 如何設定html中的背景圖片(全屏顯示,且不拉伸)

    1 <style>2 body{background-image:url(https://uploadbeta.com/api/pictures/random/?key=BingEverydayWallpaperPicture); 3 background-size:cover;background ......

    uj5u.com 2020-09-10 04:40:16 more
  • Java學習——HTML詳解(上)

    HTML詳解 初識HTML Hyper Text Markup Language(超文本標記語言) 1 <!--DOCTYPE:告訴瀏覽器我們要使用什么規范--> 2 <!DOCTYPE html> 3 <html lang="en"> 4 <head> 5 <!--meta 描述性的標簽,描述一些 ......

    uj5u.com 2020-09-10 04:40:33 more
最新发布
  • 使用標簽文本更新JPanel

    我正在開發一個應用程式,它將通過 MyPanel 類中的按鈕和文本框從用戶那里獲取資訊。我想顯示用戶在 DisplayTable 面板中輸入的課程資訊。我希望每次按下 MyPanel 類中的添加...

    uj5u.com 2022-01-25 13:25:58 more
  • 我用一個按鈕打開一個視窗。在那個視窗里面是另一個按鈕,它關閉剛

    我制作了一個按鈕來創建一個新視窗并被禁用。在我創建的新視窗中,我輸入另一個按鈕來關閉這個新打開的視窗并啟用第一個按鈕。我不知道該怎么做 @Override public void...

    uj5u.com 2022-01-25 13:25:03 more
  • 在帶有換行符的TextArea上列印StringBuilder

    我正在開發一個計算 BMI 的系統。我正在使用 NetBeans(我是這個 IDE 的新手)但是我陷入了困境......我想用換行符在 textArea 上列印 StringBuilder 的值,但我做不到。代碼(個人...

    uj5u.com 2022-01-25 13:24:02 more
  • 如何禁用主機:全部在Ansible

    我想hosts: all在 Ansible 清單檔案中禁用。有時人們忘記修改 YAML 檔案中的 hosts 列,因此不小心將新配置推送到了內網中的所有主機。我對 Ansible 很陌生,感謝任何幫助!
    uj5u...

    uj5u.com 2022-01-24 16:32:34 more
  • 無法將主機目錄掛載到docker容器

    我有一個 python 應用程式,它每天運行以下載影像并保存到指定的檔案夾中,每天創建這樣的檔案夾/home/ubuntu/images/yyyymmdd。我已經在 ubuntu 20 上構建了我的 python 應用...

    uj5u.com 2022-01-24 16:31:52 more
  • R:手動指定因子水平

    我正在使用 R 編程語言。假設我有以下資料集:v1 <- c("2010-01","2010-02", "2010-03", "2010-04", "2010-05") v2 <- c("A", "B", "C", "D", "E")dates <- as.factor(sample...

    uj5u.com 2022-01-24 13:06:05 more
  • 在ggplot直方圖上顯示占觀察總數百分比的工具提示?

    我有一個直方圖,我希望工具提示顯示該箱中的觀察百分比。這是一個簡單的(可重現的)直方圖:library(tidyverse)library(ggplot2)library(plotly) hist <- iris %>% ggplot(aes(x...

    uj5u.com 2022-01-24 13:03:54 more
  • 使用rowSums從R中的參考值計算一行中的一定數量的值?

    好的,這個問題可能有點復雜,但我們開始吧。我最近學習了如何使用 rowSums 來計算某個數字在一行中出現的次數。這是我正在使用的資料框:Subjects LayCCD Day.1 Day.2 Day.3 Day...

    uj5u.com 2022-01-24 13:03:12 more
  • 獲取嵌套物件的所有不同鍵

    我的收藏中有以下資料:[ { _id: "2313123123", metadata: { path: "...", value: "...", name: "..." } },...

    uj5u.com 2022-01-24 06:11:48 more
  • SQL排序和排序表

    我一直在嘗試這個,但沒有達到我想要的確切結果。我有這張桌子:id aviacompany destination departure_time duration1 Alaska Air ATL 09-45 1802 A...

    uj5u.com 2022-01-24 06:10:56 more
