使用R在ggplot2條形圖中僅顯示兩個數字列之一

我有一個包含三列的資料集。一個是播放器；第二個是 Run_Value；第三個是 Num_years。我希望 Player 出現在 Y 軸上，Run_Value 顯示為 X 軸上的條，Num_Years 顯示為 Run_Value 條內或旁邊的一個較小的條。以下是我的條形圖當前的顯示方式。Num_Years 資料未顯示，這是我需要的。

此外，如果在每個 Run_Value 條的末尾可以出現它的 Run_Value，那就太好了。

我在 Stackoverflow 上搜索了一個類似的問題，但找不到。如果有，請分享鏈接。

--我在我的螢屏上看不到這兩個上傳的影像，不知道為什么。

Dplyr 代碼：

sp2358test <- spAll |>
  filter(RunValue < 0) |>
  select(Player, RunValue) |>
  add_count(Player, name="Num_years") |>
  filter(Num_years %in% c(2:8)) |>
  arrange(Num_years, Player) |>
  group_by(Player, Num_years) |>
  summarise(Run_Value = sum(RunValue))

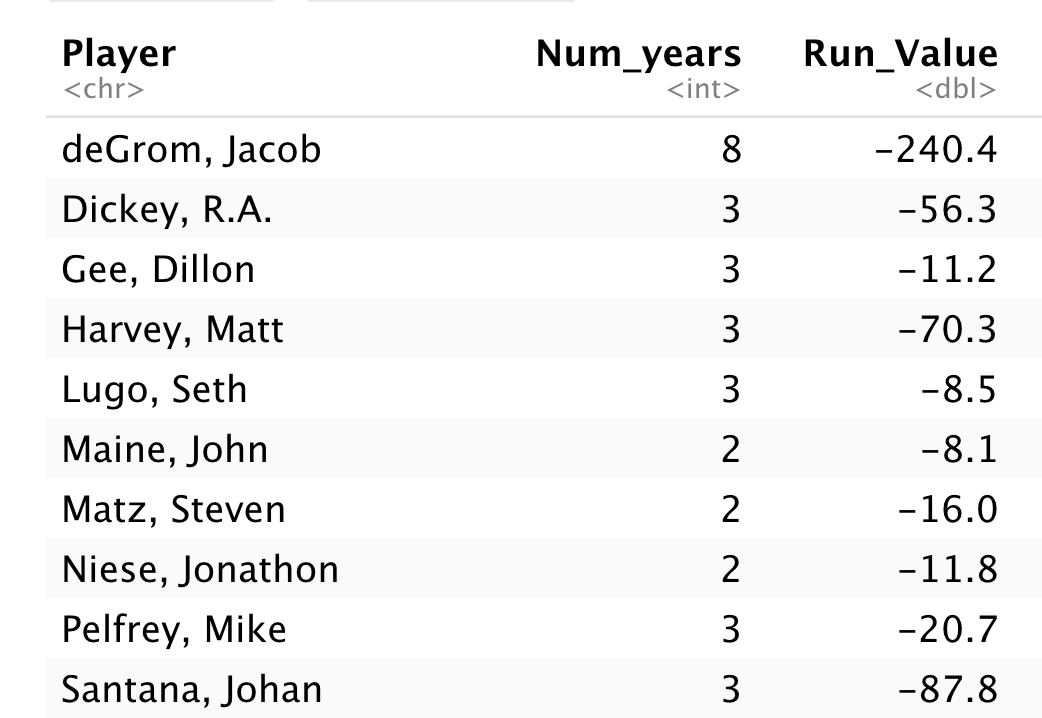

部分 dplyr 結果

我的 ggplot2 代碼

sp2358test |>
  ggplot(aes(fill=Run_Value, y=Player, x=Run_Value))
  geom_bar(position='dodge', stat='identity')
  lims(x = c(-250,0))
  guides(fill=guide_legend(title="Legend"))
  ggtitle("Mets Starters with Top Run Value Totals",
       subtitle = "Data from Statcast for 2008-2021")
  theme(plot.title = element_text(size = 14, color = "black"),
        plot.subtitle = element_text(size = 11, color = "purple"),
        text=element_text(color="blue"),
        axis.text=element_text(color="black"),
        legend.title = element_text(color = "black", size = 11)
  )

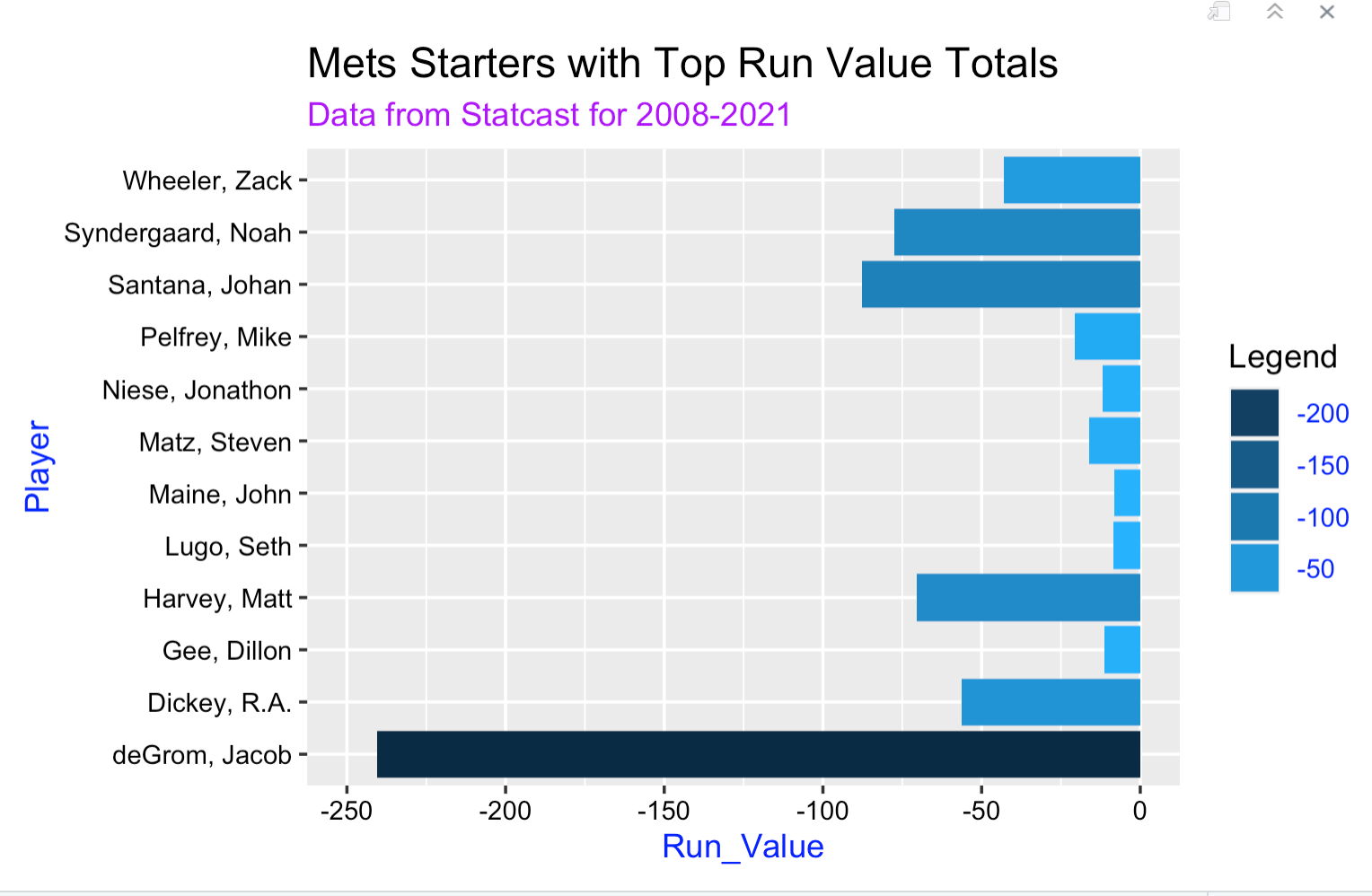

我的 ggplot2 影像

spAll 資料幀的 dput 結果：

structure(list(Player = c("deGrom, Jacob", "Dickey, R.A.", "Gee, Dillon",
"Harvey, Matt", "Lugo, Seth", "Maine, John", "Matz, Steven",
"Niese, Jonathon", "Pelfrey, Mike", "Santana, Johan", "Syndergaard, Noah",
"Wheeler, Zack"), Num_years = c(8L, 3L, 3L, 3L, 3L, 2L, 2L, 2L,
3L, 3L, 5L, 3L), Run_Value = c(-240.4, -56.3, -11.2, -70.3, -8.5,
-8.1, -16, -11.8, -20.7, -87.8, -77.5, -43.1)), class = c("grouped_df",
"tbl_df", "tbl", "data.frame"), row.names = c(NA, -12L), groups = structure(list(
    Player = c("deGrom, Jacob", "Dickey, R.A.", "Gee, Dillon",
    "Harvey, Matt", "Lugo, Seth", "Maine, John", "Matz, Steven",
    "Niese, Jonathon", "Pelfrey, Mike", "Santana, Johan", "Syndergaard, Noah",
    "Wheeler, Zack"), .rows = structure(list(1L, 2L, 3L, 4L,
        5L, 6L, 7L, 8L, 9L, 10L, 11L, 12L), ptype = integer(0), class = c("vctrs_list_of",
    "vctrs_vctr", "list"))), class = c("tbl_df", "tbl", "data.frame"
), row.names = c(NA, -12L), .drop = TRUE))

uj5u.com熱心網友回復：

您可能希望避免使用兩個 x 軸。考慮使用 facet_wrap 的替代方案。請注意，您首先需要將資料轉換為長格式。我已將 df 用于您的資料集。

library(ggplot2)
library(dplyr)
library(tidyr)

df2 <- df %>%
    pivot_longer(cols = c(Num_years, Run_Value), names_to = "metric")


df2 %>%
    ggplot()
    geom_col(aes(y=Player, x = value, fill = value))
    facet_wrap(~rev(metric),scales = "free_x")
    ggtitle("Mets Starters with Top Run Value Totals",
            subtitle = "Data from Statcast for 2008-2021")
    theme(plot.title = element_text(size = 14, color = "black"),
          plot.subtitle = element_text(size = 11, color = "purple"),
          text=element_text(color="blue"),
          axis.text=element_text(color="black"),
          legend.title = element_text(color = "black", size = 11)
    )

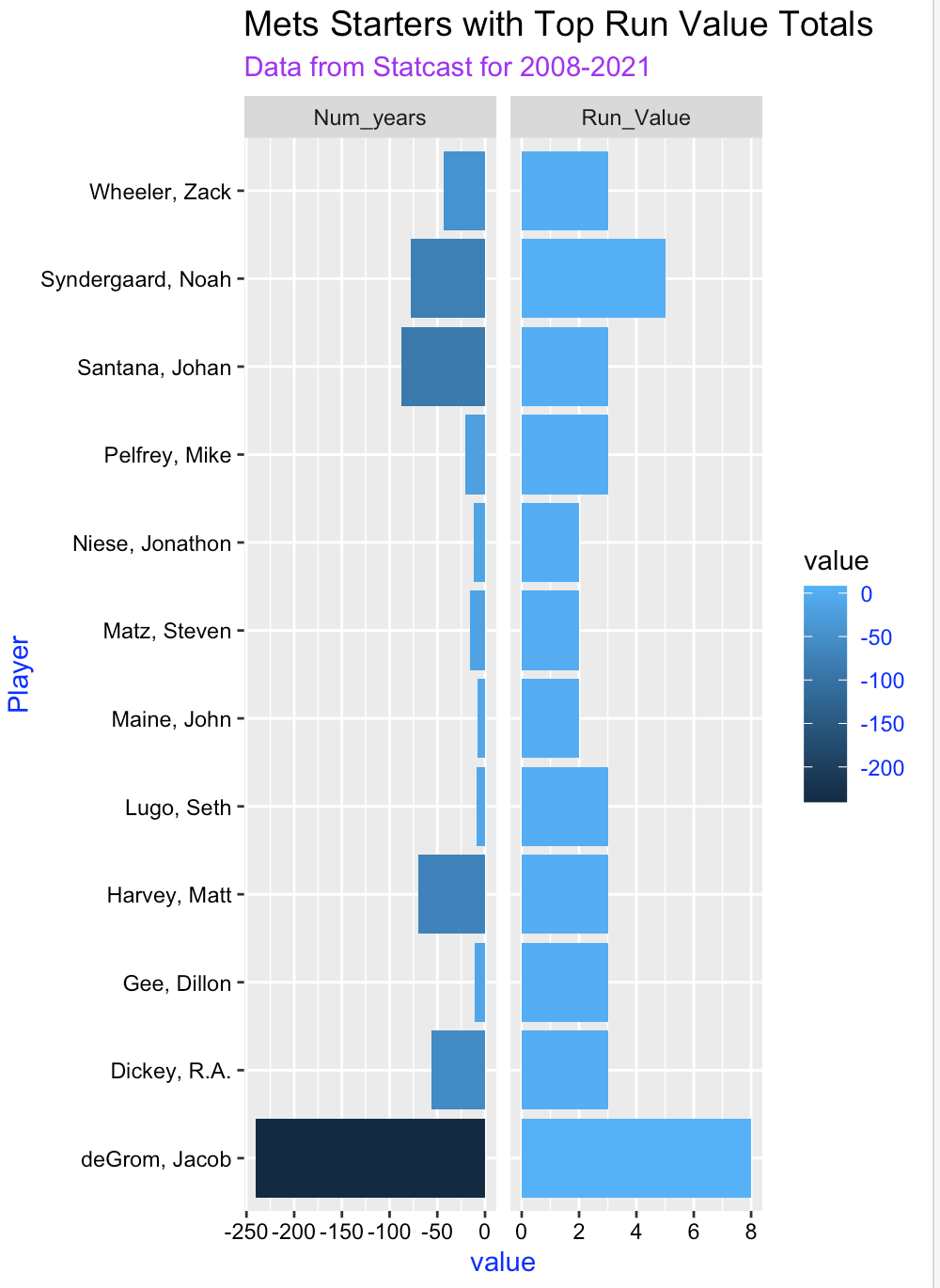

它讓你看起來像這樣。問題是您有兩個變數正在使用填充比例，而這兩個變數的值非常不同。你的意圖是什么？

uj5u.com熱心網友回復：

這是另一個更接近您的原始內容和您想要描述的內容。

library(ggplot2)
library(dplyr)
library(tidyr)

df2 <- df %>%
    pivot_longer(cols = c(Num_years, Run_Value), names_to = "metric")


df2 %>%
    ggplot()
    geom_bar(aes(y=Player, x = value, group = metric, fill = metric), stat='identity',
             position = "dodge")
    ggtitle("Mets Starters with Top Run Value Totals",
            subtitle = "Data from Statcast for 2008-2021")
    theme(plot.title = element_text(size = 14, color = "black"),
          plot.subtitle = element_text(size = 11, color = "purple"),
          text=element_text(color="blue"),
          axis.text=element_text(color="black"),
          legend.title = element_text(color = "black", size = 11)
    )

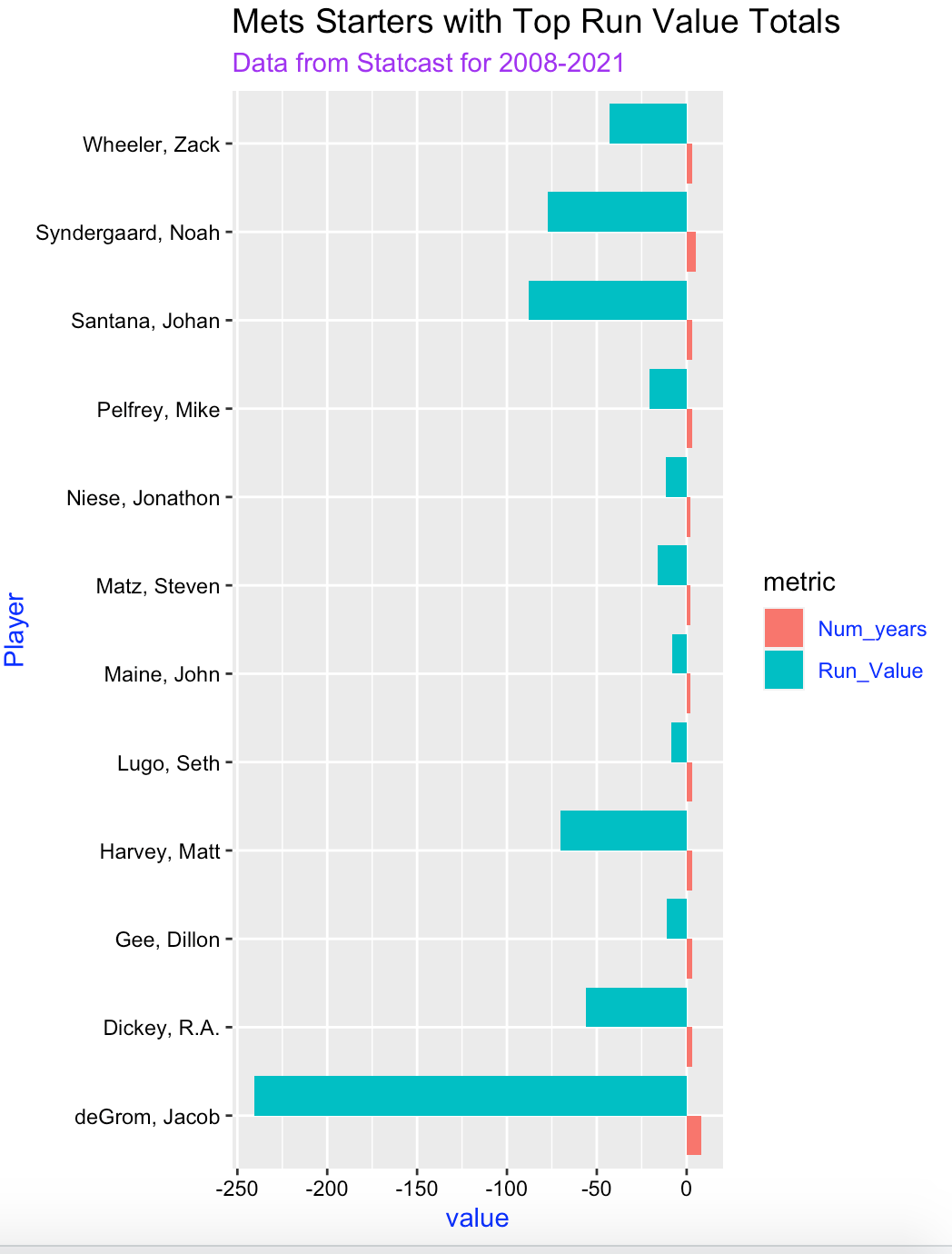

您在一個變數中有正數，而在另一個變數中有負數。忽略 xlim 很重要，否則它將洗掉 Num-years 變數的所有正值。

uj5u.com熱心網友回復：

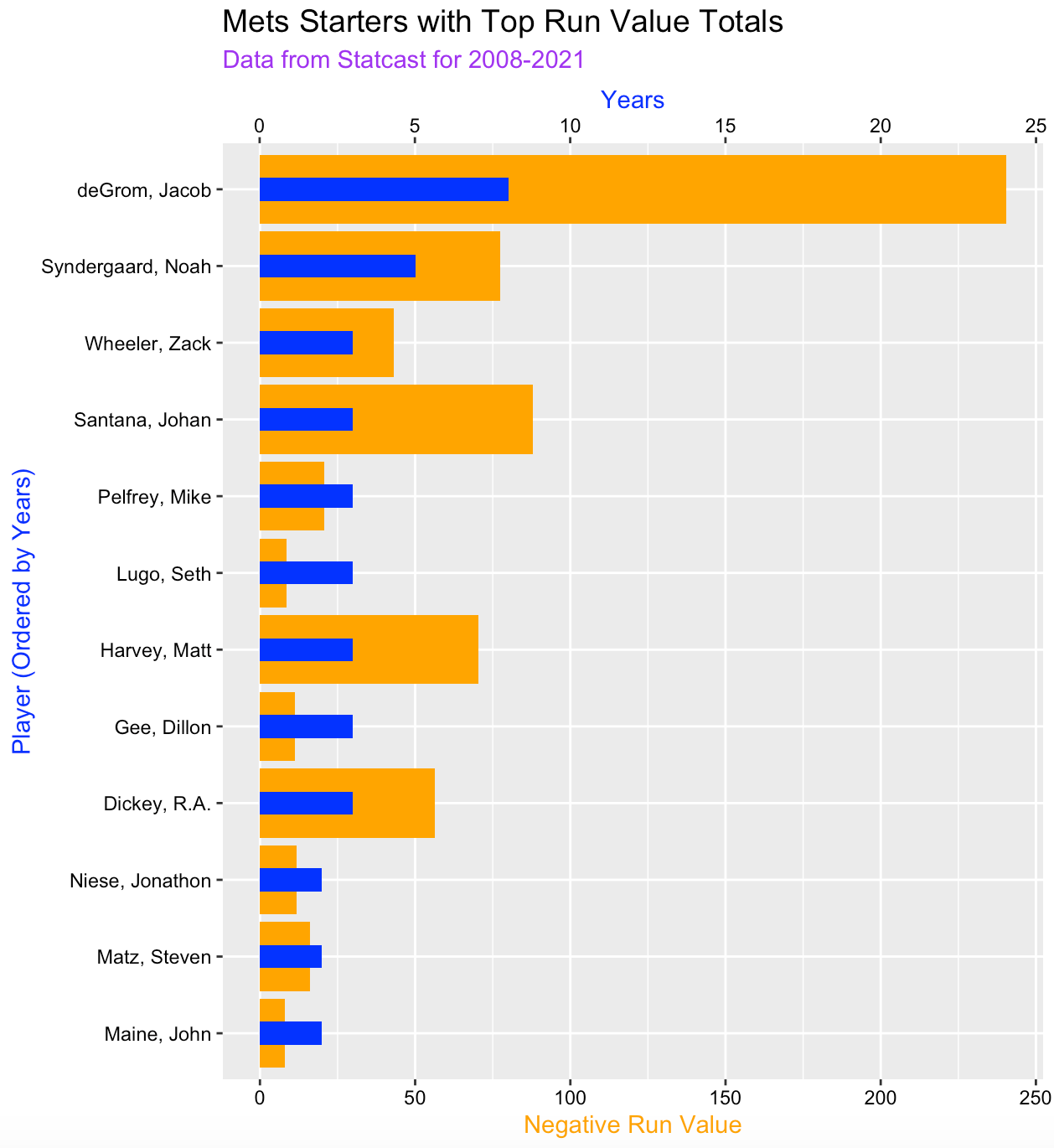

我想這就是你要找的。我反轉了 Run_Value 的符號，以便可以將資料繪制為正值。我按年份對 y 軸進行了排序。我使用顏色來區分兩個 x 軸。次軸必須縮放到第一個，所以我除以 10。這就是為什么它變為 25 而主軸變為 250。為了對齊，Years 通過乘以 10 來縮放。

df %>%
    mutate(Run_Value = -(Run_Value)) %>%
    ggplot()
    geom_bar(aes(x = Run_Value, y = reorder(Player, Num_years)), stat = 'identity', fill = "orange")
    geom_bar(aes(x = (Num_years * 10), y = Player), stat = 'identity', fill = "blue", width = 0.3)
    ggtitle("Mets Starters with Top Run Value Totals",
            subtitle = "Data from Statcast for 2008-2021")
    scale_x_continuous(name = "Negative Run Value", sec.axis = sec_axis(~ ./10, name  = "Years"))
    theme(plot.title = element_text(size = 14, color = "black"),
          plot.subtitle = element_text(size = 11, color = "purple"),
          text=element_text(color="blue"),
          axis.text=element_text(color="black"),
          legend.title = element_text(color = "black", size = 11),
          axis.title.x = element_text(color = "orange"),
          axis.title.x.top = element_text(color = "blue"))
    labs( y = "Player (Ordered by Years)")
