在ggplot2上刻面空間地圖時，geom_vline和geom_hline均失敗

在發布這個問題之前，我非常小心，以避免任何重復。所以我打算創建一個基于季度的分面圖，配備主要和次要網格，而緯度和經度標簽僅在主要網格上。這是MWE：

library(sf)
library(rnaturalearth)

sf::sf_use_s2(FALSE)

dummy <- data.frame(
  Lat1 = seq(-14.5, 4.5, by = 1),
  Lon1 = seq(105.5, 124.5, by = 1),
  quarter = rep(1:4, 10)
)

worldmap <- ne_countries(scale = 'medium', type = 'map_units', returnclass = 'sf')
wpp <- st_crop(worldmap, ymin = -15, ymax = -5, xmin = 105, xmax = 125)

minor.x <- seq(105, 125, by = 1)
minor.y <- seq(-15, -5, by = 1)


ggplot()
  geom_sf(data = wpp, color = "gray", fill = "gray")
  coord_sf(xlim=c(min(data.pie$Lon1-0.5),max(data.pie$Lon1) 0.5),
           ylim=c(min(data.pie$Lat1)-0.5,max(data.pie$Lat1) 0.5),
           expand = FALSE)
  geom_hline(aes(yintercept = minor.y), color = "gray", linetype = "solid", size = 0.1)
  geom_vline(aes(xintercept = minor.x), color = "gray", linetype = "solid", size = 0.1)
  geom_point(data = dummy, aes(x = Lon1, y = Lat1), color= "black")

  xlab("Longitude")   ylab("Latitude")

  scale_x_continuous(breaks = seq(105,125,2), minor_breaks = seq(106, 124, 2))
  scale_y_continuous(breaks = seq(-15,-5,2), minor_breaks = seq(-14, -4, 2))

  facet_wrap(~quarter)

  theme_minimal()
  theme(
    # panel.grid.minor = element_line(color = "blue", size = 0.1),
    panel.grid.major = element_blank(),
    panel.background = element_rect(colour = "black", size=0.5),
    legend.position = "right",
    legend.title.align = 0.5,
    legend.text.align = 1)

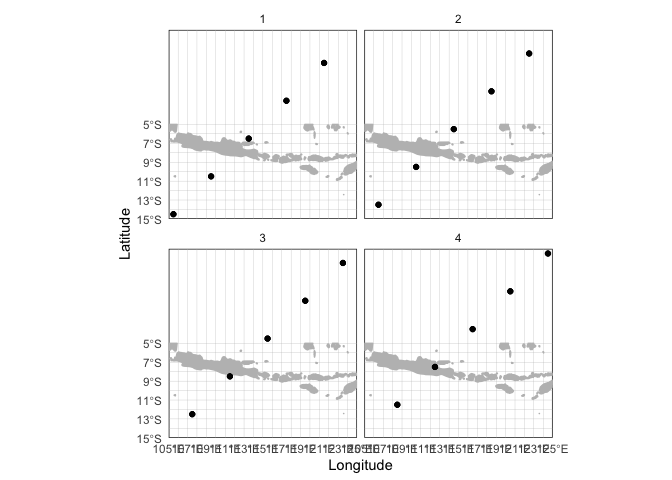

沒有刻面，我可以產生所需的輸出

但是，當我使用時facet_wrap(~quarter)出現錯誤：Error in FUN(X[[i]], ...) : subscript out of bounds

如果我關閉了，我設法生成了一個分面圖geom_vline，geom_hline但同時，我將失去對次要網格的控制（只顯示了主要網格。有什么解決方法嗎？PS。我使用的是最新的 R 和ggplot()版本.

uj5u.com熱心網友回復：

問題是你包裹x/yintercept在里面aes()。不是 100% 確定原因，但我的猜測是，當 ggplot2 進行分面時，它quarter也在尋找quarter傳遞給的資料中呼叫的列geom_hline/vline。但是，由于既沒有全域也沒有本地data，您會收到錯誤訊息。

作為這個問題的一個更最小的代表：

library(ggplot2)

ggplot()
  geom_point(data = mtcars, aes(hp, mpg))
  geom_point(aes(x = 1, y = 1), color = "red")
  facet_wrap(~cyl)
#> Error in FUN(X[[i]], ...): subscript out of bounds

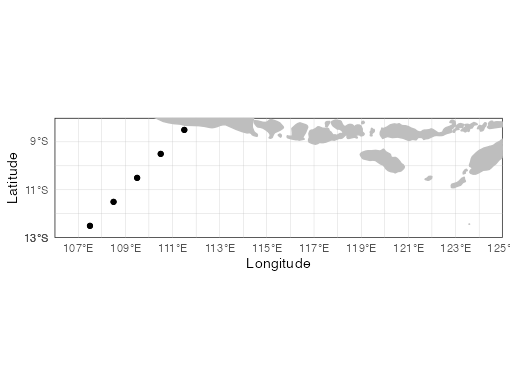

要解決您的問題，請將其設定x/yintercept為引數而不是美學。

library(sf)
library(rnaturalearth)
library(ggplot2)

ggplot()
  geom_sf(data = wpp, color = "gray", fill = "gray")
  coord_sf(
    xlim = range(dummy$Lon1)   c(-0.5, 0.5),
    ylim = range(dummy$Lat1)   c(-0.5, 0.5),
    expand = FALSE
  )
  geom_hline(yintercept = minor.y, color = "gray", linetype = "solid", size = 0.1)
  geom_vline(xintercept = minor.x, color = "gray", linetype = "solid", size = 0.1)
  geom_point(data = dummy, aes(x = Lon1, y = Lat1), color = "black")
  xlab("Longitude")
  ylab("Latitude")
  scale_x_continuous(breaks = seq(105, 125, 2), minor_breaks = seq(106, 124, 2))
  scale_y_continuous(breaks = seq(-15, -5, 2), minor_breaks = seq(-14, -4, 2))
  facet_wrap(~quarter)
  theme_minimal()
  theme(
    # panel.grid.minor = element_line(color = "blue", size = 0.1),
    panel.grid.major = element_blank(),
    panel.background = element_rect(colour = "black", size = 0.5),
    legend.position = "right",
    legend.title.align = 0.5,
    legend.text.align = 1
  )
