我的目標是在 y 軸上創建帶有計數的條形圖，并用組的百分比標記條形圖。下面的代碼讓我走到了一半 -

import seaborn as sns
from itertools import product
titanic = sns.load_dataset("titanic")

features = ['sex', 'class', 'who', 'adult_male']
n = 1

plt.figure(figsize=[12, 14])

for f in features:
    plt.subplot(3, 2, n)
    ax = sns.countplot(x=f, hue='survived', edgecolor='black', alpha=0.8, data=titanic)
    sns.despine()
    plt.title("Countplot of {}  by alive".format(f))
    n=n 1
    plt.tight_layout()

    for c in ax.containers:
        labels = [f'{h/titanic.survived.count()*100:0.1f}%' if (h := v.get_height()) > 0 else '' for v in c]
        ax.bar_label(c,labels=labels, label_type='edge')

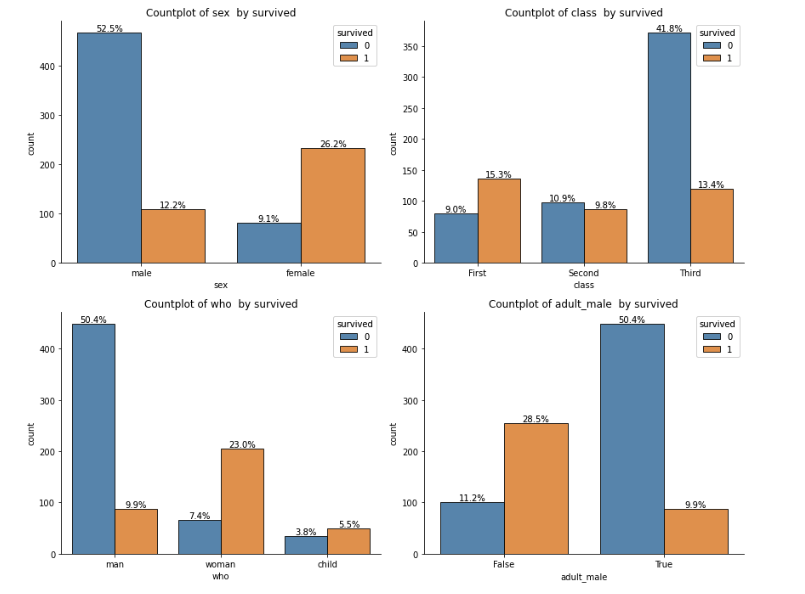

如何在 seaborn 計數圖上添加組內百分比作為條形標簽？

問題是百分比不正確。例如，在“幸存者性別計數圖”圖表中，男性百分比是計算整個資料集中“0”類男性的百分比。

如何調整我的代碼以計算男性類別中“0”類男性的百分比？所以男性類別中的藍色條應該是 81%，橙色條應該是 19%。

uj5u.com熱心網友回復：

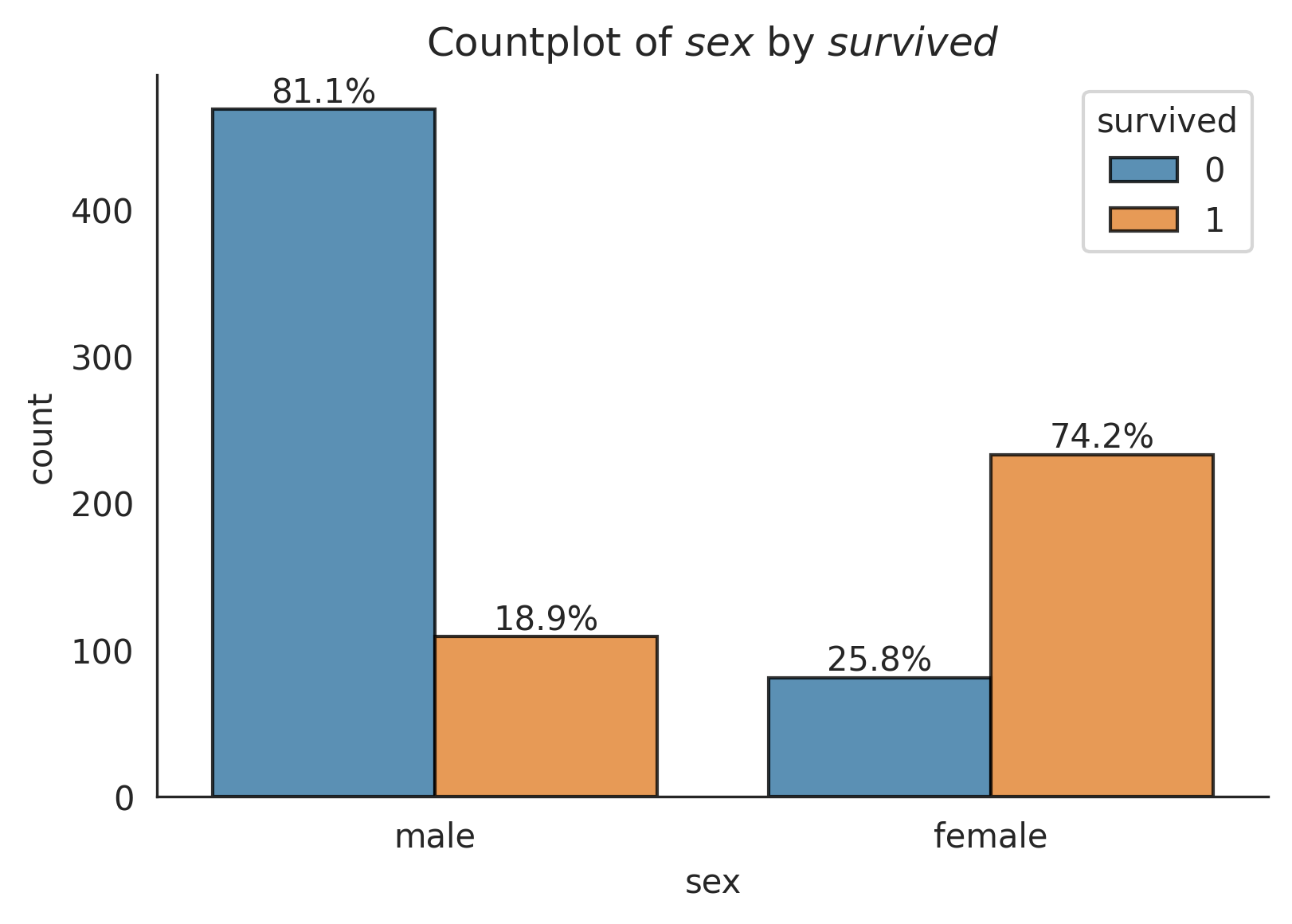

手動生成特征內比例，例如對于特征sex：

計算survived每個sex使用的比例

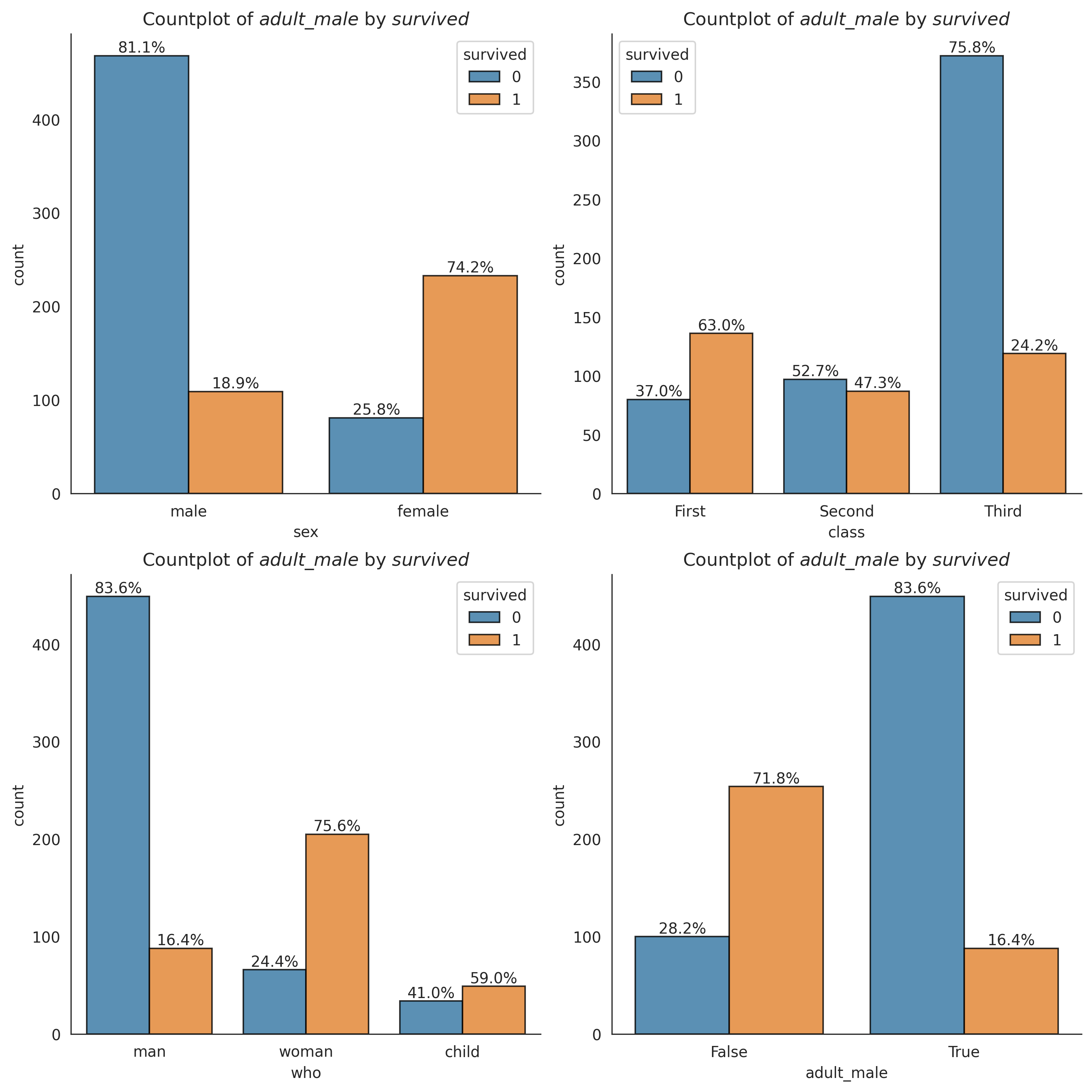

Full example with all features:

titanic = sns.load_dataset('titanic')

features = ['sex', 'class', 'who', 'adult_male']
hue = 'survived'

fig, axs = plt.subplots(2, 2, figsize=(10, 10), constrained_layout=True)

for feat, ax in zip(features, axs.ravel()):
    # group ordering differs by dtype
    col = titanic[feat]
    if col.dtype == 'category':
        groups = col.cat.categories
    elif col.dtype == 'bool':
        groups = [False, True]
    else:
        groups = col.unique()

    # within-feature proportions
    proportions = titanic.groupby(feat)[hue].value_counts(normalize=True)

    sns.countplot(x=feat, hue=hue, edgecolor='k', alpha=0.8, data=titanic, ax=ax)
    ax.set_title(f'Countplot of ${feat}$ by ${hue}$')
    sns.despine()

    # retrieve proportions by the container's label (hue) and group (feature)
    for c in ax.containers:
        labels = [f'{proportions.loc[g, int(c.get_label())]:.1%}' for g in groups]
        ax.bar_label(c, labels)

如何在 seaborn 計數圖上添加組內百分比作為條形標簽？
