影片KaplanMeier圖，如何在x軸方向擴展繪圖區域

我有這個生存資料框：

df <- structure(list(time = c(5, 6, 8, 10, 11, 12, 13, 14, 15, 17,
18, 20, 22, 27, 31, 32, 34, 39, 43, 44, 47, 48, 50, 60, 69, 77,
120, 1, 4, 6, 7, 8, 9, 11, 12, 13, 14, 15, 17, 19, 22, 23, 25,
26, 27, 31, 38, 40, 64, 89, 96, 105, 117), surv = c(0.96969696969697,
0.93841642228739, 0.906057235311963, 0.906057235311963, 0.871208880107657,
0.871208880107657, 0.871208880107657, 0.871208880107657, 0.829722742959673,
0.786053124909164, 0.742383506858655, 0.695984537679989, 0.649585568501323,
0.603186599322657, 0.603186599322657, 0.603186599322657, 0.603186599322657,
0.542867939390391, 0.482549279458125, 0.42223061952586, 0.42223061952586,
0.351858849604883, 0.351858849604883, 0.351858849604883, 0.351858849604883,
0.175929424802442, 0.175929424802442, 1, 0.96551724137931, 0.96551724137931,
0.929757343550447, 0.892567049808429, 0.892567049808429, 0.892567049808429,
0.850063856960409, 0.805323653962492, 0.760583450964576, 0.760583450964576,
0.760583450964576, 0.706256061609964, 0.651928672255351, 0.597601282900738,
0.597601282900738, 0.597601282900738, 0.597601282900738, 0.522901122538146,
0.522901122538146, 0.435750935448455, 0.435750935448455, 0.435750935448455,
0.435750935448455, 0.435750935448455, 0.435750935448455), V3 = c(0.97,
0.94, 0.91, 0.91, 0.87, 0.87, 0.87, 0.87, 0.83, 0.79, 0.74, 0.7,
0.65, 0.6, 0.6, 0.6, 0.6, 0.54, 0.48, 0.42, 0.42, 0.35, 0.35,
0.35, 0.35, 0.18, 0.18, 1, 0.97, 0.97, 0.93, 0.89, 0.89, 0.89,
0.85, 0.81, 0.76, 0.76, 0.76, 0.71, 0.65, 0.6, 0.6, 0.6, 0.6,
0.52, 0.52, 0.44, 0.44, 0.44, 0.44, 0.44, 0.44), grupo = c(1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
2, 2, 2, 2, 2, 2, 2, 2, 2, 2), risk = c(33, 31, 29, 27, 26, 24,
23, 22, 21, 19, 18, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5,
4, 3, 2, 1, 30, 29, 28, 27, 25, 24, 23, 21, 19, 18, 16, 15, 14,
13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1)), class = "data.frame", row.names = c(NA,
-53L))

使用這段代碼，我構建了一個影片 Kaplan Meier 圖：

library(ggplot2)
library(gganimate)

ggplot(data=df, aes(x=time, y=surv, group=grupo, color=as.factor(grupo)))
  geom_line(size=1.5)
  geom_point(size = 2, color="gray")
  guides(color = guide_legend(
    override.aes=list(shape = 1)))
  scale_color_brewer(name="Gender",palette="Set1",labels=c("Female","Male"))
  labs(title = "Survival according to gender", x = "Time [weeks]", y = "Survival [%]")
  scale_y_continuous(limits = c(0,1))
  geom_text(mapping=aes(y=V3,label=format(V3)),size=6,hjust=-0.2,vjust=0.5, show.legend = FALSE)
  transition_reveal(time)
  theme_minimal(base_size = 16)
  theme(axis.line = element_line(colour = "black", size = 0.24),
        aspect.ratio=4/5)

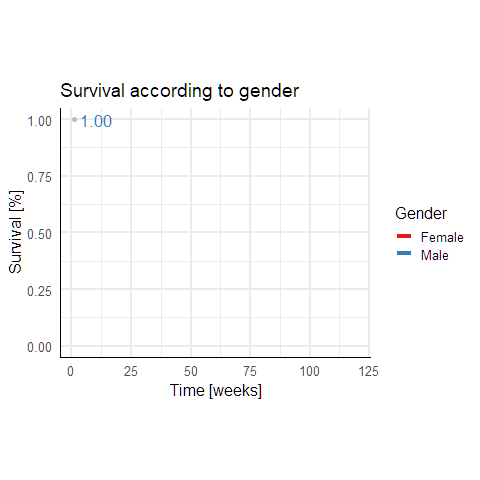

看起來像這樣：

然而，最后 x=125 數字消失了。我認為網格太短了。

如何擴展網格以避免隱藏 x = 125 處的生存曲線數。

我嘗試了一些方法，例如擴展 x，但無法解決！我也更改了 hjust 和 vjust但我想將數字保持在這個位置！

uj5u.com熱心網友回復：

除了關閉剪裁之外，您還可以使用擴展 x 軸的右上限expansion。

ggplot(df, aes(x = time, y = surv, group = grupo, color = as.factor(grupo)))
    geom_line(size = 1.5)
    geom_point(size = 2, color = "gray")
    guides(color = guide_legend(override.aes = list(shape = 1)))
    scale_color_brewer(
        name = "Gender",palette = "Set1", labels = c("Female", "Male"))
    labs(
        title = "Survival according to gender",
        x = "Time [weeks]",
        y = "Survival [%]")
    scale_y_continuous(limits = c(0, 1))
    scale_x_continuous(                                    # This is new
        breaks = scales::breaks_width(25),                 # Label every 25 weeks
        expand = expansion(mult = c(0, 0.15)))             # 15% increase on the right
    geom_text(
        aes(y = V3, label = format(V3)),
        size = 6,
        hjust = -0.2,
        vjust = 0.5,
        show.legend = FALSE)
    transition_reveal(time)
    theme_minimal(base_size = 16)
    theme(
        axis.line = element_line(colour = "black", size = 0.24),
        aspect.ratio = 4/5)

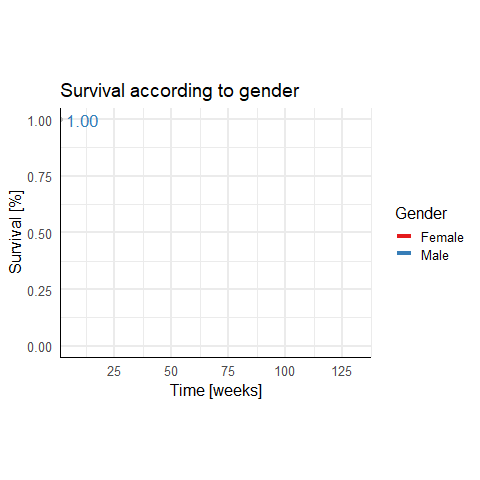

這會將右上限增加 15%。
