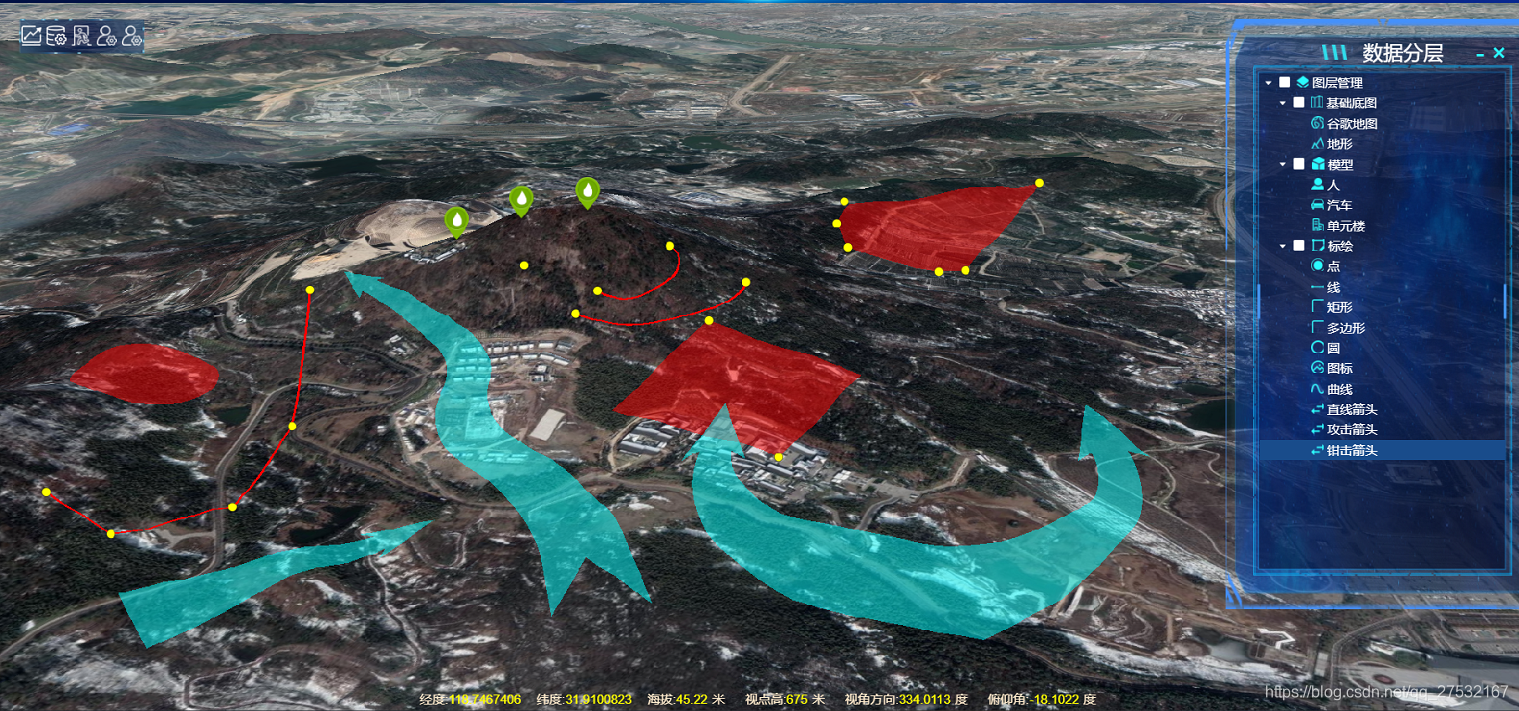

效果圖
總結
更多
標繪作為GIS最基本需求之一，想必大家在作業中肯定遇到了，標題中的這些標繪大家肯定都實作過，但是也許總是不太全面，在此，我把標繪的邏輯做了統一的封裝處理，沒準等你看完了點線面的處理邏輯后，你會說，只要你給我一個演算法，我給你畫出個牡丹花（本質上就是給你一堆點，看你能畫出什么奇奇怪怪的東西了）
繪制邏輯說明：
constructor：這里采用ES6的新語法，用來構造每種標繪型別的建構式（js沒有類的概念，就是一個語法糖，誰不知道呢？）
getData：回傳該標繪物件坐標資料，該資料可以存盤到資料庫，用于二次從資料庫中直接讀取加載該標繪（誰規定非要用滑鼠互動繪制呢？）
loadXXX(data):將getData回傳的資料傳入該函式中，即可重新構造出該標繪（資料匯入構建）
startCreate：注冊滑鼠互動事件，用于繪制該標繪（滑鼠互動構建）
destroy：銷毀滑鼠互動
clear：清空臨時物體物件
前言
說了這么多，相比你心里還有一些疑惑，下面就從代碼由淺入深逐漸理解吧，如果你對
CallbackProperty機制不熟悉，最好還是先熟悉一下，這樣你會更加容易理解后面發生的一切，
一、點
// DrawPoint
/*
繪制點
*/
class DrawPoint {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.callback=arg.callback;
this._point = null; //最后一個點
this._pointData = null;//點資料用于構造點
this._entities = []; //臟資料
}
//回傳最后活動點
get point() {
return this._point;
}
//加載點
loadPoint(data) {
return this.createPoint(data);
}
//回傳點資料用于加載點
getData() {
return this._pointData;
}
//開始繪制
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
var cartesian = $this.getCatesian3FromPX(evt.position);
if (!cartesian) return;
var point = $this.createPoint(cartesian);
$this._pointData = cartesian;
$this._point = point;
if(typeof $this.callback=="function"){
$this.callback(point);
}
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities.push(point); //加載臟資料
return point;
}
//銷毀滑鼠事件
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities.length; i++) {
this.viewer.entities.remove(this._entities[i]);
}
this._entities = [];
this._point = null;
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
}
export default DrawPoint;二、折線
// DrawPolyline
/*
繪制線
*/
class DrawPolyline {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.callback=arg.callback;
this._polyline = null; //活動線
this._polylineLast = null; //最后一條線
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_line = []; //臟資料
this._polylineData = null; //用于構造線資料
}
//回傳最后活動線
get line() {
return this._polylineLast;
}
//回傳線資料用于加載線
getData() {
return this._polylineData;
}
//加載線
loadPolyline(data) {
var $this = this;
var polyline = this.viewer.entities.add({
polyline: {
positions: data,
show: true,
material: $this.Cesium.Color.RED,
width: 3,
clampToGround: true
}
});
return polyline;
}
//開始創建
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
//螢屏坐標轉地形上坐標
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
}
$this._positions.push(cartesian);
$this.createPoint(cartesian);// 繪制點
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制線
if ($this._positions.length < 1) return;
var cartesian = $this.getCatesian3FromPX(evt.endPosition);
if (!$this.Cesium.defined($this._polyline)) {
$this._polyline = $this.createPolyline();
}
if ($this._polyline) {
$this._positions.pop();
$this._positions.push(cartesian);
}
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._polyline) return;
var cartesian = $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this.createPoint(cartesian);// 繪制點
$this._polylineData = $this._positions.concat();
$this.viewer.entities.remove($this._polyline); //移除
$this._polyline = null;
$this._positions = [];
var line = $this.loadPolyline($this._polylineData); //加載線
$this._entities_line.push(line);
$this._polylineLast=line;
if(typeof $this.callback=="function"){
$this.callback(line);
}
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities_point.push(point);
return point;
}
//創建線
createPolyline() {
var $this = this;
var polyline = this.viewer.entities.add({
polyline: {
//使用cesium的peoperty
positions: new $this.Cesium.CallbackProperty(function () {
return $this._positions
}, false),
show: true,
material: $this.Cesium.Color.RED,
width: 3,
clampToGround: true
}
});
$this._entities_line.push(polyline);
return polyline;
}
//銷毀
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_line.length; i++) {
this.viewer.entities.remove(this._entities_line[i]);
}
this._polyline = null;
this._positions = [];
this._entities_point = []; //臟資料
this._entities_line = []; //臟資料
this._polylineData = null; //用于構造線資料
this._polylineLast=null;
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
}
export default DrawPolyline三、曲線
// DrawCurve
/*
繪制曲線
*/
class DrawCurve {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.floatingPoint = null;//標識點
this._curveline = null; //活動曲線
this._curvelineLast = null; //最后一條曲線
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_line = []; //臟資料
this._curvelineData = null; //用于構造曲線資料
}
//回傳最后活動曲線
get curveline() {
return this._curvelineLast;
}
//回傳線資料用于加載線
getData() {
return this._curvelineData;
}
//加載曲線
loadCurveline(data) {
var $this = this;
var points = $this.fineBezier(data);
var polyline = this.viewer.entities.add({
polyline: {
positions: points,
show: true,
material: $this.Cesium.Color.RED,
width: 3,
clampToGround: true
}
});
return polyline;
}
//開始創建
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
//螢屏坐標轉地形上坐標
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
$this.floatingPoint = $this.createPoint(cartesian);
$this.createPoint(cartesian);// 繪制點
}
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制線
if ($this._positions.length < 4) return;
var cartesian = $this.getCatesian3FromPX(evt.endPosition);
if (!$this.Cesium.defined($this._curveline)) {
$this._curveline = $this.createCurveline();
}
$this.floatingPoint.position.setValue(cartesian);
if ($this._curveline) {
$this._positions.pop();
$this._positions.push(cartesian);
}
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._curveline) return;
var cartesian = $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this.createPoint(cartesian);// 繪制點
$this._curvelineData = $this._positions.concat();
$this.viewer.entities.remove($this._curveline); //移除
$this._curveline = null;
$this._positions = [];
$this.floatingPoint.position.setValue(cartesian);
var line = $this.loadCurveline($this._curvelineData); //加載曲線
$this._entities_line.push(line);
$this._curvelineLast = line;
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities_point.push(point);
return point;
}
//創建曲線
createCurveline() {
var $this = this;
var polyline = this.viewer.entities.add({
polyline: {
//使用cesium的peoperty
positions: new $this.Cesium.CallbackProperty(function () {
return $this.fineBezier($this._positions);
}, false),
show: true,
material: $this.Cesium.Color.RED,
width: 3,
clampToGround: true
}
});
$this._entities_line.push(polyline);
return polyline;
}
//銷毀
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_line.length; i++) {
this.viewer.entities.remove(this._entities_line[i]);
}
this.floatingPoint = null;//標識點
this._curveline = null; //活動曲線
this._curvelineLast = null; //最后一條曲線
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_line = []; //臟資料
this._curvelineData = null; //用于構造曲線資料
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
cartesianToLatlng(cartesian) {
var latlng = this.viewer.scene.globe.ellipsoid.cartesianToCartographic(cartesian);
var lat = this.Cesium.Math.toDegrees(latlng.latitude);
var lng = this.Cesium.Math.toDegrees(latlng.longitude);
return [lng, lat];
}
/貝塞爾曲線實作//
fineBezier(points) {
var $this = this;
var pointNUM = 40; //個點
var poins2D = [];
var d = [];
for (var i = 0; i < points.length; i++) {
var res = $this.cartesianToLatlng(points[i]);
var point = new Object();
point.x = res[0];
point.y = res[1];
poins2D.push(point);
}
var cbs = $this.ComputeBezier(poins2D, pointNUM);
for (var j = 0; j < cbs.length; j++) {
d.push(cbs[j].x);
d.push(cbs[j].y);
}
return $this.Cesium.Cartesian3.fromDegreesArray(d);
}
/*
cp在此是四個元素的陣列:
cp[0]為起始點，或上圖中的P0
cp[1]為第一個控制點，或上圖中的P1
cp[2]為第二個控制點，或上圖中的P2
cp[3]為結束點，或上圖中的P3
t為參數值，0 <= t <= 1
*/
PointOnCubicBezier(cp, t) {
var ax, bx, cx;
var ay, by, cy;
var tSquared, tCubed;
var result = new Object();
var length = cp.length;
var inteval = Math.floor(length / 4);// 向下取整
/*計算多項式係數*/
cx = 3.0 * (cp[inteval].x - cp[0].x);
bx = 3.0 * (cp[2 * inteval].x - cp[inteval].x) - cx;
ax = cp[length - 1].x - cp[0].x - cx - bx;
cy = 3.0 * (cp[inteval].y - cp[0].y);
by = 3.0 * (cp[2 * inteval].y - cp[inteval].y) - cy;
ay = cp[length - 1].y - cp[0].y - cy - by;
/*計算位於參數值t的曲線點*/
tSquared = t * t;
tCubed = tSquared * t;
result.x = (ax * tCubed) + (bx * tSquared) + (cx * t) + cp[0].x;
result.y = (ay * tCubed) + (by * tSquared) + (cy * t) + cp[0].y;
return result;
}
/*
ComputeBezier以控制點cp所產生的曲線點，填入Point2D結構的陣列，
呼叫者必須分配足夠的記憶體以供輸出結果，其為<sizeof(Point2D) numberOfPoints>
*/
ComputeBezier(cp, numberOfPoints) {
var $this = this;
var dt;
var i;
var curve = [];
dt = 1.0 / (numberOfPoints - 1);
for (i = 0; i < numberOfPoints; i++) {
curve[i] = $this.PointOnCubicBezier(cp, i * dt);
}
return curve
}
}
export default DrawCurve四、圓
/*
繪制圓
*/
class DrawCircle {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.callback=arg.callback;
this._cicle = null; //活動圓
this.floatingPoint = null;
this._cicleLast = null; //最后一個圓
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_cicle = []; //臟資料
this._cicleData = null; //用于構造圓形資料
}
get cicle() {
return this._cicleLast;
}
//加載圓
loadCicle(data) {
var that = this;
var position = data[0];
var value = data;
var r = Math.sqrt(
Math.pow(value[0].x - value[value.length - 1].x, 2) +
Math.pow(value[0].y - value[value.length - 1].y, 2)
);
var shape = this.viewer.entities.add({
position: position,
name: "circle",
type: "circle",
ellipse: {
semiMinorAxis: r,
semiMajorAxis: r,
material: that.Cesium.Color.RED.withAlpha(0.5),
outline: true
}
});
return shape;
}
//回傳資料
getData() {
return this._cicleData;
}
startCreate() {
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.viewer.scene.globe.depthTestAgainstTerrain = true;
var $this = this;
this.handler.setInputAction(function (evt) { //單機開始繪制
$this.viewer.scene.globe.depthTestAgainstTerrain = true;
//螢屏坐標轉地形上坐標
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
$this.floatingPoint = $this.createPoint(cartesian);
}
if (!$this._cicle) {
$this.createPoint(cartesian);// 繪制點
}
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制圓
if ($this._positions.length < 1) return;
var cartesian = $this.viewer.scene.pickPosition(evt.endPosition);// $this.getCatesian3FromPX(evt.endPosition);
if (!$this.Cesium.defined($this._cicle)) {
$this._cicle = $this.createCicle();
}
$this.floatingPoint.position.setValue(cartesian);
if ($this._cicle) {
$this._positions.pop();
$this._positions.push(cartesian);
}
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._cicle) return;
$this.viewer.scene.globe.depthTestAgainstTerrain = false;
var cartesian = $this.viewer.scene.pickPosition(evt.position); // $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this._cicleData = $this._positions.concat();
$this.viewer.entities.remove($this._cicle); //移除
$this._cicle = null;
$this._positions = [];
$this.floatingPoint.position.setValue(cartesian);
var cicle = $this.loadCicle($this._cicleData); //加載
$this._entities_cicle.push(cicle);
$this._cicleLast = cicle;
$this.clearPoint();
if(typeof $this.callback=="function"){
$this.callback(cicle);
}
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建圓
createCicle() {
var that = this;
var shape = this.viewer.entities.add({
position: that._positions[0],
name: "circle",
type: "circle",
ellipse: {
semiMinorAxis: new that.Cesium.CallbackProperty(function () {
//半徑 兩點間距離
var r = Math.sqrt(
Math.pow(that._positions[0].x - that._positions[that._positions.length - 1].x, 2) +
Math.pow(that._positions[0].y - that._positions[that._positions.length - 1].y, 2)
);
return r ? r : r + 1;
}, false),
semiMajorAxis: new that.Cesium.CallbackProperty(function () {
var r = Math.sqrt(
Math.pow(that._positions[0].x - that._positions[that._positions.length - 1].x, 2) +
Math.pow(that._positions[0].y - that._positions[that._positions.length - 1].y, 2)
);
return r ? r : r + 1;
}, false),
material: that.Cesium.Color.RED.withAlpha(0.5),
outline: true
}
});
that._entities_cicle.push(shape);
return shape;
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});;
$this._entities_point.push(point);
return point;
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
clearPoint(){
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
this._entities_point = []; //臟資料
}
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_cicle.length; i++) {
this.viewer.entities.remove(this._entities_cicle[i]);
}
this._cicle = null; //活動圓
this.floatingPoint = null;
this._cicleLast = null; //最后一個圓
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_cicle = []; //臟資料
this._cicleData = null; //用于構造圓形資料
}
}
export default DrawCircle五、矩形
// DrawCurve
/*
繪制矩形
*/
class DrawRectangle {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.callback=arg.callback;
this.floatingPoint = null;//標識點
this._rectangle = null; //活動矩形
this._rectangleLast = null; //最后一個矩形
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_rectangle = []; //臟資料
this._rectangleData = null; //用于構造矩形資料
}
//回傳最后圖形
get line() {
return this._rectangleLast;
}
//回傳矩形資料
getData() {
return this._rectangleData;
}
//加載
loadRectangle(data) {
var $this = this;
var shape = this.viewer.entities.add({
name: "rectangle",
rectangle: {
coordinates: $this.Cesium.Rectangle.fromCartesianArray(data),
material: $this.Cesium.Color.RED.withAlpha(0.5)
}
});
$this._entities_rectangle.push(shape);
return shape;
}
//開始創建
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
//螢屏坐標轉地形上坐標
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
$this.floatingPoint = $this.createPoint(cartesian);
$this.createPoint(cartesian);// 繪制點
}
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制線
if ($this._positions.length < 3) return;
var cartesian = $this.getCatesian3FromPX(evt.endPosition);
if (!$this.Cesium.defined($this._rectangle)) {
$this._rectangle = $this.createRectangle();
}
$this.floatingPoint.position.setValue(cartesian);
if ($this._rectangle) {
$this._positions.pop();
$this._positions.push(cartesian);
}
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._rectangle) return;
var cartesian = $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this.createPoint(cartesian);// 繪制點
$this._rectangleData = $this._positions.concat();
$this.viewer.entities.remove($this._rectangle); //移除
$this._rectangle = null;
$this._positions = [];
$this.floatingPoint.position.setValue(cartesian);
var rectangle = $this.loadRectangle($this._rectangleData); //加載
$this._entities_rectangle.push(rectangle);
$this._rectangleLast = rectangle;
if(typeof $this.callback=="function"){
$this.callback(rectangle);
}
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities_point.push(point);
return point;
}
//創建矩形
createRectangle() {
var $this = this;
var shape = this.viewer.entities.add({
name: "rectangle",
rectangle: {
coordinates: new $this.Cesium.CallbackProperty(function() {
var obj = $this.Cesium.Rectangle.fromCartesianArray($this._positions);
return obj;
}, false),
material: $this.Cesium.Color.RED.withAlpha(0.5)
}
});
$this._entities_rectangle.push(shape);
return shape;
}
//銷毀
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_rectangle.length; i++) {
this.viewer.entities.remove(this._entities_rectangle[i]);
}
this.floatingPoint = null;//標識點
this._rectangle = null; //活動矩形
this._rectangleLast = null; //最后一個矩形
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_rectangle = []; //臟資料
this._rectangleData = null; //用于構造矩形資料
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
}
export default DrawRectangle六、多邊形
// DrawPolygon
/*
繪制面
*/
class DrawPolygon {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.callback=arg.callback;
this._polygon = null; //活動面
this._polygonLast = null; //最后一個面
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_polygon = []; //臟資料
this._polygonData = null; //用戶構造面
}
//回傳最后活動面
get polygon() {
return this._polygonLast;
}
//回傳面資料用于加載面
getData() {
return this._polygonData;
}
//加載面
loadPolygon(data) {
var $this = this;
return this.viewer.entities.add({
polygon: {
hierarchy: new $this.Cesium.PolygonHierarchy(data),
clampToGround: true,
show: true,
fill: true,
material: $this.Cesium.Color.RED.withAlpha(0.5),
width: 3,
outlineColor: $this.Cesium.Color.BLACK,
outlineWidth: 1,
outline: false
}
});
}
//開始繪制
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
}
$this.createPoint(cartesian);
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制面
if ($this._positions.length < 1) return;
var cartesian = $this.getCatesian3FromPX(evt.endPosition);
if ($this._positions.length == 3) {
if (!$this.Cesium.defined($this._polygon)) {
$this._polygon = $this.createPolygon();
}
}
$this._positions.pop();
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._polygon) return;
var cartesian = $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this.createPoint(cartesian);
$this._polygonData = $this._positions.concat();
$this.viewer.entities.remove($this._positions); //移除
$this._positions=null;
$this._positions = [];
var Polygon = $this.loadPolygon($this._polygonData);
$this._entities_polygon.push(Polygon);
$this._polygonLast = Polygon;
if(typeof $this.callback=="function"){
$this.callback(Polygon);
}
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建面
createPolygon() {
var $this = this;
var polygon = this.viewer.entities.add({
polygon: {
hierarchy: new $this.Cesium.CallbackProperty(function () {
return new $this.Cesium.PolygonHierarchy($this._positions);
}, false),
clampToGround: true,
show: true,
fill: true,
material: $this.Cesium.Color.RED.withAlpha(0.5),
width: 3,
outlineColor: $this.Cesium.Color.BLACK,
outlineWidth: 1,
outline: false
}
});
$this._entities_polygon.push(polygon);
return polygon;
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities_point.push(point);
return point;
}
//銷毀事件
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_polygon.length; i++) {
this.viewer.entities.remove(this._entities_polygon[i]);
}
this._polygon = null; //活動面
this._polygonLast = null; //最后一個面
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_polygon = []; //臟資料
this._polygonData = null; //用戶構造面
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
}
export default DrawPolygon七、直線箭頭
// DrawstraightArrow
/*
繪制直線箭頭
*/
class DrawstraightArrow {
constructor(arg) {
this.viewer = arg.viewer;
this.Cesium = arg.Cesium;
this.floatingPoint = null;//標識點
this._straightArrow = null; //活動箭頭
this._straightArrowLast = null; //最后一個箭頭
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_straightArrow = []; //臟資料
this._straightArrowData = null; //用于構造箭頭資料
}
//回傳箭頭
get straightArrow() {
return this._straightArrowLast;
}
//回傳箭頭資料用于加載箭頭
getData() {
return this._straightArrowData;
}
//加載箭頭
loadStraightArrow(data) {
var $this = this;
if (data.length < 2) {
return null;
}
var length = data.length;
var p1 = data[0];
var p2 = data[length - 1];
var firstPoint = $this.cartesianToLatlng(p1);
var endPoints = $this.cartesianToLatlng(p2);
var arrow = [];
var res = $this.fineArrow([firstPoint[0], firstPoint[1]], [endPoints[0], endPoints[1]]);
for (var i = 0; i < res.length; i++) {
var cart3 = new $this.Cesium.Cartesian3(res[i].x, res[i].y, res[i].z);
arrow.push(cart3);
}
var arrowEntity = $this.viewer.entities.add({
polygon: {
hierarchy: new $this.Cesium.PolygonHierarchy(arrow),
show: true,
fill: true,
clampToGround: true,
material: $this.Cesium.Color.AQUA.withAlpha(0.5)
}
});
return arrowEntity;
}
//開始創建
startCreate() {
var $this = this;
this.handler = new this.Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.handler.setInputAction(function (evt) { //單機開始繪制
//螢屏坐標轉地形上坐標
var cartesian = $this.getCatesian3FromPX(evt.position);
if ($this._positions.length == 0) {
$this._positions.push(cartesian.clone());
$this.floatingPoint = $this.createPoint(cartesian);
}
if (!$this._straightArrow) {
$this.createPoint(cartesian);// 繪制點
}
$this._positions.push(cartesian);
}, $this.Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.setInputAction(function (evt) { //移動時繪制面
if ($this._positions.length < 2) return;
var cartesian = $this.getCatesian3FromPX(evt.endPosition);
if (!$this.Cesium.defined($this._straightArrow)) {
$this._straightArrow = $this.createStraightArrow();
}
$this.floatingPoint.position.setValue(cartesian);
if ($this._straightArrow) {
$this._positions.pop();
$this._positions.push(cartesian);
}
}, $this.Cesium.ScreenSpaceEventType.MOUSE_MOVE);
this.handler.setInputAction(function (evt) {
if (!$this._straightArrow) return;
var cartesian = $this.getCatesian3FromPX(evt.position);
$this._positions.pop();
$this._positions.push(cartesian);
$this._straightArrowData = $this._positions.concat();
$this.viewer.entities.remove($this._straightArrow); //移除
$this._straightArrow = null;
$this._positions = [];
$this.floatingPoint.position.setValue(cartesian);
var straightArrow = $this.loadStraightArrow($this._straightArrowData); //加載
$this._entities_straightArrow.push(straightArrow);
$this._straightArrowLast = straightArrow;
$this.clearPoint();
}, $this.Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//創建直線箭頭
createStraightArrow() {
var $this = this;
var arrowEntity = $this.viewer.entities.add({
polygon: {
hierarchy: new $this.Cesium.CallbackProperty(
function () {
// return new $this.Cesium.PolygonHierarchy($this._positions);
var length = $this._positions.length;
var p1 = $this._positions[0];
var p2 = $this._positions[length - 1];
var firstPoint = $this.cartesianToLatlng(p1);
var endPoints = $this.cartesianToLatlng(p2);
var arrow = [];
var res = $this.fineArrow([firstPoint[0], firstPoint[1]], [endPoints[0], endPoints[1]]);
for (var i = 0; i < res.length; i++) {
var cart3 = new $this.Cesium.Cartesian3(res[i].x, res[i].y, res[i].z);
arrow.push(cart3);
}
return new $this.Cesium.PolygonHierarchy(arrow);
}, false),
show: true,
fill: true,
clampToGround: true,
material: $this.Cesium.Color.AQUA.withAlpha(0.5)
}
}
)
$this._entities_straightArrow.push(arrowEntity);
return arrowEntity
}
//創建點
createPoint(cartesian) {
var $this = this;
var point = this.viewer.entities.add({
position: cartesian,
point: {
pixelSize: 10,
color: $this.Cesium.Color.YELLOW,
}
});
$this._entities_point.push(point);
return point;
}
cartesianToLatlng(cartesian) {
var latlng = this.viewer.scene.globe.ellipsoid.cartesianToCartographic(cartesian);
var lat = this.Cesium.Math.toDegrees(latlng.latitude);
var lng = this.Cesium.Math.toDegrees(latlng.longitude);
return [lng, lat];
}
//銷毀
destroy() {
if (this.handler) {
this.handler.destroy();
this.handler = null;
}
}
clearPoint() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
this._entities_point = []; //臟資料
}
//清空物體物件
clear() {
for (var i = 0; i < this._entities_point.length; i++) {
this.viewer.entities.remove(this._entities_point[i]);
}
for (var i = 0; i < this._entities_straightArrow.length; i++) {
this.viewer.entities.remove(this._entities_straightArrow[i]);
}
this.floatingPoint = null;//標識點
this._straightArrow = null; //活動箭頭
this._straightArrowLast = null; //最后一個箭頭
this._positions = []; //活動點
this._entities_point = []; //臟資料
this._entities_straightArrow = []; //臟資料
this._straightArrowData = null; //用于構造箭頭資料
}
getCatesian3FromPX(px) {
var cartesian;
var ray = this.viewer.camera.getPickRay(px);
if (!ray) return null;
cartesian = this.viewer.scene.globe.pick(ray, this.viewer.scene);
return cartesian;
}
求取箭頭坐標函式/
//箭頭配置函式
fineArrowDefualParam() {
return {
tailWidthFactor: 0.15,
neckWidthFactor: 0.20,
headWidthFactor: 0.25,
headAngle: Math.PI / 8.5,
neckAngle: Math.PI / 13
}
}
fineArrow(tailPoint, headerPoint) {
var $this = this;
if ((tailPoint.length < 2) || (headerPoint.length < 2)) return;
//畫箭頭的函式
let tailWidthFactor = $this.fineArrowDefualParam().tailWidthFactor;
let neckWidthFactor = $this.fineArrowDefualParam().neckWidthFactor;
let headWidthFactor = $this.fineArrowDefualParam().headWidthFactor;
let headAngle = $this.fineArrowDefualParam().headAngle;
let neckAngle = $this.fineArrowDefualParam().neckAngle;
var o = [];
o[0] = tailPoint;
o[1] = headerPoint;
var e = o[0],
r = o[1],
n = $this.getBaseLength(o),
g = n * tailWidthFactor,
//尾部寬度因子
i = n * neckWidthFactor,
//脖子寬度銀子
s = n * headWidthFactor,
//頭部寬度因子
a = $this.getThirdPoint(r, e, Math.PI / 2, g, !0),
l = $this.getThirdPoint(r, e, Math.PI / 2, g, !1),
u = $this.getThirdPoint(e, r, headAngle, s, !1),
c = $this.getThirdPoint(e, r, headAngle, s, !0),
p = $this.getThirdPoint(e, r, neckAngle, i, !1),
h = $this.getThirdPoint(e, r, neckAngle, i, !0),
d = [];
d.push(a[0], a[1], p[0], p[1], u[0], u[1], r[0], r[1], c[0], c[1], h[0], h[1], l[0], l[1], e[0], e[1]);
return $this.Cesium.Cartesian3.fromDegreesArray(d);
}
getBaseLength(t) {
return Math.pow(this.wholeDistance(t), .99)
}
wholeDistance(t) {
for (var o = 0, e = 0; e < t.length - 1; e++) o += this.distance(t[e], t[e + 1]);
return o
}
distance(t, o) {
return Math.sqrt(Math.pow(t[0] - o[0], 2) + Math.pow(t[1] - o[1], 2))
}
getThirdPoint(t, o, e, r, n) {
var g = this.getAzimuth(t, o),
i = n ? g + e : g - e,
s = r * Math.cos(i),
a = r * Math.sin(i);
return [o[0] + s, o[1] + a]
}
getAzimuth(t, o) {
var e, r = Math.asin(Math.abs(o[1] - t[1]) / this.distance(t, o));
return o[1] >= t[1] && o[0] >= t[0] ? e = r + Math.PI : o[1] >= t[1] && o[0] < t[0] ? e = 2 * Math.PI - r : o[1] < t[1] && o[0] < t[0] ? e = r : o[1] < t[1] && o[0] >= t[0] && (e = Math.PI - r), e
}
}
export default DrawstraightArrow
效果圖
總結
現在你仔細把代碼過一下，發現規律了嗎？現在你會畫出牡丹花了吧，哈哈
更多
這里有個地方需要說明，由于篇幅有限，攻擊箭頭和鉗擊箭頭的代碼沒有貼出來，
如果你還有不了解的地方，
如果你還需要進行cesium交流，
那一起學習探討吧，
你可以加入我們的基地，我們基地的地址是：450342630（QQ群號）
轉載請註明出處，本文鏈接：https://www.uj5u.com/qianduan/99745.html
標籤：其他
