基于nerdctl+buildkitd+containerd實作鏡像構建

2023-06-02 08:59:32 其他

1、容器技術簡介

容器技術除了的docker之外，還有coreOS的rkt、google的gvisor、以及docker開源的containerd、redhat的podman、阿?的pouch等，為了保證容器?態的標準性和健康可持續發展，包括Linux 基?會、Docker、微軟、紅帽、?歌和IBM等公司在2015年6?共同成?了?個叫open container（OCI）的組織，其?的就是制定開放的標準的容器規范，?前OCI?共發布了兩個規范，分別是runtime spec和image format spec，有了這兩個規范，不同的容器公司開發的容器只要兼容這兩個規范，就可以保證容器的可移植性和相互可操作性，
containerd官網：https://containerd.io/
gvisor官網：https://gvisor.dev/
podman官網：https://podman.io
pouch專案地址：https://github.com/alibaba/pouch
buildkit: 從Docker公司的開源出來的?個鏡像構建?具包，?持OCI標準的鏡像構建,專案地址https://github.com/moby/buildkit

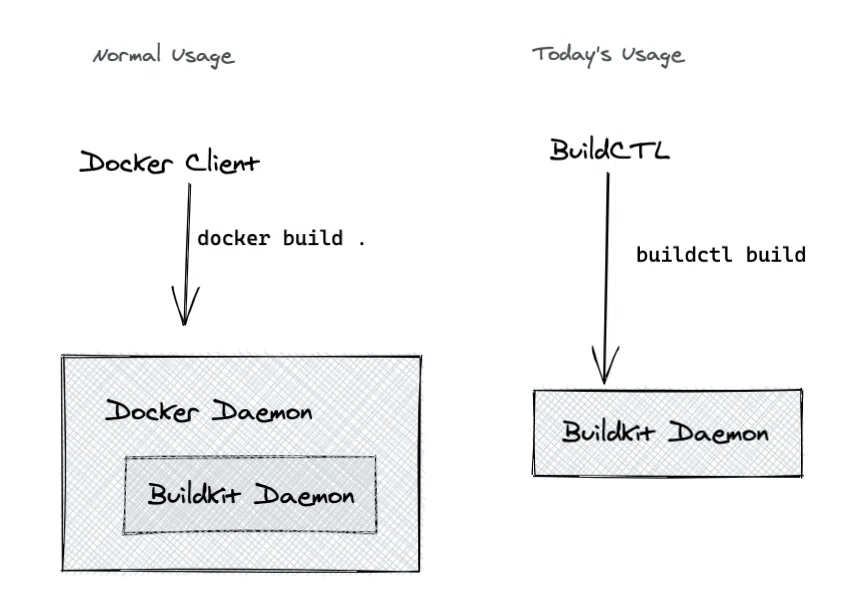

2、buildkitd組成部分

buildkitd(服務端)，?前?持runc和containerd作為鏡像構建環境，默認是runc，可以更換為containerd，
buildctl(客戶端)，負責決議Dockerfile?件，并向服務端buildkitd發出構建請求，

3、部署buildkitd

3.1、下載二進制包

wget https://github.com/moby/buildkit/releases/download/v0.11.6/buildkit-v0.11.6.linux-amd64.tar.gz

解壓壓縮包，將二進制檔案軟連接至path環境變數

root@k8s-master01:/usr/local/src# ls
buildkit-v0.11.6.linux-amd64.tar.gz
root@k8s-master01:/usr/local/src# tar xf buildkit-v0.11.6.linux-amd64.tar.gz
root@k8s-master01:/usr/local/src# ls
bin  buildkit-v0.11.6.linux-amd64.tar.gz
root@k8s-master01:/usr/local/src# cd bin
root@k8s-master01:/usr/local/src/bin# ls
buildctl               buildkit-qemu-arm   buildkit-qemu-mips64    buildkit-qemu-ppc64le  buildkit-qemu-s390x  buildkitd
buildkit-qemu-aarch64  buildkit-qemu-i386  buildkit-qemu-mips64el  buildkit-qemu-riscv64  buildkit-runc
root@k8s-master01:/usr/local/src/bin# ln -s /usr/local/src/bin/* /usr/local/bin/
root@k8s-master01:/usr/local/src/bin# buildctl --help
NAME:
   buildctl - build utility

USAGE:
   buildctl [global options] command [command options] [arguments...]

VERSION:
   v0.11.6

COMMANDS:
   du        disk usage
   prune     clean up build cache
   build, b  build
   debug     debug utilities
   help, h   Shows a list of commands or help for one command

GLOBAL OPTIONS:
   --debug                enable debug output in logs
   --addr value           buildkitd address (default: "unix:///run/buildkit/buildkitd.sock")
   --tlsservername value  buildkitd server name for certificate validation
   --tlscacert value      CA certificate for validation
   --tlscert value        client certificate
   --tlskey value         client key
   --tlsdir value         directory containing CA certificate, client certificate, and client key
   --timeout value        timeout backend connection after value seconds (default: 5)
   --help, -h             show help
   --version, -v          print the version
root@k8s-master01:/usr/local/src/bin#

能夠正常在bash中執行buildkit --help ，表示對應命令已經正常軟連接至path環境中，

3.2、提供buildkit.socket檔案

root@k8s-master01:/usr/local/src/bin# cat /lib/systemd/system/buildkit.socket
[Unit]
Description=BuildKit
Documentation=https://github.com/moby/buildkit
[Socket]
ListenStream=%t/buildkit/buildkitd.sock
[Install]
WantedBy=sockets.target
root@k8s-master01:/usr/local/src/bin#

3.3、提供buildkit.service檔案

root@k8s-master01:/usr/local/src/bin# cat /lib/systemd/system/buildkitd.service
[Unit]
Description=BuildKit
Requires=buildkit.socket
After=buildkit.socketDocumentation=https://github.com/moby/buildkit
[Service]
ExecStart=/usr/local/bin/buildkitd --oci-worker=false --containerd-worker=true
[Install]
WantedBy=multi-user.target
root@k8s-master01:/usr/local/src/bin#

3.4、啟動buildiktd服務

root@k8s-master01:/usr/local/src/bin# systemctl daemon-reload
root@k8s-master01:/usr/local/src/bin# systemctl enable buildkitd
Created symlink /etc/systemd/system/multi-user.target.wants/buildkitd.service → /lib/systemd/system/buildkitd.service.
root@k8s-master01:/usr/local/src/bin# systemctl restart buildkitd
root@k8s-master01:/usr/local/src/bin# systemctl status buildkitd
● buildkitd.service - BuildKit
     Loaded: loaded (/lib/systemd/system/buildkitd.service; enabled; vendor preset: enabled)
     Active: active (running) since Wed 2023-05-31 13:32:38 UTC; 4s ago
   Main PID: 12191 (buildkitd)
      Tasks: 9 (limit: 4571)
     Memory: 7.8M
        CPU: 125ms
     CGroup: /system.slice/buildkitd.service
             └─12191 /usr/local/bin/buildkitd --oci-worker=false --containerd-worker=true

May 31 13:32:38 k8s-master01.ik8s.cc systemd[1]: Started BuildKit.
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=warning msg="using host network as the default"
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=warning msg="git source cannot be enabled: failed to find git
binary: exec: \"git\": executable file not found in $PATH"
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=info msg="found worker \"kffvitvra0b27yi956wa4xcal\", labels=m
ap[org.mobyproject.buildkit.worker.containerd.namespace:buildkit org.mobyproject.buildkit.worker.containerd.uuid:f27e8d21-8b1d-44ac-9233-f55b9b028fc0 o
rg.mobyproject.buildkit.worker.executor:containerd org.mobyproject.buildkit.worker.hostname:k8s-master01.ik8s.cc org.mobyproject.buildkit.worker.networ
k:host org.mobyproject.buildkit.worker.selinux.enabled:false org.mobyproject.buildkit.worker.snapshotter:overlayfs], platforms=[linux/amd64 linux/amd64
/v2 linux/386]"
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=info msg="found 1 workers, default=\"kffvitvra0b27yi956wa4xcal
\""
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=warning msg="currently, only the default worker can be used."
May 31 13:32:38 k8s-master01.ik8s.cc buildkitd[12191]: time="2023-05-31T13:32:38Z" level=info msg="running server on /run/buildkit/buildkitd.sock"
root@k8s-master01:/usr/local/src/bin#

4、基于nginx代理?簽名證書harbor并實作https

4.1、將harbor修改為http協議

停止harbor服務

root@harbor:/app/harbor# docker-compose down
[+] Running 13/13
 ? Container notary-server       Removed                                                                                                          0.8s
 ? Container nginx               Removed                                                                                                          1.7s
 ? Container harbor-jobservice   Removed                                                                                                          0.7s
 ? Container trivy-adapter       Removed                                                                                                          0.6s
 ? Container notary-signer       Removed                                                                                                          0.5s
 ? Container harbor-portal       Removed                                                                                                          0.3s
 ? Container harbor-core         Removed                                                                                                          3.5s
 ? Container harbor-db           Removed                                                                                                          0.7s
 ? Container registry            Removed                                                                                                          0.5s
 ? Container redis               Removed                                                                                                          0.5s
 ? Network harbor_notary-sig     Removed                                                                                                          0.8s
 ? Network harbor_harbor         Removed                                                                                                          0.2s
 ? Network harbor_harbor-notary  Removed                                                                                                          0.5s
root@harbor:/app/harbor#

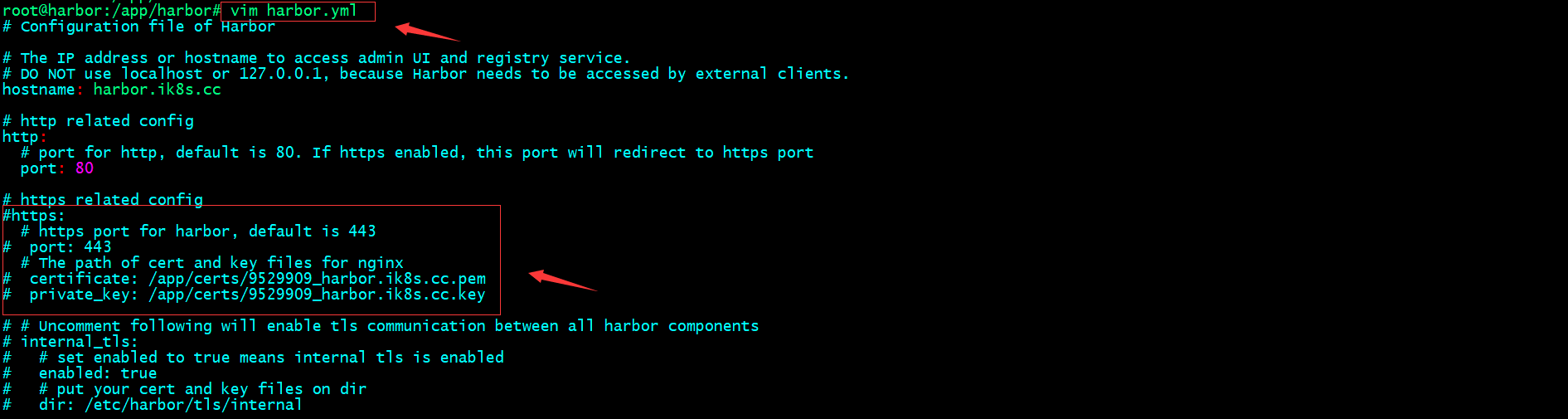

修改harbor組態檔，注釋https和證書的配置

重新prepare

root@harbor:/app/harbor# ls
LICENSE  common  common.sh  docker-compose.yml  harbor.v2.8.0.tar.gz  harbor.yml  harbor.yml.tmpl  install.sh  prepare
root@harbor:/app/harbor# ./prepare
prepare base dir is set to /app/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/registry/passwd
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registry/root.crt
Clearing the configuration file: /config/notary/notary-signer-ca.crt
Clearing the configuration file: /config/notary/notary-signer.key
Clearing the configuration file: /config/notary/server-config.postgres.json
Clearing the configuration file: /config/notary/server_env
Clearing the configuration file: /config/notary/notary-signer.crt
Clearing the configuration file: /config/notary/signer_env
Clearing the configuration file: /config/notary/signer-config.postgres.json
Clearing the configuration file: /config/notary/root.crt
Clearing the configuration file: /config/trivy-adapter/env
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/jobservice/config.yml
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/nginx/conf.d/notary.upstream.conf
Clearing the configuration file: /config/nginx/conf.d/notary.server.conf
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/log/rsyslog_docker.conf
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/portal/nginx.conf
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /data/secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
root@harbor:/app/harbor#

啟動harbor

root@harbor:/app/harbor# docker-compose up -d
[+] Running 10/10
 ? Network harbor_harbor        Created                                                                                                           0.2s
 ? Container harbor-log         Started                                                                                                           1.2s
 ? Container registry           Started                                                                                                           2.5s
 ? Container harbor-portal      Started                                                                                                           2.7s
 ? Container registryctl        Started                                                                                                           2.7s
 ? Container harbor-db          Started                                                                                                           2.7s
 ? Container redis              Started                                                                                                           2.6s
 ? Container harbor-core        Started                                                                                                           3.2s
 ? Container harbor-jobservice  Started                                                                                                           4.2s
 ? Container nginx              Started                                                                                                           4.3s
root@harbor:/app/harbor#

如果你給harbor添加的有service檔案，也可以使用systemctl stop/start harbor來停止/啟動harbor

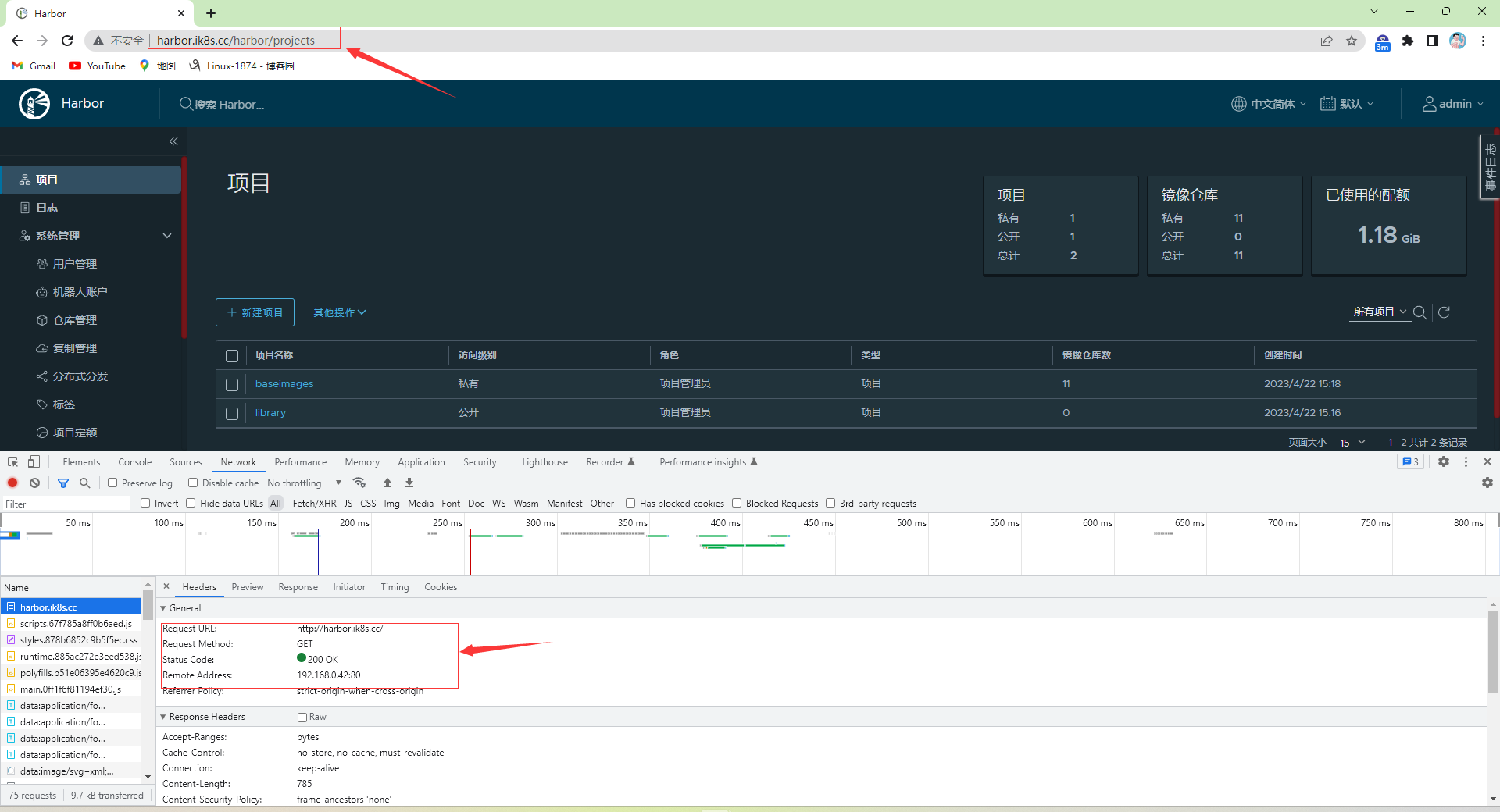

驗證harbor是否可以正常登錄？

4.2、nginx實作harbor的反向代理

4.2.1、nginx安裝及配置

root@k8s-deploy:~# cd /usr/local/src/
root@k8s-deploy:/usr/local/src# wget https://nginx.org/download/nginx-1.22.0.tar.gz
--2023-05-31 13:59:55--  https://nginx.org/download/nginx-1.22.0.tar.gz
Resolving nginx.org (nginx.org)... 52.58.199.22, 3.125.197.172, 2a05:d014:edb:5704::6, ...
Connecting to nginx.org (nginx.org)|52.58.199.22|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1073322 (1.0M) [application/octet-stream]
Saving to: ‘nginx-1.22.0.tar.gz’

nginx-1.22.0.tar.gz                        100%[=======================================================================================>]   1.02M  37.8KB/s    in 27s

2023-05-31 14:00:23 (38.9 KB/s) - ‘nginx-1.22.0.tar.gz’ saved [1073322/1073322]

root@k8s-deploy:/usr/local/src# tar xf nginx-1.22.0.tar.gz
root@k8s-deploy:/usr/local/src# cd nginx-1.22.0
root@k8s-deploy:/usr/local/src/nginx-1.22.0# ./configure --prefix=/apps/nginx \
> --with-http_ssl_module \
> --with-http_v2_module \
> --with-http_realip_module \
> --with-http_stub_status_module \
> --with-http_gzip_static_module \
> --with-pcre \
> --with-stream \
> --with-stream_ssl_module \
> --with-stream_realip_module

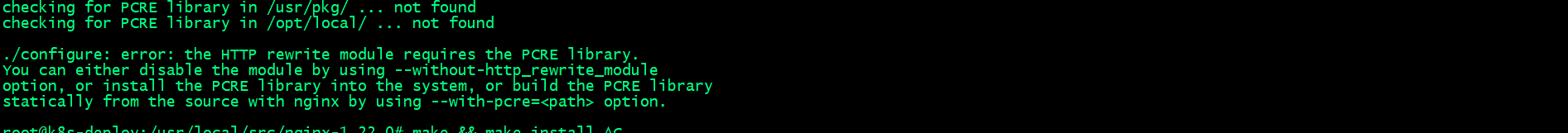

上述報錯沒有找到http模塊依賴的PCRE庫

解決辦法：安裝libpcre3 libpcre3-dev

root@k8s-deploy:/usr/local/src/nginx-1.22.0# apt install libpcre3 libpcre3-dev -y

安裝上述依賴后，重新configure

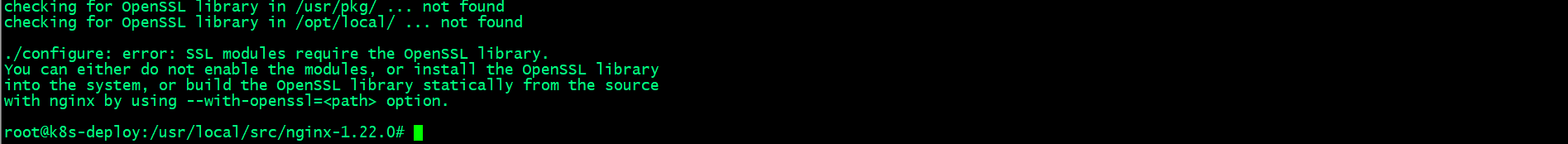

上述報錯沒有找到ssl模塊依賴的openssl庫

解決辦法：安裝openssl libssl-dev

root@k8s-deploy:/usr/local/src/nginx-1.22.0# apt install openssl libssl-dev -y

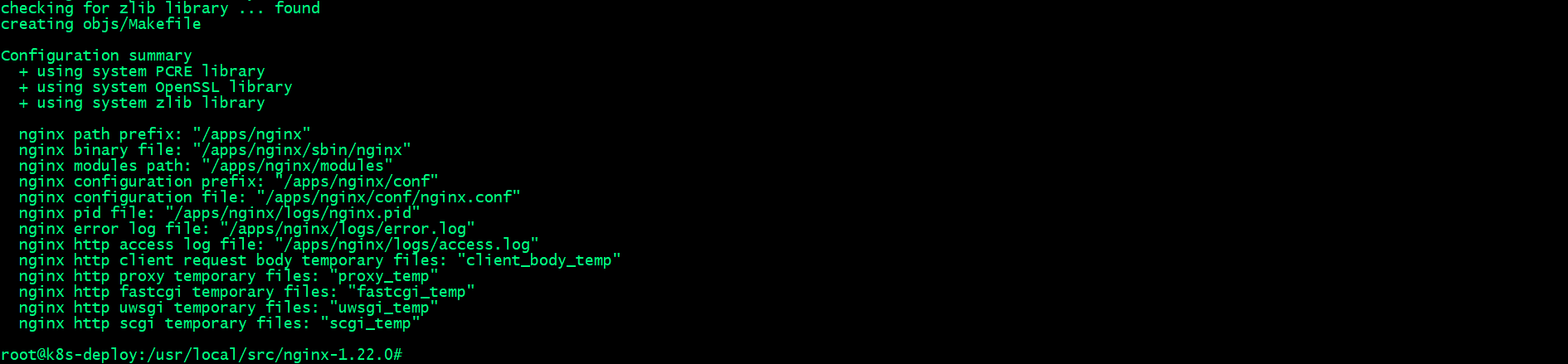

執行上述./configure 沒有報錯，并且能夠看到上述截圖，表示編譯環境通過檢查，可以進行下一步編譯和安裝

編譯安裝nginx

root@k8s-deploy:/usr/local/src/nginx-1.22.0# make && make install

創建證書?錄，并生成私鑰，證書

4.2.1.1、創建證書?錄,并生成ca私鑰

root@k8s-deploy:/apps/nginx/sbin# mkdir /apps/nginx/certs
root@k8s-deploy:/apps/nginx/sbin# cd /apps/nginx/certs
root@k8s-deploy:/apps/nginx/certs# openssl genrsa -out ca.key 4096

4.2.1.2、用ca私鑰生成ca自簽名證書

root@k8s-deploy:/apps/nginx/certs# openssl req -x509 -new -nodes -sha512 -days 3650 \
>  -subj "/C=CN/ST=Beijing/L=Beijing/O=Personal-CA/OU=Personal/CN=CA.com" \
>  -key ca.key \
>  -out ca.crt
root@k8s-deploy:/apps/nginx/certs# ls
ca.crt  ca.key
root@k8s-deploy:/apps/nginx/certs#

4.2.1.3、生成harbor服務器私鑰

root@k8s-deploy:/apps/nginx/certs# openssl genrsa -out magedu.net.key 4096
root@k8s-deploy:/apps/nginx/certs# ls
ca.crt  ca.key  magedu.net.key
root@k8s-deploy:/apps/nginx/certs#

4.2.1.4、用harbor服務器私鑰生成生成證書簽名請求csr檔案

root@k8s-deploy:/apps/nginx/certs# openssl req -sha512 -new \
>     -subj "/C=CN/ST=Beijing/L=Beijing/O=test/OU=Personal/CN=magedu.net" \
>     -key magedu.net.key \
>     -out magedu.net.csr
root@k8s-deploy:/apps/nginx/certs# ls
ca.crt  ca.key  magedu.net.csr  magedu.net.key
root@k8s-deploy:/apps/nginx/certs#

4.2.1.5、使用ca證書和私鑰為harbor服務器簽發證書

root@k8s-deploy:/apps/nginx/certs# openssl x509 -req -sha512 -days 3650 \
>     -CA ca.crt -CAkey ca.key -CAcreateserial \
>     -in magedu.net.csr \
>     -out magedu.net.crt
Certificate request self-signature ok
subject=C = CN, ST = Beijing, L = Beijing, O = test, OU = Personal, CN = magedu.net
root@k8s-deploy:/apps/nginx/certs# ls
ca.crt  ca.key  magedu.net.crt  magedu.net.csr  magedu.net.key
root@k8s-deploy:/apps/nginx/certs#

編輯nginx組態檔，配置證書和反向代理harbor

root@k8s-deploy:/apps/nginx/certs# cat /apps/nginx/conf/nginx.conf
worker_processes  1;
events {
    worker_connections  1024;
}
http {
    client_max_body_size 1000m;
    server {
        listen       80;
        listen       443 ssl;
        ssl_certificate /apps/nginx/certs/magedu.net.crt;
        ssl_certificate_key /apps/nginx/certs/magedu.net.key;
        ssl_session_cache shared:sslcache:20m;
        ssl_session_timeout 10m;
        location / {
                if ($scheme = http ){
                        rewrite / https://harbor.magedu.net permanent;
                }

                proxy_pass http://192.168.0.42;
        }
    }
}
root@k8s-deploy:/apps/nginx/certs#

檢查nginx組態檔語法

root@k8s-deploy:/apps/nginx/certs# cd ..
root@k8s-deploy:/apps/nginx# /apps/nginx/sbin/nginx -t
nginx: the configuration file /apps/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /apps/nginx/conf/nginx.conf test is successful
root@k8s-deploy:/apps/nginx#

啟動nginx

root@k8s-deploy:/apps/nginx# /apps/nginx/sbin/nginx
root@k8s-deploy:/apps/nginx# ss -tnl
State            Recv-Q            Send-Q                       Local Address:Port                       Peer Address:Port           Process
LISTEN           0                 511                                0.0.0.0:80                              0.0.0.0:*
LISTEN           0                 4096                         127.0.0.53%lo:53                              0.0.0.0:*
LISTEN           0                 128                                0.0.0.0:22                              0.0.0.0:*
LISTEN           0                 511                                0.0.0.0:443                             0.0.0.0:*
root@k8s-deploy:/apps/nginx#

4.2.2、瀏覽器訪問測驗nginx 看看是否反向代理給harbor？是否為https？

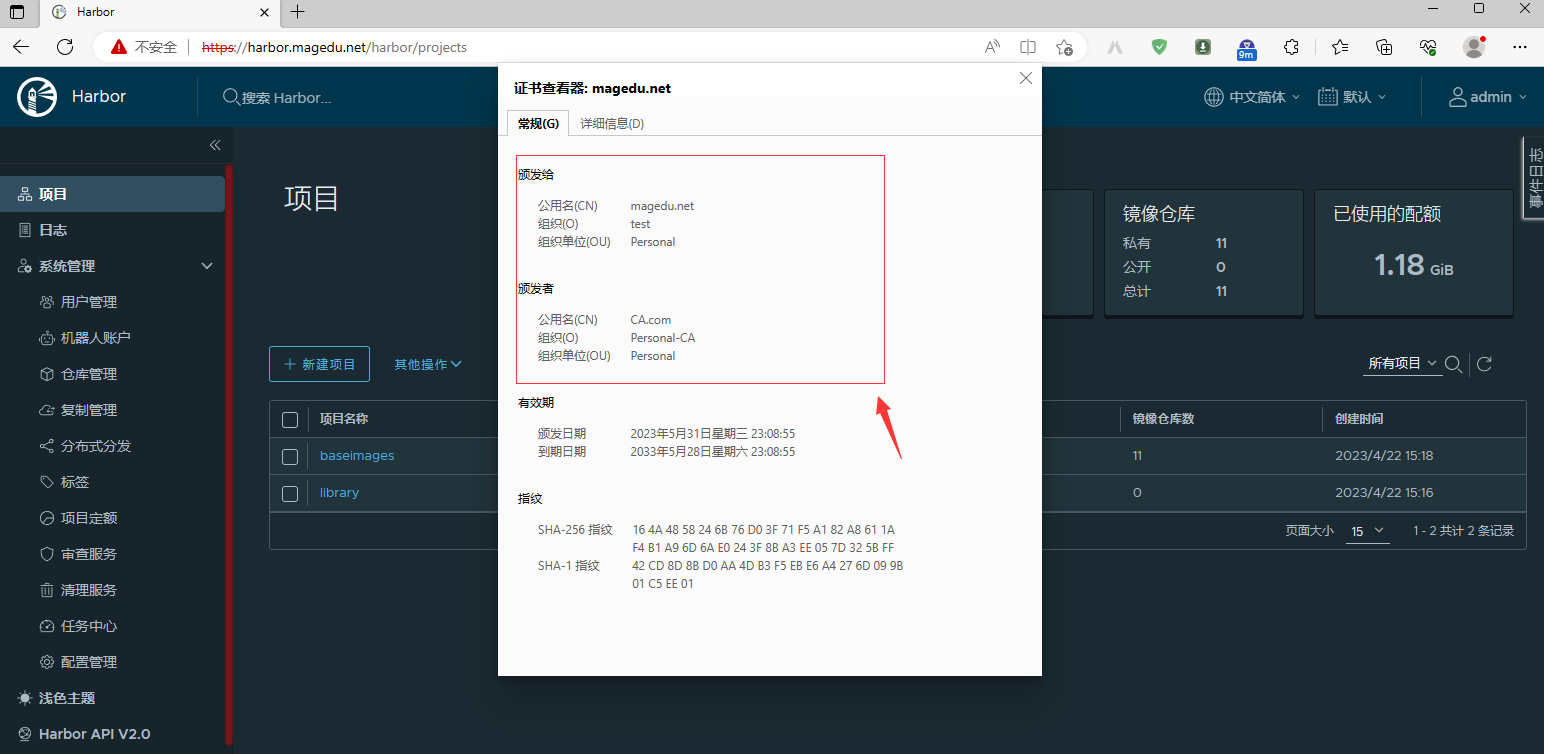

查看證書資訊

4.2.3、buildkitd配置?件

root@k8s-master01:/usr/local/src/bin# cat /etc/buildkit/buildkitd.toml
[registry."harbor.magedu.net"]
  http = true
  insecure = true
root@k8s-master01:

4.2.4、nerdctl配置?件

root@k8s-master01:/usr/local/src/bin# cat /etc/nerdctl/nerdctl.toml
namespace = "k8s.io"
debug = false
debug_full = false
insecure_registry = true
root@k8s-master01:/usr/local/src/bin#

5、測驗鏡像構建

5.1、nerdctl常?命令

5.1.1 給nerdctl添加命令補全

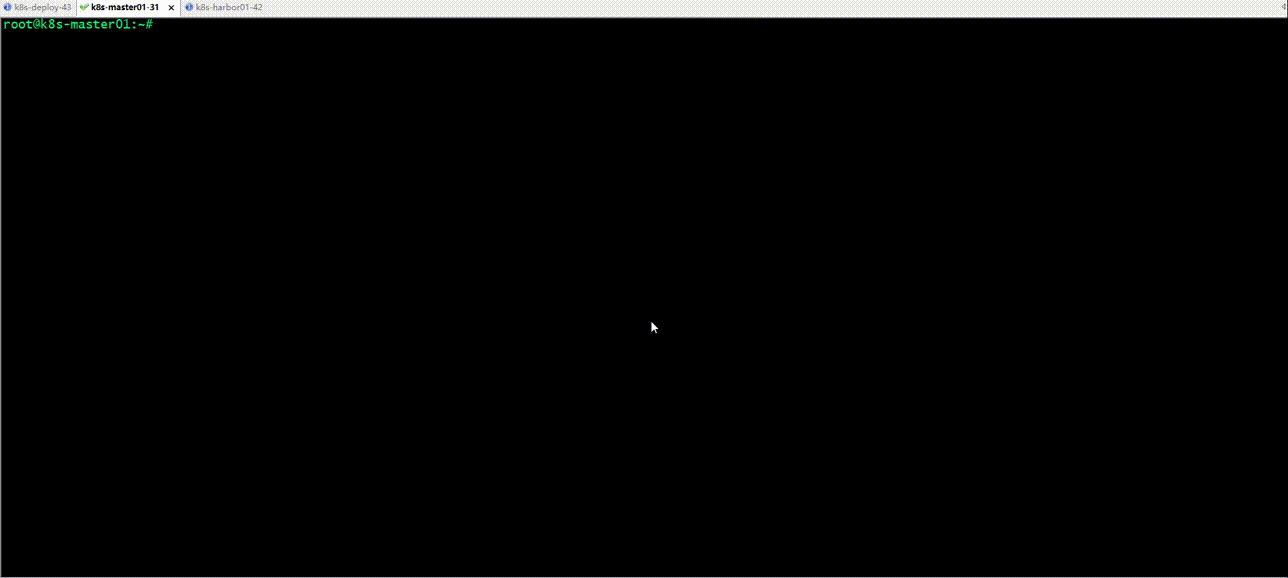

root@k8s-master01:~# echo "source <(nerdctl completion bash)" >> /etc/profile
root@k8s-master01:~# cat /etc/profile
# /etc/profile: system-wide .profile file for the Bourne shell (sh(1))
# and Bourne compatible shells (bash(1), ksh(1), ash(1), ...).

if [ "${PS1-}" ]; then
  if [ "${BASH-}" ] && [ "$BASH" != "/bin/sh" ]; then
    # The file bash.bashrc already sets the default PS1.
    # PS1='\h:\w\$ '
    if [ -f /etc/bash.bashrc ]; then
      . /etc/bash.bashrc
    fi
  else
    if [ "$(id -u)" -eq 0 ]; then
      PS1='# '
    else
      PS1='$ '
    fi
  fi
fi

if [ -d /etc/profile.d ]; then
  for i in /etc/profile.d/*.sh; do
    if [ -r $i ]; then
      . $i
    fi
  done
  unset i
fi
source <(nerdctl completion bash)
root@k8s-master01:~# source /etc/profile

5.1.2、登錄harbor倉庫

root@k8s-master01:~# nerdctl login harbor.magedu.net
Enter Username: admin
Enter Password:
WARN[0005] skipping verifying HTTPS certs for "harbor.magedu.net"
WARNING: Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded
root@k8s-master01:~# nerdctl login --insecure-registry https://harbor.magedu.net
WARN[0000] skipping verifying HTTPS certs for "harbor.magedu.net"
WARNING: Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded
root@k8s-master01:~#

自簽名證書一般通過--insecure-registry 選項來指定該倉庫是一個不安全的倉庫

5.2、自簽名harbor證書分發

5.2.1、創建證書?錄

root@k8s-master01:~# mkdir -pv /etc/containerd/certs.d/harbor.magedu.net
mkdir: created directory '/etc/containerd/certs.d'
mkdir: created directory '/etc/containerd/certs.d/harbor.magedu.net'
root@k8s-master01:~#

5.2.2、證書格式轉換

root@k8s-deploy:~# cd /apps/nginx/certs/
root@k8s-deploy:/apps/nginx/certs# openssl x509 -inform PEM -in magedu.net.crt -out magedu.net.cert
root@k8s-deploy:/apps/nginx/certs#

5.2.3、開始分發證書至鏡像構建服務器

root@k8s-deploy:/apps/nginx/certs# scp ca.crt magedu.net.cert magedu.net.key 192.168.0.31:/etc/containerd/certs.d/harbor.magedu.net/
ca.crt                                                                                                               100% 2041     1.5MB/s   00:00
magedu.net.cert                                                                                                      100% 1915     1.6MB/s   00:00
magedu.net.key                                                                                                       100% 3272     2.9MB/s   00:00
root@k8s-deploy:/apps/nginx/certs#

5.2.4、鏡像構建服務器上驗證證書

root@k8s-master01:~# cd /etc/containerd/certs.d/harbor.magedu.net
root@k8s-master01:/etc/containerd/certs.d/harbor.magedu.net# ll
total 20
drwxr-xr-x 2 root root 4096 May 31 17:49 ./
drwxr-xr-x 3 root root 4096 May 31 17:44 ../
-rw-r--r-- 1 root root 2041 May 31 17:49 ca.crt
-rw-r--r-- 1 root root 1915 May 31 17:49 magedu.net.cert
-rw------- 1 root root 3272 May 31 17:49 magedu.net.key
root@k8s-master01:/etc/containerd/certs.d/harbor.magedu.net#

5.2.5、洗掉原有登錄資訊，重新登錄harbor

root@k8s-master01:~# rm -rf .docker/config.json
root@k8s-master01:~# nerdctl login harbor.magedu.net
Enter Username: admin
Enter Password:
WARN[0005] skipping verifying HTTPS certs for "harbor.magedu.net"
WARNING: Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded
root@k8s-master01:~#

5.3、鏡像構建

root@k8s-master01:~/ubuntu# ll
total 1120
drwxr-xr-x  3 root root    4096 May 31 18:40 ./
drwx------ 11 root root    4096 May 31 18:40 ../
-rw-r--r--  1 root root     846 May 31 18:39 Dockerfile
-rw-r--r--  1 root root     266 May 31 18:40 build-command.sh
-rw-r--r--  1 root root   38751 Aug  5  2022 frontend.tar.gz
drwxr-xr-x  3 root root    4096 May 31 18:37 html/
-rw-r--r--  1 root root 1073322 May 24  2022 nginx-1.22.0.tar.gz
-rw-r--r--  1 root root    2812 Oct  3  2020 nginx.conf
-rw-r--r--  1 root root    1139 Aug  5  2022 sources.list
root@k8s-master01:~/ubuntu# cat Dockerfile
FROM ubuntu:22.04
ADD sources.list /etc/apt/sources.list

RUN apt update && apt  install -y iproute2  ntpdate  tcpdump telnet traceroute nfs-kernel-server nfs-common  lrzsz tree  openssl libssl-dev libpcre3 libpcre3-dev zlib1g-dev ntpdate tcpdump telnet traceroute  gcc openssh-server lrzsz tree  openssl libssl-dev libpcre3 libpcre3-dev zlib1g-dev ntpdate tcpdump telnet traceroute iotop unzip zip make


ADD nginx-1.22.0.tar.gz /usr/local/src/
RUN cd /usr/local/src/nginx-1.22.0 && ./configure --prefix=/apps/nginx && make && make install  && ln -sv /apps/nginx/sbin/nginx /usr/bin
RUN groupadd  -g 2088 nginx && useradd  -g nginx -s /usr/sbin/nologin -u 2088 nginx && chown -R nginx.nginx /apps/nginx
ADD nginx.conf /apps/nginx/conf/
ADD frontend.tar.gz /apps/nginx/html/


EXPOSE 80 443
#ENTRYPOINT ["nginx"]
CMD ["nginx","-g","daemon off;"]
root@k8s-master01:~/ubuntu# cat build-command.sh
#!/bin/bash
#docker build -t harbor.magedu.net/myserver/nginx:v1 .
#docker push harbor.magedu.net/myserver/nginx:v1

/usr/local/bin/nerdctl build -t harbor.magedu.net/magedu/nginx-base:1.22.0 .

/usr/local/bin/nerdctl push harbor.magedu.net/magedu/nginx-base:1.22.0
root@k8s-master01:~/ubuntu#

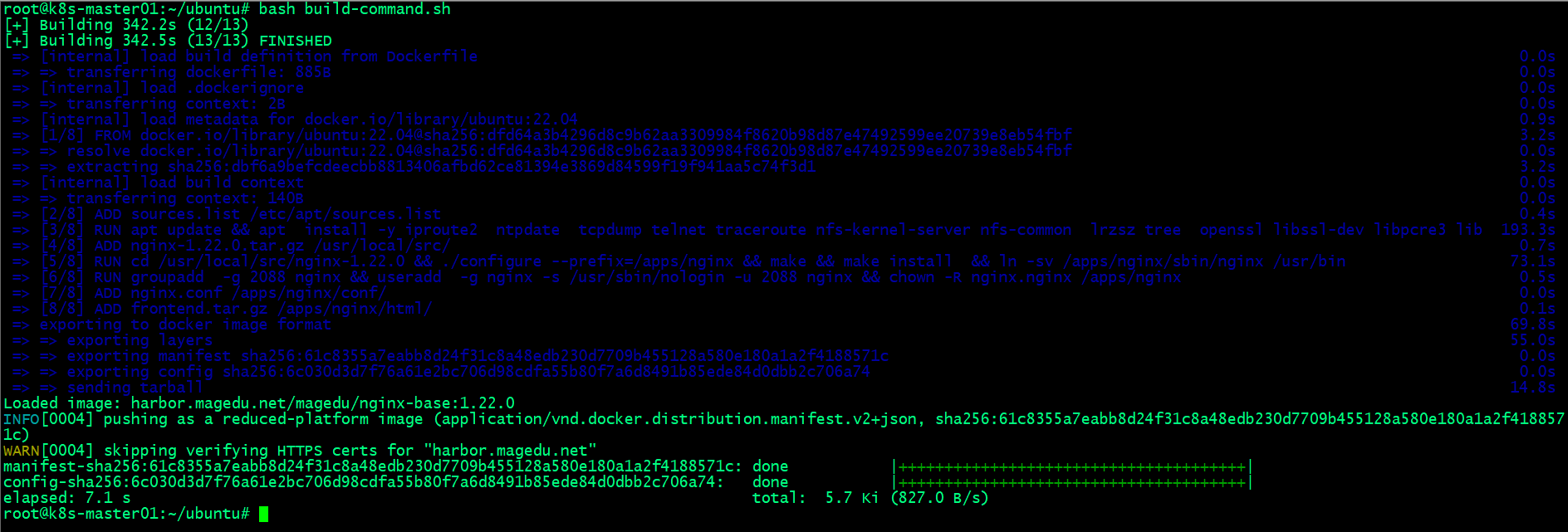

5.4、通過腳本?動構建并把鏡像上傳到鏡像倉庫

root@k8s-master01:~/ubuntu# bash build-command.sh

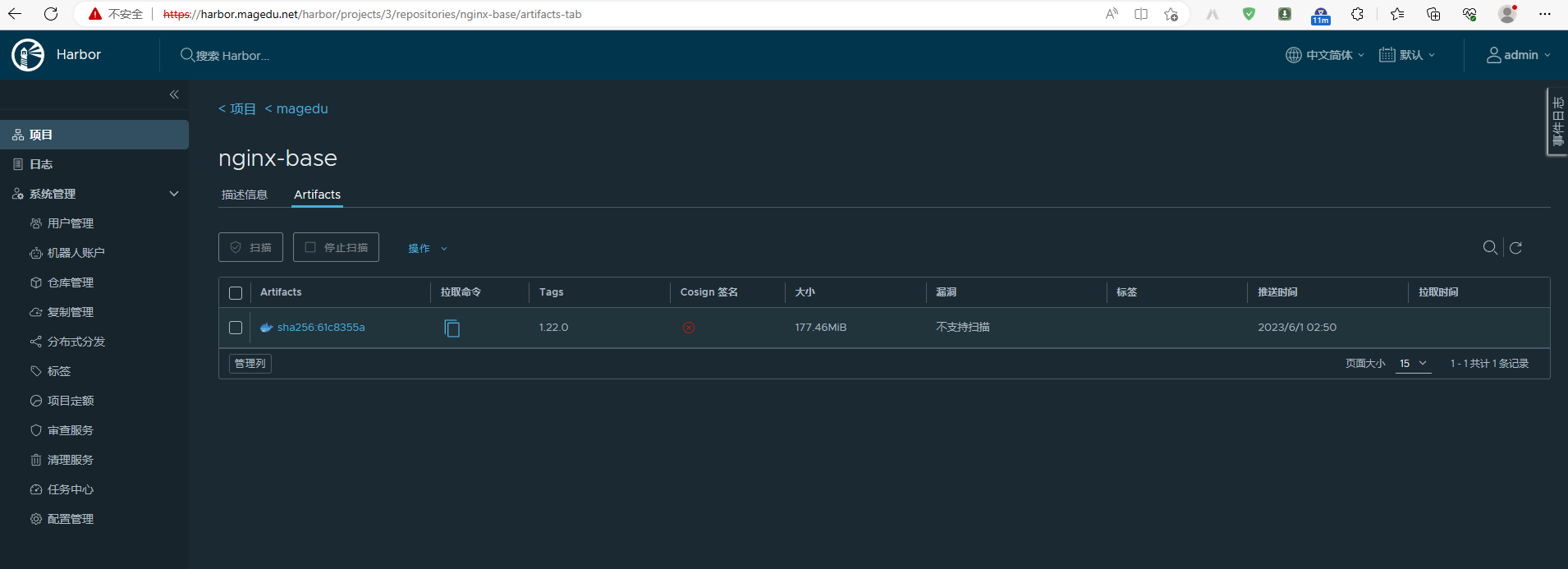

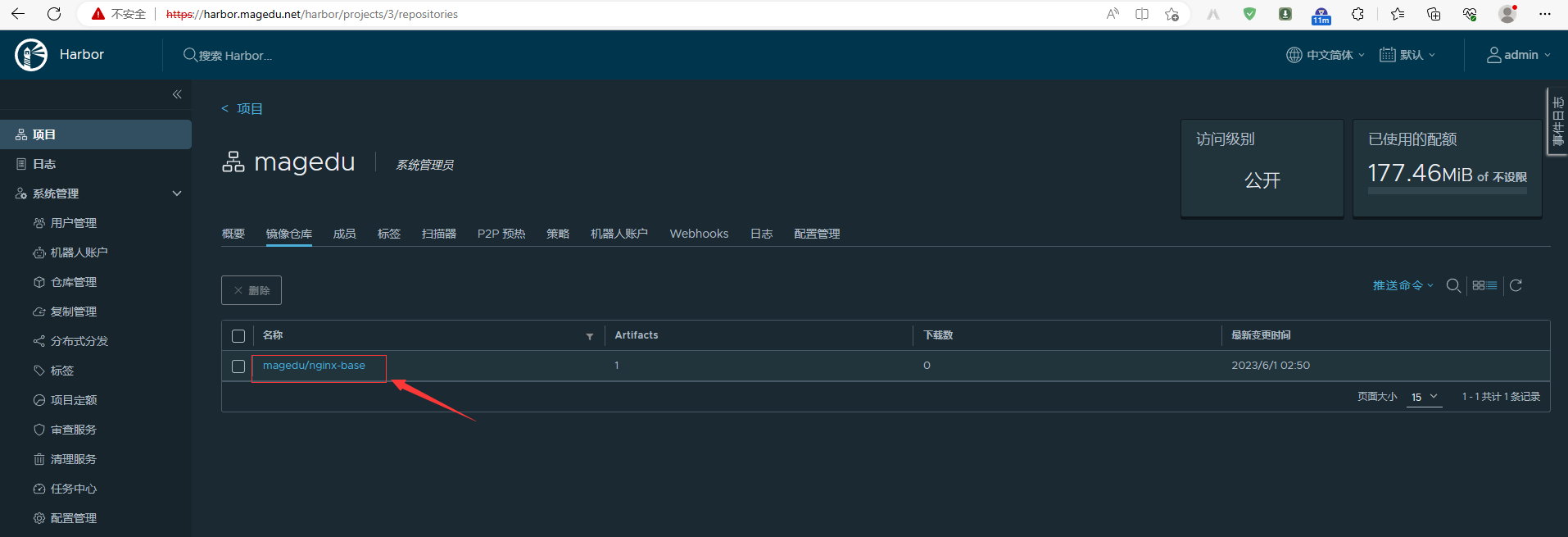

5.5、驗證鏡像是否上傳到harbor倉庫？


6、基于?定義鏡像創建測驗容器

6.1、nerdctl命令

root@k8s-node01:~# nerdctl run -d -p 80:80 harbor.magedu.net/magedu/nginx-base:1.22.0
WARN[0000] skipping verifying HTTPS certs for "harbor.magedu.net"
harbor.magedu.net/magedu/nginx-base:1.22.0:                                       resolved       |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:61c8355a7eabb8d24f31c8a48edb230d7709b455128a580e180a1a2f4188571c: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:6c030d3d7f76a61e2bc706d98cdfa55b80f7a6d8491b85ede84d0dbb2c706a74:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:4da3a93ac27213414b4de065a2603d7acbec5bd63d6198a62ad732fa7ac6afa0:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:26039d49560ee304c7a41e00617e216bedb7e9c6b74263db5afe68a23425f286:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:61967fbfff474bb397fbc7752b2097a1211fd9e22c85ce679d2b80c29477ca8d:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:4179b69841babb645626f43f9f4eb8bf4fc9be92ef9819ea8d9335408178a497:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:9e0da806173e5c7f5188ed9222e6caf214b43f6e0ed1f961ed8261cb4fbf9429:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:1739bcae88003d009cb72941ca5085074a0d1257c971a3838e0d6402f010b38e:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:f8a2ffd8882321b57192cce8fcaebab3657bb30e073e4f21eee91b3f44488809:    done           |++++++++++++++++++++++++++++++++++++++|
elapsed: 18.6s                                                                    total:  149.3  (8.0 MiB/s)
af08bef4d635f3f888c87120cc830b37e3f53121012ad59500a30c20ac065319
root@k8s-node01:~#

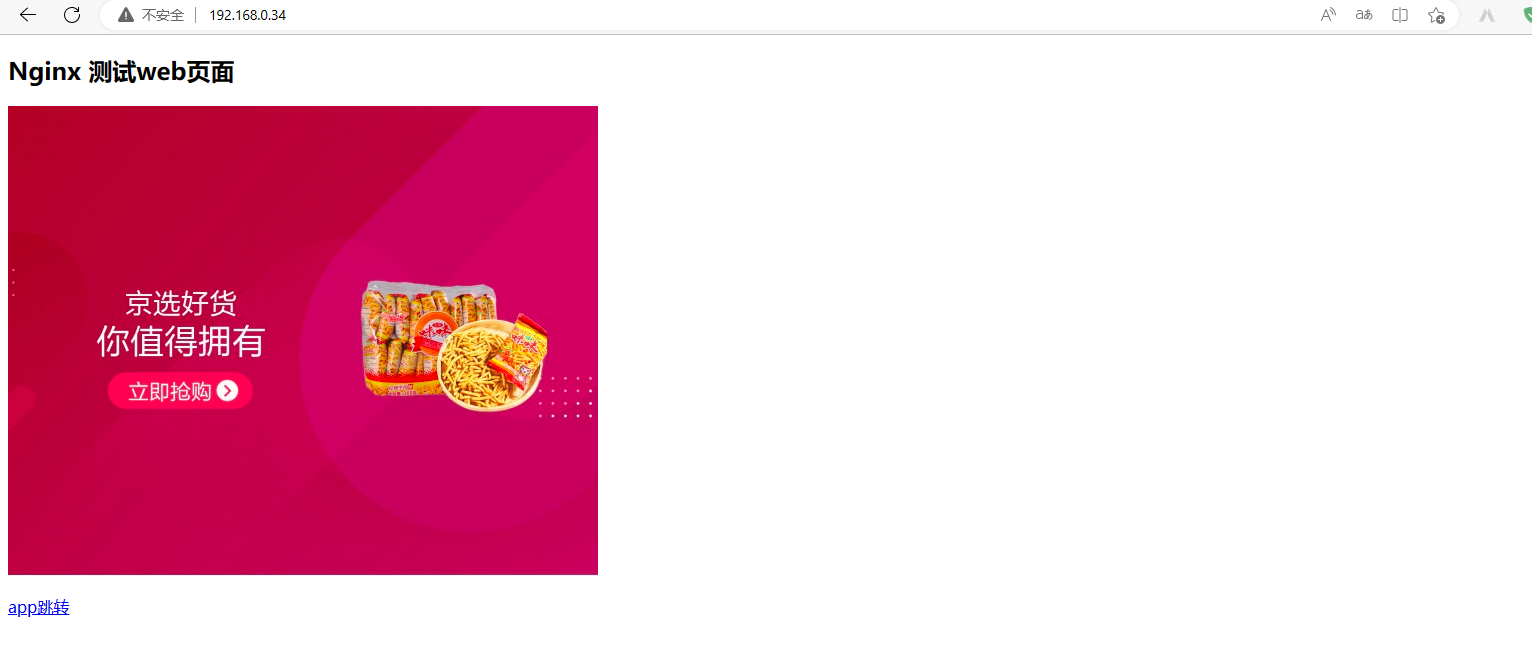

訪問容器

作者：Linux-1874 出處：https://www.cnblogs.com/qiuhom-1874/ 本文著作權歸作者和博客園共有，歡迎轉載，但未經作者同意必須保留此段宣告，且在文章頁面明顯位置給出原文連接，否則保留追究法律責任的權利.

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/554091.html

標籤：其他

上一篇：魔力屏障 (magic) 題解

下一篇：返回列表

標籤雲
其他(160189) Python(38196) JavaScript(25473) Java(18173) C(15235) 區塊鏈(8269) C＃(7972) AI(7469) 爪哇(7425) MySQL(7222) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5873) 数组(5741) R(5409) Linux(5344) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4580) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2434) ASP.NET(2403) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) .NET技术(1979) 功能(1967) Web開發(1951) HtmlCss(1950) C++(1928) python-3.x(1918) 弹簧靴(1913) xml(1889) PostgreSQL(1879) .NETCore(1863) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 基于nerdctl+buildkitd+containerd實作鏡像構建

    容器技術除了的docker之外，還有coreOS的rkt、google的gvisor、以及docker開源的containerd、redhat的podman、阿?的pouch等，為了保證容器?態的標準性和健康可持續發展，包括Linux 基?會、Docker、微軟、紅帽、?歌和IBM等公司在2015年... ......

    uj5u.com 2023-06-02 08:59:32 more
  • 魔力屏障 (magic) 題解

    魔力屏障 (magic) 【問題描述】 小 Z 生活在神奇的魔法大陸上。今天他的魔法老師給了它這樣一個法陣作為它 的期末考試題目： 法陣由從左至右 n 道魔力屏障組成，每道屏障有一個臨界值 a，如果它承受攻 擊的魔力值 ≥ a，屏障將會破碎，它所承受的魔力攻擊將在魔力值減半后（向下取 整）繼續向右移 ......

    uj5u.com 2023-06-02 08:59:14 more
  • 2萬聊天詞庫機器人詞庫ACCESS資料庫

    最近ChatGPT很火暴，機器人聊天很多年前就已經開始有了，只不過國內一直都是很淺顯的應用，這幾年又隨著小米同學、新能源汽車的語音控制又有所發展，國外的ChatGPT對漢語的理解還不是很透徹，還需要大量的學習程序。 這個聊天詞庫是從QQ機器人插件中提取出來的，但是有些分類沒有匯出，比如歇后語、成語啊 ......

    uj5u.com 2023-06-02 08:59:08 more
  • 【Haxe】（二）字串與變數的輸入輸出

    前言 每次學習一門新語言，各種手冊和教程一上來就是講變數如何定義，資料結構怎么用，很少有講輸入輸出應該怎么寫的。我比較喜歡先搞懂這部分，這讓我感覺像是掌握了學習主動權，很能調動我的學習積極性。于是我的第一篇筆記就打算記錄 Haxe 語言的輸入輸出陳述句怎么使用，算是用自己的筆記彌補對教程的缺憾了。關于 ......

    uj5u.com 2023-06-02 08:59:03 more
  • 業務安全情報第16期 | 大促8成優惠券竟被“羊毛黨”搶走!?

    ![圖片](https://mmbiz.qpic.cn/mmbiz_gif/Qk5wiatq1gWMXM8AD19laQkHjALvSLERCKS7IXrSPgFzqwL6MjQgTicZLyliasVbn5UfjXp0ClKyNt3APmvAVradQ/640?wx_fmt=gif&wxfrom= ......

    uj5u.com 2023-06-02 08:58:59 more
  • DNS隧道流量分析

    選擇哪家的云都沒問題，國內云需要實名，不建議使用，這里我選擇的TX云，因為之前注冊過了，自己拿來做個流量分析不成問題。 ......

    uj5u.com 2023-06-02 08:53:24 more
  • 【終極計算平臺】上海道寧為您提供?Wolfram技術，支持跨桌面、云、

    Wolfram幫助世界加快研究、教育、技術發展和革新的步伐。無論您所在任何領域、無論您需要任何應用，Wolfram技術都是您的終極計算平臺。 ......

    uj5u.com 2023-06-02 08:51:12 more
  • 3萬8千多古代文學大全ACCESS資料庫

    今天采集了一個古典文學古代文學書籍內容的網站，網站里有幾百上千部古書的內容，感覺挺有意思的就采集了下來。具體看截圖或者文后的樣本下載鏈接。 才子佳人類有：斷鴻零雁記、浮生六記、海上花魅影、漢宮秋、狐貍緣全傳、笏山記、劫余灰、鏡花緣、女媧石、雙鳳奇緣、梼杌閑評、西廂記、新石頭記、醒世姻緣傳。 道教書籍 ......

    uj5u.com 2023-06-02 08:51:02 more
  • 玩轉服務器之資料傳輸篇：如何快速搭建FTP檔案共享服務器

    FTP服務（File Transfer Protocol，FTP）是最早應用于主機之間資料傳輸的基本服務之一，是目前使用最廣泛的檔案傳送協議。FTP檔案共享服務器在日常辦公中可以實作多人之間檔案的傳遞和共享，極大提高協同辦公的效率 ......

    uj5u.com 2023-06-02 08:50:57 more
  • 5.4 執行緒池

    執行緒池是一種管理執行緒的資源，它可以在系統中創建、重用和銷毀執行緒。執行緒池的主要優點是減少了創建和銷毀執行緒的開銷，提高了系統的性能。 Java中的執行緒池由`java.util.concurrent.ExecutorService`介面和它的實作類表示。`ExecutorService`提供了一些用于管理 ......

    uj5u.com 2023-06-02 08:45:39 more

Copyright © 2010-2020 有解無憂
