1、Zookeeper簡介
zookeeper是一個開源的分布式協調服務，由知名互聯網公司Yahoo創建，它是Chubby的開源實作；換句話講，zookeeper是一個典型的分布式資料一致性解決方案，分布式應用程式可以基于它實作資料的發布/訂閱、負載均衡、名稱服務、分布式協調/通知、集群管理、Master選舉、分布式鎖和分布式佇列；

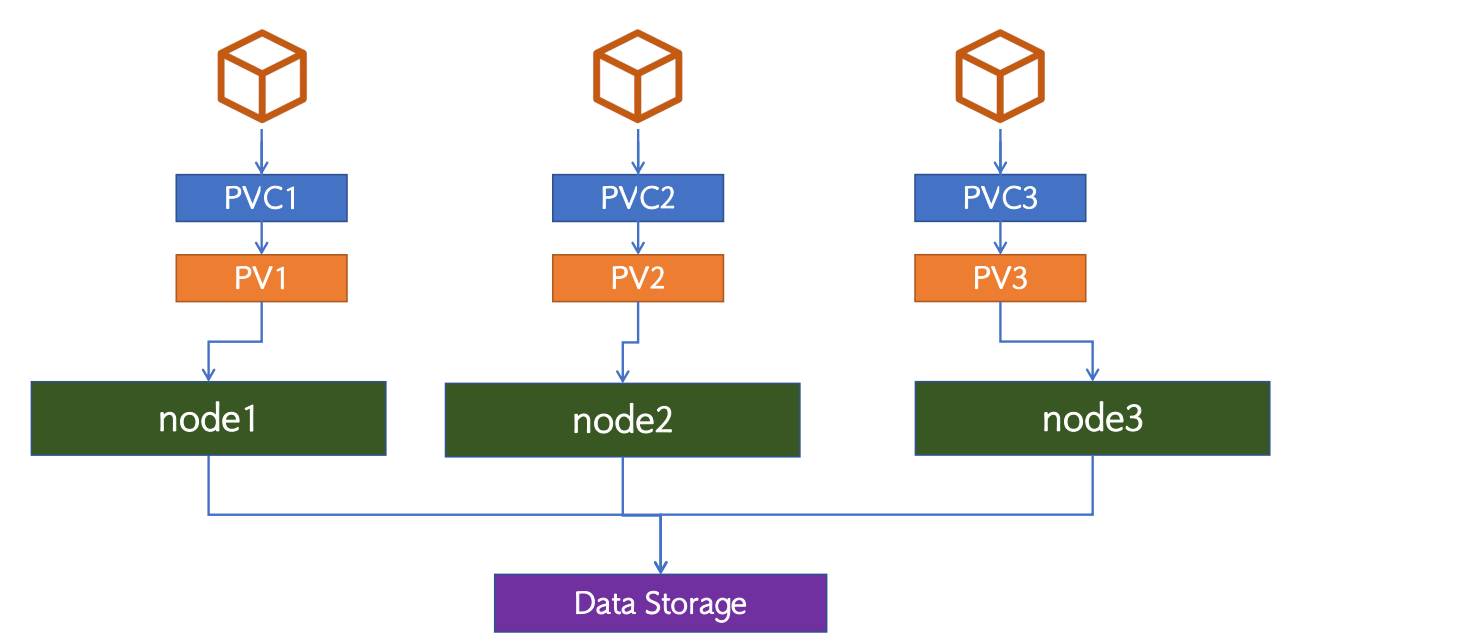

2、PV/PVC及zookeeper
3、構建zookeeper鏡像

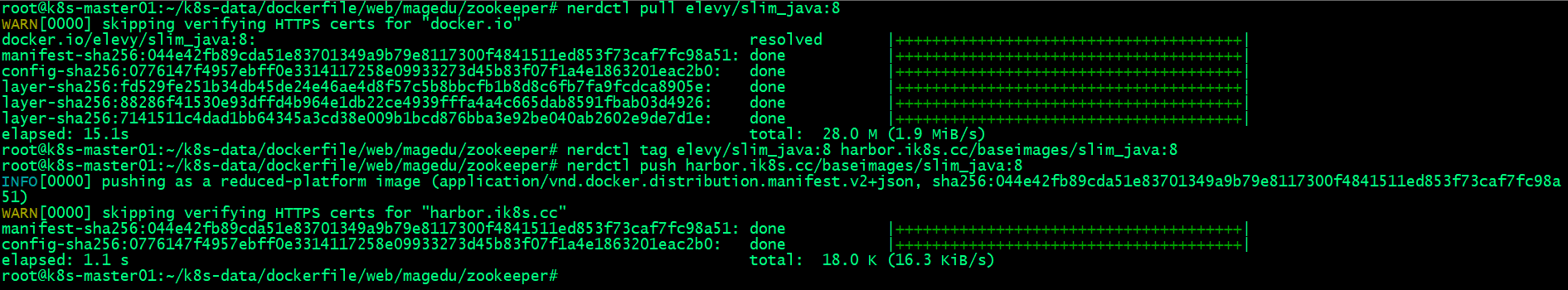

3.1、下載java環境基礎鏡像，將對應鏡像修改本地harbor地址上傳至harbor

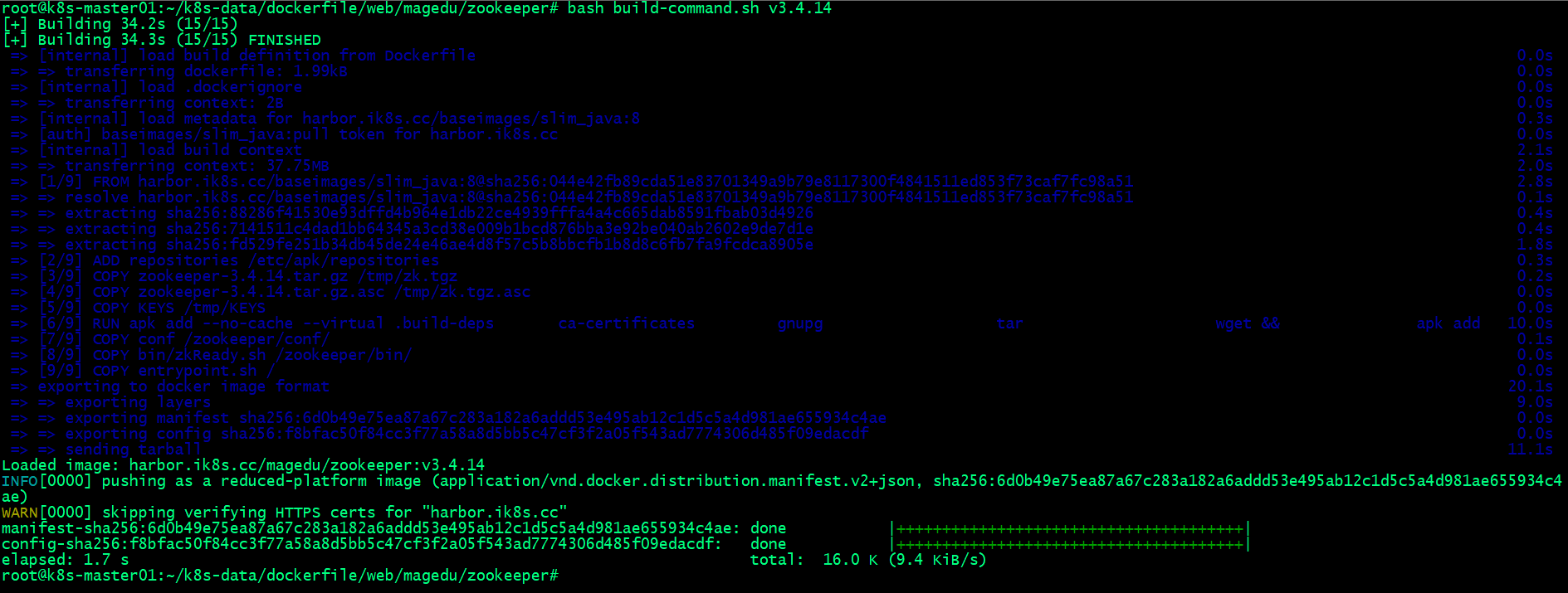

3.2 基于java環境基礎鏡像，構建zookeeper鏡像
root@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper# ll
total 36900
drwxr-xr-x 4 root root 4096 Jun 4 11:03 ./
drwxr-xr-x 11 root root 4096 Aug 9 2022 ../
-rw-r--r-- 1 root root 1954 Jun 4 10:57 Dockerfile
-rw-r--r-- 1 root root 63587 Jun 22 2021 KEYS
drwxr-xr-x 2 root root 4096 Jun 4 10:11 bin/
-rwxr-xr-x 1 root root 251 Jun 4 10:58 build-command.sh*
drwxr-xr-x 2 root root 4096 Jun 4 10:11 conf/
-rwxr-xr-x 1 root root 1156 Jun 4 11:03 entrypoint.sh*
-rw-r--r-- 1 root root 91 Jun 22 2021 repositories
-rw-r--r-- 1 root root 2270 Jun 22 2021 zookeeper-3.12-Dockerfile.tar.gz
-rw-r--r-- 1 root root 37676320 Jun 22 2021 zookeeper-3.4.14.tar.gz
-rw-r--r-- 1 root root 836 Jun 22 2021 zookeeper-3.4.14.tar.gz.asc
root@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper# cat Dockerfile
FROM harbor.ik8s.cc/baseimages/slim_java:8
ENV ZK_VERSION 3.4.14
ADD repositories /etc/apk/repositories
# Download Zookeeper
COPY zookeeper-3.4.14.tar.gz /tmp/zk.tgz
COPY zookeeper-3.4.14.tar.gz.asc /tmp/zk.tgz.asc
COPY KEYS /tmp/KEYS
RUN apk add --no-cache --virtual .build-deps \
ca-certificates \
gnupg \
tar \
wget && \
#
# Install dependencies
apk add --no-cache \
bash && \
#
#
# Verify the signature
export GNUPGHOME="$(mktemp -d)" && \
gpg -q --batch --import /tmp/KEYS && \
gpg -q --batch --no-auto-key-retrieve --verify /tmp/zk.tgz.asc /tmp/zk.tgz && \
#
# Set up directories
#
mkdir -p /zookeeper/data /zookeeper/wal /zookeeper/log && \
#
# Install
tar -x -C /zookeeper --strip-components=1 --no-same-owner -f /tmp/zk.tgz && \
#
# Slim down
cd /zookeeper && \
cp dist-maven/zookeeper-${ZK_VERSION}.jar . && \
rm -rf \
*.txt \
*.xml \
bin/README.txt \
bin/*.cmd \
conf/* \
contrib \
dist-maven \
docs \
lib/*.txt \
lib/cobertura \
lib/jdiff \
recipes \
src \
zookeeper-*.asc \
zookeeper-*.md5 \
zookeeper-*.sha1 && \
#
# Clean up
apk del .build-deps && \
rm -rf /tmp/* "$GNUPGHOME"
# 拷貝組態檔和腳本
COPY conf /zookeeper/conf/
COPY bin/zkReady.sh /zookeeper/bin/
COPY entrypoint.sh /
ENV PATH=/zookeeper/bin:${PATH} \
ZOO_LOG_DIR=/zookeeper/log \
ZOO_LOG4J_PROP="INFO, CONSOLE, ROLLINGFILE" \
JMXPORT=9010
# 啟動zookeeper，entrypoint 腳本和cmd聯合使用，entrypoint會把cmd當作引數傳遞給entrypoint腳本執行，即entrypoint腳本通常用來做一些環境初始化；比如這里就是用來在線生成zk集群配置
ENTRYPOINT [ "/entrypoint.sh" ]
CMD [ "zkServer.sh", "start-foreground" ]
EXPOSE 2181 2888 3888 9010
root@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper# cat conf/zoo.cfg
tickTime=2000
initLimit=10
syncLimit=5
dataDir=/zookeeper/data
dataLogDir=/zookeeper/wal
#snapCount=100000
autopurge.purgeInterval=1
clientPort=2181
quorumListenOnAllIPs=trueroot@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper# cat entrypoint.sh
#!/bin/bash
# 生成zk集群配置
echo ${MYID:-1} > /zookeeper/data/myid #將$MYID的值寫入MYID檔案,如果變數為空就默認為1,$MYID為pod中的系統級別環境變數,該變數由部署zk清單中的環境變數指定
if [ -n "$SERVERS" ]; then #如果$SERVERS不為空則向下執行,SERVERS為pod中的系統級別環境變數,該變數同樣也是在zk部署清單中指定的環境變數的
IFS=\, read -a servers <<<"$SERVERS" #IFS為bash內置變數用于分割字符并將結果形成一個陣列
for i in "${!servers[@]}"; do #${!servers[@]}表示獲取servers中每個元素的索引值,此索引值會用做當前ZK的ID
printf "\nserver.%i=%s:2888:3888" "$((1 + $i))" "${servers[$i]}" >> /zookeeper/conf/zoo.cfg #列印結果并輸出重定向到檔案/zookeeper/conf/zoo.cfg，其中%i和%s的值來分別自于后面變數"$((1 + $i))" "${servers[$i]}"
done
fi
cd /zookeeper
exec "$@" #$@變數用于參考給腳本傳遞的所有引數,傳遞的所有引數會被作為一個陣列串列,exec為終止當前行程、保留當前行程id、新建一個行程執行新的任務,即CMD [ "zkServer.sh", "start-foreground" ]
root@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper# cat build-command.sh
#!/bin/bash
TAG=$1
#docker build -t harbor.ik8s.cc/magedu/zookeeper:${TAG} .
#sleep 1
#docker push harbor.ik8s.cc/magedu/zookeeper:${TAG}
nerdctl build -t harbor.ik8s.cc/magedu/zookeeper:${TAG} .
nerdctl push harbor.ik8s.cc/magedu/zookeeper:${TAG}
root@k8s-master01:~/k8s-data/dockerfile/web/magedu/zookeeper#
4、測驗zookeeper鏡像

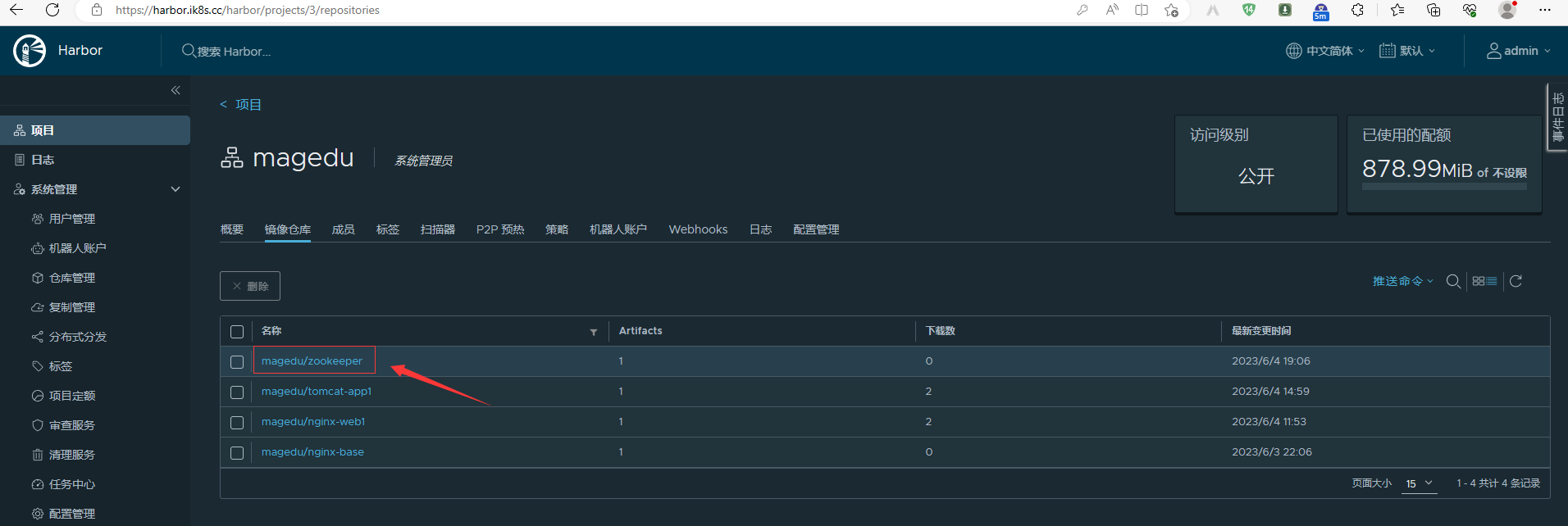

4.1、驗證zk鏡像是否上傳至harbor?
4.2、將zk鏡像運行為容器？看看是否可正常運行？
root@k8s-node01:~# nerdctl run -it --rm -p 2181:2181 harbor.ik8s.cc/magedu/zookeeper:v3.4.14
WARN[0000] skipping verifying HTTPS certs for "harbor.ik8s.cc"
harbor.ik8s.cc/magedu/zookeeper:v3.4.14: resolved |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:6d0b49e75ea87a67c283a182a6addd53e495ab12c1d5c5a4d981ae655934c4ae: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:f8bfac50f84cc3f77a58a8d5bb5c47cf3f2a05f543ad7774306d485f09edacdf: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:88286f41530e93dffd4b964e1db22ce4939fffa4a4c665dab8591fbab03d4926: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:7faf2f47dd69ec7a0e44611703ec6c400c3ca9248b306dc8c4928fecdf81cf85: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:7141511c4dad1bb64345a3cd38e009b1bcd876bba3e92be040ab2602e9de7d1e: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:c2ac2f7a5c66a805ac53df2ac25e747244602b7cde77d854b0ff00a47ec8640f: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:3cf9e52a32f5617781d616893614fd88d791040b7a78bddc833f54a7d4362ba5: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:03aad7531339cf92a0feff169cef562fa9aa62f4eb3c1090968f36280522485c: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:11620dde2c1fc91a436998729ae0f0f0bcff774f7c32c2ef0910ff4125761c2c: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:fd529fe251b34db45de24e46ae4d8f57c5b8bbcfb1b8d8c6fb7fa9fcdca8905e: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:551a566b3c61bcc1fbdfbd8f4e67afd7b63fa0b1651c461d419619f08df6599c: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:bc2237b8828aac97e90ba3b47f00f153338890638e4cfc3742c22cb92f4fd1f9: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:0221a34207fe67c83ac7b33fb5be169754666ab4841abb0c050d2ff0022c1d1a: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 7.9 s total: 101.0 (12.8 MiB/s)
ZooKeeper JMX enabled by default
ZooKeeper remote JMX Port set to 9010
ZooKeeper remote JMX authenticate set to false
ZooKeeper remote JMX ssl set to false
ZooKeeper remote JMX log4j set to true
Using config: /zookeeper/bin/../conf/zoo.cfg
2023-06-04 11:11:58,379 [myid:] - INFO [main:QuorumPeerConfig@136] - Reading configuration from: /zookeeper/bin/../conf/zoo.cfg
2023-06-04 11:11:58,384 [myid:] - INFO [main:DatadirCleanupManager@78] - autopurge.snapRetainCount set to 3
2023-06-04 11:11:58,384 [myid:] - INFO [main:DatadirCleanupManager@79] - autopurge.purgeInterval set to 1
2023-06-04 11:11:58,385 [myid:] - WARN [main:QuorumPeerMain@116] - Either no config or no quorum defined in config, running in standalone mode
2023-06-04 11:11:58,385 [myid:] - INFO [PurgeTask:DatadirCleanupManager$PurgeTask@138] - Purge task started.
2023-06-04 11:11:58,387 [myid:] - INFO [main:QuorumPeerConfig@136] - Reading configuration from: /zookeeper/bin/../conf/zoo.cfg
2023-06-04 11:11:58,387 [myid:] - INFO [main:ZooKeeperServerMain@98] - Starting server
2023-06-04 11:11:58,399 [myid:] - INFO [PurgeTask:DatadirCleanupManager$PurgeTask@144] - Purge task completed.
2023-06-04 11:11:58,402 [myid:] - INFO [main:Environment@100] - Server environment:zookeeper.version=3.4.14-4c25d480e66aadd371de8bd2fd8da255ac140bcf, built on 03/06/2019 16:18 GMT
2023-06-04 11:11:58,402 [myid:] - INFO [main:Environment@100] - Server environment:host.name=07fd37df3459
2023-06-04 11:11:58,403 [myid:] - INFO [main:Environment@100] - Server environment:java.version=1.8.0_144
2023-06-04 11:11:58,403 [myid:] - INFO [main:Environment@100] - Server environment:java.vendor=Oracle Corporation
2023-06-04 11:11:58,403 [myid:] - INFO [main:Environment@100] - Server environment:java.home=/usr/lib/jvm/java-8-oracle
2023-06-04 11:11:58,403 [myid:] - INFO [main:Environment@100] - Server environment:java.class.path=/zookeeper/bin/../zookeeper-server/target/classes:/zookeeper/bin/../build/classes:/zookeeper/bin/../zookeeper-server/target/lib/*.jar:/zookeeper/bin/../build/lib/*.jar:/zookeeper/bin/../lib/slf4j-log4j12-1.7.25.jar:/zookeeper/bin/../lib/slf4j-api-1.7.25.jar:/zookeeper/bin/../lib/netty-3.10.6.Final.jar:/zookeeper/bin/../lib/log4j-1.2.17.jar:/zookeeper/bin/../lib/jline-0.9.94.jar:/zookeeper/bin/../lib/audience-annotations-0.5.0.jar:/zookeeper/bin/../zookeeper-3.4.14.jar:/zookeeper/bin/../zookeeper-server/src/main/resources/lib/*.jar:/zookeeper/bin/../conf:
2023-06-04 11:11:58,404 [myid:] - INFO [main:Environment@100] - Server environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
2023-06-04 11:11:58,404 [myid:] - INFO [main:Environment@100] - Server environment:java.io.tmpdir=/tmp
2023-06-04 11:11:58,405 [myid:] - INFO [main:Environment@100] - Server environment:java.compiler=<NA>
2023-06-04 11:11:58,405 [myid:] - INFO [main:Environment@100] - Server environment:os.name=Linux
2023-06-04 11:11:58,406 [myid:] - INFO [main:Environment@100] - Server environment:os.arch=amd64
2023-06-04 11:11:58,406 [myid:] - INFO [main:Environment@100] - Server environment:os.version=5.15.0-72-generic
2023-06-04 11:11:58,406 [myid:] - INFO [main:Environment@100] - Server environment:user.name=root
2023-06-04 11:11:58,406 [myid:] - INFO [main:Environment@100] - Server environment:user.home=/root
2023-06-04 11:11:58,407 [myid:] - INFO [main:Environment@100] - Server environment:user.dir=/zookeeper
2023-06-04 11:11:58,409 [myid:] - INFO [main:ZooKeeperServer@836] - tickTime set to 2000
2023-06-04 11:11:58,409 [myid:] - INFO [main:ZooKeeperServer@845] - minSessionTimeout set to -1
2023-06-04 11:11:58,409 [myid:] - INFO [main:ZooKeeperServer@854] - maxSessionTimeout set to -1
2023-06-04 11:11:58,417 [myid:] - INFO [main:ServerCnxnFactory@117] - Using org.apache.zookeeper.server.NIOServerCnxnFactory as server connection factory
2023-06-04 11:11:58,422 [myid:] - INFO [main:NIOServerCnxnFactory@89] - binding to port 0.0.0.0/0.0.0.0:2181
能夠正常運行起來并監聽2181埠，說明zk鏡像構建沒有問題；通過上述測驗，我們沒有指定環境變數，對應鏡像就直接以單機的方式運行；
5、在K8s環境中運行zookeeper集群
5.1、在nfs上準備pv目錄
root@harbor:~# mkdir -pv /data/k8sdata/magedu/zookeeper-datadir-{1,2,3}
mkdir: created directory '/data/k8sdata/magedu/zookeeper-datadir-1'
mkdir: created directory '/data/k8sdata/magedu/zookeeper-datadir-2'
mkdir: created directory '/data/k8sdata/magedu/zookeeper-datadir-3'
root@harbor:~# cat /etc/exports
# /etc/exports: the access control list for filesystems which may be exported
# to NFS clients. See exports(5).
#
# Example for NFSv2 and NFSv3:
# /srv/homes hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
#
# Example for NFSv4:
# /srv/nfs4 gss/krb5i(rw,sync,fsid=0,crossmnt,no_subtree_check)
# /srv/nfs4/homes gss/krb5i(rw,sync,no_subtree_check)
#
/data/k8sdata/kuboard *(rw,no_root_squash)
/data/volumes *(rw,no_root_squash)
/pod-vol *(rw,no_root_squash)
/data/k8sdata/myserver *(rw,no_root_squash)
/data/k8sdata/mysite *(rw,no_root_squash)
/data/k8sdata/magedu/images *(rw,no_root_squash)
/data/k8sdata/magedu/static *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-1 *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-2 *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-3 *(rw,no_root_squash)
root@harbor:~# exportfs -av
exportfs: /etc/exports [1]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/kuboard".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [2]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/volumes".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [3]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/pod-vol".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [4]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/myserver".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [5]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/mysite".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [7]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/images".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [8]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/static".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [11]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-1".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [12]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-2".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [13]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-3".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exporting *:/data/k8sdata/magedu/zookeeper-datadir-3
exporting *:/data/k8sdata/magedu/zookeeper-datadir-2
exporting *:/data/k8sdata/magedu/zookeeper-datadir-1
exporting *:/data/k8sdata/magedu/static
exporting *:/data/k8sdata/magedu/images
exporting *:/data/k8sdata/mysite
exporting *:/data/k8sdata/myserver
exporting *:/pod-vol
exporting *:/data/volumes
exporting *:/data/k8sdata/kuboard
root@harbor:~#

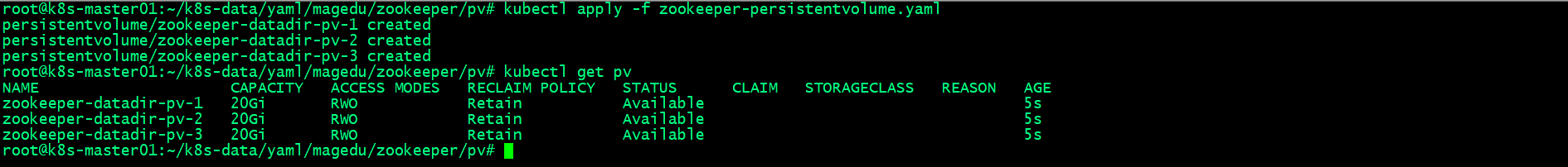

5.2、在k8s上創建pv
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper/pv# cat zookeeper-persistentvolume.yaml
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: zookeeper-datadir-pv-1
spec:
capacity:
storage: 20Gi
accessModes:
- ReadWriteOnce
nfs:
server: 192.168.0.42
path: /data/k8sdata/magedu/zookeeper-datadir-1
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: zookeeper-datadir-pv-2
spec:
capacity:
storage: 20Gi
accessModes:
- ReadWriteOnce
nfs:
server: 192.168.0.42
path: /data/k8sdata/magedu/zookeeper-datadir-2
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: zookeeper-datadir-pv-3
spec:
capacity:
storage: 20Gi
accessModes:
- ReadWriteOnce
nfs:
server: 192.168.0.42
path: /data/k8sdata/magedu/zookeeper-datadir-3
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper/pv#

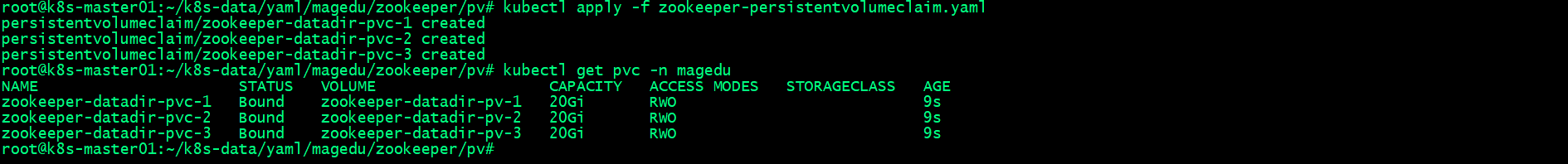

5.3、在k8s上創建pvc
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper/pv# cat zookeeper-persistentvolumeclaim.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: zookeeper-datadir-pvc-1
namespace: magedu
spec:
accessModes:
- ReadWriteOnce
volumeName: zookeeper-datadir-pv-1
resources:
requests:
storage: 10Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: zookeeper-datadir-pvc-2
namespace: magedu
spec:
accessModes:
- ReadWriteOnce
volumeName: zookeeper-datadir-pv-2
resources:
requests:
storage: 10Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: zookeeper-datadir-pvc-3
namespace: magedu
spec:
accessModes:
- ReadWriteOnce
volumeName: zookeeper-datadir-pv-3
resources:
requests:
storage: 10Gi
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper/pv#
5.4、部署zk
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper# cat zookeeper.yaml
apiVersion: v1
kind: Service
metadata:
name: zookeeper
namespace: magedu
spec:
ports:
- name: client
port: 2181
selector:
app: zookeeper
---
apiVersion: v1
kind: Service
metadata:
name: zookeeper1
namespace: magedu
spec:
type: NodePort
ports:
- name: client
port: 2181
nodePort: 32181
- name: followers
port: 2888
- name: election
port: 3888
selector:
app: zookeeper
server-id: "1"
---
apiVersion: v1
kind: Service
metadata:
name: zookeeper2
namespace: magedu
spec:
type: NodePort
ports:
- name: client
port: 2181
nodePort: 32182
- name: followers
port: 2888
- name: election
port: 3888
selector:
app: zookeeper
server-id: "2"
---
apiVersion: v1
kind: Service
metadata:
name: zookeeper3
namespace: magedu
spec:
type: NodePort
ports:
- name: client
port: 2181
nodePort: 32183
- name: followers
port: 2888
- name: election
port: 3888
selector:
app: zookeeper
server-id: "3"
---
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
name: zookeeper1
namespace: magedu
spec:
replicas: 1
selector:
matchLabels:
app: zookeeper
template:
metadata:
labels:
app: zookeeper
server-id: "1"
spec:
volumes:
- name: data
emptyDir: {}
- name: wal
emptyDir:
medium: Memory
containers:
- name: server
image: harbor.ik8s.cc/magedu/zookeeper:v3.4.14
imagePullPolicy: Always
env:
- name: MYID
value: "1"
- name: SERVERS
value: "zookeeper1,zookeeper2,zookeeper3"
- name: JVMFLAGS
value: "-Xmx2G"
ports:
- containerPort: 2181
- containerPort: 2888
- containerPort: 3888
volumeMounts:
- mountPath: "/zookeeper/data"
name: zookeeper-datadir-pvc-1
volumes:
- name: zookeeper-datadir-pvc-1
persistentVolumeClaim:
claimName: zookeeper-datadir-pvc-1
---
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
name: zookeeper2
namespace: magedu
spec:
replicas: 1
selector:
matchLabels:
app: zookeeper
template:
metadata:
labels:
app: zookeeper
server-id: "2"
spec:
volumes:
- name: data
emptyDir: {}
- name: wal
emptyDir:
medium: Memory
containers:
- name: server
image: harbor.ik8s.cc/magedu/zookeeper:v3.4.14
imagePullPolicy: Always
env:
- name: MYID
value: "2"
- name: SERVERS
value: "zookeeper1,zookeeper2,zookeeper3"
- name: JVMFLAGS
value: "-Xmx2G"
ports:
- containerPort: 2181
- containerPort: 2888
- containerPort: 3888
volumeMounts:
- mountPath: "/zookeeper/data"
name: zookeeper-datadir-pvc-2
volumes:
- name: zookeeper-datadir-pvc-2
persistentVolumeClaim:
claimName: zookeeper-datadir-pvc-2
---
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
name: zookeeper3
namespace: magedu
spec:
replicas: 1
selector:
matchLabels:
app: zookeeper
template:
metadata:
labels:
app: zookeeper
server-id: "3"
spec:
volumes:
- name: data
emptyDir: {}
- name: wal
emptyDir:
medium: Memory
containers:
- name: server
image: harbor.ik8s.cc/magedu/zookeeper:v3.4.14
imagePullPolicy: Always
env:
- name: MYID
value: "3"
- name: SERVERS
value: "zookeeper1,zookeeper2,zookeeper3"
- name: JVMFLAGS
value: "-Xmx2G"
ports:
- containerPort: 2181
- containerPort: 2888
- containerPort: 3888
volumeMounts:
- mountPath: "/zookeeper/data"
name: zookeeper-datadir-pvc-3
volumes:
- name: zookeeper-datadir-pvc-3
persistentVolumeClaim:
claimName: zookeeper-datadir-pvc-3
root@k8s-master01:~/k8s-data/yaml/magedu/zookeeper#

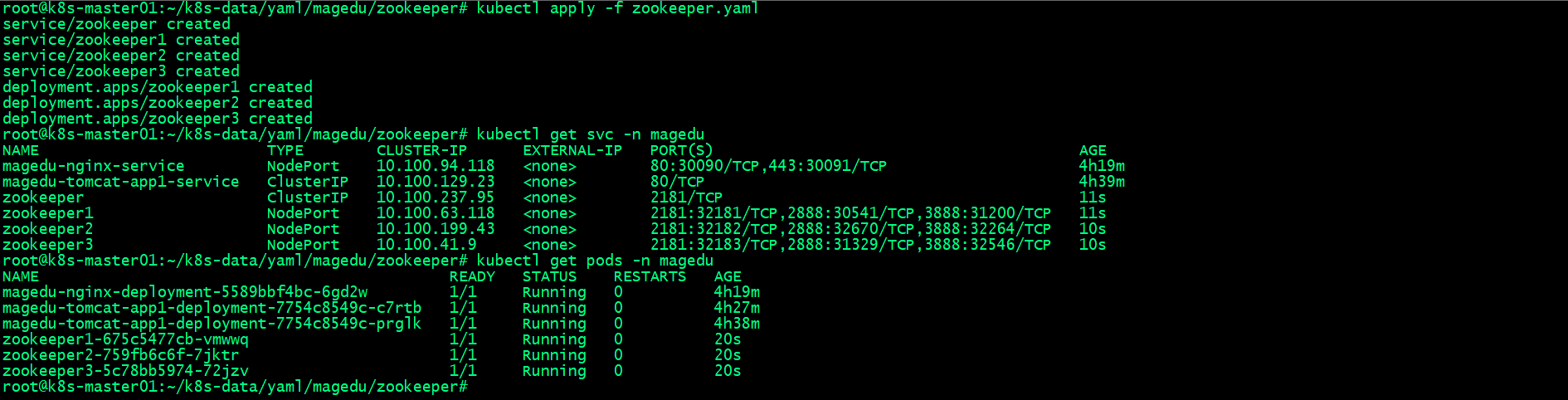

上述部署清單，主要創建了4個svc和3個deploy控制器；其中一個svc是供客戶端使用，其余三個svc主要用于內部集群通信使用，svc通過標簽選擇器（app: zookeeper 和server-id: “”來進行關聯）和deploy控制器對應的pod進行一一關聯；即service-zk1關聯deploy-zk1,service-zk2關聯deploy-zk2,service-zk3關聯deploy-zk3;對于每個deploy控制下的zkpod通過掛載對應pvc來彼此隔離資料；即zk1掛載pvc1,zk2掛載pvc2，zk3掛載pvc3;
6、驗證zookeeper集群狀態
6.1、進入任意一個pod內部，查看集群角色和組態檔
可以看到集群配置正常生成，集群角色為follower；

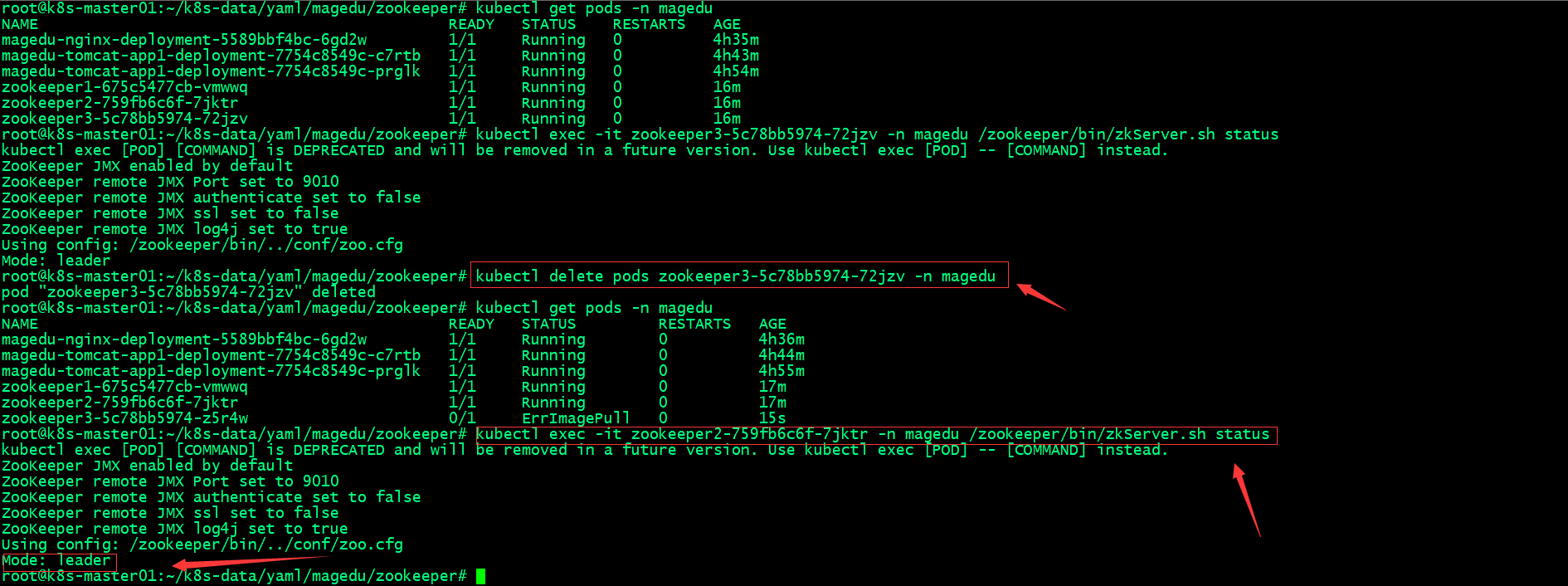

6.2、停掉harbor服務，洗掉leader pod，看看對應zk集群是否會重新選舉？
root@harbor:~# systemctl stop harbor
root@harbor:~#
zk集群在初始化時，所有節點資料都是沒有的，所以選舉leader就直接比較MYID，誰大誰就是leader；從上面的截圖可以看到，我們把leader洗掉以后，對應zk集群會重新選舉新的leader；

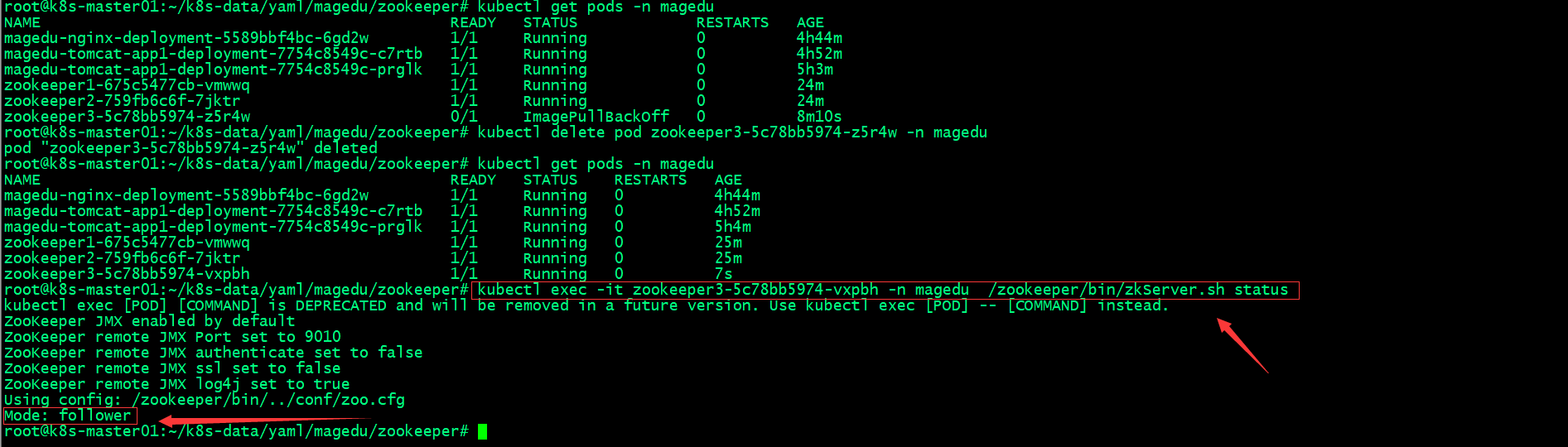

6.3、恢復harbor服務，再次洗掉zk3看看zk3是否還會恢復leader身份？
root@harbor:~# systemctl start harbor
root@harbor:~# systemctl status harbor
● harbor.service - Harbor
Loaded: loaded (/lib/systemd/system/harbor.service; enabled; vendor preset: enabled)
Active: active (running) since Sun 2023-06-04 12:02:00 UTC; 5s ago
Docs: http://github.com/vmware/harbor
Main PID: 186256 (docker-compose)
Tasks: 9 (limit: 4571)
Memory: 10.8M
CPU: 305ms
CGroup: /system.slice/harbor.service
└─186256 /usr/local/bin/docker-compose -f /app/harbor/docker-compose.yml up
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/controller/artifact/processor/processor.go:59]: the processor to>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023/06/04 12:02:06.283 [D] init global config instance failed. If you do not use this, just >
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/native/adapter.go:36]: the factory for adapter d>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/aliacr/adapter.go:30]: the factory for adapter a>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/awsecr/adapter.go:44]: the factory for adapter a>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/azurecr/adapter.go:29]: Factory for adapter azur>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/dockerhub/adapter.go:26]: Factory for adapter do>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/dtr/adapter.go:22]: the factory of dtr adapter w>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/githubcr/adapter.go:29]: the factory for adapter>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/gitlab/adapter.go:18]: the factory for adapter g>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/googlegcr/adapter.go:37]: the factory for adapte>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/harbor/adaper.go:31]: the factory for adapter ha>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/huawei/huawei_adapter.go:40]: the factory of Hua>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/jfrog/adapter.go:42]: the factory of jfrog artif>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/quay/adapter.go:53]: the factory of Quay adapter>
Jun 04 12:02:06 harbor.ik8s.cc docker-compose[186256]: harbor-jobservice | 2023-06-04T12:02:06Z [INFO] [/pkg/reg/adapter/tencentcr/adapter.go:41]: the factory for adapte>
root@harbor:~#
作者：Linux-1874 出處：https://www.cnblogs.com/qiuhom-1874/ 本文著作權歸作者和博客園共有，歡迎轉載，但未經作者同意必須保留此段宣告，且在文章頁面明顯位置給出原文連接，否則保留追究法律責任的權利.可以看到zk3加入集群以后，對應身份并不能直接變為leader，這是因為集群已經有一個leader存在；
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/554398.html
標籤：其他
上一篇：9.3. Hibernate框架
下一篇：返回列表
