寫一個umi插件 自動生成代碼 解放cv的雙手

引言

最近在寫一個中臺專案，使用的react的umi框架，
各種增刪改查，基本是串列頁 新建頁 詳情頁這種頁面
為了避免不必要的簡單重復（主要是想偷懶） 于是想去實作自己的一個代碼生成器

簡單探索

首先，在官網上看到了官方寫的一個生成器

<img src="https://img.uj5u.com/2020/10/09/134199091256241.png"/ alt="官網圖片">

再去原始碼里扒一扒 找到關鍵所在

簡而言之，就是利用插件的api注冊了一個生成model的指令，生成器指向目錄里的model.js

代碼如下

import { join } from 'path';
import assert from 'assert';

export default api => {
  const { paths, config } = api;
  const absTemplatePath = join(__dirname, '../template/generators');

  return class Generator extends api.Generator {
    writing() {
       ...
       // 判斷目錄名是models還是model
      const models = config.singular ? 'model' : 'models';
      const name = this.args[0].toString();
      ...
     // 將模板目錄下里的model代碼 拷貝到專案的model目錄下 并命名為指令輸入的檔案名
      this.fs.copyTpl(
        join(absTemplatePath, 'model.js'),
        join(paths.absSrcPath, models, `${name}.js`),
        {
          name,
        },
      );
    }
  };
};

../template/generators/model.js

export default {
  state: '<%= name %>',
  subscriptions: {
    setup({ dispatch, history }) {
    },
  },
  reducers: {
    update(state) {
      return `${state}_<%= name %>`;
    },
  },
  effects: {
    *fetch({ type, payload }, { put, call, select }) {
    },
  },
}

model是一個常規的dva的model
里面的<%= name %>是ejs語法,對應著copyTpl方法的第三個引數中的name
模板js里的這個占位會被引數name替換

因為我們專案中習慣將model寫到模塊檔案夾下，而且model里的代碼有些我們的自己的書寫
所以需要自定義一個生成方法了，

繼續深入

雖然實作 但是還是帶著一些疑問

• generator是基于第三方的生成器還是umi自帶
• 如何注冊到umi中去
• fs 又是用的是什么插件 如何運作的

generator

稍微翻了一下代碼 發現了generator的真面目yeoman-generator
這玩意是一個腳手架生成器 用于生成的一些流程執行

run(cb) {
    const promise = new Promise((resolve, reject) => {
      const self = this;
      this._running = true;
      this.emit('run');

      const methods = Object.getOwnPropertyNames(Object.getPrototypeOf(this));
      const validMethods = methods.filter(methodIsValid);
      assert(
        validMethods.length,
        'This Generator is empty. Add at least one method for it to run.'
      );

      this.env.runLoop.once('end', () => {
        this.emit('end');
        resolve();
      });

      // Ensure a prototype method is a candidate run by default
      function methodIsValid(name) {
        return name.charAt(0) !== '_' && name !== 'constructor';
      }

      function addMethod(method, methodName, queueName) {
        queueName = queueName || 'default';
        debug(`Queueing ${methodName} in ${queueName}`);
        self.env.runLoop.add(queueName, completed => {
          debug(`Running ${methodName}`);
          self.emit(`method:${methodName}`);

          runAsync(function() {
            self.async = () => this.async();
            return method.apply(self, self.args);
          })()
            .then(completed)
            .catch(err => {
              debug(`An error occured while running ${methodName}`, err);

              // Ensure we emit the error event outside the promise context so it won't be
              // swallowed when there's no listeners.
              setImmediate(() => {
                self.emit('error', err);
                reject(err);
              });
            });
        });
      }

      function addInQueue(name) {
        const item = Object.getPrototypeOf(self)[name];
        const queueName = self.env.runLoop.queueNames.indexOf(name) === -1 ? null : name;

        // Name points to a function; run it!
        if (typeof item === 'function') {
          return addMethod(item, name, queueName);
        }

        // Not a queue hash; stop
        if (!queueName) {
          return;
        }

        // Run each queue items
        _.each(item, (method, methodName) => {
          if (!_.isFunction(method) || !methodIsValid(methodName)) {
            return;
          }

          addMethod(method, methodName, queueName);
        });
      }

      validMethods.forEach(addInQueue);

      const writeFiles = () => {
        this.env.runLoop.add('conflicts', this._writeFiles.bind(this), {
          once: 'write memory fs to disk'
        });
      };

      this.env.sharedFs.on('change', writeFiles);
      writeFiles();

      // Add the default conflicts handling
      this.env.runLoop.add('conflicts', done => {
        this.conflicter.resolve(err => {
          if (err) {
            this.emit('error', err);
          }

          done();
        });
      });

      _.invokeMap(this._composedWith, 'run');
    });

    // Maintain backward compatibility with the callback function
    if (_.isFunction(cb)) {
      promise.then(cb, cb);
    }

    return promise;
  }

這里用了Promise來進行流程控制

umi如何整合的

在umi-build-dev庫下的 PluginAPI里有這樣一段代碼

import BasicGenerator from './BasicGenerator';
export default class PluginAPI {
  constructor(id, service) {
 .....................
    this.Generator = BasicGenerator;
  }
  registerGenerator(name, opts) {
    const { generators } = this.service;
    assert(typeof name === 'string', `name should be supplied with a string, but got ${name}`);
    assert(opts && opts.Generator, `opts.Generator should be supplied`);
    assert(!(name in generators), `Generator ${name} exists, please select another one.`);
    generators[name] = opts;
  }
..............

就是我們注冊用的方法，這邊一方便將BasicGenerator在實體化的時候 掛到Generator屬性上
另一方吧提供了registerGenerator方法 也就是我們之前呼叫的，進行注冊

BasicGenerator //js
import Generator from 'yeoman-generator';
const { existsSync } = require('fs');
const { join } = require('path');

class BasicGenerator extends Generator {
  constructor(args, opts) {
    super(args, opts);
    this.isTypeScript = existsSync(join(opts.env.cwd, 'tsconfig.json'));
  }
}

export default BasicGenerator;

// Service.js
export default class Service {
  constructor({ cwd }) {
    //  用戶傳入的 cmd 不可信任 轉化一下
    this.cwd = cwd || process.cwd();

    try {
    ....
    this.generators = {};
    ....

發現generator只是一個接收資料的物件

這里順便一提，umi插件中經常用到的api其實就是在service中用proxy屬性代理了一下pluginAPI生成的
在初始化插件件方法 initPlugin中

this是service物件
  const api = new Proxy(new PluginAPI(id, this), {
        get: (target, prop) => {
          if (this.pluginMethods[prop]) {
            return this.pluginMethods[prop];
          }
          if (
            [
              // methods
              'changePluginOption',
              'applyPlugins',
              '_applyPluginsAsync',
              'writeTmpFile',
              'getRoutes',
              'getRouteComponents',
              // properties
              'cwd',
              'config',
              'webpackConfig',
              'pkg',
              'paths',
              'routes',
              // error handler
              'UmiError',
              'printUmiError',
              // dev methods
              'restart',
              'printError',
              'printWarn',
              'refreshBrowser',
              'rebuildTmpFiles',
              'rebuildHTML',
            ].includes(prop)
          ) {
            if (typeof this[prop] === 'function') {
              return this[prop].bind(this);
            } else {
              return this[prop];
            }
          } else {
            return target[prop];
          }
        },
      });

大概意思就是對PluginAPI實體化后的屬性進行get的代理 優先使用pluginMethods里注冊的方法 其次是如果是陣列總的方法，優先在service里找 最后才到PluignAPI

指令注冊和方法實作

代碼入口:umi-build-dev/src/plugin/commnds 下的generate檔案夾下

export default function(api) {
  const {
    service: { generators },
    log,
  } = api;

  function generate(args = {}) {
    try {
      const name = args._[0];
      assert(name, `run ${chalk.cyan.underline('umi help generate')} to checkout the usage`);
      assert(generators[name], `Generator ${chalk.cyan.underline(name)} not found`);
      const { Generator, resolved } = generators[name];
      const generator = new Generator(args._.slice(1), {
        ...args,
        env: {
          cwd: api.cwd,
        },
        resolved: resolved || __dirname,
      });
      return generator
        .run()
        .then(() => {
          log.success('');
        })
        .catch(e => {
          log.error(e);
        });
    } catch (e) {
      log.error(`Generate failed, ${e.message}`);
      console.log(e);
    }
  }

  function registerCommand(command, description) {
    const details = `
Examples:

  ${chalk.gray('# generate page users')}
  umi generate page users

  ${chalk.gray('# g is the alias for generate')}
  umi g page index

  ${chalk.gray('# generate page with less file')}
  umi g page index --less
  `.trim();
    api.registerCommand(
      command,
      {
        description,
        usage: `umi ${command} type name [options]`,
        details,
      },
      generate,
    );
  }

  registerCommand('g', 'generate code snippets quickly (alias for generate)');
  registerCommand('generate', 'generate code snippets quickly');

關于fs

// yeoman-generator
const FileEditor = require('mem-fs-editor');
class Generator extends EventEmitter {
  constructor(args, options) {
    super();
    ..........
    this.fs = FileEditor.create(this.env.sharedFs);
  }

// mem-fs-editor
'use strict';

function EditionInterface(store) {
  this.store = store;
}

EditionInterface.prototype.read = require('./actions/read.js');
EditionInterface.prototype.readJSON = require('./actions/read-json.js');
EditionInterface.prototype.exists = require('./actions/exists');
EditionInterface.prototype.write = require('./actions/write.js');
EditionInterface.prototype.writeJSON = require('./actions/write-json.js');
EditionInterface.prototype.extendJSON = require('./actions/extend-json.js');
EditionInterface.prototype.append = require('./actions/append.js');
EditionInterface.prototype.delete = require('./actions/delete.js');
EditionInterface.prototype.copy = require('./actions/copy.js').copy;
EditionInterface.prototype._copySingle = require('./actions/copy.js')._copySingle;
EditionInterface.prototype.copyTpl = require('./actions/copy-tpl.js');
EditionInterface.prototype.move = require('./actions/move.js');
EditionInterface.prototype.commit = require('./actions/commit.js');

exports.create = function (store) {
  return new EditionInterface(store);
};

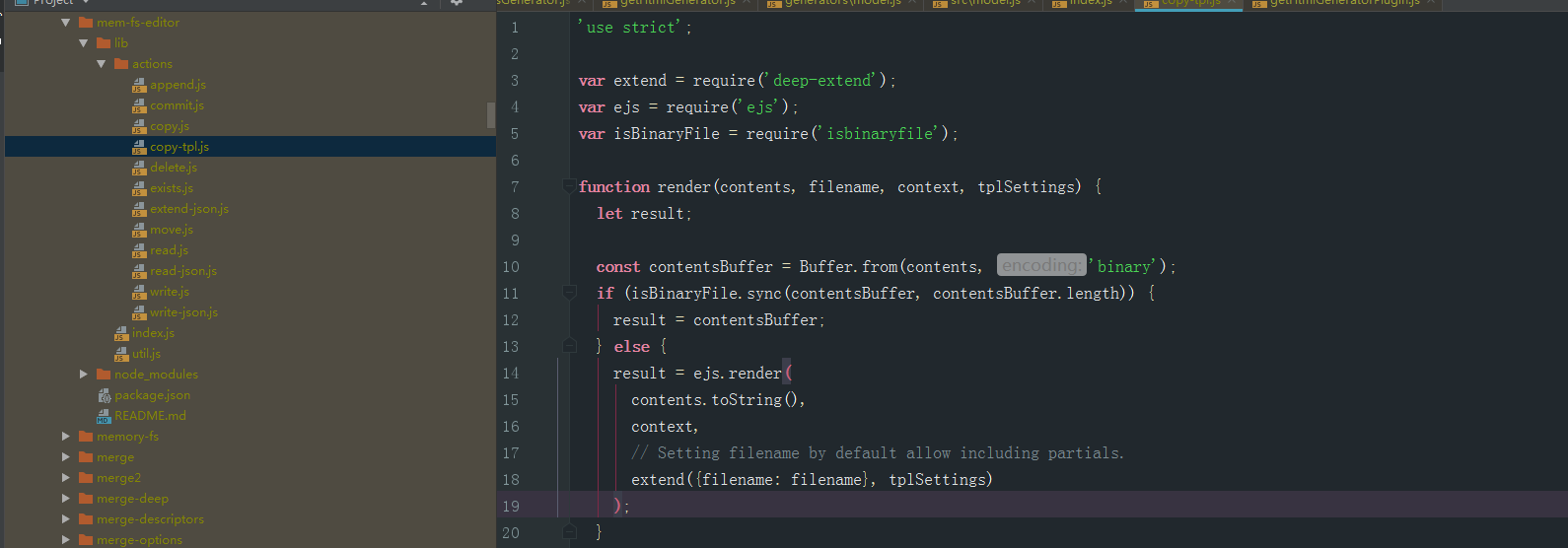

我們用到的copyTpl方法

'use strict';

var extend = require('deep-extend');
var ejs = require('ejs');
var isBinaryFileSync = require('isbinaryfile').isBinaryFileSync;

function render(contents, filename, context, tplSettings) {
  let result;

  const contentsBuffer = Buffer.from(contents, 'binary');
  if (isBinaryFileSync(contentsBuffer, contentsBuffer.length)) {
    result = contentsBuffer;
  } else {
    result = ejs.render(
      contents.toString(),
      context,
      // Setting filename by default allow including partials.
      extend({filename: filename}, tplSettings)
    );
  }

  return result;
}

module.exports = function (from, to, context, tplSettings, options) {
  context = context || {};
  tplSettings = tplSettings || {};

  this.copy(
    from,
    to,
    extend(options || {}, {
      process: function (contents, filename) {
        return render(contents, filename, context, tplSettings);
      }
    }),
    context,
    tplSettings
  );
};

上手

以下是我寫的一個生成規則

import { join } from 'path';
const fs=require('fs');
export default api => {
  const  {paths} = api;
  const configPath=join(paths.absSrcPath,'generatorConfig.js');
  const absTemplatePath = join(__dirname, '../template/generators');
  return class Generator extends api.Generator {
    writing() {
      const name = this.args[0].toString();
      // assert(!name.includes('/'), `model name should not contains /, bug got ${name}`);
      const type =this.args[1]&& this.args[1].toString();
     // type即為命令后跟的引數
      switch (type) {
        case 'list':
          if(!fs.existsSync(configPath)) {
            api.log.error('新建串列模板缺少generatorConfig.js')
            return
          }
          const genConfig=require(configPath);
          this.fs.copyTpl(join(absTemplatePath, 'list.js'),join(paths.absSrcPath, `pages/${name}/${type}`, `index.js`), {
            name,
            queryFormItems:genConfig[name]['queryFormItems'],
            columns:genConfig[name]['columns']
          });
      }
      this.fs.copyTpl(join(absTemplatePath, 'model.js'), join(paths.absSrcPath, `pages/${name}`, `model.js`), {
        name
      });
      this.fs.copyTpl(join(absTemplatePath, 'index.less'), join(paths.absSrcPath, `pages/${name}`, `index.less`), {
        name
      });
      this.fs.copyTpl(join(absTemplatePath, 'service.js'), join(paths.absSrcPath, `pages/${name}`, `service.js`), {
        name
      });
    }
  };
};

添加了如下功能

• 結合專案中的目錄結構約定進行目錄生成（比如我們約定用service來進行介面方法管理）
• 增加在命令后面加不同引數 生成不同的特征模塊（比如串列 詳情）
• 增加了配置項 可以在node環境下去讀取配置 再生成到代碼里去（比如 antd的串列的columns）

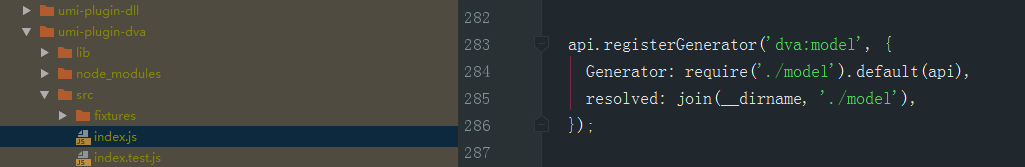

再仿照umi-dva-plugin的流程進行命令注冊和插件匯出

import { join } from 'path';
export default(api, opts = {})=> {
  api.registerGenerator('dva:newPage', {
    Generator: require('./model').default(api),
    resolved: join(__dirname, './model'),
  });
}

遇到問題

在探索和上手遇到挺多問題，總結如下
1.閱讀原始碼 加以甄別 ，因為umi-dva-plugin的代碼賊多，模板功能只是其中的非核心功能，所以也是看了好幾遍 發現這個功能其實和其他代碼并不存在耦合 可以單獨提出來
2.探索模板語法 一開始不知道是ejs 找了下copyTpl方法

然后就恍然大悟，怪不得看起來那么熟悉,順便學了一下ejs模板<%= %>和<%- %>的區別
3.兼容性問題 遇到的一個賊奇怪的問題 node環境兼容的問題
一開始不知道 用babel轉成es5了 一直報錯class constructor Generator cannot be invoked without 'new
看上去就是個兼容問題 然后用web版的babel轉換器 關閉preset es2015 調整node版本到6.4主要是把物件的解構賦值要轉換掉 不然依賴的三方Generator可能不認

總結

現在看來其實寫這個插件其實并不難，但是在當時很多知識都不了解的情況下去看，確實還是有些許棘手，了解用法和原理比較有挑戰，畢竟不是自己寫的代碼，所以還是要加強代碼方便的閱讀，

專案鏈接

戳我查看
