nodejs+koa2 實作模仿springMVC

koa2-MVC架構

                                                    ---------后端技術做前端

環境：nodejs

開發工具：Visual Studio Code(下文簡稱：VSC)

環境安裝，工具安裝及中文自行百度 ，環境調整好后開始進入正題，

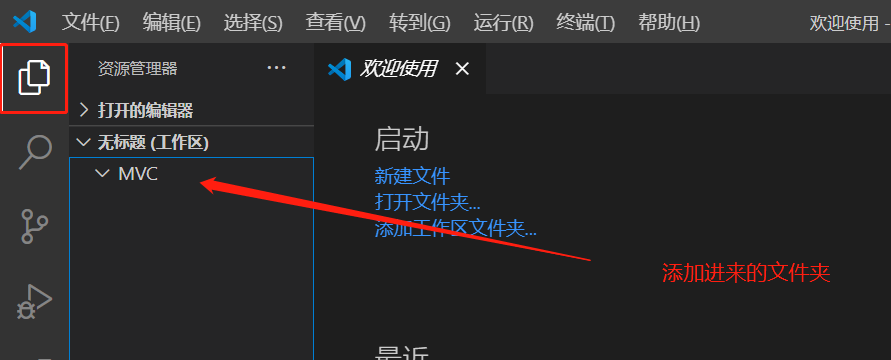

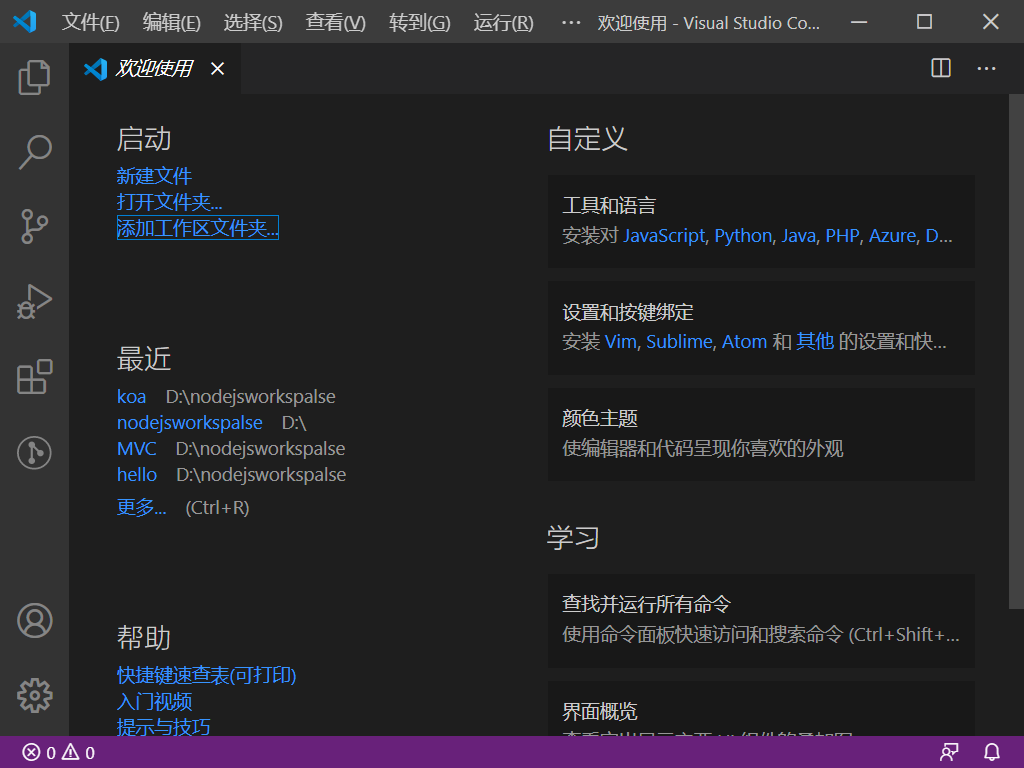

1、在硬碟上新增一個檔案夾，打開VSC，點擊‘添加作業區檔案夾’，如果沒有歡迎‘使用頁面’，點擊--檔案--新建視窗，效果如下圖：

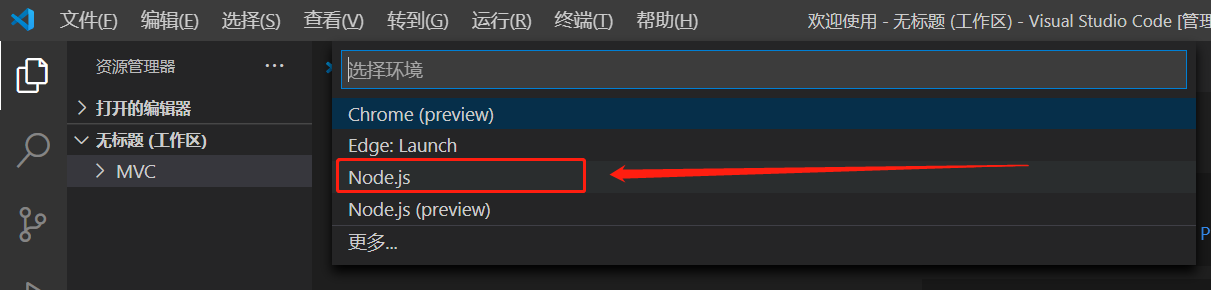

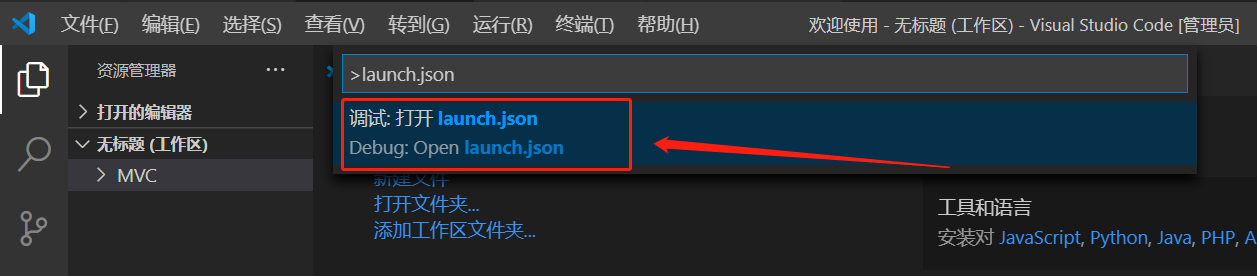

 2、添加vsc除錯，Shift+ctrl+p，輸入框內輸入：launch.json

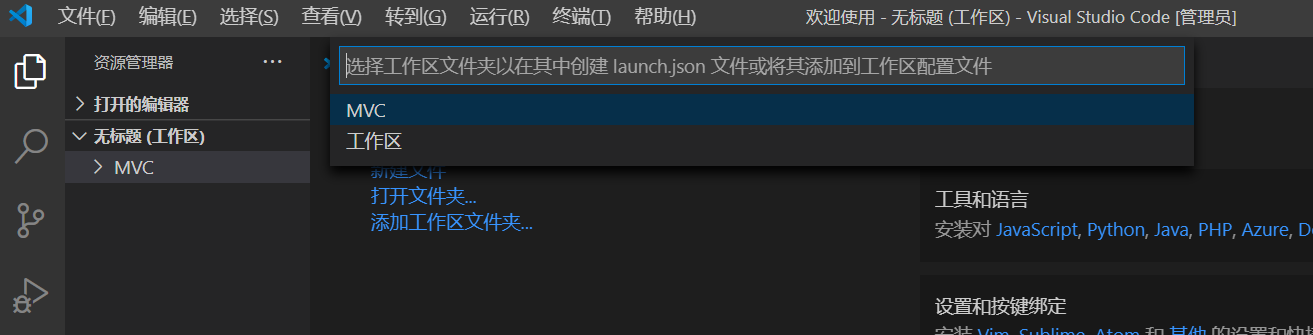

選擇剛剛的檔案夾

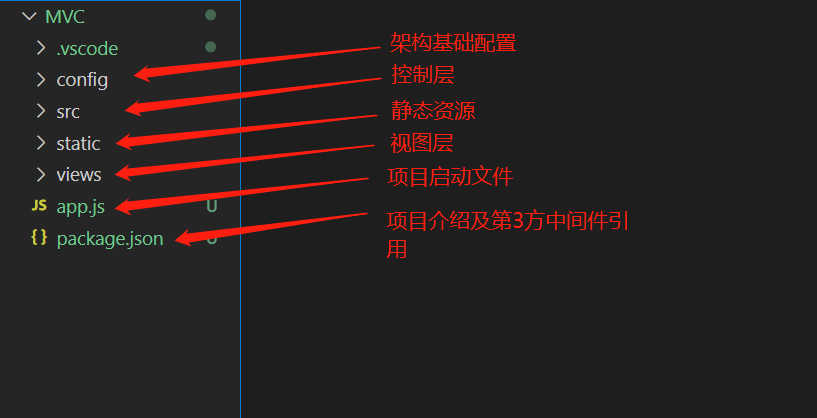

3、目錄結構

從低到高one by one

3-1、package.json

 1 {
 2     "name": "koa2mcv",
 3     "version": "1.0.0",
 4     "description": "Hello Koa 2 example with MVC",
 5     "main": "app.js",
 6     "scripts": {
 7         "start": "node app.js"
 8     },
 9     "author": "baba",
10     "dependencies": {
11         "koa": "2.11.0",
12         "koa-router": "8.0.8",
13         "koa-bodyparser": "4.3.0",
14         "koa-static-plus": "0.1.1",
15         "koa-view": "2.1.3",
16         "koa-jwt": "4.0.0",
17         "koa-log4": "2.3.2",
18         "jsonwebtoken": "8.5.1",
19         "nunjucks": "3.2.1",
20         "mime": "2.4.5",
21         "mz": "2.7.0"
22     }
23 }

 引數介紹：name專案名稱、version版本號、description專案描述、main專案啟動檔案、scripts啟動快捷設定，author作者，dependencies第3方中間件名稱及版本，

 3-2、app.js

1 //啟動服務
2 require('./config/init').startServer();

啟動相關配置，封裝到config/init.js中，啟動檔案直接參考即可，

3-3、views存放html頁面

3-4、static存放靜態檔案，css,js,font等

3-5、src存放業務控制，類似于springMVC中的controller、service，

3-6、config存放核心組態檔，

3-6-1、init.js專案核心，

 1 function handler(){
 2     return async (ctx, next) => {
 3
 4         const start = new Date().getTime();
 5
 6         var urlReq=ctx.request.url;
 7         if(urlReq !== '/favicon.ico'){
 8
 9             console.log(`請求地址：${ctx.request.method} ${urlReq}`);
10             try {
11
12                 let params =Object.assign({}, ctx.request.query, ctx.request.body);
13
14                 if(config["token"].excludeUrl.indexOf(urlReq) == -1 && !tokenFunction.varifyToken(params.token)){
15                     ctx.status =401;
16                 }else{
17                     await next();
18                 }
19             } catch (error) {
20                 ctx.status=401;
21                 console.log(`錯誤！無法獲取token引數`);
22             }finally{
23
24                     let err={};
25                     if(!ctx.status){
26                         err.status = 500;
27                     }else if(ctx.status==200){
28                         return;
29                     }else{
30                         err.status = ctx.status;
31                     }
32
33                     switch(err.status){
34                         case 404:
35                             err.url = config["server-name"]+'/static/public/404.html';
36                             err.message="資源不存在！";
37                             break;
38                         case 401:
39                             err.url = config["server-name"]+'/static/public/10000.html';
40                             err.message="登陸失效！請重新登陸！";
41                             break;
42                         case 500:
43                             err.url = config["server-name"]+'/static/public/500.html';
44                             err.message="系統內部錯誤！";
45                             break;
46                     }
47
48                     switch(ctx.request.type){
49                         case 'application/json':
50                             ctx.type = 'application/json';
51                             ctx.body = {errorCode:err.errorCode,message: err.message}
52                             break;
53                         default:
54
55                             ctx.type = 'text/html';
56                             ctx.redirect(err.url);
57                             break;
58                     }
59             }
60         }
61         const ms = new Date().getTime() - start;
62         console.log(`請求消耗時間: ${ms}ms`);
63     }
64 }

路由配置

 1 function controller(){
 2
 3     const router = new koaRouter({
 4         prefix: config["server-name"]
 5     });
 6
 7     function findJsonFile(rootpathStr){
 8
 9         fs.readdirSync(rootpathStr).forEach(function (item, index) {
10
11             let fPath = path.join(rootpathStr,item);
12
13             let stat = fs.statSync(fPath);
14
15             if(stat.isDirectory() === true) {
16                 findJsonFile(fPath);
17             }
18
19             if (stat.isFile() === true&&fPath.endsWith('.js')) {
20
21                 var mapping =  require(fPath);
22                 for (var url in mapping) {
23                     if (url.startsWith('GET ')) {
24                         router.get(url.substring(4), mapping[url]);
25                     } else if (url.startsWith('POST ')) {
26                         router.post(url.substring(5), mapping[url]);
27                     } else if (url.startsWith('PUT ')) {
28                         router.put(url.substring(4), mapping[url]);
29                     } else if (url.startsWith('DELETE ')) {
30                         router.del(url.substring(7), mapping[url]);
31                     }
32                     console.log(`注冊 URL: ${url}`);
33                 }
34             }
35         });
36     }
37
38     findJsonFile(rootpath + 'src');
39     return router.routes();
40 }

視圖渲染

function templating() {
    var
        autoescape = config['templating-autoescape'] === null ? true : config['templating-autoescape'],
        noCache = config['templating-noCache'] === null ? false : config['templating-noCache'],
        watch = config['templating-watch'] === null ? false : config['templating-watch'],
        throwOnUndefined = config['templating-throwOnUndefined'] === null ? false :config['templating-throwOnUndefined'],
        env = new nunjucks.Environment(
            new nunjucks.FileSystemLoader(rootpath+'views', {
                noCache: noCache,
                watch: watch,
            }), {
                autoescape: autoescape,
                throwOnUndefined: throwOnUndefined
            });
    if (config['templating-filters'] != null) {
        for (var f in config['templating-filters']) {
            env.addFilter(f, config['templating-filters'][f]);
        }
    }
    return async (ctx, next) => {
        ctx.render = function (view, model) {
            ctx.response.body = env.render(view, Object.assign({}, ctx.state || {}, model || {}));
            ctx.response.type = 'text/html';
        };
        await next();
    };
}

啟動構建

function startServer(){

    const app = new koa();

    app.use(koaStaticPlus(rootpath+'static', {
        pathPrefix: config["server-name"]+'/static'
    })
    );

    app.use(koaBodyParser());

    app.use(handler());

    app.use(templating());

    app.use(controller());

    app.listen(config["server-port"]);

}

3-6-2、config.js專案引數配置，

module.exports ={
    'server-name':'/koa',
    'server-port':3000,
    "templating-noCache":true,
    "templating-watch":true,
    "templating-autoescape":null,
    "templating-throwOnUndefined":null,
    "templating-filters":null,
    "token":{
      "excludeUrl":[
        "/koa/login",
        "/koa/dologin"
      ],
      "timeout":1000 * 60 * 60 * 24 * 7,
      "secret":"jiaobaba"
    }


}

3-6-3、token.js專案token相關方法封裝，

const jwt = require("jsonwebtoken");
const config = require('./config');
/**
 * 創建token的方法
 */
let createToken = (data)=>{
    let obj = {};
    //存入token的資料
    obj.data = https://www.cnblogs.com/yk-1992/archive/2020/10/21/data || {};
    //token的創建時間
    obj.ctime = (new Date()).getTime();
    return jwt.sign(obj,config["token"].secret);
}
/**
 * 驗證token是否合法的方法
 * @param {*} token
 */
let varifyToken = (token)=>{
    let result = null;
    try{
        let {data,ctime,expiresIn} = jwt.verify(token,config["token"].secret);
        let nowTime = (new Date()).getTime();
        if(nowTime-ctime<config["token"].timeout){
            result = data;
        }
    }catch(error){

    }
    return result;
}

module.exports = {
    createToken,
    varifyToken
};

3-6-4、logger.js專案日志組態檔，

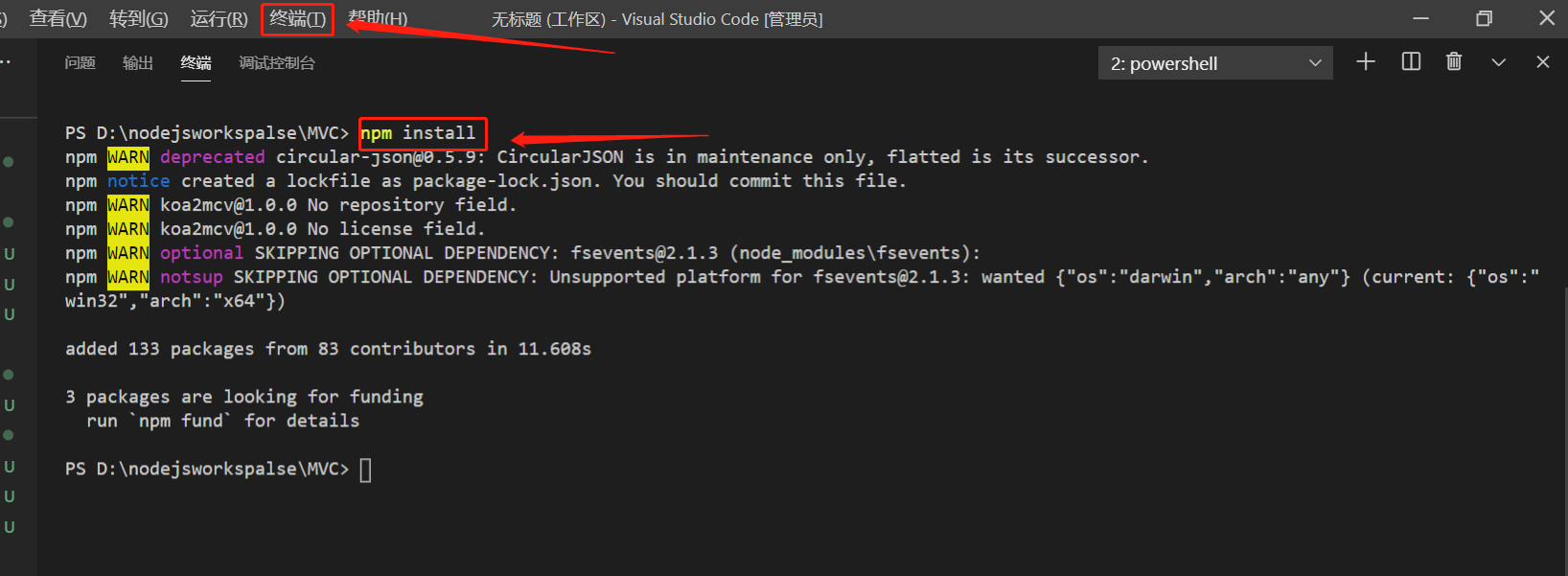

4、專案結構構建結束，接著引入所有依賴包，在終端中執行‘npm install’ ,會下載package.json中dependencies所有包，以及這些包所依賴的包，

 執行后專案結構會增加兩個檔案

5、撰寫測驗用例，在src下新建hello.js，

//token
const token = require('../config/token');

var fn_hello = async (ctx, next) => {
    var name = ctx.params.name;
    ctx.response.body = `<h1>Hello, ${name}!</h1>`;
};


var fn_index = async (ctx, next) => {
    ctx.response.body = `<h1>Index</h1>
        <form action="/koa/signin" method="post">
            <p>Name: <input name="name" value=""></p>
            <p>Password: <input name="password" type="password"></p>
            <p><input type="submit" value="https://www.cnblogs.com/yk-1992/archive/2020/10/21/Submit"></p>
        </form>`;
};

var fn_signin = async (ctx, next) => {
    var
        name = ctx.request.body.name || '',
        password = ctx.request.body.password || '';
    console.log(`登陸名: ${name}, 密碼: ${password}`);
        ctx.response.body = `<h1>Welcome, ${name}!</h1><br/>you token:<br/>${token.createToken({user: name,password: password})}`;

};



module.exports = {
    'GET /hello/:name': fn_hello,
    'GET /login': fn_index,
    'POST /dologin': fn_signin
};

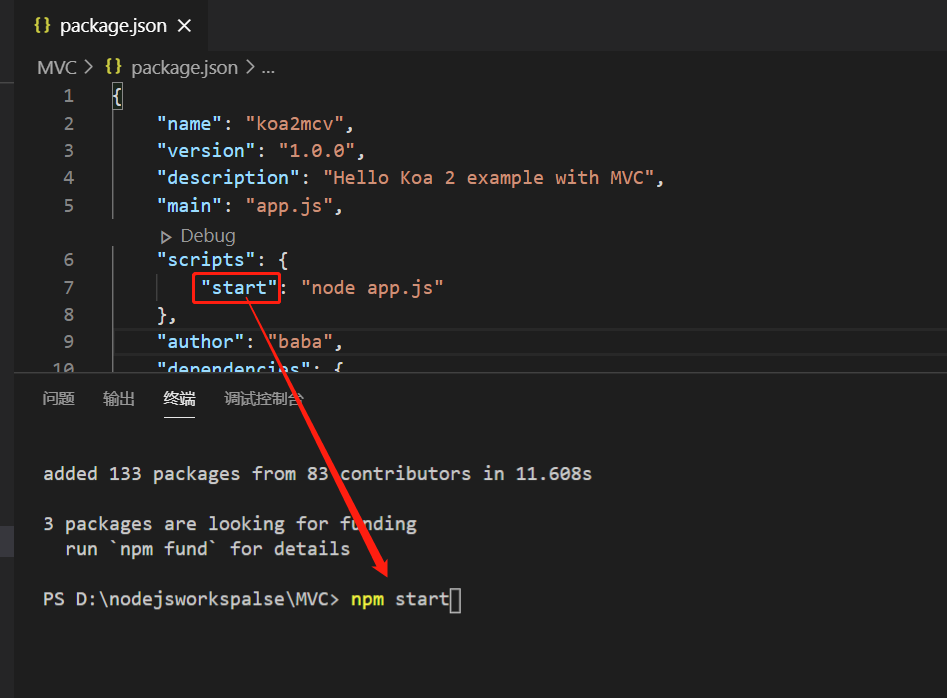

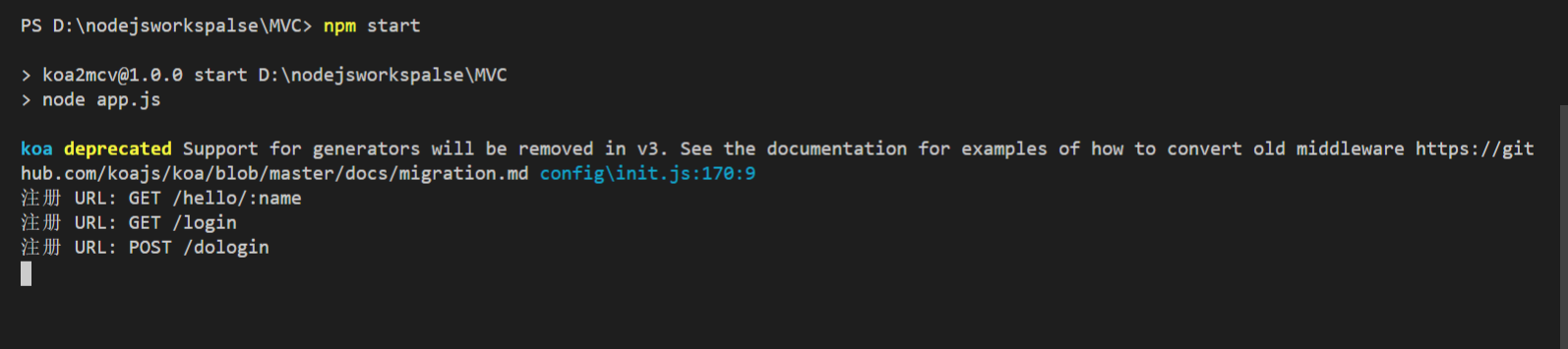

 6、啟動專案

 啟動成功

 測驗訪問：http://127.0.0.1:3000/koa/login

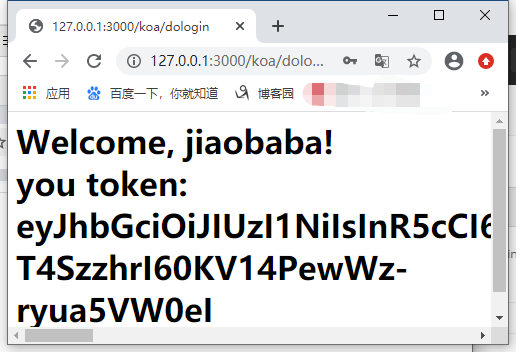

輸入值獲取token

 先不用帶token進行訪問

攔截成功

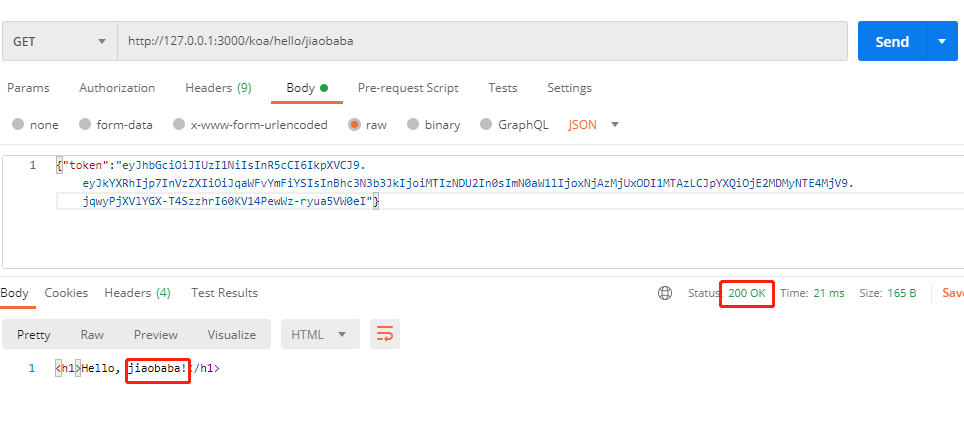

帶上token 進行訪問

 測驗成功！

end
