當我進一步深入研究這個問題時，我一直在編輯這個問題。

編輯我能夠將我的 OkHttp 客戶端構建到它包含 Client.SSLContext.KeyManager 中的客戶端證書和 Client.SSLContext.TrustManager 中的受信任證書的位置

// Create keyManagerFactory with keystore.jks
KeyStore clientStore = KeyStore.getInstance(KeyStore.getDefaultType());
clientStore.load(new FileInputStream(new File("keystore.jks")), storePassword.toCharArray());

KeyManagerFactory keyManagerFactory = KeyManagerFactory.getInstance(KeyManagerFactory.getDefaultAlgorithm());
keyManagerFactory.init(clientStore, storePassword.toCharArray());
KeyManager[] keyManagers = keyManagerFactory.getKeyManagers();

// Create trustManagerFactory with default cacerts truststore
TrustManagerFactory trustManagerFactory = TrustManagerFactory.getInstance(
            TrustManagerFactory.getDefaultAlgorithm());
trustManagerFactory.init((KeyStore) null);
trustManagers = trustManagerFactory.getTrustManagers();
if (trustManagers.length != 1 || !(trustManagers[0] instanceof X509TrustManager)) {
            throw new IllegalStateException("Unexpected default trust managers:"
                                                  Arrays.toString(trustManagers));
        }
trustManager = trustManagers[0];

// Create sslContext from keyManagers (from custom keystore with client key) and default trustManagers
sslContext = SSLContext.getInstance("TLS");
sslContext.init(keyManagers, trustManagers, null);
sslSocketFactory = sslContext.getSocketFactory();
defaultFactory = (SSLSocketFactory) SSLSocketFactory.getDefault();

okClient = new OkHttpClient
                 .Builder()
                 .sslSocketFactory(sslSocketFactory, (X509TrustManager) trustManager)
                 .build();

但是，我的客戶端仍然沒有發送我的客戶端證書（服務器證書已通過信任庫成功驗證）。在 ssl 除錯日志中獲取此資訊

No X.509 certificate for client authentication, use empty Certificate message instead

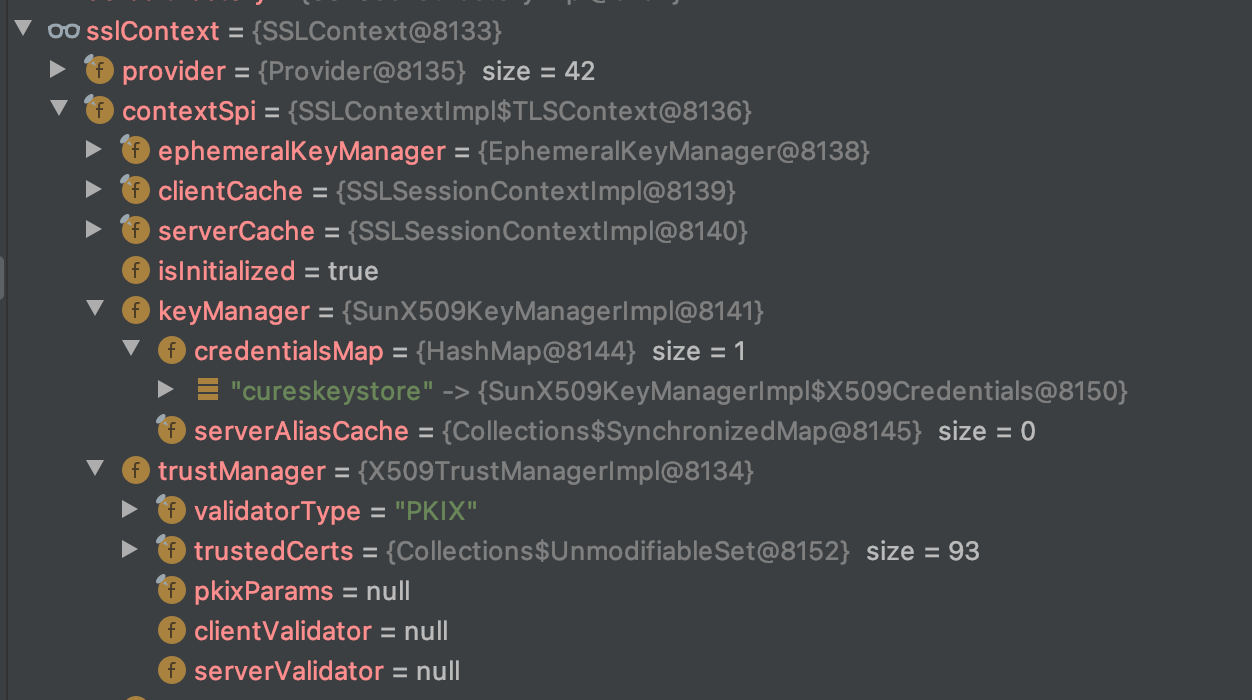

這是我的 SSLContext 在 HttpClient 上的樣子。 OkHttp 客戶端身份驗證無法驗證服務器并在同一請求中發送客戶端證書似乎應該在請求中發送名為“cureskeystore”的客戶端證書？

keystore.jks 使用以下命令構建

openssl pkcs12 -export \
        -name curesKeyStore \
        -in clientCert.crt \
        -inkey privateKey.pem \
        -certfile clientCert.crt \
        -out chain.p12 \
        -passout pass:${STORE_PASSWORD}

keytool -importkeystore \
        -srckeystore chain.p12 \
        -srcstoretype pkcs12 \
        -destkeystore keystore.jks \
        -deststoretype pkcs12 \
        -storepass ${STORE_PASSWORD} \
        -srcstorepass ${STORE_PASSWORD} > /dev/null 2>&1

我還嘗試使用客戶端證書 -CAfile根證書和中間證書創建商店：

# client cert with CAcerts included
openssl pkcs12 -export -chain \
        -in clientCert.crt \
        -inkey privateKey.pem \
        -out keystore.p12 \
        -name p12KeyStore \
        -CAfile caCerts.crt \
        -caname root \
        -passout pass:${STORE_PASSWORD}

keytool -importkeystore \
        -srcstoretype PKCS12 \
        -destkeystore keystore.jks \
        -srckeystore keystore.p12 \
        -alias p12KeyStore \
        -storepass ${STORE_PASSWORD} \
        -srcstorepass ${STORE_PASSWORD}

另一個可能的問題是 CertificateRequest 與我的客戶端證書不匹配。

javax.net.ssl|DEBUG|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:671|Consuming CertificateRequest handshake message (
"CertificateRequest": {
  "certificate types": [ecdsa_sign, rsa_sign, dss_sign]
  "supported signature algorithms": [ecdsa_secp256r1_sha256, ecdsa_secp384r1_sha384, ecdsa_secp521r1_sha512, rsa_pss_rsae_sha256, rsa_pss_rsae_sha384, rsa_pss_rsae_sha512, rsa_pss_pss_sha256, rsa_pss_pss_sha384, rsa_pss_pss_sha512, rsa_pkcs1_sha256, rsa_pkcs1_sha384, rsa_pkcs1_sha512, dsa_sha256, ecdsa_sha224, rsa_sha224, dsa_sha224, ecdsa_sha1, rsa_pkcs1_sha1, dsa_sha1]
  "certificate authorities": [redacted, but does not include Entrust]
}
)
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for EC
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: ecdsa_secp256r1_sha256
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for EC
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: ecdsa_secp384r1_sha384
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for EC
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: ecdsa_secp521r1_sha512
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_rsae_sha256
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_rsae_sha384
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_rsae_sha512
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for RSASSA-PSS
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_pss_sha256
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|X509Authentication.java:213|No X.509 cert selected for RSASSA-PSS
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.619 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_pss_sha384
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for RSASSA-PSS
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pss_pss_sha512
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pkcs1_sha256
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pkcs1_sha384
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pkcs1_sha512
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for DSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: dsa_sha256
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for EC
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: ecdsa_sha224
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_sha224
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for DSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: dsa_sha224
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|X509Authentication.java:213|No X.509 cert selected for EC
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.620 EDT|CertificateRequest.java:764|Unavailable authentication scheme: ecdsa_sha1
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.621 EDT|X509Authentication.java:213|No X.509 cert selected for RSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.621 EDT|CertificateRequest.java:764|Unavailable authentication scheme: rsa_pkcs1_sha1
javax.net.ssl|ALL|24|XNIO-1 task-1|2021-10-18 11:07:18.621 EDT|X509Authentication.java:213|No X.509 cert selected for DSA
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.621 EDT|CertificateRequest.java:764|Unavailable authentication scheme: dsa_sha1
javax.net.ssl|WARNING|24|XNIO-1 task-1|2021-10-18 11:07:18.621 EDT|CertificateRequest.java:774|No available authentication scheme

My certificate's signing algorithm is SHA256withRSA. Is that not the same as rsa_pkcs1_sha256? Also, my client certificate is signed by Entrust, which is not listed in the certificate authorities for the server's CertificateRequest.

EDIT: I made some requests to a different HTTPS server that does not include certificate authorities in its CertificateRequest to the client. I verified that SSL can find the expected client certificate and sends it back to the server as expected. So it seems like this is an issue with the server request not including my CA in their list of accepted certificate authorities. Reaching out to the server to request an update.

uj5u.com熱心網友回復：

好的; 它已經開發出您的問題是，當服務器請求您的客戶端證書/身份驗證時，它指定了一個 CA 串列，該串列不包括您的證書和鏈使用的 CA（s？），即使在提供您的證書時-and-chain 服務器接受它。在對撰寫包裝器 KeyManager 發表評論后，我意識到測驗很容易，下面的示例適用于我發送與服務器要求的客戶端證書不同的客戶端證書。為簡單起見，我直接使用了 SSLSocket，但使用相同 SSLContext 或 SSLSocketFactory 的任何東西（如 OkHttp）都應該可以作業。針對 OpenSSL 命令列在 8u301 中進行了測驗（但如果需要，我可以檢查其他一些），這讓我可以為 CA X 請求客戶端證書，但是當我從 CA Y 提交證書時，它只記錄驗證錯誤而不會中止連接。

public class SO69577136KeyManagerIgnoreCAs  {
    public static void main (String[] args) throws Exception {
        // keystore.p12 pw truststore.p12 pw host port [Y: wrap KM to ignore issuers]
        KeyStore st = KeyStore.getInstance("PKCS12");
        try( InputStream is = new FileInputStream(args[0]) ){ st.load(is,args[1].toCharArray()); }
        KeyManagerFactory kf = KeyManagerFactory.getInstance(KeyManagerFactory.getDefaultAlgorithm());
        kf.init(st,  args[1].toCharArray());
        KeyManager[] km = kf.getKeyManagers();
        try( InputStream is = new FileInputStream(args[2]) ){ st.load(is,args[3].toCharArray()); }
        TrustManagerFactory tf = TrustManagerFactory.getInstance(TrustManagerFactory.getDefaultAlgorithm());
        tf.init(st);
        TrustManager[] tm = tf.getTrustManagers();

        if( args.length>6 && args[6].startsWith("Y") ){
            X509ExtendedKeyManager orig = (X509ExtendedKeyManager)km[0]; // exception if wrong type
            km[0] = new X509ExtendedKeyManager(){

                @Override
                public String chooseClientAlias(String[] keyType, Principal[] issuers, Socket socket) {
                    return orig.chooseClientAlias(keyType, null, socket);
                }

                @Override
                public String chooseServerAlias(String keyType, Principal[] issuers, Socket socket) {
                    // not implemented
                    return null;
                }

                @Override
                public X509Certificate[] getCertificateChain(String alias) {
                    return orig.getCertificateChain(alias);
                }

                @Override
                public String[] getClientAliases(String keyType, Principal[] issuers) {
                    // shouldn't actually be used AFAICT but just in case
                    return orig.getClientAliases(keyType, issuers);
                }

                @Override
                public PrivateKey getPrivateKey(String alias) {
                    return orig.getPrivateKey(alias);
                }

                @Override
                public String[] getServerAliases(String keyType, Principal[] issuers) {
                    // not implemented
                    return null;
                }

                public String chooseEngineClientAlias(String[] keyType, Principal[] issuers, SSLEngine engine) {
                    return orig.chooseEngineClientAlias(keyType, null, engine);
                    // could just forward to chooseClientAlias(socket=null), that's what underlying does
                }

                public String chooseEngineServerAlias(String keyType, Principal[] issuers, SSLEngine engine) {
                    // not implemented
                    return null;
                }
            };
        }
        SSLContext ctx = SSLContext.getInstance("TLS");
        ctx.init(km, tm, null /* default */);
        SSLSocketFactory sf = ctx.getSocketFactory();
        SSLSocket ss = (SSLSocket) sf.createSocket(args[4], Integer.parseInt(args[5]));
        ss.startHandshake();
        System.out.println ("successful");
    }
}
