將基本R堆積條形圖遷移到ggplot2并使用黑白結構而不是顏色區分條形級別

我有一張這樣的表：

p_well <- structure(c(0, 0, 0.45, 0, 0, 0, 68.1, 0, 0, 0, 0, 0.45, 0.23,
                      0, 12.22, 0.23, 0, 0, 0, 0.23, 0.23, 1.36, 1.13, 0.23, 0, 0.23,
                      0, 0.45, 0, 0, 0, 0.23, 0.23, 0, 0, 0.45, 0, 0.45, 0, 0.9, 0.68,
                      0.9, 0, 1.13, 0, 0, 0, 0, 0, 0.9, 0, 0.23, 0.23, 0.23, 0, 0,
                      0.45, 0.23, 0, 0.45, 0.23, 0, 0, 0, 0, 5.88, 0, 0.45, 0, 0, 0,
                      0.23), class = "table", .Dim = 8:9, .Dimnames = structure(list(
                        c("adjective", "as_well", "dispreferred_marker", "manner_adverb",
                          "quote_marker", "restart_marker", "turn_preface", "unclear"
                        ), c("W1", "W2", "W3", "W4", "W5", "W6", "W7", "W8", "W9"
                        )), .Names = c("", "")))

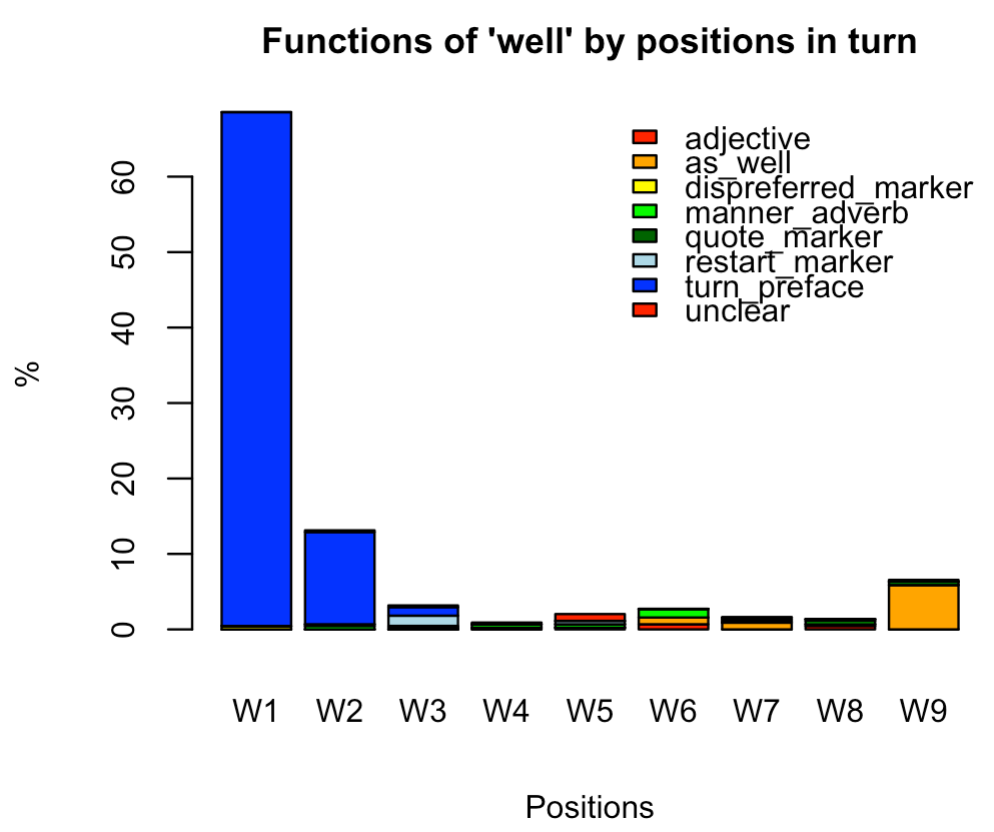

并想在ggplot2. 我知道怎么做base R，就像這樣：

par(mar = c(4.4,4,3,1))
barplot(p_well, main = "Functions of 'well' by positions in turn", cex.main = 0.9,
        cex.axis = 0.8, cex.lab = 0.8, cex.names = 0.8,
        names.arg = colnames(p_well),
        xlab = "Positions", ylab = "%",
        col = c("red", "orange", "yellow", "green", "darkgreen", "lightblue", "blue"))
legend("topright", rownames(p_well),
       fill =  c("red", "orange", "yellow", "green", "darkgreen", "lightblue", "blue"),
       bty = "n", cex = 0.8)

但是，我想將情節遷移到ggplot2. 此外，我需要使用 black/white structure 而不是顏色來區分不同級別的條。那怎么辦呢？

uj5u.com熱心網友回復：

我想這可能就是你要找的

p_well <- structure(c(0, 0, 0.45, 0, 0, 0, 68.1, 0, 0, 0, 0, 0.45, 0.23,
                        0, 12.22, 0.23, 0, 0, 0, 0.23, 0.23, 1.36, 1.13, 0.23, 0, 0.23,
                        0, 0.45, 0, 0, 0, 0.23, 0.23, 0, 0, 0.45, 0, 0.45, 0, 0.9, 0.68,
                        0.9, 0, 1.13, 0, 0, 0, 0, 0, 0.9, 0, 0.23, 0.23, 0.23, 0, 0,
                        0.45, 0.23, 0, 0.45, 0.23, 0, 0, 0, 0, 5.88, 0, 0.45, 0, 0, 0,
                        0.23), class = "table", .Dim = 8:9, .Dimnames = structure(list(
                          c("adjective", "as_well", "dispreferred_marker", "manner_adverb",
                            "quote_marker", "restart_marker", "turn_preface", "unclear"
                          ), c("W1", "W2", "W3", "W4", "W5", "W6", "W7", "W8", "W9"
                          )), .Names = c("", "")))

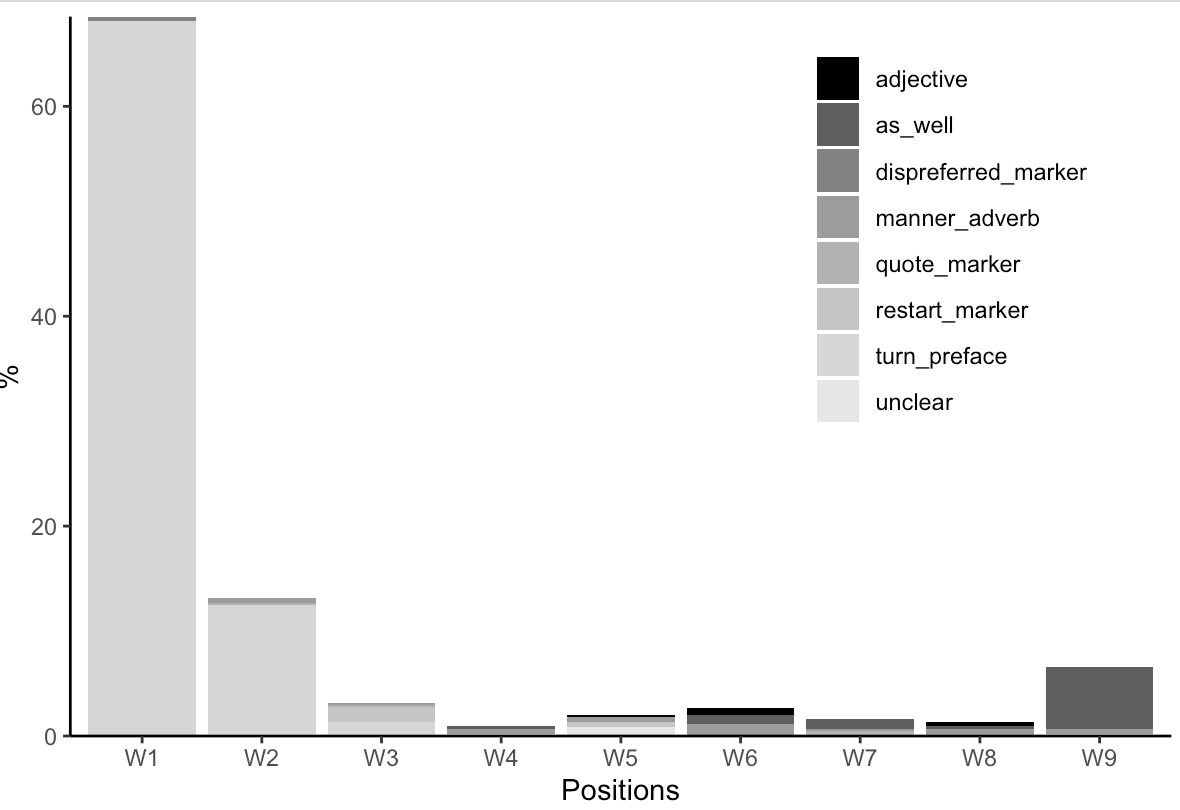

p_well <- as.data.frame(p_well)

ggplot(p_well, aes(fill=Var1, x=Var2, y=Freq ))
  geom_bar(position="stack", stat="identity")
  xlab("Positions")
  ylab("%")
  theme_bw()
  scale_fill_grey(start = 0, end = .9)
  theme(legend.title=element_blank(),
        axis.line = element_line(colour = "black"),
        panel.grid.major = element_blank(),
        panel.grid.minor = element_blank(),
        panel.border = element_blank(),
        panel.background = element_blank(),
        legend.position = c(.8,.7))

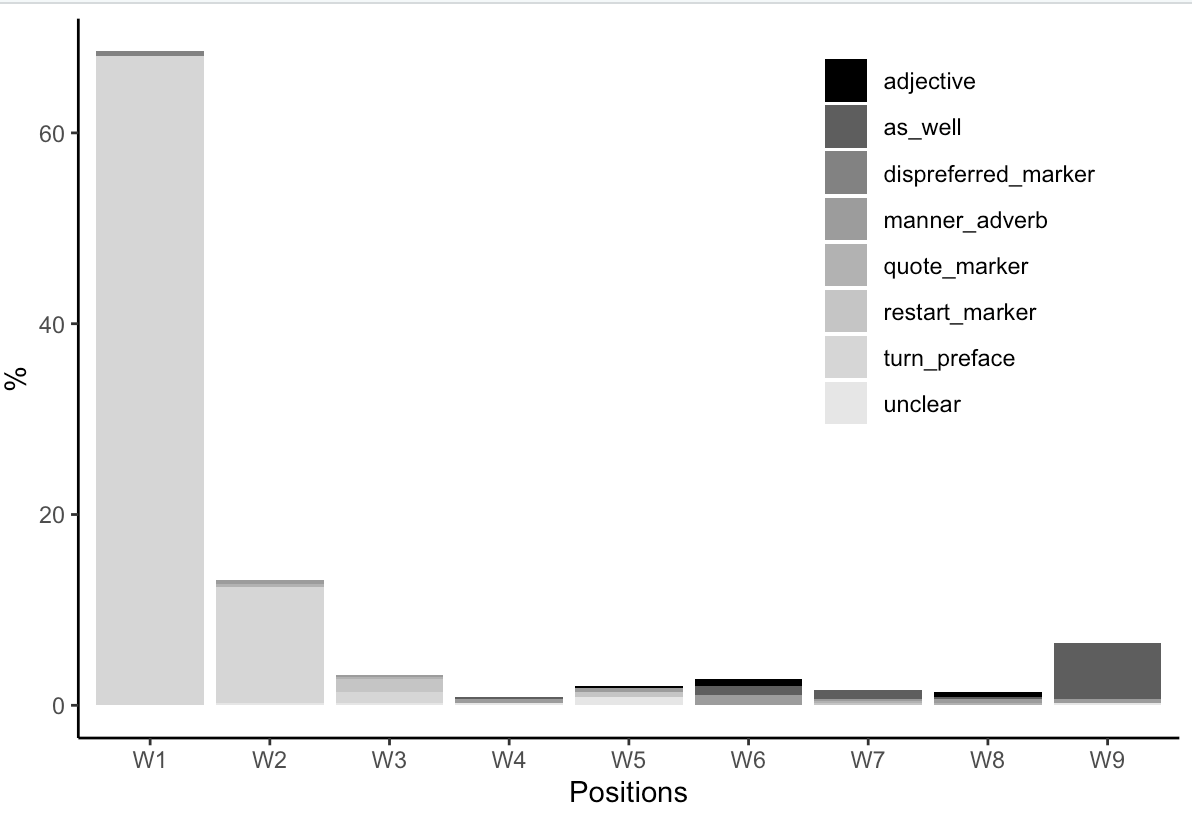

如果你想從底部去除間隙

ggplot(p_well, aes(fill=Var1, x=Var2, y=Freq ))
  geom_bar(position="stack", stat="identity")
  xlab("Positions")
  ylab("%")
  theme_bw()
  scale_fill_grey(start = 0, end = .9)
  scale_y_continuous(expand = c(0,0))
  theme(legend.title=element_blank(),
        axis.line = element_line(colour = "black"),
        panel.grid.major = element_blank(),
        panel.grid.minor = element_blank(),
        panel.border = element_blank(),
        panel.background = element_blank(),
        legend.position = c(.8,.7))

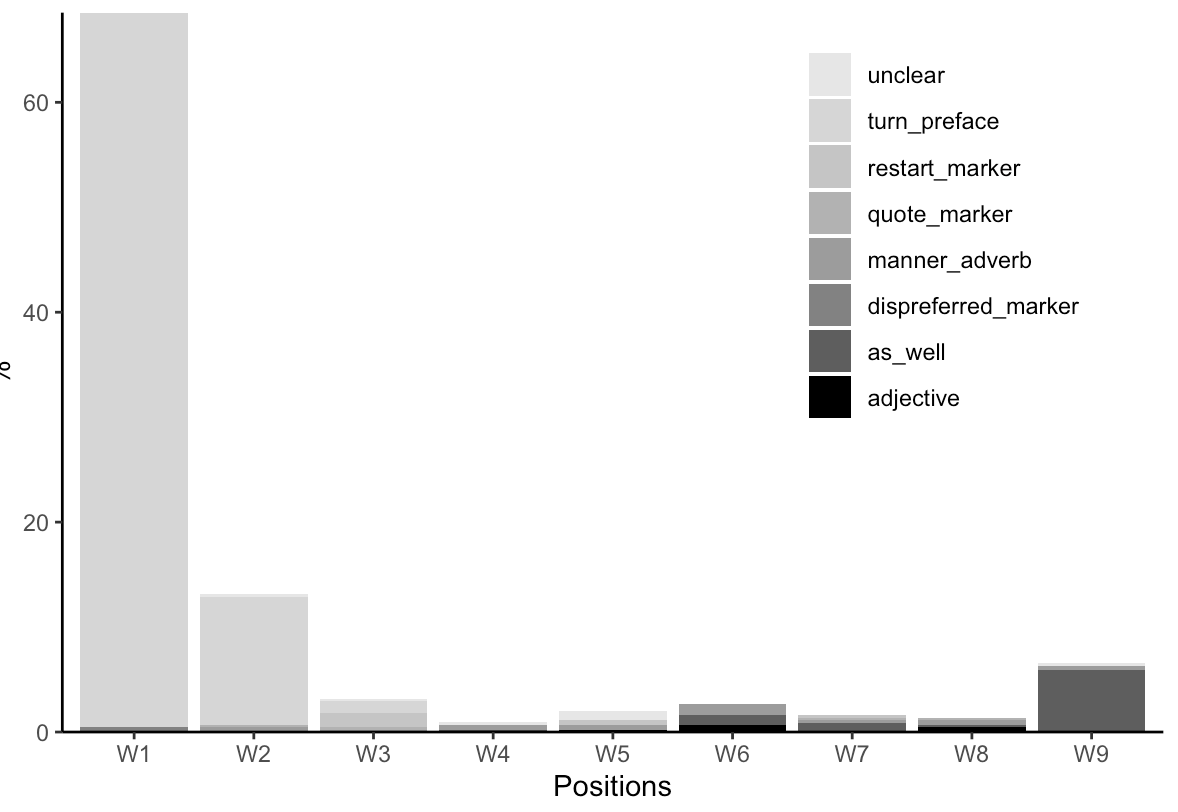

您也可以使用顛倒順序，forcats::fct_rev()但您還需要將黑白顏色從 更改scale_fill_grey(start = 0, end = .9)為scale_fill_grey(start = .9, end = 0)

ggplot(p_well, aes(x=Var2, y=Freq,fill = forcats::fct_rev(Var1)))
  geom_bar(position="stack", stat="identity")
  xlab("Positions")
  ylab("%")
  theme_bw()
  scale_fill_grey(start = .9, end = 0)
  scale_y_continuous(expand = c(0,0))
  theme(legend.title=element_blank(),
        axis.line = element_line(colour = "black"),
        panel.grid.major = element_blank(),
        panel.grid.minor = element_blank(),
        panel.border = element_blank(),
        panel.background = element_blank(),
        legend.position = c(.8,.7))

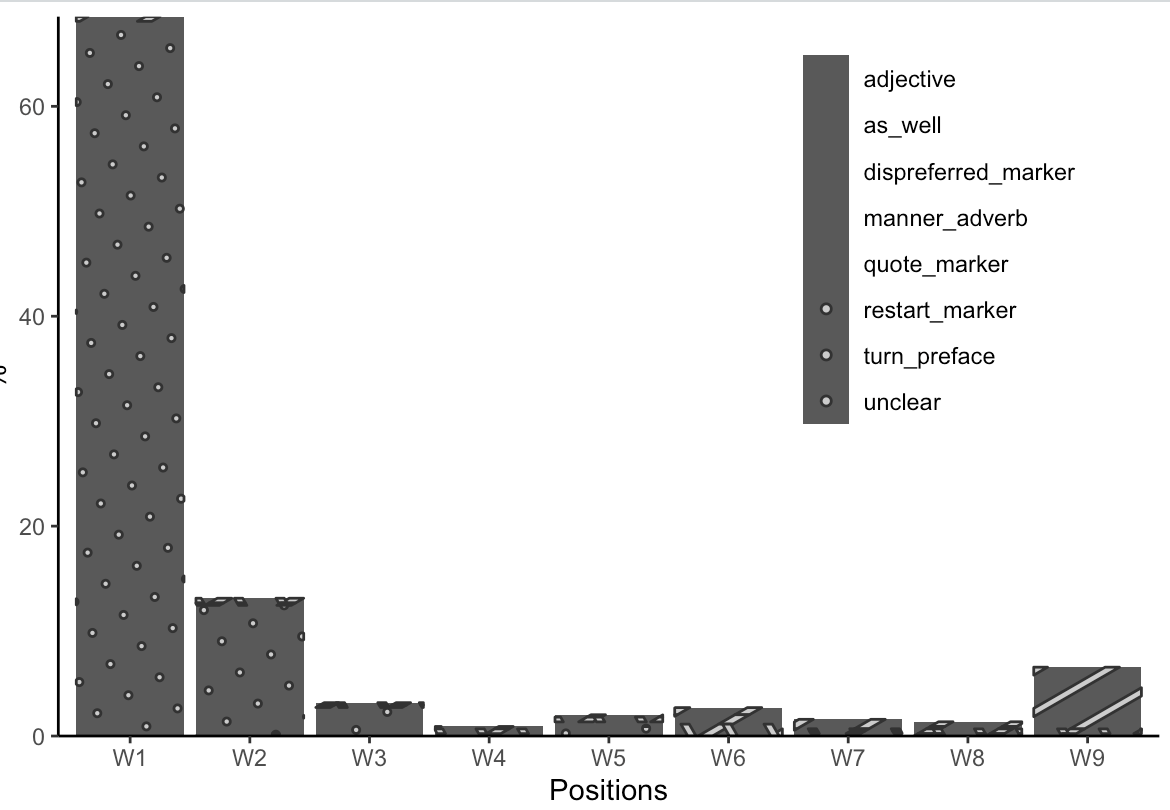

為您可以使用的繪圖添加模式ggpattern()。但是，使用黑白比例尺和一些條形的大小，很難區分組之間的差異

library(ggpattern)
ggplot(p_well, aes(x=Var2, y=Freq))
  geom_bar_pattern(position="stack",stat="identity",
                   mapping=aes(pattern=Var1))
  xlab("Positions")
  ylab("%")
  theme_bw()
  scale_fill_grey(start = .9, end = 0)
  scale_y_continuous(expand = c(0,0))
  theme(legend.title=element_blank(),
        axis.line = element_line(colour = "black"),
        panel.grid.major = element_blank(),
        panel.grid.minor = element_blank(),
        panel.border = element_blank(),
        panel.background = element_blank(),
        legend.position = c(.8,.7))

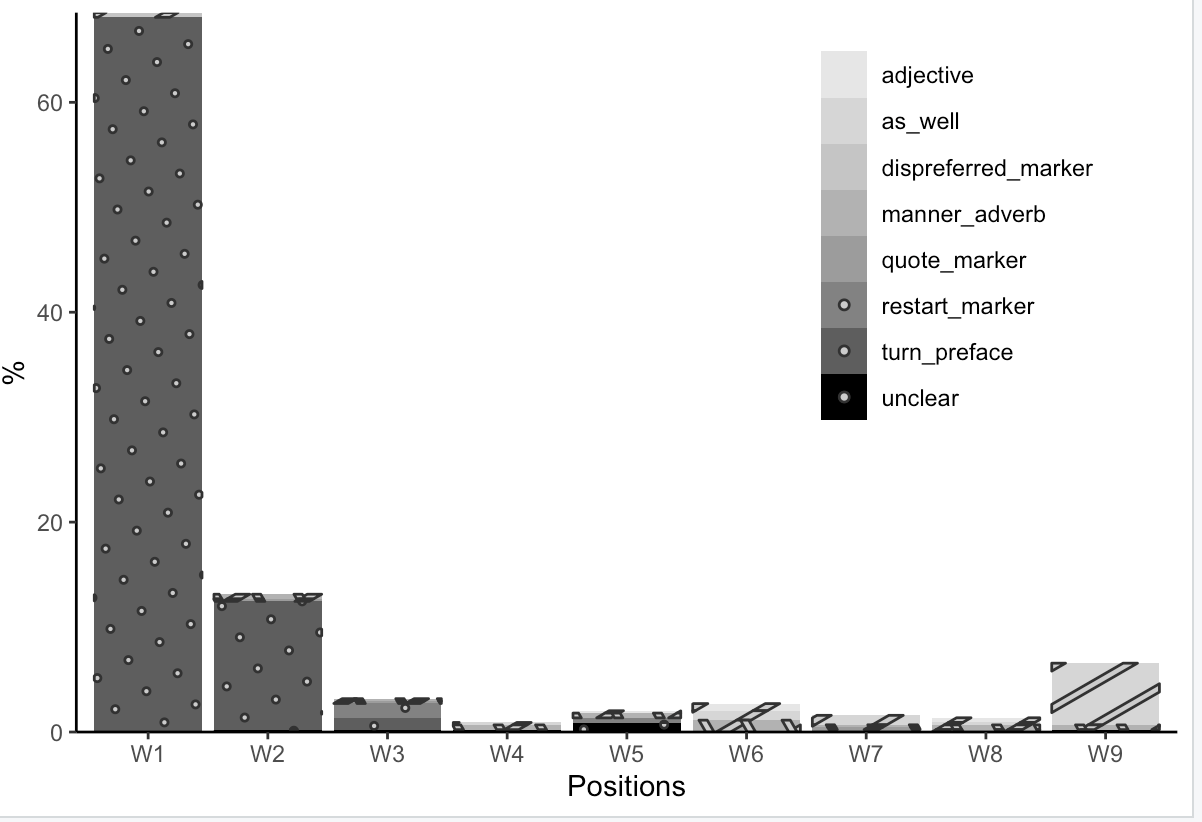

讓填充的顏色在不同的灰色陰影中變化

ggplot(p_well, aes(x=Var2, y=Freq, fill=Var1))
  geom_bar_pattern(position="stack",stat="identity",
                   mapping=aes(pattern=Var1))
  xlab("Positions")
  ylab("%")
  theme_bw()
  scale_fill_grey(start = .9, end = 0)
  scale_y_continuous(expand = c(0,0))
  theme(legend.title=element_blank(),
        axis.line = element_line(colour = "black"),
        panel.grid.major = element_blank(),
        panel.grid.minor = element_blank(),
        panel.border = element_blank(),
        panel.background = element_blank(),
        legend.position = c(.8,.7))
