如何使用geom_bar并在x軸上使用兩個分類變數

我嘗試繪制條形圖，其 X 軸與平時略有不同。這個想法是用初始變數（代碼）和分組變數（區域）來表示這個軸。每個代碼都有一個屬于它的區域。我想用垂直線來劃定我在情節上的區域。

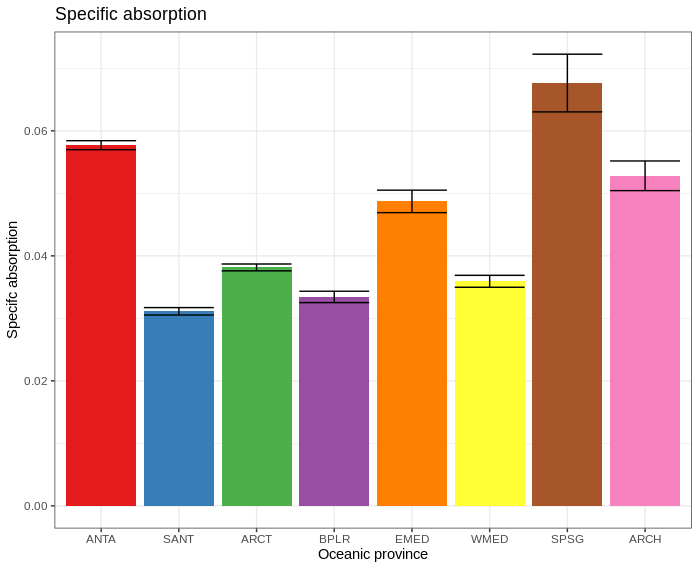

這是一個reprex

library(dplyr)
library(ggplot2)
data <- tibble::tribble(
                           ~code,    ~term,          ~estimate,           ~std.error,       ~statistic,             ~p.value,      ~region,
                          "ANTA", "t_chla", 0.0577051712200805, 0.000720537559840254, 80.0862778518777, 1.51491004165028e-36,      "Polar",
                          "ARCH", "t_chla", 0.0528096415790542,  0.00237431411186973, 22.2420619559337, 9.38778083531695e-08, "Equatorial",
                          "ARCT", "t_chla", 0.0381489725623347, 0.000549351930679462, 69.4435942277484,  7.1661522966813e-84,      "Polar",
                          "BPLR", "t_chla", 0.0334314725309052, 0.000908084662707285, 36.8153696498248,   6.728272457306e-26,      "Polar",
                          "EMED", "t_chla",  0.048713647973686,  0.00179735526256328, 27.1029601038437, 1.37127584382531e-20,  "Temperate",
                          "SANT", "t_chla", 0.0311278181792805, 0.000594175450783383, 52.3882602996143, 4.93281235468381e-67,      "Polar",
                          "SPSG", "t_chla", 0.0676467149977894,  0.00461643829029263,  14.653442923744, 1.64755108560374e-06, "Equatorial",
                          "WMED", "t_chla", 0.0359293074812375, 0.000954627809780489, 37.6369796826883, 1.88418982949485e-42,  "Temperate"
                          )

data$code <- factor(data$code, levels = c("ANTA", "SANT", "ARCT", "BPLR", "EMED", "WMED", "SPSG", "ARCH"))


ggplot(data)
  geom_bar(aes(y = estimate, x = code, fill = code), stat = "identity")
  geom_errorbar(aes(ymin = estimate - std.error, ymax = estimate   std.error, x = code))
  scale_fill_brewer(palette = "Set1", guide = "none")
  theme_bw()
  ylab("Specifc absorption")
  xlab("Oceanic province")
  ggtitle("Specific absorption")

所以我們的想法是在 BPLR 和 EMED 之間以及 WMED 和 SPSG 之間有一條垂直線，條形在標簽極地、溫帶和赤道下分組。

預先感謝您的回答。

uj5u.com熱心網友回復：

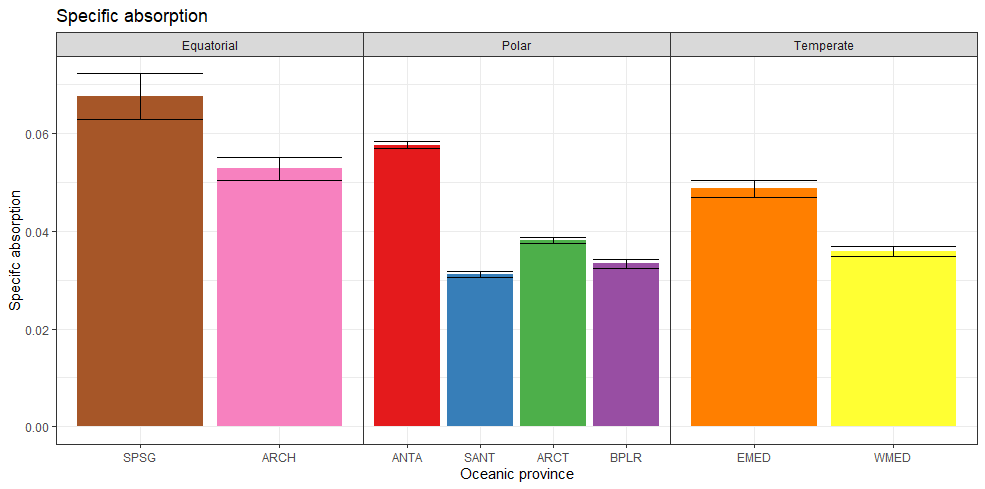

添加facet_wrap和panel.spacing = unit(0, 'lines')到你的情節怎么樣？

ggplot(data)
  geom_bar(aes(y = estimate, x = code, fill = code), stat = "identity")
  geom_errorbar(aes(ymin = estimate - std.error, ymax = estimate   std.error, x = code))
  scale_fill_brewer(palette = "Set1", guide = "none")
  theme_bw()
  ylab("Specifc absorption")
  xlab("Oceanic province")
  ggtitle("Specific absorption")
  facet_wrap(~region, scales = 'free_x')
  theme(panel.spacing = unit(0, 'lines'))

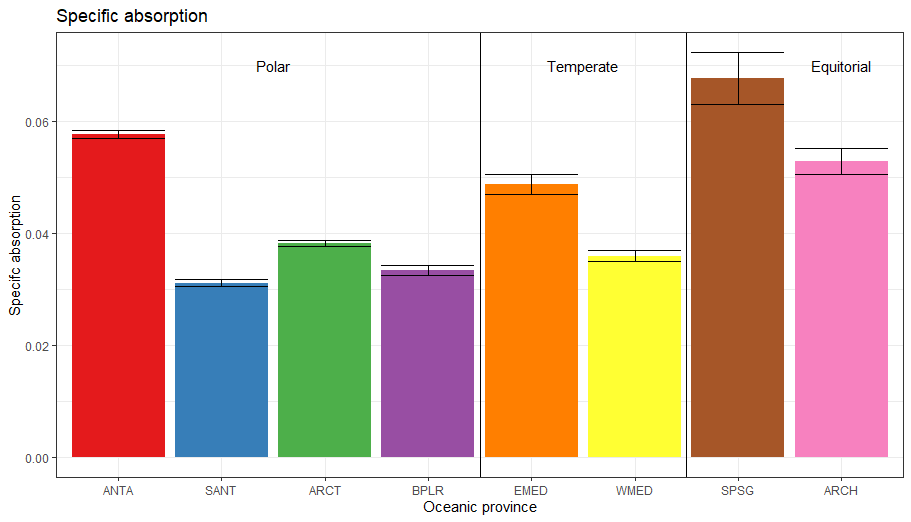

編輯：更新為手動添加垂直線和標簽

這是將分組添加到條形的另一個選項。可以使用文本大小、位置、顏色、字體等進行大量自定義。

ggplot(data)
  geom_bar(aes(y = estimate, x = code, fill = code), stat = "identity")
  geom_errorbar(aes(ymin = estimate - std.error, ymax = estimate   std.error, x = code))
  scale_fill_brewer(palette = "Set1", guide = "none")
  theme_bw()
  ylab("Specifc absorption")
  xlab("Oceanic province")
  ggtitle("Specific absorption")
  geom_vline(xintercept = c(4.5, 6.5))
  annotate(geom = 'text', x = 2.5, y = .07, label = 'Polar')
  annotate(geom = 'text', x = 5.5, y = .07, label = 'Temperate')
  annotate(geom = 'text', x = 8, y = .07, label = 'Equitorial')
