ggplot：如何根據變數型別在geom_text位置上設定不同的對齊方式？

我有一個 100% 堆積條形圖，顯示 3 種型別的變數。我已經設定了一個示例資料庫，以便我可以更輕松地創建圖表。

我已經用我需要的顏色和資訊調整了圖表。但我無法獨立定位標簽。這是當前的代碼和輸出。

代碼：

(empilhado<-ggplot(dfm, aes(y = Year, x = abs(value), fill = variable))
  scale_x_continuous(sec.axis = sec_axis(trans = ~.*1, name="Trab."), expand=expansion(mult=c(0,0.05)))
  geom_col(data = rotulo, aes(y = Year, x=abs(trabalho), fill=NULL), width = .7, colour="black", lwd=0.1, position = "fill", orientation = "y")
  geom_label(data = rotulo, aes(y= Year, x = abs(trabalho), fill=NULL, label=paste(format(round(trabalho, digits=0), nsmall=0, decimal.mark=",", big.mark="."),
                                                                                  format(round(aprovado, digits=0), nsmall=0, decimal.mark=",", big.mark="."))
                              ), color="black", size=4, position = position_fill(vjust=1.06))
  geom_col(width = .7, colour="black", lwd=0.1, position = "fill", orientation = "y")
  geom_text(aes(label=format(round(value, digits=0), nsmall=0, decimal.mark=",", big.mark=".")),
            size=4, color="white", position = position_fill(vjust=0.5))
  theme(panel.grid.major =   element_line(colour = "gray90",size=0.75), panel.grid.minor =   element_line(colour = "gray90",size=0.75),
        legend.position="top", axis.text.x = element_blank(), axis.ticks.x = element_blank(),
        axis.title.x = element_blank(), panel.background = element_blank())
  scale_fill_manual(values = c("#000000","tomato","blue"))

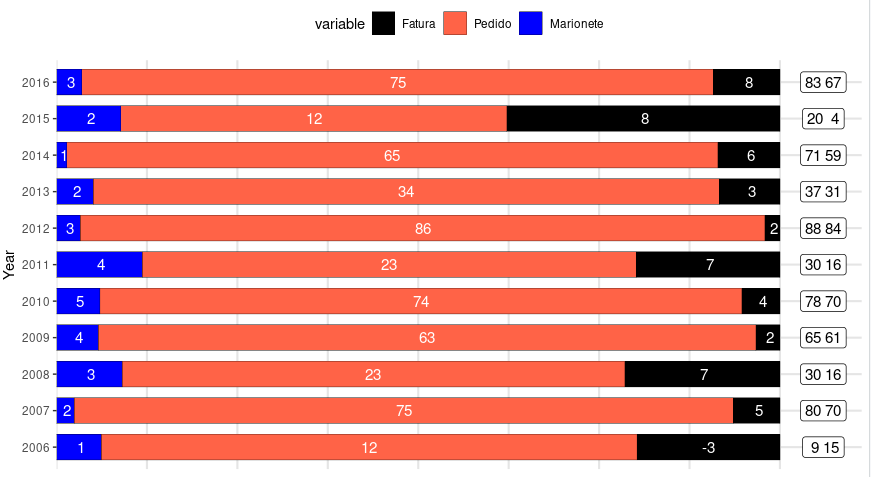

輸出：

現在怎么樣了？Position_fill(vjust=0.5)，因此所有標簽都在其各自的條形圖中居中。

我想要的是？為了能夠在左側設定 'Marionete' 標簽的位置（就像 vjust=0 那樣），保持 'Pedido' 標簽原樣（在 'Pedido' 堆疊條的中心）并放置 ' Fatura' 標簽在右邊（就像 vjust=1 那樣）。

提前致謝！

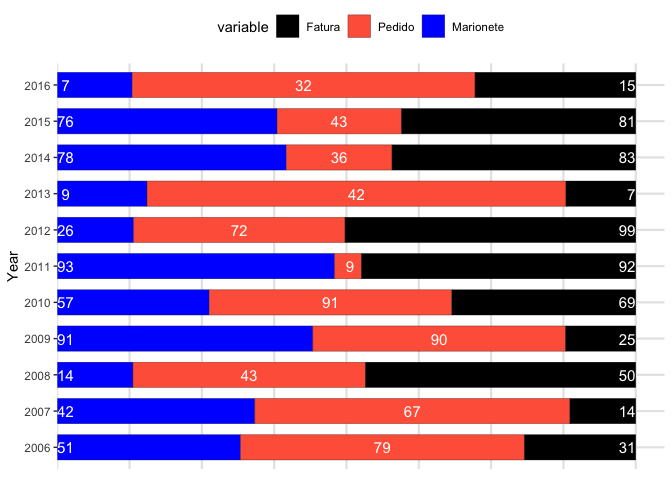

uj5u.com熱心網友回復：

實作您想要的結果的一種選擇是手動計算/設定每個標簽的位置和水平對齊，而不是使用position="fill"：

利用一些隨機模擬資料：

library(ggplot2)
library(dplyr)

dfm <- dfm %>%
  group_by(Year) %>%
  arrange(desc(variable)) %>%
  mutate(
    pct = value / sum(value),
    x_label = case_when(
      variable == "Marionete" ~ 0,
      variable == "Pedido" ~ .5 * (cumsum(pct)   lag(cumsum(pct))),
      TRUE ~ 1
    ),
    hjust = case_when(
      variable == "Marionete" ~ 0,
      variable == "Pedido" ~ .5,
      TRUE ~ 1
    )
  )


ggplot(dfm, aes(y = Year, x = abs(value), fill = variable))
  scale_x_continuous(sec.axis = sec_axis(trans = ~ . * 1, name = "Trab."), expand = expansion(mult = c(0, 0.05)))
  geom_col(width = .7, colour = "black", lwd = 0.1, position = "fill", orientation = "y")
  geom_text(aes(x = x_label, label = format(round(value, digits = 0), nsmall = 0, decimal.mark = ",", big.mark = "."), hjust = hjust),
    size = 4, color = "white"
  )
  theme(
    panel.grid.major = element_line(colour = "gray90", size = 0.75), panel.grid.minor = element_line(colour = "gray90", size = 0.75),
    legend.position = "top", axis.text.x = element_blank(), axis.ticks.x = element_blank(),
    axis.title.x = element_blank(), panel.background = element_blank()
  )
  scale_fill_manual(values = c("#000000", "tomato", "blue"))

資料

set.seed(123)

dfm <- data.frame(
  Year = rep(c(2006:2016), each = 3),
  value = sample(1:100, 3 * 11, replace = TRUE),
  variable = c("Fatura", "Pedido", "Marionete")
)
dfm$variable <- factor(dfm$variable, levels = c("Fatura", "Pedido", "Marionete"))
dfm$Year <- factor(dfm$Year)

標籤：r ggplot2 标签 位置 几何文本
