我正在嘗試向我的顏色條圖例添加一個垂直居中的標題，但它會將標題堆疊在顏色條的頂部而不是右側。我試過添加 position = "right" 但它沒有幫助，我試過 vjust，hjust 它也不起作用。

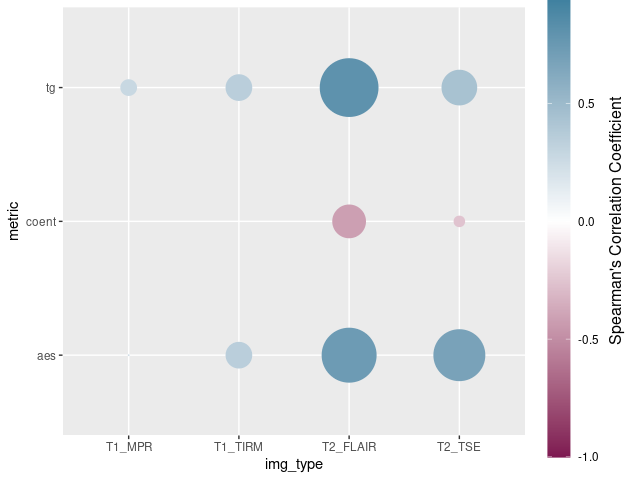

它產生的情節：

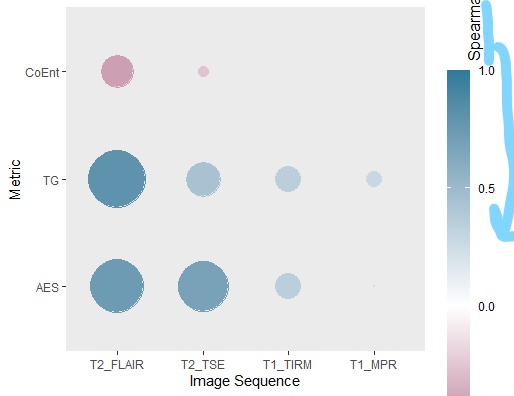

我想要什么：
代碼：
ggplot(df, aes(x=img_type, y=metric),show.legend = FALSE)
geom_point(aes(size = abs_corr, colour=corr)) scale_size(range =c(-0.1,20) )
scale_colour_gradient2(
low = "#7e1952",
high = "#2f7a9a",
space = "Lab",
na.value = "white",
guide = "colourbar",
aesthetics = "colour",
mid = "white",
limits=c(-1,1), name = "Spearman's Correlation Coefficient"
) guides(size = "none")
theme(legend.key.height = unit(2.5, "cm"))
guides(fill = guide_colourbar(label.position = "right"))
theme(legend.title = element_text(size = 12, angle = 90) )
資料：
metric pval corr img_type abs_corr
1 aes 0.0000 0.6820 T2_TSE 0.6820
2 aes 0.0000 0.7365 T2_FLAIR 0.7365
3 aes 0.0003 0.2412 T1_MPR 0.2412
4 aes 0.0000 0.3510 T1_TIRM 0.3510
5 tg 0.0000 0.4434 T2_TSE 0.4434
6 tg 0.0000 0.8093 T2_FLAIR 0.8093
7 tg 0.0000 0.2813 T1_MPR 0.2813
8 tg 0.0000 0.3513 T1_TIRM 0.3513
9 coent 0.0028 -0.2583 T2_TSE 0.2583
10 coent 0.0008 -0.4210 T2_FLAIR 0.4210
uj5u.com熱心網友回復：
這是一個解決方案，靈感來自
資料
df <-
structure(list(metric = c("aes", "aes", "aes", "aes", "tg", "tg",
"tg", "tg", "coent", "coent"), pval = c(0, 0, 3e-04, 0, 0, 0,
0, 0, 0.0028, 8e-04), corr = c(0.682, 0.7365, 0.2412, 0.351,
0.4434, 0.8093, 0.2813, 0.3513, -0.2583, -0.421), img_type = c("T2_TSE",
"T2_FLAIR", "T1_MPR", "T1_TIRM", "T2_TSE", "T2_FLAIR", "T1_MPR",
"T1_TIRM", "T2_TSE", "T2_FLAIR"), abs_corr = c(0.682, 0.7365,
0.2412, 0.351, 0.4434, 0.8093, 0.2813, 0.3513, 0.2583, 0.421)), class = "data.frame", row.names = c("1", "2", "3", "4", "5", "6", "7", "8", "9", "10"))
