從32位DLL訪問64位DLL

我正在將

So, what is the trick for calling functions from System32 64bit DLLs from a library built with C Builder 5?

UPDATE:

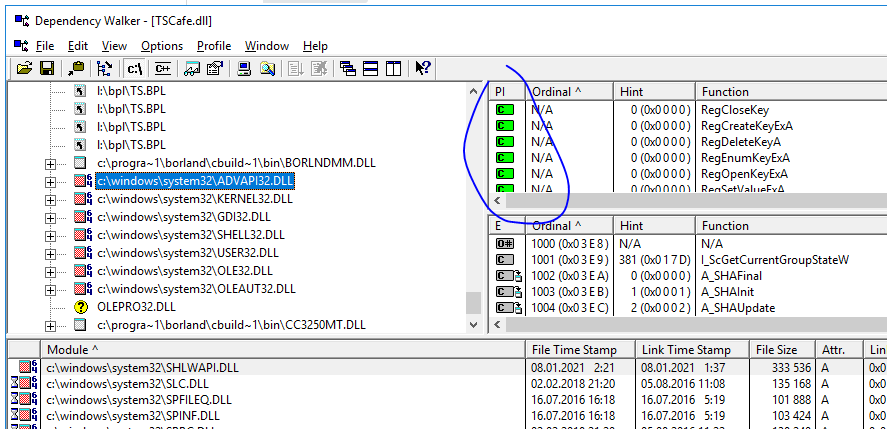

Here is evidence that the functions are actually imported from a parent DLL:

UPDATE:

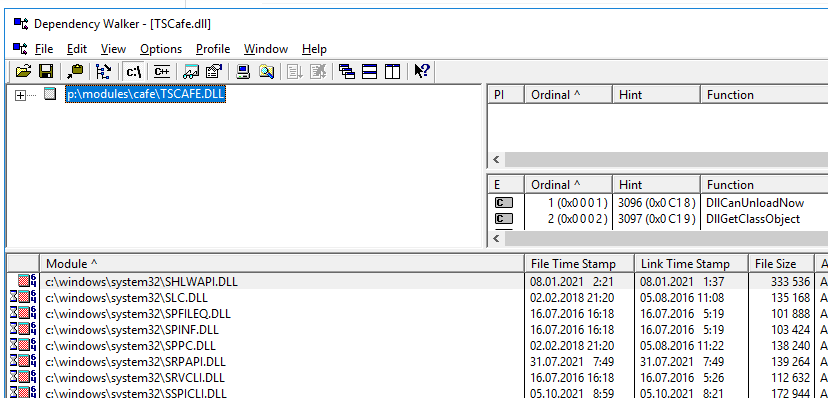

More one evidence:

UPDATE

OK, here is the makefile:

# ---------------------------------------------------------------------------
!if !$d(BCB)
BCB = $(MAKEDIR)\..
!endif

# ---------------------------------------------------------------------------
# IDE SECTION
# ---------------------------------------------------------------------------
# The following section of the project makefile is managed by the BCB IDE.
# It is recommended to use the IDE to change any of the values in this
# section.
# ---------------------------------------------------------------------------

VERSION = BCB.05.03
# ---------------------------------------------------------------------------
PROJECT = maxicef.bpl
OBJFILES = \
#  ..\winlib\winlib.obj \
  ..\addons\MaxiSysUtils.obj \
  ..\source\uCEFAccessibilityHandler.obj \
  ..\source\uCEFApp.obj \
  ..\source\uCEFApplication.obj \
  ..\source\uCEFApplicationCore.obj \
  ..\source\uCEFAudioHandler.obj \
  ..\source\uCEFAuthCallback.obj \
  ..\source\uCEFBaseRefCounted.obj \
  ..\source\uCEFBaseScopedWrapper.obj \
  ..\source\uCEFBeforeDownloadCallback.obj \
  ..\source\uCEFBinaryValue.obj \
  ..\source\uCEFBitmapBitBuffer.obj \
  ..\source\uCEFBoxLayout.obj \
  ..\source\uCEFBrowser.obj \
  ..\source\uCEFBrowserProcessHandler.obj \
  ..\source\uCEFBrowserView.obj \
  ..\source\uCEFBrowserViewComponent.obj \
  ..\source\uCEFBrowserViewDelegate.obj \
  ..\source\uCEFBufferPanel.obj \
  ..\source\uCEFButton.obj \
  ..\source\uCEFButtonComponent.obj \
  ..\source\uCEFButtonDelegate.obj \
  ..\source\uCEFCallback.obj \
  ..\source\uCEFChromium.obj \
  ..\source\uCEFChromiumCore.obj \
  ..\source\uCEFChromiumEvents.obj \
  ..\source\uCEFChromiumFontOptions.obj \
  ..\source\uCEFChromiumOptions.obj \
  ..\source\uCEFChromiumWindow.obj \
  ..\source\uCEFClient.obj \
  ..\source\uCEFCommandLine.obj \
  ..\source\uCEFCompletionCallback.obj \
  ..\source\uCEFConstants.obj \
  ..\source\uCEFContextMenuHandler.obj \
  ..\source\uCEFContextMenuParams.obj \
  ..\source\uCEFCookieAccessFilter.obj \
  ..\source\uCEFCookieManager.obj \
  ..\source\uCEFCookieVisitor.obj \
  ..\source\uCEFCustomStreamReader.obj \
  ..\source\uCEFDeleteCookiesCallback.obj \
  ..\source\uCEFDevToolsMessageObserver.obj \
  ..\source\uCEFDialogHandler.obj \
  ..\source\uCEFDictionaryValue.obj \
  ..\source\uCEFDisplay.obj \
  ..\source\uCEFDisplayHandler.obj \
  ..\source\uCEFDomDocument.obj \
  ..\source\uCEFDomNode.obj \
  ..\source\uCEFDomVisitor.obj \
  ..\source\uCEFDownLoadItem.obj \
  ..\source\uCEFDownloadHandler.obj \
  ..\source\uCEFDownloadImageCallBack.obj \
  ..\source\uCEFDownloadItemCallback.obj \
  ..\source\uCEFDragAndDropMgr.obj \
  ..\source\uCEFDragData.obj \
  ..\source\uCEFDragHandler.obj \
  ..\source\uCEFEndTracingCallback.obj \
  ..\source\uCEFExtension.obj \
  ..\source\uCEFExtensionHandler.obj \
  ..\source\uCEFFileDialogCallback.obj \
  ..\source\uCEFFillLayout.obj \
  ..\source\uCEFFindHandler.obj \
  ..\source\uCEFFocusHandler.obj \
  ..\source\uCEFFrame.obj \
  ..\source\uCEFFrameHandler.obj \
  ..\source\uCEFGetExtensionResourceCallback.obj \
  ..\source\uCEFImage.obj \
  ..\source\uCEFInterfaces.obj \
  ..\source\uCEFJsDialogCallback.obj \
  ..\source\uCEFJsDialogHandler.obj \
  ..\source\uCEFJson.obj \
  ..\source\uCEFKeyboardHandler.obj \
  ..\source\uCEFLabelButton.obj \
  ..\source\uCEFLabelButtonComponent.obj \
  ..\source\uCEFLayout.obj \
  ..\source\uCEFLibFunctions.obj \
  ..\source\uCEFLifeSpanHandler.obj \
  ..\source\uCEFLinkedWinControlBase.obj \
  ..\source\uCEFLinkedWindowParent.obj \
  ..\source\uCEFListValue.obj \
  ..\source\uCEFLoadHandler.obj \
  ..\source\uCEFMediaObserver.obj \
  ..\source\uCEFMediaRoute.obj \
  ..\source\uCEFMediaRouteCreateCallback.obj \
  ..\source\uCEFMediaRouter.obj \
  ..\source\uCEFMediaSink.obj \
  ..\source\uCEFMediaSinkDeviceInfoCallback.obj \
  ..\source\uCEFMediaSource.obj \
  ..\source\uCEFMenuButton.obj \
  ..\source\uCEFMenuButtonComponent.obj \
  ..\source\uCEFMenuButtonDelegate.obj \
  ..\source\uCEFMenuButtonPressedLock.obj \
  ..\source\uCEFMenuModel.obj \
  ..\source\uCEFMenuModelDelegate.obj \
  ..\source\uCEFMiscFunctions.obj \
  ..\source\uCEFNavigationEntry.obj \
  ..\source\uCEFNavigationEntryVisitor.obj \
  ..\source\uCEFOAuth2Helper.obj \
  ..\source\uCEFOLEDragAndDrop.obj \
  ..\source\uCEFOSRIMEHandler.obj \
  ..\source\uCEFOverlayController.obj \
  ..\source\uCEFPDFPrintCallback.obj \
  ..\source\uCEFPDFPrintOptions.obj \
  ..\source\uCEFPanel.obj \
  ..\source\uCEFPanelComponent.obj \
  ..\source\uCEFPanelDelegate.obj \
  ..\source\uCEFPostData.obj \
  ..\source\uCEFPostDataElement.obj \
  ..\source\uCEFPrintDialogCallback.obj \
  ..\source\uCEFPrintHandler.obj \
  ..\source\uCEFPrintJobCallback.obj \
  ..\source\uCEFPrintSettings.obj \
  ..\source\uCEFProcessMessage.obj \
  ..\source\uCEFRegistration.obj \
  ..\source\uCEFRenderHandler.obj \
  ..\source\uCEFRenderProcessHandler.obj \
  ..\source\uCEFRequest.obj \
  ..\source\uCEFRequestContext.obj \
  ..\source\uCEFRequestContextHandler.obj \
  ..\source\uCEFRequestHandler.obj \
  ..\source\uCEFResolveCallback.obj \
  ..\source\uCEFResourceBundle.obj \
  ..\source\uCEFResourceBundleHandler.obj \
  ..\source\uCEFResourceHandler.obj \
  ..\source\uCEFResourceReadCallback.obj \
  ..\source\uCEFResourceRequestHandler.obj \
  ..\source\uCEFResourceSkipCallback.obj \
  ..\source\uCEFResponse.obj \
  ..\source\uCEFResponseFilter.obj \
  ..\source\uCEFRunContextMenuCallback.obj \
  ..\source\uCEFRunFileDialogCallback.obj \
  ..\source\uCEFSSLStatus.obj \
  ..\source\uCEFSchemeHandlerFactory.obj \
  ..\source\uCEFSchemeRegistrar.obj \
  ..\source\uCEFScrollView.obj \
  ..\source\uCEFScrollViewComponent.obj \
  ..\source\uCEFSelectClientCertificateCallback.obj \
  ..\source\uCEFSentinel.obj \
  ..\source\uCEFServer.obj \
  ..\source\uCEFServerComponent.obj \
  ..\source\uCEFServerEvents.obj \
  ..\source\uCEFServerHandler.obj \
  ..\source\uCEFSetCookieCallback.obj \
  ..\source\uCEFSslInfo.obj \
  ..\source\uCEFStreamReader.obj \
  ..\source\uCEFStreamWriter.obj \
  ..\source\uCEFStringList.obj \
  ..\source\uCEFStringMap.obj \
  ..\source\uCEFStringMultimap.obj \
  ..\source\uCEFStringVisitor.obj \
  ..\source\uCEFTask.obj \
  ..\source\uCEFTaskRunner.obj \
  ..\source\uCEFTextfield.obj \
  ..\source\uCEFTextfieldComponent.obj \
  ..\source\uCEFTextfieldDelegate.obj \
  ..\source\uCEFThread.obj \
  ..\source\uCEFTimerWorkScheduler.obj \
  ..\source\uCEFTypes.obj \
  ..\source\uCEFUrlRequest.obj \
  ..\source\uCEFUrlRequestClientComponent.obj \
  ..\source\uCEFUrlRequestClientEvents.obj \
  ..\source\uCEFUrlrequestClient.obj \
  ..\source\uCEFValue.obj \
  ..\source\uCEFView.obj \
  ..\source\uCEFViewComponent.obj \
  ..\source\uCEFViewDelegate.obj \
  ..\source\uCEFViewsFrameworkEvents.obj \
  ..\source\uCEFWaitableEvent.obj \
  ..\source\uCEFWebPluginInfo.obj \
  ..\source\uCEFWebPluginInfoVisitor.obj \
  ..\source\uCEFWebPluginUnstableCallback.obj \
  ..\source\uCEFWinControl.obj \
  ..\source\uCEFWindow.obj \
  ..\source\uCEFWindowComponent.obj \
  ..\source\uCEFWindowDelegate.obj \
  ..\source\uCEFWindowParent.obj \
  ..\source\uCEFWorkScheduler.obj \
  ..\source\uCEFWorkSchedulerQueueThread.obj \
  ..\source\uCEFWorkSchedulerThread.obj \
  ..\source\uCEFWriteHandler.obj \
  ..\source\uCEFX509CertPrincipal.obj \
  ..\source\uCEFX509Certificate.obj \
  ..\source\uCEFXmlReader.obj \
  ..\source\uCEFZipReader.obj \
  ..\source\uCEFv8Accessor.obj \
  ..\source\uCEFv8ArrayBufferReleaseCallback.obj \
  ..\source\uCEFv8Context.obj \
  ..\source\uCEFv8Exception.obj \
  ..\source\uCEFv8Handler.obj \
  ..\source\uCEFv8Interceptor.obj \
  ..\source\uCEFv8StackFrame.obj \
  ..\source\uCEFv8StackTrace.obj \
  ..\source\uCEFv8Value.obj \
  ..\packages\CEF4Delphi_Register.obj \
  maxicef.obj
RESFILES = maxicef.res ..\packages\res\chromium.dcr
MAINSOURCE = maxicef.cpp
RESDEPEN = $(RESFILES)
LIBFILES =
IDLFILES =
IDLGENFILES =
LIBRARIES = Rxctl5.lib
PACKAGES = vcl50.bpi
SPARELIBS = Vcl50.lib Rxctl5.lib
DEFFILE =
# ---------------------------------------------------------------------------
PATHCPP = .;..\winlib;
PATHASM = .;
PATHPAS = .;..\source;..\packages;..\addons;
PATHRC = .;..\packages\res;
DEBUGLIBPATH = $(BCB)\lib\debug;
RELEASELIBPATH = $(BCB)\lib\release
USERDEFINES = _DEBUG;MSWINDOWS;CPUX32;TARGET_32BITS;VER130;
SYSDEFINES = _RTLDLL;NO_STRICT;USEPACKAGES
INCLUDEPATH = ..\source;..\packages;..\addons;..\winlib;$(BCB)\include;$(BCB)\include\vcl
LIBPATH = ..\source;..\packages;..\packages\res;..\addons;..\winlib;c:\windows\system32;c:\windows\SysWOW64;L:\Lib;$(BCB)\lib\obj;$(BCB)\lib;
WARNINGS= -w-par
# ---------------------------------------------------------------------------
CFLAG1 = -Od -Vx -Ve -X- -r- -a8 -b- -k -y -v -vi- -c -tWM -H=vcl50.csm
IDLCFLAGS = -I..\source -I..\packages -I..\addons -I..\winlib -I$(BCB)\include -I$(BCB)\include\vcl \
    -src_suffix cpp -D_DEBUG -DMSWINDOWS -DCPUX32 -DTARGET_32BITS -DVER130 -boa
PFLAGS = -$YD -$W -$O- -v -JPHNE -M
RFLAGS =
AFLAGS = /mx /w2 /zd
LFLAGS = -D"" -aa -Tpp -x -Gn -Gl -Gi -v
# ---------------------------------------------------------------------------
ALLOBJ = c0pkg32.obj $(PACKAGES) Memmgr.Lib sysinit.obj $(OBJFILES)
ALLRES = $(RESFILES)
ALLLIB = $(LIBFILES) $(LIBRARIES) import32.lib cp32mti.lib
# ---------------------------------------------------------------------------
!ifdef IDEOPTIONS

[Version Info]
IncludeVerInfo=0
AutoIncBuild=0
MajorVer=1
MinorVer=0
Release=0
Build=0
Debug=0
PreRelease=0
Special=0
Private=0
DLL=0

[Version Info Keys]
CompanyName=
FileDescription=
FileVersion=1.0.0.0
InternalName=
LegalCopyright=
LegalTrademarks=
OriginalFilename=
ProductName=
ProductVersion=1.0.0.0
Comments=

[Debugging]
DebugSourceDirs=$(BCB)\source\vcl

!endif





# ---------------------------------------------------------------------------
# MAKE SECTION
# ---------------------------------------------------------------------------
# This section of the project file is not used by the BCB IDE.  It is for
# the benefit of building from the command-line using the MAKE utility.
# ---------------------------------------------------------------------------

.autodepend
# ---------------------------------------------------------------------------
!if "$(USERDEFINES)" != ""
AUSERDEFINES = -d$(USERDEFINES:;= -d)
!else
AUSERDEFINES =
!endif

!if !$d(BCC32)
BCC32 = bcc32ide
!endif

!if !$d(CPP32)
CPP32 = cpp32
!endif

!if !$d(DCC32)
DCC32 = dcc32
!endif

!if !$d(TASM32)
TASM32 = tasm32
!endif

!if !$d(LINKER)
LINKER = ilink32
!endif

!if !$d(BRCC32)
BRCC32 = brcc32
!endif


# ---------------------------------------------------------------------------
!if $d(PATHCPP)
.PATH.CPP = $(PATHCPP)
.PATH.C   = $(PATHCPP)
!endif

!if $d(PATHPAS)
.PATH.PAS = $(PATHPAS)
!endif

!if $d(PATHASM)
.PATH.ASM = $(PATHASM)
!endif

!if $d(PATHRC)
.PATH.RC  = $(PATHRC)
!endif
# ---------------------------------------------------------------------------
$(PROJECT): $(IDLGENFILES) $(OBJFILES) $(RESDEPEN) $(DEFFILE)
    $(BCB)\BIN\$(LINKER) @&&!
    $(LFLAGS) -L$(LIBPATH)
    $(ALLOBJ),
    $(PROJECT),,
    $(ALLLIB),
    $(DEFFILE),
    $(ALLRES)
!
# ---------------------------------------------------------------------------
.pas.hpp:
    $(BCB)\BIN\$(DCC32) $(PFLAGS) -U$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -O$(INCLUDEPATH) --BCB {$< }

.pas.obj:
    $(BCB)\BIN\$(DCC32) $(PFLAGS) -U$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -O$(INCLUDEPATH) --BCB {$< }

.cpp.obj:
    $(BCB)\BIN\$(BCC32) $(CFLAG1) $(WARNINGS) -I$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -n$(@D) {$< }

.c.obj:
    $(BCB)\BIN\$(BCC32) $(CFLAG1) $(WARNINGS) -I$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -n$(@D) {$< }

.c.i:
    $(BCB)\BIN\$(CPP32) $(CFLAG1) $(WARNINGS) -I$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -n. {$< }

.cpp.i:
    $(BCB)\BIN\$(CPP32) $(CFLAG1) $(WARNINGS) -I$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -n. {$< }

.asm.obj:
    $(BCB)\BIN\$(TASM32) $(AFLAGS) -i$(INCLUDEPATH:;= -i) $(AUSERDEFINES) -d$(SYSDEFINES:;= -d) $<, $@

.rc.res:
    $(BCB)\BIN\$(BRCC32) $(RFLAGS) -I$(INCLUDEPATH) -D$(USERDEFINES);$(SYSDEFINES) -fo$@ $<
# ---------------------------------------------------------------------------

UPDATE

For @PaulMcKenzie: I have a 64bit OS, and I need to build a 32bit application with Borland C Builder 5 to run on the 64bit OS. The problem I have is the issue with the Unresolved external errors, when I reference Windows functions residing in Windows DLLs from my .pas files.

uj5u.com熱心網友回復：

好的，謝謝大家，讓我明白了DLL匯入的程序。

由于IInspectable和Remy Lebeau說-進口DLL需要與鏈接LIB。

您需要重新創建.lib檔案。我已經Borland C builder安裝在T:\虛擬驅動器上：

> cd ..\libs
> T:\Bin\implib.exe kernel32.lib c:\Windows\SysWOW64\kernel32.dll

我將庫放在..\libs相對于makefile.

第三

的編譯器中存在一個錯誤Borland。它無法編譯從類方法對外部函式的呼叫，因此您需要添加代理：

unit uCEFMiscFunctions;

interface

const
  Kernel32DLL = 'kernel32.dll';

{$IFDEF MSWINDOWS}
function GetGlobalMemoryStatusEx_(lpBuffer: LPMEMORYSTATUSEX): BOOL;
function GetGlobalMemoryStatusEx(lpBuffer: LPMEMORYSTATUSEX): BOOL; stdcall; external Kernel32DLL name 'GlobalMemoryStatusEx';
{$ENDIF}

implementation

{$IFDEF MSWINDOWS}
function GetGlobalMemoryStatusEx_(lpBuffer: LPMEMORYSTATUSEX): BOOL;
begin
  Result := GetGlobalMemoryStatusEx(lpBuffer);
end;
{$ENDIF}

unit uCEFApplicationCore;
...
function TCefApplicationCore.GetTotalSystemMemory : UInt64;
{$IFDEF MSWINDOWS}
var
  TempMemStatus : TMyMemoryStatusEx;
{$ENDIF}
begin
  Result := 0;
  {$IFDEF MSWINDOWS}
  ZeroMemory(@TempMemStatus, SizeOf(TMyMemoryStatusEx));
  TempMemStatus.dwLength := SizeOf(TMyMemoryStatusEx);
  if GetGlobalMemoryStatusEx_(@TempMemStatus) then
  if True then
    Result := TempMemStatus.ullTotalPhys;
  {$ENDIF}
end;

標籤：c winapi dll c builder c builder-5

上一篇：無法除錯COM互操作DLL

下一篇：從一個表中回傳另一個表中不存在的列
