如何在散點圖中顯示相關系數？

在散點圖中，我想沿著描述 x 和 y 之間關系的方程顯示相關系數。我已經創建了我的資料材料，這是我目前的代碼：

library(tidyverse)

# Creation of datamaterial

salary <- c(95, 100, 105, 110, 120, 124, 135, 150, 165, 175, 225, 230, 235, 260)
height <- c(160, 150, 182, 165, 172, 175, 183, 187, 174, 193, 201, 172, 180, 188)
fakenumbers <- data.frame(salary, height)

cor(height, salary, method = c("pearson"))

# Creation of scatterplot

r <- ggplot(fakenumbers, aes(x = height, y = salary))
  geom_point(size = 3, shape = 21, color = "black", fill = "blue")
  labs(y = "Hourly salary
       (sek)", x = "height (cm)", title = "Relationship between height and salary (made up data)")
  theme_classic()   theme(plot.title = element_text(hjust = 0.5, size = 18),
                          axis.title = element_text(size = 15),
                          axis.title.y = element_text(angle = 0, vjust = 0.5),
                          axis.text = element_text(size = 11))

# Adding a regressionline

r   geom_smooth(method = lm, formula = y ~ x, se = FALSE)

在坐標系內部，在回歸線旁邊，我想要顯示“r = 0.588”和一些描述線性關系的方程。我怎樣才能做到這一點，最好使用 ggplot() 或其他一些函式？

uj5u.com熱心網友回復：

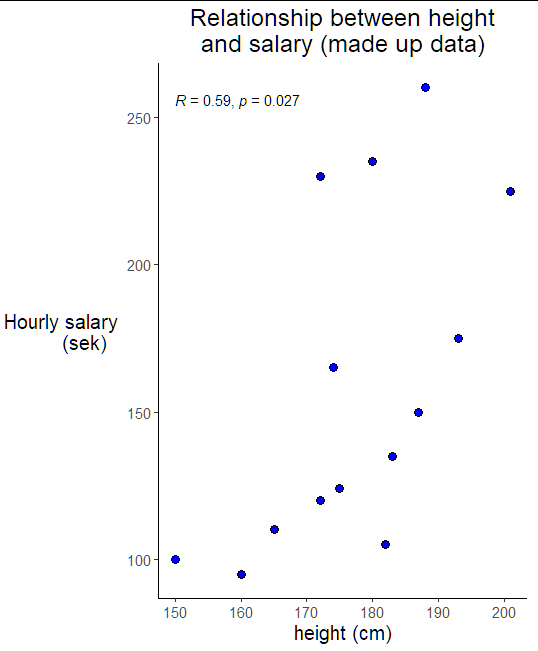

我們可以用ggpubrpackage來做，添加stat_cor(p.accuracy = 0.001, r.accuracy = 0.01)到你的代碼中：

library(ggpubr)
library(tidyverse)

r <- ggplot(fakenumbers, aes(x = height, y = salary))
  geom_point(size = 3, shape = 21, color = "black", fill = "blue")
  stat_cor(p.accuracy = 0.001, r.accuracy = 0.01)
  labs(y = "Hourly salary
       (sek)", x = "height (cm)", title = "Relationship between height and salary (made up data)")
  theme_classic()   theme(plot.title = element_text(hjust = 0.5, size = 18),
                          axis.title = element_text(size = 15),
                          axis.title.y = element_text(angle = 0, vjust = 0.5),
                          axis.text = element_text(size = 11))

uj5u.com熱心網友回復：

這是一個基本的R方式。定義一個公式fo，計算回歸，并定義一個eqation。

corr <- cor(height, salary, method = c("pearson"))

fo <- salary ~ height
fit <- lm(fo, fakenumbers)
(eq <- paste0(all.vars(fo)[1], ' ~ ', paste0(round(coef(fit), 2),
              gsub('\\*\\(Intercept\\)', '',
                   paste0('*', names(coef(fit)))), collapse='   ')))
# [1] "salary ~ -281.58   salary ~ 2.49*height"

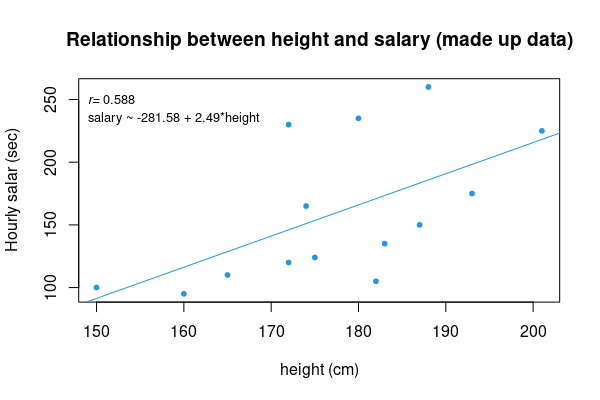

然后使用變數plot()，abline()和text()。

plot(fo, fakenumbers, pch=20, col=4,
     xlab='height (cm)', ylab='Hourly salar (sec)',
     main='Relationship between height and salary (made up data)')
abline(fit, col=4)
text(149, 250, bquote(italic('r=')~.(round(corr, 3))), adj=0, cex=.8)
text(149, 235, eq, adj=0, cex=.8)

資料：

fakenumbers <- structure(list(salary = c(95, 100, 105, 110, 120, 124, 135, 150,
165, 175, 225, 230, 235, 260), height = c(160, 150, 182, 165,
172, 175, 183, 187, 174, 193, 201, 172, 180, 188)), class = "data.frame", row.names = c(NA,
-14L))

uj5u.com熱心網友回復：

其他方式：

round(cor(height, salary, method = c("pearson")), 4) -> corr

然后geom_text用于顯示相關系數：

r
  geom_smooth(method = lm, formula = y ~ x, se = FALSE)
  geom_text(x = 152, y = 250,
            label = paste0('r = ', corr),
            color = 'red')
