如何標記x軸上的條形組？

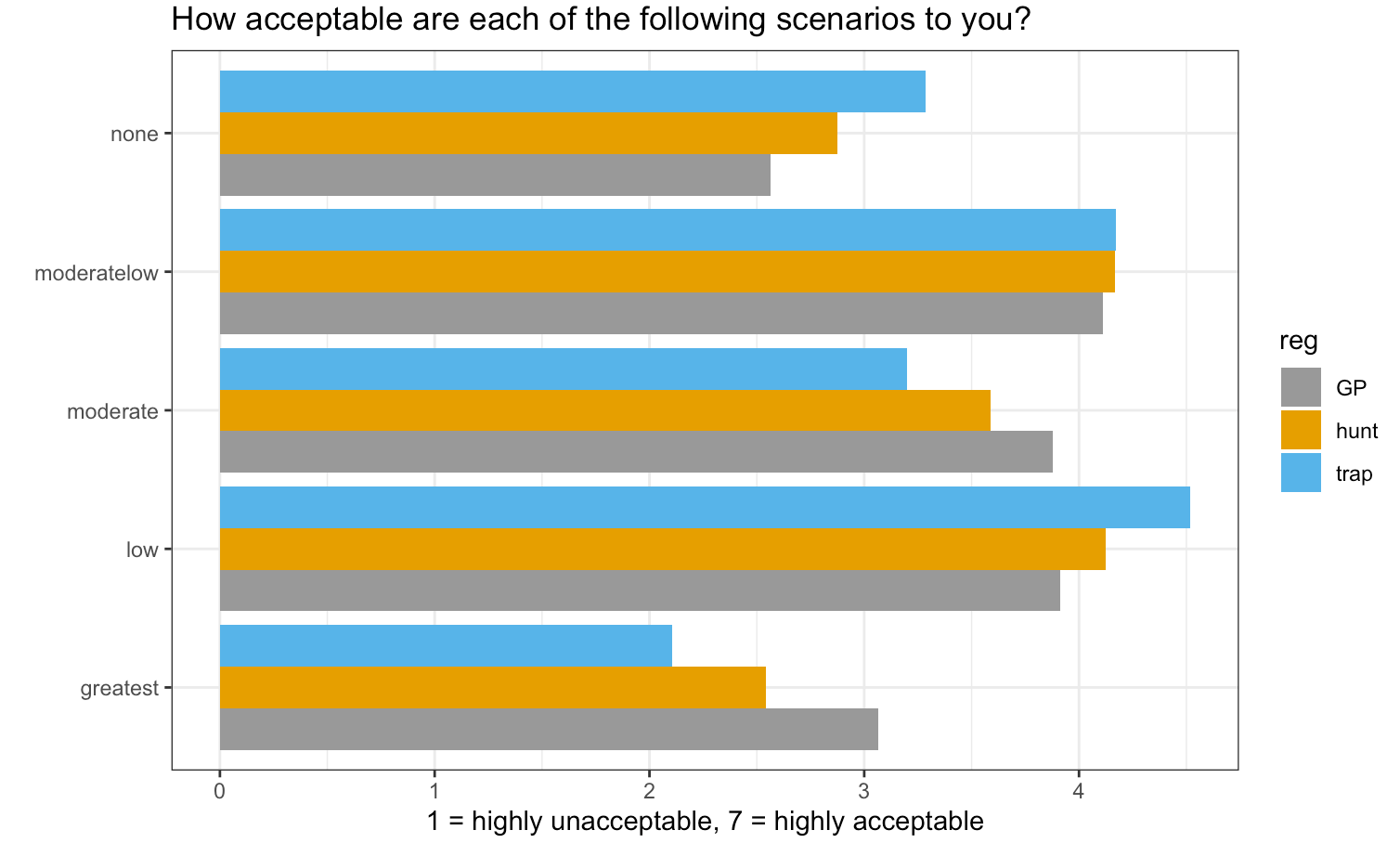

如何向 x 軸（圖表左側）上的條形組添加標簽？標記整個軸很容易，或者允許根據資料生成標簽，但是如果有意義的話，我無法弄清楚如何標記每組條形。

我知道我可以將專案資料重新編碼成完整的句子，但這與對 ggplot 代碼進行一些更改相比似乎不太優雅。

我曾嘗試使用此站點上類似問題的代碼（

ETA something for the millionth time - I figured out what works for me, which is using

  ggtitle("How acceptable are each of the following scenarios to you?")
  coord_flip()
  geom_bar(position = "dodge", stat = "identity")
  # facet_wrap(~item, scales = "free_x")     # changed
  scale_fill_manual(values=cbPalette)
  # scale_fill_grey(start = 0.8, end = 0.2)
  ylab("1 = highly unacceptable, 7 = highly acceptable")
  xlab("")
  theme_bw()
  #theme(legend.position="bottom")
  scale_x_discrete(breaks=c("none", "low", "moderatelow", "moderate", "greatest"),
                   labels=c("Control", "Treat 1", "Treat 2", "slkdj", "adkljf"))
  labs(fill="reg")

Thank you so much to those of you who commented! Your help led me to the answer.

ETA - okay here I am, back again. It was pointed out to me by @Gregor Thomas that my scale limits are set incorrectly, along with the unnecessary nature of some of my code. This feedback is much appreciated. Using the guidance of commentors, I was able to resolve the labeling issue that existed.

But, now I cannot figure out how to adjust the limits of the axis in the new code format. Given the following, how can I set the scale from 1-7 to reflect the nature of the likert scale people responded to? See code below.

ggplot(mydata, aes(y = item, x = mean, fill = reg))
  geom_col(position = "dodge")
  scale_fill_manual(values = cbPalette)
  scale_y_discrete(breaks=c("none", "low", "moderatelow", "moderate", "greatest"),
                   labels=c("No wolves", "Very low numbers of wolves", "Moderately low numbers of wolves", "Moderate numbers of wolves", "Greatest numbers of wolves that can be sustained")
  )
  scale_x_continuous(expand = expansion(mult = c(0, .05)))
  labs(
    title = "How acceptable are each of the following scenarios to you?",
    x = "1 = highly unacceptable, 7 = highly acceptable",
    y = "",
    fill = "population"
  )
  theme_bw()
  theme(
    legend.position = "bottom",
    panel.grid.major.y = element_blank()
  )

uj5u.com熱心網友回復：

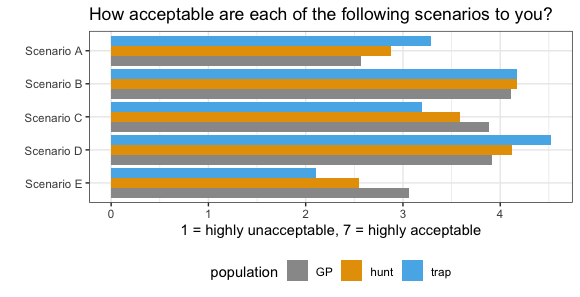

這是我清理代碼的方法。我跳過coord_flip，只是根據需要映射 x 和 y 變數。我將所有標簽合并到 中labs()，并scale_y_discrete(labels = )用于標簽。

my_labels = rev(paste("Scenario", LETTERS[1:5]))

ggplot(mydata, aes(y = item, x = mean, fill = reg))
  geom_col(position = "dodge")
  scale_fill_manual(values = cbPalette)
  scale_y_discrete(
    labels = my_labels
  )
  labs(
    title = "How acceptable are each of the following scenarios to you?",
    x = "1 = highly unacceptable, 7 = highly acceptable",
    y = "",
    fill = "population"
  )
  theme_bw()
  theme(legend.position = "bottom")

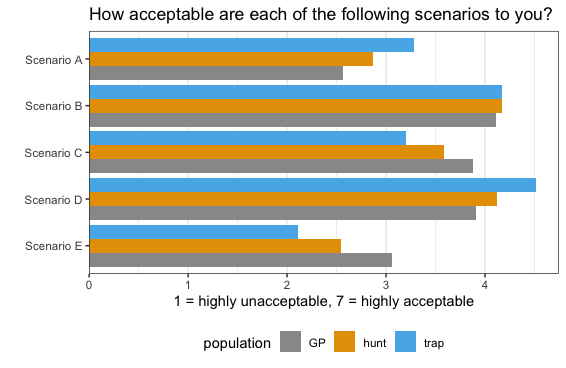

如果這是我的情節，我會調整 x 比例以洗掉 0 以下的填充，并且我會洗掉 y 網格線，如下所示：

ggplot(mydata, aes(y = item, x = mean, fill = reg))
  geom_col(position = "dodge")
  scale_fill_manual(values = cbPalette)
  scale_y_discrete(
    labels = my_labels
  )
  scale_x_continuous(expand = expansion(mult = c(0, .05)))
  labs(
    title = "How acceptable are each of the following scenarios to you?",
    x = "1 = highly unacceptable, 7 = highly acceptable",
    y = "",
    fill = "population"
  )
  theme_bw()
  theme(
    legend.position = "bottom",
    panel.grid.major.y = element_blank()
  )

雖然如果 1 是“非常不可接受的”，我不知道如何解釋 0 ......整個 x 比例似乎令人困惑。也許您應該將 x 限制設定為從 1 到 7，而不是從 0 到最大資料（即 5）？如果是這樣，請使用scale_x_continuous(expand = expansion(mult = c(0, .05)), limits = c(1, 7)).

uj5u.com熱心網友回復：

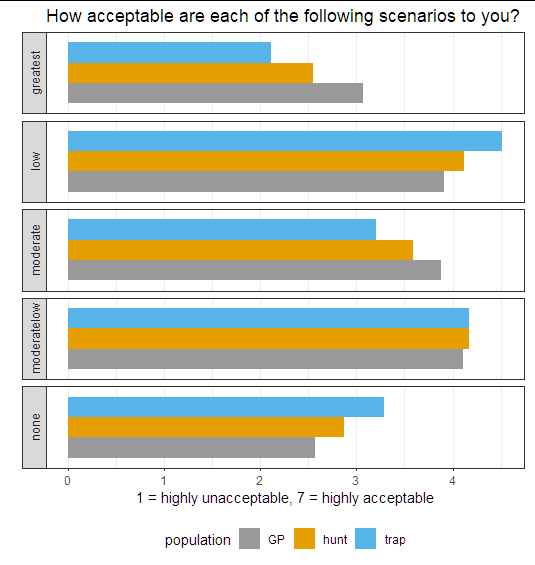

我們可以添加 facet_grid(item ~ ., scales="free_y", space="free_y", switch="y")

ggplot(mydata, aes(x = item, y = mean, fill = reg))
  ggtitle("How acceptable are each of the following scenarios to you?")
  coord_flip()
  geom_bar(position = "dodge", stat = "identity")
  # facet_wrap(~item, scales = "free_x")     # changed
  scale_fill_manual(values=cbPalette)
  # scale_fill_grey(start = 0.8, end = 0.2)
  ylab("1 = highly unacceptable, 7 = highly acceptable")
  xlab("")
  theme_bw()
  theme(legend.position="bottom")
  scale_x_discrete(breaks = NULL)
  labs(fill="population")
  facet_grid(item ~ ., scales="free_y", space="free_y", switch="y")
  guides(fill=FALSE)
