如何修復使用geom_ablines添加的分組散點圖的圖例

2022-01-21 00:19:08 企業開發

我想用兩個不同的組（基于大小）制作一個散點圖，每個組都用指定的顏色（藍色和紅色）繪制。此外，我想在散點圖中添加 4 個 geom_ablines，它們具有相同的藍色和紅色（2 條實線，1 條藍色虛線，2 條實線，1 條紅色虛線。

然后我想展示一個可以看到這 4 行的圖例。即虛線藍色、虛線紅色、實心藍色和實心紅色。

我一直在使用 scale_color 手冊，但它并沒有幫助我解決我的問題。

我的代碼如下：

    cols <- c("Blue", "Red")
    ###Plotting data
    fig <- ggplot(scalingdata, aes(x=Re, y=Sw, color=Size))
      geom_point(size=3)
      scale_color_manual(values=cols)
      theme_minimal()
      theme(panel.background = element_rect(fill = "#f0f4f5",
                                            size = 0.5, linetype = "solid"),
            panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
            panel.border = element_rect(color = "black",fill = NA,size = 1),
            plot.title = element_text(size = 25, face = "italic"),
            axis.title.y = element_text(size=17.5),
            axis.text.y = element_text(size=15, face="bold"),
            axis.title.x = element_blank(),
            axis.text.x = element_blank())
            # legend.position ="none")                                    # If no legend to be shown

    # Converting scale with better numbering style format
    fig <- fig   scale_x_log10(limits = c(1,10^8), breaks = trans_breaks("log10", function(x) 10^x),
                               labels = trans_format("log10", math_format(10^.x)))
      scale_y_log10(limits = c(1,10^8), breaks = trans_breaks("log10", function(x) 10^x),
                    labels = trans_format("log10", math_format(10^.x)))   annotation_logticks()


    # ###Scaling fit by Vladimir Nikora___Dashed for Fishes and Solid line for Larva
    fig <- fig   geom_abline(aes(intercept=1, slope = 13/15, color="Sw ~ Re^13/15"), size=1, linetype="solid") #Undulating High Re

    fig <- fig   geom_abline(aes(intercept = 0.79, slope = 9/10, color="Sw ~ Re^9/10"), size=1.25, linetype="dashed") #Motionless High Re

    fig <- fig   geom_abline(aes(intercept = 1.35, slope = 2/3, color="Sw ~ Re^2/3"), size=1, linetype="solid") #Undulating Low Re

    fig <- fig   geom_abline(aes(intercept = 1.1, slope = 3/4, color="Sw ~ Re^3/4"), size=1.25, linetype="dashed") #Motionless Low Re

    fig <- fig   scale_color_manual(values=c("Sw ~ Re^13/15"= "Blue" ,"Sw ~ Re^9/10"="Blue",
                                     "Sw ~ Re^2/3" = "Red", "Sw ~ Re^3/4" = "Red"))

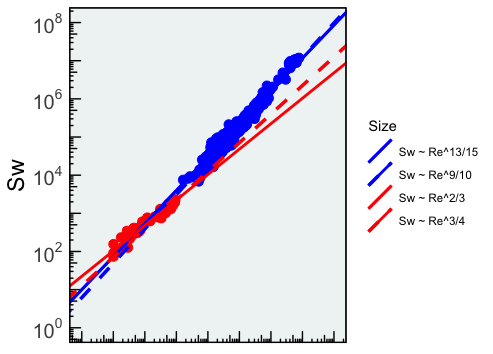

我得到的輸出圖是： 如何修復使用 geom_ablines 添加的分組散點圖的圖例

問題是散點是無色的，而不是基于大小分別為藍色和紅色。此外，在圖例中，虛線不是虛線，而是全部是實線。

如果有人可以幫助我，那將是一個很大的幫助。謝謝

使用 dput 的 MRE 是：
