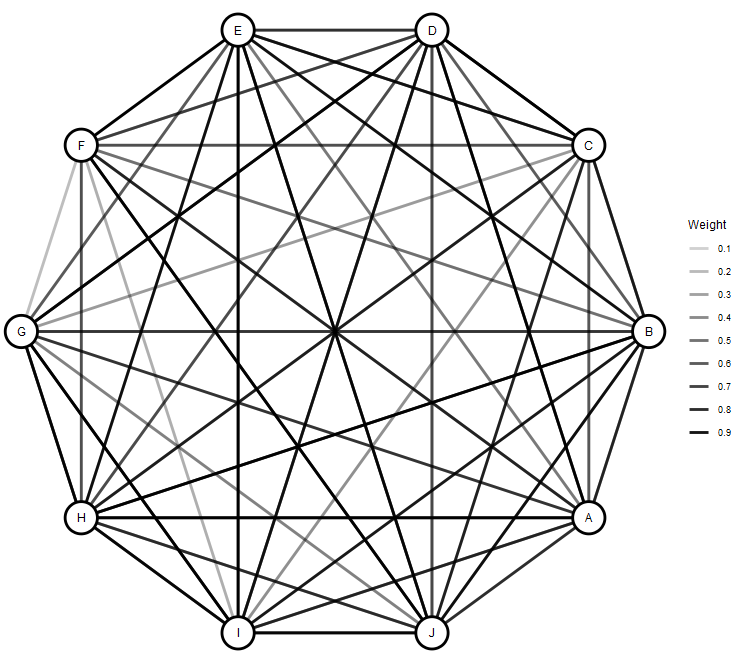

我想通過調整列數（例如從一列九行到三列三行）來修改我的情節中的圖例（見下文）。我已經嘗試添加guides(alpha = guide_legend(ncol = 3)) 以調整列數。但是，這不起作用（我認為“alpha”不是正確的論點，但我找不到合適的論點）。

示例代碼和繪圖：

library(dplyr) #required for tibbles
library(igraph) #required for plotting
library(ggraph) #required for plotting
library(Cairo) #required for anti-aliasing

nodes = LETTERS[1:10] #define nodes
nc = expand.grid(nodes,nodes) #connect all nodes with edges
nc = nc[-which(nc[,1] == nc[,2]),] #remove node connections to themselves
set.seed(666)
nc = cbind(nc, runif(nrow(nc),0,1)) #add random weights
ne = tibble(from = nc[,1], to = nc[,2], wt = as.numeric(nc[,3]))

g = graph_from_data_frame(ne) #create graph from nodes and edges
CairoWin() #open window with anti-aliased plot
ggraph(g, layout = "circle")
  geom_edge_link(aes(alpha = wt), edge_width = 1)   #add edges with weight
  geom_node_point(size = 10, fill = "white", color = "black", shape = 21, stroke = 1.5)
  geom_node_text(aes(label = name))
  scale_edge_alpha_continuous(name = "Weight", seq(0,1,0.1))
  theme_void()

R - 如何修改圖例？

非常感謝您的幫助！

uj5u.com熱心網友回復：

這是因為邊緣的 alpha 是在內部呼叫的edge_alpha，而alpha不像aes()你所相信的那樣。因此，您可以使用scale_edge_alpha_continuous()來定義圖例：

library(dplyr) #required for tibbles
library(igraph) #required for plotting
library(ggraph) #required for plotting

nodes = LETTERS[1:10] #define nodes
nc = expand.grid(nodes,nodes) #connect all nodes with edges
nc = nc[-which(nc[,1] == nc[,2]),] #remove node connections to themselves
set.seed(666)
nc = cbind(nc, runif(nrow(nc),0,1)) #add random weights
ne = tibble(from = nc[,1], to = nc[,2], wt = as.numeric(nc[,3]))

g = graph_from_data_frame(ne) #create graph from nodes and edges

p <- ggraph(g, layout = "circle")
  geom_edge_link(aes(alpha = wt), edge_width = 1)   #add edges with weight
  geom_node_point(size = 10, fill = "white", color = "black", shape = 21, stroke = 1.5)
  geom_node_text(aes(label = name))
  theme_void()

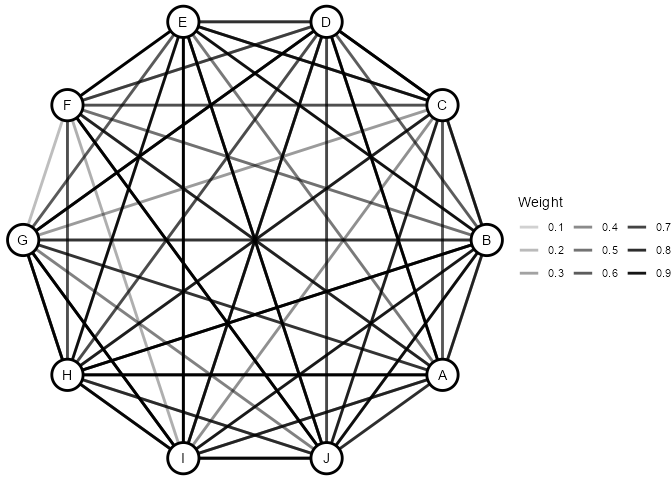

p   scale_edge_alpha_continuous(name = "Weight", seq(0,1,0.1),
                                guide = guide_legend(nrow = 3))

R - 如何修改圖例？

guides()或者，如果您命名正確的美學，您也可以使用函式指定它。

p   scale_edge_alpha_continuous(name = "Weight", seq(0,1,0.1))
  guides(edge_alpha = guide_legend(nrow = 3))

R - 如何修改圖例？

^{由reprex 包于 2022-01-21 創建(v2.0.1)}
