如何為列ggplot包含geom_label？

嗨所以我有一些看起來像這樣的資料：

   `Marketing Variables`         LICENCE_STATUS count   pct val
   <chr>                         <chr>          <lgl> <int> <chr>
 1 RESIDENT_MARKETING_ALLOWED    ACTIVE         FALSE  7612 46.61%
 2 RESIDENT_MARKETING_ALLOWED    ACTIVE         TRUE   8720 53.39%
 3 RESIDENT_MARKETING_ALLOWED    CANCELLED      FALSE   418 52.05%
 4 RESIDENT_MARKETING_ALLOWED    CANCELLED      TRUE    385 47.95%
 5 RESIDENT_MARKETING_ALLOWED    EXPIRED        FALSE 78352 81.85%
 6 RESIDENT_MARKETING_ALLOWED    EXPIRED        TRUE  17373 18.15%
 7 THIRD_PARTY_MARKETING_ALLOWED ACTIVE         FALSE 10629 65.1%
 8 THIRD_PARTY_MARKETING_ALLOWED ACTIVE         TRUE   5698 34.9%
 9 THIRD_PARTY_MARKETING_ALLOWED CANCELLED      FALSE   571 70.93%
10 THIRD_PARTY_MARKETING_ALLOWED CANCELLED      TRUE    234 29.07%
11 THIRD_PARTY_MARKETING_ALLOWED EXPIRED        FALSE 85166 88.92%
12 THIRD_PARTY_MARKETING_ALLOWED EXPIRED        TRUE  10612 11.08%

目標是我想用下面的代碼制作一個多面柱形圖：

ggplot(test)
  geom_col(aes(x = `Marketing Variables`, y = pct, fill = count), position = "fill")
  coord_flip()
  theme_minimal()
  facet_wrap(~LICENCE_STATUS)

然而，問題是我想為每個條添加一個geom_label()變數。val我希望顯示的 val 是該變數的 TRUE 計數。

舉個例子：

第一列是：

• LICENCE_STATUS：活動
• 標記變數：THIRD_PARTY_MARKETING_ALLOWED

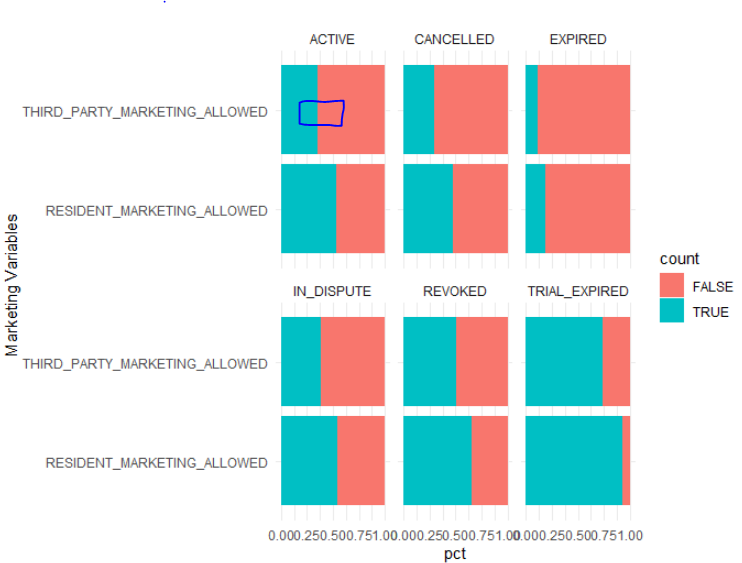

count = TRUE在這里，我們看到val34.9%。所以我希望 34.9% 在條形圖的深度為 34.9%，或者基本上是藍色與紅色的交匯處。

注意，我不希望 FALSE 的 val 出現在任何地方；是的，只有 true 和 false 是count真實資料中的選項。

這是資料：

structure(list(`Marketing Variables` = c("RESIDENT_MARKETING_ALLOWED",
"RESIDENT_MARKETING_ALLOWED", "RESIDENT_MARKETING_ALLOWED", "RESIDENT_MARKETING_ALLOWED",
"RESIDENT_MARKETING_ALLOWED", "RESIDENT_MARKETING_ALLOWED", "THIRD_PARTY_MARKETING_ALLOWED",
"THIRD_PARTY_MARKETING_ALLOWED", "THIRD_PARTY_MARKETING_ALLOWED",
"THIRD_PARTY_MARKETING_ALLOWED", "THIRD_PARTY_MARKETING_ALLOWED",
"THIRD_PARTY_MARKETING_ALLOWED"), LICENCE_STATUS = c("ACTIVE",
"ACTIVE", "CANCELLED", "CANCELLED", "EXPIRED", "EXPIRED", "ACTIVE",
"ACTIVE", "CANCELLED", "CANCELLED", "EXPIRED", "EXPIRED"), count = c(FALSE,
TRUE, FALSE, TRUE, FALSE, TRUE, FALSE, TRUE, FALSE, TRUE, FALSE,
TRUE), pct = c(7612L, 8720L, 418L, 385L, 78352L, 17373L, 10629L,
5698L, 571L, 234L, 85166L, 10612L), val = c("46.61%", "53.39%",
"52.05%", "47.95%", "81.85%", "18.15%", "65.1%", "34.9%", "70.93%",
"29.07%", "88.92%", "11.08%")), row.names = c(NA, -12L), groups = structure(list(
    `Marketing Variables` = c("RESIDENT_MARKETING_ALLOWED", "RESIDENT_MARKETING_ALLOWED",
    "RESIDENT_MARKETING_ALLOWED", "THIRD_PARTY_MARKETING_ALLOWED",
    "THIRD_PARTY_MARKETING_ALLOWED", "THIRD_PARTY_MARKETING_ALLOWED"
    ), LICENCE_STATUS = c("ACTIVE", "CANCELLED", "EXPIRED", "ACTIVE",
    "CANCELLED", "EXPIRED"), .rows = structure(list(1:2, 3:4,
        5:6, 7:8, 9:10, 11:12), ptype = integer(0), class = c("vctrs_list_of",
    "vctrs_vctr", "list"))), row.names = c(NA, -6L), class = c("tbl_df",
"tbl", "data.frame"), .drop = TRUE), class = c("grouped_df",
"tbl_df", "tbl", "data.frame"))

我正在專門尋找 `geom_label()' 的解決方案

EDIT The reason I am unable to use the linked solution is I get the following error:

Error in layer(data = data, mapping = mapping, stat = stat, geom = GeomText,  :
  object 'val' not found

This occurs when I add the following:

geom_text(label = val, y = pct, size = 2.5, position = position_stack(vjust = 0.5))

uj5u.com熱心網友回復：

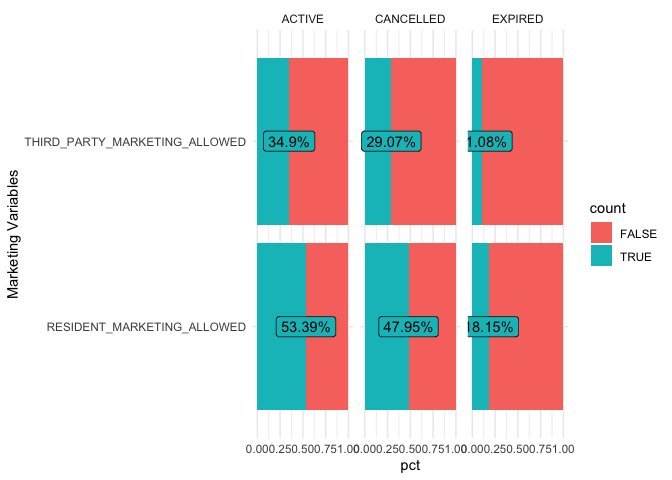

你可以像這樣達到你想要的結果：

1. 至于設定酒吧position="fill"中geom_label了。
2. 僅添加valifcount=TRUE使用 anifelse分配NAto FALSE。
3. 使有關洗掉丟失使用的警告靜音na.rm=TRUE。

library(ggplot2)

ggplot(test, aes(x = pct, y = `Marketing Variables`, fill = count))
  geom_col(position = "fill")
  geom_label(aes(label = ifelse(count, val, NA_character_)), position = "fill", na.rm = TRUE, show.legend = FALSE)
  theme_minimal()
  facet_wrap(~LICENCE_STATUS)
