SAP WM高階之上架策略C(Open Storage)
Part I:功能簡介
SAP WM模塊中有一個上架策略C(open storage)，在專案實踐中也比較常見，一些企業里的某些物料大量堆放一塊區域里，對于這塊區域，我們將其設定為storage type 003(open storage)，當然也可以是復制003而成的一個自定義的存盤型別，這種存盤策略最基本的特征就是存盤型別下每個storage section下只定義一個storage bin，用于存放多種物料，允許混儲，
如下文字來自SAP Help Portal.
Use
The system uses this put away strategy to find the storage bin in an open storage section. Open storage is a type of warehouse organization in which you define a single storage bin for a storage section. The quants in the storage bin can also be in the form of mixed storage.
Prerequisites
When you define the storage type record to use this strategy:
Enter c in the Putaway Strategy field.
Enter x in the Mixed Storage field.
For each storage type you can define one or more open storage sections. Then for each open storage section you define a single storage bin.

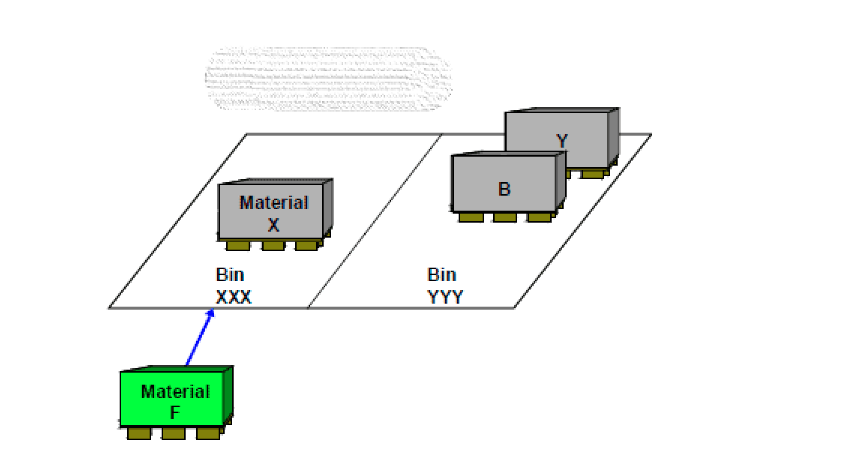

如下圖展示了Open Storage的場景:
Part II:后臺配置

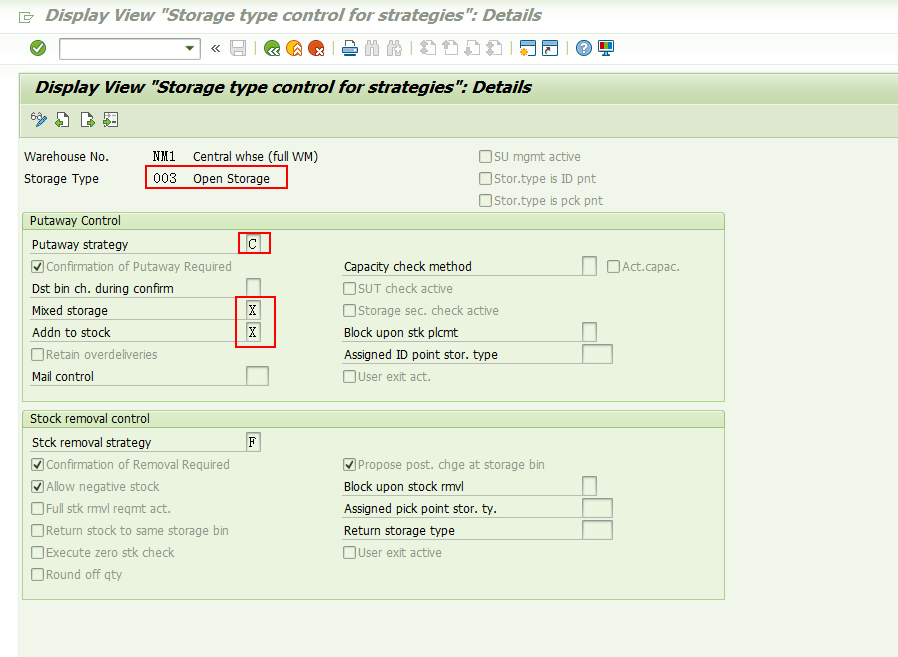

1, SAP WM模塊中，標準的存盤型別003,上架策略就是C(open storage).

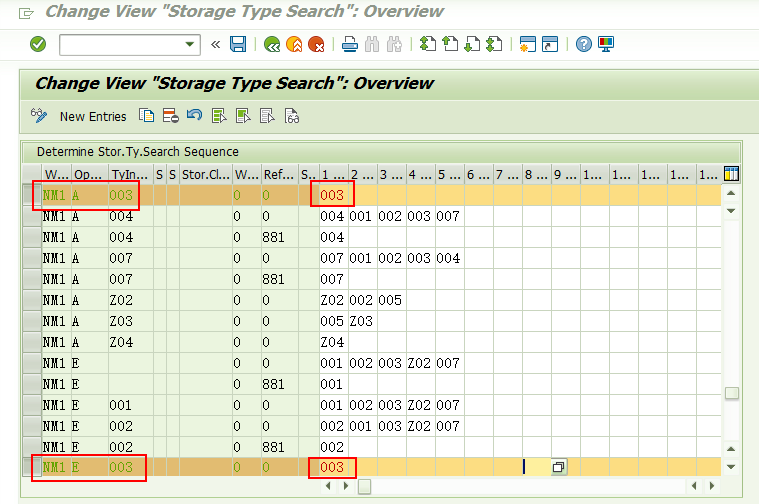

2, Storage Type search

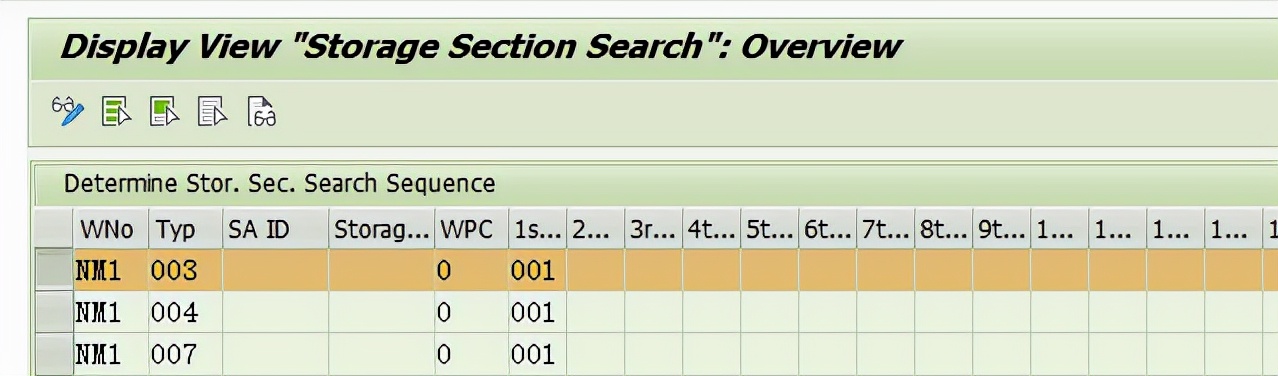

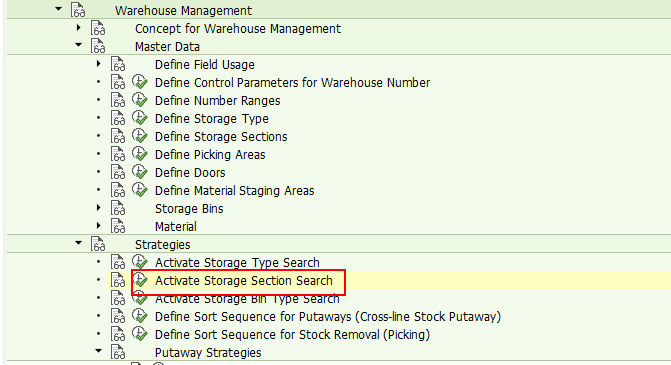

3), Storage section search
Part III: 主資料設定以及功能展示

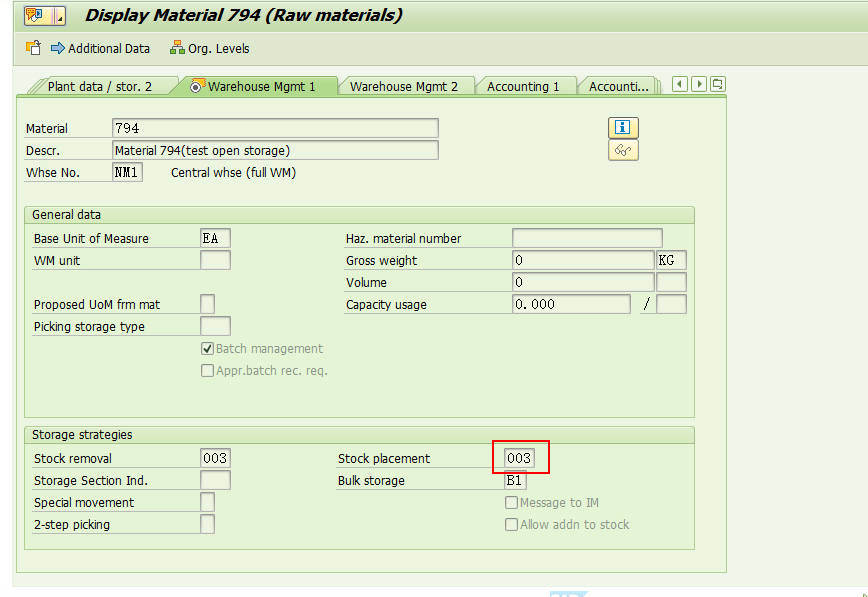

1, 物料號794用于測驗上架策略C，
Stock placement indicator 和stock removal indicator都是003.

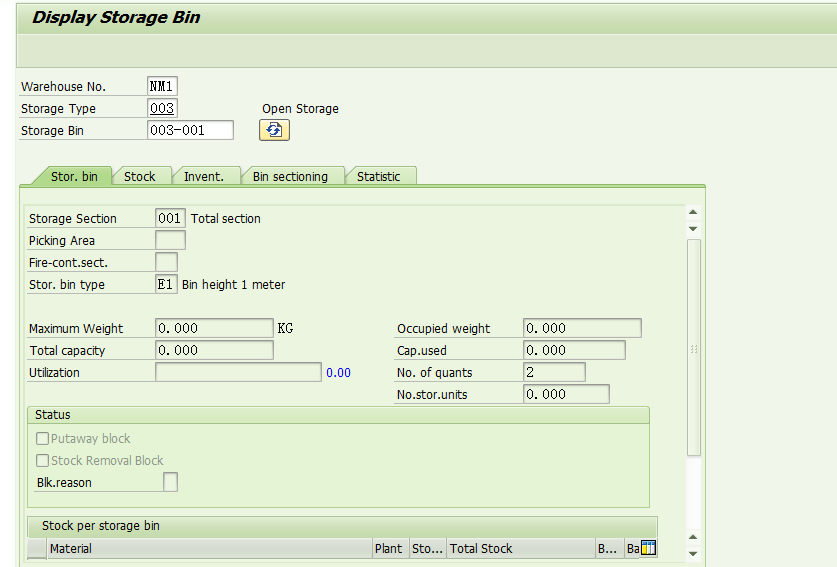

2, Storage Bin主資料（003存盤型別下001 storage section下只有一個storage bin）.
3, 對物料號784執行采購訂單識訓，然后上架，

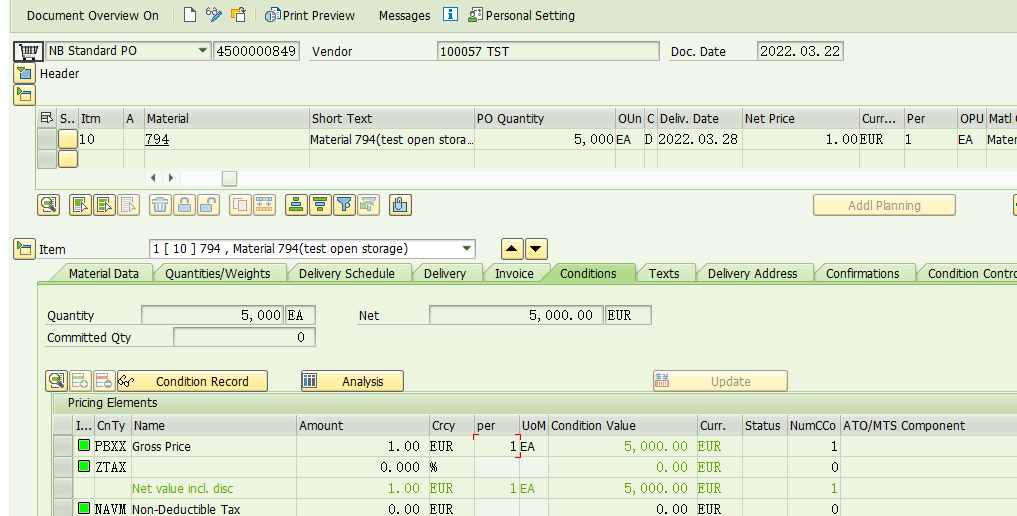

采購訂單號# 4500000849，

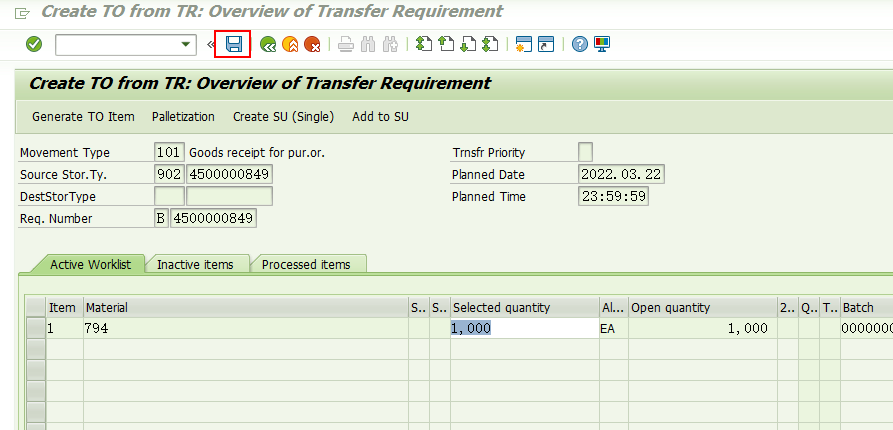

執行事務代碼MIGO過賬后，進入如下LT06事務代碼界面，
回車，
保存，

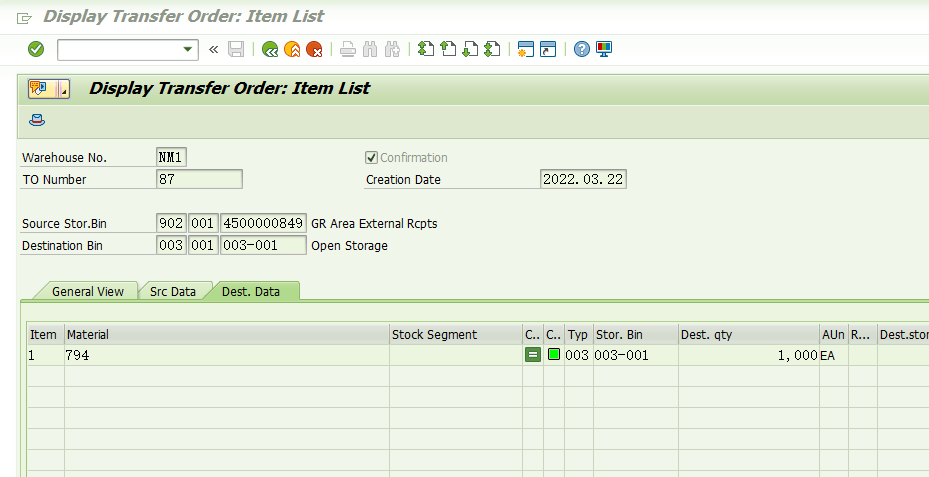

檢查該TO單據，
系統自動找到存盤型別003以及下面的貨架003-001，
Part IV: 寫在最后
那SAP WM模塊中上架策略Opern Storage 和上架策略Bulk Storage到底有啥區別？
Open Storage: Only one Bin for One storage section under the Open Storage Strategies. Normally if it a large area with one (or more) storage sections (bins), you can use it.
Bulk Storage: Normally it will be divided into storage unit types (pallet types), Each SUT will be a bin under the bulk storage indicator. In the material master you can define the qty for each storage unit type and bulk storage indicator.
Open Storage:開放儲存;露天倉庫，
Bulk Storage:大量儲存；液體燃料儲存，
注：本文基于SAP S4/HANA 1909 系統，
-完-
2022-3-22 寫于蘇州市，
