輸出不來。繪圖問題[Matlab到python的轉換]

這是我的 Pyhton 代碼。

import numpy as np
import matplotlib.pyplot as plt


n = 3;                          #% No of image
T = 100;                                            #% for the time period user wants to see the mirage

ts = .2*(100/(2*n-3));                              #% standing time
tv = .6*((100-((2*n-3)*ts))/(2*(n-1)));             #% travelling time

m1 =   np.arange(0,tv,0.1);
x1 = 0.5*(1-(np.cos(np.pi*(m1/tv))));
xa = x1;



x2 = []
#travelling toward from left to right
for i in np.arange(1,n-1):
    x1 = x1 i -1

#standing at one point
    for f in np.arange(1,ts):
        x2.append(x1[-1])
    if i==1:
        x3 = [x1, x2]
    else:
        x3 = [x3,x1,x2]




#%travelling from right to left

xd = np.flip(xa)
for i in range(0, n - 1):
    if i == 0:
        pass
    else:
        xd = xd - 1
    xw = []
    for f in np.arange(1, ts):
        mini = np.amin(xd)
        xw.append(mini)
    if i == 0:
        xm = np.concatenate((xd.reshape(1, -1), np.array(xw).reshape(1, -1)), axis=1)
    else:
        xm = np.concatenate((xm, xd.reshape(1, -1), np.array(xw).reshape(1, -1)), axis=1)

xm = abs(np.amin(xm))   xm


#%cloning the cycle

xs = []
for r in np.arange(1, np.fix(T/(2*(n-1)*(tv ts)))):
    if r==1:
        xs.append[x3,xm]
    else:
        xs.append[xs,x3,xm]

plt.plot(xs)

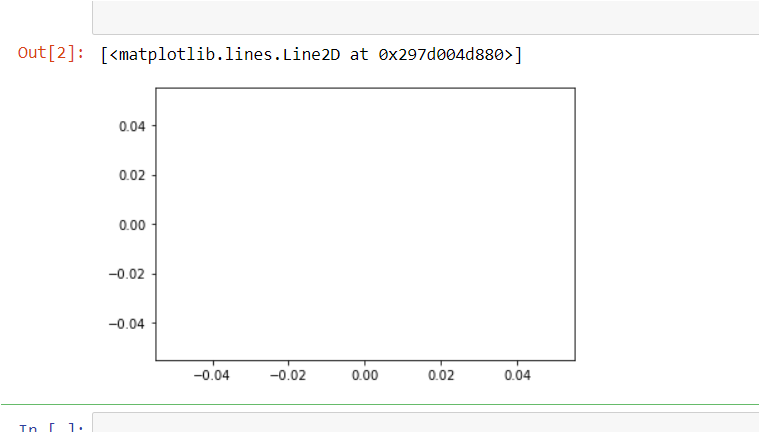

但是當我運行它時，什么都沒有出現

這是我的matlab代碼

clc;
close all;
clear all;

% all of the given time are in milisecond
n = 3;% No of image
T = 100;% for the time period user wants to see the mirage

ts = .2*(100/(2*n-3)); % standing time
tv = .6*((100-((2*n-3)*ts))/(2*(n-1)));% travelling time

m1 = 0:.1:tv;
x1 = .5*(1-cos(pi*(m1/tv)));%position equation
xa = x1;


%travelling toward from left to right
for i= 1:n-1

x1 = x1 i-1;

%standing at one point
 for f = 1:ts
     x2(f) = x1(end);
 end

 if i==1
     x3=[x1,x2];
 else
     x3 = [x3,x1,x2];
 end

end
disp(x2)

%travelling from right to left

xd = flip(xa);

for i= 1:n-1
    if i==1
    else
        xd = xd-1;
    end

    %standing at one point
 for f = 1:ts
     xw(f) = min(xd);
 end

 if i==1
     xm=[xd,xw];
 else
     xm = [xm,xd,xw];
 end

end
xm = abs(min(xm)) xm;

#%cloning the cycle

xs = []
for r in np.arange(1, np.fix(T/(2*(n-1)*(tv ts)))):
    if r==1:
        xs.append(x3,xm)
    else:
        xs.append(xs,x3,xm)

plt.plot(xs)

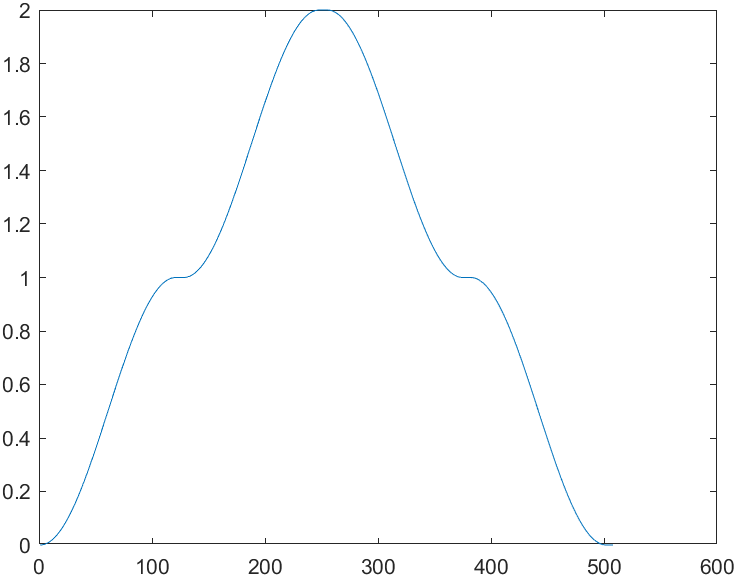

這是 matlab 代碼附帶的輸出。我希望我的 python 代碼的輸出與 Matlab 代碼相同，或者至少我想看到一個情節。但它沒有顯示任何東西。那么我該如何解決這個問題呢？先感謝您。

uj5u.com熱心網友回復：

這是您的代碼的固定版本。基本思想是不要concatenate與append. 在 MATLAB 中，[[a],[b]]是水平串聯，與list.append()Python 中不同。還要注意 MATLAB 中的包含范圍與 Python 中的獨占范圍，并fix回傳 afloat而int回傳 a integer。

import numpy as np
import matplotlib.pyplot as plt

#  all of the given time are in milisecond
n  = 3                                  # No of image
T  = 100                                # for the time period user wants to see the mirage
ts = 0.2*(100/(2*n-3))                  # standing time
tv = 0.6*((100-((2*n-3)*ts))/(2*(n-1))) # travelling time
m1 = np.arange(0,tv .1,0.1)
x1 = 0.5*(1-np.cos(np.pi*(m1/tv)))      # position equation
xa = x1


# travelling toward from left to right
x2 = np.zeros(int(ts))
for i in range(1,n):
    x1 = x1 i-1
    # standing at one point
    for f in np.arange(0,int(ts)):
        x2[f] = x1[-1]
    if i == 1:
        x3 = np.concatenate((x1,x2))
    else:
        x3 = np.concatenate((x3,x1,x2))


# # travelling from right to left
xd = xa[::-1] # flip xa
xw = np.zeros(int(ts))
for i in range(1,n):
    if i != 1:
        xd -= 1
    # standing at one point
    for f in np.arange(0,int(ts)):
        xw[f] = np.min(xd)
    if i == 1:
        xm = np.concatenate((xd,xw))
    else:
        xm = np.concatenate((xm,xd,xw))

xm  = np.abs(np.min(xm))

# cloning the cycle
for r in range(0,int(T/(2*(n-1)*(tv ts)))):
    if r == 0:
        xs = np.concatenate( (x3,xm) )
    else:
        xs = np.concatenate( (xs,x3,xm) )

plt.plot(xs)

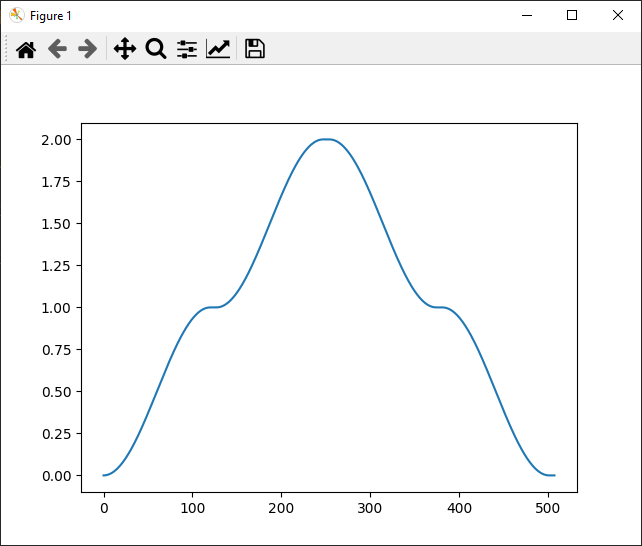

它顯示了與 MATLAB 相同的圖。
