display:none;的隱藏DOM元素無法獲取實際寬高的解決方法

2022-07-13 11:53:10 企業開發

??案例說明

當DOM元素被添加上display:none;的樣式時,這個元素和它的子元素無法獲取到實際的寬高,
如圖,我設定了一個父元素和一個子元素,并且通過一個按鈕切換父元素是否帶有display:none;

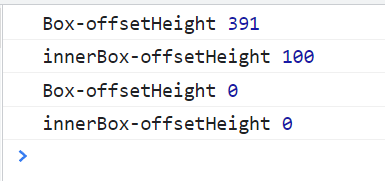

然后每次點擊按鈕后,在控制臺輸出兩個元素的高度,

可以看到,當元素正常顯示時,獲取寬高正常,而當元素添加上`display:none;`之后,獲取到的值變為0.

??解決方法

  • 使用jquery的actual方法可以很方便的獲取到元素的真實寬高,
<script src="https://cdnjs.cloudflare.com/ajax/libs/jquery.actual/1.0.19/jquery.actual.min.js"></script>
  • 語法格式
//獲取帶有.hidden類的元素的實際高度
$('.hidden').actual('height');

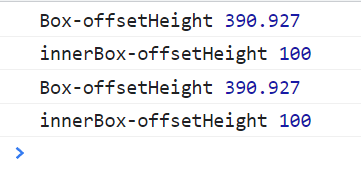

  • 使用actual方法后獲取寬高正常,無論元素有沒有被設定display:none;,(下圖中兩次輸出,一次是帶有display:none;的,一次是沒有的,均能獲取到實際高度)

  • 原理:設定display:none;的元素沒有物理尺寸,而同樣能提供隱形效果的visibility則有物理尺寸,但是不能直接用visibility:hidden;代替display:none;,因為設定visibility之后的元素還是會占用頁面空間的,正確的解決方法是要獲取寬度或者高度時,首先將display:none;更換成display:block;,然后設定visibility讓其隱形,從而獲取實際寬高,
  • 這里需要注意的是,當元素設定為塊級元素時,可能會因為其大小使得周圍的元素被推動,因此我們在獲取某個元素的實際寬高時,除了設定displayvisibility,還要設定position:absolute;,在獲取到寬高值之后取消掉,
  • 這個實作方法其實就是jquery的actual方法的內容:
    源地址??jquery.actual:Get the actual width/height of invisible DOM elements with jQuery.
    如果打不開github也可以看下面的代碼(jquery.actual.js的代碼內容)
點擊查看代碼
/*! Copyright 2012, Ben Lin (http://dreamerslab.com/)
 * Licensed under the MIT License (LICENSE.txt).
 *
 * Version: 1.0.19
 *
 * Requires: jQuery >= 1.2.3
 */
;( function ( factory ) {
if ( typeof define === 'function' && define.amd ) {
    // AMD. Register module depending on jQuery using requirejs define.
    define( ['jquery'], factory );
} else {
    // No AMD.
    factory( jQuery );
}
}( function ( $ ){
  $.fn.addBack = $.fn.addBack || $.fn.andSelf;

  $.fn.extend({

    actual : function ( method, options ){
      // check if the jQuery method exist
      if( !this[ method ]){
        throw '$.actual => The jQuery method "' + method + '" you called does not exist';
      }

      var defaults = {
        absolute      : false,
        clone         : false,
        includeMargin : false,
        display       : 'block'
      };

      var configs = $.extend( defaults, options );

      var $target = this.eq( 0 );
      var fix, restore;

      if( configs.clone === true ){
        fix = function (){
          var style = 'position: absolute !important; top: -1000 !important; ';

          // this is useful with css3pie
          $target = $target.
            clone().
            attr( 'style', style ).
            appendTo( 'body' );
        };

        restore = function (){
          // remove DOM element after getting the width
          $target.remove();
        };
      }else{
        var tmp   = [];
        var style = '';
        var $hidden;

        fix = function (){
          // get all hidden parents
          $hidden = $target.parents().addBack().filter( ':hidden' );
          style   += 'visibility: hidden !important; display: ' + configs.display + ' !important; ';

          if( configs.absolute === true ) style += 'position: absolute !important; ';

          // save the origin style props
          // set the hidden el css to be got the actual value later
          $hidden.each( function (){
            // Save original style. If no style was set, attr() returns undefined
            var $this     = $( this );
            var thisStyle = $this.attr( 'style' );

            tmp.push( thisStyle );
            // Retain as much of the original style as possible, if there is one
            $this.attr( 'style', thisStyle ? thisStyle + ';' + style : style );
          });
        };

        restore = function (){
          // restore origin style values
          $hidden.each( function ( i ){
            var $this = $( this );
            var _tmp  = tmp[ i ];

            if( _tmp === undefined ){
              $this.removeAttr( 'style' );
            }else{
              $this.attr( 'style', _tmp );
            }
          });
        };
      }

      fix();
      // get the actual value with user specific methed
      // it can be 'width', 'height', 'outerWidth', 'innerWidth'... etc
      // configs.includeMargin only works for 'outerWidth' and 'outerHeight'
      var actual = /(outer)/.test( method ) ?
        $target[ method ]( configs.includeMargin ) :
        $target[ method ]();

      restore();
      // IMPORTANT, this plugin only return the value of the first element
      return actual;
    }
  });
}));

??actual方法的引數

  • Example Code:(來源于jquery.actual github專案說明)
// get hidden element actual width
$( '.hidden' ).actual( 'width' );

// get hidden element actual innerWidth
$( '.hidden' ).actual( 'innerWidth' );

// get hidden element actual outerWidth
$( '.hidden' ).actual( 'outerWidth' );

// get hidden element actual outerWidth and set the `includeMargin` argument
$( '.hidden' ).actual( 'outerWidth', { includeMargin : true });

// get hidden element actual height
$( '.hidden' ).actual( 'height' );

// get hidden element actual innerHeight
$( '.hidden' ).actual( 'innerHeight' );

// get hidden element actual outerHeight
$( '.hidden' ).actual( 'outerHeight' );

// get hidden element actual outerHeight and set the `includeMargin` argument
$( '.hidden' ).actual( 'outerHeight', { includeMargin : true });

// if the page jumps or blinks, pass a attribute '{ absolute : true }'
// be very careful, you might get a wrong result depends on how you makrup your html and css
$( '.hidden' ).actual( 'height', { absolute : true });

// if you use css3pie with a float element
// for example a rounded corner navigation menu you can also try to pass a attribute '{ clone : true }'
// please see demo/css3pie in action
$( '.hidden' ).actual( 'width', { clone : true });

// if it is not a block element. By default { display: 'block' }.
// for example a inline element
$( '.hidden' ).actual( 'width', { display: 'inline-block' });
