前言：
前面的課程介紹過定位相關的技術解決方案，《webgl(three.js)實作室內定位,樓宇bim、實時定位三維可視化解決方案——第五課》 ，從硬體到可視化，都已經比較全面的講述了一遍,這邊文章相當于那篇檔案的一個改進版本，主要是在可視化呈現方面，根據具體的實施專案，在可視化方面做一個比較全面的技術剖析，
關于硬體采集端技術，因為精度要求不高，任然采用的是：低功耗有源RFID+讀卡器基地器+智能分析，
關于室內定位市場前景，那篇文章也做了一些分析，這里不做贅述，
一、整體效果
還是先看整體效果，再探具體實作技術的究竟

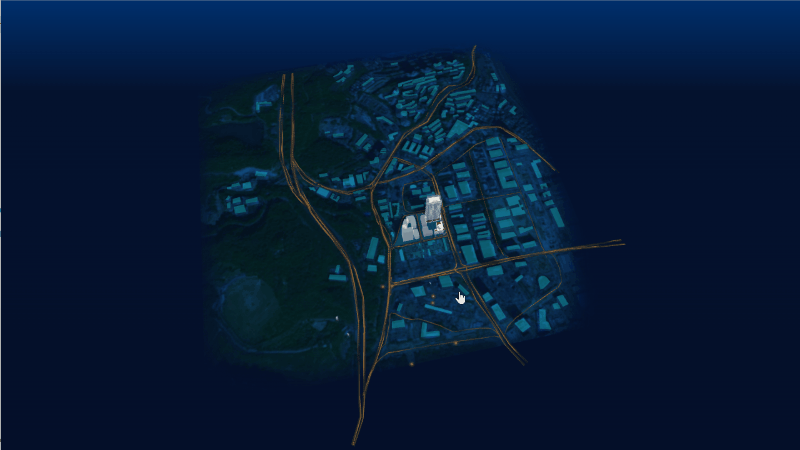

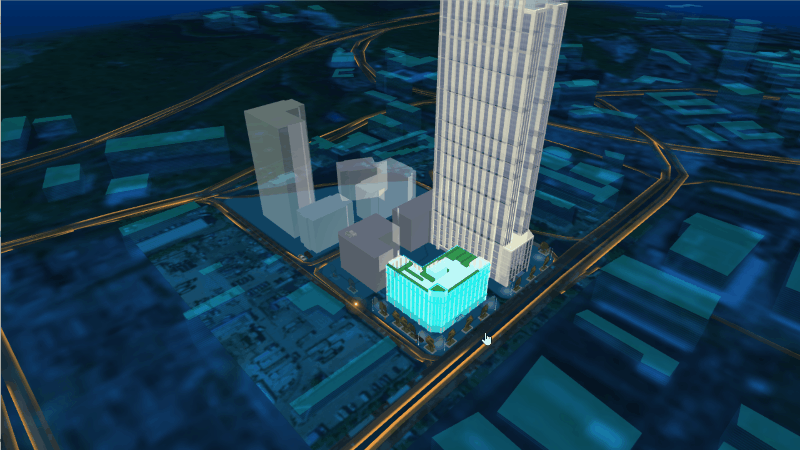

上圖展示整體園區以及周邊的科技感效果，

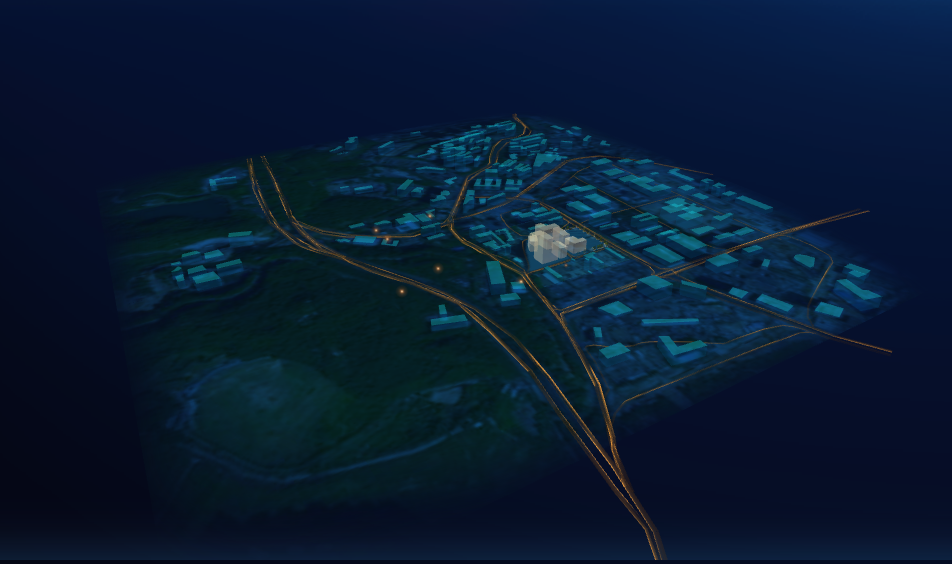

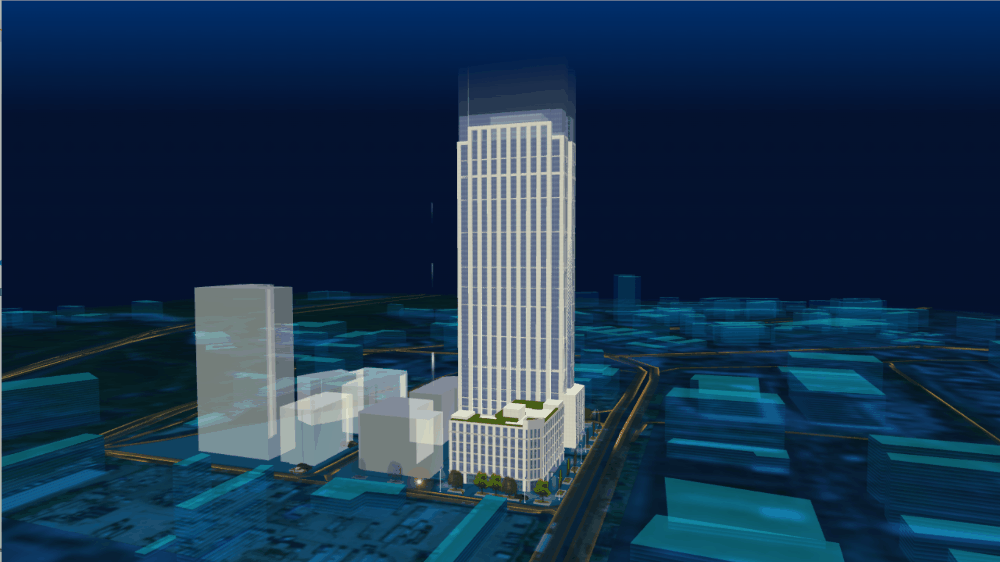

上圖展示近距離整體園區建設風貌，
二、功能展示
2.1、展開樓層
樓層展開實作比較簡單，首先再建模的時候講究分離模型，不能講樓層內部，樓層外墻一股腦做成一個模型，需要講模型分解，分開建模，
實作樓層展開就比較方便了，只需要控制外墻模型隱藏，然后控制每個樓層的的高度位置就可以，
實作代碼如下：
ModelBussiness.prototype.tempNameList = []; ModelBussiness.prototype.tempDataList = []; ModelBussiness.prototype.videoDataCache = {}; ModelBussiness.prototype.showFloorState = "close"; //顯示樓層內部情況 ModelBussiness.prototype.showBuildFloors = function (buildnub, callBack) { var _this = this _this.showFloorState = "open"; var builds = WT3DObj.commonFunc.findObjectsByNames(["wjwb1_232", "wjwbuilds_55"]); //隱藏大樓 WT3DObj.commonFunc.setSkinColorByname("wjwb1_232", 0x00ffff); WT3DObj.commonFunc.changeCameraPosition({ x: 3652.5144280174954, y: 990.805706980618, z: 5107.394022507952 }, { x: 1914.4771268074287, y: -723.8717024746979, z: 2181.6118222317314 }, 500, function () { }); WT3DModel.commonFunc.changeObjsOpacity(builds, 1, 0.1, 500, function (obj) { var _obj = WT3DObj.commonFunc.findObject("wjwb1_232"); if (typeof (_obj.oldPositionY) == 'undefined') { _obj.oldPositionY = _obj.position.y } _obj.position.y = 1000000; _obj.visible = false; WT3DObj.commonFunc.changeCameraPosition({ x: 3247.2796000738454, y: 2191.5405041410445, z: 5229.077446579187 }, { x: 2719.261239206996, y: 80.49406057323252, z: 3015.8739289848077 }, 500, function () { }); var names = ["floor_1", "floor_2", "floor_3", "floor_4", "floor_5", "floor_6"]; var floors = WT3DObj.commonFunc.findObjectsByNames(names); modelBussiness.openFloors(floors, function () { if (callBack) { callBack(); } }); }); } //隱藏樓層內部情況 ModelBussiness.prototype.hideBuildFloors = function (buildnub, callBack) { var _this = this _this.showFloorState = "close"; var names = ["floor_1", "floor_2", "floor_3", "floor_4", "floor_5", "floor_6"]; var builds = WT3DObj.commonFunc.findObjectsByNames(["wjwb1_232", "wjwbuilds_55"]); var floors = WT3DObj.commonFunc.findObjectsByNames(names); this.closeFloors(floors, function () { $.each(builds, function (_index, _obj) { if (typeof (_obj.oldPositionY) == 'undefined') { _obj.oldPositionY = _obj.position.y } _obj.position.y = _obj.oldPositionY; _obj.visible = true; }) WT3DModel.commonFunc.changeObjsOpacity(builds, 0, 1, 1000, function (obj) { WT3DObj.commonFunc.setSkinColorByname("wjwb1_232", 0x000000); }); if (callBack) { callBack(); } }) } //顯示樓層 ModelBussiness.prototype.openFloors = function (floors, callBack) { //顯示樓層 $.each(floors, function (_index, _obj) { if (typeof (_obj.oldPositionY) == 'undefined') { _obj.oldPositionY = _obj.position.y } if (_obj.position.y > 100000) { _obj.position.y -= 1000000; } _obj.visible = true; }); setTimeout(function () { $.each(floors, function (_index, _obj) { //展開樓層 _obj.floorPosition = _obj.position.y; var floor = parseInt(_obj.name.split("_")[1]); height = (floor - 1) * 300 +50; new Tn(_obj.position).to({//補充間隔影片 y: height }, 500).start(); }); setTimeout(function () { if (callBack) { callBack() } },600); }, 500) }

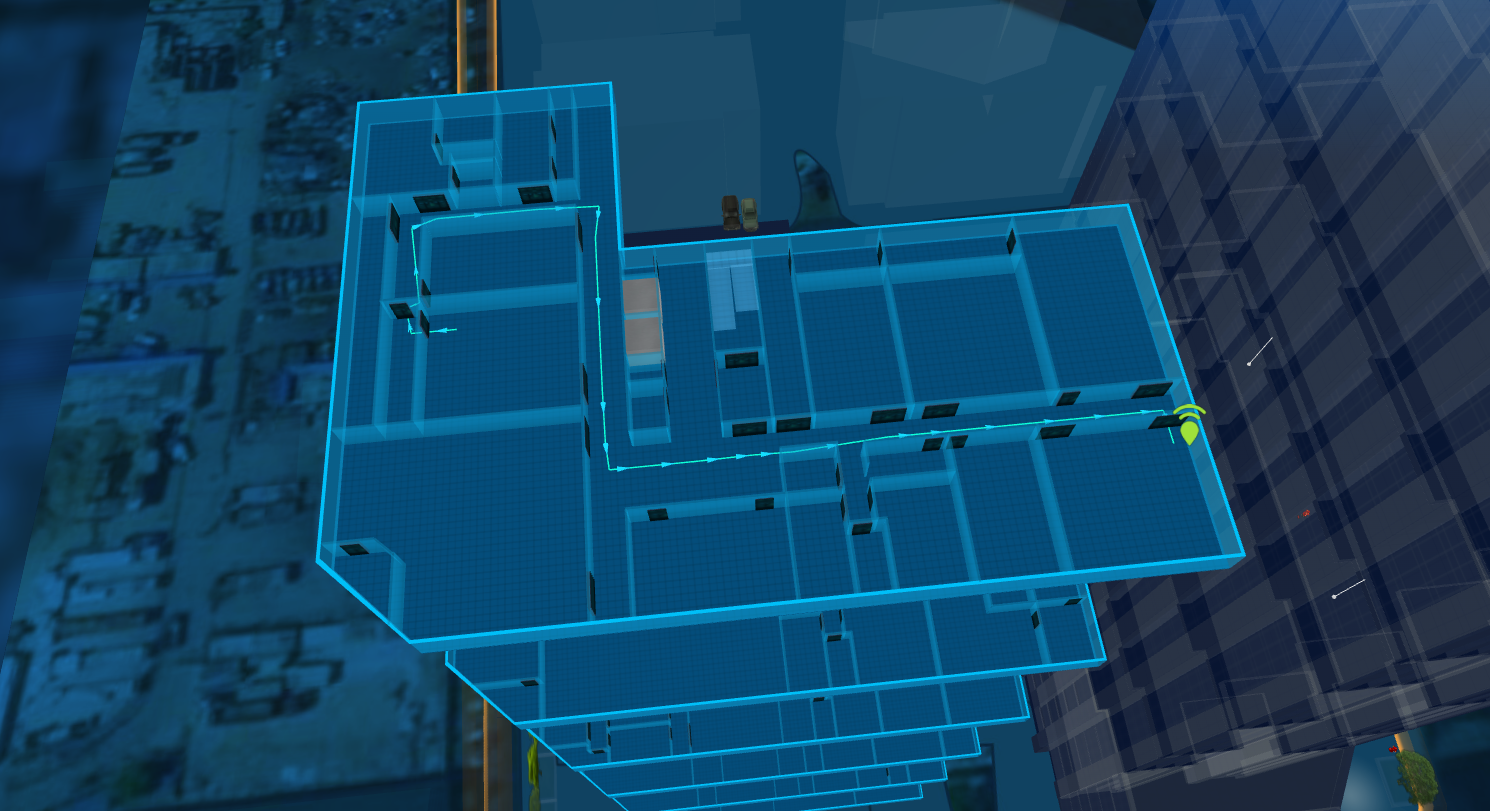

2.2、繪制定位路徑
繪制定位路徑，相比樓層展開要復雜一些，這里要用到定位設備與虛擬模型之間的關聯與系結，然后標記跟著模型運動
主要分為以下幾步：
第一、建模
第二、建立虛擬模型，系結設備id
第三、資料id轉換為模型id
第四、尋址，找到對應的虛擬模型串列、并且獲取各自位置
第五、根據位置畫線、移動標簽
三、具體實作
3.1、創建周遭環境模型，特效模型等
建模代碼如下：
[{"show":true,"uuid":"","name":"cube2_6","objType":"cube2","length":200,"width":200,"height":200,"x":0,"y":200,"z":0,"style":{"skinColor":16777215,"skin":{"skin_up":{"skinColor":16777215,"imgurl":"../../img/3dImg/rack_inside.jpg","materialType":"basic","side":1,"opacity":1},"skin_down":{"skinColor":16777215},"skin_fore":{"skinColor":16777215},"skin_behind":{"skinColor":16777215},"skin_left":{"skinColor":16777215},"skin_right":{"skinColor":16777215}}},"showSortNub":6},{"show":true,"uuid":"","name":"wjwbuilds_270","objType":"GroupObj","scale":{"x":1,"y":1,"z":1},"position":{"x":0,"y":0,"z":0},"rotation":[{"direction":"x","degree":0}],"modelGroupName":"wjwbuilds","modelSrc":"../js/msj3D/sourse/customModels/models/wjwbuilds.json?v1.50.4428873971970626","srcType":"filePath","showSortNub":270}]

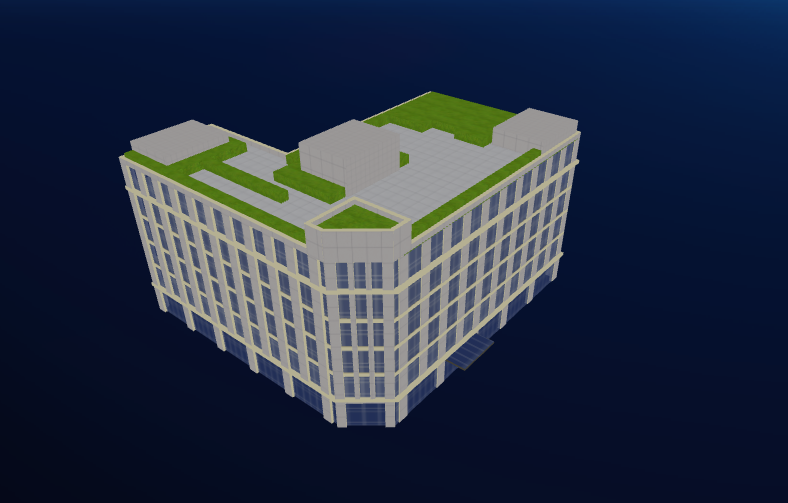

3.2、創建外墻模型
單獨創建需要裂解的大樓外墻模型，具體如下：
[{"show":true,"uuid":"","name":"cube2_6","objType":"cube2","length":200,"width":200,"height":200,"x":0,"y":200,"z":0,"style":{"skinColor":16777215,"skin":{"skin_up":{"skinColor":16777215,"imgurl":"../../img/3dImg/rack_inside.jpg","materialType":"basic","side":1,"opacity":1},"skin_down":{"skinColor":16777215},"skin_fore":{"skinColor":16777215},"skin_behind":{"skinColor":16777215},"skin_left":{"skinColor":16777215},"skin_right":{"skinColor":16777215}}},"showSortNub":6},{"show":true,"uuid":"","name":"wjwb1_7","objType":"GroupObj","scale":{"x":1,"y":1,"z":1},"position":{"x":0,"y":0,"z":0},"rotation":[{"direction":"x","degree":0}],"modelGroupName":"wjwb1","modelSrc":"../js/msj3D/sourse/customModels/models/wjwb1.json?v1.50.7245325959034448","srcType":"filePath","showSortNub":7}]

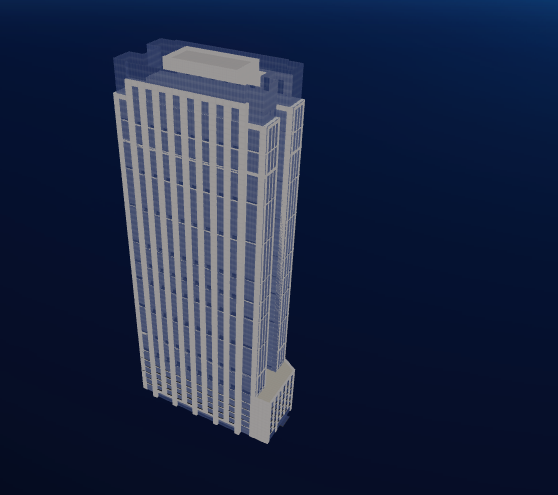

3.3、其它細節樓宇模型
作為輔助美觀模型，單獨創建模型如下：
[{"show":true,"uuid":"","name":"wjwb2_38","objType":"GroupObj","scale":{"x":1,"y":1,"z":1},"position":{"x":0,"y":0,"z":0},"rotation":[{"direction":"x","degree":0}],"modelGroupName":"wjwb2","modelSrc":"../js/msj3D/sourse/customModels/models/wjwb2.json?v1.50.2327047742615571","srcType":"filePath","showSortNub":38}]

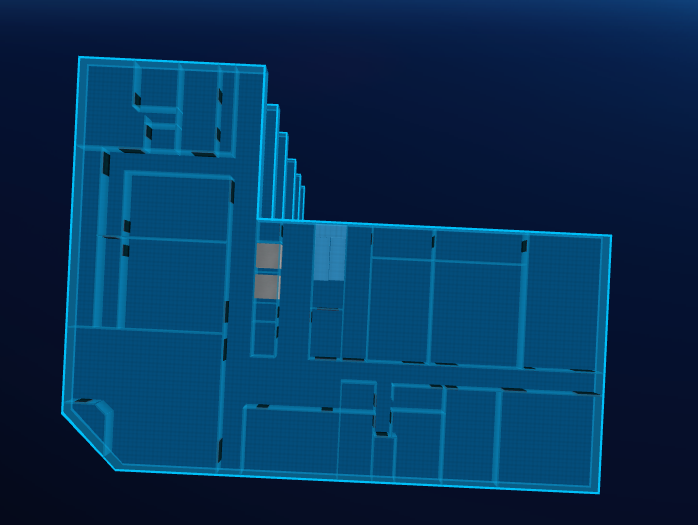

3.4、樓層模型
各樓層模型單獨創建，便于控制與展示
[{"show":true,"uuid":"","name":"wjwf1_40","objType":"GroupObj","scale":{"x":1,"y":1,"z":1},"position":{"x":0,"y":0,"z":0},"rotation":[{"direction":"x","degree":0}],"modelGroupName":"wjwf1","modelSrc":"../js/msj3D/sourse/customModels/models/wjwf1.json?v1.50.13740666293081194","srcType":"filePath","showSortNub":40}]

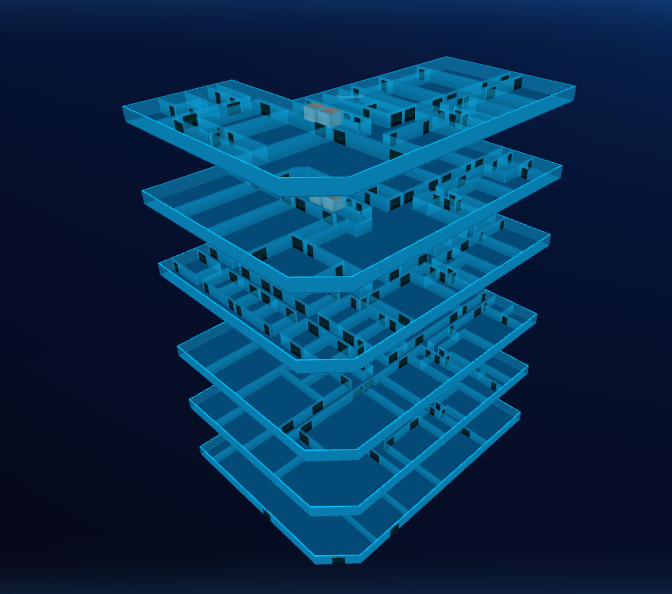

多角度觀察一下樓層模型：

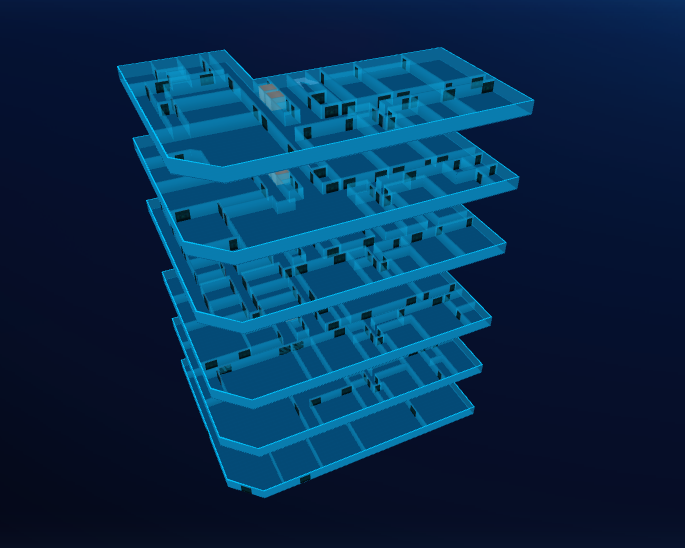

單元測驗樓宇模型裂解效果
四、定位詳解
本想放到第三章一起講解，但這部分實作比較重要，所以單獨一章講解

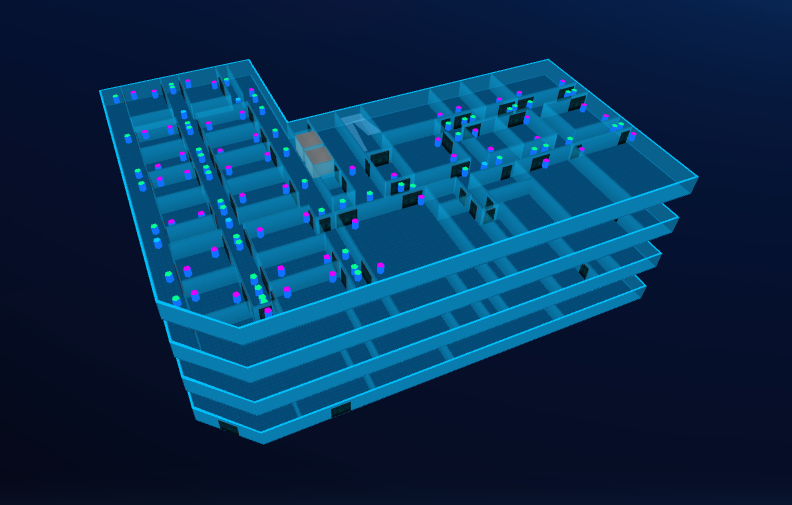

如上圖，粉色的點位表示房間門內的輔助點，亮綠色的點位表示設備所對應的門外輔助點
我們這里只需要系結門外的輔助點到對應的設備就可以
當再某處停留事件過長，我們通常判斷已經進入房間，直接講門外門內兩個點鏈接，即可，
4.1、存盤虛擬點位
//使用二叉樹儲存法，將輔助點與設備id進行系結，
{ "cp": { "x": 2898.062281840033, "y": 726.9857194504245, "z": 4474.268417657025 },
"ct": { "x": 2919.5843654655655, "y": -325.13303496900545, "z": 3386.2841814639646 }, line: [2010, 2002, 2016, 2028, 2018, 2032, ["h1", 2038], 2026, 2022, 2036, 2020, [2000, 2034], 2004, 2014],//二叉樹存盤資料 Points: [{ "name": "f2d_2010", "position": { "x": 2824.843, "y": 82.926, "z": 3874.214 } }, { "name": "f2d_2016", "position": { "x": 2824.843, "y": 82.926, "z": 3977.133 } }, { "name": "f2d_2028", "position": { "x": 2824.843, "y": 82.926, "z": 4010.544 } }, { "name": "f2d_2018", "position": { "x": 2824.843, "y": 82.926, "z": 4084.157 } }, { "name": "f2d_2032", "position": { "x": 2824.843, "y": 82.926, "z": 4110.372 } }, { "name": "f2d_2038", "position": { "x": 2824.843, "y": 82.926, "z": 4191.56 } }, { "name": "f2d_h1", "position": { "x": 2824.843, "y": 82.926, "z": 4145.947 } }, { "name": "f2d_2026", "position": { "x": 2894.811, "y": 82.926, "z": 4142.355 } }, { "name": "f2d_2022", "position": { "x": 2929.456, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2036", "position": { "x": 2993.039, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2020", "position": { "x": 3127.172, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2000", "position": { "x": 3138.358, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2014", "position": { "x": 3196.413, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2004", "position": { "x": 3159.209, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2034", "position": { "x": 3140.007, "y": 82.926, "z": 4238.683 } }, { "name": "f2d_2010_room", "position": { "x": 2794.836, "y": 82.926, "z": 3874.214 } }, { "name": "f2d_2002", "position": { "x": 2820.207, "y": 82.926, "z": 3901.037 } }, { "name": "f2d_2002_room", "position": { "x": 2794.657, "y": 82.926, "z": 3901.037 } }, { "name": "f2d_2016_room", "position": { "x": 2795.467, "y": 82.926, "z": 3977.133 } }, { "name": "f2d_2028_room", "position": { "x": 2790.713, "y": 82.926, "z": 4010.544 } }, { "name": "f2d_2018_room", "position": { "x": 2797.472, "y": 82.926, "z": 4074.339 } }, { "name": "f2d_2032_room", "position": { "x": 2798.134, "y": 82.926, "z": 4110.372 } }, { "name": "f2d_2038_room", "position": { "x": 2796.368, "y": 82.926, "z": 4191.56 } }, { "name": "f2d_2026_room", "position": { "x": 2894.811, "y": 82.926, "z": 4076.308 } }, { "name": "f2d_2022_room", "position": { "x": 2929.456, "y": 82.926, "z": 4107.921 } }, { "name": "f2d_2036_room", "position": { "x": 2993.039, "y": 82.926, "z": 4103.112 } }, { "name": "f2d_2020_room", "position": { "x": 3127.172, "y": 82.926, "z": 4110.79 } }, { "name": "f2d_2000_room", "position": { "x": 3138.358, "y": 82.926, "z": 4156.895 } }, { "name": "f2d_2004_room", "position": { "x": 3159.209, "y": 82.926, "z": 4156.794 } }, { "name": "f2d_2014_room", "position": { "x": 3196.413, "y": 82.926, "z": 4157.111 } }, { "name": "f2d_2034_room", "position": { "x": 3165.756, "y": 82.926, "z": 4238.683 } }] }
//存盤輔助點模型位置到陣列中，方便快速查找，
[{ "name": "f2d_2010", "position": { "x": 2824.843, "y": 82.926, "z": 3874.214 } }, { "name": "f2d_2016", "position": { "x": 2824.843, "y": 82.926, "z": 3977.133 } }, { "name": "f2d_2028", "position": { "x": 2824.843, "y": 82.926, "z": 4010.544 } }, { "name": "f2d_2018", "position": { "x": 2824.843, "y": 82.926, "z": 4084.157 } }, { "name": "f2d_2032", "position": { "x": 2824.843, "y": 82.926, "z": 4110.372 } }, { "name": "f2d_2038", "position": { "x": 2824.843, "y": 82.926, "z": 4191.56 } }, { "name": "f2d_h1", "position": { "x": 2824.843, "y": 82.926, "z": 4145.947 } }, { "name": "f2d_2026", "position": { "x": 2894.811, "y": 82.926, "z": 4142.355 } }, { "name": "f2d_2022", "position": { "x": 2929.456, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2036", "position": { "x": 2993.039, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2020", "position": { "x": 3127.172, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2000", "position": { "x": 3138.358, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2014", "position": { "x": 3196.413, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2004", "position": { "x": 3159.209, "y": 82.926, "z": 4137.219 } }, { "name": "f2d_2034", "position": { "x": 3140.007, "y": 82.926, "z": 4238.683 } }, { "name": "f2d_2010_room", "position": { "x": 2794.836, "y": 82.926, "z": 3874.214 } }, { "name": "f2d_2002", "position": { "x": 2820.207, "y": 82.926, "z": 3901.037 } }, { "name": "f2d_2002_room", "position": { "x": 2794.657, "y": 82.926, "z": 3901.037 } }, { "name": "f2d_2016_room", "position": { "x": 2795.467, "y": 82.926, "z": 3977.133 } }, { "name": "f2d_2028_room", "position": { "x": 2790.713, "y": 82.926, "z": 4010.544 } }, { "name": "f2d_2018_room", "position": { "x": 2797.472, "y": 82.926, "z": 4074.339 } }, { "name": "f2d_2032_room", "position": { "x": 2798.134, "y": 82.926, "z": 4110.372 } }, { "name": "f2d_2038_room", "position": { "x": 2796.368, "y": 82.926, "z": 4191.56 } }, { "name": "f2d_2026_room", "position": { "x": 2894.811, "y": 82.926, "z": 4076.308 } }, { "name": "f2d_2022_room", "position": { "x": 2929.456, "y": 82.926, "z": 4107.921 } }, { "name": "f2d_2036_room", "position": { "x": 2993.039, "y": 82.926, "z": 4103.112 } }, { "name": "f2d_2020_room", "position": { "x": 3127.172, "y": 82.926, "z": 4110.79 } }, { "name": "f2d_2000_room", "position": { "x": 3138.358, "y": 82.926, "z": 4156.895 } }, { "name": "f2d_2004_room", "position": { "x": 3159.209, "y": 82.926, "z": 4156.794 } }, { "name": "f2d_2014_room", "position": { "x": 3196.413, "y": 82.926, "z": 4157.111 } }, { "name": "f2d_2034_room", "position": { "x": 3165.756, "y": 82.926, "z": 4238.683 } }]
4.2、具體實作畫線定位
實作畫線定位是利用設備id找到對應輔助點，然后將輔助點鏈接起來的方式
定位標簽移動，使用補間影片移動效果即可，
//顯示路徑 function drawLineFunc(floor, start, end, timeLong, startOut, endIn) { //drawLineDataList.push({ // floor: 樓層, // start: 開始設備點id, // end: 結束設備點id, // timeLong: 移動時長, // startOut: 是否是從房間里出來, // endIn: 是否進入房間 //}); WT3DObj.commonFunc.changeCameraPosition(ConfigData["f" + floor].cp, ConfigData["f" + floor].ct, 300, function () { }); //生成路徑節點陣列 var startindex = -1; var startindex2 = -1; var endindex = -1; var endindex2 =-1; var linedata = https://www.cnblogs.com/yeyunfei/p/ConfigData["f" + floor].line; $.each(linedata, function (_index, _obj) { if (_obj instanceof Array) { $.each(_obj, function (_cindex, _cobj) { if (_cobj + "" == start + "") { startindex = _index; startindex2 = _cindex; } if (_cobj + "" == end + "") { endindex = _index; endindex2 = _cindex; } }) } else { if (_obj + "" == start + "") { startindex = _index; } if (_obj + "" == end + "") { endindex = _index; } } }); var pointPath = []; if (startindex < endindex) { for (var i = startindex; i <= endindex; i++) { var pointnub = linedata[i]; if (pointnub instanceof Array) { pointPath.push(pointnub[0]); } else { pointPath.push(pointnub); } } } else if (startindex > endindex) { for (var i = startindex; i >= endindex; i--) { var pointnub = linedata[i]; if (pointnub instanceof Array) { pointPath.push(pointnub[0]); } else { pointPath.push(pointnub); } } } if (endindex2 > 0) { var pointnub = linedata[endindex]; for (var i = 1; i <= endindex2; i++) { pointPath.push(pointnub[i]); } } if (startindex2 != -1) { var startarray = []; var pointnub = linedata[startindex]; for (var i = startindex2; i >0; i--) { startarray.push(pointnub[i]); } pointPath = startarray.concat(pointPath); } var linePositionArray = ConfigData["f" + floor].Points; var lineObjs = {} $.each(linePositionArray, function (_index, _obj) { lineObjs[_obj.name] = _obj.position; }); var pathpoints = []; var positiony = WT3DObj.commonFunc.findObject("floor_" + floor).position.y ; $.each(pointPath, function (_index, _obj) { if (lineObjs["f" + floor + "d_" + _obj]) { pathpoints.push({ x: lineObjs["f" + floor + "d_" + _obj].x, y: positiony , z: lineObjs["f" + floor + "d_" + _obj].z, type: "nomal" }); } }); if (startOut) { $.each(linePositionArray, function (_index, _obj) { if (_obj.name == "f" + floor + "d_" + start + "_room") { pathpoints = [{ x: _obj.position.x, y: positiony, z: _obj.position.z, type: "nomal" }].concat(pathpoints); } }); } if (endIn) { if (end) { $.each(linePositionArray, function (_index, _obj) { if (_obj.name == "f" + floor + "d_" + end +"_room") { pathpoints.push({ x: _obj.position.x, y: positiony, z: _obj.position.z, type: "nomal" }) } }); } }；
//創建節點模型 var modelsNames = modelBussiness.createRoadLine(pathpoints, new Date().getTime(), timeLong); CModelNames = CModelNames.concat(modelsNames); }
畫線與移動具體實作如下：
ModelBussiness.prototype.Drawing = false; ModelBussiness.prototype.createRoadLine = function (points, index, timeLong) { if (modelBussiness.Drawing) { return; } modelBussiness.Drawing = true; var addModelNames = []; //points.push({ // x: _pobj[1], // y: 0, // z: _pobj[2], // type: "nomal" //});
//創建移動標簽模型代碼 var moveobj = { "name": "moveObj", "objType": "picIdentification", "size": { "x": 30, "y": 30 }, "position": { x: points[0].x, y: points[0].y+30, z: points[0].z }, "imgurl": "../img/3dImg/xhd.png", "showSortNub":1, "show": true, "customType1": "", "customType2": "", "animation": null, "dbclickEvents": null, "wx": null, "wy": null, "BindDevId": null, "BindDevName": null, "devInfo": null, "BindMeteId": null, "BindMeteName": null }; var models = []; var moveObjModel = WT3DObj.commonFunc.findObject("moveObj"); if (!moveObjModel) { models.push(moveobj); addModelNames.push("moveObj"); }
//創建線模型代碼 var model = { "show": true, "uuid": "", "name": "splinecurve_7", "objType": "SplineCurve", "segments": 24, "points": [{ "x": 0, "y": 300, "z": 0 }, { "x": 100, "y": 250, "z": 100 }, { "x": 100, "y": 400, "z": 400 }], "style": { "skinColor": 0xDFFD6 }, "LineStyle": "LinePieces", "position": { "x": 0, "y":0, "z": 0 }, "scale": { "x": 1, "y": 1, "z": 1 }, "rotation": [{ "direction": "x", "degree": 0 }, { "direction": "y", "degree": 0 }, { "direction": "z", "degree": 0 }], "showSortNub": 1, "customType1": "", "customType2": "", "animation": null, "dbclickEvents": null, "BindDevId": null, "BindDevName": null, "devInfo": null, "BindMeteId": null, "BindMeteName": null } model.name = "Line" + index; addModelNames.push("Line" + index); model.segments = points.length - 1; var newpoints = []; var pointlength = [];//單段長度陣列 var allLength = 0;//總長度 for (var i = 0; i < points.length; i++) { newpoints.push(points[0]); if (i < points.length - 1) { var length= Math.sqrt((points[i + 1].x - points[i].x) * (points[i + 1].x - points[i].x) + (points[i + 1].y - points[i].y) * (points[i + 1].y - points[i].y) + (points[i + 1].z - points[i].z) * (points[i + 1].z - points[i].z)) pointlength.push(length); allLength += length; } } model.points = newpoints; models.push(model); var modelnames = []; for (var i = 0; i < points.length - 1; i++) { if (points[i].x == points[i + 1].x && points[i].z == points[i + 1].z) { continue; } var position = { x: (points[i].x + points[i + 1].x) / 2, y: points[i].y, z: (points[i].z + points[i + 1].z) / 2 } var rotaiionz = this.getAngle(points[i].x, points[i].z, points[i + 1].x, points[i + 1].z) / 180 * Math.PI + Math.PI / 2; models.push({ "show": true, "uuid": "", "name": model.name + "_" + i, "objType": "Lathe", "position": position, "points": [{ "x": 0, "y": 0, "z": 0 }, { "x": 2, "y": 10, "z": 0 }], "style": { "skinColor": 1433087, "side": 2, "opacity": 1 }, "segments": 12, "radialSegments": 12, "closed": true, "phiStart": 0, "phiLength": 6.283185307179586, "showSortNub": 7, "customType1": "", "customType2": "", "animation": null, "dbclickEvents": null, "rotation": [{ "direction": "x", "degree": Math.PI / 2 }, { "direction": "y", "degree": 0 }, { "direction": "z", "degree": rotaiionz }], "radius": null, "scale": { "x": 1, "y": 1, "z": 1 }, "BindDevId": null, "BindDevName": null, "devInfo": null, "BindMeteId": null, "BindMeteName": null }); modelnames.push(model.name + "_" + i); addModelNames.push(model.name + "_" + i); }
//加載模型 WT3DObj.commonFunc.loadModelsByJsons(models, { x: 0, y: 0, z: 0 }, { x: 0, y: 0, z: 0 }, true, function () { if (!moveObjModel) { moveObjModel = WT3DObj.commonFunc.findObject("moveObj"); } var _obj = WT3DObj.commonFunc.findObject(model.name); var _objfores = WT3DObj.commonFunc.findObjectsByNames(modelnames); $.each(_objfores, function (_findex, _fobj) { _fobj.visible = false; }); if (!timeLong) { timeLong = 0; } var runTime = 0; for (var i = 0; i < points.length - 1; i++) { (function (_index) {//創建閉包
//獲取小節點之間的運動時長
var stepTime = pointlength[_index] / allLength * timeLong;
setTimeout(function () {
//創建路徑運動延遲等待
new Tn(_obj.geometry.vertices[_index+1]).to({ x: points[_index + 1].x, y: points[_index + 1].y, z: points[_index + 1].z, },
stepTime).onUpdate(function () { for (var j = _index+1; j < points.length; j++)
{ _obj.geometry.vertices[j].x = this.x; _obj.geometry.vertices[j].y = this.y;
_obj.geometry.vertices[j].z = this.z; }; moveObjModel.position.x = this.x;
moveObjModel.position.y = this.y+30; moveObjModel.position.z = this.z;
_obj.geometry.verticesNeedUpdate = true; }).start();
setTimeout(function () { $.each(_objfores,
function (_findex, _fobj) { if (_fobj.name == model.name + "_" + _index) { _fobj.visible = true; } }); }, stepTime / 2); }, runTime); runTime += stepTime+20; })(i); }
// WT3DObj.scene.children[305].geometry.vertices[22].z = 41400 //WT3DObj.scene.children[305].geometry.verticesNeedUpdate = true;
setTimeout(function () { modelBussiness.Drawing = false; }, timeLong) console.log("drawLine"); }); return addModelNames; }
由于篇幅原因，這一課先介紹到這里
后面我將繼續講解用webgl 建立 3D隧道、3D橋梁、webgl實作三維隧道橋梁、three.js實作三維隧道橋梁、橋梁隧道三維應用炫酷效果等等
