建模

首先我們需要一些貼圖素材

貼圖素材一般可以在3dtextures網站上找到，這里我找了2份，包含了墻的法線貼圖和潮濕地面的法線、透明度、粗糙度貼圖

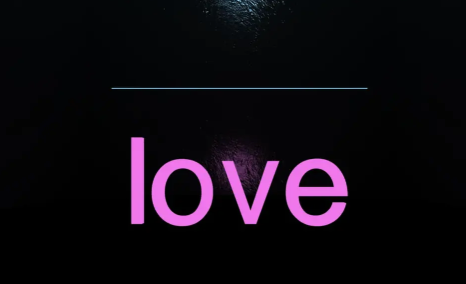

通過kokomi.AssetManager將貼圖素材一次性全部加載出來，將它們應用到Mesh上，加上基本的環境光照，即可完成最基本的建模

// 光照
const pointLight1 = new THREE.PointLight(config.color, 0.5, 17, 0.8);
pointLight1.position.set(0, 2, 0);
this.scene.add(pointLight1);
...

// 網格
const aspTex = am.items["asphalt-normal"];
aspTex.rotation = THREE.MathUtils.degToRad(90);
aspTex.wrapS = aspTex.wrapT = THREE.RepeatWrapping;
aspTex.repeat.set(5, 8);

const wallMat = new THREE.MeshPhongMaterial({
  color: new THREE.Color("#111111"),
  normalMap: aspTex,
  normalScale: new THREE.Vector2(0.5, 0.5),
  shininess: 200,
});

const wall = new THREE.Mesh(new THREE.BoxGeometry(25, 20, 0.5), wallMat);
this.scene.add(wall);
wall.position.y = 10;
wall.position.z = -10.3;
...

// 文字
const t3d = new kokomi.Text3D(this, config.text, font, {
  size: 3,
  height: 0.2,
  curveSegments: 120,
  bevelEnabled: false,
});
t3d.mesh.geometry.center();

const tm = new THREE.Mesh(
  t3d.mesh.geometry,
  new THREE.MeshBasicMaterial({
    color: config.color,
  })
);
this.scene.add(tm);
tm.position.y = 1.54;

積水地面

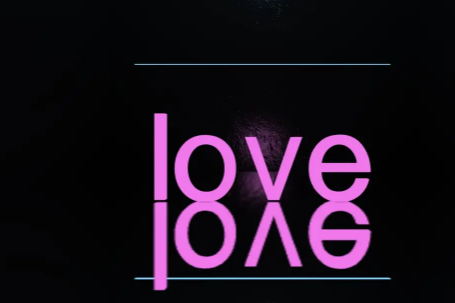

地面上的積水能反射出周圍的景色，因此我們將選用kokomi.Reflector來實作反射效果

const mirror = new kokomi.Reflector(new THREE.PlaneGeometry(25, 100));
mirror.position.z = -25;
mirror.rotation.x = -Math.PI / 2;

普通的反射器僅僅是一面鏡子，因此我們要自定義反射器的Shader

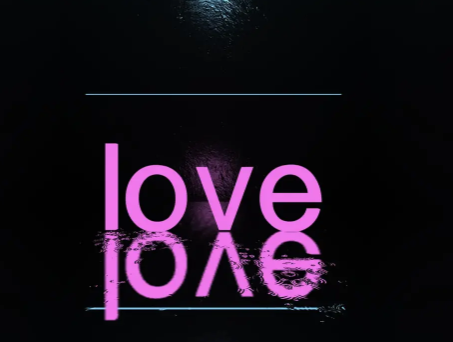

漣漪效果

之前逛shadertoy時看到了一個很棒的漣漪特效，就直接拿來用了

// https://www.shadertoy.com/view/4djSRW
float hash12(vec2 p){
    vec3 p3=fract(vec3(p.xyx)*.1031);
    p3+=dot(p3,p3.yzx+19.19);
    return fract((p3.x+p3.y)*p3.z);
}

vec2 hash22(vec2 p){
    vec3 p3=fract(vec3(p.xyx)*vec3(.1031,.1030,.0973));
    p3+=dot(p3,p3.yzx+19.19);
    return fract((p3.xx+p3.yz)*p3.zy);
}

// https://gist.github.com/companje/29408948f1e8be54dd5733a74ca49bb9
float map(float value,float min1,float max1,float min2,float max2){
    return min2+(value-min1)*(max2-min2)/(max1-min1);
}

vec2 rippleUv=75.*p*uTexScale;

vec2 p0=floor(rippleUv);

float rainStrength=map(uRainCount,0.,10000.,3.,.5);
if(rainStrength==3.){
    rainStrength=50.;
}

vec2 circles=vec2(0.);
for(int j=-MAX_RADIUS;j<=MAX_RADIUS;++j)
{
    for(int i=-MAX_RADIUS;i<=MAX_RADIUS;++i)
    {
        vec2 pi=p0+vec2(i,j);
        #if DOUBLE_HASH
        vec2 hsh=hash22(pi);
        #else
        vec2 hsh=pi;
        #endif
        vec2 p=pi+hash22(hsh);

        float t=fract(.8*iTime+hash12(hsh));
        vec2 v=p-rippleUv;
        float d=length(v)-(float(MAX_RADIUS)+1.)*t+(rainStrength*.1*t);

        float h=1e-3;
        float d1=d-h;
        float d2=d+h;
        float p1=sin(31.*d1)*smoothstep(-.6,-.3,d1)*smoothstep(0.,-.3,d1);
        float p2=sin(31.*d2)*smoothstep(-.6,-.3,d2)*smoothstep(0.,-.3,d2);
        circles+=.5*normalize(v)*((p2-p1)/(2.*h)*(1.-t)*(1.-t));
    }
}
circles/=float((MAX_RADIUS*2+1)*(MAX_RADIUS*2+1));

float intensity=.05*floorOpacity;
vec3 n=vec3(circles,sqrt(1.-dot(circles,circles)));

vec2 rainUv=intensity*n.xy;

與地面結合

光有漣漪效果也不夠，要將它與地面的貼圖相結合起來

這里采用了自定義mipmap技術，利用kokomi.PackedMipMapGenerator生成了多個貼圖的mipmap

自定義mipmap除了能捆綁貼圖外，還有個好處就是可以動態控制貼圖的模糊程度

const mipmapper = new kokomi.PackedMipMapGenerator();
const mirrorFBO = mirror.getRenderTarget();
const mipmapFBO = new kokomi.FBO(this);
mirror.material.uniforms.tDiffuse.value = https://www.cnblogs.com/smileZAZ/archive/2023/03/24/mipmapFBO.rt.texture;
this.update(() => {
  mipmapper.update(mirrorFBO.texture, mipmapFBO.rt, this.renderer);
});

vec2 p=vUv;
vec2 texUv=p*uTexScale;
texUv+=uTexOffset;
float floorOpacity=texture(uOpacityTexture,texUv).r;
vec3 floorNormal=texture(uNormalTexture,texUv).rgb*2.-1.;
floorNormal=normalize(floorNormal);
float roughness=texture(uRoughnessTexture,texUv).r;

vec2 finalUv=reflectionUv+floorNormal.xy*uDistortionAmount-rainUv;

float level=roughness*uBlurStrength;

vec3 col=packedTexture2DLOD(tDiffuse,finalUv,level,uMipmapTextureSize).rgb;

下雨影片

生成雨滴

雨滴數量會很多，因此要用到THREE.InstancedMesh來生成實體化網格物件

const rain = new THREE.InstancedMesh(new THREE.PlaneGeometry(), rainMat, count);
rain.instanceMatrix.needsUpdate = true;

const dummy = new THREE.Object3D();

for (let i = 0; i < rain.count; i++) {
  dummy.position.set(
    THREE.MathUtils.randFloat(-10, 10),
    0,
    THREE.MathUtils.randFloat(-20, 10)
  );
  dummy.scale.set(0.03, THREE.MathUtils.randFloat(0.3, 0.5), 0.03);
  dummy.updateMatrix();
  rain.setMatrixAt(i, dummy.matrix);
}
rain.rotation.set(-0.1, 0, 0.1);
rain.position.set(0, 4, 4);

這里要注意一點：雨滴的方向是始終朝向用戶的，為了達成這點就要用billboard方案來實作

vec3 billboard(vec3 v,mat4 view){
    vec3 up=vec3(view[0][1],view[1][1],view[2][1]);
    vec3 right=vec3(view[0][0],view[1][0],view[2][0]);
    vec3 pos=right*v.x+up*v.y;
    return pos;
}

vec3 billboardPos=billboard(transformed,modelViewMatrix);
transformed=billboardPos;

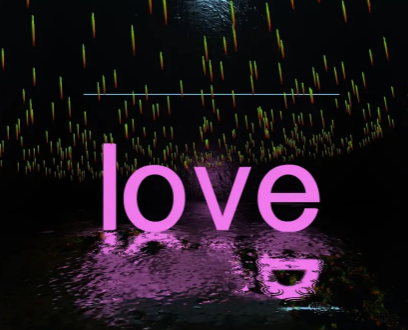

下落影片

我們可以給雨滴賦予隨機的高度和速度attribute，并在頂點著色器中讓它動起來

const progressArr = [];
const speedArr = [];

for (let i = 0; i < rain.count; i++) {
  ...

  progressArr.push(Math.random());
  speedArr.push(dummy.scale.y * 10);
}

rain.geometry.setAttribute(
  "aProgress",
  new THREE.InstancedBufferAttribute(new Float32Array(progressArr), 1)
);
rain.geometry.setAttribute(
  "aSpeed",
  new THREE.InstancedBufferAttribute(new Float32Array(speedArr), 1)
);

attribute float aProgress;
attribute float aSpeed;

uniform float uSpeed;
uniform float uHeightRange;

vec3 distort(vec3 p){
    float y=mod(aProgress-iTime*aSpeed*.25*uSpeed,1.)*uHeightRange-(uHeightRange*.5);
    p.y+=y;
    return p;
}

transformed=distort(transformed);

反射效果

創建背景的離屏渲染FBO，將其作為反射的主要材質

const bgFBO = new kokomi.FBO(this, {
  width: window.innerWidth * 0.1,
  height: window.innerHeight * 0.1,
});
rainMat.uniforms.uBgRt.value = https://www.cnblogs.com/smileZAZ/archive/2023/03/24/bgFBO.rt.texture;

const fboCamera = this.camera.clone();

this.update(() => {
  rain.visible = false;
  this.renderer.setRenderTarget(bgFBO.rt);
  this.renderer.render(this.scene, fboCamera);
  this.renderer.setRenderTarget(null);
  rain.visible = true;
});

在頂點著色器中獲取螢屏空間vScreenspace

// https://github.com/Samsy/glsl-screenspace
vec2 screenspace(mat4 projectionmatrix,mat4 modelviewmatrix,vec3 position){
    vec4 temp=projectionmatrix*modelviewmatrix*vec4(position,1.);
    temp.xyz/=temp.w;
    temp.xy=(.5)+(temp.xy)*.5;
    return temp.xy;
}

vScreenspace=screenspace(projectionMatrix,modelViewMatrix,transformed);

在片元著色器中采樣反射材質

uniform sampler2D uNormalTexture;
uniform sampler2D uBgRt;
uniform float uRefraction;
uniform float uBaseBrightness;

varying vec2 vScreenspace;

void main(){
    vec2 p=vUv;

    vec4 normalColor=texture(uNormalTexture,p);

    if(normalColor.a<.5){
        discard;
    }

    vec3 normal=normalize(normalColor.rgb);

    vec2 bgUv=vScreenspace+normal.xy*uRefraction;
    vec4 bgColor=texture(uBgRt,bgUv);

    float brightness=uBaseBrightness*pow(normal.b,10.);

    vec3 col=bgColor.rgb+vec3(brightness);

    col=vec3(p,0.);

    gl_FragColor=vec4(col,1.);
}

這里有一點要注意：積水地面中要把雨滴的反射去掉，不然會看著很亂

rainFloor.mirror.ignoreObjects.push(rain);

燈光閃爍

用setInterval來間歇地設定文字和燈光材質的顏色即可

// flicker
const turnOffLight = () => {
  tm.material.color.copy(new THREE.Color("black"));
  pointLight1.color.copy(new THREE.Color("black"));
};

const turnOnLight = () => {
  tm.material.color.copy(new THREE.Color(config.color));
  pointLight1.color.copy(new THREE.Color(config.color));
};

let flickerTimer = null;

const flicker = () => {
  flickerTimer = setInterval(async () => {
    const rate = Math.random();
    if (rate < 0.5) {
      turnOffLight();
      await kokomi.sleep(200 * Math.random());
      turnOnLight();
      await kokomi.sleep(200 * Math.random());
      turnOffLight();
      await kokomi.sleep(200 * Math.random());
      turnOnLight();
    }
  }, 3000);
};

flicker();

后期處理

為了讓文字燈光看上去更加明亮，可以用Bloom濾鏡來照亮文字

由于后期處理中原先renderer的抗鋸齒會失效，故用SMAA濾鏡來實作抗鋸齒

// postprocessing
const composer = new POSTPROCESSING.EffectComposer(this.renderer);
this.composer = composer;

composer.addPass(new POSTPROCESSING.RenderPass(this.scene, this.camera));

// bloom
const bloom = new POSTPROCESSING.BloomEffect({
  luminanceThreshold: 0.4,
  luminanceSmoothing: 0,
  mipmapBlur: true,
  intensity: 2,
  radius: 0.4,
});
composer.addPass(new POSTPROCESSING.EffectPass(this.camera, bloom));

// antialiasing
const smaa = new POSTPROCESSING.SMAAEffect();
composer.addPass(new POSTPROCESSING.EffectPass(this.camera, smaa));

待優化

效果算是基本實作了，但也有很多待優化的點

添加現實中的雨聲
實作更棒的相機互動
添加更多的物體
