04.卷積神經網路 W2.深度卷積網路：實體探究（作業：Keras教程+ResNets殘差網路）

2020-09-23 17:52:29 區塊鏈

文章目錄

  • 作業1：Keras教程
    • 1. 快樂的房子
    • 2. 用Keras建模
    • 3. 用你的圖片測驗
    • 4. 一些有用的Keras函式
  • 作業2：殘差網路 Residual Networks
    • 1. 深層神經網路的問題
    • 2. 建立殘差網路
      • 2.1 identity恒等模塊
      • 2.2 卷積模塊
    • 3. 建立你的第一個殘差網路（50層）
    • 4. 用自己的照片測驗

測驗題：參考博文

筆記：04.卷積神經網路 W2.深度卷積網路：實體探究

作業1：Keras教程

Keras 是一個用 Python 撰寫的高級神經網路 API，它能夠以 TensorFlow, CNTK, 或者 Theano 作為后端運行，
Keras 的開發重點是支持快速的實驗，能夠以最小的時延把你的想法轉換為實驗結果，是做好研究的關鍵，

Keras 是更高級的框架，對普通模型來說很友好，但是要實作更復雜的模型需要 TensorFlow 等低級的框架

  • 匯入一些包
import numpy as np
from keras import layers
from keras.layers import Input, Dense, Activation, ZeroPadding2D, BatchNormalization, Flatten, Conv2D
from keras.layers import AveragePooling2D, MaxPooling2D, Dropout, GlobalMaxPooling2D, GlobalAveragePooling2D
from keras.models import Model
from keras.preprocessing import image
from keras.utils import layer_utils
from keras.utils.data_utils import get_file
from keras.applications.imagenet_utils import preprocess_input
import pydot
from IPython.display import SVG
from keras.utils.vis_utils import model_to_dot
from keras.utils import plot_model
from kt_utils import *

import keras.backend as K
K.set_image_data_format('channels_last')
import matplotlib.pyplot as plt
from matplotlib.pyplot import imshow

%matplotlib inline

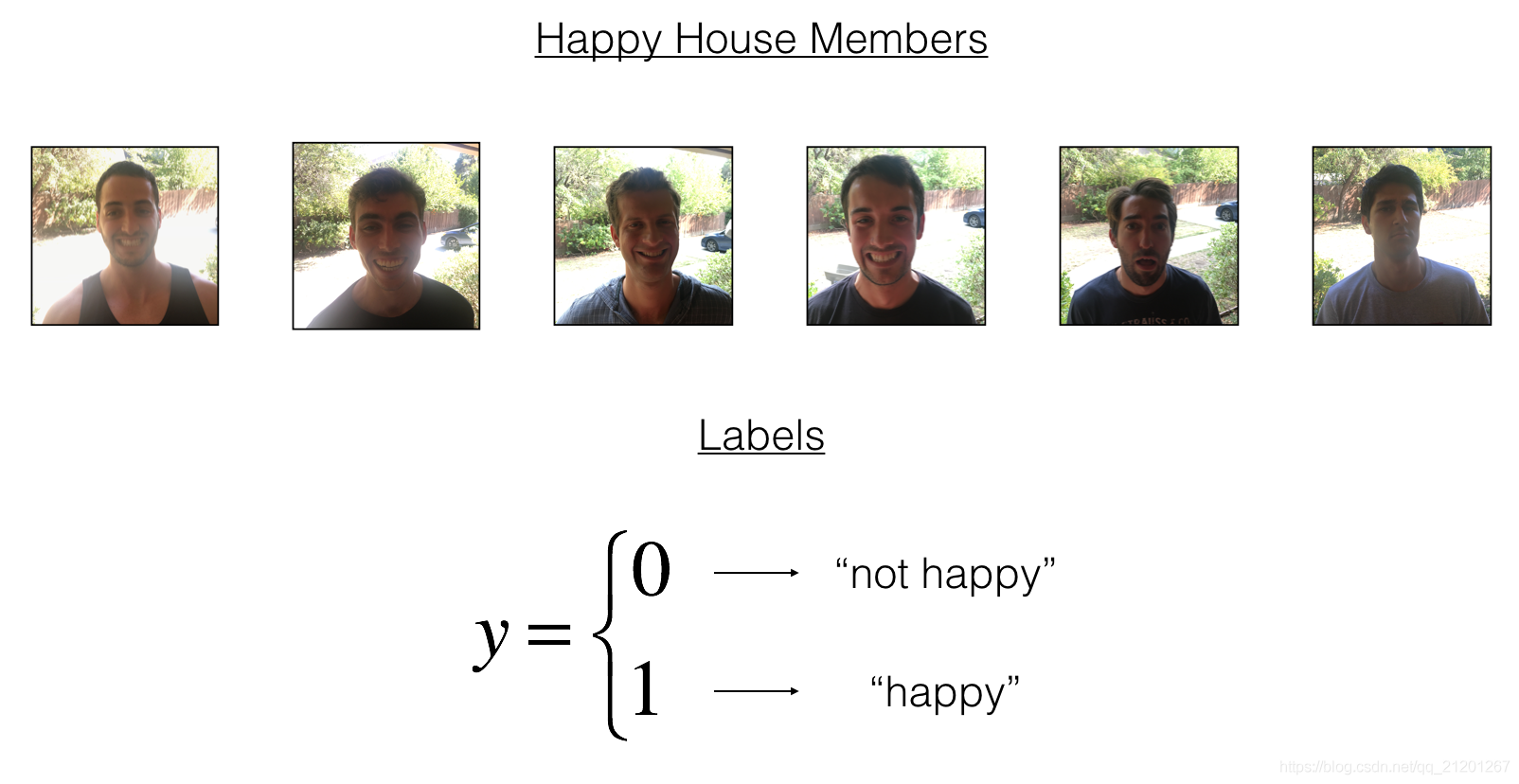

1. 快樂的房子

問題背景：快樂的房子的門口的攝像頭會識別你的表情是否是 Happy 的，是 Happy 的，門才會打開，哈哈！

我們要建模自動識別表情是否快樂！

  • 歸一化圖片資料，了解資料維度
X_train_orig, Y_train_orig, X_test_orig, Y_test_orig, classes = load_dataset()

# Normalize image vectors
X_train = X_train_orig/255.
X_test = X_test_orig/255.

# Reshape
Y_train = Y_train_orig.T
Y_test = Y_test_orig.T

print ("number of training examples = " + str(X_train.shape[0]))
print ("number of test examples = " + str(X_test.shape[0]))
print ("X_train shape: " + str(X_train.shape))
print ("Y_train shape: " + str(Y_train.shape))
print ("X_test shape: " + str(X_test.shape))
print ("Y_test shape: " + str(Y_test.shape))

輸出：

number of training examples = 600
number of test examples = 150
X_train shape: (600, 64, 64, 3)
Y_train shape: (600, 1)
X_test shape: (150, 64, 64, 3)
Y_test shape: (150, 1)

600個訓練樣本，150個測驗樣本，圖片維度 64*64*3 = 12288

2. 用Keras建模

Keras 可以快速建模，且模型效果不錯

舉個例子：

def model(input_shape):
    # 定義輸入的 placeholder 作為 tensor with shape input_shape.
    # 想象這是你的圖片輸入
    X_input = Input(input_shape)

    # Zero-Padding: pads the border of X_input with zeroes
    X = ZeroPadding2D((3, 3))(X_input)

    # CONV -> BN -> RELU Block applied to X
    X = Conv2D(32, (7, 7), strides = (1, 1), name = 'conv0')(X)
    X = BatchNormalization(axis = 3, name = 'bn0')(X)
    X = Activation('relu')(X)

    # MAXPOOL
    X = MaxPooling2D((2, 2), name='max_pool')(X)

    # FLATTEN X (means convert it to a vector) + FULLYCONNECTED
    X = Flatten()(X)
    X = Dense(1, activation='sigmoid', name='fc')(X)

    # Create model. This creates your Keras model instance,
    # you'll use this instance to train/test the model.
    model = Model(inputs = X_input, outputs = X, name='HappyModel')

    return model

本次作業很open，可以自由搭建模型，修改超引數，請注意各層之間的維度匹配

Keras Model 類參考鏈接

  • 定義模型
# GRADED FUNCTION: HappyModel

def HappyModel(input_shape):
    """
    Implementation of the HappyModel.

    Arguments:
    input_shape -- shape of the images of the dataset

    Returns:
    model -- a Model() instance in Keras
    """

    ### START CODE HERE ###
    # Feel free to use the suggested outline in the text above to get started, and run through the whole
    # exercise (including the later portions of this notebook) once. The come back also try out other
    # network architectures as well.
    X_input = Input(input_shape)

    X = ZeroPadding2D((3,3))(X_input)

    X = Conv2D(32,(7,7), strides = (1,1), name='conv0')(X)
    X = BatchNormalization(axis = 3, name='bn0')(X)
    X = Activation('relu')(X)

    X = MaxPooling2D((2,2), name='max_pool')(X)

    X = Flatten()(X)
    X = Dense(1, activation='sigmoid', name='fc')(X)

    model = Model(inputs = X_input, outputs = X, name='HappyModel')

    ### END CODE HERE ###

    return model
  • 創建模型實體
happyModel = HappyModel(X_train[0].shape)
  • 配置訓練模型
import keras
opt = keras.optimizers.Adam(learning_rate=0.01)
happyModel.compile(optimizer=opt,
		loss=keras.losses.BinaryCrossentropy(),metrics=['acc'])
  • 訓練 并 存盤回傳的訓練程序資料用于可視化
history = happyModel.fit(x=X_train, y=Y_train,
		validation_split=0.25, batch_size=32, epochs=30)
  • 繪制訓練程序
# 繪制訓練 & 驗證的準確率值
plt.plot(history.history['acc'])
plt.plot(history.history['val_acc'])
plt.title('Model accuracy')
plt.ylabel('Accuracy')
plt.xlabel('Epoch')
plt.legend(['Train', 'Test'], loc='upper left')
plt.show()

# 繪制訓練 & 驗證的損失值
plt.plot(history.history['loss'])
plt.plot(history.history['val_loss'])
plt.title('Model loss')
plt.ylabel('Loss')
plt.xlabel('Epoch')
plt.legend(['Train', 'Test'], loc='upper left')
plt.show()

，，，省略
Epoch 29/30
15/15 [==============================]
- 2s 148ms/step - loss: 0.1504 - acc: 0.9733 - val_loss: 0.1518 - val_acc: 0.9600
Epoch 30/30
15/15 [==============================]
- 2s 147ms/step - loss: 0.1160 - acc: 0.9711 - val_loss: 0.2242 - val_acc: 0.9333

準確率
損失

  • 測驗模型效果
### START CODE HERE ### (1 line)
from keras import metrics
preds = happyModel.evaluate(X_test, Y_test, batch_size=32, verbose=1, sample_weight=None)
### END CODE HERE ###
print(preds)

print ("Loss = " + str(preds[0]))
print ("Test Accuracy = " + str(preds[1]))

輸出：

5/5 [==============================] - 0s 20ms/step - loss: 0.2842 - acc: 0.9400
[0.28415805101394653, 0.9399999976158142]
Loss = 0.28415805101394653
Test Accuracy = 0.9399999976158142

3. 用你的圖片測驗

### START CODE HERE ###
img_path = 'images/1.jpg'
### END CODE HERE ###
img = image.load_img(img_path, target_size=(64, 64))
imshow(img)

x = image.img_to_array(img)
x = np.expand_dims(x, axis=0)
x = preprocess_input(x)

print(happyModel.predict(x))

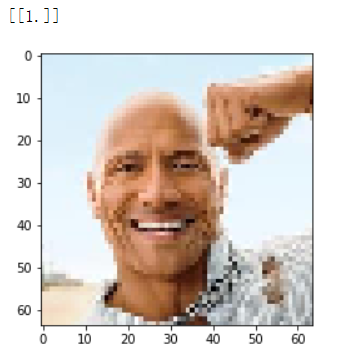

預測正確 1笑臉

4. 一些有用的Keras函式

  • happyModel.summary() 模型的結構，引數等資訊
happyModel.summary()

Model: "HappyModel"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         [(None, 64, 64, 3)]       0
_________________________________________________________________
zero_padding2d (ZeroPadding2 (None, 70, 70, 3)         0
_________________________________________________________________
conv0 (Conv2D)               (None, 64, 64, 32)        4736
_________________________________________________________________
bn0 (BatchNormalization)     (None, 64, 64, 32)        128
_________________________________________________________________
activation (Activation)      (None, 64, 64, 32)        0
_________________________________________________________________
max_pool (MaxPooling2D)      (None, 32, 32, 32)        0
_________________________________________________________________
flatten (Flatten)            (None, 32768)             0
_________________________________________________________________
fc (Dense)                   (None, 1)                 32769
=================================================================
Total params: 37,633
Trainable params: 37,569
Non-trainable params: 64
_________________________________________________________________

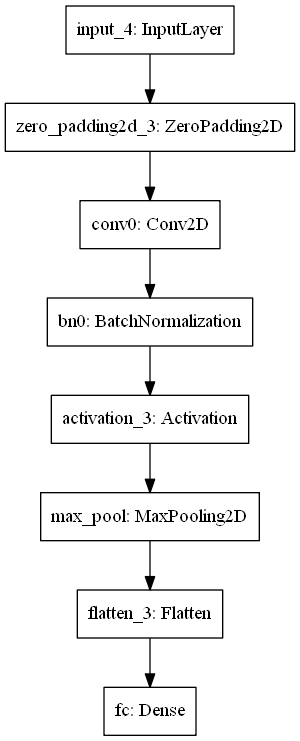

  • plot_model() 把模型結構保存成圖片

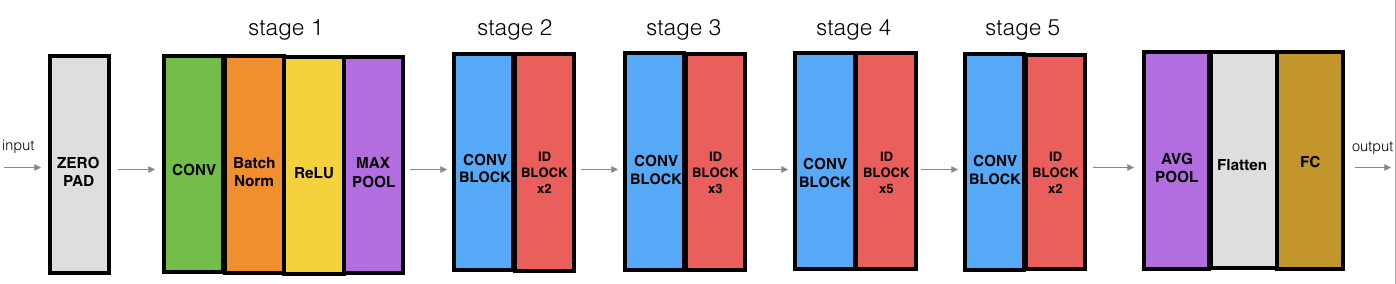

模型結構

作業2：殘差網路 Residual Networks

使用殘差網路能夠訓練更深的神經網路，普通的深層神經網路是很難訓練的，

  • 匯入包
import numpy as np
from keras import layers
from keras.layers import Input, Add, Dense, Activation, ZeroPadding2D, BatchNormalization, Flatten, Conv2D, AveragePooling2D, MaxPooling2D, GlobalMaxPooling2D
from keras.models import Model, load_model
from keras.preprocessing import image
from keras.utils import layer_utils
from keras.utils.data_utils import get_file
from keras.applications.imagenet_utils import preprocess_input
import pydot
from IPython.display import SVG
from keras.utils.vis_utils import model_to_dot
from keras.utils import plot_model
from resnets_utils import *
from keras.initializers import glorot_uniform
import scipy.misc
from matplotlib.pyplot import imshow
%matplotlib inline

import keras.backend as K
K.set_image_data_format('channels_last')
K.set_learning_phase(1)

1. 深層神經網路的問題

深層網路優點：

  • 可以表示復雜的函式
  • 可以學習很多不同層次的特征（低層次，高層次）

缺點：

  • 梯度消失/爆炸，梯度變的非常小或者非常大

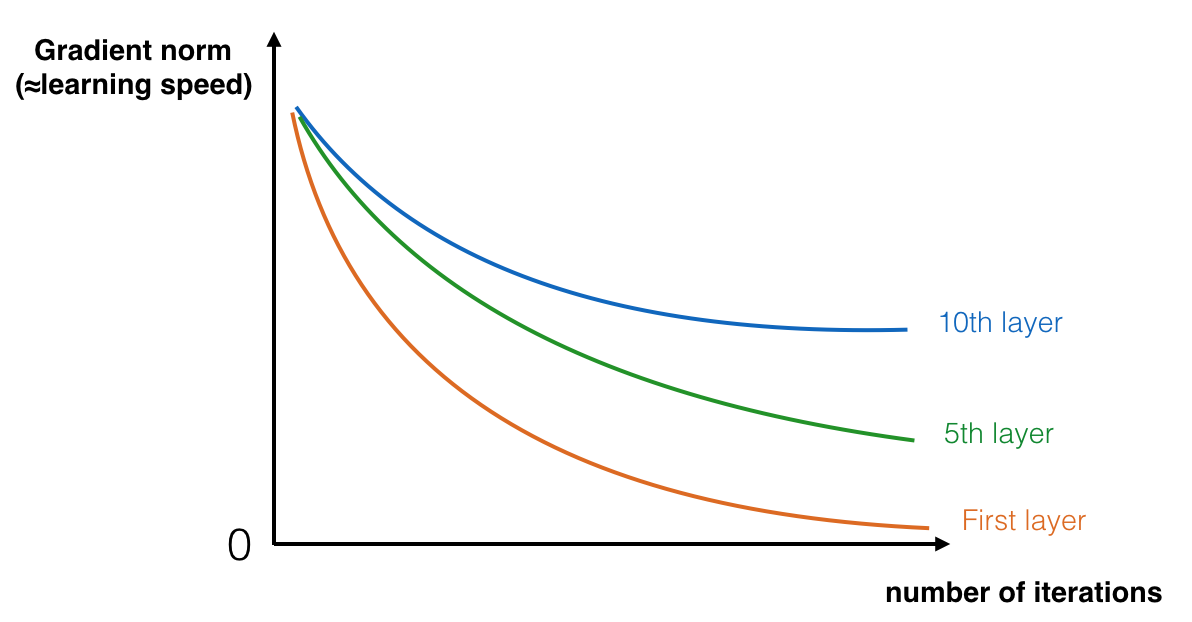

隨著迭代次數增加，淺層的梯度很快的就降到 0

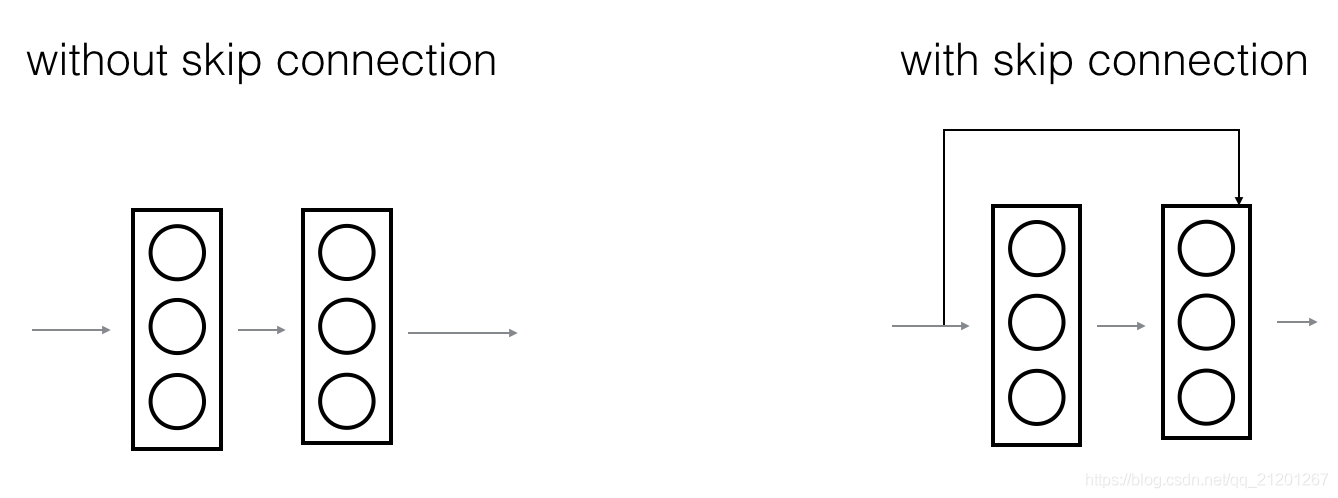

2. 建立殘差網路

通過跳躍的連接，允許梯度直接反向傳到淺層

  • 跳躍連接使得模塊更容易學習恒等函式
  • 殘差模塊不會損害訓練效果

殘差網路有兩種型別的模塊，主要取決于輸入輸出的維度是否一樣

2.1 identity恒等模塊

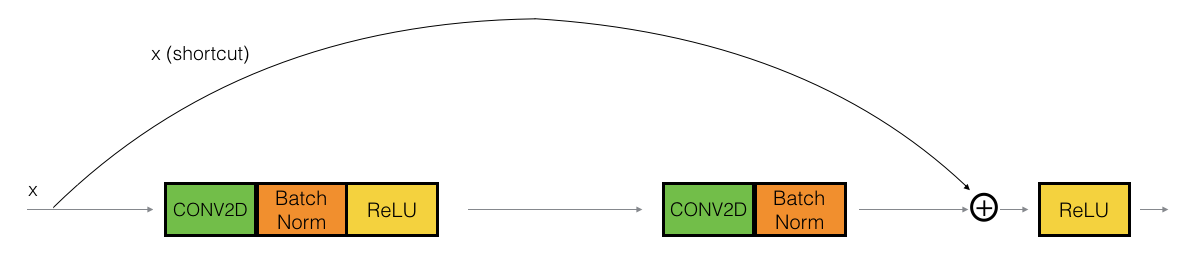

結構1

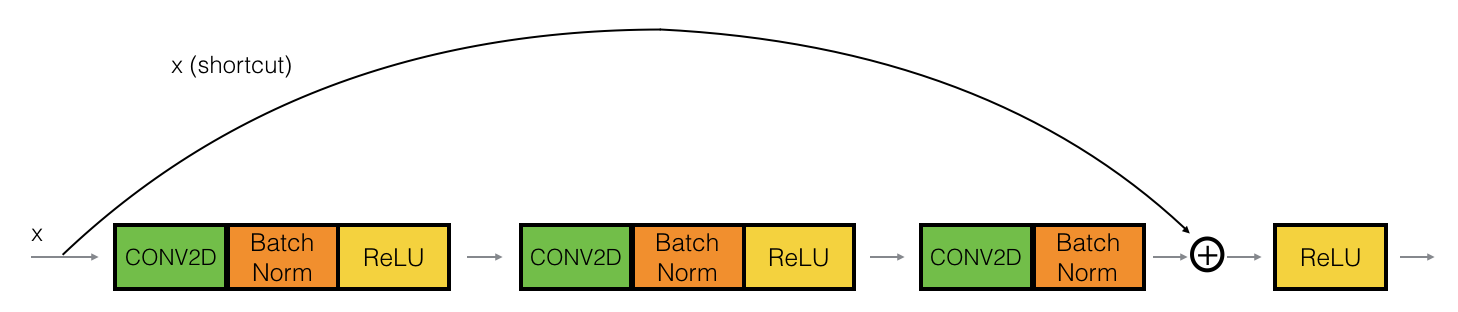

結構2
下面我們要實作：跳過3個隱藏層的結構，其稍微更強大一些

convolution2d 參考：https://keras.io/api/layers/convolution_layers/convolution2d/

batch_normalization 參考：
https://keras.io/api/layers/normalization_layers/batch_normalization/

add 參考：
https://keras.io/api/layers/merging_layers/add/

# GRADED FUNCTION: identity_block

def identity_block(X, f, filters, stage, block):
    """
    Implementation of the identity block as defined in Figure 3

    Arguments:
    X -- input tensor of shape (m, n_H_prev, n_W_prev, n_C_prev)
    f -- integer, specifying the shape of the middle CONV's window for the main path
    filters -- python list of integers, defining the number of filters in the CONV layers of the main path
    stage -- integer, used to name the layers, depending on their position in the network
    block -- string/character, used to name the layers, depending on their position in the network

    Returns:
    X -- output of the identity block, tensor of shape (n_H, n_W, n_C)
    """

    # defining name basis
    conv_name_base = 'res' + str(stage) + block + '_branch'
    bn_name_base = 'bn' + str(stage) + block + '_branch'

    # Retrieve Filters
    F1, F2, F3 = filters

    # Save the input value. You'll need this later to add back to the main path.
    X_shortcut = X

    # First component of main path
    X = Conv2D(filters = F1, kernel_size = (1, 1), strides = (1,1), padding = 'valid', name = conv_name_base + '2a', kernel_initializer = glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis = 3, name = bn_name_base + '2a')(X)
    X = Activation('relu')(X)

    ### START CODE HERE ###

    # Second component of main path (≈3 lines)
    X = Conv2D(filters = F2, kernel_size=(f, f), strides = (1, 1), padding='same', name=conv_name_base+'2b', kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3, name=bn_name_base+'2b')(X)
    X = Activation('relu')(X)

    # Third component of main path (≈2 lines)
    X = Conv2D(filters=F3, kernel_size=(1,1), strides=(1,1), padding='valid', name=conv_name_base+'2c', kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3, name=bn_name_base+'2c')(X)

    # Final step: Add shortcut value to main path, and pass it through a RELU activation (≈2 lines)
    X = Add()([X_shortcut, X])
    X = Activation('relu')(X)

    ### END CODE HERE ###

    return X

測驗代碼：

# import tensorflow.compat.v1 as tf
# tf.disable_v2_behavior()

tf.reset_default_graph()

with tf.Session() as test:
    np.random.seed(1)
    A_prev = tf.placeholder("float", [3, 4, 4, 6])
    X = np.random.randn(3, 4, 4, 6)
    A = identity_block(A_prev, f = 2, filters = [2, 4, 6], stage = 1, block = 'a')
    test.run(tf.global_variables_initializer())
    out = test.run([A], feed_dict={A_prev: X, K.learning_phase(): 0})
    print("out = " + str(out[0][1][1][0]))

輸出：

out = [0.19716819 0.         1.3561226  2.1713073  0.         1.3324987 ]

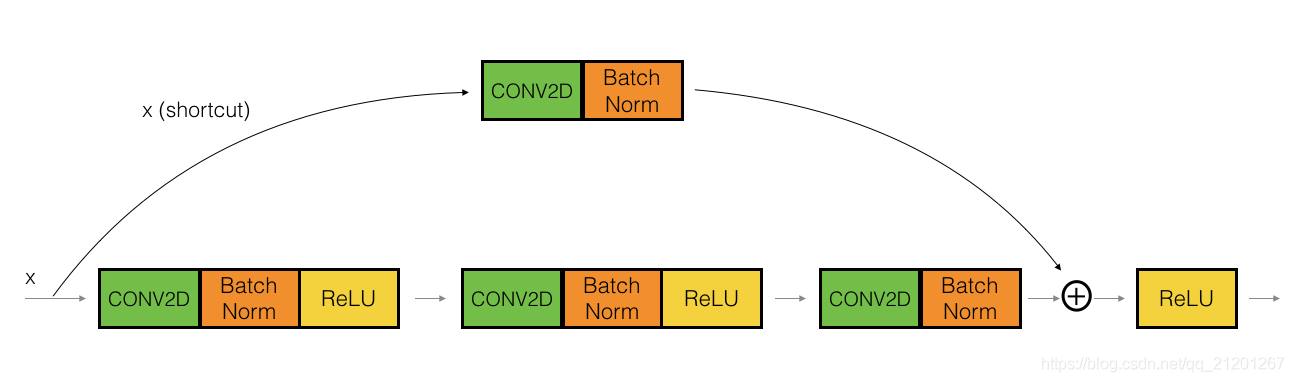

2.2 卷積模塊

該模塊可以適用于：輸入輸出維度不匹配的情況

其 跳躍連接上有一個 CONV2D 卷積層，它沒有使用非線性激活函式，作用是改變輸入的維度，使后面的加法維度匹配

# GRADED FUNCTION: convolutional_block

def convolutional_block(X, f, filters, stage, block, s = 2):
    """
    Implementation of the convolutional block as defined in Figure 4

    Arguments:
    X -- input tensor of shape (m, n_H_prev, n_W_prev, n_C_prev)
    f -- integer, specifying the shape of the middle CONV's window for the main path
    filters -- python list of integers, defining the number of filters in the CONV layers of the main path
    stage -- integer, used to name the layers, depending on their position in the network
    block -- string/character, used to name the layers, depending on their position in the network
    s -- Integer, specifying the stride to be used

    Returns:
    X -- output of the convolutional block, tensor of shape (n_H, n_W, n_C)
    """

    # defining name basis
    conv_name_base = 'res' + str(stage) + block + '_branch'
    bn_name_base = 'bn' + str(stage) + block + '_branch'

    # Retrieve Filters
    F1, F2, F3 = filters

    # Save the input value
    X_shortcut = X


    ##### MAIN PATH #####
    # First component of main path
    X = Conv2D(F1, (1, 1), strides = (s,s), padding = 'valid', name = conv_name_base + '2a', kernel_initializer = glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis = 3, name = bn_name_base + '2a')(X)
    X = Activation('relu')(X)

    ### START CODE HERE ###

    # Second component of main path (≈3 lines)
    X = Conv2D(F2, (f,f), strides=(1,1),padding='same',name=conv_name_base+'2b',kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3, name=bn_name_base+'2b')(X)
    X = Activation('relu')(X)

    # Third component of main path (≈2 lines)
    X = Conv2D(F3,(1,1), strides=(1,1),padding='valid',name=conv_name_base+'2c',kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3, name=bn_name_base+'2c')(X)

    ##### SHORTCUT PATH #### (≈2 lines)
    X_shortcut = Conv2D(F3, (1,1), strides=(s,s),padding='valid',name=conv_name_base+'1',kernel_initializer=glorot_uniform(seed=0))(X_shortcut)
    X_shortcut = BatchNormalization(axis=3, name=bn_name_base+'1')(X_shortcut)

    # Final step: Add shortcut value to main path, and pass it through a RELU activation (≈2 lines)
    X = Add()([X, X_shortcut])
    X = Activation('relu')(X)

    ### END CODE HERE ###

    return X

測驗：

tf.reset_default_graph()

with tf.Session() as test:
    np.random.seed(1)
    A_prev = tf.placeholder("float", [3, 4, 4, 6])
    X = np.random.randn(3, 4, 4, 6)
    A = convolutional_block(A_prev, f = 2, filters = [2, 4, 6], stage = 1, block = 'a')
    test.run(tf.global_variables_initializer())
    out = test.run([A], feed_dict={A_prev: X, K.learning_phase(): 0})
    print("out = " + str(out[0][1][1][0]))

輸出：

out = [0.09018463 1.2348979  0.46822023 0.03671762 0.         0.65516603]

3. 建立你的第一個殘差網路（50層）

模型結構

ID（Identity）恒等模塊，ID BLOCK x3 表示恒等模塊3次

pooling 參考 https://keras.io/zh/layers/pooling/

# GRADED FUNCTION: ResNet50

def ResNet50(input_shape = (64, 64, 3), classes = 6):
    """
    Implementation of the popular ResNet50 the following architecture:
    CONV2D -> BATCHNORM -> RELU -> MAXPOOL -> CONVBLOCK -> IDBLOCK*2 -> CONVBLOCK -> IDBLOCK*3
    -> CONVBLOCK -> IDBLOCK*5 -> CONVBLOCK -> IDBLOCK*2 -> AVGPOOL -> TOPLAYER

    Arguments:
    input_shape -- shape of the images of the dataset
    classes -- integer, number of classes

    Returns:
    model -- a Model() instance in Keras
    """

    # Define the input as a tensor with shape input_shape
    X_input = Input(input_shape)


    # Zero-Padding
    X = ZeroPadding2D((3, 3))(X_input)

    # Stage 1
    X = Conv2D(64, (7, 7), strides = (2, 2), name = 'conv1', kernel_initializer = glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis = 3, name = 'bn_conv1')(X)
    X = Activation('relu')(X)
    X = MaxPooling2D((3, 3), strides=(2, 2))(X)

    # Stage 2
    X = convolutional_block(X, f = 3, filters = [64, 64, 256], stage = 2, block='a', s = 1)
    X = identity_block(X, 3, [64, 64, 256], stage=2, block='b')
    X = identity_block(X, 3, [64, 64, 256], stage=2, block='c')

    ### START CODE HERE ###

    # Stage 3 (≈4 lines)
    X = convolutional_block(X, f=3, filters=[128,128,512], stage=3, block='a', s=2)
    X = identity_block(X, 3, [128,128,512],stage=3, block='b')
    X = identity_block(X, 3, [128,128,512],stage=3, block='c')
    X = identity_block(X, 3, [128,128,512],stage=3, block='d')

    # Stage 4 (≈6 lines)
    X = convolutional_block(X, f=3, filters=[256,256,1024], stage=4, block='a', s=2)
    X = identity_block(X, 3, [256,256,1024],stage=4, block='b')
    X = identity_block(X, 3, [256,256,1024],stage=4, block='c')
    X = identity_block(X, 3, [256,256,1024],stage=4, block='d')
    X = identity_block(X, 3, [256,256,1024],stage=4, block='e')
    X = identity_block(X, 3, [256,256,1024],stage=4, block='f')

    # Stage 5 (≈3 lines)
    X = convolutional_block(X, f=3, filters=[512,512,2048], stage=5, block='a', s=2)
    X = identity_block(X, 3, [512,512,2048], stage=5, block='b')
    X = identity_block(X, 3, [512,512,2048], stage=5, block='c')

    # AVGPOOL (≈1 line). Use "X = AveragePooling2D(...)(X)"
    X = AveragePooling2D(pool_size=(2,2))(X)

    ### END CODE HERE ###

    # output layer
    X = Flatten()(X)
    X = Dense(classes, activation='softmax', name='fc' + str(classes), kernel_initializer = glorot_uniform(seed=0))(X)


    # Create model
    model = Model(inputs = X_input, outputs = X, name='ResNet50')

    return model
  • 建立模型
model = ResNet50(input_shape = (64, 64, 3), classes = 6)
  • 配置模型
model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
  • 資料匯入 + one_hot 編碼
    手勢數字資料集
X_train_orig, Y_train_orig, X_test_orig, Y_test_orig, classes = load_dataset()

# Normalize image vectors
X_train = X_train_orig/255.
X_test = X_test_orig/255.

# Convert training and test labels to one hot matrices
Y_train = convert_to_one_hot(Y_train_orig, 6).T
Y_test = convert_to_one_hot(Y_test_orig, 6).T

print ("number of training examples = " + str(X_train.shape[0]))
print ("number of test examples = " + str(X_test.shape[0]))
print ("X_train shape: " + str(X_train.shape))
print ("Y_train shape: " + str(Y_train.shape))
print ("X_test shape: " + str(X_test.shape))
print ("Y_test shape: " + str(Y_test.shape))

輸出：

number of training examples = 1080
number of test examples = 120
X_train shape: (1080, 64, 64, 3)
Y_train shape: (1080, 6)
X_test shape: (120, 64, 64, 3)
Y_test shape: (120, 6)
  • 訓練（迭代兩次測驗下）
model.fit(X_train, Y_train, epochs = 2, batch_size = 32)

輸出：（損失在下降，準確率在上升）

Epoch 1/2
1080/1080 [==============================]
- 208s 192ms/step - loss: 2.6086 - acc: 0.3037
Epoch 2/2
1080/1080 [==============================]
- 193s 178ms/step - loss: 2.2677 - acc: 0.3972
  • 測驗
preds = model.evaluate(X_test, Y_test)
print ("Loss = " + str(preds[0]))
print ("Test Accuracy = " + str(preds[1]))

輸出：（準確率 19%）

120/120 [==============================] - 5s 38ms/step
Loss = 12.753657023111979
Test Accuracy = 0.19166666467984517

該模型訓練2次效果很差，訓練更多次效果才會好（時間比較久）

老師直接給出了訓練好的模型

model = load_model('ResNet50.h5')

preds = model.evaluate(X_test, Y_test)
print ("Loss = " + str(preds[0]))
print ("Test Accuracy = " + str(preds[1]))

Loss = 0.5301782568295796
Test Accuracy = 0.8666667

老師給的 ResNets 殘差網路 預測準確率為 86.7%
前次作業中 TF 3層網路模型的預測準確率為 72.5%

4. 用自己的照片測驗

import imageio

img_path = 'images/my_image.jpg'
img = image.load_img(img_path, target_size=(64, 64))
x = image.img_to_array(img)
x = np.expand_dims(x, axis=0)
x = preprocess_input(x)
print('Input image shape:', x.shape)
my_image = imageio.imread(img_path)
imshow(my_image)
print("class prediction vector [p(0), p(1), p(2), p(3), p(4), p(5)] = ")
print(model.predict(x))

輸出：

Input image shape: (1, 64, 64, 3)
class prediction vector [p(0), p(1), p(2), p(3), p(4), p(5)] =
[[1. 0. 0. 0. 0. 0.]]

  • 模型結構總結
model.summary()

Model: "ResNet50"
__________________________________________________________________________________________________
Layer (type)                    Output Shape         Param #     Connected to
==================================================================================================
input_1 (InputLayer)            [(None, 64, 64, 3)]  0
__________________________________________________________________________________________________
zero_padding2d_1 (ZeroPadding2D (None, 70, 70, 3)    0           input_1[0][0]
__________________________________________________________________________________________________
conv1 (Conv2D)                  (None, 32, 32, 64)   9472        zero_padding2d_1[0][0]
__________________________________________________________________________________________________
bn_conv1 (BatchNormalization)   (None, 32, 32, 64)   256         conv1[0][0]
__________________________________________________________________________________________________
activation_4 (Activation)       (None, 32, 32, 64)   0           bn_conv1[0][0]
__________________________________________________________________________________________________
max_pooling2d_1 (MaxPooling2D)  (None, 15, 15, 64)   0           activation_4[0][0]
__________________________________________________________________________________________________
res2a_branch2a (Conv2D)         (None, 15, 15, 64)   4160        max_pooling2d_1[0][0]
________________________________________________________________________

省略省略省略省略
省略省略省略省略

add_16 (Add)                    (None, 2, 2, 2048)   0           bn5b_branch2c[0][0]
                                                                 activation_46[0][0]
__________________________________________________________________________________________________
activation_49 (Activation)      (None, 2, 2, 2048)   0           add_16[0][0]
__________________________________________________________________________________________________
res5c_branch2a (Conv2D)         (None, 2, 2, 512)    1049088     activation_49[0][0]
__________________________________________________________________________________________________
bn5c_branch2a (BatchNormalizati (None, 2, 2, 512)    2048        res5c_branch2a[0][0]
__________________________________________________________________________________________________
activation_50 (Activation)      (None, 2, 2, 512)    0           bn5c_branch2a[0][0]
__________________________________________________________________________________________________
res5c_branch2b (Conv2D)         (None, 2, 2, 512)    2359808     activation_50[0][0]
__________________________________________________________________________________________________
bn5c_branch2b (BatchNormalizati (None, 2, 2, 512)    2048        res5c_branch2b[0][0]
__________________________________________________________________________________________________
activation_51 (Activation)      (None, 2, 2, 512)    0           bn5c_branch2b[0][0]
__________________________________________________________________________________________________
res5c_branch2c (Conv2D)         (None, 2, 2, 2048)   1050624     activation_51[0][0]
__________________________________________________________________________________________________
bn5c_branch2c (BatchNormalizati (None, 2, 2, 2048)   8192        res5c_branch2c[0][0]
__________________________________________________________________________________________________
add_17 (Add)                    (None, 2, 2, 2048)   0           bn5c_branch2c[0][0]
                                                                 activation_49[0][0]
__________________________________________________________________________________________________
activation_52 (Activation)      (None, 2, 2, 2048)   0           add_17[0][0]
__________________________________________________________________________________________________
avg_pool (AveragePooling2D)     (None, 1, 1, 2048)   0           activation_52[0][0]
__________________________________________________________________________________________________
flatten_1 (Flatten)             (None, 2048)         0           avg_pool[0][0]
__________________________________________________________________________________________________
fc6 (Dense)                     (None, 6)            12294       flatten_1[0][0]
==================================================================================================
Total params: 23,600,006
Trainable params: 23,546,886
Non-trainable params: 53,120
  • 繪制模型結構圖
plot_model(model, to_file='model.png')
SVG(model_to_dot(model).create(prog='dot', format='svg'))

圖片很長，只截取部分
模型結構圖
參考論文

  • Kaiming He, Xiangyu Zhang, Shaoqing Ren, Jian Sun - Deep Residual Learning for Image Recognition (2015)
  • Francois Chollet’s github repository: https://github.com/fchollet/deep-learning-models/blob/master/resnet50.py

我的CSDN博客地址 https://michael.blog.csdn.net/

長按或掃碼關注我的公眾號（Michael阿明），一起加油、一起學習進步！
Michael阿明

轉載請註明出處，本文鏈接：https://www.uj5u.com/qukuanlian/113404.html

標籤：區塊鏈

上一篇：爬蟲 -- 天天基金網資料簡單爬取

下一篇：深度 |《Wisdom Chain檔案知識庫》之經濟模型

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • JAVA使用 web3j 進行token轉賬

    最近新學習了下區塊鏈這方面的知識，所學不多，給大家分享下。 # 1. 關于web3j web3j是一個高度模塊化，反應性，型別安全的Java和Android庫，用于與智能合約配合并與以太坊網路上的客戶端（節點）集成。 # 2. 準備作業 jdk版本1.8 引入maven <dependency> < ......

    uj5u.com 2020-09-10 03:03:06 more
  • 以太坊智能合約開發框架Truffle

    前言 部署智能合約有多種方式，命令列的瀏覽器的渠道都有，但往往跟我們程式員的風格不太相符，因為我們習慣了在IDE里寫了代碼然后打包運行看效果。 雖然現在IDE中已經存在了Solidity插件，可以撰寫智能合約，但是部署智能合約卻要另走他路，沒辦法進行一個快捷的部署與測驗。 如果團隊管理的區塊節點多、 ......

    uj5u.com 2020-09-10 03:03:12 more
  • 谷歌二次驗證碼成為區塊鏈專用安全碼，你怎么看？

    前言 谷歌身份驗證器，前些年大家都比較陌生，但隨著國內互聯網安全的加強，它越來越多地出現在大家的視野中。 比較廣泛接觸的人群是國際3A游戲愛好者，游戲盜號現象嚴重+國外賬號安全應用廣泛，這類游戲一般都會要求用戶系結名為“兩步驗證”、“雙重驗證”等，平臺一般都推薦用谷歌身份驗證器。 后來區塊鏈業務風靡 ......

    uj5u.com 2020-09-10 03:03:17 more
  • 密碼學DAY1

    目錄 ##1.1 密碼學基本概念 密碼在我們的生活中有著重要的作用，那么密碼究竟來自何方，為何會產生呢？ 密碼學是網路安全、資訊安全、區塊鏈等產品的基礎，常見的非對稱加密、對稱加密、散列函式等，都屬于密碼學范疇。 密碼學有數千年的歷史，從最開始的替換法到如今的非對稱加密演算法，經歷了古典密碼學，近代密 ......

    uj5u.com 2020-09-10 03:03:50 more
  • 密碼學DAY1_02

    目錄 ##1.1 ASCII編碼 ASCII（American Standard Code for Information Interchange，美國資訊交換標準代碼）是基于拉丁字母的一套電腦編碼系統，主要用于顯示現代英語和其他西歐語言。它是現今最通用的單位元組編碼系統，并等同于國際標準ISO/IE ......

    uj5u.com 2020-09-10 03:04:50 more
  • 密碼學DAY2

    ##1.1 加密模式 加密模式：https://docs.oracle.com/javase/8/docs/api/javax/crypto/Cipher.html ECB ECB : Electronic codebook, 電子密碼本. 需要加密的訊息按照塊密碼的塊大小被分為數個塊，并對每個塊進 ......

    uj5u.com 2020-09-10 03:05:42 more
  • NTP時鐘服務器的特點（京準電子）

    NTP時鐘服務器的特點（京準電子） NTP時鐘服務器的特點（京準電子） 京準電子官V——ahjzsz 首先對時間同步進行了背景介紹，然后討論了不同的時間同步網路技術，最后指出了建立全球或區域時間同步網存在的問題。 一、概 述 在通信領域，“同步”概念是指頻率的同步，即網路各個節點的時鐘頻率和相位同步 ......

    uj5u.com 2020-09-10 03:05:47 more
  • 標準化考場時鐘同步系統推進智能化校園建設

    標準化考場時鐘同步系統推進智能化校園建設 標準化考場時鐘同步系統推進智能化校園建設 安徽京準電子科技官微——ahjzsz 一、背景概述隨著教育事業的快速發展，學校建設如雨后春筍，隨之而來的學校教育、管理、安全方面的問題成了學校管理人員面臨的最大的挑戰，這些問題同時也是學生家長所擔心的。為了讓學生有更 ......

    uj5u.com 2020-09-10 03:05:51 more
  • 位元幣入門

    引言 位元幣基本結構 位元幣基礎知識 1）哈希演算法 2）非對稱加密技術 3）數字簽名 4）MerkleTree 5）哪有位元幣，有的是UTXO 6）位元幣挖礦與共識 7）區塊驗證（共識） 總結 引言 上一篇我們已經知道了什么是區塊鏈，此篇說一下區塊鏈的第一個應用——位元幣。其實先有位元幣，后有的區塊 ......

    uj5u.com 2020-09-10 03:06:15 more
  • 北斗對時服務器（北斗對時設備）電力系統應用

    北斗對時服務器（北斗對時設備）電力系統應用 北斗對時服務器（北斗對時設備）電力系統應用 京準電子科技官微（ahjzsz） 中國北斗衛星導航系統（英文名稱：BeiDou Navigation Satellite System，簡稱BDS），因為是目前世界范圍內唯一可以大面積提供免費定位服務的系統，所以 ......

    uj5u.com 2020-09-10 03:06:20 more
最新发布
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:46:47 more
  • Hyperledger Fabric 使用 CouchDB 和復雜智能合約開發

    在上個實驗中，我們已經實作了簡單智能合約實作及客戶端開發，但該實驗中智能合約只有基礎的增刪改查功能，且其中的資料管理功能與傳統 MySQL 比相差甚遠。本文將在前面實驗的基礎上，將 Hyperledger Fabric 的默認資料庫支持 LevelDB 改為 CouchDB 模式，以實作更復雜的資料... ......

    uj5u.com 2023-04-16 07:28:31 more
  • .NET Core 波場鏈離線簽名、廣播交易（發送 TRX和USDT）筆記

    Get Started NuGet You can run the following command to install the Tron.Wallet.Net in your project. PM> Install-Package Tron.Wallet.Net 配置 public reco ......

    uj5u.com 2023-04-14 08:08:00 more
  • DKP 黑客分析——不正確的代幣對比率計算

    概述： 2023 年 2 月 8 日，針對 DKP 協議的閃電貸攻擊導致該協議的用戶損失了 8 萬美元，因為 execute() 函式取決于 USDT-DKP 對中兩種代幣的余額比率。 智能合約黑客概述： 攻擊者的交易：0x0c850f，0x2d31 攻擊者地址：0xF38 利用合同：0xf34ad ......

    uj5u.com 2023-04-07 07:46:09 more
  • Defi開發簡介

    Defi開發簡介 介紹 Defi是去中心化金融的縮寫， 是一項旨在利用區塊鏈技術和智能合約創建更加開放，可訪問和透明的金融體系的運動. 這與傳統金融形成鮮明對比，傳統金融通常由少數大型銀行和金融機構控制 在Defi的世界里，用戶可以直接從他們的電腦或移動設備上訪問廣泛的金融服務，而不需要像銀行或者信 ......

    uj5u.com 2023-04-05 08:01:34 more
  • solidity簡單的ERC20代幣實作

    // SPDX-License-Identifier: GPL-3.0 pragma solidity >=0.7.0 <0.9.0; import "hardhat/console.sol"; //ERC20 同質化代幣，每個代幣的本質或性質都是相同 //ETH 是原生代幣，它不是ERC20代幣, ......

    uj5u.com 2023-03-21 07:56:29 more
  • solidity 參考型別修飾符memory、calldata與storage 常量修飾符C

    在solidity語言中 參考型別修飾符(參考型別為存盤空間不固定的數值型別) memory、calldata與storage,它們只能修飾參考型別變數，比如字串、陣列、位元組等... memory 適用于方法傳參、返參或在方法體內使用，使用完就會清除掉，釋放記憶體 calldata 僅適用于方法傳參 ......

    uj5u.com 2023-03-08 07:57:54 more
  • solidity注解標簽

    在solidity語言中 注釋符為// 注解符為/* 內容*/ 或者 是 ///內容 注解中含有這幾個標簽給予我們使用 @title 一個應該描述合約/介面的標題 contract, library, interface @author 作者的名字 contract, library, interf ......

    uj5u.com 2023-03-08 07:57:49 more
  • 評價指標：相似度、GAS消耗

    【代碼注釋自動生成方法綜述】 這些評測指標主要來自機器翻譯和文本總結等研究領域,可以評估候選文本(即基于代碼注釋自動方法而生成)和參考文本(即基于手工方式而生成)的相似度. BLEU指標^[^?88^^?^]^:其全稱是bilingual evaluation understudy.該指標是最早用于 ......

    uj5u.com 2023-02-23 07:27:39 more
  • 基于NOSTR協議的“公有制”版本的Twitter,去中心化社交軟體Damus

    最近，一個幽靈，Web3的幽靈，在網路游蕩，它叫Damus，這玩意詮釋了什么叫做病毒式營銷，滑稽的是，一個Web3產品卻在Web2的產品鏈上瘋狂傳銷，各方大佬紛紛為其背書，到底發生了什么？Damus的葫蘆里，賣的是什么藥？ 注冊和簡單實用 很少有什么產品在用戶注冊環節會有什么噱頭，但Damus確實出 ......

    uj5u.com 2023-02-05 06:48:39 more

Copyright © 2010-2020 有解無憂
