前言
一、實作方式
二、HandlerInterceptor 方法介紹
三、攔截器（Interceptor）實作
- 3.1 實作HandlerInterceptor
- 3.2 繼承HandlerInterceptorAdapter
四、配置器（WebMvcConfigurer）實作
- 4.1 實作WebMvcConfigurer（推薦）
- 4.2 繼承WebMvcConfigurationSupport
五、其他主要輔助類
- 5.1 用戶背景關系類
- 5.2 校驗訪問權限注解
- 5.3 用戶背景關系操作類
- 5.4 方法引數決議器類
六、測驗驗證
七、Github專案

前言

平常專案開發程序中，會遇到登錄攔截，權限校驗，引數處理，防重復提交等問題，那攔截器就能幫我們統一處理這些問題，

一、實作方式

1.1 自定義攔截器

自定義攔截器，即攔截器的實作類，一般有兩種自定義方式：

定義一個類，實作org.springframework.web.servlet.HandlerInterceptor介面，
定義一個類，繼承已實作了HandlerInterceptor介面的類，例如org.springframework.web.servlet.handler.HandlerInterceptorAdapter抽象類，

1.2 添加Interceptor攔截器到WebMvcConfigurer配置器中

自定義配置器，然后實作WebMvcConfigurer配置器，

以前一般繼承org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter類，不過SrpingBoot 2.0以上WebMvcConfigurerAdapter類就過時了，有以下2中替代方法：

直接實作org.springframework.web.servlet.config.annotation.WebMvcConfigurer介面，（推薦）
繼承org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport類，但是繼承WebMvcConfigurationSupport會讓SpringBoot對mvc的自動配置失效，不過目前大多數專案是前后端分離，并沒有對靜態資源有自動配置的需求，所以繼承WebMvcConfigurationSupport也未嘗不可，

二、HandlerInterceptor 方法介紹

preHandle：預處理，在業務處理器處理請求之前被呼叫，可以進行登錄攔截，編碼處理、安全控制、權限校驗等處理；

default boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
	return true;
}

postHandle：后處理，在業務處理器處理請求執行完成后，生成視圖之前被呼叫，即呼叫了Service并回傳ModelAndView，但未進行頁面渲染，可以修改ModelAndView，這個比較少用，

default void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable ModelAndView modelAndView) throws Exception {
}

afterCompletion：回傳處理，在DispatcherServlet完全處理完請求后被呼叫，可用于清理資源等，已經渲染了頁面，

default void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable Exception ex) throws Exception {
}

三、攔截器（Interceptor）實作

3.1 實作HandlerInterceptor

此攔截器演示了通過注解形式，對用戶權限進行攔截校驗，

package com.nobody.interceptor;

import com.nobody.annotation.UserAuthenticate;
import com.nobody.context.UserContext;
import com.nobody.context.UserContextManager;
import com.nobody.exception.RestAPIError;
import com.nobody.exception.RestException;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * @Description
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Slf4j
@Component
public class UserPermissionInterceptor implements HandlerInterceptor {

    private UserContextManager userContextManager;

    @Autowired
    public void setContextManager(UserContextManager userContextManager) {
        this.userContextManager = userContextManager;
    }

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response,
            Object handler) {

        log.info(">>> UserPermissionInterceptor preHandle -- ");

        if (handler instanceof HandlerMethod) {
            HandlerMethod handlerMethod = (HandlerMethod) handler;

            // 獲取用戶權限校驗注解(優先獲取方法，無則再從類獲取)
            UserAuthenticate userAuthenticate =
                    handlerMethod.getMethod().getAnnotation(UserAuthenticate.class);
            if (null == userAuthenticate) {
                userAuthenticate = handlerMethod.getMethod().getDeclaringClass()
                        .getAnnotation(UserAuthenticate.class);
            }
            if (userAuthenticate != null && userAuthenticate.permission()) {
                // 獲取用戶資訊
                UserContext userContext = userContextManager.getUserContext(request);
                // 權限校驗
                if (userAuthenticate.type() != userContext.getType()) {
                    // 如若不拋出例外，也可回傳false
                    throw new RestException(RestAPIError.AUTH_ERROR);
                }
            }
        }
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
            ModelAndView modelAndView) {
        log.info(">>> UserPermissionInterceptor postHandle -- ");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response,
            Object handler, Exception ex) {
        log.info(">>> UserPermissionInterceptor afterCompletion -- ");
    }
}

3.2 繼承HandlerInterceptorAdapter

package com.nobody.interceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Component;

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.handler.HandlerInterceptorAdapter;

/**
 * @Description
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Slf4j
@Component
public class UserPermissionInterceptorAdapter extends HandlerInterceptorAdapter {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response,
            Object handler) {
        log.info(">>> UserPermissionInterceptorAdapter preHandle -- ");
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
            ModelAndView modelAndView) {
        log.info(">>> UserPermissionInterceptorAdapter postHandle -- ");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response,
            Object handler, Exception ex) {
        log.info(">>> UserPermissionInterceptorAdapter afterCompletion -- ");
    }
}

四、配置器（WebMvcConfigurer）實作

4.1 實作WebMvcConfigurer（推薦）

package com.nobody.config;

import com.nobody.context.UserContextResolver;
import com.nobody.interceptor.UserPermissionInterceptor;
import com.nobody.interceptor.UserPermissionInterceptorAdapter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.method.support.HandlerMethodArgumentResolver;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

import java.util.List;

/**
 * @Description
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Configuration
public class WebAppConfigurer implements WebMvcConfigurer {

    private UserPermissionInterceptor userPermissionInterceptor;

    private UserPermissionInterceptorAdapter userPermissionInterceptorAdapter;

    private UserContextResolver userContextResolver;

    @Autowired
    public void setUserPermissionInterceptor(UserPermissionInterceptor userPermissionInterceptor) {
        this.userPermissionInterceptor = userPermissionInterceptor;
    }

    @Autowired
    public void setUserPermissionInterceptorAdapter(
            UserPermissionInterceptorAdapter userPermissionInterceptorAdapter) {
        this.userPermissionInterceptorAdapter = userPermissionInterceptorAdapter;
    }

    @Autowired
    public void setUserContextResolver(UserContextResolver userContextResolver) {
        this.userContextResolver = userContextResolver;
    }

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 可以添加多個攔截器，一般只添加一個
        // addPathPatterns("/**") 表示對所有請求都攔截
        // .excludePathPatterns("/base/index") 表示排除對/base/index請求的攔截
        // 多個攔截器可以設定order順序，值越小，preHandle越先執行，postHandle和afterCompletion越后執行
        // order默認的值是0，如果只添加一個攔截器，可以不顯示設定order的值
        registry.addInterceptor(userPermissionInterceptor).addPathPatterns("/**")
                .excludePathPatterns("/base/index").order(0);
        // registry.addInterceptor(userPermissionInterceptorAdapter).addPathPatterns("/**")
        // .excludePathPatterns("/base/index").order(1);
    }

    @Override
    public void addArgumentResolvers(List<HandlerMethodArgumentResolver> resolvers) {
        resolvers.add(userContextResolver);
    }
}

4.2 繼承WebMvcConfigurationSupport

package com.nobody.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

import com.nobody.interceptor.UserPermissionInterceptor;
import com.nobody.interceptor.UserPermissionInterceptorAdapter;

/**
 * @Description
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Configuration
public class WebAppConfigurerSupport extends WebMvcConfigurationSupport {

    @Autowired
    private UserPermissionInterceptor userPermissionInterceptor;

    // @Autowired
    // private UserPermissionInterceptorAdapter userPermissionInterceptorAdapter;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 可以添加多個攔截器，一般只添加一個
        // addPathPatterns("/**") 表示對所有請求都攔截
        // .excludePathPatterns("/base/index") 表示排除對/base/index請求的攔截
        registry.addInterceptor(userPermissionInterceptor).addPathPatterns("/**")
                .excludePathPatterns("/base/index");
        // registry.addInterceptor(userPermissionInterceptorAdapter).addPathPatterns("/**")
        // .excludePathPatterns("/base/index");
    }
}

五、其他主要輔助類

5.1 用戶背景關系類

package com.nobody.context;

import com.nobody.enums.AuthenticationTypeEnum;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

/**
 * @Description 用戶背景關系
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Getter
@Setter
@ToString
public class UserContext {
    // 用戶名稱
    private String name;
    // 用戶ID
    private String userId;
    // 用戶型別
    private AuthenticationTypeEnum type;
}

5.2 校驗訪問權限注解

package com.nobody.annotation;

import com.nobody.enums.AuthenticationTypeEnum;

import java.lang.annotation.*;

/**
 * @Description 校驗訪問權限注解
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
public @interface UserAuthenticate {
    /**
     * 是否需要校驗訪問權限 默認不校驗
     *
     * @return
     */
    boolean permission() default false;

    /**
     * 驗證型別，默認游客
     *
     * @return
     */
    AuthenticationTypeEnum type() default AuthenticationTypeEnum.VISITOR;
}

5.3 用戶背景關系操作類

package com.nobody.context;

import com.nobody.enums.AuthenticationTypeEnum;
import com.nobody.exception.RestAPIError;
import com.nobody.exception.RestException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;

import javax.servlet.http.Cookie;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Objects;
import java.util.UUID;

/**
 * @Description 用戶背景關系操作類
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Component
public class UserContextManager {

    private static final String COOKIE_KEY = "__userToken";

    // @Autowired
    // private RedisService redisService;

    /**
     * 獲取用戶背景關系資訊
     *
     * @param request
     * @return
     */
    public UserContext getUserContext(HttpServletRequest request) {
        String userToken = getUserToken(request, COOKIE_KEY);
        if (!StringUtils.isEmpty(userToken)) {
            // 從快取或者第三方獲取用戶資訊
            // String userContextStr = redisService.getString(userToken);
            // if (!StringUtils.isEmpty(userContextStr)) {
            // return JSON.parseObject(userContextStr, UserContext.class);
            // }
            // 因為演示，沒集成Redis，故簡單new物件
            UserContext userContext = new UserContext();
            userContext.setName("Mr.nobody");
            userContext.setUserId("0000001");
            userContext.setType(AuthenticationTypeEnum.ADMIN);
            return userContext;
        }
        throw new RestException(RestAPIError.AUTH_ERROR);
    }

    public String getUserToken(HttpServletRequest request, String cookieKey) {
        Cookie[] cookies = request.getCookies();
        if (null != cookies) {
            for (Cookie cookie : cookies) {
                if (Objects.equals(cookie.getName(), cookieKey)) {
                    return cookie.getValue();
                }
            }
        }
        return null;
    }

    /**
     * 保存用戶背景關系資訊
     *
     * @param response
     * @param userContextStr
     */
    public void saveUserContext(HttpServletResponse response, String userContextStr) {
        // 用戶token實際根據自己業務進行生成，此處簡單用UUID
        String userToken = UUID.randomUUID().toString();
        // 設定cookie
        Cookie cookie = new Cookie(COOKIE_KEY, userToken);
        cookie.setPath("/");
        response.addCookie(cookie);
        // redis快取
        // redisService.setString(userToken, userContextStr, 3600);
    }

}

5.4 方法引數決議器類

package com.nobody.context;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.MethodParameter;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.support.WebDataBinderFactory;
import org.springframework.web.context.request.NativeWebRequest;
import org.springframework.web.method.support.HandlerMethodArgumentResolver;
import org.springframework.web.method.support.ModelAndViewContainer;

import javax.servlet.http.HttpServletRequest;

/**
 * @Description 對有UserContext引數的介面，進行攔截注入用戶資訊
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@Component
@Slf4j
public class UserContextResolver implements HandlerMethodArgumentResolver {

    @Autowired
    private UserContextManager userContextManager;

    @Override
    public Object resolveArgument(MethodParameter parameter, ModelAndViewContainer mavContainer,
            NativeWebRequest webRequest, WebDataBinderFactory binderFactory) {
        log.info(">>> resolveArgument -- begin...");
        HttpServletRequest request = webRequest.getNativeRequest(HttpServletRequest.class);
        // 從快取獲取用戶資訊賦值到介面引數中
        return userContextManager.getUserContext(request);
    }

    /**
     * 只對UserContext引數進行攔截賦值
     *
     * @param methodParameter
     * @return
     */
    @Override
    public boolean supportsParameter(MethodParameter methodParameter) {
        if (methodParameter.getParameterType().equals(UserContext.class)) {
            return true;
        }
        return false;
    }
}

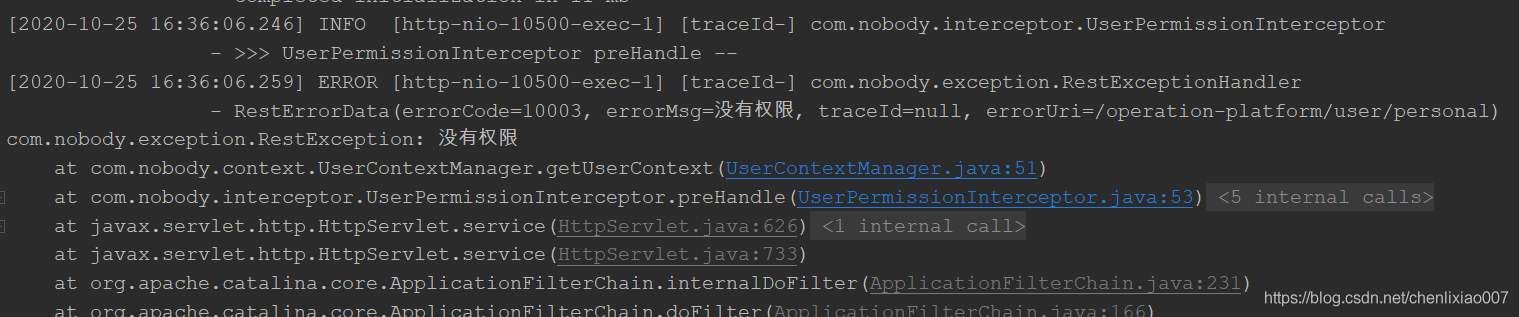

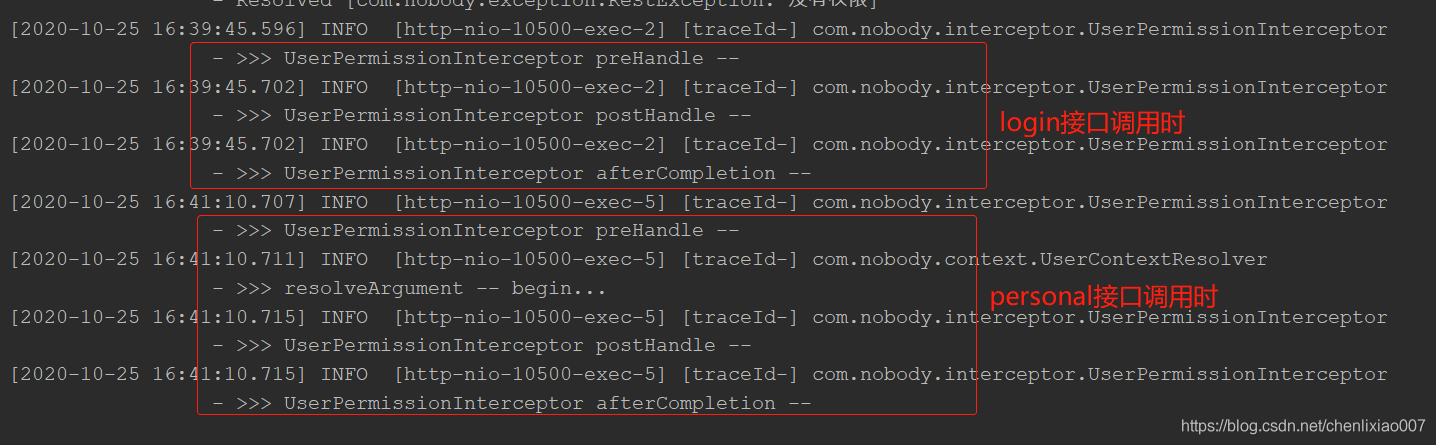

六、測驗驗證

package com.nobody.controller;

import com.alibaba.fastjson.JSON;
import com.nobody.annotation.UserAuthenticate;
import com.nobody.context.UserContext;
import com.nobody.context.UserContextManager;
import com.nobody.enums.AuthenticationTypeEnum;
import com.nobody.pojo.model.GeneralResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletResponse;

/**
 * @Description
 * @Author Mr.nobody
 * @Date 2020/10/25
 * @Version 1.0
 */
@RestController
@RequestMapping("user")
public class UserController {

    @Autowired
    private UserContextManager userContextManager;

    @GetMapping("login")
    public GeneralResult<UserContext> doLogin(HttpServletResponse response) {
        UserContext userContext = new UserContext();
        userContext.setUserId("0000001");
        userContext.setName("Mr.nobody");
        userContext.setType(AuthenticationTypeEnum.ADMIN);
        userContextManager.saveUserContext(response, JSON.toJSONString(userContext));
        return GeneralResult.genSuccessResult(userContext);
    }

    @GetMapping("personal")
    @UserAuthenticate(permission = true, type = AuthenticationTypeEnum.ADMIN)
    public GeneralResult<UserContext> getPersonInfo(UserContext userContext) {
        return GeneralResult.genSuccessResult(userContext);
    }
}
