移動應用開發

Activity組件通信

一、實驗目的及要求：
（1） 掌握顯示啟動和隱式啟動的方式
（2） 掌握Activity間的資料通信

二、實驗內容及步驟任務：根據下述要求實作對應程式

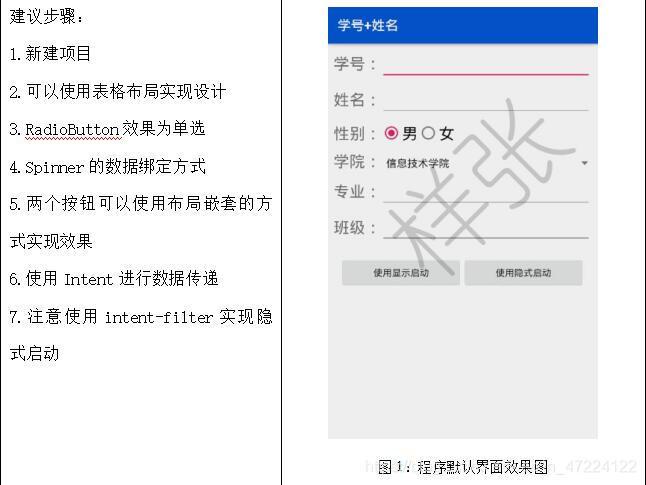

1、 完成啟動界面的設計，要求采用合理布局，使界面效果與圖1所示結果保持一致，
（ “男”單選按鈕默認選中，學院下拉串列框的內容為：資訊技術學院、外國語學院、機電學院、商學院、藝術設計學院、珠寶學院、新聞傳播學院）；左列標簽名字體大小為24sp；點擊“使用顯示啟動”按鈕和“使用隱式啟動”按鈕，均能跳轉至界面
2，如圖2所示，前者使用顯示啟動方式，后者使用隱式啟動方式，兩種啟動方式均將界面1中的資料傳遞至界面2中，

界面布局代碼：

<LinearLayout
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <TextView
        android:text="學號："
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <EditText
        android:id="@+id/cdy1"
        android:text="  "
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

<LinearLayout
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">
    <TextView
        android:text="姓名:"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        />
    <EditText
        android:id="@+id/cdy2"
        android:text="  "
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

<RadioGroup
    android:id="@+id/rg"
    android:orientation="horizontal"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">
    <TextView
        android:text="性別："
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <RadioButton
        android:id="@+id/rb1"
        android:text="男"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <RadioButton
        android:id="@+id/rb2"
        android:text="女"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

</RadioGroup>

<LinearLayout
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">
    <TextView
        android:text="學院"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <Spinner
        android:id="@+id/sp1"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:prompt="@string/info"
        android:entries="@array/xueyuan">

    </Spinner>

</LinearLayout>

<LinearLayout
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">
    <TextView
        android:text="專業:"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <EditText
        android:id="@+id/cdy3"
        android:text="  "
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

<LinearLayout
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">
    <TextView
        android:text="班級:"
        android:textSize="24sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <EditText
        android:id="@+id/cdy4"
        android:text="  "
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">
    <Button
        android:id="@+id/bt1"
        android:text="使用顯示啟動"
        android:textSize="22sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <Button
        android:id="@+id/bt2"
        android:text="隱式"
        android:textSize="22sp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

</LinearLayout>

JAVA代碼：
package com.example.myapplication;

import android.content.Intent;
import android.support.v7.app.ActionBarActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.EditText;
import android.widget.RadioGroup;
import android.widget.Spinner;

public class MainActivity extends ActionBarActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    Spinner spinner= (Spinner) findViewById(R.id.sp1);
    final EditText editText1=(EditText)findViewById(R.id.cdy1);
    final EditText editText2=(EditText)findViewById(R.id.cdy2);
    final EditText editText3=(EditText)findViewById(R.id.cdy3);
    final EditText editText4=(EditText)findViewById(R.id.cdy4);
    final Spinner spinner1=(Spinner)findViewById(R.id.sp1);
    String array[]={"資訊技術學院","外國語學院","機電學院","商學院","藝術設計學院","珠寶學院","新聞傳播學院"};
    ArrayAdapter<String>arrayAdapter1=new ArrayAdapter<String>(this,R.layout.support_simple_spinner_dropdown_item,array);
    spinner.setAdapter(arrayAdapter1);
    Button bt1=(Button)findViewById(R.id.bt1);
    bt1.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View view) {
            String string1 = editText1.getText().toString();
            String string2 = editText2.getText().toString();
            String string3 = editText3.getText().toString();
            String string4 = editText4.getText().toString();
            String string5 = spinner1.getSelectedItem().toString();
            Intent intent = new Intent(MainActivity.this, Main2Activity.class);
            RadioGroup radioGroup = (RadioGroup) findViewById(R.id.rg);
            switch (radioGroup.getCheckedRadioButtonId()) {
                case R.id.rb1:
                    intent.putExtra("data6", "男");
                    break;
                case R.id.rb2:
                    intent.putExtra("data6", "女");
                    break;
            }
            intent.putExtra("data1", string1);
            intent.putExtra("data2", string2);
            intent.putExtra("data3", string3);
            intent.putExtra("data4", string4);
            intent.putExtra("data5", string5);

            startActivity(intent);


        }
    });//隱式


    Button bt2=(Button)findViewById(R.id.bt2);
    bt2.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            Intent intent =new Intent();
            //對應AndroidManifest.xml
            String string1 = editText1.getText().toString();
            String string2 = editText2.getText().toString();
            String string3 = editText3.getText().toString();
            String string4 = editText4.getText().toString();
           String string5=spinner1.getSelectedItem().toString();
            Intent intent1 = new Intent(MainActivity.this,Main2Activity.class);
            RadioGroup rg =(RadioGroup) findViewById(R.id.rg);
            switch(rg.getCheckedRadioButtonId()) {
                case R.id.rb1:
                    intent1.putExtra("data6", "男");
                    break;
                case R.id.rb2:
                    intent1.putExtra("data6", "女");
                    break;

            }


            intent1.putExtra("data1", string1);
            intent1.putExtra("data2", string2);
            intent1.putExtra("data3", string3);
            intent1.putExtra("data4", string4);
            intent1.putExtra("data5", string5);


            startActivity(intent1);
            intent1.setAction("text.example1.com");
            startActivity(intent1);
        }
    });

}
@Override
protected void onStart(){
    super.onStart();
    Log.i("main", "onstart");
}

@Override
protected void onRestart(){
    super.onRestart();
    Log.i("main","Restart");
}
@Override
protected void onResume(){
    super.onResume();
    Log.i("main","onResume");
}
@Override
protected void onPause(){
    super.onPause();
    Log.i("main","onPause");
}
@Override
protected void onStop(){
    super.onStop();
    Log.i("main","onStop");
}
@Override
protected void onDestroy() {
    super.onDestroy();
    Log.i("main", "onStop");
}

}

2、 點擊界面1中的按鈕后，跳轉至界面2，將界面1中輸入的內容傳遞至界面2的ListView中顯示，效果如圖2所示，（要求：串列文字大小為28sp，圖片使用Vector格式，從上到下依次使用credit_card_black，account_box_black，wc_black，account_balance_black，school_black，assignment_ind_black）

界面布局代碼：

Java代碼：
package com.example.myapplication;

import android.support.v7.app.ActionBarActivity;
import android.content.Intent;
import android.os.Bundle;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class Main2Activity extends ActionBarActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main2);
    ListView listView = (ListView)findViewById(R.id.lvdata1);
    List<Map<String,Object>> lisetdata=new ArrayList<>();
    Map<String,Object> map1= new HashMap<>();
    Map<String,Object> map2= new HashMap<>();
    Map<String,Object> map3= new HashMap<>();
    Map<String,Object> map4= new HashMap<>();
    Map<String,Object> map5= new HashMap<>();
    Map<String,Object> map6= new HashMap<>();

    Intent intent = getIntent();
    map1.put("txt",intent.getStringExtra("data1"));
    map2.put("txt",intent.getStringExtra("data2"));
    map3.put("txt",intent.getStringExtra("data3"));
    map4.put("txt",intent.getStringExtra("data4"));
    map5.put("txt",intent.getStringExtra("data5"));
    map6.put("txt",intent.getStringExtra("data6"));
    map1.put("img",R.drawable.ic_3d_rotation_24dp);
    map2.put("img",R.drawable.ic_account_balance_24dp);
    map3.put("img",R.drawable.ic_assignment_late_24dp);
    map4.put("img",R.drawable.ic_credit_card_24dp);
    map5.put("img",R.drawable.ic_description_24dp);
    map6.put("img",R.drawable.ic_extension_24dp);
    lisetdata.add(map1);
    lisetdata.add(map2);
    lisetdata.add(map3);
    lisetdata.add(map4);
    lisetdata.add(map5);
    lisetdata.add(map6);


    SimpleAdapter simpleAdapter=new SimpleAdapter(Main2Activity.this,lisetdata,R.layout.listitern,new String[]{"txt","img"},new int[]{R.id.itemtxt,R.id.iteming});
    listView.setAdapter(simpleAdapter);


}

}

注冊表代碼：

<application
    android:allowBackup="true"
    android:icon="@mipmap/ic_launcher"
    android:label="@string/app_name"
    android:roundIcon="@mipmap/ic_launcher_round"
    android:supportsRtl="true"
    android:theme="@style/AppTheme">
    <activity android:name=".MainActivity2">
        <intent-filter>
            <action android:name="test.example1.com"></action>
            <category android:name="android.intent.category.DEFAULT"></category>
        </intent-filter>
    </activity>
    <activity android:name=".MainActivity">
        <intent-filter>
            <action android:name="android.intent.action.MAIN" />

            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>
    </activity>
</application>
