1.匯入依賴

fl_chart: ^0.12.2

如果你想進一步了解這個插件的話，可以去看一下它的原始碼，框架地址

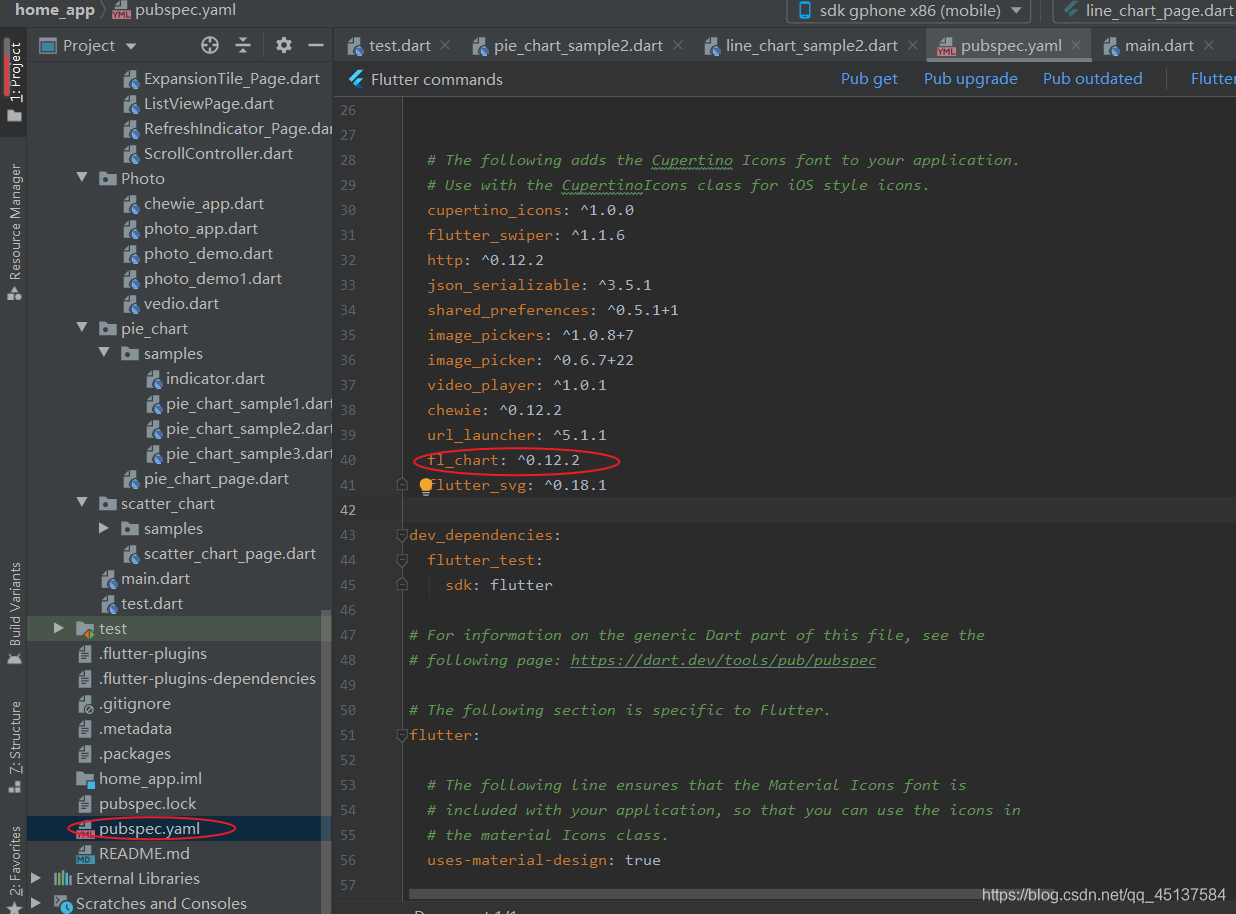

關于如何匯入依賴步驟如圖所示：
pubspec.yaml檔案->在dependencies下面添加依賴->點擊pub get

2.折線圖

1.一條折線圖

1.效果圖

2.主要代碼

import 'package:fl_chart/fl_chart.dart';
import 'package:flutter/material.dart';

void main(){
  runApp(
    MaterialApp(home: LineChartSample2(),)
  );
}

class LineChartSample2 extends StatefulWidget {
  @override
  _LineChartSample2State createState() => _LineChartSample2State();
}

class _LineChartSample2State extends State<LineChartSample2> {
  List<Color> gradientColors = [
    const Color(0xff23b6e6),
    const Color(0xff02d39a),
  ];

  @override
  Widget build(BuildContext context) {
    return Center(
      child: Stack(
        children: <Widget>[
          Container(
            decoration: const BoxDecoration(
                borderRadius: BorderRadius.all(
                  Radius.circular(18),
                ),
                color: Color(0xff232d37)),
            child: Padding(
              padding: const EdgeInsets.only(right: 12.0, left: 12.0, top: 24, bottom: 12),
              child: LineChart(
                mainData(),
              ),
            ),
          ),
          Positioned(
            top: 5,
            left: 5,
            child: Text(
              '訪問量',
              style: TextStyle(
                  fontSize: 12, color: Colors.white,decoration: TextDecoration.none),
            ),
          )
        ],
      ),
    );
  }

  LineChartData mainData() {
    return LineChartData(
      gridData: FlGridData(
        show: true,
        drawVerticalLine: true,
        getDrawingHorizontalLine: (value) {
          return FlLine(
            color: const Color(0xff37434d),
            strokeWidth: 1,
          );
        },
        getDrawingVerticalLine: (value) {
          return FlLine(
            color: const Color(0xff37434d),
            strokeWidth: 1,
          );
        },
      ),
      titlesData: FlTitlesData(
        show: true,
        bottomTitles: SideTitles(
          showTitles: true,
          reservedSize: 22,
          getTextStyles: (value) =>
          const TextStyle(color: Color(0xff68737d), fontWeight: FontWeight.bold, fontSize: 16),
          getTitles: (value) {
            if(value.toInt()%2==0){
              return value.toInt().toString()+'月';
            }
            return '';
          },
          margin: 8,
        ),
        leftTitles: SideTitles(
          showTitles: true,
          getTextStyles: (value) => const TextStyle(
            color: Color(0xff67727d),
            fontWeight: FontWeight.bold,
            fontSize: 15,
          ),
          getTitles: (value) {
            switch (value.toInt()) {
              case 1:
                return '10k';
              case 3:
                return '30k';
              case 5:
                return '50k';
            }
            return '';
          },
          reservedSize: 28,
          margin: 12,
        ),
      ),
      borderData:
      FlBorderData(show: true, border: Border.all(color: const Color(0xff37434d), width: 1)),
      minX: 0,
      maxX: 11,
      minY: 0,
      maxY: 6,
      lineBarsData:linesBarData1(),
    );
  }




  List<LineChartBarData> linesBarData1() {
    final LineChartBarData lineChartBarData1 = LineChartBarData(
      spots: [
        FlSpot(0, 3),
        FlSpot(2.6, 2),
        FlSpot(4.9, 5),
        FlSpot(6.8, 3.1),
        FlSpot(8, 4),
        FlSpot(9.5, 3),
        FlSpot(11, 4),
      ],
      isCurved: true,
      colors: gradientColors,
      barWidth: 5,
      isStrokeCapRound: true,
      dotData: FlDotData(
        show: false,
      ),
      belowBarData: BarAreaData(
        show: true,
        colors: gradientColors.map((color) => color.withOpacity(0.3)).toList(),
      ),
    );
    return [lineChartBarData1];
  }
}

3.代碼決議

LineChartData的屬性：

gridData的屬性：

titilesData的屬性：

LineChartBarData的屬性：

2.多條折線圖

效果如圖所示：

實作起來比較簡單，代碼如下：

 List<LineChartBarData> linesBarData1() {
    final LineChartBarData lineChartBarData1 = LineChartBarData(
      spots: [
        FlSpot(0, 3),
        FlSpot(2.6, 2),
        FlSpot(4.9, 5),
        FlSpot(6.8, 3.1),
        FlSpot(8, 4),
        FlSpot(9.5, 3),
        FlSpot(11, 4),
      ],
      isCurved: true,
      colors: gradientColors,
      barWidth: 5,
      isStrokeCapRound: true,
      dotData: FlDotData(
        show: false,
      ),
      belowBarData: BarAreaData(
        show: true,
        colors: gradientColors.map((color) => color.withOpacity(0.3)).toList(),
      ),
    );
    final LineChartBarData lineChartBarData2 = LineChartBarData(
      spots: [
        FlSpot(0, 1),
        FlSpot(2.6, 2.8),
        FlSpot(4.9, 1.2),
        FlSpot(6.8, 2.8),
        FlSpot(8, 2.6),
        FlSpot(9.5, 3.9),
        FlSpot(11, 3),
      ],
      isCurved: true,
      colors: [
        const Color(0xffaa4cfc),
      ],
      barWidth: 5,
      isStrokeCapRound: true,
      dotData: FlDotData(
        show: false,
      ),
      belowBarData: BarAreaData(show: true,
          colors: gradientColors.map((color) => color.withOpacity(0.3)).toList(),
      ),
    );
    return [lineChartBarData1,lineChartBarData2];

就是在原來的基礎上，多添加一個LineChartBarData曲線，
