1.匯入依賴

fl_chart: ^0.12.2

如果你想進一步了解這個插件的話，可以去看一下它的原始碼，框架地址

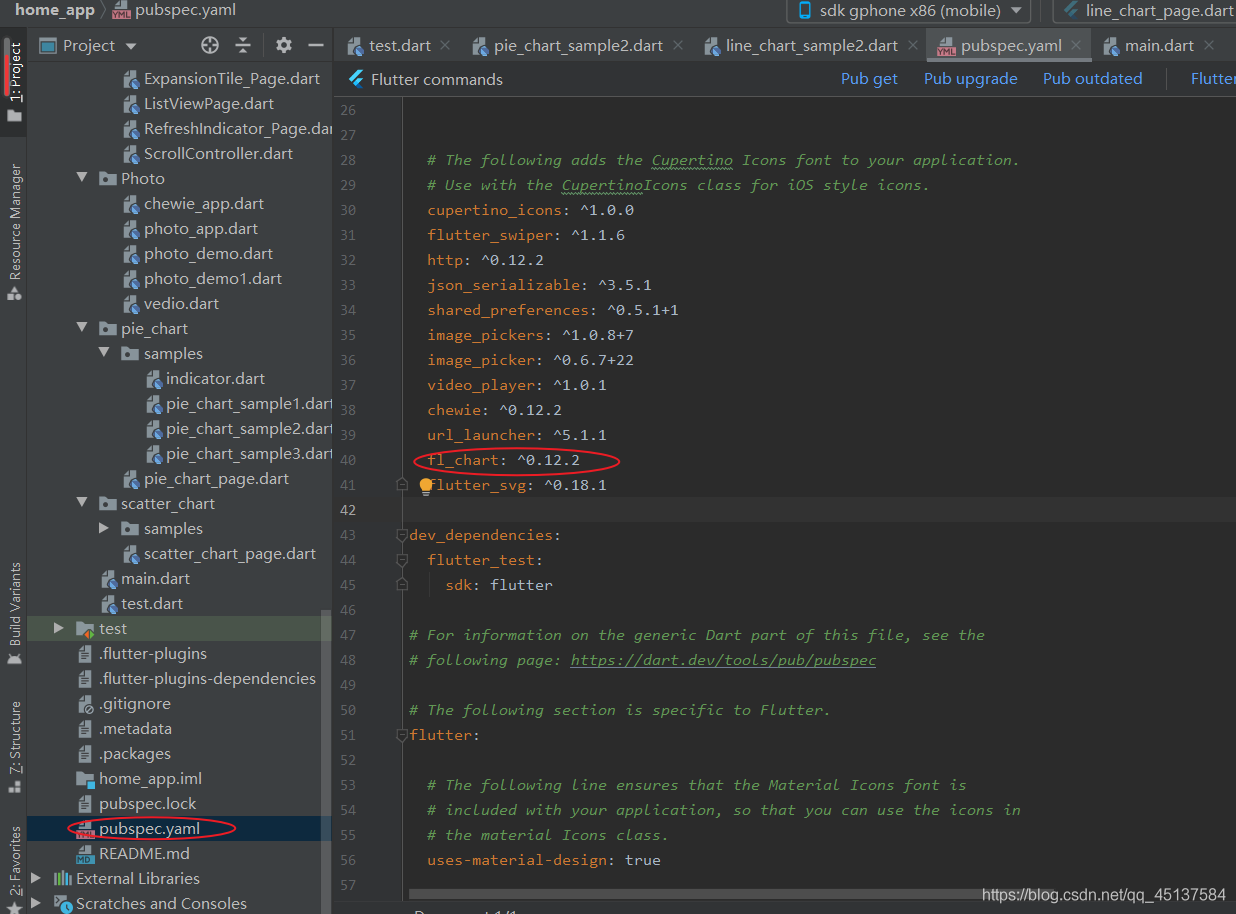

關于如何匯入依賴步驟如圖所示：
pubspec.yaml檔案->在dependencies下面添加依賴->點擊pub get

2.餅圖

1.效果圖

廢話少說，先看一下效果

2.所有代碼

import 'package:fl_chart/fl_chart.dart';
import 'package:flutter/material.dart';

import 'indicator.dart';

void main(){
  runApp(MaterialApp(
    home: PieChartSample2(),
  ));
}


class PieChartSample2 extends StatefulWidget {
  @override
  State<StatefulWidget> createState() => PieChart2State();
}

class PieChart2State extends State {
  int touchedIndex;

  @override
  Widget build(BuildContext context) {
    return Container(
      height: 100,
      child:Card(
        elevation: 5,//陰影
        shape: const RoundedRectangleBorder(//形狀
          //修改圓角
          borderRadius: BorderRadius.all(Radius.circular(10)),
        ),
        color: Colors.white,
        child: Row(
          children: <Widget>[
            const SizedBox(
              height: 18,
            ),
            Expanded(
              child: AspectRatio(
                aspectRatio: 1,
                child: PieChart(
                  PieChartData(
                      pieTouchData: PieTouchData(touchCallback: (pieTouchResponse) {
                        setState(() {
                          if (pieTouchResponse.touchInput is FlLongPressEnd ||
                              pieTouchResponse.touchInput is FlPanEnd) {
                            touchedIndex = -1;
                          } else {
                            touchedIndex = pieTouchResponse.touchedSectionIndex;
                          }
                        });
                      }),
                      borderData: FlBorderData(
                        show: false,
                      ),
                      sectionsSpace: 0,
                      centerSpaceRadius: 40,
                      sections: showingSections()),
                ),
              ),
            ),
            Column(
              mainAxisSize: MainAxisSize.max,
              mainAxisAlignment: MainAxisAlignment.center,
              crossAxisAlignment: CrossAxisAlignment.start,
              children:<Widget>[
                Indicator(
                  color: Color(0xff0293ee),
                  text: 'First',
                  isSquare: true,
                ),
                SizedBox(
                  height: 4,
                ),
                Indicator(
                  color: Color(0xfff8b250),
                  text: 'Second',
                  isSquare: true,
                ),
                SizedBox(
                  height: 4,
                ),
                Indicator(
                  color: Color(0xff845bef),
                  text: 'Third',
                  isSquare: true,
                ),
                SizedBox(
                  height: 4,
                ),
                Indicator(
                  color: Color(0xff13d38e),
                  text: 'Fourth',
                  isSquare: true,
                ),
                SizedBox(
                  height: 18,
                ),
              ],
            ),
            const SizedBox(
              width: 28,
            ),
          ],
        ),
      ),
    );
  }

  List<PieChartSectionData> showingSections() {
    return List.generate(4, (i) {
      final isTouched = i == touchedIndex;
      final double fontSize = isTouched ? 25 : 16;
      final double radius = isTouched ? 60 : 50;
      switch (i) {
        case 0:
          return PieChartSectionData(
            color: const Color(0xff0293ee),
            value: 40,
            title: '40%',
            radius: radius,
            titleStyle: TextStyle(
                fontSize: fontSize, fontWeight: FontWeight.bold, color: const Color(0xffffffff)),
          );
        case 1:
          return PieChartSectionData(
            color: const Color(0xfff8b250),
            value: 30,
            title: '30%',
            radius: radius,
            titleStyle: TextStyle(
                fontSize: fontSize, fontWeight: FontWeight.bold, color: const Color(0xffffffff)),
          );
        case 2:
          return PieChartSectionData(
            color: const Color(0xff845bef),
            value: 15,
            title: '15%',
            radius: radius,
            titleStyle: TextStyle(
                fontSize: fontSize, fontWeight: FontWeight.bold, color: const Color(0xffffffff)),
          );
        case 3:
          return PieChartSectionData(
            color: const Color(0xff13d38e),
            value: 15,
            title: '15%',
            radius: radius,
            titleStyle: TextStyle(
                fontSize: fontSize, fontWeight: FontWeight.bold, color: const Color(0xffffffff)),
          );
        default:
          return null;
      }
    });
  }
}

3.代碼決議

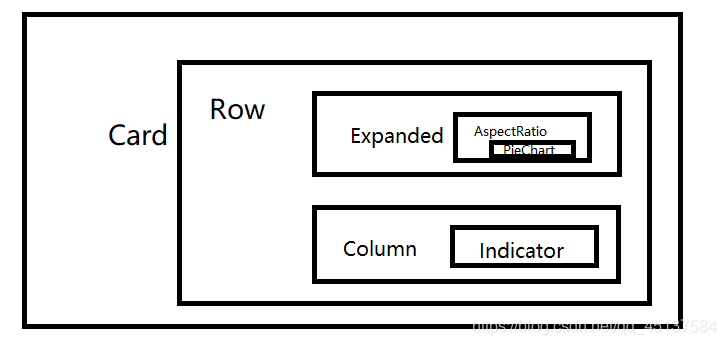

1.代碼結構

dart的語法有點像俄羅斯套娃

3.組件作用
