FISCO BCOS JAVA SDK（環境搭建）

前言

參考官方檔案

提示：以下是本篇文章正文內容，下面案例可供參考

一、環境準備

1.開發工具

Java：JDK 14 （JDK1.8 至JDK 14都支持）
IDE：IntelliJ IDE.

安裝官網

2.開發環境

搭建一條FISCO BCOS鏈
FISCO BCOS安裝搭建，

二、開發步驟

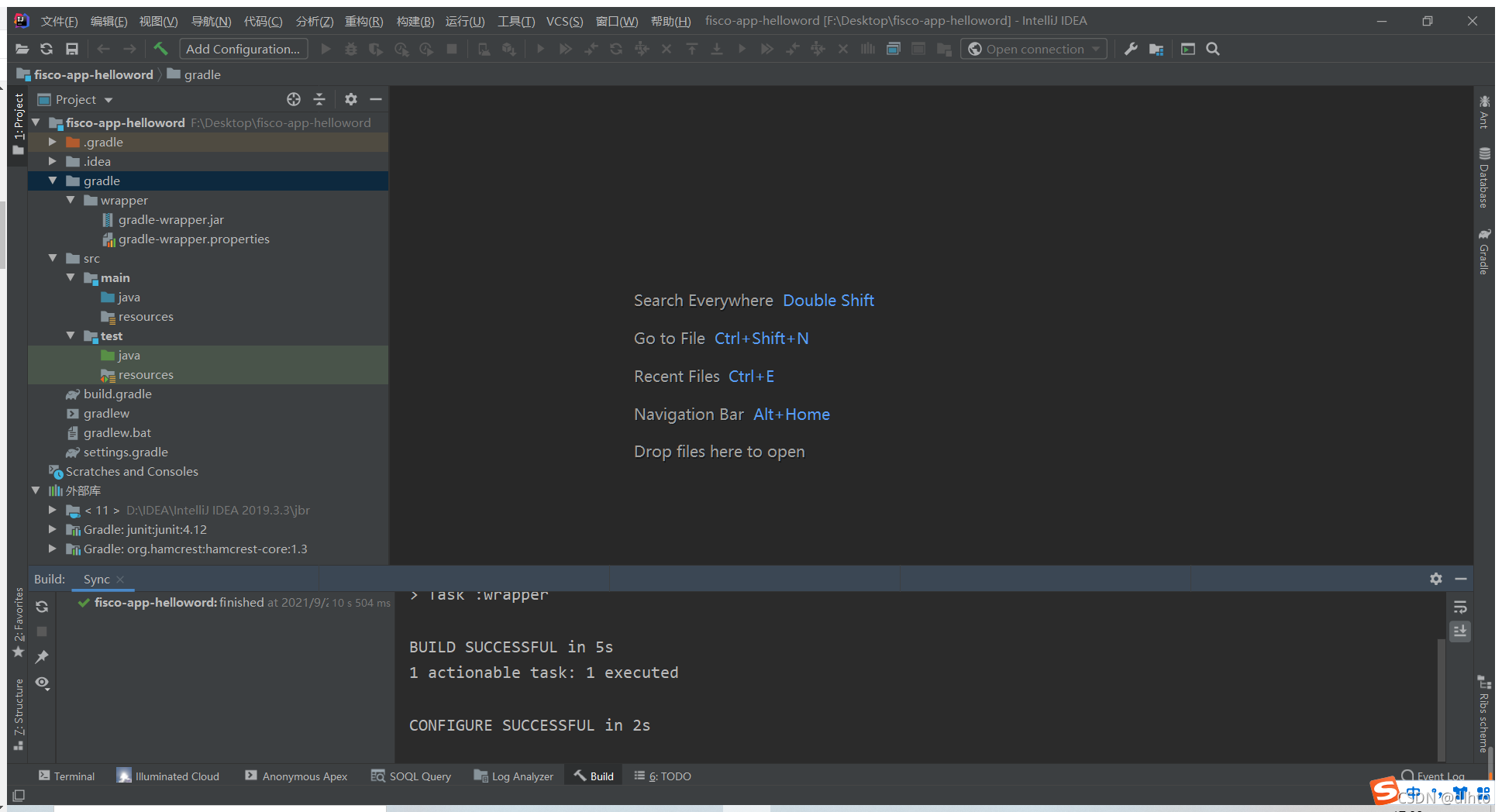

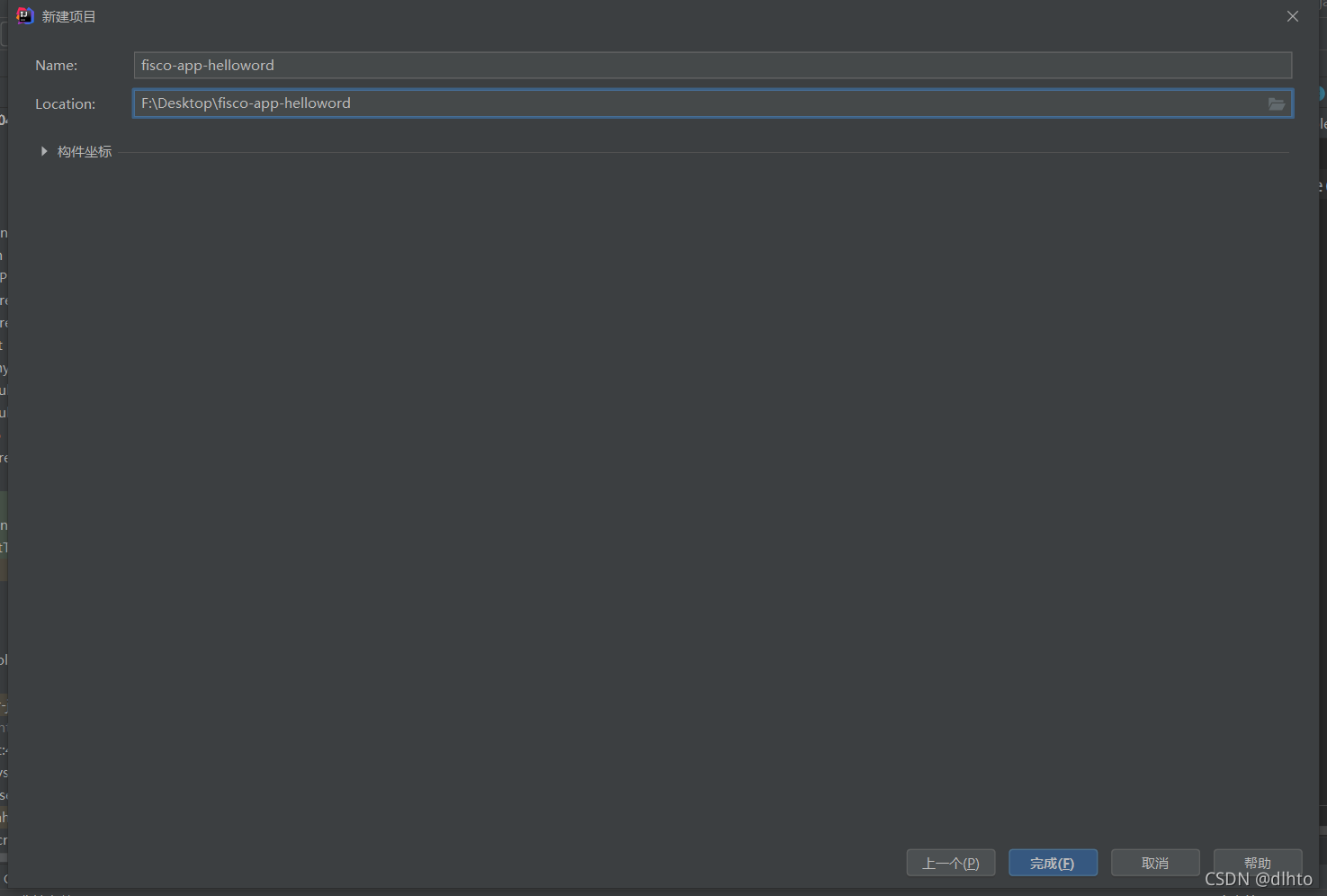

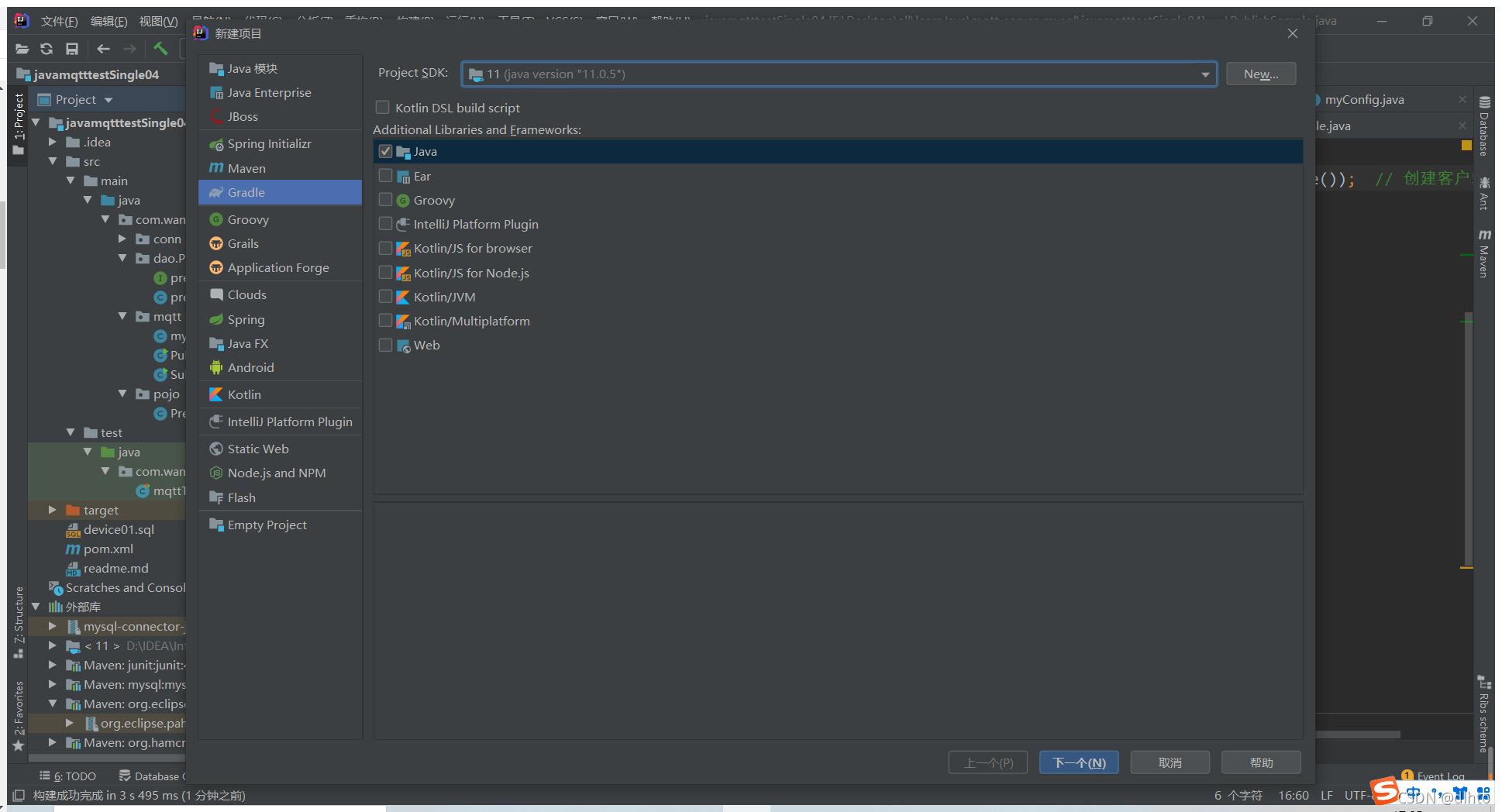

1.創建一個Gradle應用

2.引入Java SDK

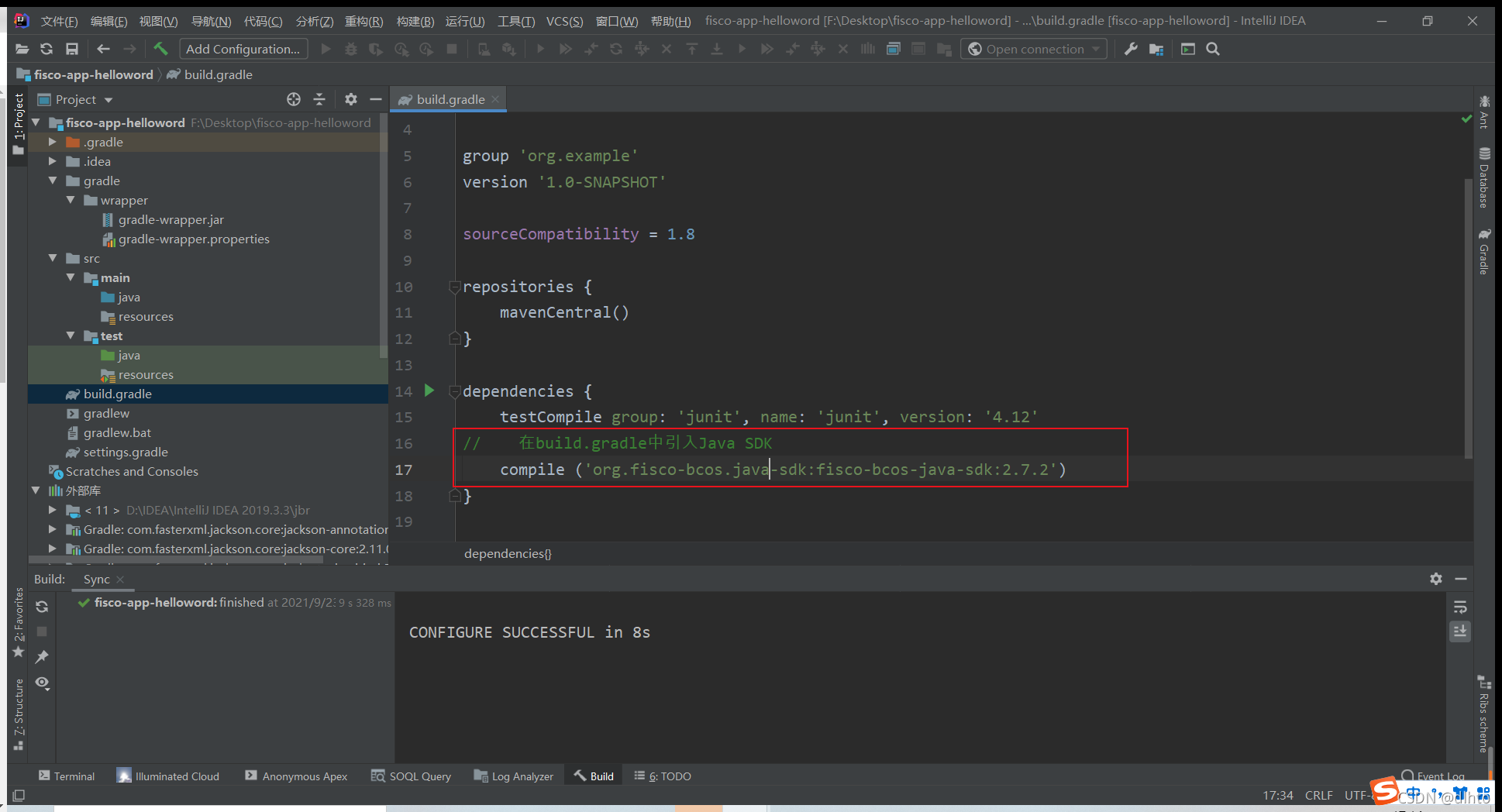

在build.gradle中引入Java SDK

compile ('org.fisco-bcos.java-sdk:fisco-bcos-java-sdk:2.7.2')

如果您使用maven 通過以下方法引入Java SDK

<dependency>
    <groupId>org.fisco-bcos.java-sdk</groupId>
    <artifactId>fisco-bcos-java-sdk</artifactId>
    <version>2.7.2</version>
</dependency>

3.配置SDK證書

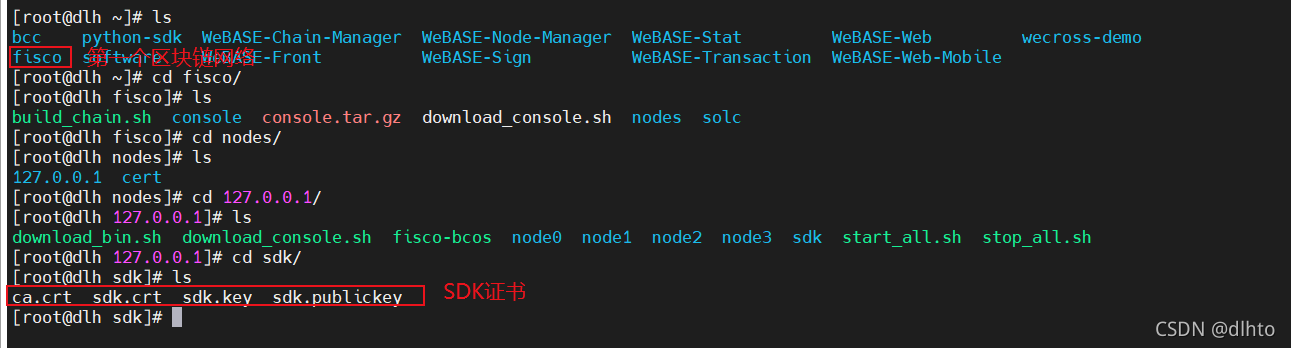

SDK證書位于（搭建第一個區塊鏈網路）~/fisco/nodes/127.0.0.1/sdk/目錄

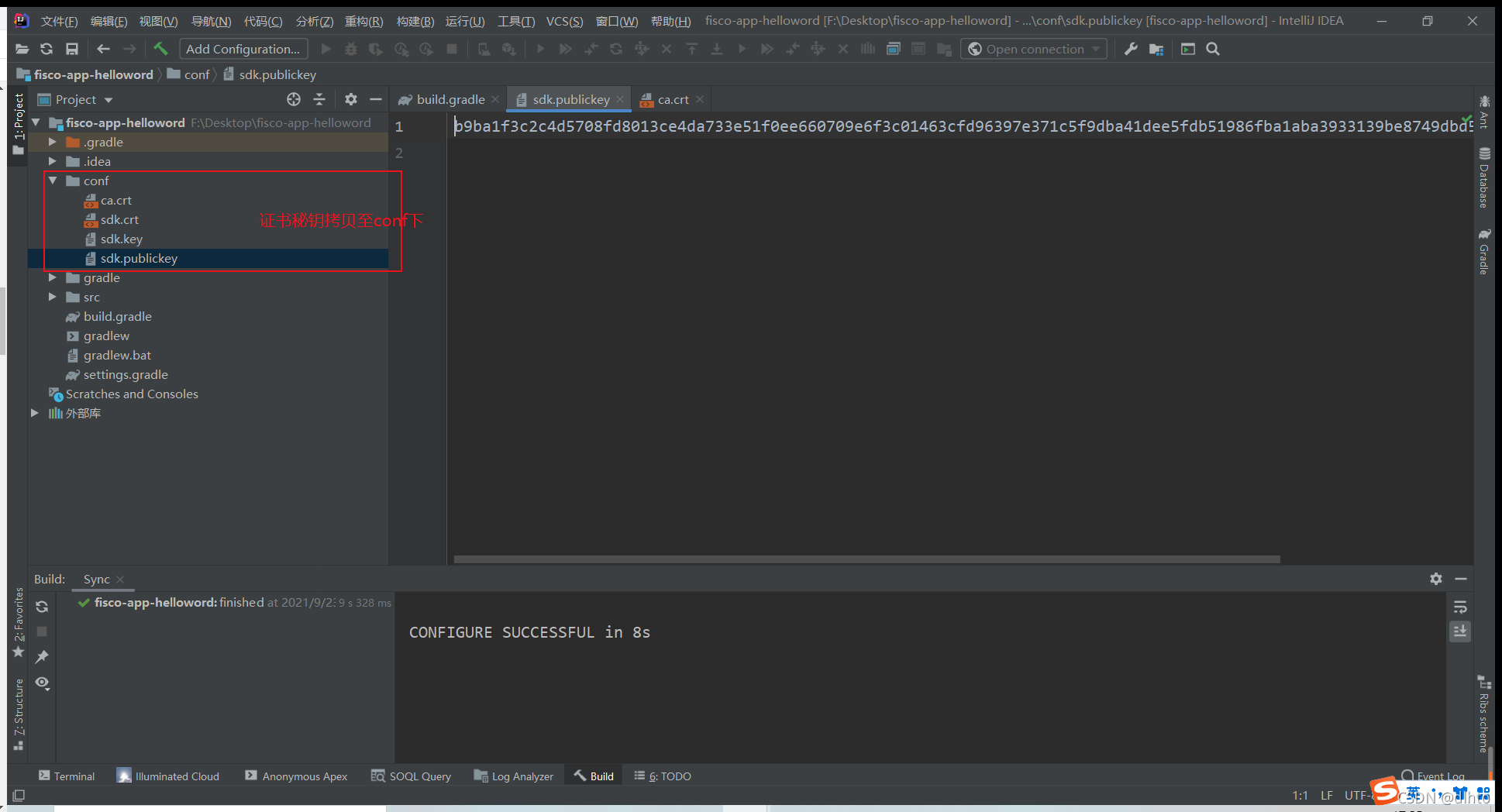

或者直接拷貝該檔案夾

后續在對其中的組態檔進行修改

4.準備智能合約

控制臺console和java-sdk-demo均提供了工具，可以將solidity合約生成出呼叫該合約java工具類，本例中使用console做為例子. 使用java-sdk-demo給智能合約生成呼叫它的Java工具類” 首先，下載控制臺，

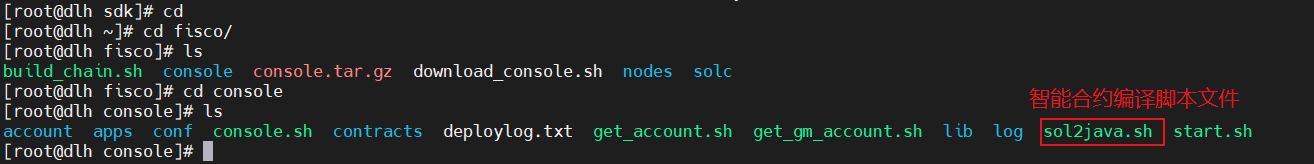

cd ~/fisco/console

然后，將您要用到的Solidity智能合約放入~/fisco/console/contracts/solidity的目錄，本次我們用console中的HelloWorld.sol作為例子，保證HelloWorld.sol在指定的目錄下，

cd ~/fisco/console/contracts/solidity
ls

生成呼叫HelloWorld.sol智能合約的java類
代碼如下（示例）：

#使用sol2java.sh將contracts/solidity下的所有合約編譯產生bin,abi,java工具類，
#當前目錄~/fisco/console
 bash sol2java.sh org.com.fisco
#以上命令中引數“org.com.fisco”是指定產生的java類所屬的包名，
#./sol2java.sh [packageName] [solidityFilePath] [javaCodeOutputDir]

未執行該腳本時：

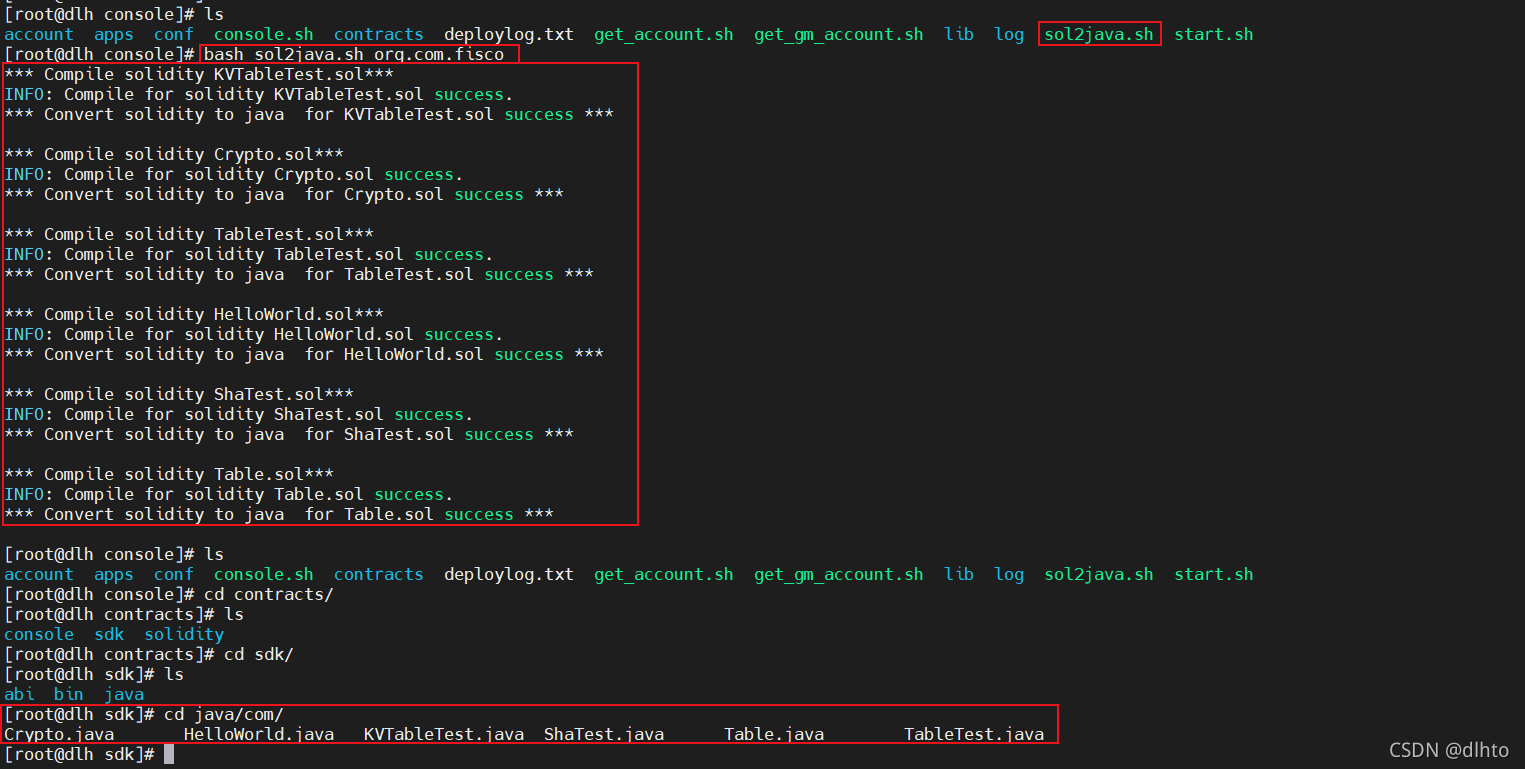

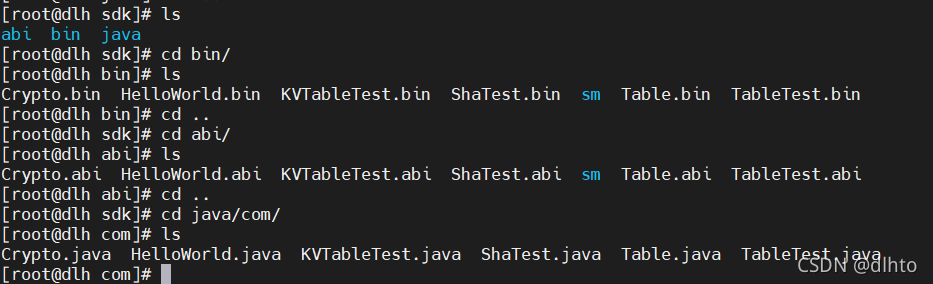

執行腳本進行合約編譯

5.創建組態檔

在專案中創建組態檔config.toml, 可參照配置向導進行配置，也可以參照config-example.toml,

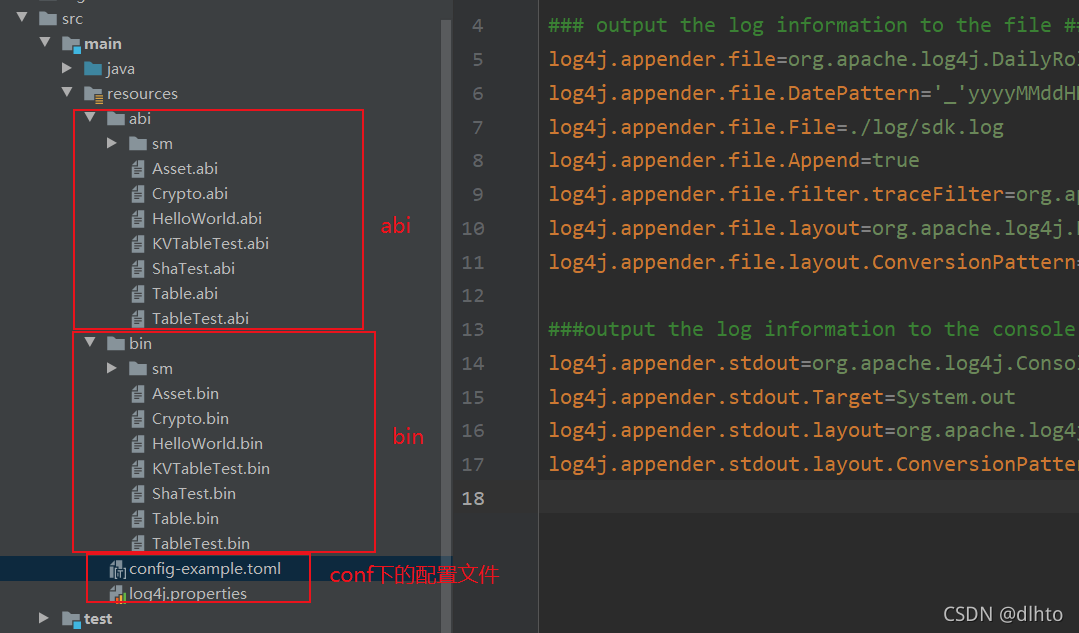

將編譯生出的ABI和BIN以及兩個組態檔放到resource目錄下

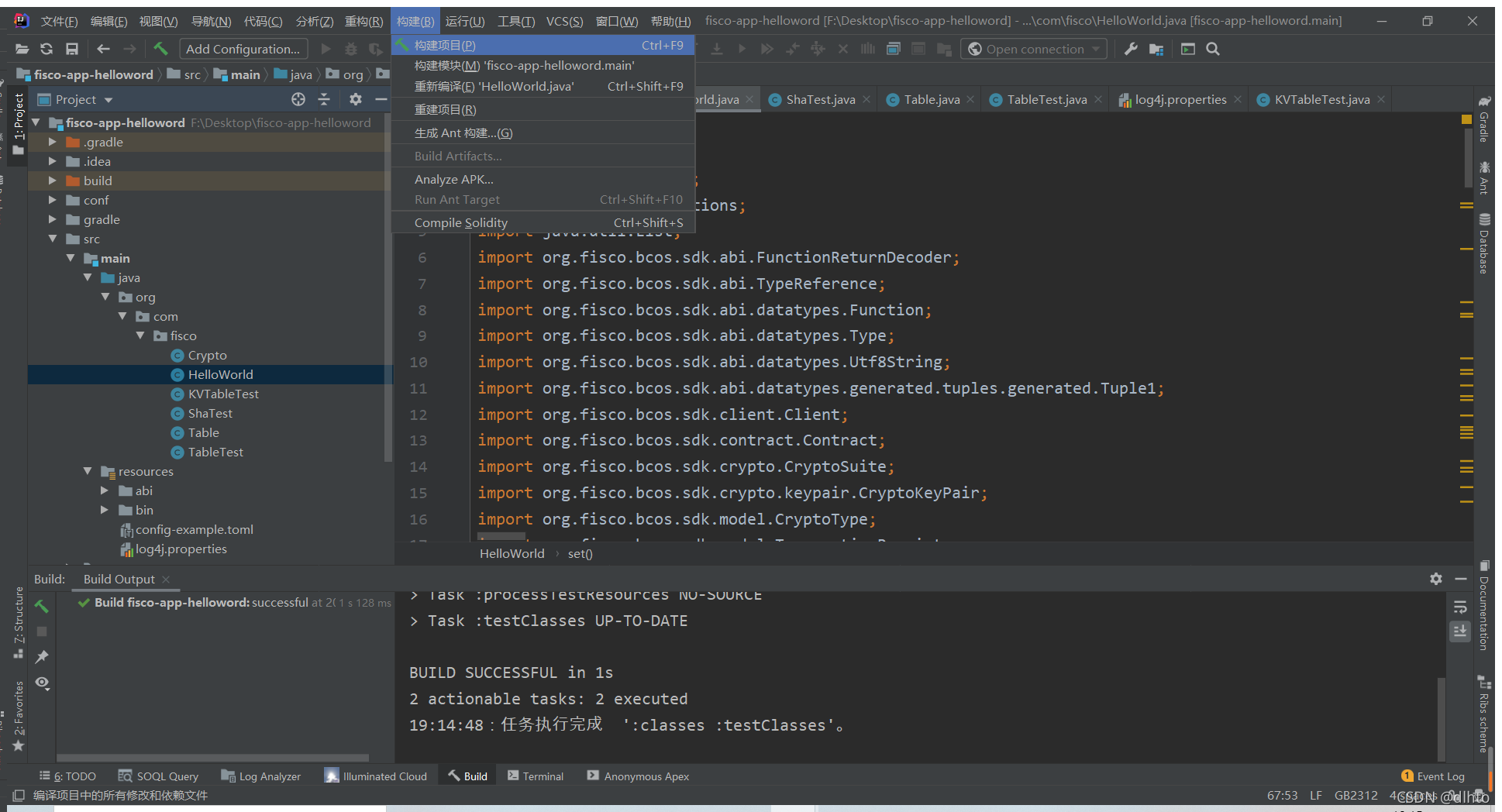

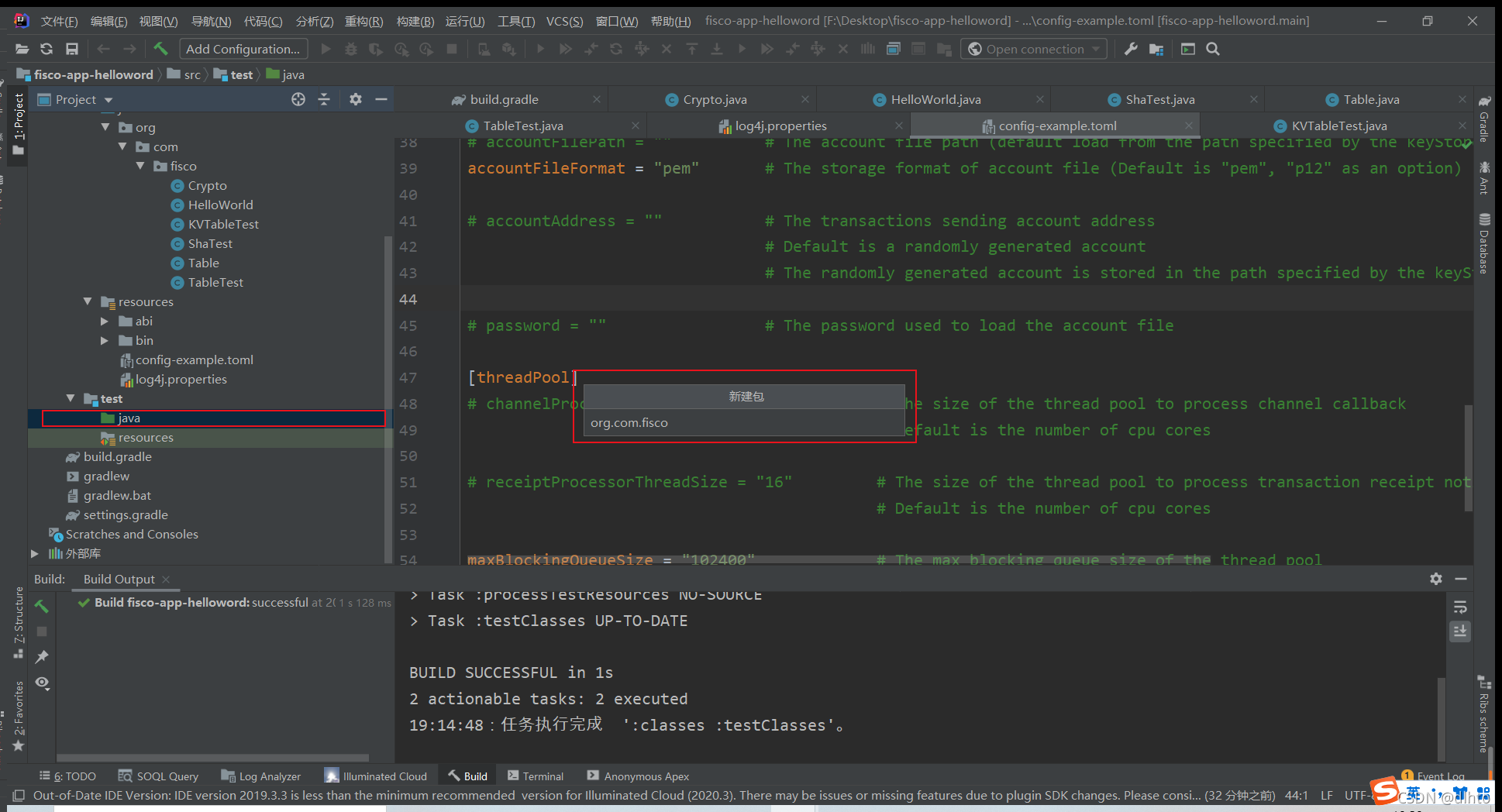

把編譯生成的java類，放到新建包（org.com.fisco）下，點擊構建專案無報錯，

對組態檔進行修改，IDE工具在Windows系統，區塊鏈網路為centos7服務器上，

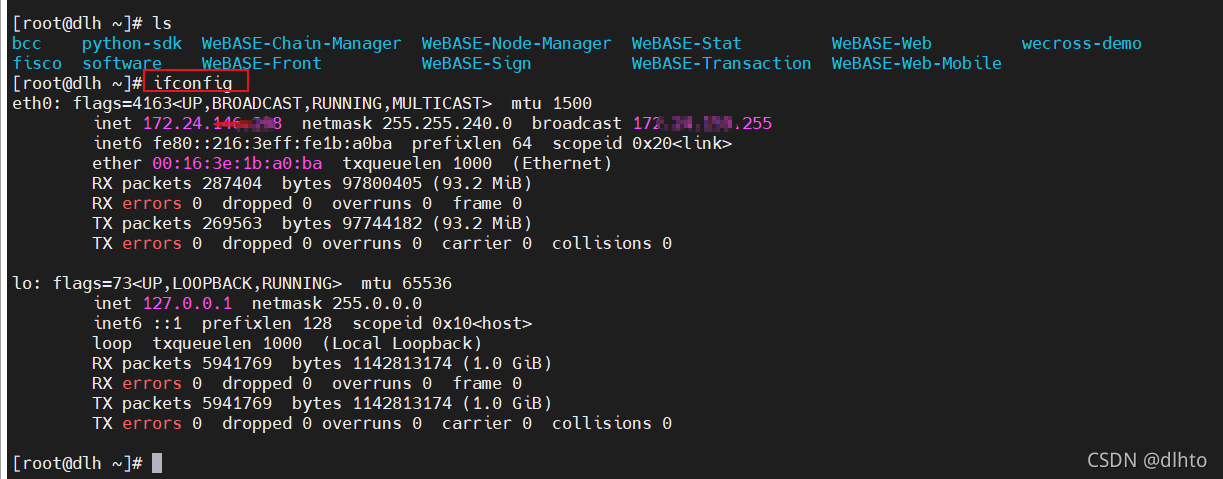

如果是虛擬機我們用ifconfig查看IP進行配置，服務器就用服務器ip地址

log4j.propertise配置如下：

#
# Copyright 2014-2020  [fisco-dev]
#
# Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except
# in compliance with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software distributed under the License
# is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express
# or implied. See the License for the specific language governing permissions and limitations under
# the License.
#
#

### set log levels ###
log4j.rootLogger=DEBUG, file

### output the log information to the file ###
log4j.appender.file=org.apache.log4j.DailyRollingFileAppender
log4j.appender.file.DatePattern='_'yyyyMMddHH'.log'
log4j.appender.file.File=./log/console.log
log4j.appender.file.Append=true
log4j.appender.file.filter.traceFilter=org.apache.log4j.varia.LevelRangeFilter
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=[%p] [%-d{yyyy-MM-dd HH:mm:ss}] %C{1}.%M(%L) | %m%n

###output the log information to the console ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=[%p] [%-d{yyyy-MM-dd HH:mm:ss}] %C{1}.%M(%L) | %m%n

config-example.toml檔案配置如下：
修改：

[cryptoMaterial]

certPath = "conf"                           # The certification path

# The following configurations take the certPath by default if commented
# caCert = "conf/ca.crt"                    # CA cert file path
                                            # If connect to the GM node, default CA cert path is ${certPath}/gm/gmca.crt

# sslCert = "conf/sdk.crt"                  # SSL cert file path
                                            # If connect to the GM node, the default SDK cert path is ${certPath}/gm/gmsdk.crt

# sslKey = "conf/sdk.key"                   # SSL key file path
                                            # If connect to the GM node, the default SDK privateKey path is ${certPath}/gm/gmsdk.key

# enSslCert = "conf/gm/gmensdk.crt"         # GM encryption cert file path
                                            # default load the GM SSL encryption cert from ${certPath}/gm/gmensdk.crt

# enSslKey = "conf/gm/gmensdk.key"          # GM ssl cert file path
                                            # default load the GM SSL encryption privateKey from ${certPath}/gm/gmensdk.key

[network]
#peers=["127.0.0.1:20200", "127.0.0.1:20201"]    # The peer list to connect
#修改為服務器IP地址
peers=["101.37.116.199:20200", "101.37.116.199:20201"]    # The peer list to connect
# Configure a private topic as a topic message sender.
# [[amop]]
# topicName = "PrivateTopic1"
# publicKeys = [ "conf/amop/consumer_public_key_1.pem" ]    # Public keys of the nodes that you want to send AMOP message of this topic to.

# Configure a private topic as a topic subscriber.
# [[amop]]
# topicName = "PrivateTopic2"
# privateKey = "conf/amop/consumer_private_key.p12"         # Your private key that used to subscriber verification.
# password = "123456"

[account]
keyStoreDir = "account"         # The directory to load/store the account file, default is "account"
# accountFilePath = ""          # The account file path (default load from the path specified by the keyStoreDir)
accountFileFormat = "pem"       # The storage format of account file (Default is "pem", "p12" as an option)

# accountAddress = ""           # The transactions sending account address
                                # Default is a randomly generated account
                                # The randomly generated account is stored in the path specified by the keyStoreDir

# password = ""                 # The password used to load the account file

[threadPool]
# channelProcessorThreadSize = "16"         # The size of the thread pool to process channel callback
                                            # Default is the number of cpu cores

# receiptProcessorThreadSize = "16"         # The size of the thread pool to process transaction receipt notification
                                            # Default is the number of cpu cores

maxBlockingQueueSize = "102400"             # The max blocking queue size of the thread pool

也可以通過xml配置. 使用xml配置進行配置”，

6.使用Java SDK部署和呼叫智能合約

BcosSDKTest代碼如下（示例）：
官方示例代碼

public class BcosSDKTest {
// 獲取組態檔路徑
public final String configFile = BcosSDKTest.class.getClassLoader().getResource(“config-example.toml”).getPath();
public void testClient() throws ConfigException {
// 初始化BcosSDK
BcosSDK sdk = BcosSDK.build(configFile);
// 為群組1初始化client
Client client = sdk.getClient(Integer.valueOf(1));

    // 獲取群組1的塊高
    BlockNumber blockNumber = client.getBlockNumber();

    // 向群組1部署HelloWorld合約
    CryptoKeyPair cryptoKeyPair = client.getCryptoSuite().getCryptoKeyPair();
    HelloWorld helloWorld = HelloWorld.deploy(client, cryptoKeyPair);

    // 呼叫HelloWorld合約的get介面
    String getValue = helloWorld.get();

    // 呼叫HelloWorld合約的set介面
    TransactionReceipt receipt = helloWorld.set("Hello, fisco");
 } }

本運用中代碼如下：

package org.com.fisco;

import org.fisco.bcos.sdk.BcosSDK;
import org.fisco.bcos.sdk.client.Client;
import org.fisco.bcos.sdk.client.protocol.response.BcosBlock;
import org.fisco.bcos.sdk.client.protocol.response.BcosTransactionReceipt;
import org.fisco.bcos.sdk.client.protocol.response.BlockNumber;
import org.fisco.bcos.sdk.config.exceptions.ConfigException;
import org.fisco.bcos.sdk.crypto.CryptoSuite;
import org.fisco.bcos.sdk.crypto.keypair.CryptoKeyPair;
import org.fisco.bcos.sdk.model.TransactionReceipt;
import org.fisco.bcos.sdk.transaction.codec.decode.TransactionDecoderInterface;
import org.fisco.bcos.sdk.transaction.codec.decode.TransactionDecoderService;
import org.fisco.bcos.sdk.transaction.model.exception.ContractException;
import org.junit.Test;

public class BcosSDKTest
{
    // 獲取組態檔路徑
    public final String configFile = BcosSDKTest.class.getClassLoader().getResource("config-example.toml").getPath();
    @Test
    public void testClient() throws ConfigException {
        // 初始化BcosSDK
        BcosSDK sdk =  BcosSDK.build(configFile);
        // 為群組1初始化client
        Client client = sdk.getClient(Integer.valueOf(1));

        // 獲取群組1的塊高
        BlockNumber blockNumber = client.getBlockNumber();

        // 向群組1部署HelloWorld合約
        CryptoKeyPair cryptoKeyPair = client.getCryptoSuite().getCryptoKeyPair();
        HelloWorld helloWorld = null;
        try {
            helloWorld = HelloWorld.deploy(client, cryptoKeyPair);
        } catch (ContractException e) {
            e.printStackTrace();
        }
        // 呼叫HelloWorld合約的get介面
        String getValue= null;
        try {
            getValue = helloWorld.get();
        } catch (ContractException e) {
            e.printStackTrace();
        }
        // 呼叫HelloWorld合約的set介面
        TransactionReceipt receipt = helloWorld.set("Hello, fisco");

        BcosBlock block = client.getBlockByNumber(blockNumber.getBlockNumber(), false); //得到塊的資訊
        Object o = block.getBlock().getTransactions().get(0).get(); //在塊中得到交易哈希
        Object b = block.getBlock().getHash();//在塊中得到區塊哈希
        Object c=block.getBlock().getNumber();//當前塊高
        BcosTransactionReceipt transactionReceipt = client.getTransactionReceipt((String) o); //通過交易哈希得到交易回執
        CryptoSuite cryptoSuite = client.getCryptoSuite();        // 獲取當前群組對應的密碼學介面
        // 構造TransactionDecoderService實體，傳入是否密鑰型別引數， 事務解碼器介面
        TransactionDecoderInterface decoder = new TransactionDecoderService(cryptoSuite);
        String setValue = decoder.decodeReceiptMessage(transactionReceipt.getResult().getInput());
        System.out.println("getValue:"+getValue);
        System.out.println("setValue:"+setValue);
        System.out.println("receipt:"+receipt);
    }
}

7.運用測驗

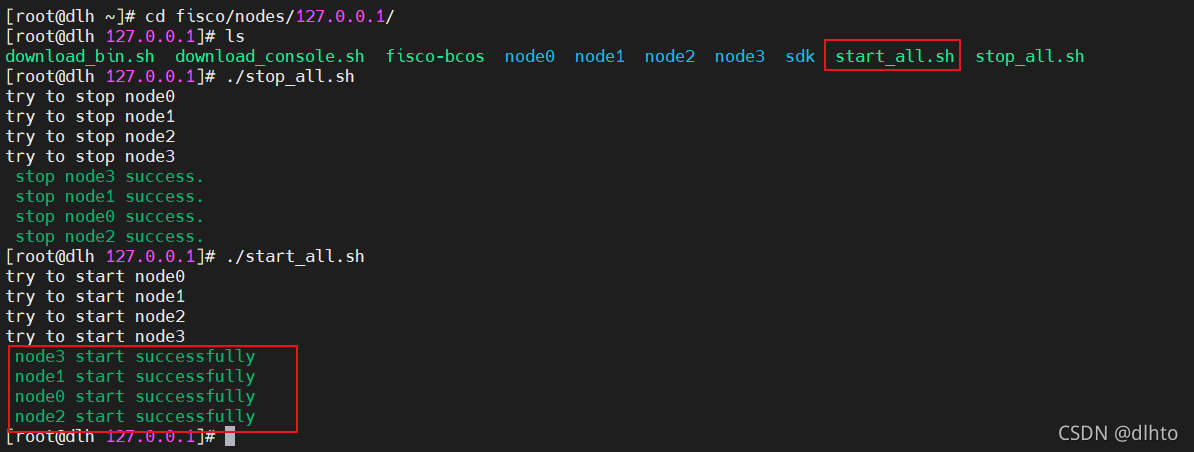

首先確保我們的區塊鏈網路節點處于運行狀態

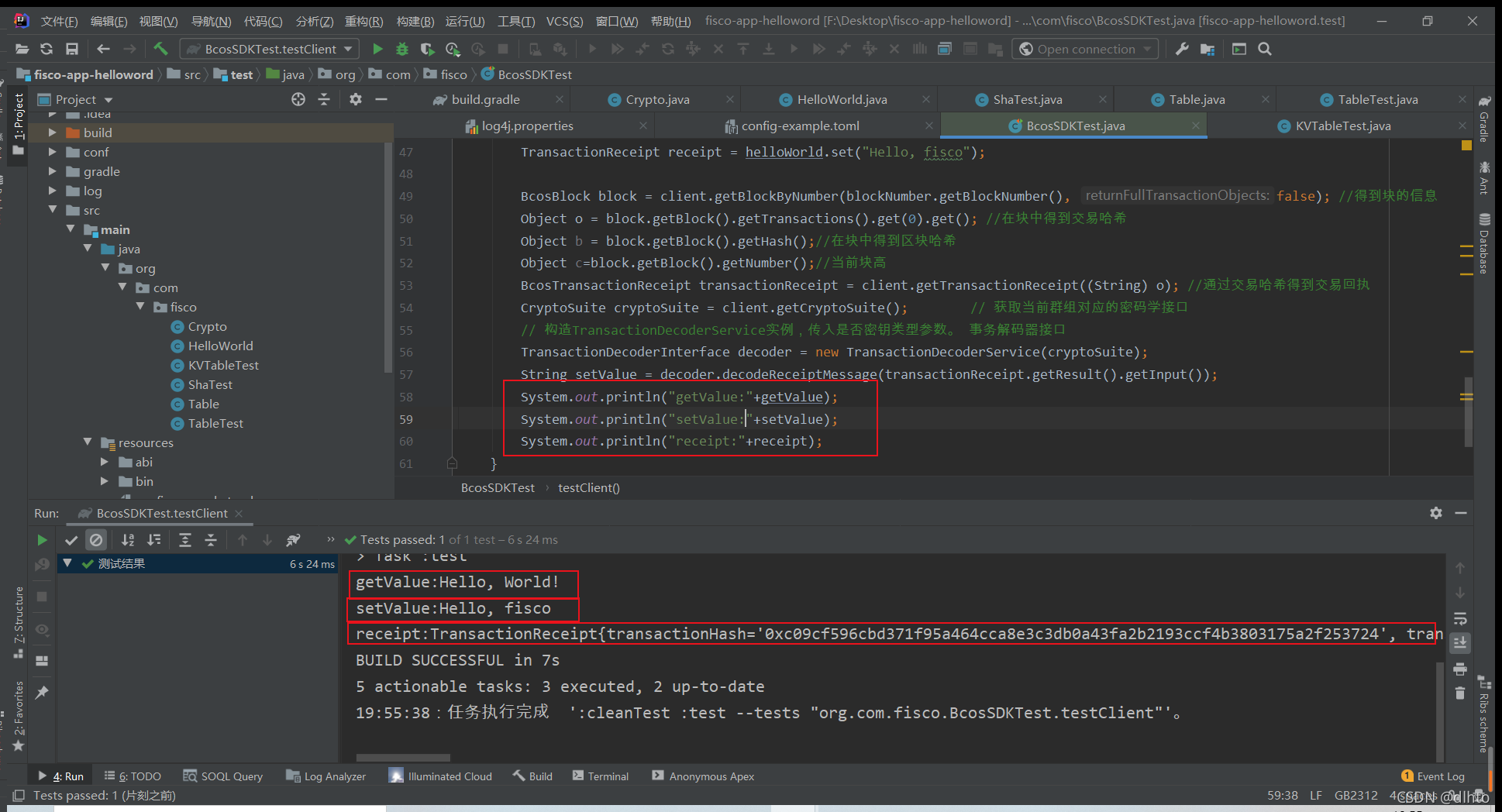

測驗結果：

總結

歡迎交流！
