如何使標簽項正確填充？

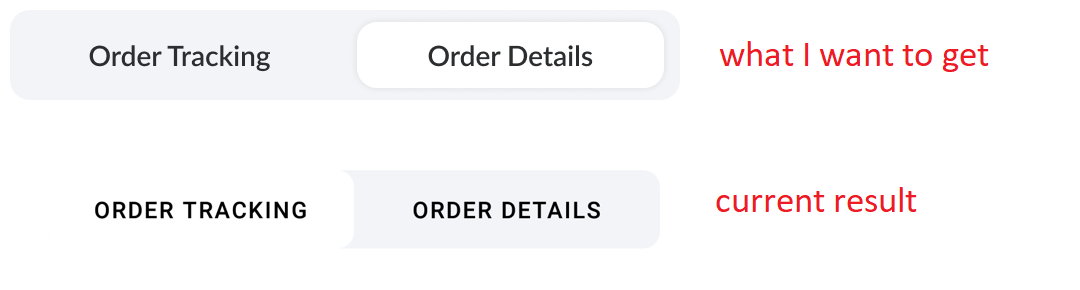

我想在影像中制作像這種設計的自定義選項卡，我在

這是我的實作

1-活動布局

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.google.android.material.tabs.TabLayout
        android:id="@ id/tabLayout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="8dp"
        android:background="@drawable/tab_layout_bg"
        android:clipToPadding="true"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:tabBackground="@drawable/selector_tab"
        app:tabGravity="fill"
        app:tabIndicatorColor="@android:color/transparent"
        app:tabIndicatorHeight="0dp"
        app:tabMode="fixed"
        app:tabPadding="8dp"
        app:tabRippleColor="@null"
        app:tabSelectedTextColor="@color/black"
        app:tabTextColor="@color/black">

        <com.google.android.material.tabs.TabItem
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Order Tracking" />

        <com.google.android.material.tabs.TabItem
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Order details" />
    </com.google.android.material.tabs.TabLayout>



</androidx.constraintlayout.widget.ConstraintLayout>

2 - selector_tab

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">

    <!-- drawable for selected tab -->
    <item
        android:drawable="@drawable/shape_tab_selected"
        android:state_selected="true"/>

    <!-- drawable for unselected tab -->
    <item
        android:drawable="@drawable/shape_tab_un_selected"
        android:state_selected="false"/>

</selector>

3 - shape_tab_selected

   <?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!-- radius should be half of the desired TabLayout height -->
    <corners android:radius="10dp" />
    <solid android:color="@color/white"/>

</shape>

4 - shape_tab_un_selected

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!-- color of the selected tab -->
    <solid android:color="@android:color/transparent" />


</shape>

5 - tab_layout_bg

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!-- radius should be half of the desired TabLayout height -->
    <corners android:radius="10dp" />
    <solid android:color="@color/colorGray"/>

</shape>

6 - 顏色

<color name="black">#FF000000</color>
<color name="white">#FFFFFFFF</color>
<color name="colorBlack">#F2F4F7</color>
<color name="colorGray">#F2F4F7</color>

uj5u.com熱心網友回復：

我找到了一個解決方案，在這里

1 - 創建一個選擇器 drawable (selector_tabs.xml)

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:drawable="@drawable/ic_tab_selected" android:state_selected="true"/>
    <item android:drawable="@color/transparent" android:state_selected="false"/>
</selector>

2 - 對于選定狀態的可繪制 ic_tab_selected 創建一個矢量可繪制并使用比例和樞軸值來控制您想要應用的填充方式

<vector xmlns:android="http://schemas.android.com/apk/res/android"
    android:width="174dp"
    android:height="42dp"
    android:viewportWidth="174"
    android:viewportHeight="42">
    <group
        android:scaleX="0.92"
        android:scaleY="0.90"
        android:pivotX="87"
        android:pivotY="21">
        <path
            android:pathData="M12,4L162,4A8,8 0,0 1,170 12L170,30A8,8 0,0 1,162 38L12,38A8,8 0,0 1,4 30L4,12A8,8 0,0 1,12 4z"
            android:fillColor="#ffffff"/>
    </group>

</vector>

3 - 在選項卡布局上使用

app:tabBackground="@drawable/selector_tabs"
