from tkinter import messagebox
import tkinter as tk
from tkinter import ttk
from PIL import ImageTk, Image
root = tk.Tk()
root.title("xxxx")
root.geometry("1920x1080 0 0")
root.config(bg="#f0f0f0")
root.state("normal")
topbar = tk.Frame(root, background="#e10a0a", height=43)
topbar.pack(fill='x') # use pack() instead of place()
leftbar = tk.Frame(root, width=250, background="white")
leftbar.pack(side='left', fill='y') # use pack() instead of place()
leftbar.pack_propagate(0) # disable size auto-adjustment
def clicked(btn):
for w in leftbar.winfo_children():
w['bg'] = 'white' if w is not btn else 'yellow'
button1 = tk.PhotoImage(file="/image.png")
btn1 = tk.Button(leftbar, image=button1, borderwidth=0, highlightthickness=0,
bg="white", text="aaaaa", foreground='green', compound='left', anchor='w')
btn1.pack(fill='x') # use pack() instead of place()
btn1['command'] = lambda: clicked(btn1)
button2 = tk.PhotoImage(file="/image.png")
btn2 = tk.Button(leftbar, image=button2, borderwidth=0, highlightthickness=0,
bg="white", text="bbbbb", foreground='green', compound='left', anchor='w')
btn2.pack(fill='x') # use pack() instead of place()
btn2['command'] = lambda: clicked(btn2)
root.mainloop()
uj5u.com熱心網友回復：
您可以使用 attk.Notebook來實作您想要的：
import tkinter as tk
from tkinter import ttk
from PIL import ImageTk
# define classes for each page
class Page1(tk.Frame):
def __init__(self, master, **kw):
super().__init__(master, **kw)
tk.Label(self, text='Hello', font='Arial 64 bold').pack(fill='both', expand=1)
class Page2(tk.Frame):
def __init__(self, master, **kw):
super().__init__(master, **kw)
tk.Label(self, text='Python is awesome', font='Times 24 bold', bg=self['bg']).pack()
self.logo = ImageTk.PhotoImage(file='images/python-logo.png')
tk.Label(self, image=self.logo, bg=self['bg']).pack(fill='both', expand=1)
root = tk.Tk()
root.geometry('640x480')
topbar = tk.Frame(root, bg='#e10a0a', height=43)
topbar.pack(fill='x')
style = ttk.Style()
style.theme_use('default') # select a theme that allows configuration of ttk.Notebook
# put the tabs at the left with white background
style.configure('TNotebook', tabposition='wn', background='white', tabmargins=0)
# configure tab with white background initially, yellow background when selected
style.configure('TNotebook.Tab', background='white', width=10, focuscolor='yellow', borderwidth=0)
style.map('TNotebook.Tab', background=[('selected', 'yellow')])
nb = ttk.Notebook(root)
nb.pack(fill='both', expand=1)
img = ImageTk.PhotoImage(file='images/div2.png')
page1 = Page1(nb)
page2 = Page2(nb, bg='pink', bd=0)
nb.add(page1, text='aaaaa', image=img, compound='left')
nb.add(page2, text='bbbbb', image=img, compound='left')
root.mainloop()

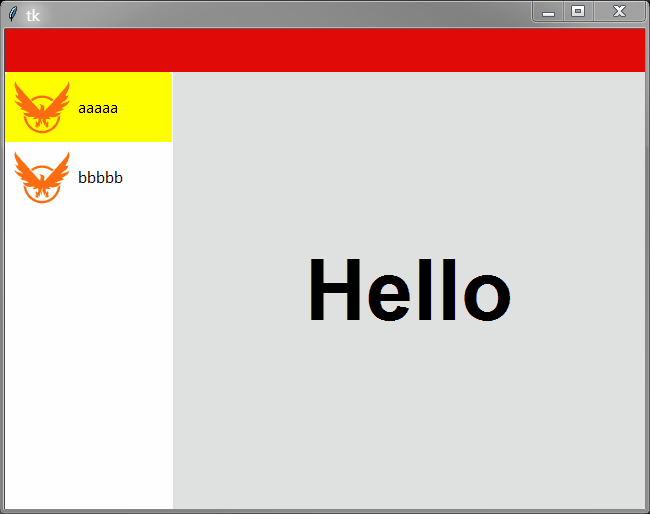

輸出：
您還可以將每個頁面的類定義放在外部檔案中，例如Page1inpage1.py和Page2in page2.py。然后將它們匯入到主腳本中：
import tkinter as tk
from tkinter import ttk
from PIL import ImageTk
from page1 import Page1
from page2 import Page2
root = tk.Tk()
root.geometry('640x480')
topbar = tk.Frame(root, bg='#e10a0a', height=43)
topbar.pack(fill='x')
style = ttk.Style()
style.theme_use('default') # select a theme that allows configuration of ttk.Notebook
# put the tabs at the left with white background
style.configure('TNotebook', tabposition='wn', background='white', tabmargins=0)
# configure tab with white background initially, yellow background when selected
style.configure('TNotebook.Tab', background='white', width=10, focuscolor='yellow', borderwidth=0)
style.map('TNotebook.Tab', background=[('selected', 'yellow')])
nb = ttk.Notebook(root)
nb.pack(fill='both', expand=1)
img = ImageTk.PhotoImage(file='images/div2.png')
page1 = Page1(nb)
page2 = Page2(nb, bg='pink', bd=0)
nb.add(page1, text='aaaaa', image=img, compound='left')
nb.add(page2, text='bbbbb', image=img, compound='left')
root.mainloop()
頁面1.py
import tkinter as tk
class Page1(tk.Frame):
def __init__(self, master, **kw):
super().__init__(master, **kw)
tk.Label(self, text='Hello', font='Arial 64 bold').pack(fill='both', expand=1)
page2.py
import tkinter as tk
from PIL import ImageTk
class Page2(tk.Frame):
def __init__(self, master, **kw):
super().__init__(master, **kw)
tk.Label(self, text='Python is awesome', font='Times 24 bold', bg=self['bg']).pack()
self.logo = ImageTk.PhotoImage(file='images/python-logo.png')
tk.Label(self, image=self.logo, bg=self['bg']).pack(fill='both', expand=1)
uj5u.com熱心網友回復：
我建議您通過子類創建一個單獨的類tk.Frame并在那里實作選項卡更改的邏輯。
import tkinter as tk
from PIL import ImageTk, Image
class TabBar(tk.Frame):
def __init__(self, *args, **kwargs):
super(TabBar, self).__init__(*args, **kwargs)
self.side_bar = tk.Frame(self, background="white")
# self.side_bar.place(relx=0, rely=0, relheight=1, relwidth=0.2)
self.side_bar.pack(side="left", fill="both")
self.tabs = {}
self.active_tab = None
self.active_color = "yellow"
self.default_color = "grey"
def addTab(self, name, widget, image: ImageTk.PhotoImage=None):
btn = tk.Button(self.side_bar, text=name, image=image,
compound="left", command=lambda: self.setActive(name),
bg=self.default_color, width=20, relief="flat")
btn.pack(fill="x", anchor="n")
self.tabs[name] = [btn, widget]
if self.active_tab is None:
self.setActive(name)
def setActive(self, name):
if self.active_tab:
# self.tabs[self.active_tab][1].place_forget()
self.tabs[self.active_tab][1].pack_forget()
self.tabs[self.active_tab][0].config(bg=self.default_color)
self.tabs[name][0].config(bg=self.active_color)
# self.tabs[name][1].place(relx=0.2, rely=0, relheight=1, relwidth=1)
self.tabs[name][1].pack(side="left", expand=True, fill="both")
self.active_tab = name
def removeTab(self, name):
self.tabs.pop(name)
在上面的代碼中，您可以使用addTab方法添加選項卡，名稱引數對于每個選項卡應該是唯一的，因為名稱被用作字典中的鍵。您可以選擇將 PhotoImage 實體傳遞給 image 引數以顯示影像。
您可以將上述類放在同一個檔案或不同的檔案中并匯入。
用法示例：
root = tk.Tk()
root.config(bg="#f0f0f0")
imag = Image.open("image.png")
imagtk = ImageTk.PhotoImage(imag)
tab_bar = TabBar(root)
tab_bar.pack(expand=True, fill="both")
frame = tk.Frame(tab_bar)
button = tk.Button(frame, text="Click Me")
button.pack()
tab_bar.addTab("aaaa", tk.Label(tab_bar, text="contents"), imagtk)
tab_bar.addTab("bbbb", frame)
root.mainloop()
（注意：您需要將 tab_bar 作為父級傳遞給您要放置在選項卡內的小部件的小部件）

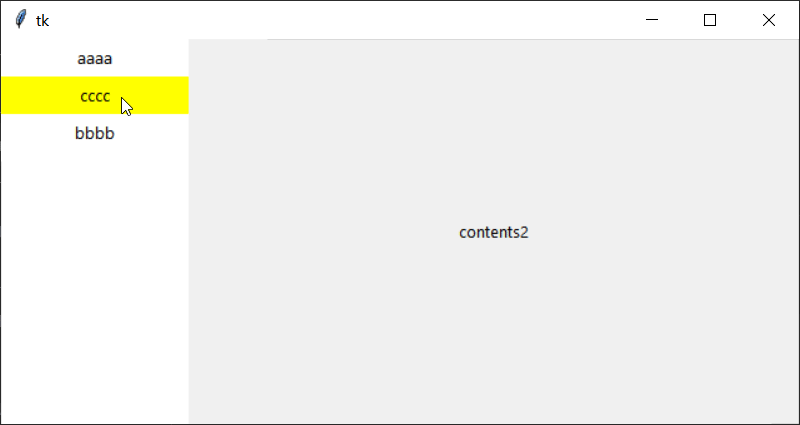

輸出：
