Hyperledger Fabric多機及explorer搭建

https://blog.csdn.net/g950904/article/details/121143167

參考上方這篇博客，成功搭建多機網路并使用fabric自帶瀏覽器，其中遇到一些小問題，根據自己遇到的問題對搭建程序進行了修改并記錄下來，具體程序如下：

基于fabric2.x搭建

原則上是3臺虛擬機搭建的網路，我的搭建程序是orderer和org1放在192.168.159.152 ， org2放在192.168.159.153

192.168.159.152 orderer.example.com
192.168.159.152 peer0.org1.example.com
192.168.159.153 peer0.org2.example.com

1.配置ssh 使用scp命令來跨主機傳輸檔案(可選)

2.生成fabric 證書

創建專案目錄

在三臺虛擬機上使用以下命令創建相同的專案目錄（三臺虛擬機專案路徑要相同），

cd ../hyperledger
mkdir multinodes

撰寫證書檔案

cd ../hyperledger/multinodes

? 使用以下命令將模板檔案復制到當前目錄下，

cryptogen showtemplate > crypto-config.yaml

? 改寫：

# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
  # ---------------------------------------------------------------------------
  # Orderer
  # ---------------------------------------------------------------------------
  - Name: Orderer  ##  定義Orderer組織結構
    Domain: example.com  ##  組織的命名域
    EnableNodeOUs: true
    # 如果設定了EnableNodeOUs，就在msp下生成config.yaml檔案
    # ---------------------------------------------------------------------------
    # "Specs" - See PeerOrgs below for complete description
    # ---------------------------------------------------------------------------
    Specs:
      - Hostname: orderer

# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
  # ---------------------------------------------------------------------------
  # Org1
  # ---------------------------------------------------------------------------
  - Name: Org1
    Domain: org1.example.com
    EnableNodeOUs: true


    # ---------------------------------------------------------------------------
    # "CA"
    # ---------------------------------------------------------------------------
    # Uncomment this section to enable the explicit definition of the CA for this
    # organization.  This entry is a Spec.  See "Specs" section below for details.
    # ---------------------------------------------------------------------------
    # CA:
    #    Hostname: ca # implicitly ca.org1.example.com
    #    Country: US
    #    Province: California
    #    Locality: San Francisco
    #    OrganizationalUnit: Hyperledger Fabric
    #    StreetAddress: address for org # default nil
    #    PostalCode: postalCode for org # default nil

    # ---------------------------------------------------------------------------
    # "Specs"
    # ---------------------------------------------------------------------------
    # Uncomment this section to enable the explicit definition of hosts in your
    # configuration.  Most users will want to use Template, below
    #
    # Specs is an array of Spec entries.  Each Spec entry consists of two fields:
    #   - Hostname:   (Required) The desired hostname, sans the domain.
    #   - CommonName: (Optional) Specifies the template or explicit override for
    #                 the CN.  By default, this is the template:
    #
    #                              "{{.Hostname}}.{{.Domain}}"
    #
    #                 which obtains its values from the Spec.Hostname and
    #                 Org.Domain, respectively.
    #   - SANS:       (Optional) Specifies one or more Subject Alternative Names
    #                 to be set in the resulting x509. Accepts template
    #                 variables {{.Hostname}}, {{.Domain}}, {{.CommonName}}. IP
    #                 addresses provided here will be properly recognized. Other
    #                 values will be taken as DNS names.
    #                 NOTE: Two implicit entries are created for you:
    #                     - {{ .CommonName }}
    #                     - {{ .Hostname }}
    # ---------------------------------------------------------------------------
    # Specs:
    #   - Hostname: foo # implicitly "foo.org1.example.com"
    #     CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
    #     SANS:
    #       - "bar.{{.Domain}}"
    #       - "altfoo.{{.Domain}}"
    #       - "{{.Hostname}}.org6.net"
    #       - 172.16.10.31
    #   - Hostname: bar
    #   - Hostname: baz

    # ---------------------------------------------------------------------------
    # "Template"
    # ---------------------------------------------------------------------------
    # Allows for the definition of 1 or more hosts that are created sequentially
    # from a template. By default, this looks like "peer%d" from 0 to Count-1.
    # You may override the number of nodes (Count), the starting index (Start)
    # or the template used to construct the name (Hostname).
    #
    # Note: Template and Specs are not mutually exclusive.  You may define both
    # sections and the aggregate nodes will be created for you.  Take care with
    # name collisions
    # ---------------------------------------------------------------------------
    Template: ##允許定義從模板順序創建的1個或多個主機， 默認情況下，這看起來像是從0到Count-1的“peer”， 您可以覆寫節點數（Count），起始索引（Start）或用于構造名稱的模板（Hostname），
      Count: 1  ##  表示生成幾個Peer
      # Start: 5
      # Hostname: {{.Prefix}}{{.Index}} # default
      # SANS:
      #   - "{{.Hostname}}.alt.{{.Domain}}"

    # ---------------------------------------------------------------------------
    # "Users"
    # ---------------------------------------------------------------------------
    # Count: The number of user accounts _in addition_ to Admin
    # ---------------------------------------------------------------------------
    Users:
      Count: 1  ##  表示生成幾個 普通User

  # ---------------------------------------------------------------------------
  # Org2: See "Org1" for full specification
  # ---------------------------------------------------------------------------
  - Name: Org2
    Domain: org2.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1

生成證書檔案

cryptogen generate --config=crypto-config.yaml

使用scp命令將證書檔案復制到其他兩臺虛擬機中（使用scp命令時會要求輸入主機密碼），我只要復制我org2那臺就好了，

scp -r ./crypto-config root@192.168.159.153:/home/zyp/go/src/github.com/hyperledger/multinodes

復制后使用ls命令在其他兩臺虛擬機的multinodes目錄下查看是否復制成功，

3.生成通道檔案

創世塊檔案的撰寫

? 在orderer節點的虛擬機

cd ../hyperledger/multinodes

? 新建configtx.yaml，可以參考官方示例專案test-network中的configtx.yaml組態檔

# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

---
################################################################################
#
#   Section: Organizations
#
#   - This section defines the different organizational identities which will
#   be referenced later in the configuration.
#
################################################################################
Organizations:

    # SampleOrg defines an MSP using the sampleconfig.  It should never be used
    # in production but may be used as a template for other definitions
    - &OrdererOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: OrdererOrg

        # ID to load the MSP definition as
        ID: OrdererMSP

        # MSPDir is the filesystem path which contains the MSP configuration
        MSPDir: ./crypto-config/ordererOrganizations/example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"
        OrdererEndpoints:
            - orderer.example.com:7050

    - &Org1
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org1MSP

        # ID to load the MSP definition as
        ID: Org1MSP

        MSPDir: ./crypto-config/peerOrganizations/org1.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org1MSP.peer')"
        AnchorPeers:
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org2MSP

        # ID to load the MSP definition as
        ID: Org2MSP

        MSPDir: ./crypto-config/peerOrganizations/org2.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org2MSP.peer')"
        AnchorPeers:
            - Host: peer0.org2.example.com
              Port: 9051

################################################################################
#
#   SECTION: Capabilities
#
#   - This section defines the capabilities of fabric network. This is a new
#   concept as of v1.1.0 and should not be utilized in mixed networks with
#   v1.0.x peers and orderers.  Capabilities define features which must be
#   present in a fabric binary for that binary to safely participate in the
#   fabric network.  For instance, if a new MSP type is added, newer binaries
#   might recognize and validate the signatures from this type, while older
#   binaries without this support would be unable to validate those
#   transactions.  This could lead to different versions of the fabric binaries
#   having different world states.  Instead, defining a capability for a channel
#   informs those binaries without this capability that they must cease
#   processing transactions until they have been upgraded.  For v1.0.x if any
#   capabilities are defined (including a map with all capabilities turned off)
#   then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
    # Channel capabilities apply to both the orderers and the peers and must be
    # supported by both.
    # Set the value of the capability to true to require it.
    Channel: &ChannelCapabilities
        # V2_0 capability ensures that orderers and peers behave according
        # to v2.0 channel capabilities. Orderers and peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 capability.
        # Prior to enabling V2.0 channel capabilities, ensure that all
        # orderers and peers on a channel are at v2.0.0 or later.
        V2_0: true

    # Orderer capabilities apply only to the orderers, and may be safely
    # used with prior release peers.
    # Set the value of the capability to true to require it.
    Orderer: &OrdererCapabilities
        # V2_0 orderer capability ensures that orderers behave according
        # to v2.0 orderer capabilities. Orderers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 orderer capability.
        # Prior to enabling V2.0 orderer capabilities, ensure that all
        # orderers on channel are at v2.0.0 or later.
        V2_0: true

    # Application capabilities apply only to the peer network, and may be safely
    # used with prior release orderers.
    # Set the value of the capability to true to require it.
    Application: &ApplicationCapabilities
        # V2_0 application capability ensures that peers behave according
        # to v2.0 application capabilities. Peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 application capability.
        # Prior to enabling V2.0 application capabilities, ensure that all
        # peers on channel are at v2.0.0 or later.
        V2_0: true

################################################################################
#
#   SECTION: Application
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults

    # Organizations is the list of orgs which are defined as participants on
    # the application side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Application policies, their canonical path is
    #   /Channel/Application/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities
################################################################################
#
#   SECTION: Orderer
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults

    # Orderer Type: The orderer implementation to start
    OrdererType: etcdraft
    # Addresses used to be the list of orderer addresses that clients and peers
    # could connect to.  However, this does not allow clients to associate orderer
    # addresses and orderer organizations which can be useful for things such
    # as TLS validation.  The preferred way to specify orderer addresses is now
    # to include the OrdererEndpoints item in your org definition
    Addresses:
        - orderer.example.com:7050

    EtcdRaft:
        Consenters:
        - Host: orderer.example.com
          Port: 7050
          ClientTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
          ServerTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt

    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        # Max Message Count: The maximum number of messages to permit in a batch
        MaxMessageCount: 10

        # Absolute Max Bytes: The absolute maximum number of bytes allowed for
        # the serialized messages in a batch.
        AbsoluteMaxBytes: 99 MB

        # Preferred Max Bytes: The preferred maximum number of bytes allowed for
        # the serialized messages in a batch. A message larger than the preferred
        # max bytes will result in a batch larger than preferred max bytes.
        PreferredMaxBytes: 512 KB

    # Organizations is the list of orgs which are defined as participants on
    # the orderer side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Orderer policies, their canonical path is
    #   /Channel/Orderer/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

################################################################################
#
#   CHANNEL
#
#   This section defines the values to encode into a config transaction or
#   genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
    # Policies defines the set of policies at this level of the config tree
    # For Channel policies, their canonical path is
    #   /Channel/<PolicyName>
    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    # Capabilities describes the channel level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *ChannelCapabilities

################################################################################
#
#   Profile
#
#   - Different configuration profiles may be encoded here to be specified
#   as parameters to the configtxgen tool
#
################################################################################
Profiles:

    TwoOrgsOrdererGenesis:
        <<: *ChannelDefaults
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *Org1
                    - *Org2
    TwoOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

生成創世塊檔案和通道檔案

configtxgen -profile TwoOrgsOrdererGenesis -channelID fabric-channel -outputBlock ./channel-artifacts/genesis.block

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

使用以下命令將生成的檔案拷貝到另兩臺主機（程序中會需要輸入宿主機的密碼），

scp -r ./channel-artifacts root@192.168.159.153:/home/zyp/go/src/github.com/hyperledger/multinodes/

復制后使用ls命令在其他兩臺虛擬機的multinodes目錄下查看是否復制成功，（只要復制channel-artifacts就可以）

4.docker-compose檔案撰寫

給3個節點都撰寫 oderer org1 放在152的multinodes下 ； org2放在153

orderer.yaml

version: '2'

services:
  orderer.example.com:
    container_name: orderer.example.com
    image: hyperledger/fabric-orderer:latest
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_LISTENPORT=7050
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_TOPIC_REPLICATIONFACTOR=1
      - ORDERER_KAFKA_VERBOSE=true
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer.example.com:192.168.159.152"
      - "peer0.org1.example.com:192.168.159.152"
      - "peer0.org2.example.com:192.168.159.153"

org1.yaml

version: '2'

services:

  couchdb0.org1.example.com:
    container_name: couchdb0.org1.example.com
    image: couchdb:3.1
    environment:
      - COUCHDB_USER=admin
      - COUCHDB_PASSWORD=adminpw
    ports:
      - 5984:5984

  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org1.example.com
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
      - CORE_LEDGER_STATE_STATEDATABASE=CouchDB
      - CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0.org1.example.com:5984
      - CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=admin
      - CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=adminpw
    depends_on:
      - couchdb0.org1.example.com

    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer.example.com:192.168.159.152"
      - "peer0.org1.example.com:192.168.159.152"
      - "peer0.org2.example.com:192.168.159.153"
  cli:
    container_name: cli
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer.example.com:192.168.159.152"
      - "peer0.org1.example.com:192.168.159.152"
      - "peer0.org2.example.com:192.168.159.153"

org2.yaml

version: '2'

services:
  couchdb0.org2.example.com:
    container_name: couchdb0.org2.example.com
    image: couchdb:3.1
    environment:
      - COUCHDB_USER=admin
      - COUCHDB_PASSWORD=adminpw
    ports:
      - 5984:5984

  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org2.example.com
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
      - CORE_LEDGER_STATE_STATEDATABASE=CouchDB
      - CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0.org2.example.com:5984
      - CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=admin
      - CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=adminpw
    depends_on:
      - couchdb0.org2.example.com

    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer.example.com:192.168.159.152"
      - "peer0.org1.example.com:192.168.159.152"
      - "peer0.org2.example.com:192.168.159.153"
  cli:
    container_name: cli
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer.example.com:192.168.159.152"
      - "peer0.org1.example.com:192.168.159.152"
      - "peer0.org2.example.com:192.168.159.153"

5.通道操作

首先要啟動服務

docker-compose -f orderer.yaml up -d
docker-compose -f org1.yaml up -d
docker-compose -f org2.yaml up -d

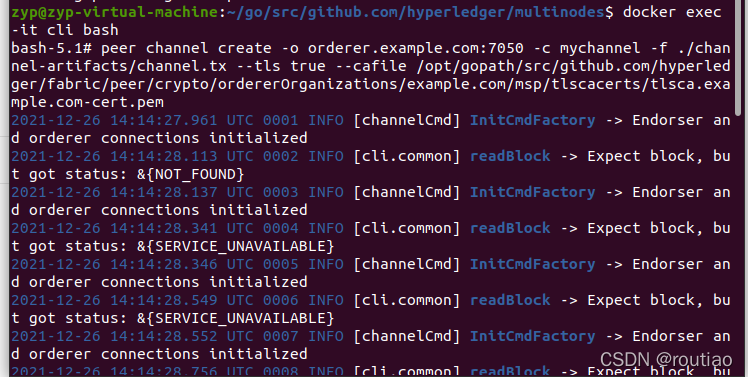

創建通道

在org1主機操作

docker exec -it cli bash

peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

使用ls命令查看生成的檔案（在Org1容器上操作），

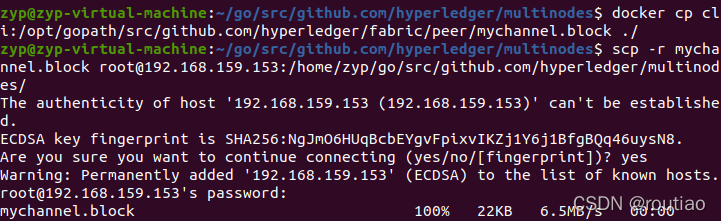

使用以下命令將通道檔案 mychannel.block 拷貝到宿主機(從容器cli里拿出來）（在Org1主機上操作），

docker cp cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./

然后使用以下命令拷貝到其他服務器上用于其他節點加入通道（在Org1主機上操作），

scp -r mychannel.block root@192.168.159.153:/home/zyp/go/src/github.com/hyperledger/multinodes/

使用以下命令將通道檔案拷貝到容器中（在Org2主機上操作），

docker cp mychannel.block cli:/opt/gopath/src/github.com/hyperledger/fabric/peer/

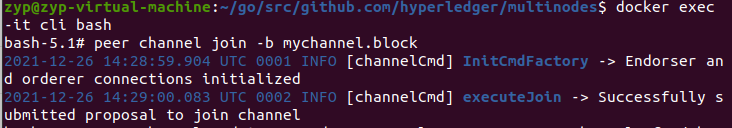

加入通道

使用以下命令讓peer0節點加入通道（在Org1和Org2容器上操作），

docker exec -it cli bash
peer channel join -b mychannel.block

更新錨節點

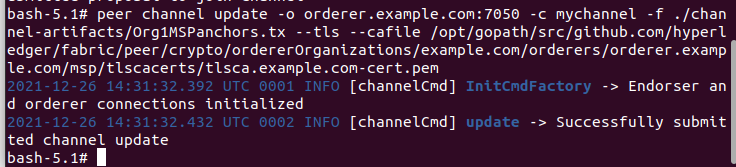

org1

peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

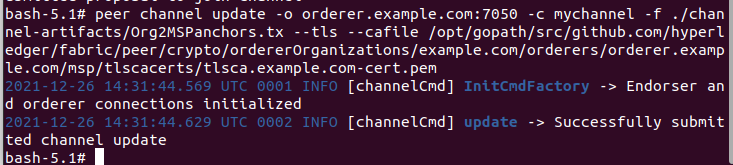

org2

peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

6.安裝呼叫智能合約

將鏈碼放入相應檔案夾

cd …/hyperledger/multinodes/chaincode/go/atcc

使用以下命令進入鏈碼所在目錄

docker exec -it cli bash
cd /opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go/atcc

使用以下命令設定go語言依賴包，

go env -w GOPROXY=https://goproxy.cn,direct
go mod vendor

打包鏈碼

peer lifecycle chaincode package atcc.tar.gz --path github.com/hyperledger/fabric-cluster/chaincode/go/atcc/ --label atcc_1

可以使用ls命令看看atcc下面有沒有生成鏈碼包，生成了再把鏈碼包復制到org2的atcc下即可，

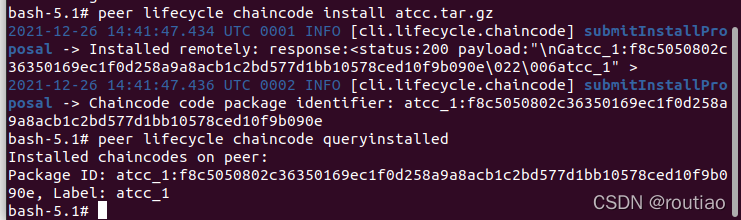

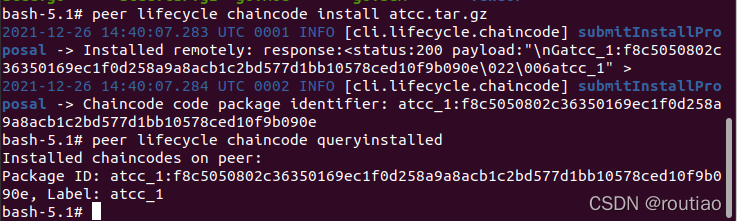

安裝鏈碼

使用以下命令分別在兩個組織的虛擬機上安裝鏈碼（Org1和Org2的虛擬機中都要進行以下操作），

peer lifecycle chaincode install atcc.tar.gz

使用以下命令分別在兩個組織的虛擬機上安裝鏈碼（Org1和Org2的虛擬機中都要進行以下操作），

peer lifecycle chaincode queryinstalled

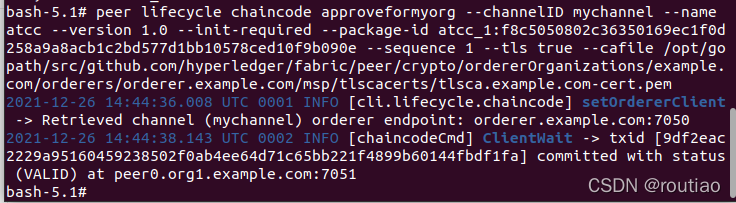

批準鏈碼

使用以下命令批準鏈碼（Org1和Org2的虛擬機中都要進行以下操作，其中鏈碼的ID要根據上面查詢的結果替換到下面的命令中），

peer lifecycle chaincode approveformyorg --channelID mychannel --name atcc --version 1.0 --init-required --package-id atcc_1:f8c5050802c36350169ec1f0d258a9a8acb1c2bd577d1bb10578ced10f9b090e --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

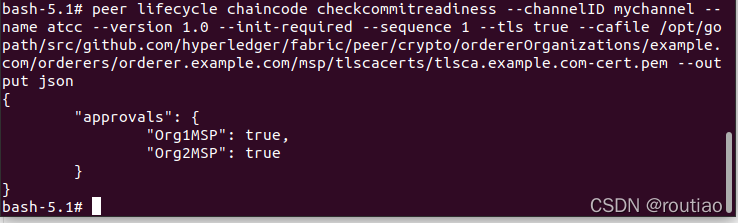

使用以下命令查看鏈碼是否就緒（Org1和Org2的虛擬機中都要進行以下操作）

peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name atcc --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

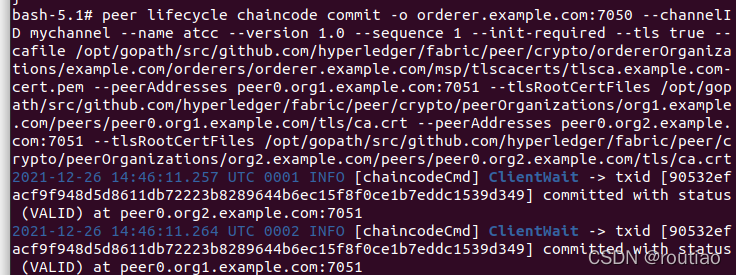

提交鏈碼

org1或org2 提交一次即可

peer lifecycle chaincode commit -o orderer.example.com:7050 --channelID mychannel --name atcc --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt

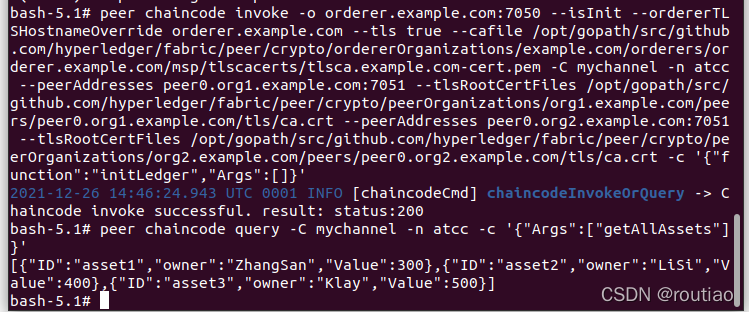

初始化鏈碼

peer chaincode invoke -o orderer.example.com:7050 --isInit --ordererTLSHostnameOverride orderer.example.com --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n atcc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"function":"initLedger","Args":[]}'

呼叫查詢方法

若搭建成功，初始化在org1完成 那么就可以org2中查詢到結果，

peer chaincode query -C mychannel -n atcc -c '{"Args":["getAllAssets"]}'

7、搭建超級賬本區塊鏈瀏覽器

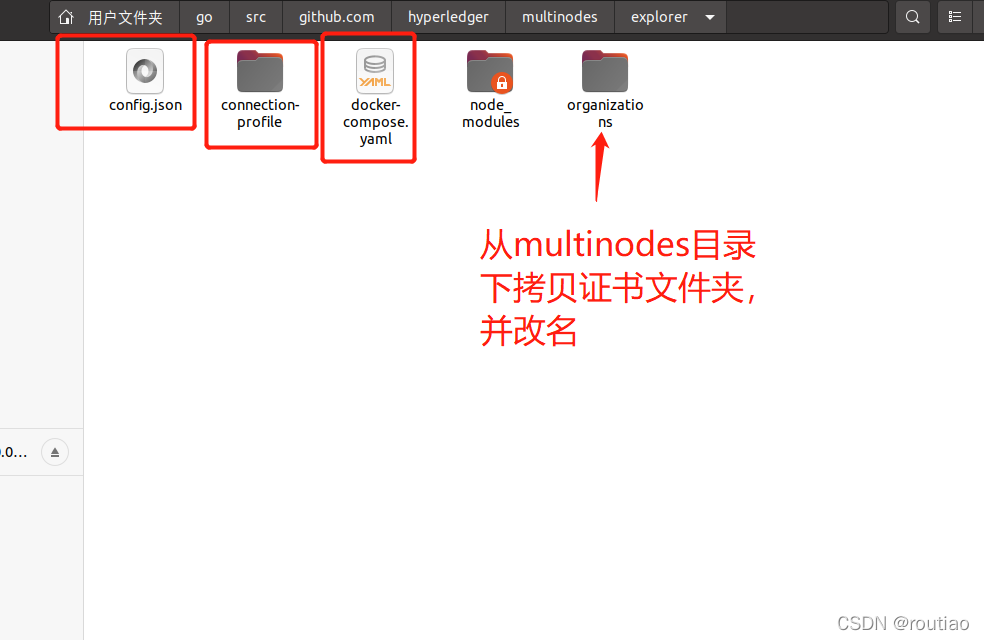

下載組態檔

因為不能翻墻，經常會遇到與github連接失敗的情況，可以直接下載包或自己撰寫，

mkdir explorer //創建fabric服務器的根目錄

這里就不下載包了，給出代碼直接創建檔案

修改組態檔

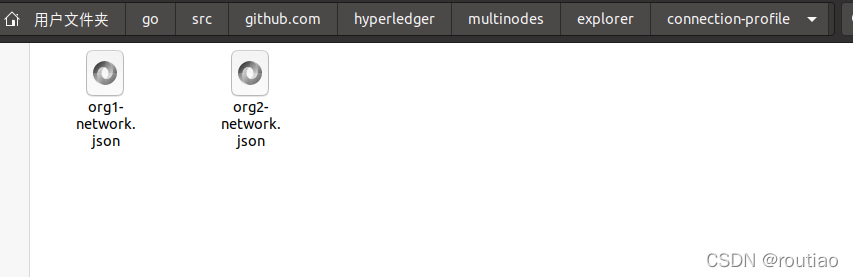

cd connection-profile/
vim org1-network.json

{
	"name": "org1-network",
	"version": "1.0.0",
	"client": {
		"tlsEnable": true,
		"adminCredential": {
			"id": "exploreradmin",
			"password": "exploreradminpw"
		},
		"enableAuthentication": true,
		"organization": "Org1MSP",
		"connection": {
			"timeout": {
				"peer": {
					"endorser": "300"
				},
				"orderer": "300"
			}
		}
	},
	"channels": {
		"mychannel": {
			"peers": {
				"peer0.org1.example.com": {}
			}
		}
	},
	"organizations": {
		"Org1MSP": {
			"mspid": "Org1MSP",
			"adminPrivateKey": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/users/User1@org1.example.com/msp/keystore/priv_sk"
			},
			"peers": ["peer0.org1.example.com"],
			"signedCert": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/users/User1@org1.example.com/msp/signcerts/User1@org1.example.com-cert.pem"
			}
		}
	},
	"peers": {
		"peer0.org1.example.com": {
			"tlsCACerts": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
			},
			"url": "grpcs://peer0.org1.example.com:7051"

		}
	}
}

vim org2-network.json
{
	"name": "org2-network",
	"version": "1.0.0",
	"client": {
		"tlsEnable": true,
		"adminCredential": {
			"id": "exploreradmin",
			"password": "exploreradminpw"
		},
		"enableAuthentication": true,
		"organization": "Org2MSP",
		"connection": {
			"timeout": {
				"peer": {
					"endorser": "300"
				},
				"orderer": "300"
			}
		}
	},
	"channels": {
		"mychannel": {
			"peers": {
				"peer0.org2.example.com": {}
			}
		}
	},
	"organizations": {
		"Org2MSP": {
			"mspid": "Org2MSP",
			"adminPrivateKey": {
				"path": "/tmp/crypto/peerOrganizations/org2.example.com/users/User1@org2.example.com/msp/keystore/priv_sk"
			},
			"peers": ["peer0.org2.example.com"],
			"signedCert": {
				"path": "/tmp/crypto/peerOrganizations/org2.example.com/users/User1@org2.example.com/msp/signcerts/User1@org2.example.com-cert.pem"
			}
		}
	},
	"peers": {
		"peer0.org2.example.com": {
			"tlsCACerts": {
				"path": "/tmp/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt"
			},
			"url": "grpcs://peer0.org2.example.com:7051"
		}
	}
}


cd ..
vim config.json
{
        "network-configs": {
                "org1-network": {
                        "name": "org1-Network",
                        "profile": "./connection-profile/org1-network.json"
                },
                "org2-network": {
                        "name": "org2-Network",
                        "profile": "./connection-profile/org2-network.json"
                }
        },
        "license": "Apache-2.0"
}

修改docker-compose檔案

# SPDX-License-Identifier: Apache-2.0
version: '2.1'

volumes:
  pgdata:
  walletstore:

networks:
  mynetwork.com:
    external:
      name: multinodes_default

services:

  explorerdb.mynetwork.com:
    image: hyperledger/explorer-db:latest
    container_name: explorerdb.mynetwork.com
    hostname: explorerdb.mynetwork.com
    environment:
      - DATABASE_DATABASE=fabricexplorer
      - DATABASE_USERNAME=exploreradmin
      - DATABASE_PASSWORD=exploreradminpw
    healthcheck:
      test: "pg_isready -h localhost -p 5432 -q -U postgres"
      interval: 30s
      timeout: 100s
      retries: 10
    volumes:
      - pgdata:/var/lib/postgresql/data
    networks:
      - mynetwork.com

  explorer.mynetwork.com:
    image: hyperledger/explorer:latest
    container_name: explorer.mynetwork.com
    hostname: explorer.mynetwork.com
    environment:
      - DATABASE_HOST=explorerdb.mynetwork.com
      - DATABASE_DATABASE=fabricexplorer
      - DATABASE_USERNAME=exploreradmin
      - DATABASE_PASSWD=exploreradminpw
      - LOG_LEVEL_APP=debug
      - LOG_LEVEL_DB=debug
      - LOG_LEVEL_CONSOLE=debug
      - LOG_CONSOLE_STDOUT=true
      - DISCOVERY_AS_LOCALHOST=false
    volumes:
      - ./config.json:/opt/explorer/app/platform/fabric/config.json
      - ./connection-profile:/opt/explorer/app/platform/fabric/connection-profile

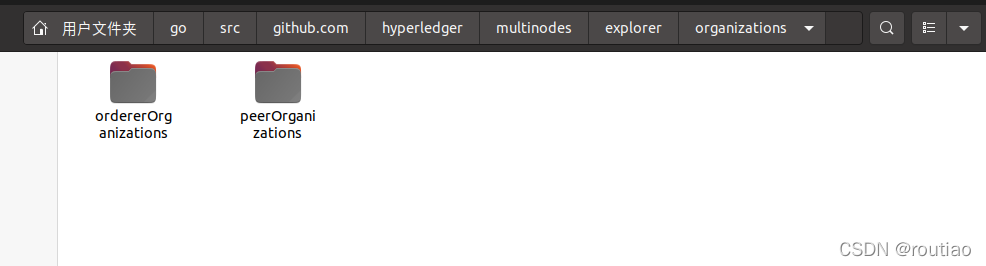

      - ./organizations:/tmp/crypto
      - walletstore:/opt/explorer/wallet
    ports:
      - 8080:8080
    depends_on:
      explorerdb.mynetwork.com:
        condition: service_healthy
    networks:
      - mynetwork.com

啟動區塊鏈瀏覽器

docker-compose -f docker-compose.yaml up -d

然后docker ps 查看容器是否正在運行（可能 explorer會自動退出，可以docker logs ID 看看具體錯誤）

注意用fabric的網路

注意org2節點埠號

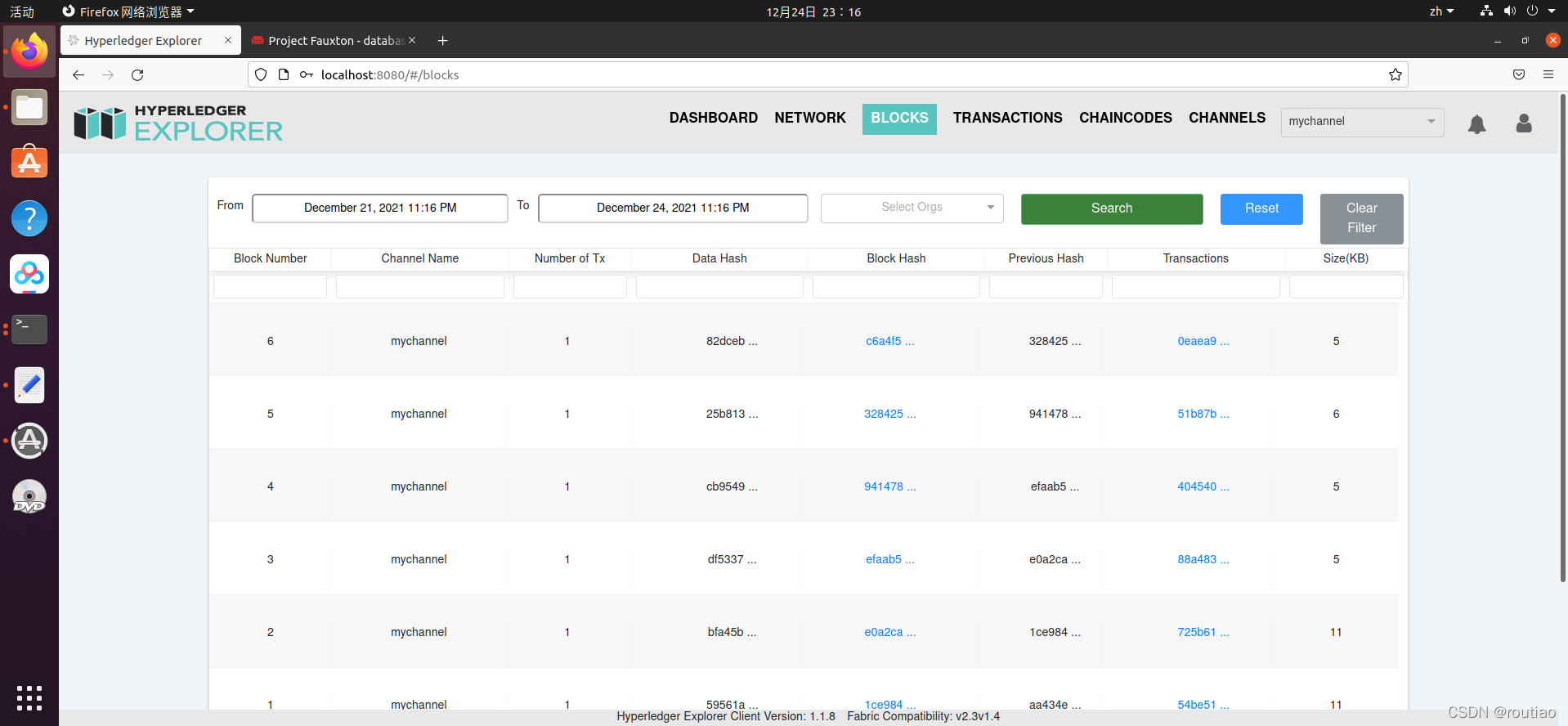

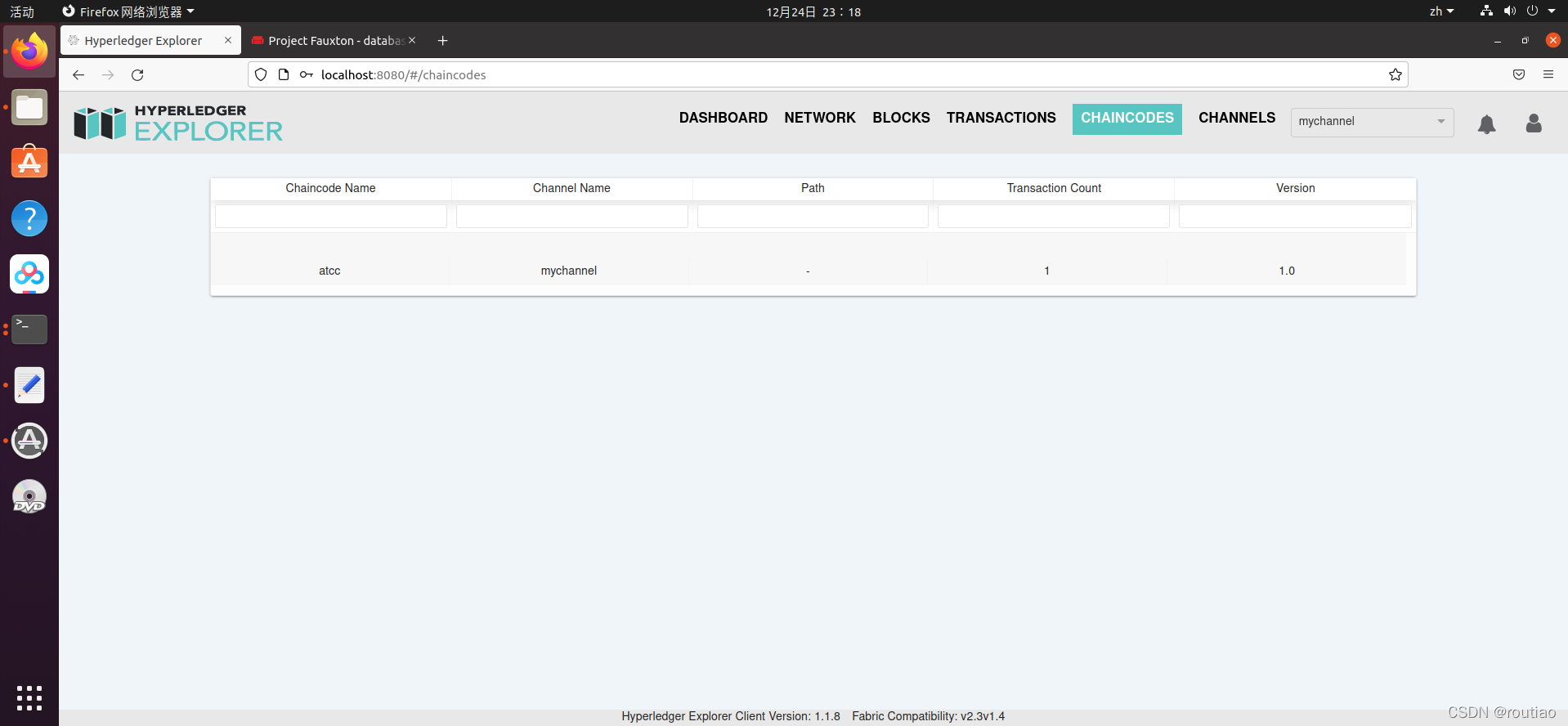

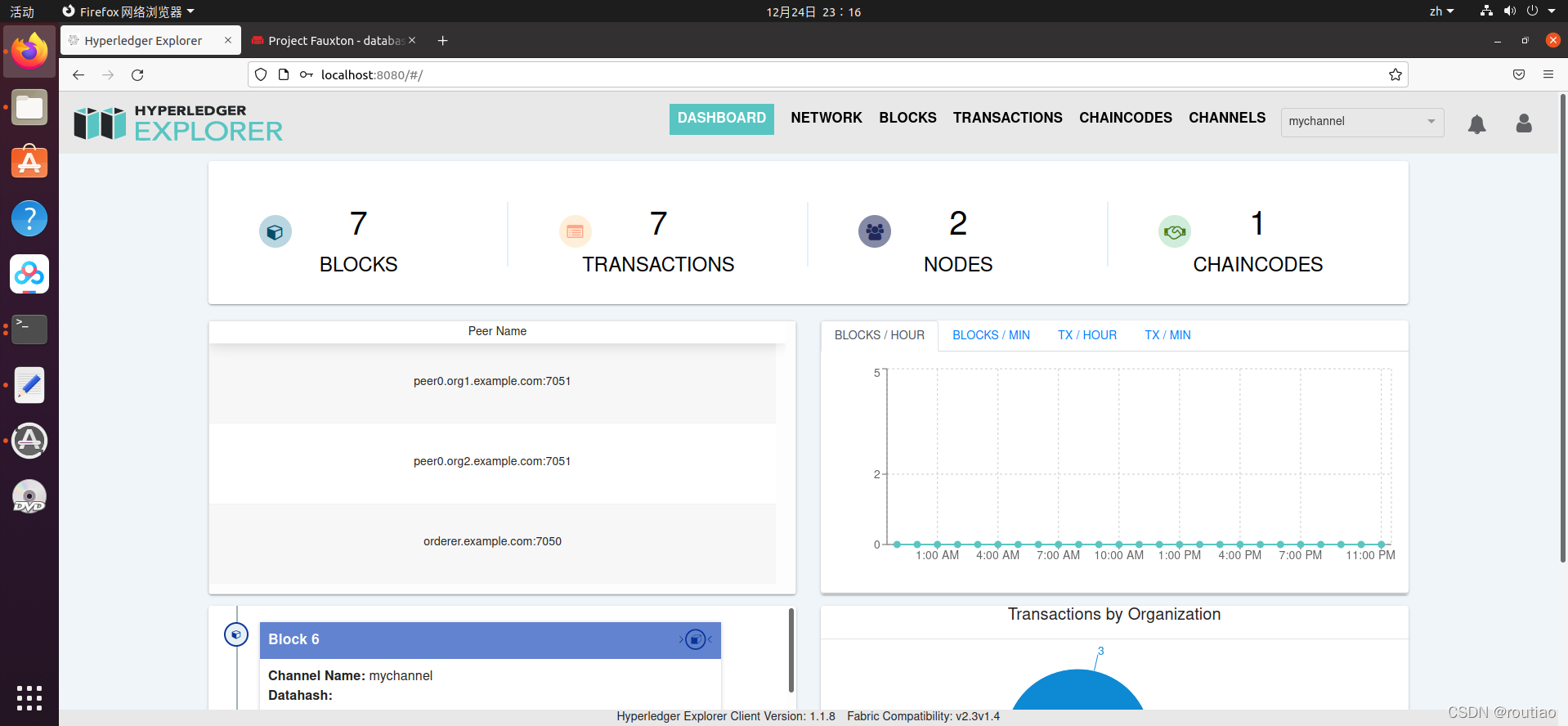

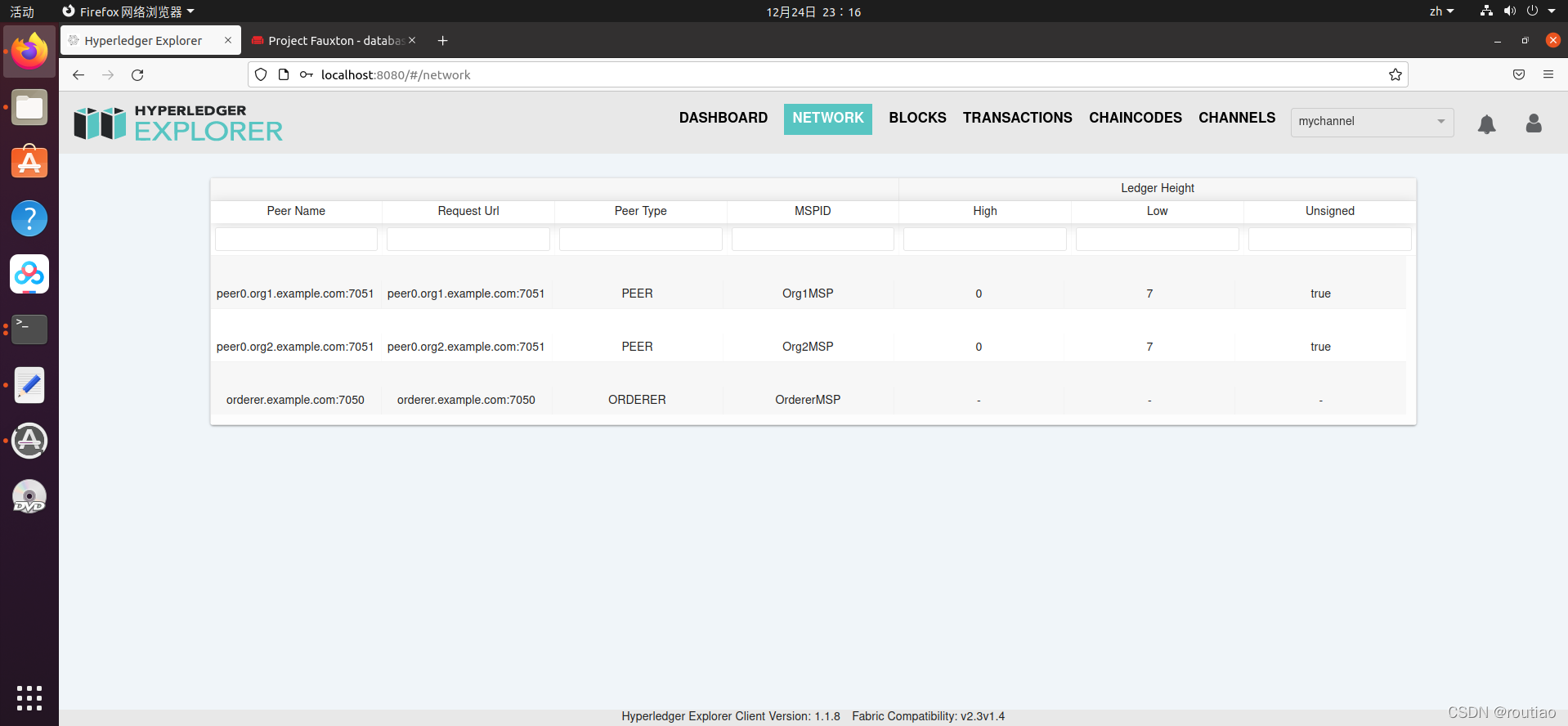

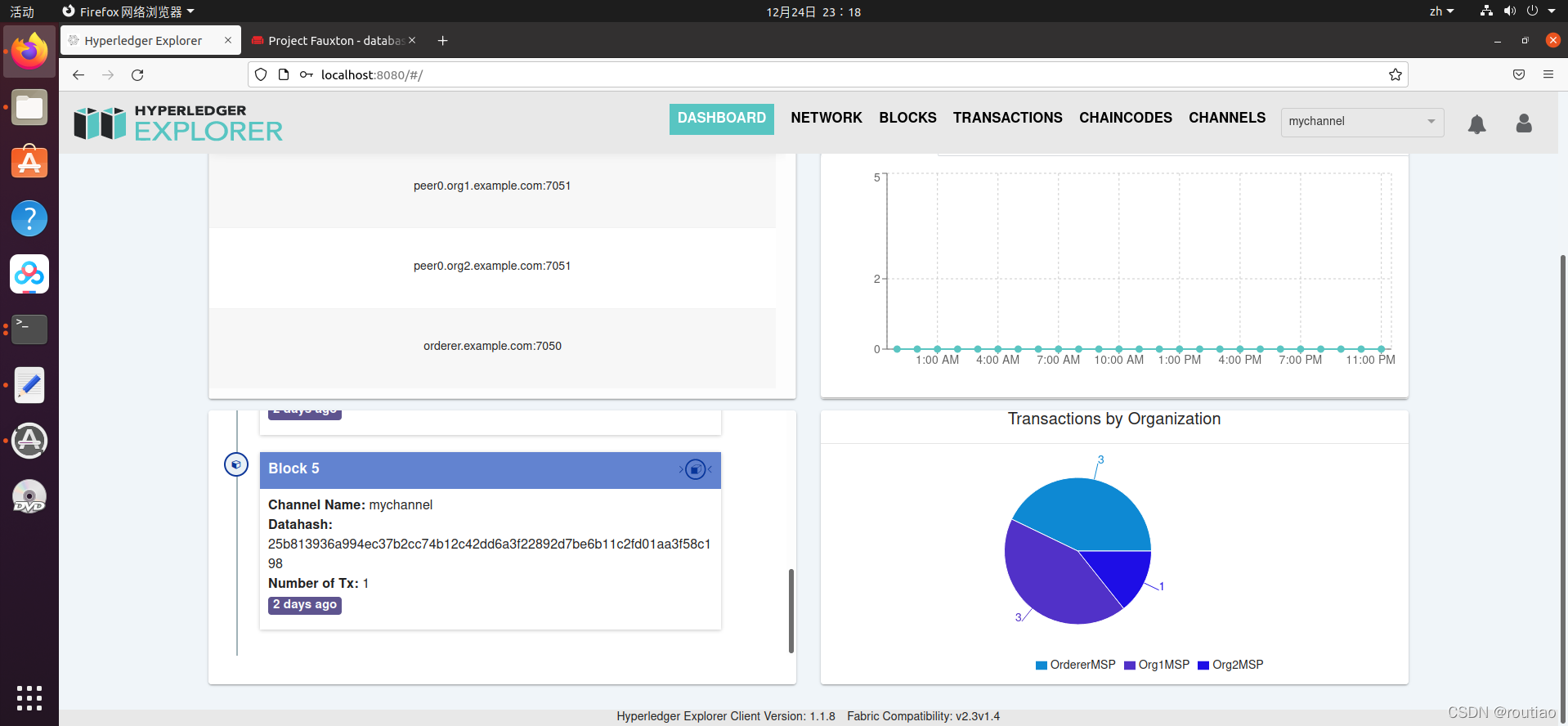

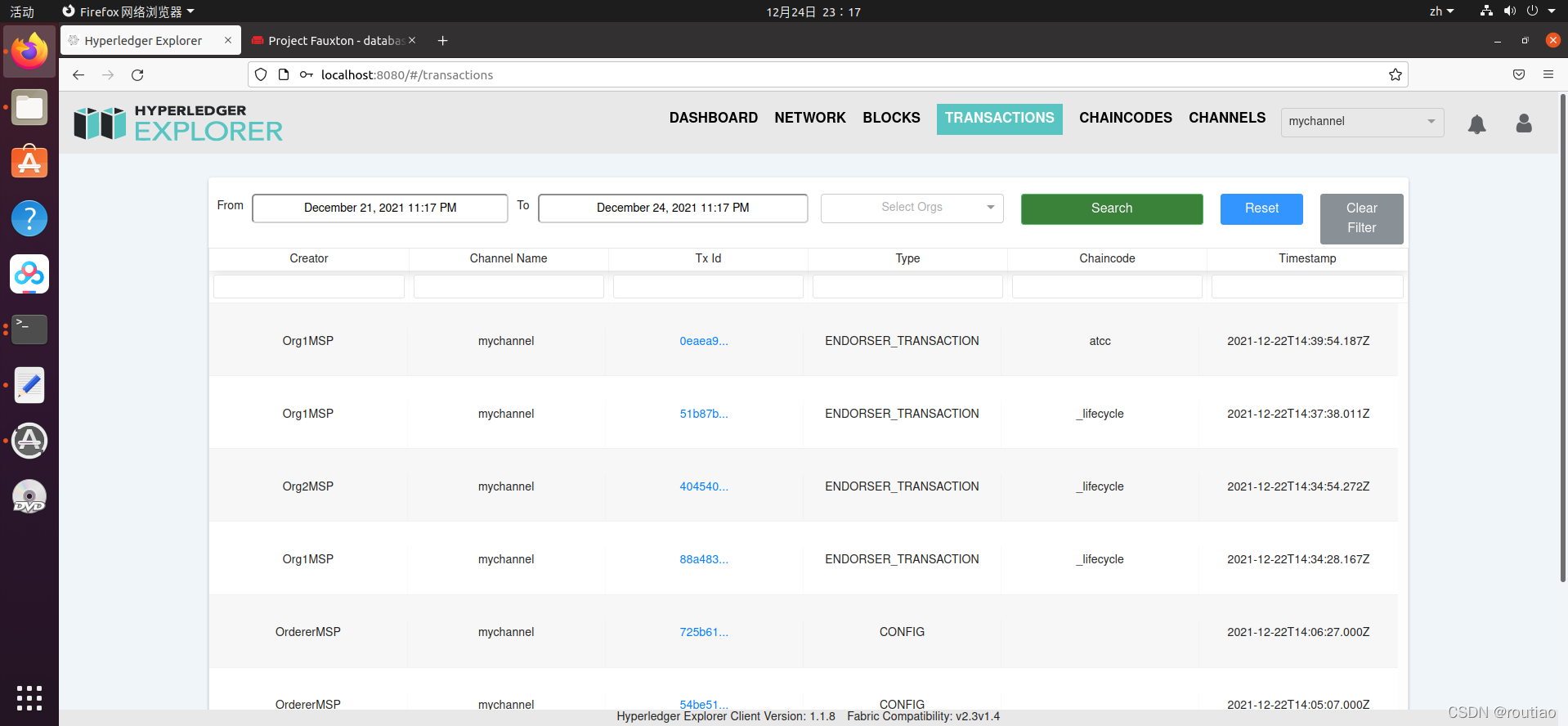

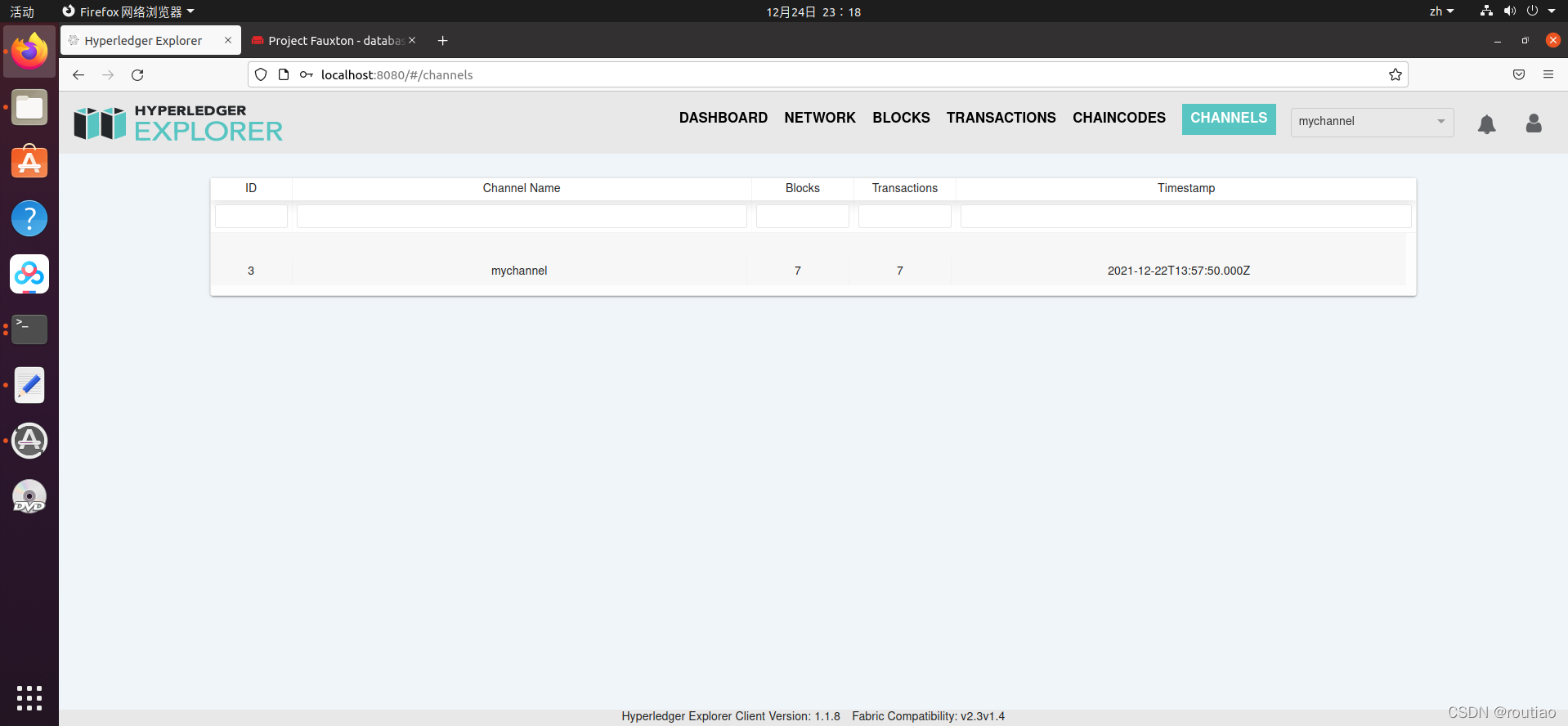

然后localhost：8080即可訪問
