瀏覽順序：
直接看最下面的輸出日志資訊，
文章目錄
- 瀏覽順序：
- 一、前言
- 二、介紹
- 三、詳細部分
- 1. 配置環境變數
- 2. 幫助資訊
- 3. 是否執行腳本
- 4. 洗掉容器
- 5. 洗掉鏡像
- 6. 版本是否沖突
- 7. 啟動網路
- 8. 升級網網路
- 9. 停止網路
- 10. 替換私鑰
- 11. 生成組織證書
- 12. 呼叫configtxgen工具
- 13. 一些配置資訊
- 四、輸出的日志資訊
- 1. generate
- 2. up
- 執行程序
- 3. down
一、前言
這個主要寫的是腳本里面的一些方法主要是做什么的，其實不看也好，只要看日志資訊，就足夠了，我這里主要想了解一下運行程序，熟悉一下腳本檔案的撰寫，
有的地方直接用的翻譯出來的結果，我吃的也不是很透，
希望可以幫助到一些啟動網路時，看不懂報錯記錄的同學，
日志記錄寫的沒有特別詳細，洗掉了一些東西，可以看自己的日志檔案
我看的是fabric 1.4.6的版本，地址就不貼了，
因為我用的筆記塊內不能放太多，這里直接全部替換成中文的，使用全文翻譯也可以，
二、介紹
啟動first-network的重要的腳本檔案
end-to-end網路，這個記一下，別的貼子大部分這樣寫的 ，
這個測驗案例提供了 兩個order節點，每個order下面有兩個peer節點 ，而且是單機節點模式
這里面使用了兩個重要的工具 cryptogen 和 configtxgen，這兩個就是搭建網路是解壓出來的工具類檔案bin目錄下的東西，
cryptogen：用來產生加密證書的和秘鑰的，用于傳輸加密和身份驗證，生成的檔案再crypto-config中，configtxgen: 創建通道必要的工具 、
這兩個工具都有自己依賴得yaml檔案，
里面執行了兩個sh 腳本檔案，ccp-generate.sh（byfn.sh同目錄），scripts.sh（scripts目錄下的檔案）
scripts.sh檔案詳解
另外寫了貼子的，詳情看主頁，
三、詳細部分
1. 配置環境變數
#!/bin/bash
#PWD 的地址就是你在的這個 /first-network目錄
# 配置環境變數，讓子shell也可以訪問到
export PATH=${PWD}/../bin:${PWD}:$PATH
export FABRIC_CFG_PATH=${PWD}
export VERBOSE=false
2. 幫助資訊
# 這就是幫助資訊，起始好多都有help命令的，只是大家不注意罷了， ./byfn.sh -help
function printHelp() {
echo "Usage: "
echo " byfn.sh <mode> [-c <channel name>] [-t <timeout>] [-d <delay>] [-f <docker-compose-file>] [-s <dbtype>] [-l <language>] [-o <consensus-type>] [-i <imagetag>] [-a] [-n] [-v]"
# 就是后面可以加 up down restart generate upgrade
echo " <mode> - one of 'up', 'down', 'restart', 'generate' or 'upgrade'"
# 使用docker-compose up 啟動網路
echo " - 'up' - bring up the network with docker-compose up"
# 使用docker-compose down 停止網路
echo " - 'down' - clear the network with docker-compose down"
# 重啟網路
echo " - 'restart' - restart the network"
# 生成所需的證書和創世塊
echo " - 'generate' - generate required certificates and genesis block"
# 升級fabric網路版本
echo " - 'upgrade' - upgrade the network from version 1.3.x to 1.4.0"
# -c 后面加channel name 通道名，默認為 mychannel
echo " -c <channel name> - channel name to use (defaults to \"mychannel\")"
# 下面這倆我也沒整太明白，
# -t 設定cli鏈接超時時間（s為單位，默認為10s）
echo " -t <timeout> - CLI timeout duration in seconds (defaults to 10)"
# -d 設定延遲（s為單位，默認為3s）
echo " -d <delay> - delay duration in seconds (defaults to 3)"
# -f 指定docker-compose.yaml檔案（默認為docker-compose-cli.yaml）
# 等我跑起來，這個貼子也出了，
echo " -f <docker-compose-file> - specify which docker-compose file use (defaults to docker-compose-cli.yaml)"
# -s 指定資料庫型別，默認是goleveldb 可以指定為couchdb
echo " -s <dbtype> - the database backend to use: goleveldb (default) or couchdb"
# -l 指定鏈碼默認的語言，目前不就是 go node.js java
echo " -l <language> - the chaincode language: golang (default) or node"
# -o 指定共識型別（consensus-共識），order服務的模式：單機，kafka集群，etcdraft（是用于共享配置和服務發現的分布式，一致性的KV存盤系統，）
echo " -o <consensus-type> - the consensus-type of the ordering service: solo (default), kafka, or etcdraft"
# -i 啟動網路的鏡像用的配置，默認是最新的鏡像
echo " -i <imagetag> - the tag to be used to launch the network (defaults to \"latest\")"
# -a 啟動ca 證書辦法機構，默認啥都不啟動
echo " -a - launch certificate authorities (no certificate authorities are launched by default)"
# -n 不部署鏈碼，默認是abstore鏈碼
echo " -n - do not deploy chaincode (abstore chaincode is deployed by default)"
# -v 詳細模式（我也沒試呢，試了寫出來）
echo " -v - verbose mode"
# -h 就是-help
echo " byfn.sh -h (print this message)"
echo
#下面就是官方說的正常人會執行的啟動命令
# 1. 先生成需要的證書和創世區塊
# 2. 然后開啟網路
echo "Typically, one would first generate the required certificates and "
echo "genesis block, then bring up the network. e.g.:"
echo " 上面寫了"
echo " byfn.sh generate -c mychannel"
echo " byfn.sh up -c mychannel -s couchdb"
echo " byfn.sh up -c mychannel -s couchdb -i 1.4.0"
echo " byfn.sh up -l node"
echo " byfn.sh down -c mychannel"
echo " byfn.sh upgrade -c mychannel"
echo "使用默認的就夠了"
echo "Taking all defaults:"
echo " byfn.sh generate"
echo " byfn.sh up"
echo " byfn.sh down"
}
3. 是否執行腳本
# Ask user for confirmation to proceed
# 客戶確認了才進行
function askProceed() {
read -p "Continue? [Y/n] " ans
case "$ans" in
y | Y | "")
echo "proceeding ..."
;;
n | N)
echo "exiting..."
exit 1
;;
*)
echo "invalid response"
askProceed
;;
esac
}
4. 洗掉容器
# 洗掉容器，默認全部洗掉的，也可以自己指定
function clearContainers() {
#可以傳參，awk https://www.cnblogs.com/cap-rq/p/11411415.html
CONTAINER_IDS=$(docker ps -a | awk '($2 ~ /dev-peer.*/) {print $1}')
if [ -z "$CONTAINER_IDS" -o "$CONTAINER_IDS" == " " ]; then
#沒有可以洗掉的容器
echo "---- No containers available for deletion ----"
else
docker rm -f $CONTAINER_IDS
fi
}
5. 洗掉鏡像
# 洗掉作為此設定的一部分生成的鏡像
function removeUnwantedImages() {
DOCKER_IMAGE_IDS=$(docker images | awk '($1 ~ /dev-peer.*/) {print $3}')
if [ -z "$DOCKER_IMAGE_IDS" -o "$DOCKER_IMAGE_IDS" == " " ]; then
echo "---- No images available for deletion ----"
else
docker rmi -f $DOCKER_IMAGE_IDS
fi
}
6. 版本是否沖突
# Versions of fabric known not to work with this release of first-network
# 不可以配置這個版本使用的fabric的版本
BLACKLISTED_VERSIONS="^1\.0\. ^1\.1\.0-preview ^1\.1\.0-alpha"
# 判斷configtxlator的版本和docker鏡像的版本是否有沖突
# Do some basic sanity checking to make sure that the appropriate versions of fabric
# binaries/images are available. In the future, additional checking for the presence
# of go or other items could be added.
function checkPrereqs() {
# note, we check configtxlator externally because it does not require a config file, and peer in the
# docker image because of fab-8551 that makes configtxlator return 'development version' in docker
# 這里我也不太懂，希望大佬指點
#本地的版本
LOCAL_VERSION=$(configtxlator version | sed -ne 's/ Version: //p')
# docker鏡像的版本
DOCKER_IMAGE_VERSION=$(docker run --rm hyperledger/fabric-tools:$IMAGETAG peer version | sed -ne 's/ Version: //p' | head -1)
echo "LOCAL_VERSION=$LOCAL_VERSION"
echo "DOCKER_IMAGE_VERSION=$DOCKER_IMAGE_VERSION"
#判斷兩個版本，如果不一致可能出問題
if [ "$LOCAL_VERSION" != "$DOCKER_IMAGE_VERSION" ]; then
echo "=================== WARNING ==================="
echo " Local fabric binaries and docker images are "
echo " out of sync. This may cause problems. "
echo "==============================================="
fi
# 不支持的版本 列入黑名單的版本
for UNSUPPORTED_VERSION in $BLACKLISTED_VERSIONS; do
echo "$LOCAL_VERSION" | grep -q $UNSUPPORTED_VERSION
if [ $? -eq 0 ]; then
echo "ERROR! Local Fabric binary version of $LOCAL_VERSION does not match this newer version of BYFN and is unsupported. Either move to a later version of Fabric or checkout an earlier version of fabric-samples."
exit 1
fi
echo "$DOCKER_IMAGE_VERSION" | grep -q $UNSUPPORTED_VERSION
if [ $? -eq 0 ]; then
echo "ERROR! Fabric Docker image version of $DOCKER_IMAGE_VERSION does not match this newer version of BYFN and is unsupported. Either move to a later version of Fabric or checkout an earlier version of fabric-samples."
exit 1
fi
done
}
7. 啟動網路
# 生成所需的證書、創世塊并啟動網路，
function networkup() {
checkPrereqs
# generate artifacts if they don't exist
# crypto-config不是一個目錄
if [ ! -d "crypto-config" ]; then
# 使用cryptogen工具生成證書
generateCerts
# 生成私鑰
replacePrivateKey
# 生成通道檔案
generateChannelArtifacts
fi
# compose 的檔案們
COMPOSE_FILES="-f ${COMPOSE_FILE}"
# 認證機構
if [ "${CERTIFICATE_AUTHORITIES}" == "true" ]; then
# -f 檢查后面的是不是普通檔案
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_CA}"
# ca1 的 私鑰 _sk 結尾的檔案
export BYFN_CA1_PRIVATE_KEY=$(cd crypto-config/peerOrganizations/org1.example.com/ca && ls *_sk)
export BYFN_CA2_PRIVATE_KEY=$(cd crypto-config/peerOrganizations/org2.example.com/ca && ls *_sk)
fi
# 判斷共識型別
if [ "${CONSENSUS_TYPE}" == "kafka" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_KAFKA}"
elif [ "${CONSENSUS_TYPE}" == "etcdraft" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_RAFT2}"
fi
# 設定資料庫型別
if [ "${IF_COUCHDB}" == "couchdb" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_COUCH}"
fi
# docker 鏡像版本 docker-compose 啟動
IMAGE_TAG=$IMAGETAG docker-compose ${COMPOSE_FILES} up -d 2>&1
docker ps -a
if [ $? -ne 0 ]; then
echo "ERROR !!!! Unable to start network"
exit 1
fi
# 設定休眠時間，讓集群有足夠的時間啟動
if [ "$CONSENSUS_TYPE" == "kafka" ]; then
sleep 1
echo "Sleeping 10s to allow $CONSENSUS_TYPE cluster to complete booting"
sleep 9
fi
if [ "$CONSENSUS_TYPE" == "etcdraft" ]; then
sleep 1
echo "Sleeping 15s to allow $CONSENSUS_TYPE cluster to complete booting"
sleep 14
fi

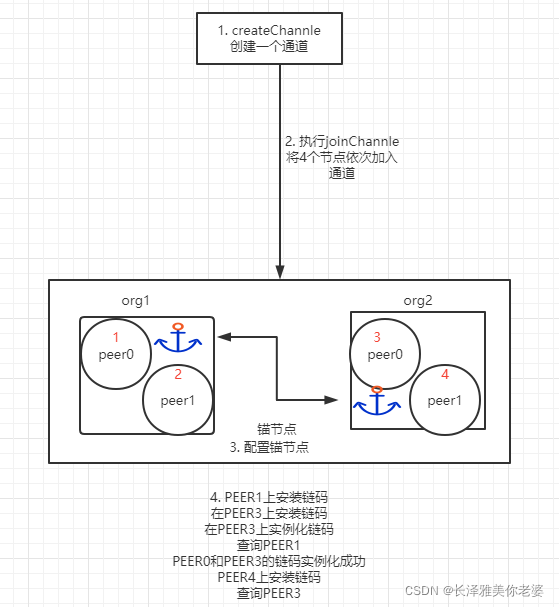

# cli 執行 script.sh腳本 后面是接入的引數，后面會整理這個腳本執行的內容的
docker exec cli scripts/script.sh $CHANNEL_NAME $CLI_DELAY $LANGUAGE $CLI_TIMEOUT $VERBOSE $NO_CHAINCODE
if [ $? -ne 0 ]; then
echo "ERROR !!!! Test failed"
exit 1
fi
}
8. 升級網網路
#將版本 1.3.x 的網路組件升級到 1.4.x
# 停止orderer和peer，備份orderer和peer的賬本，清理鏈碼容器和鏡像，
# 并使用最新標版本重新啟動order節點和peer節點
function upgradeNetwork() {
if [[ "$IMAGETAG" == *"1.4"* ]] || [[ $IMAGETAG == "latest" ]]; then
docker inspect -f '{{.Config.Volumes}}' orderer.example.com | grep -q '/var/hyperledger/production/orderer'
if [ $? -ne 0 ]; then
# 這個網路似乎不是從fabric-samples >= v1.3.x 開始的
echo "ERROR !!!! This network does not appear to start with fabric-samples >= v1.3.x?"
exit 1
fi
LEDGERS_BACKUP=./ledgers-backup
# create ledger-backup directory
mkdir -p $LEDGERS_BACKUP
export IMAGE_TAG=$IMAGETAG
COMPOSE_FILES="-f ${COMPOSE_FILE}"
# 判斷是否需要認證
if [ "${CERTIFICATE_AUTHORITIES}" == "true" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_CA}"
# 匯入生成的私鑰
export BYFN_CA1_PRIVATE_KEY=$(cd crypto-config/peerOrganizations/org1.example.com/ca && ls *_sk)
export BYFN_CA2_PRIVATE_KEY=$(cd crypto-config/peerOrganizations/org2.example.com/ca && ls *_sk)
fi
# 判斷共識型別
if [ "${CONSENSUS_TYPE}" == "kafka" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_KAFKA}"
elif [ "${CONSENSUS_TYPE}" == "etcdraft" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_RAFT2}"
fi
# 判斷資料庫型別
if [ "${IF_COUCHDB}" == "couchdb" ]; then
COMPOSE_FILES="${COMPOSE_FILES} -f ${COMPOSE_FILE_COUCH}"
fi
# 移除Cli容器
docker-compose $COMPOSE_FILES stop cli
docker-compose $COMPOSE_FILES up -d --no-deps cli
# 升級orderer和Peer
echo "Upgrading orderer"
docker-compose $COMPOSE_FILES stop orderer.example.com
docker cp -a orderer.example.com:/var/hyperledger/production/orderer $LEDGERS_BACKUP/orderer.example.com
docker-compose $COMPOSE_FILES up -d --no-deps orderer.example.com
for PEER in peer0.org1.example.com peer1.org1.example.com peer0.org2.example.com peer1.org2.example.com; do
echo "Upgrading peer $PEER"
# 停止容器，備份賬本
docker-compose $COMPOSE_FILES stop $PEER
docker cp -a $PEER:/var/hyperledger/production $LEDGERS_BACKUP/$PEER/
# Remove any old containers and images for this peer
CC_CONTAINERS=$(docker ps | grep dev-$PEER | awk '{print $1}')
if [ -n "$CC_CONTAINERS" ]; then
docker rm -f $CC_CONTAINERS
fi
CC_IMAGES=$(docker images | grep dev-$PEER | awk '{print $1}')
if [ -n "$CC_IMAGES" ]; then
docker rmi -f $CC_IMAGES
fi
# Start the peer again
docker-compose $COMPOSE_FILES up -d --no-deps $PEER
done
# cli容器中 運行升級腳本
docker exec cli sh -c "SYS_CHANNEL=$CH_NAME && scripts/upgrade_to_v14.sh $CHANNEL_NAME $CLI_DELAY $LANGUAGE $CLI_TIMEOUT $VERBOSE"
if [ $? -ne 0 ]; then
echo "ERROR !!!! Test failed"
exit 1
fi
else
echo "ERROR !!!! Pass the v1.4.x image tag"
fi
}
9. 停止網路
# 停止網路
function networkDown() {
# 除了 org1 和 org2 之外，還停止 org3 容器，以防我們正在運行示例以添加 org3
# 停止 kafka 和 zookeeper 容器，以防我們使用 kafka 共識型別運行
docker-compose -f $COMPOSE_FILE -f $COMPOSE_FILE_COUCH -f $COMPOSE_FILE_KAFKA -f $COMPOSE_FILE_RAFT2 -f $COMPOSE_FILE_CA -f $COMPOSE_FILE_ORG3 down --volumes --remove-orphans
# Don't remove the generated artifacts -- note, the ledgers are always removed
if [ "$MODE" != "restart" ]; then
# 停止網路，洗掉掛載，洗掉所有的賬本備份
docker run -v $PWD:/tmp/first-network --rm hyperledger/fabric-tools:$IMAGETAG rm -Rf /tmp/first-network/ledgers-backup
# 呼叫上面的清除容器
clearContainers
# 呼叫上面的清除鏡像
removeUnwantedImages
# 洗掉 orderer 塊和其他通道配置交易和證書
rm -rf channel-artifacts/*.block channel-artifacts/*.tx crypto-config ./org3-artifacts/crypto-config/ channel-artifacts/org3.json
# 洗掉為示例定制的 docker-compose yaml 檔案 就是下面這個
rm -f docker-compose-e2e.yaml
fi
}
10. 替換私鑰
# 使用 docker-compose-e2e-template.yaml，
# 將常量替換為由 cryptogen 工具生成的私鑰檔案名，
# 并輸出特定于此配置的 docker-compose.yaml
#替換私鑰
function replacePrivateKey() {
# MacOSX 上的 sed 不支持帶有空擴展名的 -i 標志，
# 我們將使用 't' 作為我們備份的擴展名，并在函式結束時將其洗掉
ARCH=$(uname -s | grep Darwin)
if [ "$ARCH" == "Darwin" ]; then
OPTS="-it"
else
OPTS="-i"
fi
# 拷貝檔案模板
cp docker-compose-e2e-template.yaml docker-compose-e2e.yaml
# 接下來的步驟將使用兩個 CA 的私鑰檔案名的實際值替換模板的內容
# 當前目錄
CURRENT_DIR=$PWD
cd crypto-config/peerOrganizations/org1.example.com/ca/
PRIV_KEY=$(ls *_sk)
cd "$CURRENT_DIR"
sed $OPTS "s/CA1_PRIVATE_KEY/${PRIV_KEY}/g" docker-compose-e2e.yaml
cd crypto-config/peerOrganizations/org2.example.com/ca/
PRIV_KEY=$(ls *_sk)
cd "$CURRENT_DIR"
sed $OPTS "s/CA2_PRIVATE_KEY/${PRIV_KEY}/g" docker-compose-e2e.yaml
# 如果是MacOSX，洗掉docker-compose檔案的臨時備份
if [ "$ARCH" == "Darwin" ]; then
rm docker-compose-e2e.yamlt
fi
}
11. 生成組織證書
# 使用 cryptogen 工具生成組織證書
function generateCerts() {
# 查找crytogen工具
which cryptogen
if [ "$?" -ne 0 ]; then
echo "cryptogen tool not found. exiting"
exit 1
fi
echo
echo "##########################################################"
echo "##### Generate certificates using cryptogen tool #########"
echo "##########################################################"
if [ -d "crypto-config" ]; then
rm -Rf crypto-config
fi
set -x
# 執行工具的命令
cryptogen generate --config=./crypto-config.yaml
res=$?
set +x
if [ $res -ne 0 ]; then
echo "Failed to generate certificates..."
exit 1
fi
echo
echo "Generate CCP files for Org1 and Org2"
# 執行另一個腳本，檔案目錄里可以看到的，里面放了一寫組織的資訊 pem檔案的位置，啟動節點占用的埠
./ccp-generate.sh
}
12. 呼叫configtxgen工具
# 生成通道工具組態檔，order 塊 錨節點配置
# 主要使用configtxgen
# 然后將這些檔案輸出到“channel-artifacts”檔案夾中，
function generateChannelArtifacts() {
which configtxgen
if [ "$?" -ne 0 ]; then
echo "configtxgen tool not found. exiting"
exit 1
fi
# 生成order 創世塊
echo "##########################################################"
echo "######### Generating Orderer Genesis block ##############"
echo "##########################################################"
# 注意：由于某些未知原因（至少現在），塊檔案不能命名為 orderer.genesis.block 否則排序器將無法啟動！
echo "CONSENSUS_TYPE="$CONSENSUS_TYPE
set -x
# 根據公式型別 -profile 定了了公式型別，這是 configtx.yaml里面配置的
if [ "$CONSENSUS_TYPE" == "solo" ]; then
configtxgen -profile TwoOrgsOrdererGenesis -channelID $SYS_CHANNEL -outputBlock ./channel-artifacts/genesis.block
elif [ "$CONSENSUS_TYPE" == "kafka" ]; then
configtxgen -profile SampleDevModeKafka -channelID $SYS_CHANNEL -outputBlock ./channel-artifacts/genesis.block
elif [ "$CONSENSUS_TYPE" == "etcdraft" ]; then
configtxgen -profile SampleMultiNodeEtcdRaft -channelID $SYS_CHANNEL -outputBlock ./channel-artifacts/genesis.block
else
set +x
# 無法識別共識型別
echo "unrecognized CONSESUS_TYPE='$CONSENSUS_TYPE'. exiting"
exit 1
fi
res=$?
set +x
if [ $res -ne 0 ]; then
echo "Failed to generate orderer genesis block..."
exit 1
fi
# 生成通道組態檔 channel.tx
echo
echo "#################################################################"
echo "### Generating channel configuration transaction 'channel.tx' ###"
echo "#################################################################"
set -x
configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID $CHANNEL_NAME
res=$?
set +x
if [ $res -ne 0 ]; then
echo "Failed to generate channel configuration transaction..."
exit 1
fi
# 生成錨節點
echo
echo "#################################################################"
echo "####### Generating anchor peer update for Org1MSP ##########"
echo "#################################################################"
set -x
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID $CHANNEL_NAME -asOrg Org1MSP
res=$?
set +x
if [ $res -ne 0 ]; then
echo "Failed to generate anchor peer update for Org1MSP..."
exit 1
fi
echo
echo "#################################################################"
echo "####### Generating anchor peer update for Org2MSP ##########"
echo "#################################################################"
set -x
configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate \
./channel-artifacts/Org2MSPanchors.tx -channelID $CHANNEL_NAME -asOrg Org2MSP
res=$?
set +x
if [ $res -ne 0 ]; then
echo "Failed to generate anchor peer update for Org2MSP..."
exit 1
fi
echo
}
13. 一些配置資訊
# 獲取將用于為您的平臺選擇正確本機二進制檔案的作業系統和架構字串，例如 darwin-amd64 或 linux-amd64
OS_ARCH=$(echo "$(uname -s | tr '[:upper:]' '[:lower:]' | sed 's/mingw64_nt.*/windows/')-$(uname -m | sed 's/x86_64/amd64/g')" | awk '{print tolower($0)}')
# timeout duration - CLI 在放棄之前應該等待來自另一個容器的回應的持續時間
CLI_TIMEOUT=10
# 命令之間的默認延遲
CLI_DELAY=3
# 系統通道名稱默認為“byfn-sys-channel”
SYS_CHANNEL="byfn-sys-channel"
# 通道默認名
CHANNEL_NAME="mychannel"
# 默認使用的docker-compose.yaml檔案
COMPOSE_FILE=docker-compose-cli.yaml
#
COMPOSE_FILE_COUCH=docker-compose-couch.yaml
# org3 docker compose file
COMPOSE_FILE_ORG3=docker-compose-org3.yaml
# kafka and zookeeper compose file
COMPOSE_FILE_KAFKA=docker-compose-kafka.yaml
# two additional etcd/raft orderers
COMPOSE_FILE_RAFT2=docker-compose-etcdraft2.yaml
# certificate authorities compose file
COMPOSE_FILE_CA=docker-compose-ca.yaml
#
# use golang as the default language for chaincode
LANGUAGE=golang
# default image tag
IMAGETAG="latest"
# default consensus type
CONSENSUS_TYPE="solo"
# Parse commandline args
# 檢驗 byfn.sh 后面的引數
if [ "$1" = "-m" ]; then # supports old usage, muscle memory is powerful!
shift
fi
MODE=$1
shift
# Determine whether starting, stopping, restarting, generating or upgrading
if [ "$MODE" == "up" ]; then
EXPMODE="Starting"
elif [ "$MODE" == "down" ]; then
EXPMODE="Stopping"
elif [ "$MODE" == "restart" ]; then
EXPMODE="Restarting"
elif [ "$MODE" == "generate" ]; then
EXPMODE="Generating certs and genesis block"
elif [ "$MODE" == "upgrade" ]; then
EXPMODE="Upgrading the network"
else
printHelp
exit 1
fi
# 輸入不同引數的操作
while getopts "h?c:t:d:f:s:l:i:o:anv" opt; do
case "$opt" in
h | \?)
printHelp
exit 0
;;
c)
CHANNEL_NAME=$OPTARG
;;
t)
CLI_TIMEOUT=$OPTARG
;;
d)
CLI_DELAY=$OPTARG
;;
f)
COMPOSE_FILE=$OPTARG
;;
s)
IF_COUCHDB=$OPTARG
;;
l)
LANGUAGE=$OPTARG
;;
i)
IMAGETAG=$(go env GOARCH)"-"$OPTARG
;;
o)
CONSENSUS_TYPE=$OPTARG
;;
a)
CERTIFICATE_AUTHORITIES=true
;;
n)
NO_CHAINCODE=true
;;
v)
VERBOSE=true
;;
esac
done
# 選了couchdb 會呼叫上面的是否確認
if [ "${IF_COUCHDB}" == "couchdb" ]; then
echo
echo "${EXPMODE} for channel '${CHANNEL_NAME}' with CLI timeout of '${CLI_TIMEOUT}' seconds and CLI delay of '${CLI_DELAY}' seconds and using database '${IF_COUCHDB}'"
else
echo "${EXPMODE} for channel '${CHANNEL_NAME}' with CLI timeout of '${CLI_TIMEOUT}' seconds and CLI delay of '${CLI_DELAY}' seconds"
fi
# ask for confirmation to proceed
askProceed
#使用docker-compose 構建網路
if [ "${MODE}" == "up" ]; then
networkUp
elif [ "${MODE}" == "down" ]; then ## Clear the network
networkDown
elif [ "${MODE}" == "generate" ]; then ## Generate Artifacts
generateCerts
replacePrivateKey
generateChannelArtifacts
elif [ "${MODE}" == "restart" ]; then ## Restart the network
networkDown
networkUp
elif [ "${MODE}" == "upgrade" ]; then ## Upgrade the network from version 1.2.x to 1.3.x
upgradeNetwork
else
printHelp
exit 1
fi
四、輸出的日志資訊
1. generate
gengerate 作用為生成網路初始化配置，包括MSP證書、私鑰、創世區塊和配置交易等檔案，MSP相關的資訊在crypto-config檔案夾中，創世區塊在channel-artifacts檔案夾中，MSP證書和私鑰用于不同的網路物體，創世塊用于啟動排序服務，配置交易檔案用于配置通道，
- 日志資訊
root@VM-0-17-ubuntu:/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network# ./byfn.sh -m generate
Generating certs and genesis block for with channel 'mychannel' and CLI timeout of '10' seconds and CLI delay of '3' seconds
Continue (y/n)? y
proceeding ...
/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network/../bin/cryptogen
##########################################################
##### Generate certificates using cryptogen tool #########（1）創建證書
##########################################################
org1.example.com
org2.example.com
/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network/../bin/configtxgen
##########################################################
######### Generating Orderer Genesis block ##############（2）生成創世塊
##########################################################
2018-04-17 00:41:28.412 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2018-04-17 00:41:28.454 CST [common/configtx/tool] doOutputBlock -> INFO 002 Generating genesis block
2018-04-17 00:41:28.455 CST [common/configtx/tool] doOutputBlock -> INFO 003 Writing genesis block
#################################################################
### Generating channel configuration transaction 'channel.tx' ###（3）生成通道配置交易檔案
#################################################################
2018-04-17 00:41:28.463 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2018-04-17 00:41:28.467 CST [common/configtx/tool] doOutputChannelCreateTx -> INFO 002 Generating new channel configtx
2018-04-17 00:41:28.467 CST [common/configtx/tool] doOutputChannelCreateTx -> INFO 003 Writing new channel tx
#################################################################
####### Generating anchor peer update for Org1MSP ##########（4）在通道上為Org1定義一個錨節點
#################################################################
2018-04-17 00:41:28.475 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2018-04-17 00:41:28.479 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 002 Generating anchor peer update
2018-04-17 00:41:28.479 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 003 Writing anchor peer update
#################################################################
####### Generating anchor peer update for Org2MSP ##########（5）在通道上為Org2定義一個錨節點
#################################################################
2018-04-17 00:41:28.487 CST [common/configtx/tool] main -> INFO 001 Loading configuration
2018-04-17 00:41:28.490 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 002 Generating anchor peer update
2018-04-17 00:41:28.491 CST [common/configtx/tool] doOutputAnchorPeersUpdate -> INFO 003 Writing anchor peer update
在byfn.sh腳本上，依次執行了 generateCerts、 replacePrivateKey、 generateChannelArtifacts三個函式，其中：
generateCerts執行上述(1)中操作；replacePrivateKey將Org1、Org2的證書私鑰檔案配置到docker-compose-e2e.yaml檔案中，以便于后續網路啟動時候使用；generateChannelArtifacts執行上述中(2)-(5)中的操作，
2. up
up的功能為啟動fabric網路，在啟動之前會先檢查本地是否有crypto-config檔案夾，若沒有則會執行generate操作，有則直接根IF_COUCHDB和COMPOSE_FILE變數來選擇對應的docker compose組態檔，進而啟動網路，默認的goleveldb資料庫對應的組態檔為docker-compose-cli.yaml，若啟動引數設定為couchdb則對應的組態檔為docker-compose-couch.yaml，docker compose啟動docker-compose-cli.yaml 后最后創建的為cli容器，并執行了fabric-samples/first-network/scripts/script.sh腳本，srcipt.sh腳本完成創建通道、加入通道、更新錨節點、安裝-初始化-執行鏈碼等一系列的操作，
- 日志資訊
root@VM-0-17-ubuntu:/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network# ./byfn.sh -m up
Starting with channel 'mychannel' and CLI timeout of '10' seconds and CLI delay of '3' seconds
Continue (y/n)? y
proceeding ... #（1）配置容器網路，創建各類容器
Creating peer1.org1.example.com ... done
Creating cli ... done
Creating orderer.example.com ...
Creating peer0.org1.example.com ...
Creating peer1.org1.example.com ...
Creating peer1.org2.example.com ...
Creating cli ...
____ _____ _ ____ _____
/ ___| |_ _| / \ | _ \ |_ _|
\___ \ | | / _ \ | |_) | | |
___) | | | / ___ \ | _ < | |
|____/ |_| /_/ \_\ |_| \_\ |_|
Build your first network (BYFN) end-to-end test
Channel name : mychannel
Creating channel... #（2）創建通道
#核心 peer 節點 的 TLS 證書 檔案
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
#核心 peer 節點 的 TLS 的 key 檔案
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
#peer tls 啟用
CORE_PEER_TLS_ENABLED=true
#MSP 配置環境/位置
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
#日志級別
CORE_LOGGING_LEVEL=DEBUG
#peer 的埠
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
#日志省略
2018-04-16 16:49:44.134 UTC [channelCmd] readBlock -> DEBU 024 Received block:0
2018-04-16 16:49:44.135 UTC [main] main -> INFO 025 Exiting.....
===================== Channel "mychannel" is created successfully =====================
Having all peers join the channel... #（3）將所有的節點加入到該通道中
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2018-04-16 16:49:44.272 UTC [channelCmd] executeJoin -> INFO 00a Peer joined the channel!
2018-04-16 16:49:44.272 UTC [main] main -> INFO 00b Exiting.....
===================== PEER0 joined on the channel "mychannel" ===================== #（3-1）PEER0(orgt1的peer0)加入到通道中
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org1.example.com:7051
2018-04-16 16:49:47.450 UTC [channelCmd] executeJoin -> INFO 00a Peer joined the channel!
2018-04-16 16:49:47.450 UTC [main] main -> INFO 00b Exiting.....
===================== PEER1 joined on the channel "mychannel" ===================== #（3-2）PEER1(org1的peer1)加入通道
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2018-04-16 16:49:50.595 UTC [channelCmd] executeJoin -> INFO 00a Peer joined the channel!
2018-04-16 16:49:50.595 UTC [main] main -> INFO 00b Exiting.....
===================== PEER2 joined on the channel "mychannel" ===================== #（3-3）PEER2（org2的peer0）加入通道
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
2018-04-16 16:49:53.765 UTC [channelCmd] executeJoin -> INFO 00a Peer joined the channel!
2018-04-16 16:49:53.765 UTC [main] main -> INFO 00b Exiting.....
===================== PEER3 joined on the channel "mychannel" =====================# （3-4）PEER3（org2的peer1）加入通道
Updating anchor peers for org1...#（4）配置錨節點 （4-1）為org1配置錨節點 配置通訊節點
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2018-04-16 16:49:56.858 UTC [main] main -> INFO 014 Exiting.....
===================== Anchor peers for org "Org1MSP" on "mychannel" is updated successfully =====================
Updating anchor peers for org2...（4-2）為org2配置錨節點
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2018-04-16 16:49:59.971 UTC [main] main -> INFO 014 Exiting.....
===================== Anchor peers for org "Org2MSP" on "mychannel" is updated successfully =====================
Installing chaincode on org1/peer0...#（5）鏈碼操作 （5-1）在PEER0上安裝鏈碼
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2018-04-16 16:50:03.064 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:50:03.064 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
#使用默認的背書系統鏈碼
2018-04-16 16:50:03.064 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
#使用默認的驗證系統鏈碼 根據背書策略驗證交易
2018-04-16 16:50:03.064 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
#go 平臺 鏈碼
2018-04-16 16:50:03.160 UTC [golang-platform] getCodeFromFS -> DEBU 009 getCodeFromFS github.com/chaincode/chaincode_example02/go/
#丟棄
2018-04-16 16:50:03.323 UTC [golang-platform] func1 -> DEBU 00a Discarding GOROOT package fmt
2018-04-16 16:50:03.323 UTC [golang-platform] func1 -> DEBU 00b Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2018-04-16 16:50:03.323 UTC [golang-platform] func1 -> DEBU 00c Discarding provided package github.com/hyperledger/fabric/protos/peer
2018-04-16 16:50:03.323 UTC [golang-platform] func1 -> DEBU 00d Discarding GOROOT package strconv
2018-04-16 16:50:03.323 UTC [golang-platform] GetDeploymentPayload -> DEBU 00e done
2018-04-16 16:50:03.325 UTC [msp/identity] Sign -> DEBU 00f Sign: plaintext: 0A8A070A5C08031A0C08BBA8D3D60510...F619FF0E0000FFFFACD4020D001C0000
2018-04-16 16:50:03.325 UTC [msp/identity] Sign -> DEBU 010 Sign: digest: 25E15A5C9A37538928052AF2557C4D5093FAB5C8E6D77095A08CE076F01C1EE6
#遠程安裝 獲取回應
2018-04-16 16:50:03.331 UTC [chaincodeCmd] install -> DEBU 011 Installed remotely response:<status:200 payload:"OK" >
2018-04-16 16:50:03.331 UTC [main] main -> INFO 012 Exiting.....
===================== Chaincode is installed on remote peer PEER0 =====================
Install chaincode on org2/peer2...#（5-2）在PEER2上安裝鏈碼
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2018-04-16 16:50:03.388 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:50:03.388 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:50:03.388 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:50:03.388 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:50:03.476 UTC [golang-platform] getCodeFromFS -> DEBU 009 getCodeFromFS github.com/chaincode/chaincode_example02/go/
2018-04-16 16:50:03.635 UTC [golang-platform] func1 -> DEBU 00a Discarding GOROOT package fmt
2018-04-16 16:50:03.635 UTC [golang-platform] func1 -> DEBU 00b Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2018-04-16 16:50:03.635 UTC [golang-platform] func1 -> DEBU 00c Discarding provided package github.com/hyperledger/fabric/protos/peer
2018-04-16 16:50:03.635 UTC [golang-platform] func1 -> DEBU 00d Discarding GOROOT package strconv
2018-04-16 16:50:03.635 UTC [golang-platform] GetDeploymentPayload -> DEBU 00e done
2018-04-16 16:50:03.636 UTC [msp/identity] Sign -> DEBU 00f Sign: plaintext: 0A8A070A5C08031A0C08BBA8D3D60510...F619FF0E0000FFFFACD4020D001C0000
2018-04-16 16:50:03.636 UTC [msp/identity] Sign -> DEBU 010 Sign: digest: 52F065F4A5A31D2737E6A380AFD5FC302A15C3976B809F560627B1EECC0FA0BD
2018-04-16 16:50:03.644 UTC [chaincodeCmd] install -> DEBU 011 Installed remotely response:<status:200 payload:"OK" >
2018-04-16 16:50:03.644 UTC [main] main -> INFO 012 Exiting.....
===================== Chaincode is installed on remote peer PEER2 =====================
Instantiating chaincode on org2/peer2...#（5-3）在PEER2上初始化鏈碼
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org2.example.com:7051
2018-04-16 16:50:03.721 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:50:03.721 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:50:03.725 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:50:03.725 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:50:03.726 UTC [msp/identity] Sign -> DEBU 009 Sign: plaintext: 0A95070A6708031A0C08BBA8D3D60510...324D53500A04657363630A0476736363
2018-04-16 16:50:03.726 UTC [msp/identity] Sign -> DEBU 00a Sign: digest: A28ADB7847779748A9D2C017443F44EC040E6B4C5AD5A65A1BD2E177346037A8
2018-04-16 16:50:33.340 UTC [msp/identity] Sign -> DEBU 00b Sign: plaintext: 0A95070A6708031A0C08BBA8D3D60510...F643949B1AAD248D2662B19249FB451B
2018-04-16 16:50:33.340 UTC [msp/identity] Sign -> DEBU 00c Sign: digest: 230E103BE1059EB3764AD6EAC0CE6C785063A5A597CA04535FA91A751A693534
2018-04-16 16:50:33.344 UTC [main] main -> INFO 00d Exiting.....
===================== Chaincode Instantiation on PEER2 on channel 'mychannel' is successful =====================
Querying chaincode on org1/peer0... #（5-4）執行query操作 在org1的peer0上查詢
===================== Querying on PEER0 on channel 'mychannel'... =====================
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
#正在嘗試查詢
Attempting to Query PEER0 ...3 secs
#未在以下檔案找到證書檔案
2018-04-16 16:50:36.412 UTC [msp] getMspConfig -> WARN 001 Intermediate certs folder not found at [/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/intermediatecerts]. Skipping. [stat /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/intermediatecerts: no such file or directory]
2018-04-16 16:50:36.412 UTC [msp] getMspConfig -> WARN 002 TLS intermediate certs folder not found at [/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/tlsintermediatecerts]. Skipping. [stat /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/tlsintermediatecerts: no such file or directory]
2018-04-16 16:50:36.412 UTC [msp] getMspConfig -> WARN 003 crls folder not found at [/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/crls]. Skipping. [stat /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/crls: no such file or directory]
2018-04-16 16:50:36.412 UTC [msp] getMspConfig -> INFO 004 MSP configuration file not found at [/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/config.yaml]: [stat /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/config.yaml: no such file or directory]
2018-04-16 16:50:36.444 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:50:36.444 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:50:36.444 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:50:36.444 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:50:36.444 UTC [msp/identity] Sign -> DEBU 009 Sign: plaintext: 0A95070A6708031A0C08DCA8D3D60510...6D7963631A0A0A0571756572790A0161
2018-04-16 16:50:36.444 UTC [msp/identity] Sign -> DEBU 00a Sign: digest: 79AD20D743C6A88C998AC1C4C77C704AE1D2D1267F05D7D32595F3D2F63E644C
Query Result: 100
2018-04-16 16:50:59.876 UTC [main] main -> INFO 00b Exiting.....
===================== Query on PEER0 on channel 'mychannel' is successful =====================
Sending invoke transaction on org1/peer0...#（5-5）執行invoke操作 發送 invoke 事務
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org1MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer0.org1.example.com:7051
2018-04-16 16:51:00.085 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:51:00.085 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:51:00.088 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:51:00.088 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:51:00.089 UTC [msp/identity] Sign -> DEBU 009 Sign: plaintext: 0A94070A6608031A0B08F4A8D3D60510...696E766F6B650A01610A01620A023130
2018-04-16 16:51:00.089 UTC [msp/identity] Sign -> DEBU 00a Sign: digest: 4641A54D852486C075129E3F19CB7777DB38AA1BAB2652C3CFD92B5AFDB97C54
2018-04-16 16:51:00.107 UTC [msp/identity] Sign -> DEBU 00b Sign: plaintext: 0A94070A6608031A0B08F4A8D3D60510...3BE1BF33CC319B542AE9E5147739325E
2018-04-16 16:51:00.107 UTC [msp/identity] Sign -> DEBU 00c Sign: digest: 6245296F4A4DAAB60986EEAE31420B6A1163818AE62BE8D4DFEA913AD45E5BBB
#鏈碼 呼叫 或 查詢 背書系統鏈碼 呼叫 結果
2018-04-16 16:51:00.110 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> DEBU 00d ESCC invoke result: version:1 response:<status:200 message:"OK" >
#負擔
payload:"\n \306\232\"\260\244,\234\324\263\021\376\325\312\370\002\030\221 \212R.q\246\007\001\307\271rV\237\334\005\022Y\nE\022\024\n\004lscc\022\014\n\n\n\004mycc\022\002\010\003\022-\n\004mycc\022%\n\007\n\001a\022\002\010\003\n\007\n\001b\022\002\010\003\032\007\n\001a\032\00290\032\010\n\001b\032\003210\032\003\010\310\001\"\013\022\004mycc\032\0031.0"
#背書 代言人
endorsement:<endorser:"\n\007Org1MSP\022\374\005-----BEGIN -----\nMIICGDCCAb+gAwIBAgIQNMk/6oe9nv59nfY5UqOrGjAKBggqhkjOPQQDAjBzMQsw\nCQYDVQQGEwJVUzETMBEGA1UECBMKQ2FsaWZvcm5pYTEWMBQGA1UEBxMNU2FuIEZy\nYW5jaXNjbzEZMBcGA1UEChMQb3JnMS5leGFtcGxlLmNvbTEcMBoGA1UEAxMTY2Eu\nb3JnMS5leGFtcGxlLmNvbTAeFw0xODA0MTYxNjQ5MzlaFw0yODA0MTMxNjQ5Mzla\nMFsxCzAJBgNVBAYTAlVTMRMwEQYDVQQIEwpDYWxpZm9ybmlhMRYwFAYDVQQHEw1T\nYW4gRnJhbmNpc2NvMR8wHQYDVQQDExZwZWVyMC5vcmcxLmV4YW1wbGUuY29tMFkw\nEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEsJcLt2s0ZxSrHyMcgCXe9os8plqTtdX5\nfYNd61IZJ1Fv4a5rHMnXFPJ9NemoIDZjENGDX+pFFeEA3bj2QffVbKNNMEswDgYD\nVR0PAQH/BAQDAgeAMAwGA1UdEwEB/wQCMAAwKwYDVR0jBCQwIoAg2zNFuR8577Mf\neYc49BNvW7pZ6iR/h4WkhxU799509E4wCgYIKoZIzj0EAwIDRwAwRAIgerYUzXci\nyxW1S3/N3B+KelJmdpDp2YlhgPg00BAyCZoCIA/m0Ya3v559KucqOpd1havAw5T6\nsyg2wAVDlbtS7QUG\n-----END -----\n"
#簽名
signature:"0E\002!\000\3225\000K\t\\\2374\356ueu\244\032~\251\254ph\332\030+\222vG\327/\2506\337\032L\002 \005r\362\346\231u\355g\337z\221\005e\341\033o;\341\2773\3141\233T*\351\345\024w92^" >
2018-04-16 16:51:00.110 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 00e Chaincode invoke successful. result: status:200
2018-04-16 16:51:00.110 UTC [main] main -> INFO 00f Exiting.....
===================== Invoke transaction on PEER0 on channel 'mychannel' is successful ===================== 、
Installing chaincode on org2/peer3...#5（5-6）在PEER3上安裝鏈碼
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
2018-04-16 16:51:00.168 UTC [msp] GetLocalMSP -> DEBU 005 Returning existing local MSP
2018-04-16 16:51:00.168 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:51:00.168 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:51:00.168 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:51:00.223 UTC [golang-platform] getCodeFromFS -> DEBU 009 getCodeFromFS github.com/chaincode/chaincode_example02/go/
2018-04-16 16:51:00.402 UTC [golang-platform] func1 -> DEBU 00a Discarding GOROOT package fmt
2018-04-16 16:51:00.402 UTC [golang-platform] func1 -> DEBU 00b Discarding provided package github.com/hyperledger/fabric/core/chaincode/shim
2018-04-16 16:51:00.402 UTC [golang-platform] func1 -> DEBU 00c Discarding provided package github.com/hyperledger/fabric/protos/peer
2018-04-16 16:51:00.402 UTC [golang-platform] func1 -> DEBU 00d Discarding GOROOT package strconv
2018-04-16 16:51:00.402 UTC [golang-platform] GetDeploymentPayload -> DEBU 00e done
2018-04-16 16:51:00.403 UTC [msp/identity] Sign -> DEBU 00f Sign: plaintext: 0A8A070A5C08031A0C08F4A8D3D60510...F619FF0E0000FFFFACD4020D001C0000
2018-04-16 16:51:00.403 UTC [msp/identity] Sign -> DEBU 010 Sign: digest: 315459862B61D5E51AB94A20DB7734951AC57913FA0D2DE6597C82778ACA88AA
2018-04-16 16:51:00.409 UTC [chaincodeCmd] install -> DEBU 011 Installed remotely response:<status:200 payload:"OK" >
2018-04-16 16:51:00.409 UTC [main] main -> INFO 012 Exiting.....
===================== Chaincode is installed on remote peer PEER3 =====================
Querying chaincode on org2/peer3...# （5-7）執行query操作 查詢org2的 peer3節點
===================== Querying on PEER3 on channel 'mychannel'... =====================
CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
CORE_PEER_LOCALMSPID=Org2MSP
CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
CORE_PEER_TLS_ENABLED=true
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
CORE_PEER_ID=cli
CORE_LOGGING_LEVEL=DEBUG
CORE_PEER_ADDRESS=peer1.org2.example.com:7051
Attempting to Query PEER3 ...3 secs
2018-04-16 16:51:03.497 UTC [msp] GetDefaultSigningIdentity -> DEBU 006 Obtaining default signing identity
2018-04-16 16:51:03.497 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 007 Using default escc
2018-04-16 16:51:03.497 UTC [chaincodeCmd] checkChaincodeCmdParams -> INFO 008 Using default vscc
2018-04-16 16:51:03.497 UTC [msp/identity] Sign -> DEBU 009 Sign: plaintext: 0A95070A6708031A0C08F7A8D3D60510...6D7963631A0A0A0571756572790A0161
2018-04-16 16:51:03.497 UTC [msp/identity] Sign -> DEBU 00a Sign: digest: 71796FF598D19E3901EE73B08DBF550D8EA6FBFE8FE087B60EDEEA819BAA9306
Query Result: 90
2018-04-16 16:51:25.547 UTC [main] main -> INFO 00b Exiting.....
===================== Query on PEER3 on channel 'mychannel' is successful =====================
#一切正常，執行完畢
========= All GOOD, BYFN execution completed ===========
_____ _ _ ____
| ____| | \ | | | _ \
| _| | \| | | | | |
| |___ | |\ | | |_| |
|_____| |_| \_| |____/
執行程序
-
配置容器網路，創建各類容器
docker-compose 根據 docker-compose-cli.yaml 配置容器網路和相應的容器
-
創建通道
script.sh執行createChannel函式創建一個通道
-
將所有的節點加入到該通道中
script.sh執行joinChannel函式依次將4個節點加入到通道中
- PEER0 (org1的peer0)加入通道
- PEER1 (org1的peer1)加入通道
- PEER2（org2的peer0）加入通道
- PEER3（org2的peer1）加入通道
-
配置錨節點
scrip.sh腳本執行updateAnchorPeers函式依次為org1、Org2配置錨節點
- 為org1配置錨節點
- 為org2配置錨節點
-
鏈碼操作
script.sh 腳本執行installChainCode、instantiateChainCode、 chaincodeQuery、chaincodeInvoke等函式安裝、實體化、查詢、呼叫等操作
- 在PEER0上安裝鏈碼
- 在PEER2上安裝鏈碼
- 在PEER2上初始化鏈碼
- 執行query操作
- 執行invoke操作
- 在PEER3上安裝鏈碼
- 執行query操作
3. down
down的功能為關閉超級賬本網路，具體包括洗掉容器和不必要的鏡像檔案，其主調函式為byfn.sh的networkDown，該函式會執行clearContainers、removeUnwantedImages函式，然后在洗掉generate產生的一系列檔案和目錄，
- 日志資訊
root@VM-0-17-ubuntu:/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network# ./byfn.sh -m down
Stopping with channel 'mychannel' and CLI timeout of '10' seconds and CLI delay of '3' seconds
Continue (y/n)? y
proceeding ...#（1）洗掉相關的容器
WARNING: The CHANNEL_NAME variable is not set. Defaulting to a blank string.
WARNING: The DELAY variable is not set. Defaulting to a blank string.
WARNING: The TIMEOUT variable is not set. Defaulting to a blank string.
#停止節點
Stopping peer0.org1.example.com ... done
Stopping peer1.org2.example.com ... done
Stopping orderer.example.com ... done
Stopping peer1.org1.example.com ... done
Stopping peer0.org2.example.com ... done
#洗掉節點
Removing cli ... done
Removing peer0.org1.example.com ... done
Removing peer1.org2.example.com ... done
Removing orderer.example.com ... done
Removing peer1.org1.example.com ... done
Removing peer0.org2.example.com ... done
#移除docker配置的網路
Removing network net_byfn
WARNING: The CHANNEL_NAME variable is not set. Defaulting to a blank string.
WARNING: The DELAY variable is not set. Defaulting to a blank string.
WARNING: The TIMEOUT variable is not set. Defaulting to a blank string.
Removing network net_byfn
WARNING: Network net_byfn not found.
002e468cdba9
170f5d85d314
3b33620503ac
Untagged: dev-peer1.org2.example.com-mycc-1.0:latest #（2）洗掉鏡像
Deleted: sha256:7fad397db58136ffbf954e0a72f3c434a3950259326c138d97fc86a7296b6642
Deleted: sha256:ef2096acef7eae3d1ab6b0b20f7f7d8c759125d3626f24905cb593b55e8b85ed
Deleted: sha256:eb5e22f8804403158339edb3a54a35a6c0e8402f0aee43eab26e5873119920a4
Deleted: sha256:e15cafcb79a3ed9652d231da057d775a0d9fb29b9b1ea496ffe4c3ac6a6c0a66
Deleted: sha256:79ef483a25f7c37d74fb9818e42e19583827d92d9f4fbd4fc8e7d91db6d12599
Deleted: sha256:8697581945d43243c4f948ec9a2aaad2d1150be284872c7e179f87194e7b5667
Deleted: sha256:e2eeb15c5867c453f7d334ad367ad57a5c5f298b7cb0a4cc75a137ff82ba1aa5
Untagged: dev-peer0.org1.example.com-mycc-1.0:latest
Deleted: sha256:450a145d8868220dc42a60f9a767207df65bba76cb25428f3966724150df739a
Deleted: sha256:174485b27a3f841009e5163d2b272b513ec1c1827e51fed82aa1561ff5181004
Deleted: sha256:200f28cfe057c90071a556a593900a45b6467085735b450355371cc2523ba324
Deleted: sha256:f469bc994653b1c9d880180b4d60a29f892562c5fdc951735a549d8a90d3a0ac
Deleted: sha256:94746de84825fd293ea7fa6266b40758ce4f173a6768b95861a7c1c7346f1aa8
Deleted: sha256:021ad292a7d4976239e4e29a1fed4a3661540d75aa8df05fbe13ed51b5a41eab
Deleted: sha256:7342cd488424d969db765a86d61be699556274cd02b3b3290adc2916063a31f3
Untagged: dev-peer0.org2.example.com-mycc-1.0:latest
Deleted: sha256:5cefcfdaf561bce2f3221c3adf900de1d07b7d3d8a940d01d7fd7c1217832a7f
Deleted: sha256:161b4f823bee25a150e15c3400816c05f2f92e627909406f33710c386b29ff07
Deleted: sha256:2ef7d8c764baa7cbccce0f2f8dcdb51053f5894ffa4350869e028b5382013a6d
Deleted: sha256:49a379a5d3ae4fc848119e4e001fe1d6e59c2210582ad3572342a273113facb8
Deleted: sha256:ae022b203e0f13d0b8355a8843dd9a8260ee4e4f23d9fd2be4ab5a656c83efb1
Deleted: sha256:5d82c68f6c22af99c660898c4ca34b730fe68beddbc4e1c9cb425fd2bbd5c4a3
Deleted: sha256:fa449353db192aa55f4064dff52e0a8516ee8389ffb19a7c87ca4f798e076a71
root@VM-0-17-ubuntu:/opt/gopath/src/github.com/hyperledger/fabric-samples/first-network#
此處需要注意的是，clearContainers函式會執行，CONTAINER_IDS=${docker ps -aq} docker rm -f $CONTAINER_IDS操作，該操作會洗掉所有的容器，
轉載請註明出處，本文鏈接：https://www.uj5u.com/qukuanlian/400643.html
標籤：區塊鏈
