ggplot2基于另一個變數而不是填充變數創建圖例

我對以下情節的代碼是：

test <- data.frame(method = c("A1", "A1", "A1", "A1", "A1", "A2",
                      "A2", "A2", "A2", "A2", "A3", "A3", "A3", "A3", "A3", "A4", "A4",
                      "A4", "A4", "A4", "A5", "A5", "A5", "A5", "A5", "A6", "A6", "A6",
                      "A6", "A6", "A7", "A7", "A7", "A7", "A7", "A8", "A8", "A8", "A8",
                      "A8", "A9", "A9", "A9", "A9", "A9", "A10", "A10", "A10", "A10",
                      "A10", "A11", "A11", "A11", "A11", "A11"),
           variable = rep(c("cp_ic5","cp_ic50","cp_ic95","cp_b0","cp_b1"),11),
           avg_cp = c(0.55, 0.54, 0.561, 0.544, 0.557, 0.036,
                      0.382, 0.412, 0.387, 0.42, 0.778, 0.866, 0.824, 0.863, 0.757,
                      0.127, 0.541, 0.560, 0.542, 0.555, 0.757, 0.697, 0.778,
                      0.661, 0.735, 0.704, 0.641, 0.726, 0.662, 0.735, 0.605, 0.574, 0.616, 0.586,
                      0.642, 0.597, 0.55, 0.617, 0.564, 0.624, 0.572, 0.525, 0.589,
                      0.538, 0.598, 0, 0, 0, 0.524, 0.593, 0, 0, 0, 0.752, 0.76))

library(ggpattern)
library(ggplot2)
mycolors = c("#D95F02", "#1B9E77", "#E31A1C", "#66A61E", "#E7298A", "#E6AB02",
             "#A6761D", "#666666", "#A6CEE3", "#1F78B4", "#B2DF8A", "#33A02C", "#FB9A99", "#7570B3")
p_cp <- ggplot(test, aes(method, avg_cp,  fill=method))
  scale_y_continuous(limits=c(0,1),labels = scales::percent)
  geom_col_pattern(position = position_dodge2(preserve = 'single'),
                   color="black",
                   # position = "dodge",
                   pattern = c(rep(c("circle", "stripe", "stripe", "stripe", "crosshatch"),11)),
                   pattern_angle = c(rep(c(45, 45,135, 0, 45), 11)),
                   pattern_density = .05,
                   pattern_spacing = .02,
                   pattern_fill = 'black'
                   )
  # scale_colour_manual(values = c('Individual Runs'=mycolors))
  scale_fill_manual(values = mycolors)
                    # labels = c(expression(  IC[5]),expression(  IC[50]),
                    #            expression(IC[95]),expression(beta[0]),expression(beta[1])))
  guides(group = guide_legend("Estimands",
                             override.aes =
                               list(
                                 pattern = c("circle", "stripe", "stripe", "stripe", "crosshatch"),
                                 pattern_spacing = .02,
                                 pattern_angle = c(45, 45,135, 0, 45)
                               )
  ))
  theme_bw()  ylab("Average Coverage Probability")   labs(tag="A")
  theme(legend.position="top",
        axis.text.x = element_text(angle = 45, hjust = 1, size=xfont),
        axis.title.x = element_blank(),
        panel.border = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.x = element_blank()
        );
p_cp

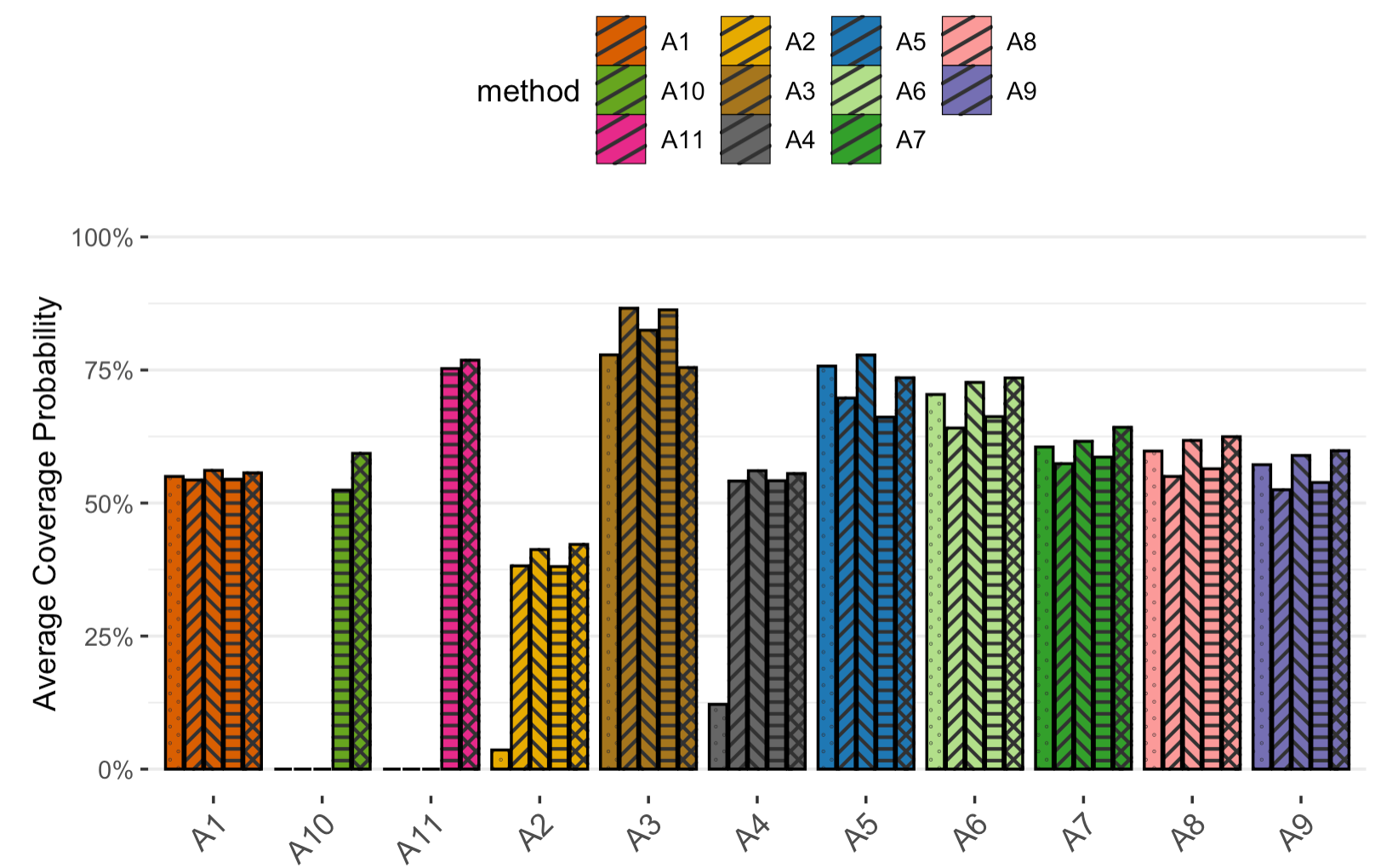

輸出是

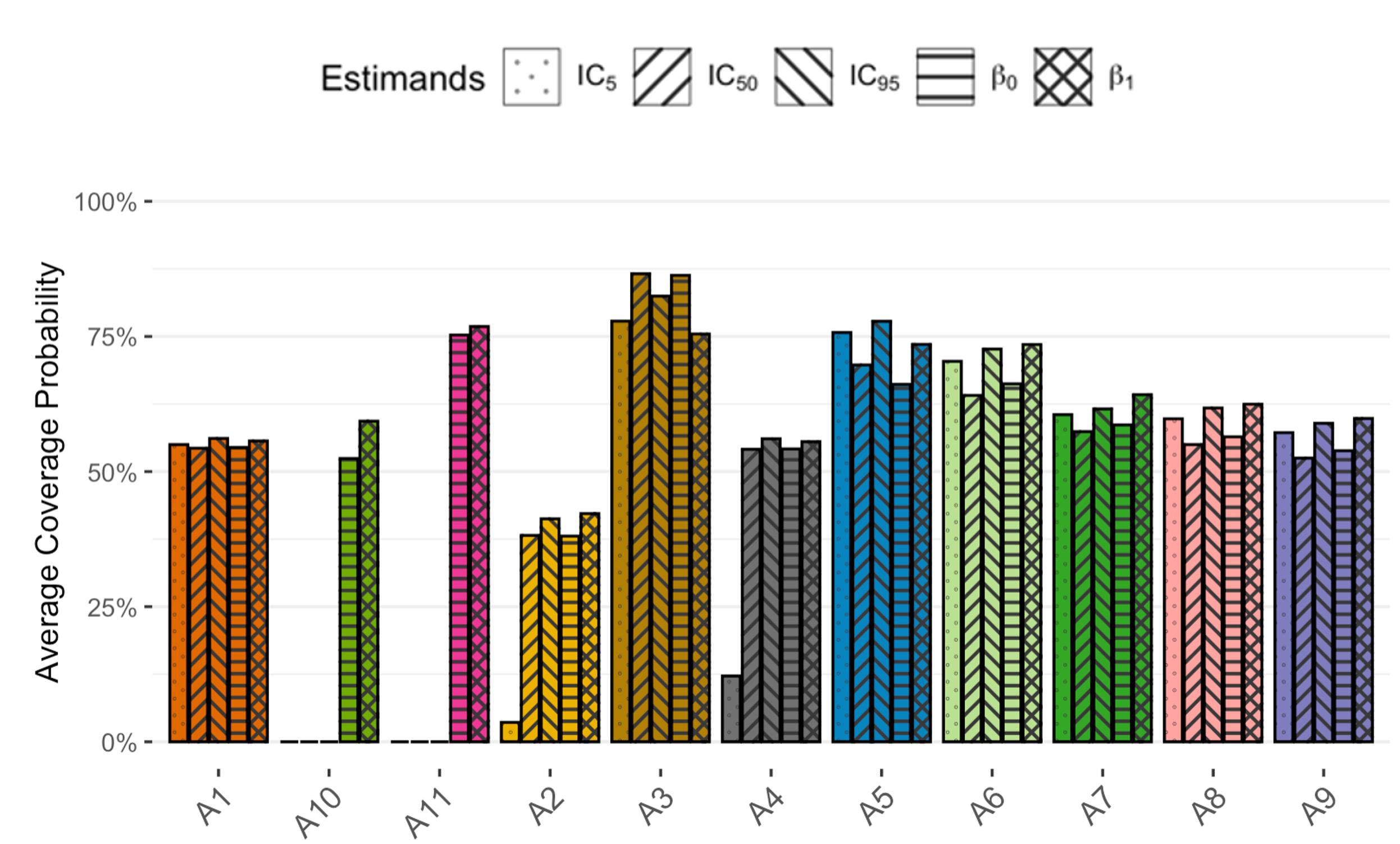

但是，我想根據 group=variable 更改圖例，而不是 fill=method。所需的輸出應該是：

我應該如何修改我的代碼以達到結果？

uj5u.com熱心網友回復：

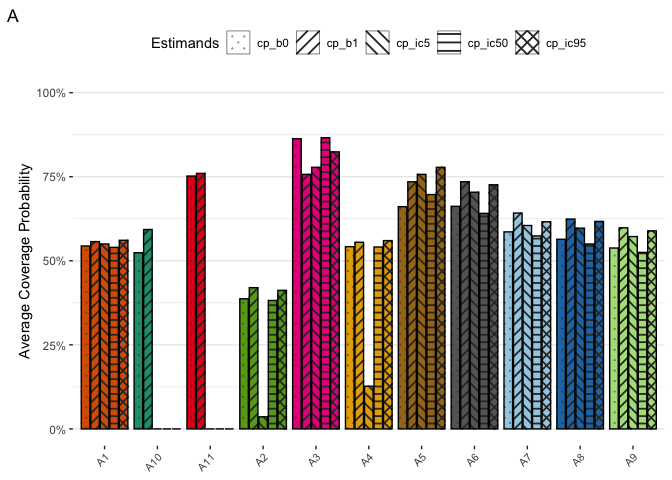

一種選擇是將您的組列映射到alphaaes 上，這將為您的繪圖添加第二個圖例。然后將alpha值固定為 1，洗掉填充圖例并覆寫 alpha 圖例的填充顏色：

library(ggpattern)
library(ggplot2)

mycolors <- c(
  "#D95F02", "#1B9E77", "#E31A1C", "#66A61E", "#E7298A", "#E6AB02",
  "#A6761D", "#666666", "#A6CEE3", "#1F78B4", "#B2DF8A", "#33A02C", "#FB9A99", "#7570B3"
)

xfont <- 8
p_cp <- ggplot(test, aes(method, avg_cp, alpha = variable, fill = method))
  scale_y_continuous(limits = c(0, 1), labels = scales::percent)
  geom_col_pattern(
    position = position_dodge2(preserve = "single"),
    color = "black",
    pattern = c(rep(c("circle", "stripe", "stripe", "stripe", "crosshatch"), 11)),
    pattern_angle = c(rep(c(45, 45, 135, 0, 45), 11)),
    pattern_density = .05,
    pattern_spacing = .02,
    pattern_fill = "black"
  )
  scale_fill_manual(values = mycolors)
  scale_alpha_manual(values = rep(1, length(unique(test$variable))))
  guides(fill = "none",
         alpha = guide_legend("Estimands",
    override.aes =
      list(
        pattern = c("circle", "stripe", "stripe", "stripe", "crosshatch"),
        pattern_spacing = .02,
        pattern_angle = c(45, 45, 135, 0, 45),
        fill = NA
      )
  ))
  theme_bw()
  ylab("Average Coverage Probability")
  labs(tag = "A")
  theme(
    legend.position = "top",
    axis.text.x = element_text(angle = 45, hjust = 1, size = xfont),
    axis.title.x = element_blank(),
    panel.border = element_blank(),
    panel.grid.major.x = element_blank(),
    panel.grid.minor.x = element_blank()
  )
p_cp
