在閃亮中繪制兩個不同的資料集

我正在嘗試上傳兩個不同的資料集，然后一起生成一個圖，其中一個在 geom_line() 中，另一個在 geom_point() 中。我在 UI 中創建了兩個不同的 fileInput 來上傳資料集。但是，我完全迷失了，代碼不會執行。執行此操作的解決方案是什么？

ui <- navbarPage("pp",
                 tabPanel("Vis",
                          sidebarLayout(
                            sidebarPanel(
                              fileInput("upload1","Observed Data",
                                        accept=c('text/csv',
                                                 'text/comma-separated-values,text/plain',
                                                 '.csv')

                              ),
                              selectInput('xcol1', 'X Variable', "",width=140),
                              selectInput('ycol1', 'Y Variable', "", selected = "",width=140),

                              fileInput("upload2","Simulated Data",
                                        accept=c('text/csv',
                                                 'text/comma-separated-values,text/plain',
                                                 '.csv')

                              ),
                              selectInput('xcol2', 'X Variable', "",width=140),
                              selectInput('ycol2', 'Y Variable', "", selected = "",width=140)
                            ),
                            mainPanel(
                              plotOutput("plot")


                            )
                          )




                 )

                 )

server <- function(input, output, session) {

  data <- reactive({
    req(input$upload1)

    inFile <- input$upload1


    df_1 <- read.csv(inFile$datapath, header = TRUE, sep = ",")


  updateSelectInput(session, inputId = 'xcol1', label ='X vairable',
                    choices = names(df_1), selected = names(df_1)[1])

  updateSelectInput(session, inputId = 'ycol1', label ='Y vairable',
                    choices = names(df_1), selected = names(df_1)[2])

  return(df_1)
  })

#####

 data_2 <- reactive({
    req(input$upload2)

    inFile <- input$upload2


    df_2 <- read.csv(inFile$datapath, header = TRUE, sep = ",")

    updateSelectInput(session, inputId = 'xcol2', label ='X vairable',
                      choices = names(df_2), selected = names(df_2)[3])

    updateSelectInput(session, inputId = 'ycol2', label ='Y vairable',
                      choices = names(df_2), selected = names(df_2)[4])

    return(df_2)
  })


 output$plot <-renderPlot({
    ggplot()
      geom_point(data(), aes(.data[[input$xcol1]], .data[[input$ycol1]] *1000, size=1)
      geom_line(data_2(),  aes(.data_2[[input$xcol2]]/60, .data_2[[input$ycol2]], size=1)
      theme_bw()


  })

}
shinyApp(ui, server)

uj5u.com熱心網友回復：

您的繪圖代碼存在一些問題。第一的。每個引數的第一個引數geom是mapping. 如果你傳遞一個資料集，你必須明確地命名引數，即例如data = data(). 其次，沒有.data_2代詞。只需使用.data. 最后：注意你設定括號的位置。(;

注意：我取消了與檔案輸入相關的所有代碼的注釋，僅用于mtcars兩個資料集。

library(shiny)
library(ggplot2)

ui <- navbarPage(
  "pp",
  tabPanel(
    "Vis",
    sidebarLayout(
      sidebarPanel(
        # fileInput("upload1", "Observed Data",
        #   accept = c(
        #     "text/csv",
        #     "text/comma-separated-values,text/plain",
        #     ".csv"
        #   )
        # ),
        selectInput("xcol1", "X Variable", "", width = 140),
        selectInput("ycol1", "Y Variable", "", selected = "", width = 140),
        # fileInput("upload2", "Simulated Data",
        #   accept = c(
        #     "text/csv",
        #     "text/comma-separated-values,text/plain",
        #     ".csv"
        #   )
        # ),
        selectInput("xcol2", "X Variable", "", width = 140),
        selectInput("ycol2", "Y Variable", "", selected = "", width = 140)
      ),
      mainPanel(
        plotOutput("plot")
      )
    )
  )
)

server <- function(input, output, session) {
  data <- reactive({
    # req(input$upload1)

    # inFile <- input$upload1

    df_1 <- mtcars # read.csv(inFile$datapath, header = TRUE, sep = ",")

    updateSelectInput(session,
      inputId = "xcol1", label = "X vairable",
      choices = names(df_1), selected = names(df_1)[1]
    )

    updateSelectInput(session,
      inputId = "ycol1", label = "Y vairable",
      choices = names(df_1), selected = names(df_1)[2]
    )

    return(df_1)
  })

  #####

  data_2 <- reactive({
    # req(input$upload2)

    # inFile <- input$upload2

    df_2 <- mtcars # read.csv(inFile$datapath, header = TRUE, sep = ",")

    updateSelectInput(session,
      inputId = "xcol2", label = "X vairable",
      choices = names(df_2), selected = names(df_2)[3]
    )

    updateSelectInput(session,
      inputId = "ycol2", label = "Y vairable",
      choices = names(df_2), selected = names(df_2)[4]
    )

    return(df_2)
  })

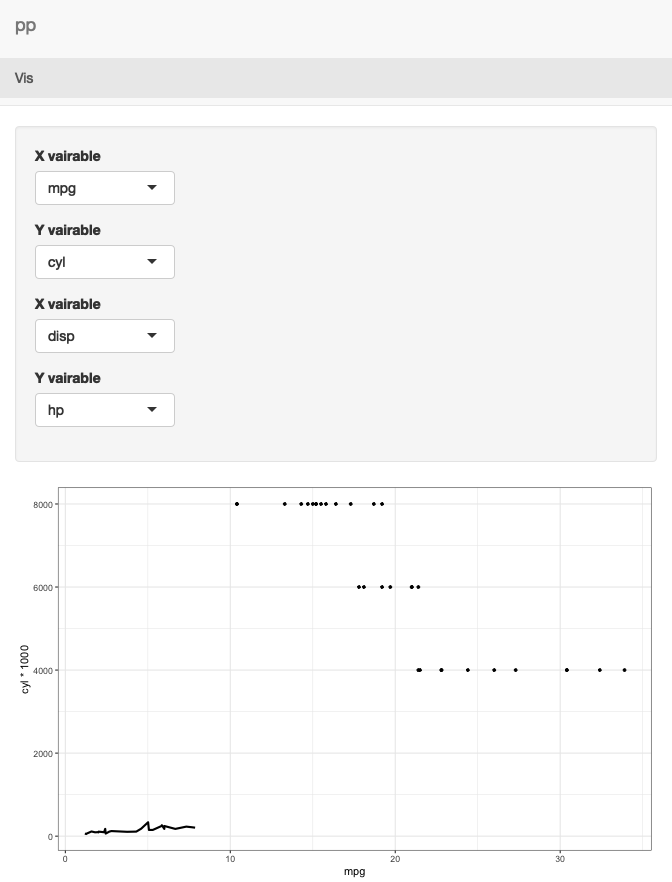

  output$plot <- renderPlot({
    ggplot()
      geom_point(data = data(), aes(.data[[input$xcol1]], .data[[input$ycol1]] * 1000), size = 1)
      geom_line(data = data_2(), aes(.data[[input$xcol2]] / 60, .data[[input$ycol2]]), size = 1)
      theme_bw()
  })
}
shinyApp(ui, server)
#>
#> Listening on http://127.0.0.1:5810
#> Warning: Error in is_string: argument "x" is missing, with no default
