我正在嘗試研究 4 維混沌吸引子 Lyapunov 譜，到目前為止，下面提到的代碼適用于 3 維系統，但在 4D 和 5D 系統中出現錯誤
import matplotlib.pyplot as plt
import numpy as np
from scipy.integrate import odeint
def diff_Lorenz(u):
x,y,z,w= u
f = [a*(y-x) , x*z w, b-x*y, z*y-c*w]
Df = [[-a,a,0,0], [z,0, x,1], [-y, -x, 0,0],[0,z,y,-c]]
return np.array(f), np.array(Df)
def LEC_system(u):
#x,y,z = u[:3]
U = u[2:18].reshape([4,4])
L = u[12:15]
f,Df = diff_Lorenz(u[:4])
A = U.T.dot(Df.dot(U))
dL = np.diag(A).copy();
for i in range(4):
A[i,i] = 0
for j in range(i 1,4): A[i,j] = -A[j,i]
dU = U.dot(A)
return np.concatenate([f,dU.flatten(),dL])
a=6;b=11;c=5;
u0 = np.ones(4)
U0 = np.identity(4)
L0 = np.zeros(4)
u0 = np.concatenate([u0, U0.flatten(), L0])
t = np.linspace(0,10,301)
u = odeint(lambda u,t:LEC_system(u),u0,t, hmax=0.05)
L = u[5:,12:15].T/t[5:]
# plt.plot(t[5:],L.T)
# plt.show()
p1=L[0,:];p2=L[1,:];p3=L[2,:];p4=L[3,:]
L1 = np.mean(L[0,:]);L2=np.average(L[1,:]);L3=np.average(L[2,:]);L4=np.average(L[3,:])
t1 = np.linspace(0,100,len(p1))
plt.plot(t1,p1);plt.plot(t1,p2);plt.plot(t1,p3);plt.plot(t1,p4)
# plt.show()
print('LES= ',L1,L2,L3,L4)
輸出錯誤是
D:\anaconda3\lib\site-packages\scipy\integrate\odepack.py:247: ODEintWarning: Excess work done on this call (perhaps wrong Dfun type). Run with full_output = 1 to get quantitative information.
warnings.warn(warning_msg, ODEintWarning)
---------------------------------------------------------------------------
IndexError Traceback (most recent call last)
~\AppData\Local\Temp/ipykernel_7008/1971199288.py in <module>
32 # plt.plot(t[5:],L.T)
33 # plt.show()
---> 34 p1=L[0,:];p2=L[1,:];p3=L[2,:];p4=L[3,:]
35 L1=np.mean(L[0,:]);L2=np.average(L[1,:]);L3=np.average(L[2,:]);L4=np.average(L[3,:])
36 t1 = np.linspace(0,100,len(p1))
IndexError: index 3 is out of bounds for axis 0 with size 3
怎么了？
預期輸出為 L1=.5162,L2=-.0001,L3=-4.9208,L4=-6.5954
uj5u.com熱心網友回復：
在 中LEC_system(u)，平面向量u依次包含
- 狀態向量，
n組件， - 本征基
U，一個n x n矩陣 - 累積指數
L，n分量。
有了n=4，這從而轉化為分解
def LEC_system(u):
#x,y,z,w = u[:4]
U = u[4:20].reshape([4,4])
L = u[20:24]
f,Df = diff_Lorenz(u[:4])
A = U.T.dot(Df.dot(U))
dL = np.diag(A).copy();
for i in range(4):
A[i,i] = 0
for j in range(i 1,4): A[i,j] = -A[j,i]
dU = U.dot(A)
return np.concatenate([f,dU.flatten(),dL])
當然，在積分后的評估中，同樣必須使用狀態向量的正確段
L = u[5:,20:24].T/t[5:]

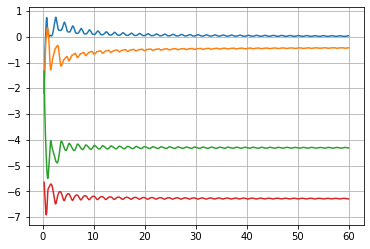

然后我得到了情節
并且僅使用圖的后一夸脫，在集成到 t=60
LES= 0.029214865425355396 -0.43816854013111833 -4.309199339754925 -6.28183676249535
這仍然不是預期值，因為它似乎沿與解曲線橫向的所有方向收縮。
