ggplot按多列分組

我的資料看起來像這樣（我只包括前 20 行以顯示資料的分布，但大約有 135 行）：

> dput(id)
structure(list(date = c("7/27/1992", "7/27/1992", "7/27/1992",
"8/1/1992", "7/1/1994", "7/1/1994", "7/1/1994", "8/7/2003", "8/7/2003",
"8/7/2003", "8/7/2003", "7/21/2004", "7/21/2004", "7/26/2004",
"7/26/2004", "7/5/2005", "7/5/2005", "7/9/2005", "7/9/2005",
"7/9/2005"), event.id = c(8L, 8L, 8L, 10L, 11L, 11L, 11L, 14L,
14L, 15L, 15L, 17L, 17L, 18L, 18L, 20L, 20L, 21L, 21L, 21L), id = c("L5", "L58",
"L73", "L21", "L5", "L58", "L73", "L5", "L73", "L7", "L57", "L21",
"L47", "L54", "L100", "J27", "J31", "J16", "J26", "J36"), sex = structure(c(1L,
2L, 2L, 1L, 1L, 2L, 2L, 1L, 2L, 1L, 2L, 1L, 1L, 1L, 2L, 2L, 1L,
1L, 2L, 1L), .Label = c("0", "1"), class = "factor"),
age = c(28L, 12L, 6L, 42L, 30L, 14L, 8L, 39L, 17L, 42L, 26L,
54L, 30L, 27L, 3L, 14L, 10L, 33L, 14L, 6L), matr = c("L9",
"L9", "L9", "L21", "L9", "L9", "L9", "L9", "L9", "L37", "L45",
"L21", "L21", "L35", "L35", "J4", "J4", "J7", "J7", "J7"),
matralive = c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 0L, 0L, 0L, 0L, 1L, 1L,
0L, 0L, 0L, 0L, 0L, 0L, 0L), pod = c("L", "L", "L", "L", "L",
"L", "L", "L", "L", "L", "L", "L", "L", "L", "L", "J", "J",
"J", "J", "J")), row.names = c(NA, -134L), class = c("tbl_df", "tbl", "data.frame"))

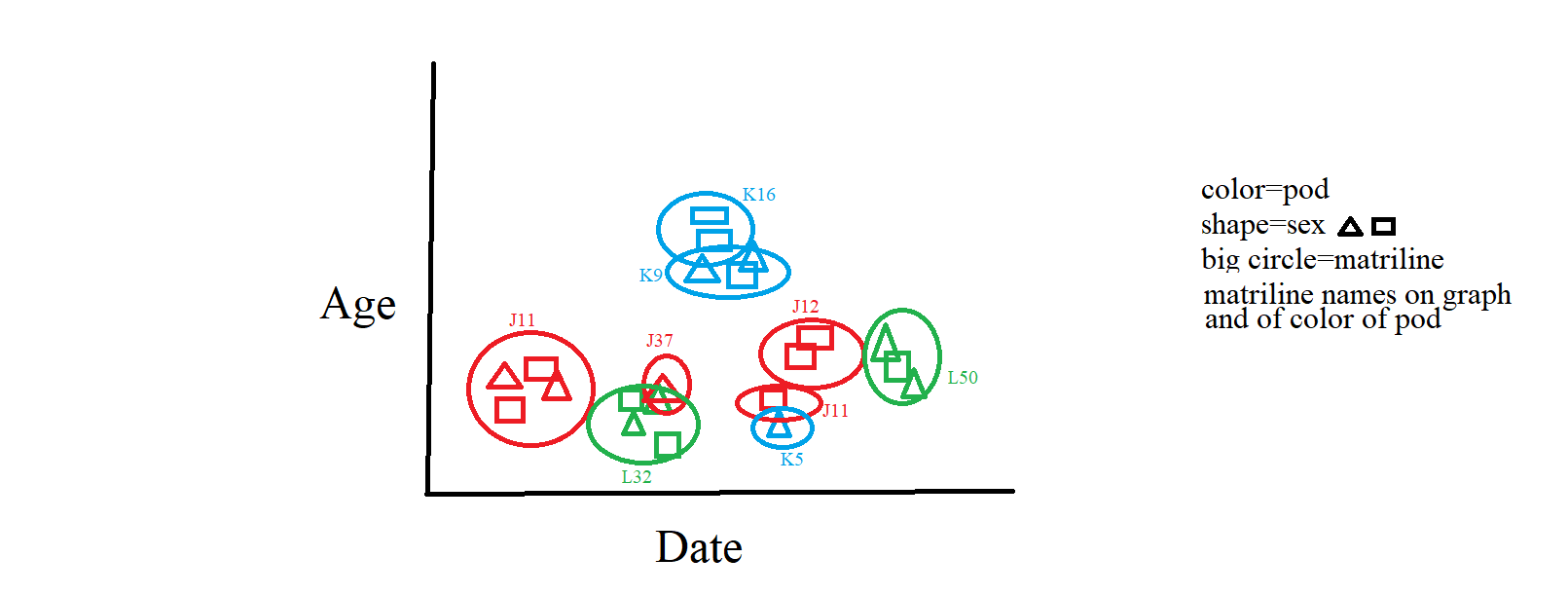

我的目標是使用 ggplot 創建一個看起來像這樣的圖形：

我不知道如何生成這個 - 我想我將不得不按 pod 和 matriline 分組，但我不確定如何去做。

任何幫助都非常感謝 - 非常感謝！

uj5u.com熱心網友回復：

geom_mark_ellipse這是將fromggforce用于橢圓的一種可能性。要讓多個組（即matr和date）繪制橢圓，我們可以使用interaction將兩列組合成一個新因子。

library(tidyverse)
library(ggforce)

df %>%
  ggplot(aes(x = date, y = age ))
  geom_point(aes(shape = factor(sex), colour = factor(pod), size = 5))
  geom_mark_ellipse(aes(color = pod, group=interaction(date, matr), label = matr))
  scale_y_continuous(expand = c(0, 25))
  scale_x_discrete(expand = c(0, 1.35))

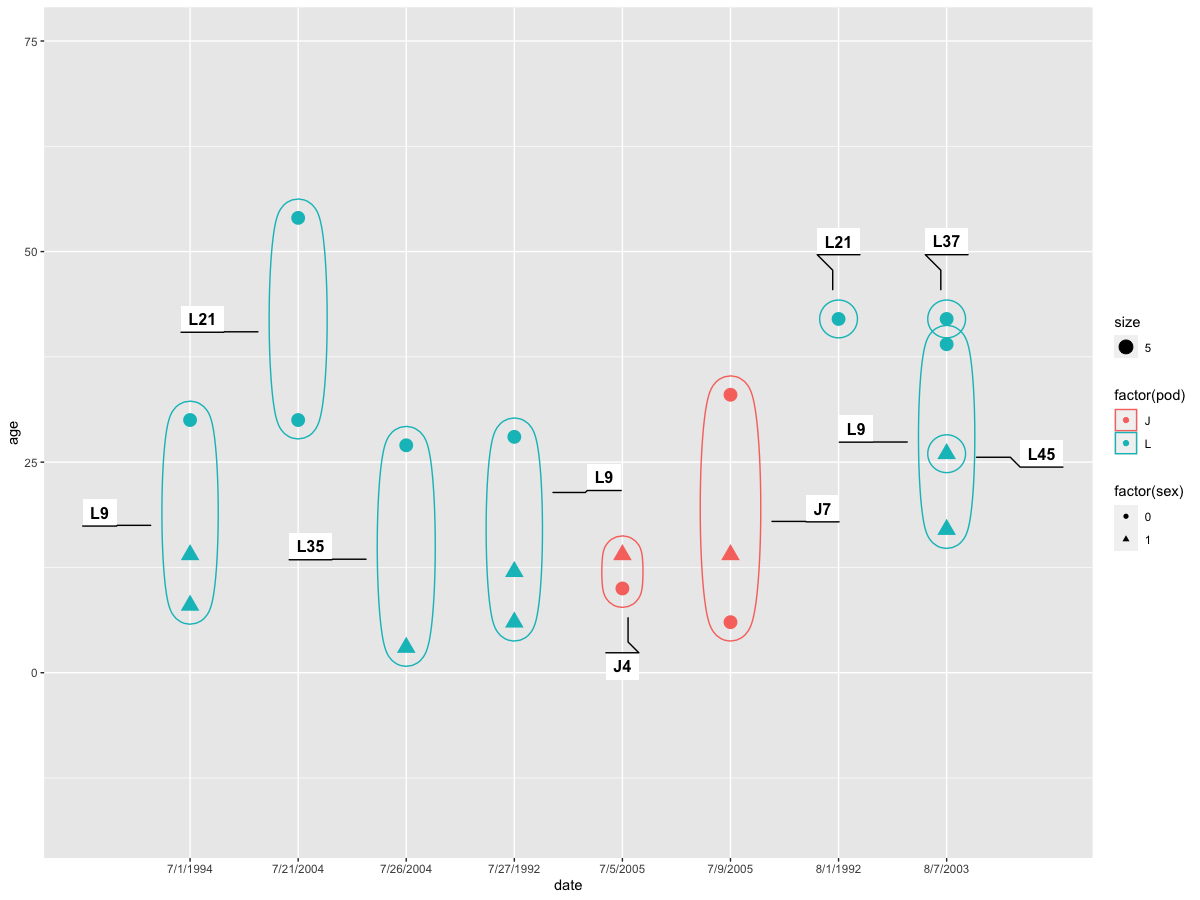

輸出

資料

df <- structure(list(date = c("7/27/1992", "7/27/1992", "7/27/1992",
"8/1/1992", "7/1/1994", "7/1/1994", "7/1/1994", "8/7/2003", "8/7/2003",
"8/7/2003", "8/7/2003", "7/21/2004", "7/21/2004", "7/26/2004",
"7/26/2004", "7/5/2005", "7/5/2005", "7/9/2005", "7/9/2005",
"7/9/2005"), event.id = c(8L, 8L, 8L, 10L, 11L, 11L, 11L, 14L,
14L, 15L, 15L, 17L, 17L, 18L, 18L, 20L, 20L, 21L, 21L, 21L),
    id = c("L5", "L58", "L73", "L21", "L5", "L58", "L73", "L5",
    "L73", "L7", "L57", "L21", "L47", "L54", "L100", "J27", "J31",
    "J16", "J26", "J36"), sex = structure(c(1L, 2L, 2L, 1L, 1L,
    2L, 2L, 1L, 2L, 1L, 2L, 1L, 1L, 1L, 2L, 2L, 1L, 1L, 2L, 1L
    ), .Label = c("0", "1"), class = "factor"), age = c(28L,
    12L, 6L, 42L, 30L, 14L, 8L, 39L, 17L, 42L, 26L, 54L, 30L,
    27L, 3L, 14L, 10L, 33L, 14L, 6L), matr = c("L9", "L9", "L9",
    "L21", "L9", "L9", "L9", "L9", "L9", "L37", "L45", "L21",
    "L21", "L35", "L35", "J4", "J4", "J7", "J7", "J7"), matralive = c(1L,
    1L, 1L, 1L, 1L, 1L, 1L, 0L, 0L, 0L, 0L, 1L, 1L, 0L, 0L, 0L,
    0L, 0L, 0L, 0L), pod = c("L", "L", "L", "L", "L", "L", "L",
    "L", "L", "L", "L", "L", "L", "L", "L", "J", "J", "J", "J",
    "J")), row.names = c(NA, -20L), class = c("tbl_df", "tbl",
"data.frame"))
