如何單獨繪制geom_point加上geom_point和position

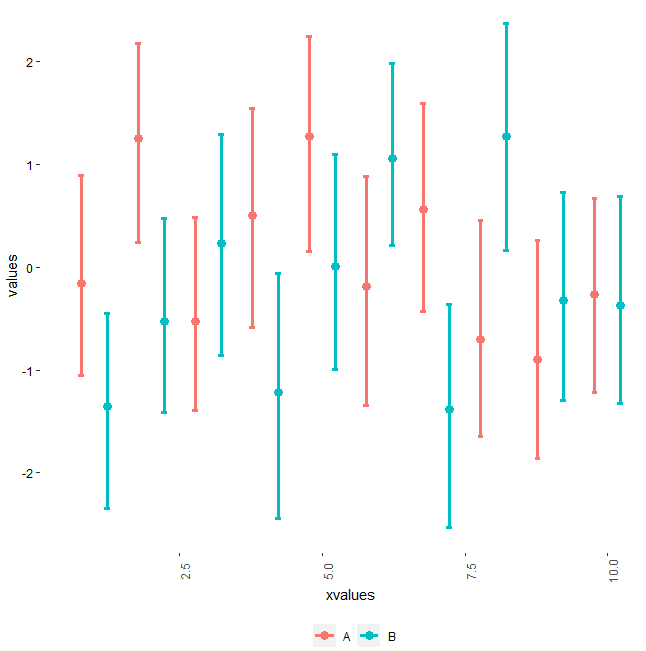

我正在努力研究如何real_values在估計值旁邊繪制我的真實值，呈現在向量中。我的問題是估計值有一個范圍（通過geom_errorbar），對于實際值，我只想在 10 個估計值的每個左側繪制黑色點。

這是我嘗試過的一個例子：

est_values = rnorm(20)
real_values = rnorm(10)
dat_ex =  data.frame(
          xvalues = 1:10,
          values = est_values,
          method = c(rep("A",10),rep("B",10)),
          ic_0.025 = c(est_values - rnorm(20,1,0.1)),
          ic_0.975 =  c(est_values   rnorm(20,1,0.1)))

ggplot(dat_ex)
  #geom_point(aes(x = 1:10, y= real_values), size = 2)
  geom_point(aes(x = xvalues, y= values, group = method, colour = method),  position=position_dodge(.9), size = 3)
  geom_errorbar(aes(x = xvalues, y= values, group = method, colour = method,ymin =  ic_0.025, ymax = ic_0.975), size = 1.3,position=position_dodge(.9), width = .2)

如何單獨繪制 geom_point 加上 geom_point 和 position_dodge

uj5u.com熱心網友回復：

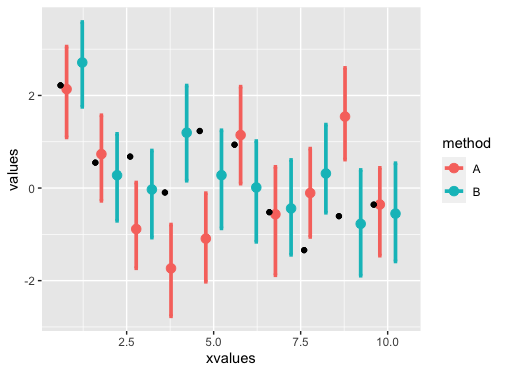

ggplot通常最適用于資料框中的資料。因此，我們將您real_values放入一個資料框中并將它們繪制在一個單獨的層中，并根據要求將它們“輕推”到左側：

ggplot(dat_ex)
  geom_point(aes(x = xvalues, y= values, group = method, colour = method),  position=position_dodge(.9), size = 3)
  geom_errorbar(aes(x = xvalues, y= values, group = method, colour = method,ymin =  ic_0.025, ymax = ic_0.975), size = 1.3,position=position_dodge(.9), width = .2)
  geom_point(
    data = data.frame(values = real_values, xvalues = dat_ex$xvalues),
    aes(x = xvalues, y = values),
    position = position_nudge(x = -.4),
    color = "black")

如何單獨繪制 geom_point 加上 geom_point 和 position_dodge

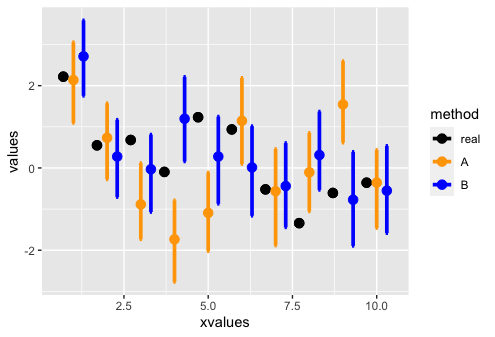

更好的方法可能是將它們全部放在同一個資料框中。這可以簡化代碼并自動將它們放入圖例中。

library(dplyr)
dat_ex = data.frame(
  xvalues = 1:10,
  values = real_values,
  method = "real"
) %>%
  bind_rows(dat_ex) %>%
  mutate(method = factor(method, levels = c("real", "A", "B")))

ggplot(dat_ex, aes(x = xvalues, y = values, color = method))
  geom_point(position=position_dodge(.9), size = 3)
  geom_errorbar(aes(ymin =  ic_0.025, ymax = ic_0.975, group = method),
                size = 1.3, position=position_dodge(.9), width = .2)
  scale_color_manual(values = c("real" = "black", "A" = "orange", "B" = "blue"))

如何單獨繪制 geom_point 加上 geom_point 和 position_dodge

uj5u.com熱心網友回復：

我會將real_values您的資料添加為另一個級別method，因此它們將與“A”和“B”一起被躲避（并包含在圖例中）：

library(ggplot2)

dat_ex <- rbind(
  dat_ex,
  data.frame(
    xvalues = 1:10,
    values = real_values,
    method = "Real",
    ic_0.025 = NA_real_,
    ic_0.975 = NA_real_
  )
)

# arrange so "Real" is on the left
dat_ex$method <- factor(dat_ex$method, levels = c("Real", "A", "B"))

ggplot(dat_ex)
  geom_point(aes(x = xvalues, y= values, group = method, colour = method),  position=position_dodge(.9), size = 3)
  geom_errorbar(aes(x = xvalues, y= values, group = method, colour = method,ymin =  ic_0.025, ymax = ic_0.975), size = 1.3,position=position_dodge(.9), width = .2)
  scale_colour_manual(values = c("black", "forestgreen", "royalblue"))

如何單獨繪制 geom_point 加上 geom_point 和 position_dodge
