繪制圖示介紹

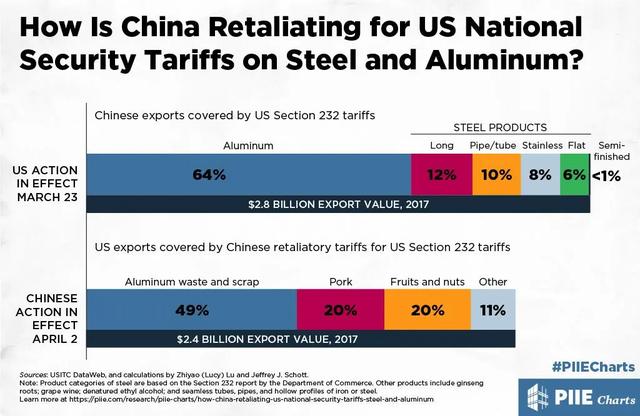

這篇推文是關于中美貿易的文章配圖(具體我們這里我們不多做介紹，我們只關注配圖的美觀設計)，文章的插圖如下：

配圖是真的沒話說，特別是配色(這種配色我后面會做一個Excel的配圖顏色系會比這個多幾個色系，大家如果需求多，我會分享出來的哦)

Python matplotlib

繪圖資料

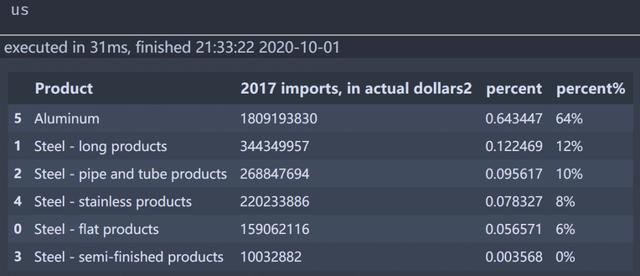

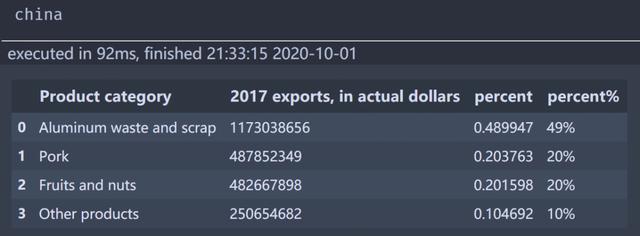

這里的資料處理步驟暫且不過多介紹，繪圖資料如下

可視化

我們直接上代碼，大家不會的可以詳細看代碼中的注釋：

china_color = ['#3D71A0','#B70050','#FD9717','#B6CBDF']
china_text = ['Aluminum waste and scrap','Pork','Fruits and nuts','Other']
us_color = ['#3D71A0','#B70050','#FD9717','#B6CBDF','#3DAE5E','#133831']
us_list = ['64%', '12%', '10%', '8%', '6%', '']
us_text = ['Aluminum','Long','Pipe/tube','Stainless','Flat',""]
barWidth = .6
lefts_china = 0
lefts_us = 0

fig,ax = plt.subplots(figsize=(8,4.5),dpi=200)

for bars, col,text,text2 in zip(china['2017 exports, in actual dollars'], china_color,china['percent%'],china_text):
    ax.barh(1, bars, left=lefts_china, color=col, height=barWidth,align='center')
    lefts_china += bars
    #大家注意這里：可以詳細看一下
    if lefts_china == china['2017 exports, in actual dollars'][0]:
        ax.text(bars/2,1,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(bars/2,1.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')
    else:
        ax.text(lefts_china-bars/2,1,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(lefts_china-bars/2,1.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')
#添加暗黑色柱形圖
ax.barh(.6,china['2017 exports, in actual dollars'].sum(),color='#172A39',height=.35,zorder=0)


for bars, col,text,text2 in zip(us['2017 imports, in actual dollars2'], us_color,us_list,us_text):
    ax.barh(3, bars, left=lefts_us, color=col, height=barWidth,align='center')
    lefts_us += bars
    if lefts_us == us['2017 imports, in actual dollars2'][0]:
        ax.text(bars/2,3,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(bars/2,3.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')
    else:
        ax.text(lefts_us-bars/2,3,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(lefts_us-bars/2,3.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')
ax.barh(2.6,us['2017 imports, in actual dollars2'].sum(),color='#172A39',height=.35,zorder=0)
#定制化設定
ax.axis('off')
ax.axvline(x=0,ymin=.05,color='k',lw=.8)
ax.set_ylim(bottom=0,top=4)

#添加文本資訊
ax.text(.02,.95,"Chinese exports covered by US Section 232 tariffs",
       transform = ax.transAxes,color='k',ha='left',va='center',size=9,fontweight='semibold')

ax.text(.3,.64,"$2.8 BILLION EXPORT VALUE,2017",
       transform = ax.transAxes,color='white',ha='left',va='center',size=8.5,fontweight='semibold')

#添加文本資訊
ax.text(.02,.45,"US exports covered by Chinese retaliatory tariffs for US Section 232 tariffs",
       transform = ax.transAxes,color='k',ha='left',va='center',size=9,fontweight='semibold')

ax.text(.2,.14,"$2.4 BILLION EXPORT VALUE,2017",
       transform = ax.transAxes,color='white',ha='left',va='center',size=8.5,fontweight='semibold')

#再單獨添加 semi-finished 描述部分
ax.text(us['2017 imports, in actual dollars2'].sum(),3,"<1%",ha='left',va='center',size=13,
       fontweight='extra bold')
ax.text(us['2017 imports, in actual dollars2'].sum(),3.4,"Semi-finished",ha='left',va='center',size=8,
       fontweight='light')

#添加小橫線
ax.plot([us['2017 imports, in actual dollars2'][:1].sum(),us['2017 imports, in actual dollars2'].sum()],[3.55,3.55],
       color='k',lw=.6)
text_loc = us['2017 imports, in actual dollars2'][:3].sum()
ax.text(text_loc,3.64,"STEEL PRODUCTS",ha='center',va='center')
#添加刻度文本
ax.text(-.02,.2,"CHINESE\nACTION IN\nEFFECT\nAPRIL 2",ha='right',va='center',fontweight='medium',size=11,
       transform = ax.transAxes)
ax.text(-.02,.7,"US ACTION\nINEFFECT\nMARCH 23",ha='right',va='center',fontweight='medium',size=11,
       transform = ax.transAxes)
#添加標題
ax.text(-.1,1.15,"How Is China Retaliating for US Nation\nSecurity Tariffs on Steel and Aluminum?",
       transform = ax.transAxes,color='k',ha='left',va='center',size=20,fontweight='extra bold')

ax.text(.91,.05,'\nVisualization by DataCharm',transform = ax.transAxes,
        ha='center', va='center',fontsize = 7,color='black')
plt.savefig(r'F:\DataCharm\商業藝術圖表仿制\PIEE_Charts\China US\PIEE_china_us02.png',width=8,height=4,
            dpi=900,bbox_inches='tight',facecolor='white')
#ax.set_axisbelow(True)
plt.show()

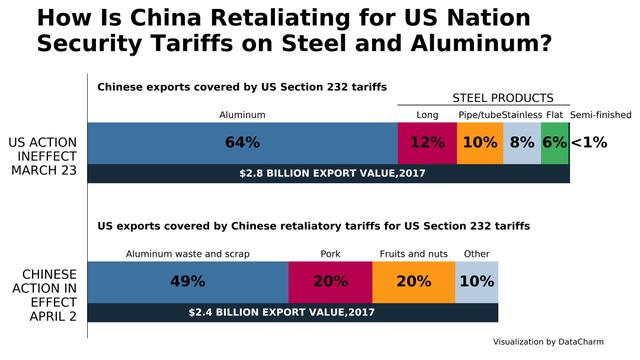

最終我們繪制的效果如下：

知識點

• 橫向堆積柱形圖繪制 這里舉一個小栗子大家看下就可以：

from matplotlib import pyplot as plt
import numpy as np
N = 5
r = range(N)
bars1 = np.random.binomial(20, .7, N)
bars2 = np.random.binomial(20, .5, N)
bars3 = np.random.binomial(20, .4, N)

colors = ['#7f6d5f', '#557f2d', '#2d7f5e']
labels = ["Lasso", "Random Forest", "Decision Tree"]

barWidth = 1
lefts = 0

fig,ax = plt.subplots(figsize=(8,4.5),dpi=200)
for bars, col, label in zip([bars1, bars2, bars3], colors, labels):
    plt.barh(r, bars, left=lefts, color=col, edgecolor='white', height=barWidth, label=label)
    lefts += bars
plt.legend()
plt.ylim(-0.5, len(bars) - 0.5)

ax.text(.91,-.08,'\nVisualization by DataCharm',transform = ax.transAxes,
        ha='center', va='center',fontsize = 7,color='black')
plt.savefig(r'F:\DataCharm\商業藝術圖表仿制\PIEE_Charts\China US\PIEE_china_example.png',width=8,height=4,
            dpi=900,bbox_inches='tight')
plt.show()

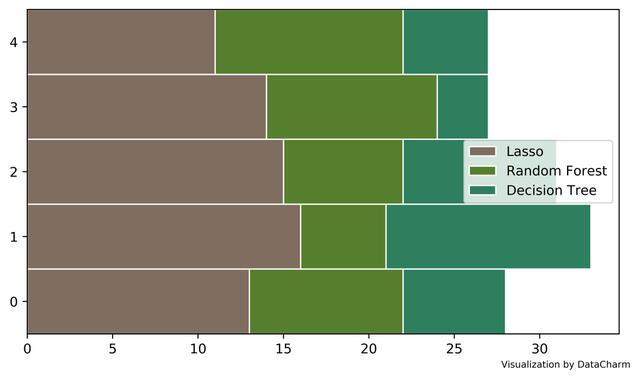

結果如下：

• 文本自動添加 雖然代碼中有明確解釋，但這里我們還是單獨進行展示：

for bars, col,text,text2 in zip(us['2017 imports, in actual dollars2'], us_color,us_list,us_text):
    ax.barh(3, bars, left=lefts_us, color=col, height=barWidth,align='center')
    lefts_us += bars
    if lefts_us == us['2017 imports, in actual dollars2'][0]:
        ax.text(bars/2,3,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(bars/2,3.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')
    else:
        ax.text(lefts_us-bars/2,3,text,color="k",fontweight='extra bold',size=13,ha='center',va='center')
        ax.text(lefts_us-bars/2,3.4,text2,color="k",fontweight='light',size=8,ha='center',va='center')

注意里面的if條件陳述句設定哦！
