進口工程塑料隔膜泵原理特點及品牌（圖）
作者：托馬斯·貝爾森·伍德 發布時間：2021-01-16 13:08:27點擊：201

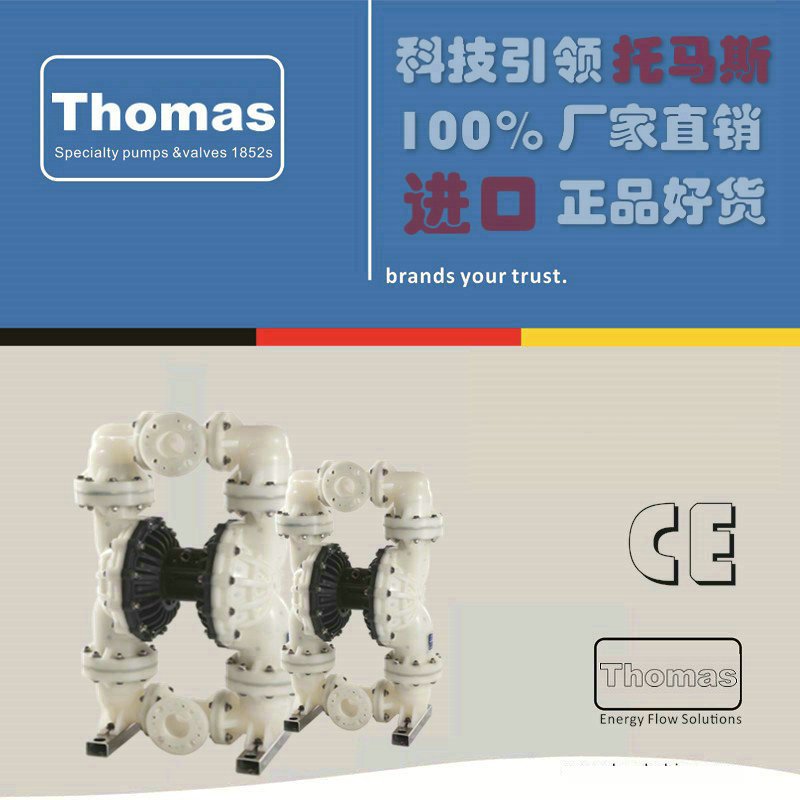

進口工程塑料隔膜泵原理特點
進口工程塑料隔膜泵以優質工程塑料或增強聚丙烯為泵體，具有良好的物理性能，以F46為隔膜片，可適用于酸、 堿及各類有機溶劑，應用范圍極其廣泛，德國托馬斯(Thomas)隔膜泵具有結構美觀，良好的物理抗性，經久耐用等特點，對于各種腐蝕性液體、帶顆粒、高粘度、易揮發、易燃、易爆、劇毒的液體、陶瓷釉漿、果漿、膠水、油輪倉底油回收、臨時倒罐等液體均能予以抽光吸盡，尤其可以解決葉片式泵的跑、冒、滴、漏及不允許空轉等問題，是目前國際最新穎的一種采用壓縮空氣為動力源，通過氣閥往復運動分配空氣，帶動隔膜擠壓輸送介質的容積式泵，該泵集雜質泵、自吸泵、泥漿泵、屏蔽泵、潛水泵等輸送機械的優點， 產品用途 1、泵吸花生醬、泡菜、土豆泥、小紅腸、果醬蘋果漿、巧克力等， 2、泵吸油漆、樹膠、顏料， 3、粘合劑和膠水、全部種類可用泵吸取， 4、各種瓦、瓷、磚器及陶器釉漿， 5、油井鉆好后，用泵吸沉積物及灌漿， 6、泵吸各種乳劑和填料， 7、泵吸各種污水， 8、用泵為油輪，駁船清倉吸取倉內污水， 9、啤酒花及發酵粉稀漿、糖漿、糖密， 10、泵吸礦井、坑道、隧道、選礦、礦渣中的積水，泵吸水泥灌漿及灰漿， 11、各種橡膠漿， 12、各種磨料、腐蝕劑、石油及泥漿、清洗油垢及一般容器， 13、各種劇毒、易燃、易揮發液體， 14、各種強酸、強堿、強腐蝕液體， 15、各種高溫液體最高可耐150℃， 16、作為各種固液體分離設備的前級送壓裝置， 產品特點 1、不需灌引水，吸程高達7m，揚程達50m，出口壓力≥6kgf/cm2; 2、流動寬敞通過性能好允許通過最大顆粒直徑達10mm，抽送泥漿、雜質時，對泵磨損甚微; 3、揚程、流量可通過氣閥開度實作無級調節（氣壓調節在1-7kgf/cm2之間）; 4、無旋轉部件，沒有軸封，隔膜將抽送的介質與泵的運動部件、作業介質完全隔開，所輸送的介質不會向外泄漏，所以抽送有毒、易發揮或腐蝕性介質時，不會造成環境污染和危害人身安全; 5、不必用電，在易燃、易爆場所使用安全可靠; 6、可以浸沒在介質中作業; 7、作用方便、作業可靠、開停只需簡單地打開和關閉氣體閥門，即使由于意外情況而長時間無介質運行或突然停機，泵也不會因此而損壞，不旦超負荷，泵會自動地停機，具有自我保護性能，當負荷恢復正常后，又有自動啟動運行; 8、結構簡單、易損件少，該泵結構簡單，安裝、維修方便，泵輸送的介質不會接觸到配氣閥，聯桿等運動部件，不象其他型別的泵因轉子、活塞、齒輪、葉片等部件的磨損而使性能逐步下降; 9、可輸送較粘的液體（粘度在1萬厘泊以下）; 10、無須用油潤滑，即使空轉，對泵也無任何影響，這是該泵一大特點， Engineering plastic diaphragm pump to high-quality engineering plastics or reinforced polypropylene for the pump, with good physical properties to F46 for the diaphragm, applicable to acid, alkali and various organic solvents, the application of a wide range of German Thomas diaphragm pump with beautiful structure, good physical resistance, durable and so on, for a variety of corrosive liquids, with particles, high viscosity, volatile, flammable, explosive, highly toxic liquid, ceramic glaze pulp, Pulp, glue, oil tanker bottom oil recovery, temporary cans and other liquid can be exhausted exhaustion, in particular, can solve the blade pump running, running, dripping, leakage and does not allow idling and other issues, is the latest international The use of compressed air as the power source, through the valve reciprocating motion distribution of air, driven by the diaphragm extrusion conveying medium displacement pump, the pump impurity pump, self-priming pump, mud pump, shielding pump, submersible pump and other transportation machinery The advantages. Product Usage 1, pumped peanut butter, pickles, mashed potatoes, small red sausage, jam apple pulp, chocolate and so on. 2, pumping paint, gum, paint. 3, adhesive and glue, all kinds of pump can be pumped. 4, all kinds of tile, porcelain, brick and pottery glaze pulp. 5, the oil well after drilling, with pumping sediment and grouting. 6, pumping a variety of emulsions and fillers. 7, pumping a variety of sewage. 8, with the pump for the tanker, barge clearance to absorb the sewage inside the warehouse. 9, hops and baking powder slurry, syrup, sugar secret. 10, pumping wells, tunnels, tunnels, mineral processing, slag in the water. Pumping cement grouting and mortar. 11, all kinds of rubber pulp. 12, all kinds of abrasives, corrosion agents, oil and mud, cleaning grease and general containers. 13, all kinds of highly toxic, flammable, volatile liquid. 14, all kinds of strong acid, alkali, strong corrosive liquid. 15, a variety of high temperature liquid can withstand up to 150 ℃. 16, as a variety of solid liquid separation equipment, the former pressure device. Features 1, without irrigation water, suction up to 7m, head up to 50m, the outlet pressure ≥ 6kgf / cm2; 2, the flow through the performance of the spacious through the maximum particle diameter of up to 10mm. Pumping mud, impurities, the pump wear is minimal; 3, head, the flow through the valve opening to achieve stepless adjustment (air pressure adjustment between 1-7kgf / cm2); 4, no rotating parts, no shaft seal, the diaphragm will be pumping the media and the pump moving parts, the working medium completely separated, the transmission of the media will not leak out. So pumping toxic, easy to play or corrosive media, will not cause environmental pollution and harm to personal safety; 5, do not have electricity, flammable, explosive use of safe and reliable place; 6, can be immersed in the media work; 7, the role of convenient, reliable, open only need to simply open and close the gas valve, even if the accident and a long time without media operation or a sudden shutdown, the pump will not be damaged, no overload, the pump will automatically To stop, with self-protection performance, when the load back to normal, there are automatic start running; 8, the structure is simple, less wearing parts, the pump structure is simple, easy installation, easy maintenance, pump delivery media will not come into contact with the valve, connecting rod and other moving parts, unlike other types of pumps due to the rotor, , Leaves and other components of the wear and tear of the performance gradually decreased; 9, can transport more viscous liquid (viscosity in less than 10,000 centipoise);10, without oil lubrication, even if the idle, the pump has no effect, which is a major feature of the pump.
進口工程塑料隔膜泵品牌
德國托馬斯閥門集團于1933年創建于德國魯爾工業區，也是世界最重要的工業區，位于德國西部、萊茵河下游支流魯爾河與利珀河之間的地區，德國托馬斯閥門集團是以生產高品質、先進的閥門、測量及控制系統而享譽全球的跨國性生產企業，采用世界先進的設備及生產工藝，所有產品都在嚴格的質量體系監控下完成作業，并在各大洲幾十個國家擁有子公司及分支機構，
上一篇：進口不銹鋼氣動隔膜泵原理特點及品牌（圖）下一篇：進口不銹鋼針型閥原理特點及品牌（圖）
相關產品

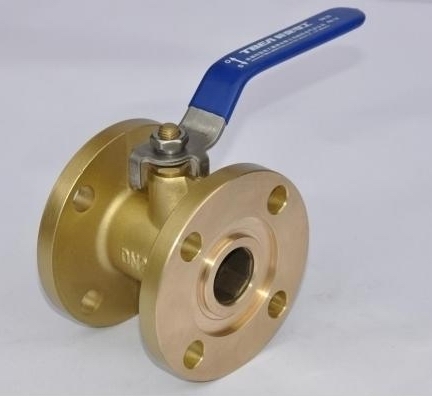

進口銅球閥

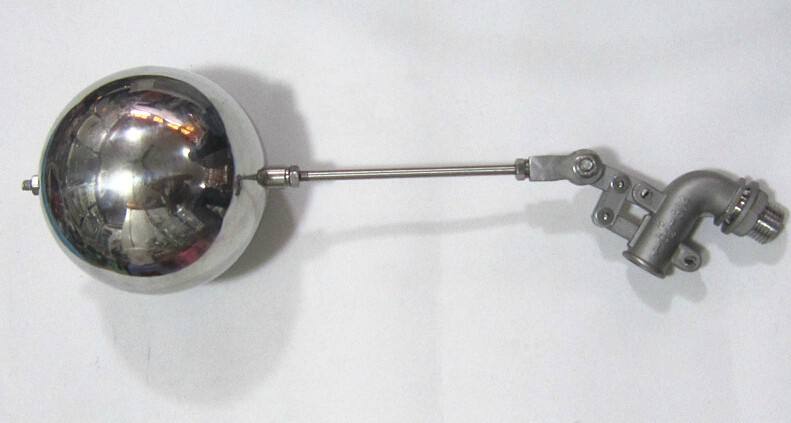

進口浮球閥
