進口潛水攪拌機原理特點及品牌（圖）
作者：托馬斯·貝爾森·伍德 發布時間：2021-01-16 13:06:46點擊：201

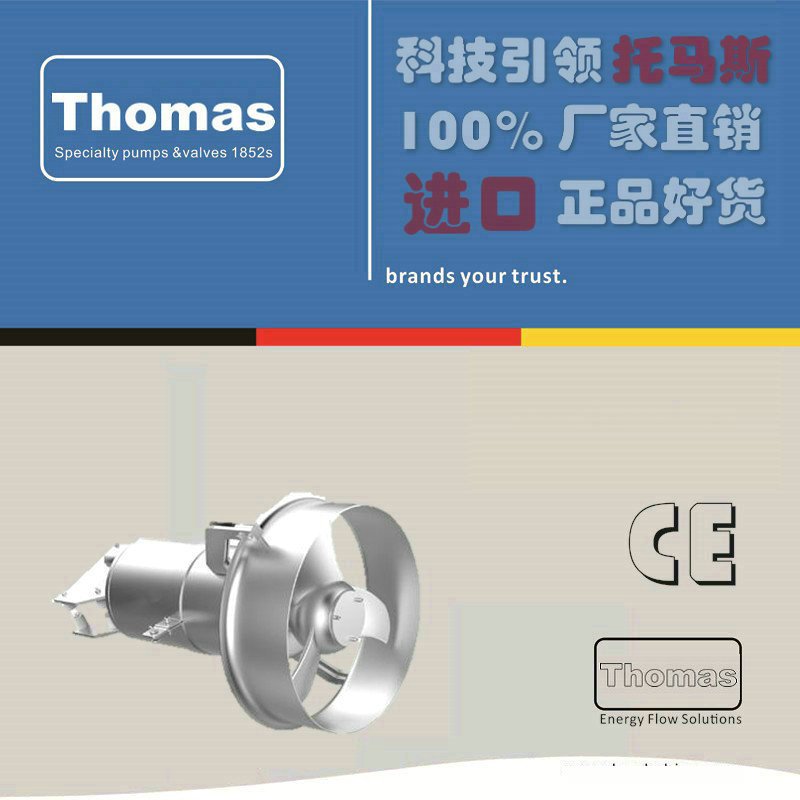

進口潛水攪拌機原理特點
進口潛水攪拌機作為水處理工藝中的關鍵設備，在水處理工藝流程中，可實作生化程序中固液二相流和固流氣三相流的均質，滿足流動的工藝要求，它由潛水電機、齒輪箱、葉漿和安裝系統等組成， 產品分類 根據傳動方式的不同，德國托馬斯(Thomas)潛水攪拌機可分為：多極直聯式（混合攪拌）和齒輪箱式（低速推流）兩種， 混合攪拌系列產品選用多極電機，采用直聯式機構，它與傳統的大功率電機通過減速機降速相比，具有結構緊湊、能耗低、效率高、便于維護保養等優點，葉輪經過精鑄或沖壓成型、精度高、推力大、流線性造型簡潔美觀，混合潛水攪拌機適用于需要固液攪動、混合的場合， 混合潛水攪拌機性能特點 1、不銹鋼沖壓式焊接葉輪，效率高，具有自潔功能， 2、兩道獨立的機械密封，保證潛水電機長期可靠運行， 3、高質量進口一次性潤滑軸承、設計使用壽命10萬小時， 4、電機軸采用不銹鋼材質，轉子經動平衡試驗，運轉平穩， 5、獨特的電纜密封設計、排除了電纜漏水的隱患， 6、內部設有泄漏傳感器和定子繞組超溫保護報警裝置， 低速推流型潛水攪拌機采用擺線針輪減速裝置，配套功率小（1.5-7.5kW)，轉速低(36-115r/min)，葉輪直徑大(1100-2500mm)，服務范圍廣，最佳水力設計的香蕉型葉漿配以聚胺酯或鋁合金材質精鑄成型，曲面光滑，外形流暢，具有重量輕、強度高、耐腐蝕等優點，具有優異的摩擦性能，可保證在低轉速的運動狀態下與液體具有良好的親和性，從而可創建出柔和的水流， 低速推流型系列產品除了具有攪拌功能外還兼推流和創建水流的作用， 低速推流型潛水攪拌機性能特點 1、漿葉由具有彈性的聚胺酯制成，能承受變化的負荷，推力平均被分配到混合物上，具最佳水力設計， 2、兩套獨立的碳化硅機械密封，保證潛水電機長期可靠運行， 3、獨特的電纜密封設計排除了電纜浸水的隱患， 4、電機軸采用不銹鋼材質，轉子經動平衡試驗，運轉平穩， 5、高質量進口一次性潤滑軸承，設計使用壽命10萬小時， 6、內部設有泄漏傳感器和定子繞組超溫保護報警裝置， 作業原理 1、潛水電機直接驅動轉輪，獲得流量、推力、以產生潛水射流動量，并帶動了周圍的液體在水池中形成體積流，從而實作介質攪拌效果，即在污水池中攪拌機的轉輪作用下，液體獲得能量射出后，使介質在池中形成速度場，完成對池中介質、污物的攪拌作用， 2、潛水攪拌機采用導桿安裝方式，能使攪拌機具有在池中不同深度及不同射流方向上進行調整定位的功能，從而促使潛水攪拌機產生的射流動量達到最大限度的充分發揮，針對不同形態的水池及各種工況條件均可獲得最佳配合效果， 主要用途 主要運用在市政和工業污水處理程序的混合、攪拌和環流，也可用于景觀水環境的養護設備，通過攪拌達到創建水流的作用，改善水體質量，增加水中含氧量，有效阻止懸浮物沉積， 作業條件 最高介質溫度不超過40℃; 介質的PH值范圍；5~9; 介質密度不超過1150Kg/m3; 潛水深度不超過20m; 電源：380V，50hz. 特別提示：潛水攪拌機必須完全潛入水中作業，不能在易燃和強腐蝕性及高溫的環境中作業，針對特殊環境下的要求，德國托馬斯(Thomas)工廠可為用戶提供特殊設計， Diving mixer as a key equipment in the water treatment process, in the water treatment process, can achieve biochemical process of solid-liquid two-phase flow and solid flow three-phase flow homogeneous, to meet the flow of the process requirements. It consists of submersible motor, gear box, leaf pulp and installation system and so on. Product Categories According to the different transmission methods, the German Thomas (Thomas) diving mixer can be divided into: multi-pole direct-type (mixing) and gear box (low-speed push) two. Mixing series of products using multi-polar motor, the use of direct-type mechanism, which with the traditional high-power motor through the reducer down compared to a compact, low energy consumption, high efficiency, easy maintenance and so on. Impeller after casting or stamping molding, high precision, thrust, streamlined shape simple and beautiful. Mixing diving mixer for the need for solid-liquid stirring, mixing occasions. Performance characteristics of hybrid diving mixer 1, stainless steel stamping welding impeller, high efficiency, with self-cleaning function. 2, two independent mechanical seal, to ensure long-term reliable operation of submersible motor. 3, high-quality imported one-time lubrication bearings, design life of 100,000 hours. 4, the motor shaft with stainless steel, rotor dynamic balance test, smooth operation. 5, the unique cable seal design, ruled out the cable leakage of the hidden dangers. 6, with internal leakage sensor and stator winding over-temperature protection alarm device. (1.5-7.5kW), low speed (36-115r / min), impeller diameter (1100-2500mm), a wide range of services. The use of cycloid reducer, The best hydraulic design of the banana-type leaf pulp with polyurethane or aluminum alloy material casting, smooth surface, smooth appearance, with light weight, high strength, corrosion resistance, etc., with excellent friction performance, can guarantee the low speed The movement state and the liquid has a good affinity, which can create a soft water. Low-speed flow-type series of products in addition to the mixing function but also push the flow and create the role of water. Performance characteristics of low - speed flow - type diving mixer 1, the blade is made of elastic polyurethane, can withstand changes in the load, the thrust is evenly distributed to the mixture, with the best hydraulic design. 2, two sets of independent silicon carbide mechanical seal, to ensure long-term reliable operation of submersible motor. 3, the unique cable seal design eliminates the hidden danger of cable flooding. 4, the motor shaft with stainless steel, rotor dynamic balance test, smooth operation. 5, high-quality imported one-time lubrication bearings, design life of 100,000 hours. 6, with internal leakage sensor and stator winding over-temperature protection alarm device. Working principle 1, submersible motor directly drive the runner, get the flow, thrust, to produce the momentum of the submersible jet, and led the surrounding liquid in the pool to form a volume flow, in order to achieve media mixing effect. That is, in the sewage tank in the mixer under the action of the wheel, the liquid obtained energy injection, the media in the pool to form a velocity field to complete the pool of media, dirt stirring effect. 2, diving mixer with guide bar installation, the mixer can have different depths in the pool and the direction of the different jet to adjust the positioning function, so that the diving mixer to produce the maximum momentum to maximize the play, for different forms of Pool and a variety of working conditions can get the best match effect. The main purposeMainly used in municipal and industrial sewage treatment process of mixing, mixing and circulation, can also be used for landscape water environment conservation equipment, through mixing to create the role of water to improve the quality of water, increase the oxygen content of water, effectively prevent the suspension of sediment.
進口潛水攪拌機品牌
德國托馬斯閥門集團于1933年創建于德國魯爾工業區，也是世界最重要的工業區，位于德國西部、萊茵河下游支流魯爾河與利珀河之間的地區，德國托馬斯閥門集團是以生產高品質、先進的閥門、測量及控制系統而享譽全球的跨國性生產企業，采用世界先進的設備及生產工藝，所有產品都在嚴格的質量體系監控下完成作業，并在各大洲幾十個國家擁有子公司及分支機構，
上一篇：進口潛水電泵原理特點及品牌（圖）下一篇：進口電動隔膜泵原理特點及品牌（圖）
相關產品

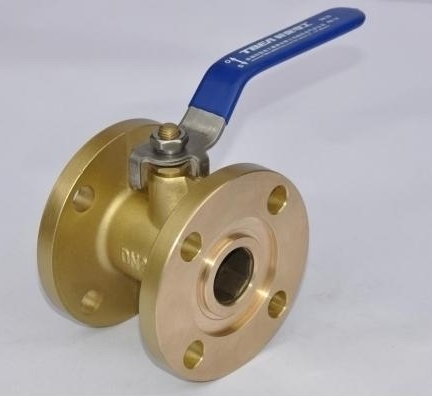

進口銅球閥

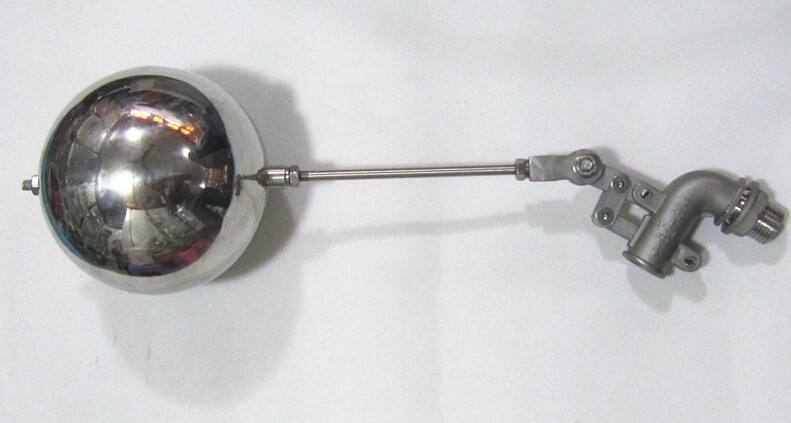

進口浮球閥
