分布式檔案服務器FastDFS

什么是FastDFS

• 描述：是一個分布式檔案上傳工具(檔案資料庫 SQL)
• 作用：將檔案上傳到服務器

怎么用

理論概念

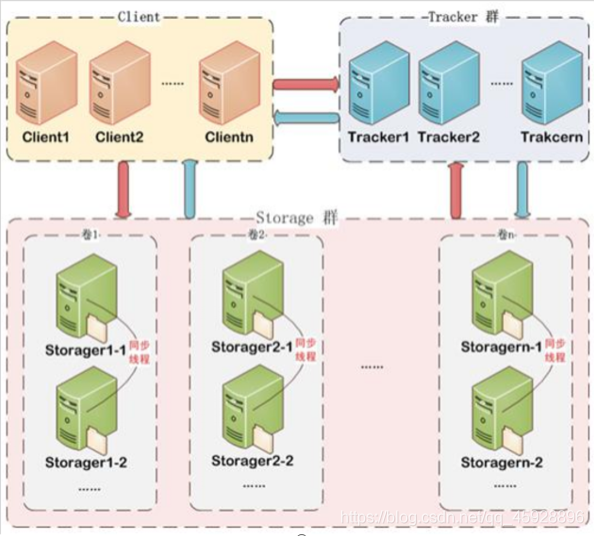

運行流程
1）存盤服務器定時上傳狀態到調度服務器
2）客戶端訪問調度器獲取可以使用的存盤服務器地址
3）客戶端將檔案上傳至指定存盤服務器
4）存盤生成fileID，并將檔案存入磁盤
5）回傳fileId給客戶端

fileID的結構
組名/磁盤路徑/兩級資料路徑/檔案名

撰寫步驟
a、導包fastdfs-client

 <!--檔案服務器客戶端-->
        <dependency>
            <groupId>com.github.tobato</groupId>
            <artifactId>fastdfs-client</artifactId>
            <version>1.26.1-RELEASE</version>
        </dependency>

b、撰寫核心組態檔，詳見application.yml

server:
  port: 8081

fdfs:
  connect-timeout: 600
  so-timeout: 15000
  tracker-list: 192.168.25.133:22122
  thumb-image:
    height: 150
    width: 150
  pool:
    max-total: 50
  #自定義屬性
  fastLocalhost: http://192.168.25.133/
  fastHost: 80
spring:
  freemarker:
    template-loader-path: /templaters/
    suffix: .ftl

c、匯入配置類
CommonFileUtil.java

import com.github.tobato.fastdfs.domain.MateData;
import com.github.tobato.fastdfs.domain.StorePath;
import com.github.tobato.fastdfs.exception.FdfsUnsupportStorePathException;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;

import java.io.*;
import java.nio.charset.Charset;
import java.util.Set;
// 操作檔案的工具類
@Component
public class CommonFileUtil {

    private final Logger logger = LoggerFactory.getLogger(CommonFileUtil.class);

    @Autowired
    private FastFileStorageClient storageClient;


    /**
     *	MultipartFile型別的檔案上傳?
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(MultipartFile file) throws IOException {
        StorePath storePath = storageClient.uploadFile(file.getInputStream(), file.getSize(),
                FilenameUtils.getExtension(file.getOriginalFilename()), null);
        return getResAccessUrl(storePath);
    }

    /**
     * 普通的檔案上傳
     *
     * @param file
     * @return
     * @throws IOException
     */
    public String uploadFile(File file) throws IOException {
        FileInputStream inputStream = new FileInputStream(file);
        StorePath path = storageClient.uploadFile(inputStream, file.length(),
                FilenameUtils.getExtension(file.getName()), null);
        return getResAccessUrl(path);
    }

    /**
     * 帶輸入流形式的檔案上傳
     *
     * @param is
     * @param size
     * @param fileName
     * @return
     */
    public String uploadFileStream(InputStream is, long size, String fileName) {
        StorePath path = storageClient.uploadFile(is, size, fileName, null);
        return getResAccessUrl(path);
    }

    /**
     * 將一段文本檔案寫到fastdfs的服務器上
     *
     * @param content
     * @param fileExtension
     * @return
     */
    public String uploadFile(String content, String fileExtension) {
            byte[] buff = content.getBytes(Charset.forName("UTF-8"));
            ByteArrayInputStream stream = new ByteArrayInputStream(buff);
            StorePath path = storageClient.uploadFile(stream, buff.length, fileExtension, null);
            return getResAccessUrl(path);
    }

    /**
     * 回傳檔案上傳成功后的地址名稱?
     * @param storePath
     * @return
     */
    private String getResAccessUrl(StorePath storePath) {
        String fileUrl = storePath.getFullPath();
        return fileUrl;
    }

    /**
     * 洗掉檔案
     * @param fileUrl
     */
    public void deleteFile(String fileUrl) {
        if (StringUtils.isEmpty(fileUrl)) {
            return;
        }
        try {
            StorePath storePath = StorePath.praseFromUrl(fileUrl);
            storageClient.deleteFile(storePath.getGroup(), storePath.getPath());
        } catch (FdfsUnsupportStorePathException e) {
            logger.warn(e.getMessage());
        }
    }

    public String upfileImage(InputStream is, long size, String fileExtName, Set<MateData> metaData) {
        StorePath path = storageClient.uploadImageAndCrtThumbImage(is, size, fileExtName, metaData);
        return getResAccessUrl(path);
    }


}

fdfsConfig.java

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class FdfsConfig {

    @Value("${fdfs.fastLocalhost}")
    private String resHost;

    @Value("${fdfs.fastHost}")
    private String storagePort;

    public String getResHost() {
        return resHost;
    }

    public void setResHost(String resHost) {
        this.resHost = resHost;
    }

    public String getStoragePort() {
        return storagePort;
    }

    public void setStoragePort(String storagePort) {
        this.storagePort = storagePort;
    }

}

FdfsConfiguration.java

import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.EnableMBeanExport;
import org.springframework.jmx.support.RegistrationPolicy;

@Configuration
@EnableMBeanExport(registration= RegistrationPolicy.IGNORE_EXISTING)
public class FdfsConfiguration {
}

d、修改啟動類
@Import(FdfsClientConfig.class)

import com.github.tobato.fastdfs.FdfsClientConfig;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Import;

import java.rmi.registry.Registry;

@SpringBootApplication
@Import(FdfsClientConfig.class)
public class FastDFSApplication {

    public static void main(String[] args) {
        SpringApplication.run(FastDFSApplication.class,args);

    }
}

e、撰寫檔案上傳代碼
前端：
檔案上傳兩要素：
提交方式：POST
配置enctype屬性：enctype=multiparty/form-data

后臺：
依賴注入(commonFileUtil,FdfsConfig)
撰寫處理請求的方法：
入參：MultiPartFile型別的引數，引數名=控制元件name屬性
處理邏輯：
1)判斷引數是否為空
2）上傳檔案，獲取fileID
3)拼接url = FdfsConfig.redHost+fileID
4)回傳界面，并顯示

@Controller
public class FileUploadController {

    @Autowired
    private CommonFileUtil commonFileUtil;
    @Autowired
    private FdfsConfig config;

    @RequestMapping(value = "/upload",method = RequestMethod.POST)
    public String upload(MultipartFile files,Model model){
        //判斷檔案是否為空
        String url = null;
        if(!files.isEmpty()){

            try {
                //進行檔案上傳，獲取fileId
                String fileId = commonFileUtil.uploadFile(files);
                //拼接圖片訪問路徑
                url = config.getResHost()+fileId;
                model.addAttribute("url", url);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        return "success";
    }

檔案上傳需要安裝虛擬機，上傳到服務器，以下是教程
1.安裝VMware-workstation-full-14.1.2-8497320

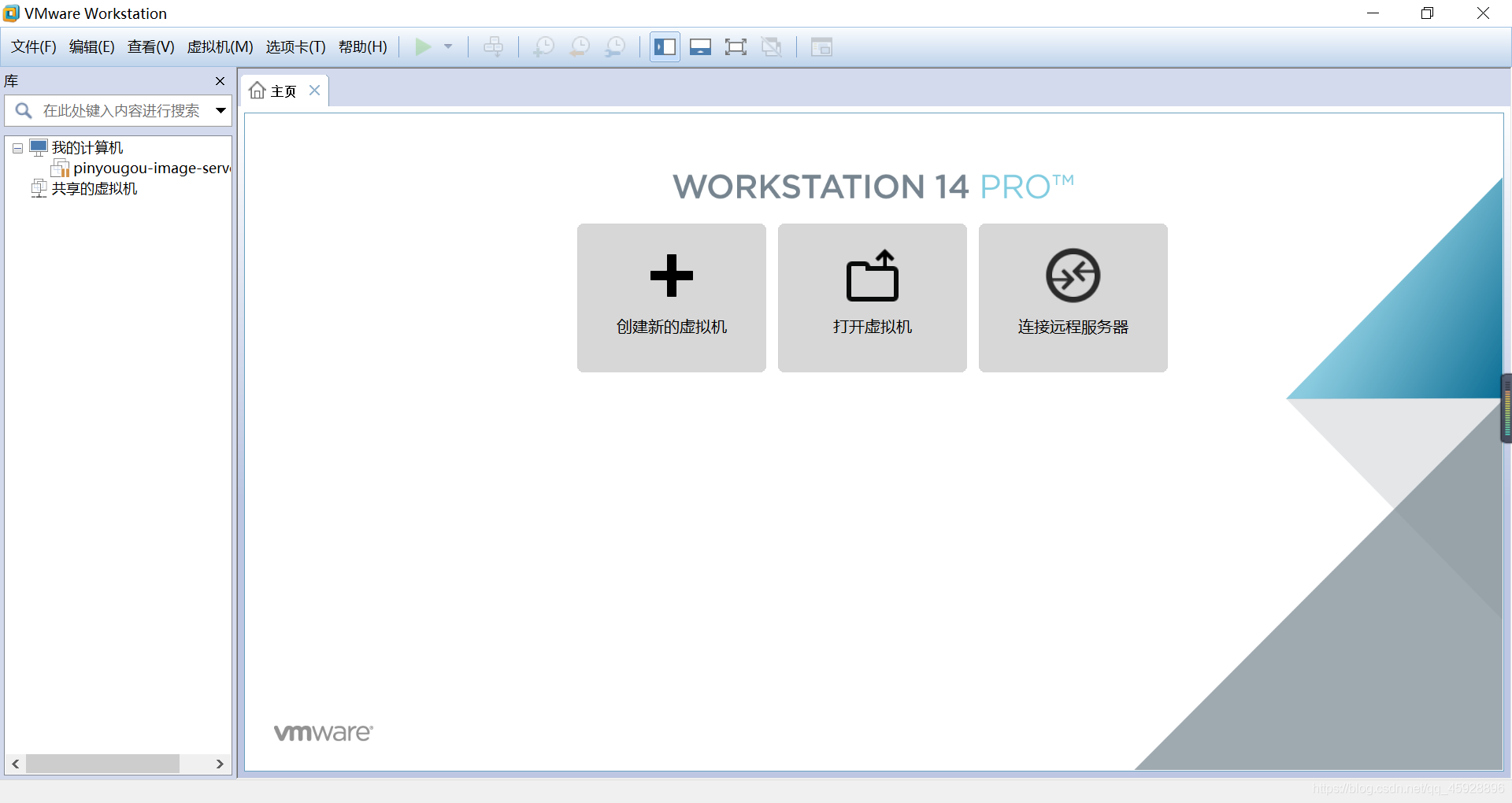

安裝完成后激活，激活好后打開，主頁是這樣的：

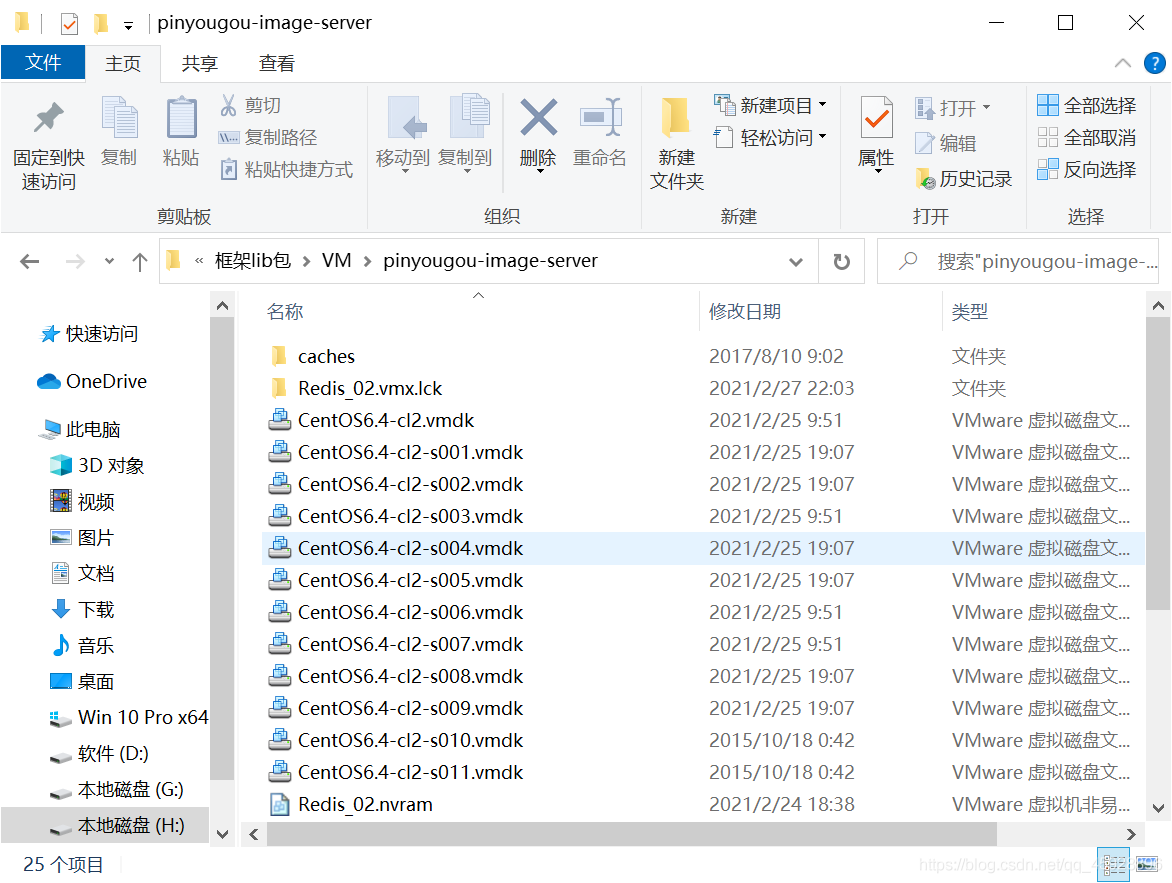

2.還需要pinyougou-image-server檔案夾

3.在VMware Workstation中匯入虛擬機

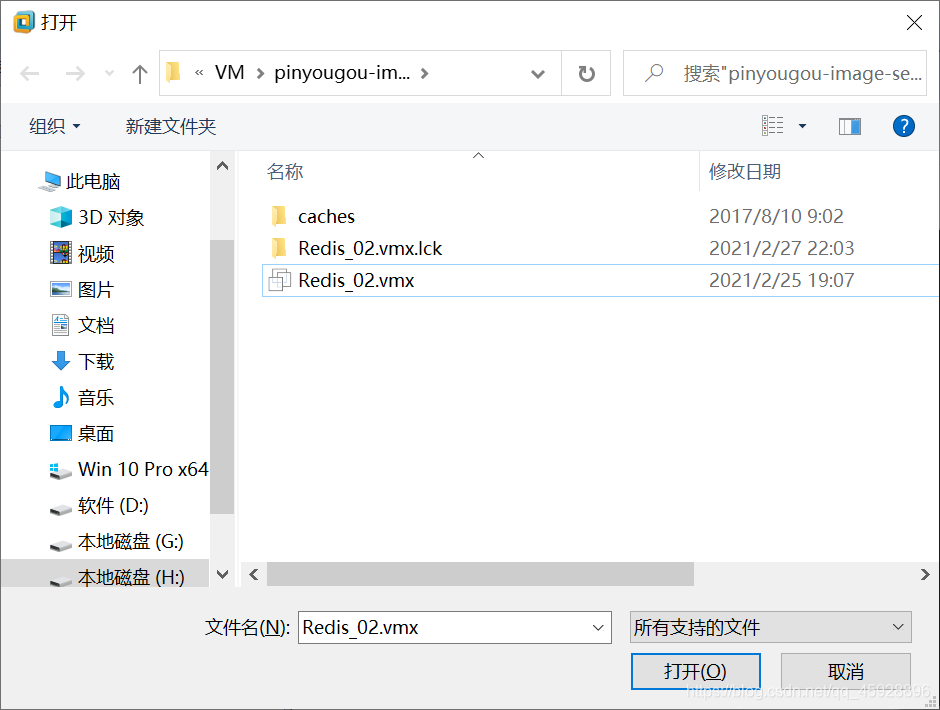

點擊檔案>打開,

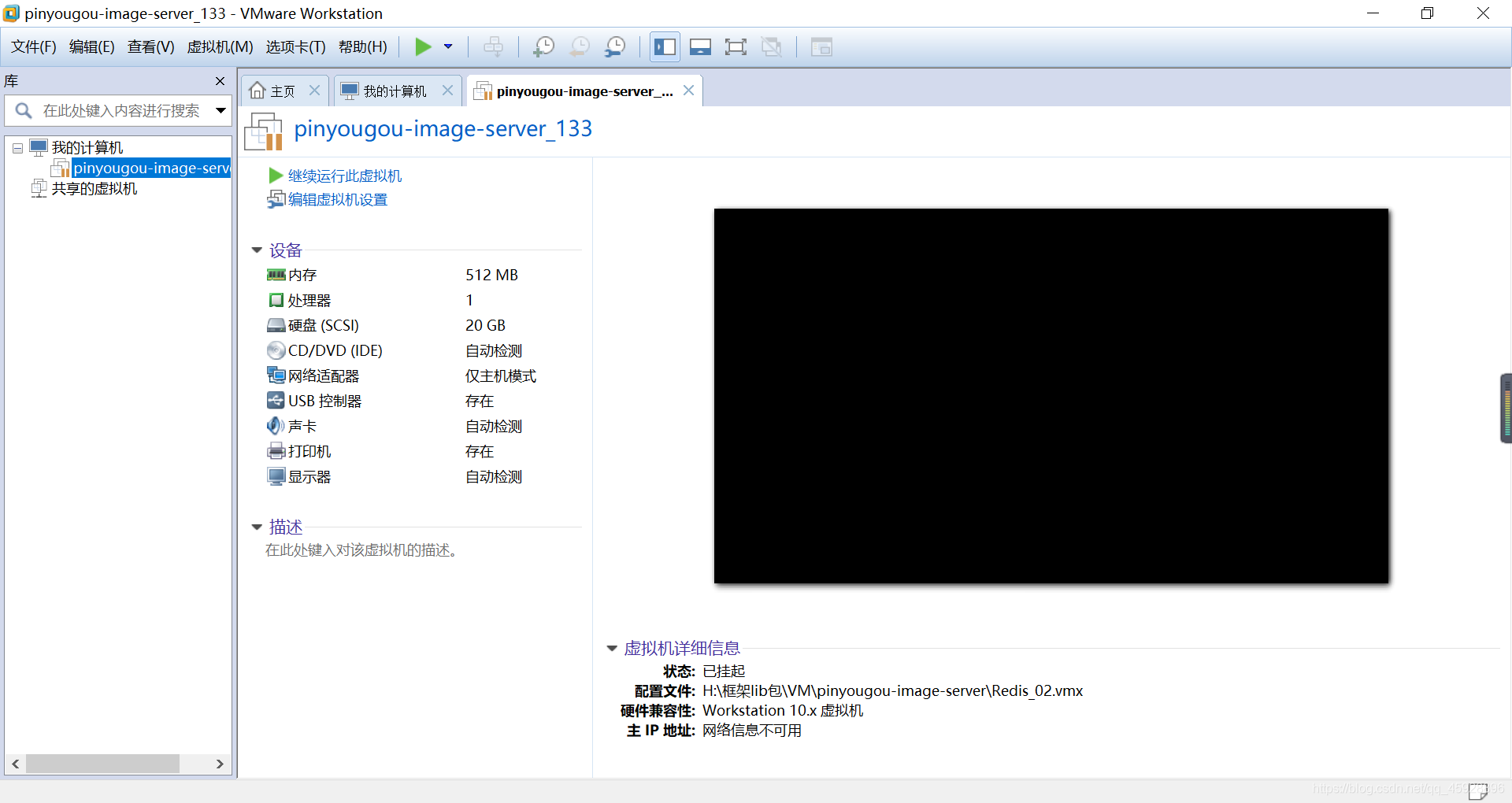

匯入此虛擬機

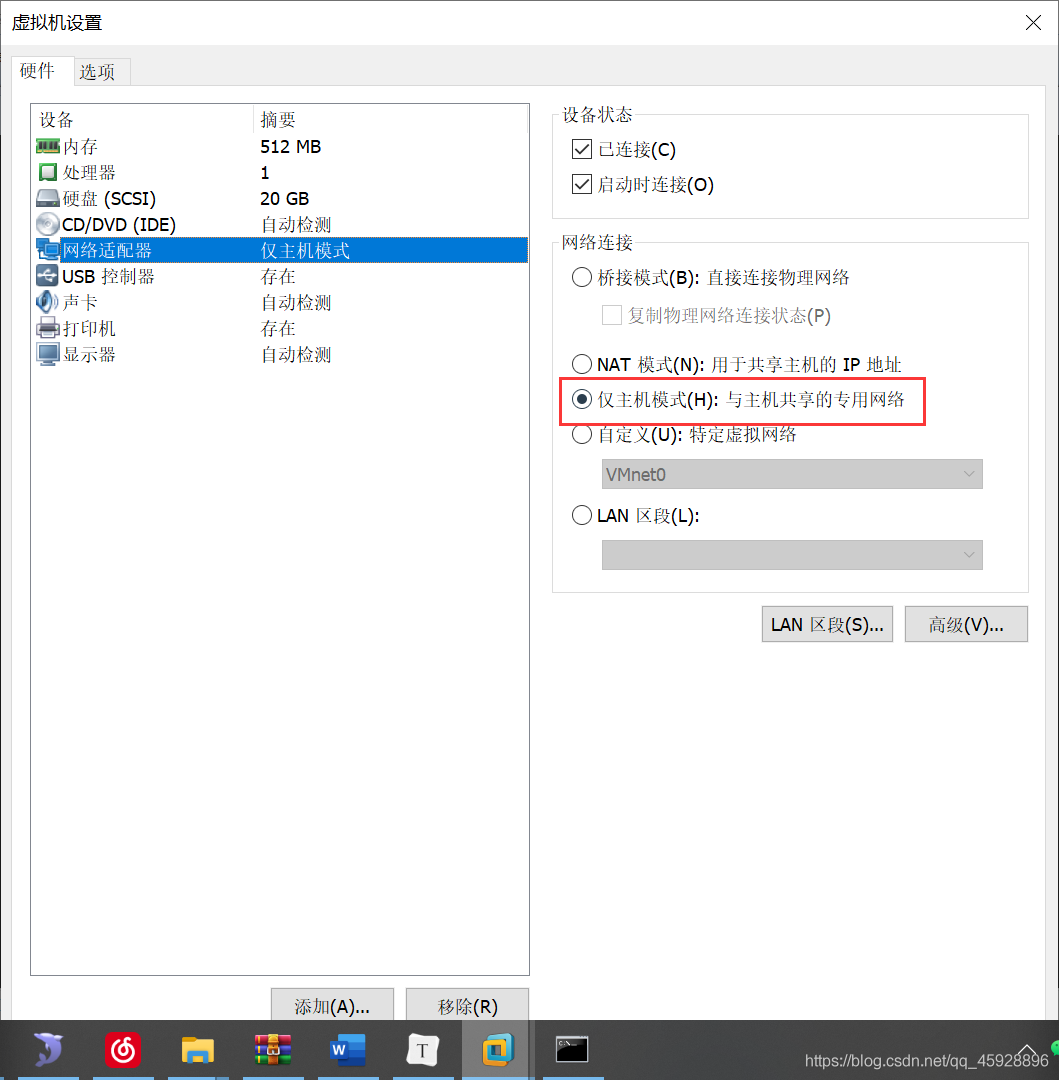

這里要修改以下設定，最好關閉防火墻

運行虛擬機，用戶名root，密碼itcast
注意密碼是不能顯示的，只能盲打

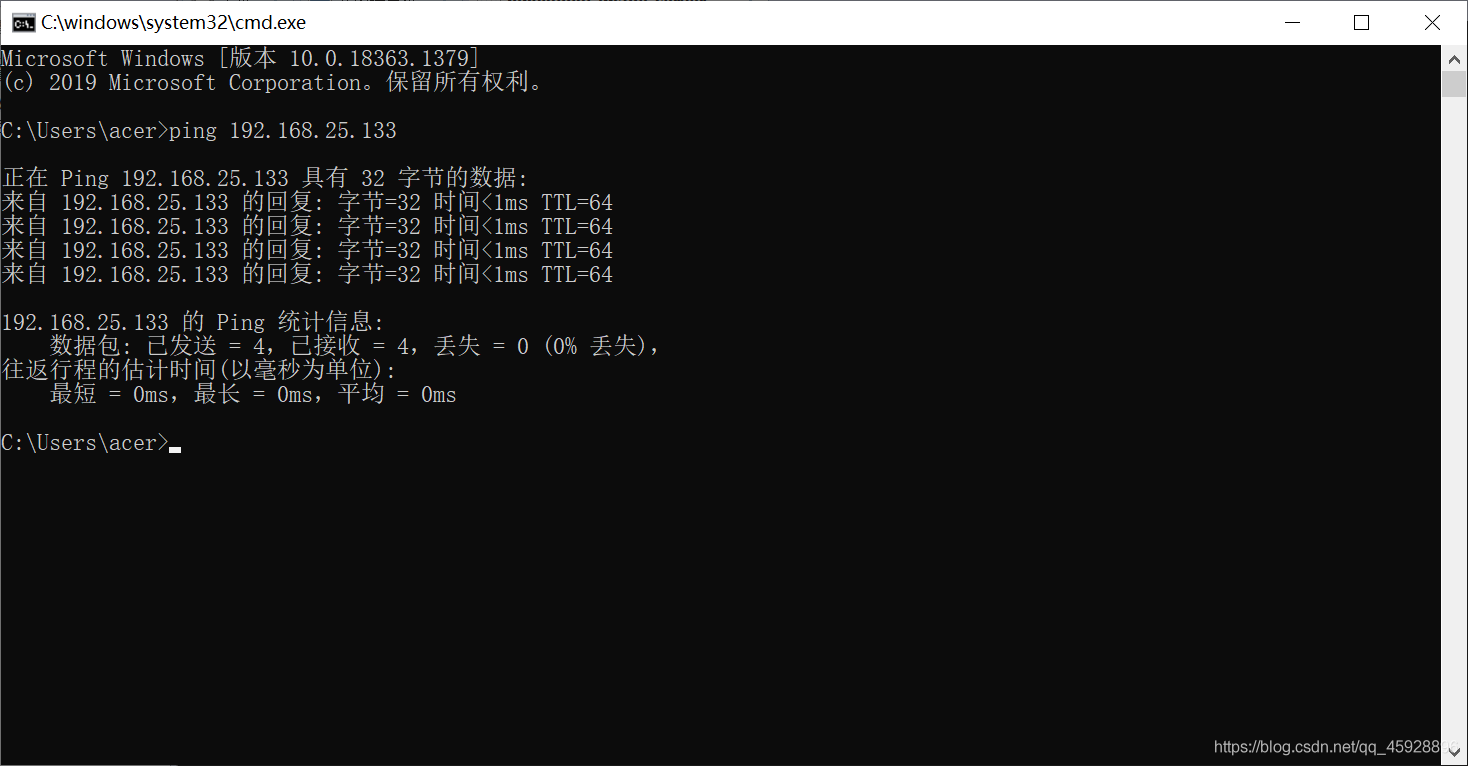

登錄成功，在cmd視窗能正確顯示這些，基本就能完成檔案上傳了，
