AI玩掃雷

很高興又見面了！😊

掃雷是一款單人益智游戲，相信大部分人都在以前上微機課的時候玩過，游戲的目標是借助每個區域中相鄰地雷數量的線索，清除包含隱藏的“地雷”或炸彈的單元格，但不引爆其中任何一個，全部清除后即可獲勝，今天我們用 Python 完成這個小程式，并且用AI來學習并實作它，

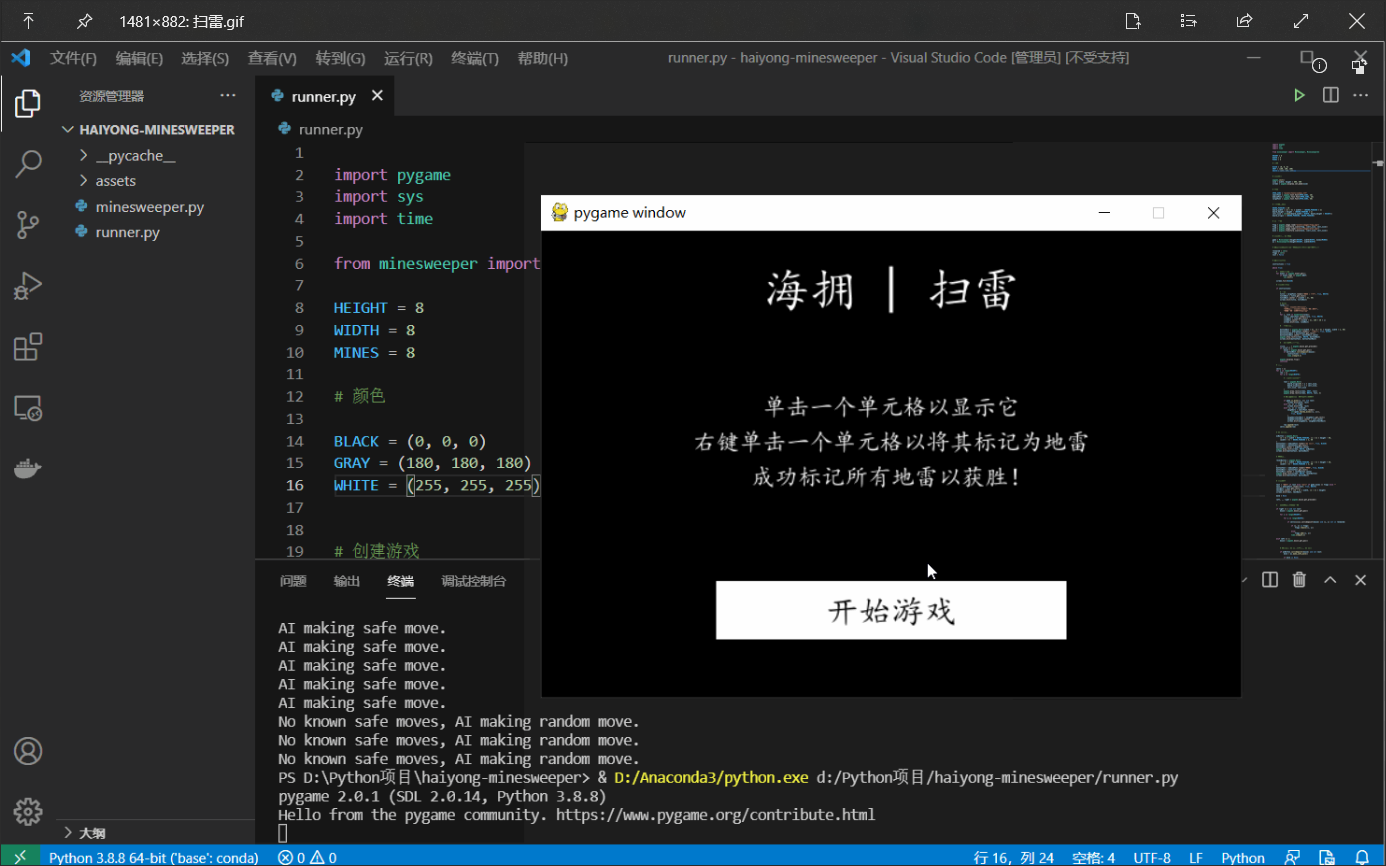

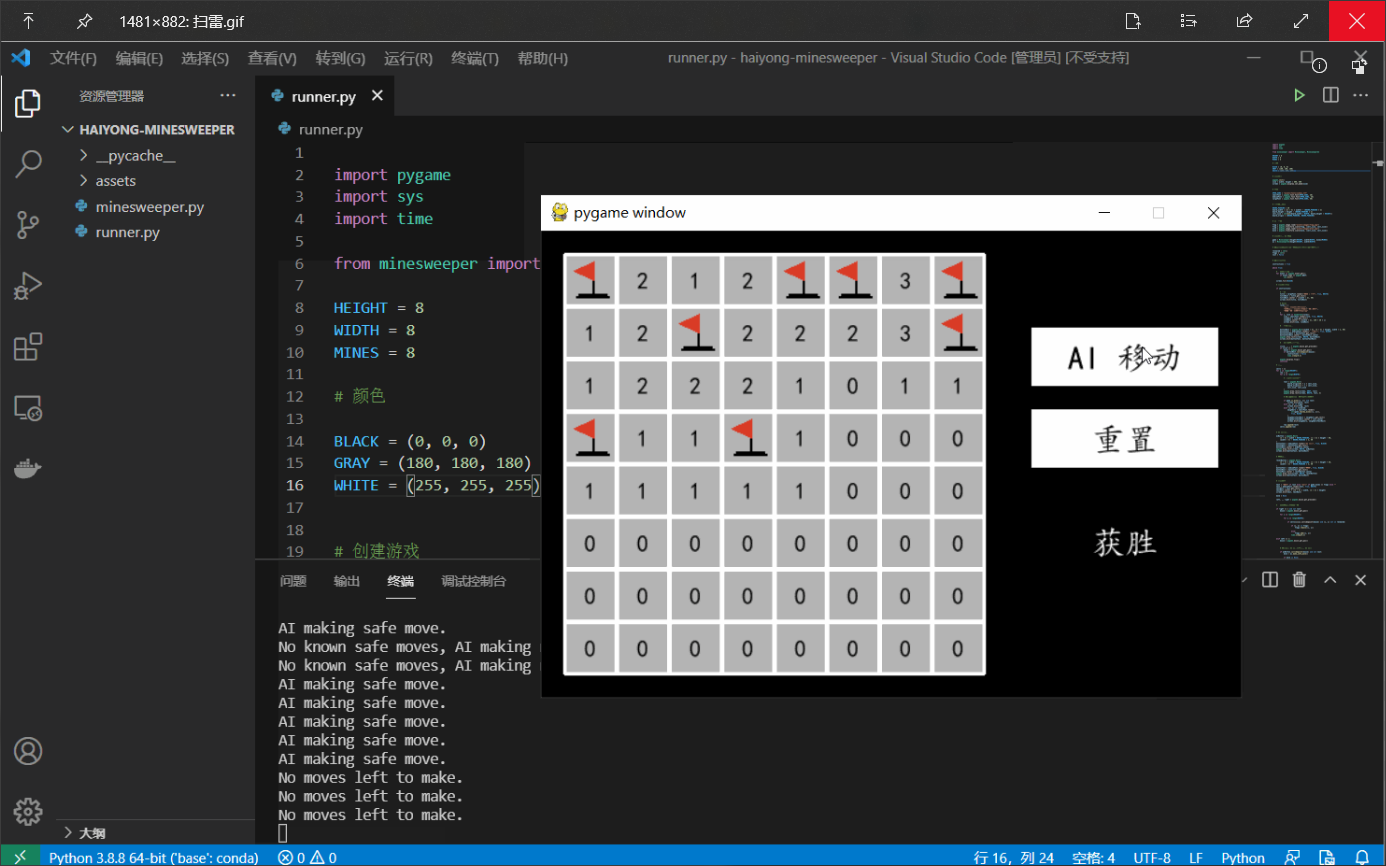

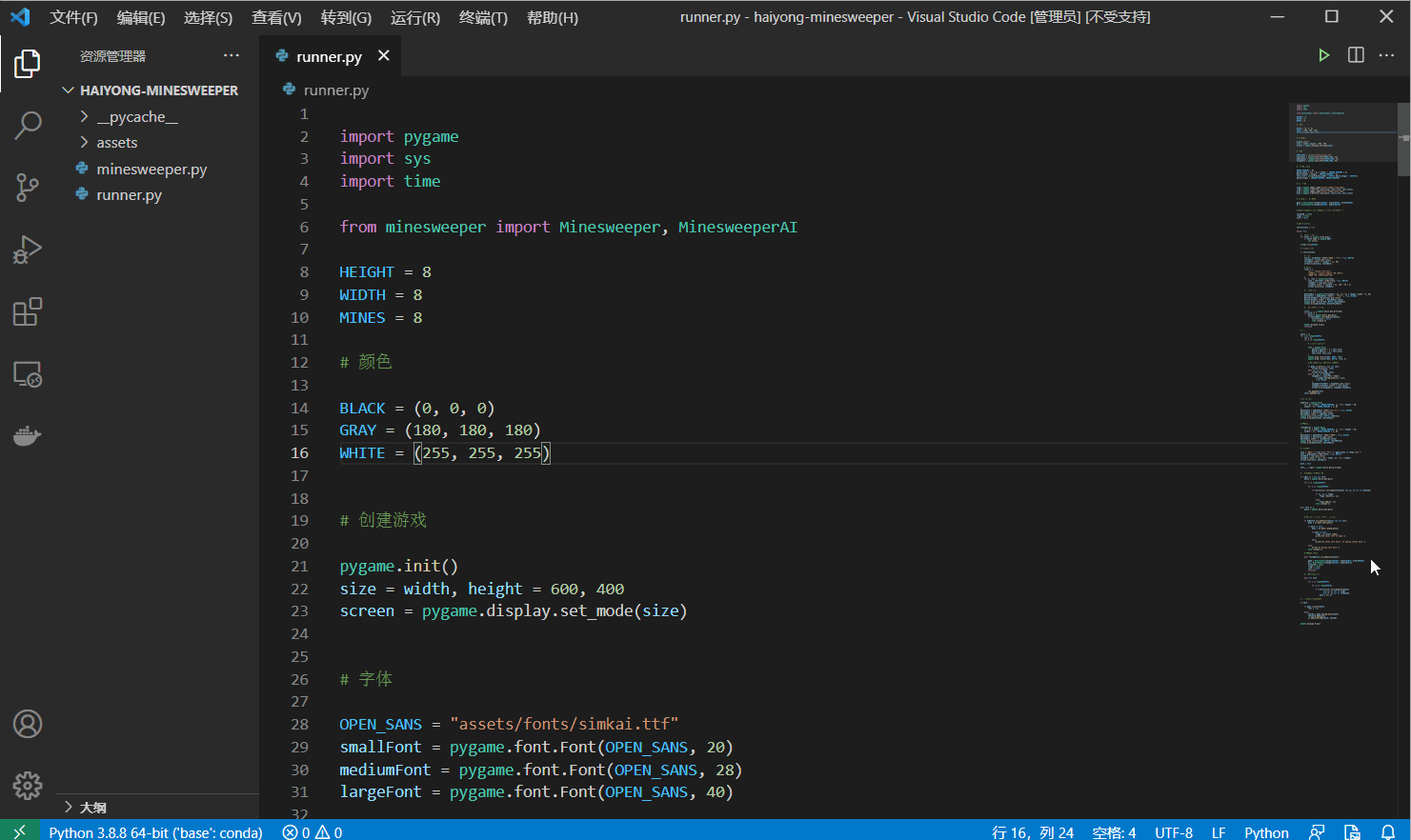

看看我們將要實作的最終樣子，👇

運行掃雷

1.確保安裝了Python 3.6+，
2.安裝Pygame，
3.克隆這個存盤庫：

GitHub地址：https://github.com/wanghao221/minesweeper

設定 minesweeper.py

? 掃雷游戲表示

class Minesweeper():

def __init__(self, height=8, width=8, mines=8):

    # 設定初始寬度、高度和地雷數量
    self.height = height
    self.width = width
    self.mines = set()

    # 初始化一個沒有地雷的空欄位
    self.board = []
    for i in range(self.height):
        row = []
        for j in range(self.width):
            row.append(False)
        self.board.append(row)

    # 隨機添加地雷
    while len(self.mines) != mines:
        i = random.randrange(height)
        j = random.randrange(width)
        if not self.board[i][j]:
            self.mines.add((i, j))
            self.board[i][j] = True

    # 最開始，玩家沒有發現地雷
    self.mines_found = set()

輸出地雷所在位置的基于文本的表示

def print(self):
for i in range(self.height):
        print("--" * self.width + "-")

        for j in range(self.width):

            if self.board[i][j]:
                print("|X", end="")

            else:
                print("| ", end="")
        print("|")

    print("--" * self.width + "-")


def is_mine(self, cell):
    i, j = cell
    return self.board[i][j]

def nearby_mines(self, cell):

回傳給定單元格的一行和一列內的地雷數，不包括單元格本身，

def nearby_mines(self, cell):

        # 保持附近地雷的數量
        count = 0

        # 遍歷一行和一列內的所有單元格
        for i in range(cell[0] - 1, cell[0] + 2):
            for j in range(cell[1] - 1, cell[1] + 2):

                # 忽略單元格本身
                if (i, j) == cell:
                    continue

                # 如果單元格在邊界內并且是地雷，則更新計數
                if 0 <= i < self.height and 0 <= j < self.width:
                    if self.board[i][j]:
                        count += 1
        return count

檢查是否已標記所有地雷，

def won(self):
        return self.mines_found == self.mines

關于掃雷游戲的邏輯陳述句
一個句子由一組棋盤單元和這些單元格的數量組成，

class Sentence():
    def __init__(self, cells, count):
        self.cells = set(cells)
        self.count = count

    def __eq__(self, other):
        return self.cells == other.cells and self.count == other.count

    def __str__(self):
        return f"{self.cells} = {self.count}"

    def known_mines(self):

回傳 self.cells 中已知為地雷的所有單元格的集合，

def known_mines(self):
	if len(self.cells) == self.count:
		return self.cells

回傳 self.cells 中已知安全的所有單元格的集合，

def known_safes(self):
	if self.count == 0:
		return self.cells

鑒于已知單元格是地雷，更新內部知識表示，

def mark_mine(self, cell):
	if cell in self.cells:
		self.cells.discard(cell)
		self.count -= 1

鑒于已知單元格是安全的，更新內部知識表示，

def mark_safe(self, cell):
        if cell in self.cells:
            self.cells.discard(cell)

掃雷游戲玩家

class MinesweeperAI():
    def __init__(self, height=8, width=8):
        # 設定初始高度和寬度
        self.height = height
        self.width = width
        # 跟蹤點擊了哪些單元格
        self.moves_made = set()
        # 跟蹤已知安全或地雷的細胞
        self.mines = set()
        self.safes = set()
        # 關于已知為真游戲的句子串列
        self.knowledge = []

將一個單元格標記為地雷，并更新所有知識以將該單元格也標記為地雷，

def mark_mine(self, cell):
       self.mines.add(cell)

       for sentence in self.knowledge:
           sentence.mark_mine(cell)

將一個單元格標記為安全，并更新所有知識以將該單元格也標記為安全，

def mark_safe(self, cell):
    self.safes.add(cell)
        for sentence in self.knowledge:
            sentence.mark_safe(cell)

用于獲取所有附近的單元格

def nearby_cells(self, cell):
	cells = set()

	        for i in range(cell[0] - 1, cell[0] + 2):
	            for j in range(cell[1] - 1, cell[1] + 2):

	                if (i, j) == cell:
	                    continue

	                if 0 <= i < self.height and 0 <= j < self.width:
	                    cells.add((i, j))

	        return cells

當掃雷板告訴我們，對于給定的安全單元，有多少相鄰單元中有地雷時呼叫，
這個功能應該：
1）將單元格標記為已進行的移動
2）將單元格標記為安全
3）根據 cell 和 count 的值在 AI 的知識庫中添加一個新句子
4）如果可以根據 AI 的知識庫得出結論，則將任何其他單元格標記為安全或地雷
5) 如果可以從現有知識中推斷出任何新句子，則將其添加到 AI 的知識庫中

def add_knowledge(self, cell, count):
        self.moves_made.add(cell)

        # 標記單元格安全

        if cell not in self.safes:
            self.mark_safe(cell)

        # 獲取所有附近的單元格

        nearby = self.nearby_cells(cell)
        nearby -= self.safes | self.moves_made
        new_sentence = Sentence(nearby, count)
        self.knowledge.append(new_sentence)

        new_safes = set()
        new_mines = set()

        for sentence in self.knowledge:

            if len(sentence.cells) == 0:
                self.knowledge.remove(sentence)
            else:
                tmp_new_safes = sentence.known_safes()
                tmp_new_mines = sentence.known_mines()
                if type(tmp_new_safes) is set:
                    new_safes |= tmp_new_safes

                if type(tmp_new_mines) is set:
                    new_mines |= tmp_new_mines
        for safe in new_safes:
            self.mark_safe(safe)
        for mine in new_mines:
            self.mark_mine(mine)
        prev_sentence = new_sentence
        new_inferences = []
        for sentence in self.knowledge:
            if len(sentence.cells) == 0:
                self.knowledge.remove(sentence)
            elif prev_sentence == sentence:
                break
            elif prev_sentence.cells <= sentence.cells:
                inf_cells = sentence.cells - prev_sentence.cells
                inf_count = sentence.count - prev_sentence.count
                new_inferences.append(Sentence(inf_cells, inf_count))
            prev_sentence = sentence
        self.knowledge += new_inferences
    def make_safe_move(self):

回傳一個安全的單元格以在掃雷板上選擇，必須知道該移動是安全的，而不是已經做出的移動，
該函式可以使用 self.mines、self.safes 和 self.moves_made 中的知識，但不應修改任何這些值，

def make_safe_move(self):
	safe_moves = self.safes.copy()
	safe_moves -= self.moves_made
	if len(safe_moves) == 0:
	return None
	return safe_moves.pop()
	def make_random_move(self):

回傳在掃雷板上進行的移動，應該在以下單元格中隨機選擇：
1) 尚未被選中
2) 不知道是地雷

def make_random_move(self):
	if len(self.moves_made) == 56:
	    return None

	random_move = random.randrange(self.height), random.randrange(self.height)

	not_safe_moves = self.moves_made | self.mines

	while random_move in not_safe_moves:
	    random_move = random.randrange(self.height), random.randrange(self.height)

	return random_move

設定 runner.py 運行程式

顏色

BLACK = (0, 0, 0)
GRAY = (180, 180, 180)
WHITE = (255, 255, 255)

創建游戲

pygame.init()
size = width, height = 600, 400
screen = pygame.display.set_mode(size)

字體

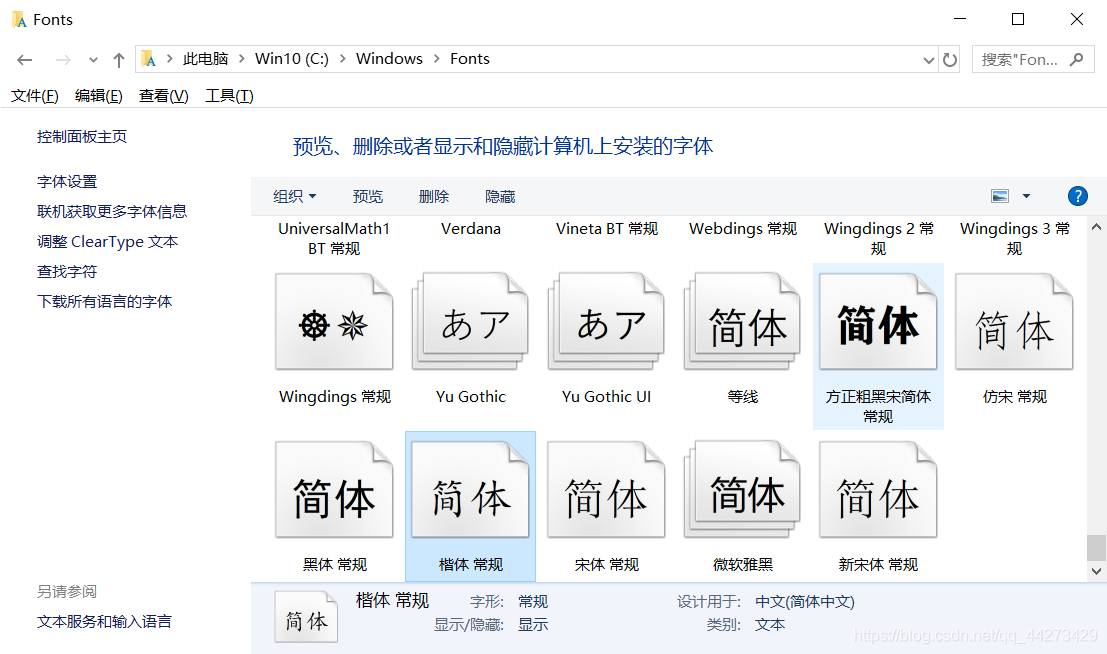

字體可以在自己電腦中C:\Windows\Fonts的位置選擇自己喜歡的復制到專案中 assets/fonts目錄下即可，我用的是楷體

OPEN_SANS = "assets/fonts/simkai.ttf"
smallFont = pygame.font.Font(OPEN_SANS, 20)
mediumFont = pygame.font.Font(OPEN_SANS, 28)
largeFont = pygame.font.Font(OPEN_SANS, 40)

計算面板尺寸

BOARD_PADDING = 20
board_width = ((2 / 3) * width) - (BOARD_PADDING * 2)
board_height = height - (BOARD_PADDING * 2)
cell_size = int(min(board_width / WIDTH, board_height / HEIGHT))
board_origin = (BOARD_PADDING, BOARD_PADDING)

添加圖片
這里我們只用了兩張圖，一個是地雷，一個是用來標記地雷的旗幟

flag = pygame.image.load("assets/images/flag.png")
flag = pygame.transform.scale(flag, (cell_size, cell_size))
mine = pygame.image.load("assets/images/mine.png")
mine = pygame.transform.scale(mine, (cell_size, cell_size))

創建游戲和 AI 代理

game = Minesweeper(height=HEIGHT, width=WIDTH, mines=MINES)
ai = MinesweeperAI(height=HEIGHT, width=WIDTH)

跟蹤顯示的單元格、標記的單元格以及是否被地雷擊中

revealed = set()
flags = set()
lost = False

最初顯示游戲說明

instructions = True

while True:

    # 檢查游戲是否退出
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            sys.exit()

    screen.fill(BLACK)

    # 顯示游戲說明

    if instructions:

        # 標題
        title = largeFont.render("海擁 | 掃雷", True, WHITE)
        titleRect = title.get_rect()
        titleRect.center = ((width / 2), 50)
        screen.blit(title, titleRect)

        # Rules
        rules = [
            "單擊一個單元格以顯示它",
            "右鍵單擊一個單元格以將其標記為地雷",
            "成功標記所有地雷以獲勝！"
        ]
        for i, rule in enumerate(rules):
            line = smallFont.render(rule, True, WHITE)
            lineRect = line.get_rect()
            lineRect.center = ((width / 2), 150 + 30 * i)
            screen.blit(line, lineRect)

        # 開始游戲按鈕

        buttonRect = pygame.Rect((width / 4), (3 / 4) * height, width / 2, 50)
        buttonText = mediumFont.render("開始游戲", True, BLACK)
        buttonTextRect = buttonText.get_rect()
        buttonTextRect.center = buttonRect.center
        pygame.draw.rect(screen, WHITE, buttonRect)
        screen.blit(buttonText, buttonTextRect)

        # 檢查是否點擊播放按鈕

        click, _, _ = pygame.mouse.get_pressed()
        if click == 1:
            mouse = pygame.mouse.get_pos()
            if buttonRect.collidepoint(mouse):
                instructions = False
                time.sleep(0.3)

        pygame.display.flip()
        continue

畫板

cells = []
for i in range(HEIGHT):
    row = []
    for j in range(WIDTH):

        # 為單元格繪制矩形

        rect = pygame.Rect(
            board_origin[0] + j * cell_size,
            board_origin[1] + i * cell_size,
            cell_size, cell_size
        )
        pygame.draw.rect(screen, GRAY, rect)
        pygame.draw.rect(screen, WHITE, rect, 3)

        # 如果需要，添加地雷、旗幟或數字

        if game.is_mine((i, j)) and lost:
            screen.blit(mine, rect)
        elif (i, j) in flags:
            screen.blit(flag, rect)
        elif (i, j) in revealed:
            neighbors = smallFont.render(
                str(game.nearby_mines((i, j))),
                True, BLACK
            )
            neighborsTextRect = neighbors.get_rect()
            neighborsTextRect.center = rect.center
            screen.blit(neighbors, neighborsTextRect)

        row.append(rect)
    cells.append(row)

AI 移動按鈕

aiButton = pygame.Rect(
    (2 / 3) * width + BOARD_PADDING, (1 / 3) * height - 50,
    (width / 3) - BOARD_PADDING * 2, 50
)
buttonText = mediumFont.render("AI 移動", True, BLACK)
buttonRect = buttonText.get_rect()
buttonRect.center = aiButton.center
pygame.draw.rect(screen, WHITE, aiButton)
screen.blit(buttonText, buttonRect)

重置按鈕

 resetButton = pygame.Rect(
        (2 / 3) * width + BOARD_PADDING, (1 / 3) * height + 20,
        (width / 3) - BOARD_PADDING * 2, 50
    )
    buttonText = mediumFont.render("重置", True, BLACK)
    buttonRect = buttonText.get_rect()
    buttonRect.center = resetButton.center
    pygame.draw.rect(screen, WHITE, resetButton)
    screen.blit(buttonText, buttonRect)

顯示文字

text = "失敗" if lost else "獲勝" if game.mines == flags else ""
text = mediumFont.render(text, True, WHITE)
textRect = text.get_rect()
textRect.center = ((5 / 6) * width, (2 / 3) * height)
screen.blit(text, textRect)

move = None

left, _, right = pygame.mouse.get_pressed()

檢查右鍵單擊以切換標記

if right == 1 and not lost:
    mouse = pygame.mouse.get_pos()

    for i in range(HEIGHT):

        for j in range(WIDTH):

            if cells[i][j].collidepoint(mouse) and (i, j) not in revealed:

                if (i, j) in flags:
                    flags.remove((i, j))

                else:
                    flags.add((i, j))
                time.sleep(0.2)

elif left == 1:
    mouse = pygame.mouse.get_pos()

如果單擊 AI 按鈕，則進行 AI 移動

if aiButton.collidepoint(mouse) and not lost:
        move = ai.make_safe_move()

        if move is None:
            move = ai.make_random_move()

            if move is None:
                flags = ai.mines.copy()
                print("No moves left to make.")

            else:
                print("No known safe moves, AI making random move.")

        else:
            print("AI making safe move.")
        time.sleep(0.2)

重置游戲狀態

elif resetButton.collidepoint(mouse):

        game = Minesweeper(height=HEIGHT, width=WIDTH, mines=MINES)
        ai = MinesweeperAI(height=HEIGHT, width=WIDTH)
        revealed = set()
        flags = set()
        lost = False
        continue

用戶自定義動作

elif not lost:

        for i in range(HEIGHT):

            for j in range(WIDTH):

                if (cells[i][j].collidepoint(mouse)
                        and (i, j) not in flags
                        and (i, j) not in revealed):
                    move = (i, j)

行動起來，更新AI知識

if move:

    if game.is_mine(move):
        lost = True

    else:
        nearby = game.nearby_mines(move)
        revealed.add(move)
        ai.add_knowledge(move, nearby)


pygame.display.flip()

以上就是本篇文章的全部內容

這里放了專案的完整原始碼：CSDN下載：https://download.csdn.net/download/qq_44273429/20681780 如果大家能給我的 Github 存盤庫上添一些星星就更好了😊，

我已經寫了很長一段時間的技術博客，并且主要通過CSDN發表，這是我的一篇 Python 單人AI掃雷游戲教程，我樂于通過文章分享技術與快樂，您可以訪問我的博客主頁： https://haiyong.blog.csdn.net/ 以了解更多資訊，希望你們會喜歡！

💌 歡迎大家在評論區提出意見和建議！💌

如果你真的從這篇文章中學到了一些新東西，喜歡它，收藏它并與你的小伙伴分享，🤗最后，不要忘了?或📑支持一下哦，
