面試中，可能會問到Spring怎么系結Mapper介面和SQL陳述句的，一般的答案是Spring會為Mapper生成一個代理類，呼叫的時候實際呼叫的是代理類的實作，但是如果被追問代理類實作的細節，很多同學會卡殼，今天借助2張圖來閱讀一下代碼如何實作的，

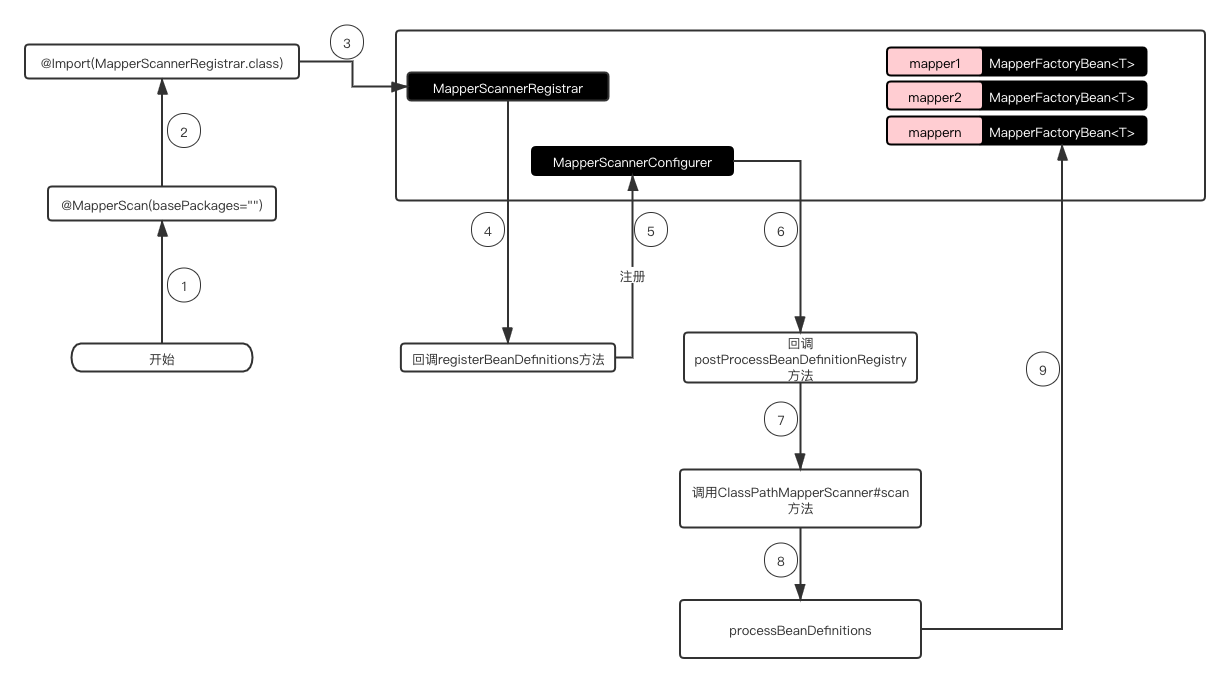

一、代理工廠類生成的程序
步驟1
在啟動類上加上注解MapperScan
@SpringBootApplication
@MapperScan(basePackages = "com.example.springdatasourcedruid.dal")
public class SpringDatasourceDruidApplication {
public static void main(String[] args) {
SpringApplication.run(SpringDatasourceDruidApplication.class, args);
}
}
步驟2
/**
*指定mapper介面所在的包，然后包下面的所有介面在編譯之后都會生成相應的實作類
*這個注解引入了MapperScannerRegistrar類
*/
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(MapperScannerRegistrar.class)
@Repeatable(MapperScans.class)
public @interface MapperScan {
//掃描的包路徑串列
String[] basePackages() default {};
//代理工廠型別別
Class<? extends MapperFactoryBean> factoryBean() default MapperFactoryBean.class;
//作用范圍，這里默認是單例
String defaultScope() default AbstractBeanDefinition.SCOPE_DEFAULT;
}
步驟3、4
實作ImportBeanDefinitionRegistrar介面，目的是實作動態創建自定義的bean
public class MapperScannerRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware {
//Spring 會回呼該方法
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
//獲取MapperScan注解設定的全部屬性資訊
AnnotationAttributes mapperScanAttrs = AnnotationAttributes
.fromMap(importingClassMetadata.getAnnotationAttributes(MapperScan.class.getName()));
if (mapperScanAttrs != null) {
//呼叫具體的實作
registerBeanDefinitions(importingClassMetadata, mapperScanAttrs, registry,
generateBaseBeanName(importingClassMetadata, 0));
}
}
//注冊一個 BeanDefinition ，這里會構建并且向容器中注冊一個bd 也就是一個自定義的掃描器 MapperScannerConfigurer
//mapperFactoryBeanClass的型別MapperFactoryBean
void registerBeanDefinitions(AnnotationMetadata annoMeta, AnnotationAttributes annoAttrs,
BeanDefinitionRegistry registry, String beanName) {
//構建一個 BeanDefinition 他的實體物件是 MapperScannerConfigurer
BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
builder.addPropertyValue("processPropertyPlaceHolders", true);
Class<? extends MapperFactoryBean> mapperFactoryBeanClass = annoAttrs.getClass("factoryBean");
if (!MapperFactoryBean.class.equals(mapperFactoryBeanClass)) {
builder.addPropertyValue("mapperFactoryBeanClass", mapperFactoryBeanClass);
}
registry.registerBeanDefinition(beanName, builder.getBeanDefinition());
}
}
步驟5
將MapperScannerConfigurer注冊到beanFactory，MapperScannerConfigurer是為了解決MapperFactoryBean繁瑣而生的，有了MapperScannerConfigurer就不需要我們去為每個映射介面去宣告一個bean了，大大縮減了開發的效率
步驟6、7
回呼postProcessBeanDefinitionRegistry方法,目的是初始化掃描器，并且回呼掃描basePackages下的介面，獲取到所有符合條件的記錄
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
if (this.processPropertyPlaceHolders) {
processPropertyPlaceHolders();
}
//初始化掃描器，可以掃描專案下的class檔案轉換成BeanDefinition
ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
scanner.setAddToConfig(this.addToConfig);
scanner.setAnnotationClass(this.annotationClass);
scanner.setMarkerInterface(this.markerInterface);
scanner.setSqlSessionFactory(this.sqlSessionFactory);
scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
scanner.setResourceLoader(this.applicationContext);
scanner.setBeanNameGenerator(this.nameGenerator);
scanner.setMapperFactoryBeanClass(this.mapperFactoryBeanClass);
if (StringUtils.hasText(lazyInitialization)) {
scanner.setLazyInitialization(Boolean.valueOf(lazyInitialization));
}
if (StringUtils.hasText(defaultScope)) {
scanner.setDefaultScope(defaultScope);
}
//這一步是很重要的，他是注冊了一系列的過濾器，使得Spring在掃描到Mapper介面的時候不被過濾掉
scanner.registerFilters();
//執行掃描
scanner.scan(
StringUtils.tokenizeToStringArray(this.basePackage, ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS));
}
步驟8、9
將Mapper介面的實作設定為MapperFactoryBean，并且注冊到容器中，后面其他類依賴注入首先獲取到的是MapperFactoryBean
private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
AbstractBeanDefinition definition;
BeanDefinitionRegistry registry = getRegistry();
for (BeanDefinitionHolder holder : beanDefinitions) {
definition = (AbstractBeanDefinition) holder.getBeanDefinition();
String beanClassName = definition.getBeanClassName();
definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59
//將對應的Mapper介面，設定為MapperFactoryBean
definition.setBeanClass(this.mapperFactoryBeanClass);
definition.getPropertyValues().add("addToConfig", this.addToConfig);
//-------忽略了非關鍵代碼--------------------------------
//將Mapper介面注冊到BeanDefinition，這時候實際的實作類已經被指定為MapperFactoryBean
registry.registerBeanDefinition(proxyHolder.getBeanName(), proxyHolder.getBeanDefinition());
}
}

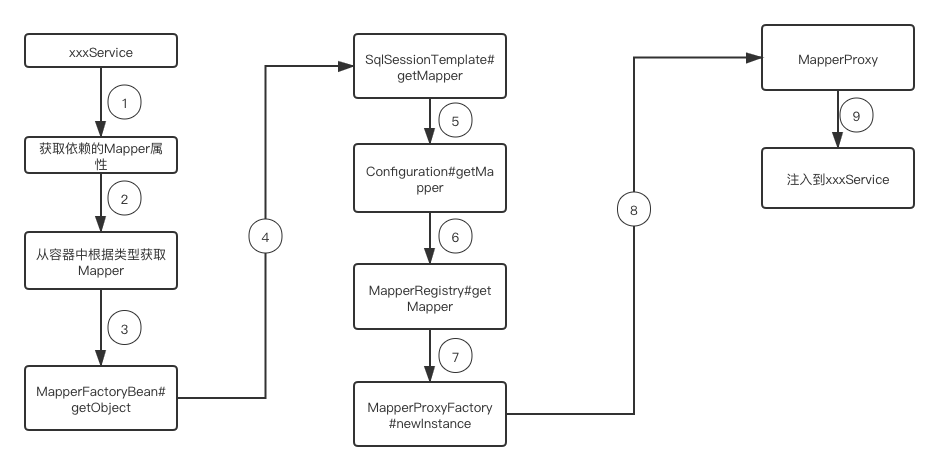

二、代理類的生成以及使用
我們根據上面的情況已經知道，實際在容器中保存的是MapperFactoryBean，這里也并不沒有和SQL關聯上，實際在依賴注入的時候，還會進行加工，獲取到真正的代理類，在下面的圖中進一步解釋，
步驟1
在xxxService用注解@Autowired（@Resource）、構造方法方式引入xxxMapper屬性
步驟2
通過呼叫AbstractBeanFactory.getBean方法獲取bean，此為方法入口
public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
return this.doGetBean(name, requiredType, (Object[])null, false);
}
步驟3
因為容器中存在是MapperFactoryBean，所以后續是呼叫MapperFactoryBean.getObject方法，SqlSessionDaoSupport類中getSqlSession實際回傳的是sqlSessionTemplate
public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
@Override
public T getObject() throws Exception {
return getSqlSession().getMapper(this.mapperInterface);
}
}
步驟4
呼叫sqlSessionTemplate.getMapper，getConfiguration()獲取到的物件就是Configuration
@Override
public <T> T getMapper(Class<T> type) {
return getConfiguration().getMapper(type, this);
}
步驟5
呼叫Configuration.getMapper方法
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
return this.mapperRegistry.getMapper(type, sqlSession);
}
步驟6
呼叫MapperRegistry.getMapper方法,這里先從快取中獲取MapperProxyFactory，然后再生成相應的實體
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory)this.knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
} else {
try {
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception var5) {
throw new BindingException("Error getting mapper instance. Cause: " + var5, var5);
}
}
}
步驟7、8
呼叫java動態代理類生成代理物件MapperProxy，并且回傳
protected T newInstance(MapperProxy<T> mapperProxy) {
return Proxy.newProxyInstance(this.mapperInterface.getClassLoader(), new Class[]{this.mapperInterface}, mapperProxy);
}
public T newInstance(SqlSession sqlSession) {
MapperProxy<T> mapperProxy = new MapperProxy(sqlSession, this.mapperInterface, this.methodCache);
return this.newInstance(mapperProxy);
}
步驟9
將xxxMapper設定到xxxService完成屬性注入
三、使用Mapper的程序
比如說我們要呼叫xxxMapper.insert方法
步驟1
上面講到我們實際注入的是動態代理物件MapperProxy，因此實際呼叫的是MapperProxy.invoke方法,依據代碼我們很容易得出后續走的方法是cachedInvoker.invoke，proxy即使MapperProxy物件，method即insert方法，args即為傳入要插入的物體物件
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
return Object.class.equals(method.getDeclaringClass()) ? method.invoke(this, args) : this.cachedInvoker(method).invoke(proxy, method, args, this.sqlSession);
} catch (Throwable var5) {
throw ExceptionUtil.unwrapThrowable(var5);
}
}
因insert不是默認方法，因此執行的邏輯是 MapperProxy.PlainMethodInvoke
private MapperProxy.MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
try {
return (MapperProxy.MapperMethodInvoker)MapUtil.computeIfAbsent(this.methodCache, method, (m) -> {
if (m.isDefault()) {
try {
return privateLookupInMethod == null ? new MapperProxy.DefaultMethodInvoker(this.getMethodHandleJava8(method)) : new MapperProxy.DefaultMethodInvoker(this.getMethodHandleJava9(method));
} catch (InstantiationException | InvocationTargetException | NoSuchMethodException | IllegalAccessException var4) {
throw new RuntimeException(var4);
}
} else {
//如果不是默認方法，執行該段邏輯
return new MapperProxy.PlainMethodInvoker(new MapperMethod(this.mapperInterface, method, this.sqlSession.getConfiguration()));
}
});
} catch (RuntimeException var4) {
Throwable cause = var4.getCause();
throw (Throwable)(cause == null ? var4 : cause);
}
}
步驟2
執行PlainMethodInvoker.invoke方法
public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
return this.mapperMethod.execute(sqlSession, args);
}
步驟3
這里才是真正和SQL相關的部分，方法的型別是根據xml檔案中節點名稱獲取的，不如我們的例子中是insert，這里對應的就是case INSERT，后續的呼叫就是sqlSession和資料庫的關聯了
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
Object param;
switch(this.command.getType()) {
case INSERT:
param = this.method.convertArgsToSqlCommandParam(args);
result = this.rowCountResult(sqlSession.insert(this.command.getName(), param));
break;
case UPDATE:
param = this.method.convertArgsToSqlCommandParam(args);
result = this.rowCountResult(sqlSession.update(this.command.getName(), param));
break;
case DELETE:
param = this.method.convertArgsToSqlCommandParam(args);
result = this.rowCountResult(sqlSession.delete(this.command.getName(), param));
break;
case SELECT:
if (this.method.returnsVoid() && this.method.hasResultHandler()) {
this.executeWithResultHandler(sqlSession, args);
result = null;
} else if (this.method.returnsMany()) {
result = this.executeForMany(sqlSession, args);
} else if (this.method.returnsMap()) {
result = this.executeForMap(sqlSession, args);
} else if (this.method.returnsCursor()) {
result = this.executeForCursor(sqlSession, args);
} else {
param = this.method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(this.command.getName(), param);
if (this.method.returnsOptional() && (result == null || !this.method.getReturnType().equals(result.getClass()))) {
result = Optional.ofNullable(result);
}
}
break;
case FLUSH:
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + this.command.getName());
}
if (result == null && this.method.getReturnType().isPrimitive() && !this.method.returnsVoid()) {
throw new BindingException("Mapper method '" + this.command.getName() + " attempted to return null from a method with a primitive return type (" + this.method.getReturnType() + ").");
} else {
return result;
}
}
四、總結
這里基本上從代理工廠類的生成、代理類的生成、以及使用的程序，結合上面兩幅圖和代碼，相信你已經有了充分的了解，
關注我，一起成長和進步，下一篇繼續
