consul入門-有解無憂

consul

consul用于微服務下的服務治理，主要特點有：服務發現、服務配置、健康檢查、鍵值存盤、安全服務通信、多資料中心等，

什么叫服務治理發現？起初我們的服務比較單一，各服務之間通過介面就能訪問，后面服務越來越復雜出現了分布式，為了不引起單點問題，必然是多服務部署，如果還用原來的方式直接連接，那么在某個服務掛掉或者修改了資訊，就會導致連接失敗，如果連接端能夠不去關心具體的服務配置，他只要連接到那個服務，后續的作業由其它服務保證，包括負載均衡、健康檢查等，保證總有可用的連接那就行了，consul就是做這個的，當然，它的功能遠不止這些，這里只是以服務發現為例，

與它同類的東西，還有Eureka、zooKeeper、etcd等也能做這些事，說不上誰好誰壞，看場景挑合適的吧，不過Eureka現在已經閉源了，這個還是建議不要去用這個了，

consul下載

consule的安裝超級簡單，去官方下載地址Download ，找到自已對應系統的壓縮包，解壓后里面就一個檔案consul, 將這個檔案放到你的PATH中，就能直接用了，

驗證下安裝成功沒有, 看到下面的提示就行了，

$ consul  version
Consul v1.7.2
Protocol 2 spoken by default, understands 2 to 3 (agent will automatically use protocol >2 when speaking to compatible agents)

consul的CLI操作

consul提供了cli的命令操作，如啟動代理、鍵值存盤、注冊／注銷服務、加入集群等，這個consul提供的HTTP的API操作也是一樣的，只是這里都是shell的操作，

$ consul
Usage: consul [--version] [--help] <command> [<args>]

Available commands are:
    acl            Interact with Consul's ACLs
    agent          Runs a Consul agent
    catalog        Interact with the catalog
    config         Interact with Consul's Centralized Configurations
    connect        Interact with Consul Connect
    debug          Records a debugging archive for operators
    event          Fire a new event
    exec           Executes a command on Consul nodes
    force-leave    Forces a member of the cluster to enter the "left" state
    info           Provides debugging information for operators.
    intention      Interact with Connect service intentions
    join           Tell Consul agent to join cluster
    keygen         Generates a new encryption key
    keyring        Manages gossip layer encryption keys
    kv             Interact with the key-value store
    leave          Gracefully leaves the Consul cluster and shuts down
    lock           Execute a command holding a lock
    login          Login to Consul using an auth method
    logout         Destroy a Consul token created with login
    maint          Controls node or service maintenance mode
    members        Lists the members of a Consul cluster
    monitor        Stream logs from a Consul agent
    operator       Provides cluster-level tools for Consul operators
    reload         Triggers the agent to reload configuration files
    rtt            Estimates network round trip time between nodes
    services       Interact with services
    snapshot       Saves, restores and inspects snapshots of Consul server state
    tls            Builtin helpers for creating CAs and certificates
    validate       Validate config files/directories
    version        Prints the Consul version
    watch          Watch for changes in Consul

Agent啟動

consul是通過Agent來運行的，Agent又分為Server Agent和Client Agent兩種型別，這兩型別基本上是沒區別的，Server Agent會將服務的訊息存盤起來，至少要啟動一個Server Agent，為了防止單點，集群環境中推薦3-5個，

Client Agent主要用于注銷服務、健康檢查及轉發Server Agent的查詢等，它相當于一個代理，所以他必須在集群的每臺主機上都要運行，

先看下Agent的常用配置

$ consul agent --help

--server 定義運行server agent
--data-dir 配置consul資料存盤路徑
--bootstrap-expect ：期望的server節點數目，consul一直等到指定sever數目的時候才會引導整個集群
--bind：該地址用來在集群內部的通訊，集群內的所有節點到地址都必須是可達的，默認是0.0.0.0
--node：節點在集群中的名稱，在一個集群中必須是唯一的，默認是該節點的主機名
--ui： web的管理ui,查看服務和節點
--config-dir：組態檔目錄，所有以.json結尾的檔案都會被加載，可以是服務或consul自身的配置
--client：提供HTTP、DNS、RPC等服務，默認是127.0.0.1,不對外提供服務，如果需要則改成0.0.0.0

我本地沒有虛擬機，也沒用Docker操作，所以，如果要同時啟動Server和Client的話，我就用的改埠的方式，當然生產環境肯定就沒有這個了，它都是一臺機器啟動一個Agent, 這里只是測驗用的，

啟動一個Server Agent

$ consul agent --server=true --ui=true --data-dir=/tmp/consul --node=server1 --dev

上面的 --server表示以server方式，--ui 會開啟一個web ui管理界面, --dev 表示開發者模式，不需要ACL驗證，不然那個web ui的打不開會報沒有權限，

==> Starting Consul agent...
           Version: 'v1.7.2'
           Node ID: 'f6272369-098a-1412-ed86-6e2076c1e5e4'
         Node name: 'server1'
        Datacenter: 'dc1' (Segment: '<all>')
            Server: true (Bootstrap: false)
       Client Addr: [127.0.0.1] (HTTP: 8500, HTTPS: -1, gRPC: 8502, DNS: 8600)
      Cluster Addr: 127.0.0.1 (LAN: 8301, WAN: 8302)
           Encrypt: Gossip: false, TLS-Outgoing: false, TLS-Incoming: false, Auto-Encrypt-TLS: false

==> Log data will now stream in as it occurs:

    2020-04-01T14:28:52.579+0800 [DEBUG] agent.tlsutil: Update: version=1
    2020-04-01T14:28:52.580+0800 [DEBUG] agent.tlsutil: OutgoingRPCWrapper: version=1
    2020-04-01T14:28:52.580+0800 [INFO]  agent.server.raft: initial configuration: index=1 servers="[{Suffrage:Voter ID:f6272369-098a-1412-ed86-6e2076c1e5e4 Address:127.0.0.1:8300}]"
    2020-04-01T14:28:52.580+0800 [INFO]  agent.server.raft: entering follower state: follower="Node at 127.0.0.1:8300 [Follower]" leader=
    2020-04-01T14:28:52.581+0800 [INFO]  agent.server.serf.wan: serf: EventMemberJoin: server1.dc1 127.0.0.1
    2020-04-01T14:28:52.581+0800 [INFO]  agent.server.serf.lan: serf: EventMemberJoin: server1 127.0.0.1
    2020-04-01T14:28:52.581+0800 [INFO]  agent.server: Adding LAN server: server="server1 (Addr: tcp/127.0.0.1:8300) (DC: dc1)"
    2020-04-01T14:28:52.581+0800 [INFO]  agent.server: Handled event for server in area: event=member-join server=server1.dc1 area=wan
    2020-04-01T14:28:52.581+0800 [INFO]  agent: Started DNS server: address=127.0.0.1:8600 network=tcp
    2020-04-01T14:28:52.582+0800 [INFO]  agent: Started DNS server: address=127.0.0.1:8600 network=udp
    2020-04-01T14:28:52.582+0800 [INFO]  agent: Started HTTP server: address=127.0.0.1:8500 network=tcp
    2020-04-01T14:28:52.582+0800 [INFO]  agent: Started gRPC server: address=127.0.0.1:8502 network=tcp
    2020-04-01T14:28:52.582+0800 [INFO]  agent: started state syncer
==> Consul agent running!

啟動Client Agent

$ consul agent   --data-dir=/tmp/consul_client --join=127.0.0.1:8301 --serf-lan-port=8303 --serf-wan-port=8305  --dns-port=8601 --server-port=8304   --http-port=8503  --server=false   --config-dir=./consul.d  --enable-script-checks   --node=client1

上面有一個--join表示加入到集群中，寫server agent的地址就行，
config-dir的配置目錄下面一個服務的配置

{
    "service":{
        "name":"web",
        "tags":[
            "local"
        ],
        "port":80,
        "check":{
            "name":"ping",
            "args":["/usr/bin/curl","-s", "http://localhost/"],
            "interval":"10s"
        }
    }
}

上面的命令運行后，會啟動一個名字為“web"的服務，并提供健康檢查，

==> Starting Consul agent...
           Version: 'v1.7.2'
           Node ID: 'e1c8f283-f5c4-27e7-c29c-64666df1c52b'
         Node name: 'client1'
        Datacenter: 'dc1' (Segment: '')
            Server: false (Bootstrap: false)
       Client Addr: [127.0.0.1] (HTTP: 8503, HTTPS: -1, gRPC: -1, DNS: 8601)
      Cluster Addr: 192.168.0.103 (LAN: 8303, WAN: 8305)
           Encrypt: Gossip: false, TLS-Outgoing: false, TLS-Incoming: false, Auto-Encrypt-TLS: false

==> Log data will now stream in as it occurs:

    2020-04-01T00:00:49.227+0800 [INFO]  agent.client.serf.lan: serf: EventMemberJoin: client1 192.168.0.103
    2020-04-01T00:00:49.231+0800 [INFO]  agent: Started DNS server: address=127.0.0.1:8601 network=udp
    2020-04-01T00:00:49.232+0800 [INFO]  agent: Started DNS server: address=127.0.0.1:8601 network=tcp
    2020-04-01T00:00:49.232+0800 [INFO]  agent: Started HTTP server: address=127.0.0.1:8503 network=tcp
==> Joining cluster...
    2020-04-01T00:00:49.232+0800 [INFO]  agent: (LAN) joining: lan_addresses=[127.0.0.1:8301]
    2020-04-01T00:00:49.233+0800 [WARN]  agent.client.memberlist.lan: memberlist: Refuting a dead message (from: client1)
    2020-04-01T00:00:49.233+0800 [INFO]  agent.client.serf.lan: serf: EventMemberJoin: server1 127.0.0.1
    2020-04-01T00:00:49.233+0800 [INFO]  agent.client: adding server: server="server1 (Addr: tcp/127.0.0.1:8300) (DC: dc1)"
    2020-04-01T00:00:49.233+0800 [INFO]  agent: (LAN) joined: number_of_nodes=1
    2020-04-01T00:00:49.233+0800 [INFO]  agent: Join completed. Initial agents synced with: agent_count=1
    2020-04-01T00:00:49.233+0800 [INFO]  agent: started state syncer
==> Consul agent running!
    2020-04-01T00:00:49.235+0800 [INFO]  agent: Synced node info
    2020-04-01T00:00:49.235+0800 [INFO]  agent: Synced service: service=web
    2020-04-01T00:00:53.316+0800 [INFO]  agent: Synced check: check=service:web

查看下，啟動的Agent

$ ./consul members
Node     Address         Status  Type    Build  Protocol  DC   Segment
server1  127.0.0.1:8301  alive   server  1.7.2  2         dc1  <all>
client1  127.0.0.1:8303  alive   client  1.7.2  2         dc1  <default>

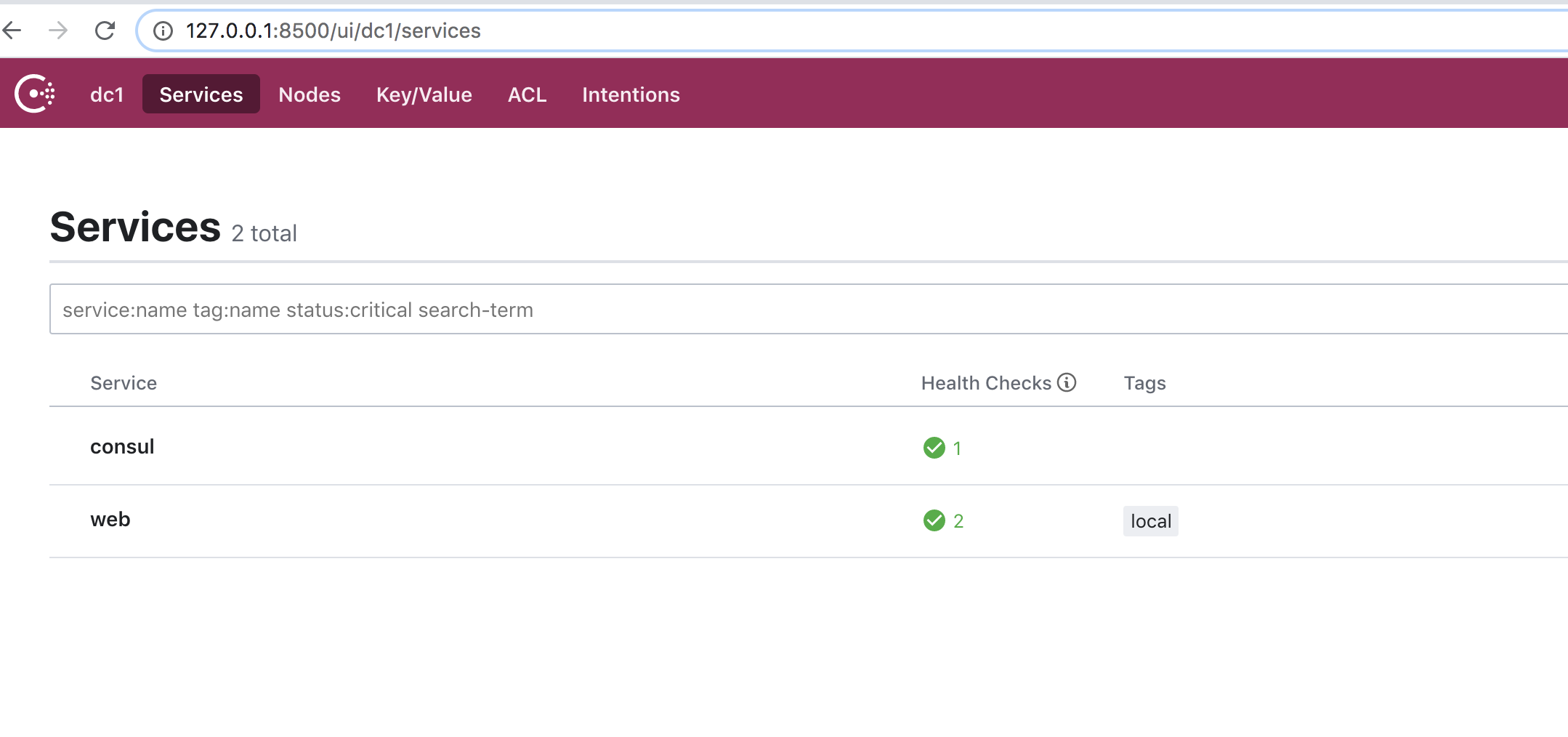

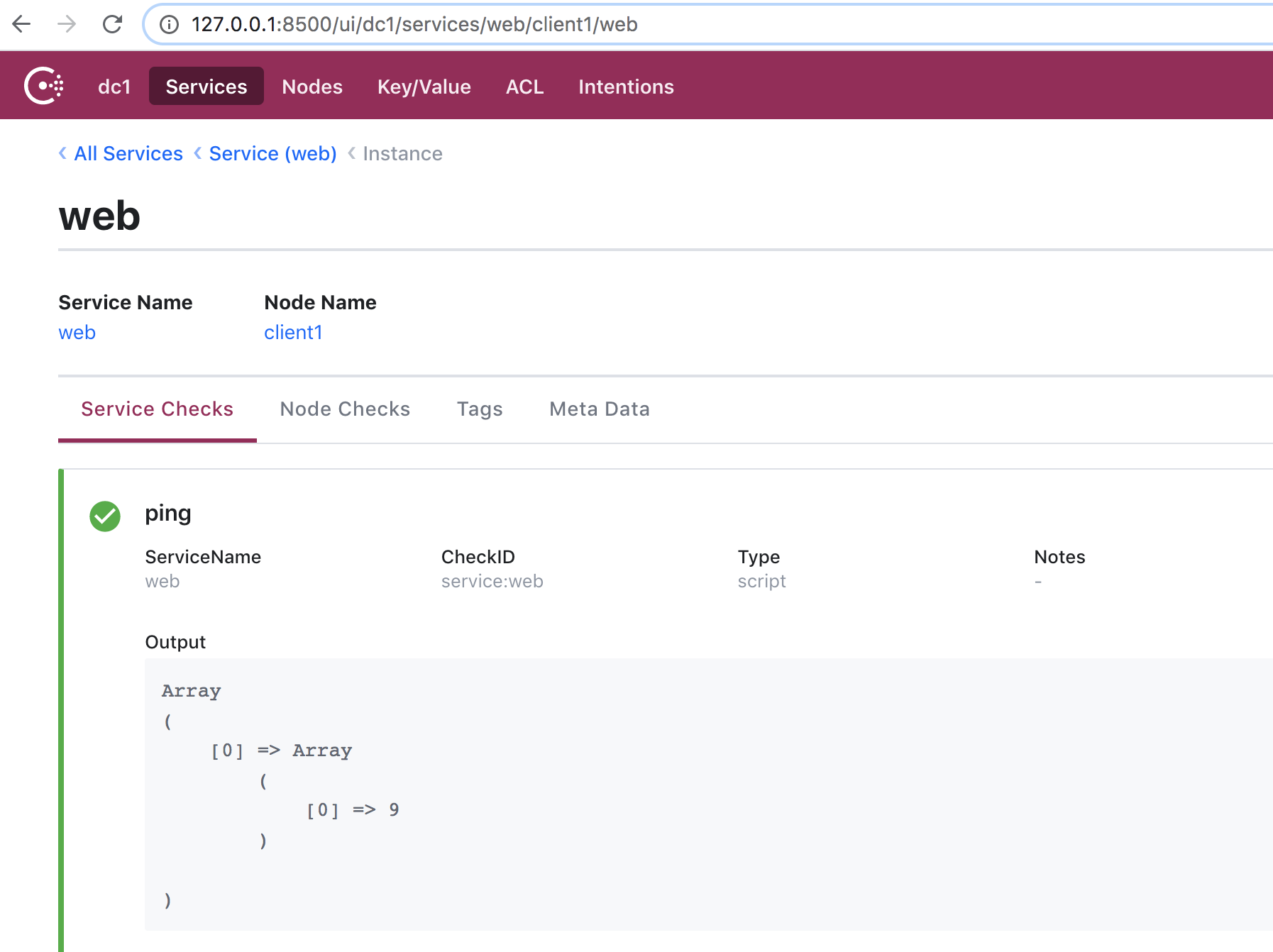

web管理界面

可以查看服務的定義和節點，訪問[web管理界面](http://127.0.0.1:8500/ui

HTTP API

consul除了提供DNS外，還提供Http的操作，如注冊服務、查看節點、查看服務資訊等，一般都是通過API來操作的，

如我上面定義的 "web"服務，通過下面的API查詢，就能得到具體的IP地址和埠，這樣就能直接連到那臺服務了，

其它更詳情API操作，可以自已去參照官方的檔案 API

$ curl http://127.0.0.1:8500/v1/catalog/service/web
[
    {
        "ID": "e1c8f283-f5c4-27e7-c29c-64666df1c52b",
        "Node": "client1",
        "Address": "127.0.0.1",
        "Datacenter": "dc1",
        "TaggedAddresses": {
            "lan": "127.0.0.1",
            "lan_ipv4": "127.0.0.1",
            "wan": "127.0.0.1",
            "wan_ipv4": "127.0.0.1"
        },
        "NodeMeta": {
            "consul-network-segment": ""
        },
        "ServiceKind": "",
        "ServiceID": "web",
        "ServiceName": "web",
        "ServiceTags": [
            "local"
        ],
        "ServiceAddress": "",
        "ServiceWeights": {
            "Passing": 1,
            "Warning": 1
        },
        "ServiceMeta": {},
        "ServicePort": 80,
        "ServiceEnableTagOverride": false,
        "ServiceProxy": {
            "MeshGateway": {},
            "Expose": {}
        },
        "ServiceConnect": {},
        "CreateIndex": 15,
        "ModifyIndex": 15
    }
]
